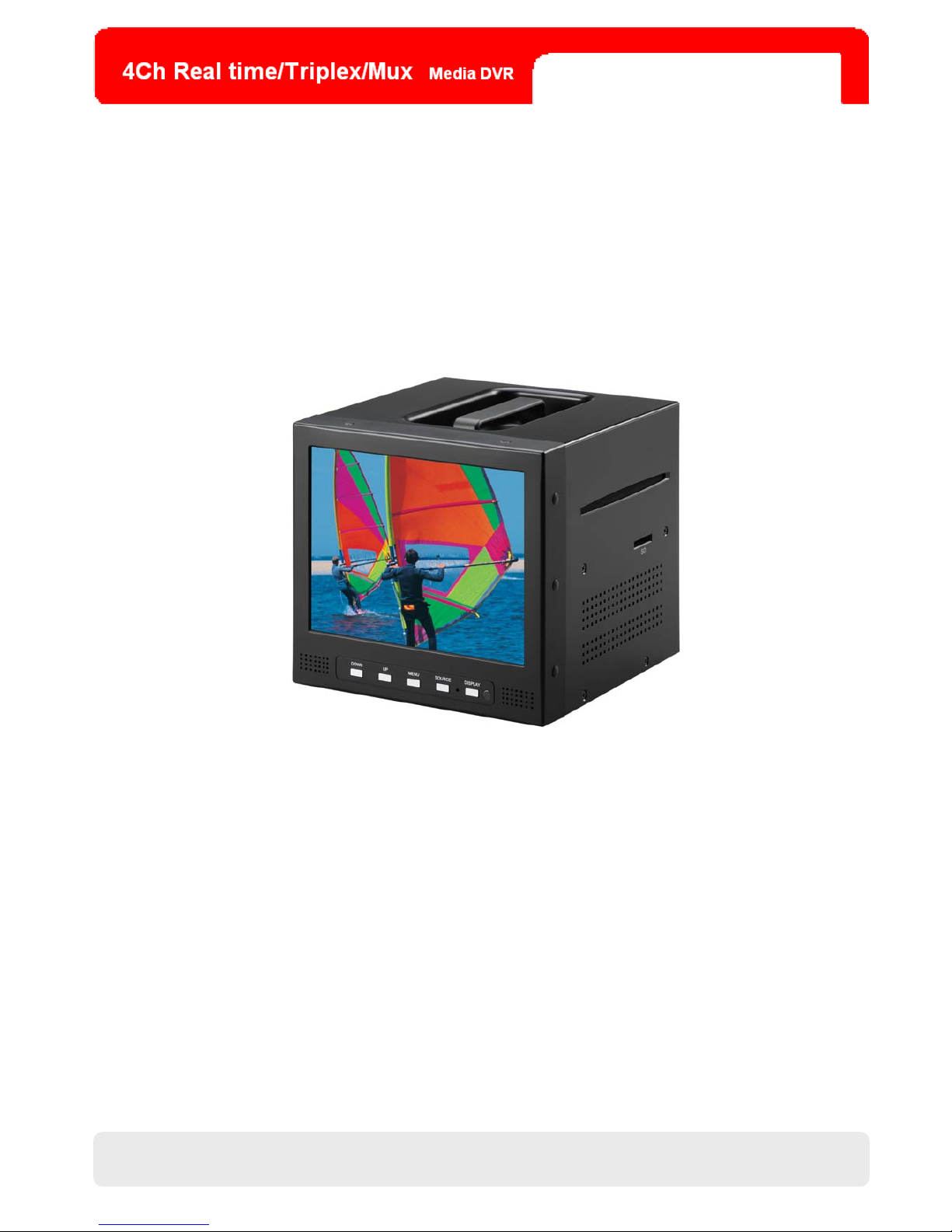

TAIWAN VIDEO SYSTEM LR804 User manual

1
User Manual
8”TFT/4CH MJPEG Media DVR
LR804
4ch Media LCD DVR
User Manual
1

2
Revision
Revision Update Modified Content Editor
V0.90 2007/07/19 Draft Roland
V1.00 2007/08/24 Primary Release Roland
2

3
Installation & Safeguards
INSTALLATION & SAFEGUARDS
1. All the safety and operating instructions should be read before the DVR is operated.
2. Keep and follow all instructions.
3. Heed all warnings.
4. Clean only with dry cloth.
5. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
6. Unplug this apparatus during lightning storms or when it is unused for long periods of time.
Environment Condition for Installation
1. To prevent electric shock or other hazards, do not expose the DVR to rain, moisture, or dust.
2. Place this DVR in a well-ventilated place and do not place heat-generating objects on it.
3. This unit should not be located in an area where it is likely to be subjected to mechanical shocks.
Before You Start
1. Ensure the power switch is off before starting to operate the DVR.
2. Do not attempt to open or remove the cabinet. That may expose you to dangerous voltage or other hazards.
3. Installation ought to be performed by qualified service specialists.
4. The power resource for the DVR must accord with the manufacturer’s instruction label on the power supply. And please use the
power supply included with the unit to energize the DVR.
Notice
1. In initial operation, you must set TIME/DATE SETUP to have a correct recording time/date.
2. Format the HDD (MAIN MENU→CONFIGURATION→TIME/DATE) after connecting it with the DVR. If you don’t follow the procedure,
this will cause the DVR not to record images or save setting values. Additionally, even if there are recorded images inside, you are
unable to search them.
3. To have sufficient DVR memory, you are recommended to use a large-capacity HDD.
4. You must set RECORD and SCHEDULE SETUP both in the menu of RECORD (MAIN MENU→RECORD→SCHEDULE SETUP) to
enable the DVR to record the way you need. The recording type default is continuous mode.
3

Installation & Safeguards
4
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WA R N I N G
WARNIN G : To reduce the risk of electric shock, do not remove the front or back covers. No
user-serviceable parts inside. Refer servicing to qualified service personnel only.
The lightning flash with arrow-head within a
triangle is intended to inform the user that
p
arts inside the product are a risk of electric
shock.
The exclamation point within a triangle is
intended to tell the user that important
operating and servicing instructions are
explained.
4

Table of Contents
CHAP.1 FEATURES & PACKAGE CONTENTS ......................................... 8
1-1. FEATURES ......................................................................................................................................................8
1-2. PACKAGE CONTENTS ....................................................................................................................................9
CHAP.2 OUTLOOK......................................................................................... 10
2-1. FRONT ..........................................................................................................................................................10
2-2. REAR ............................................................................................................................................................ 11
CHAP.3 INSTALLATION ............................................................................... 13

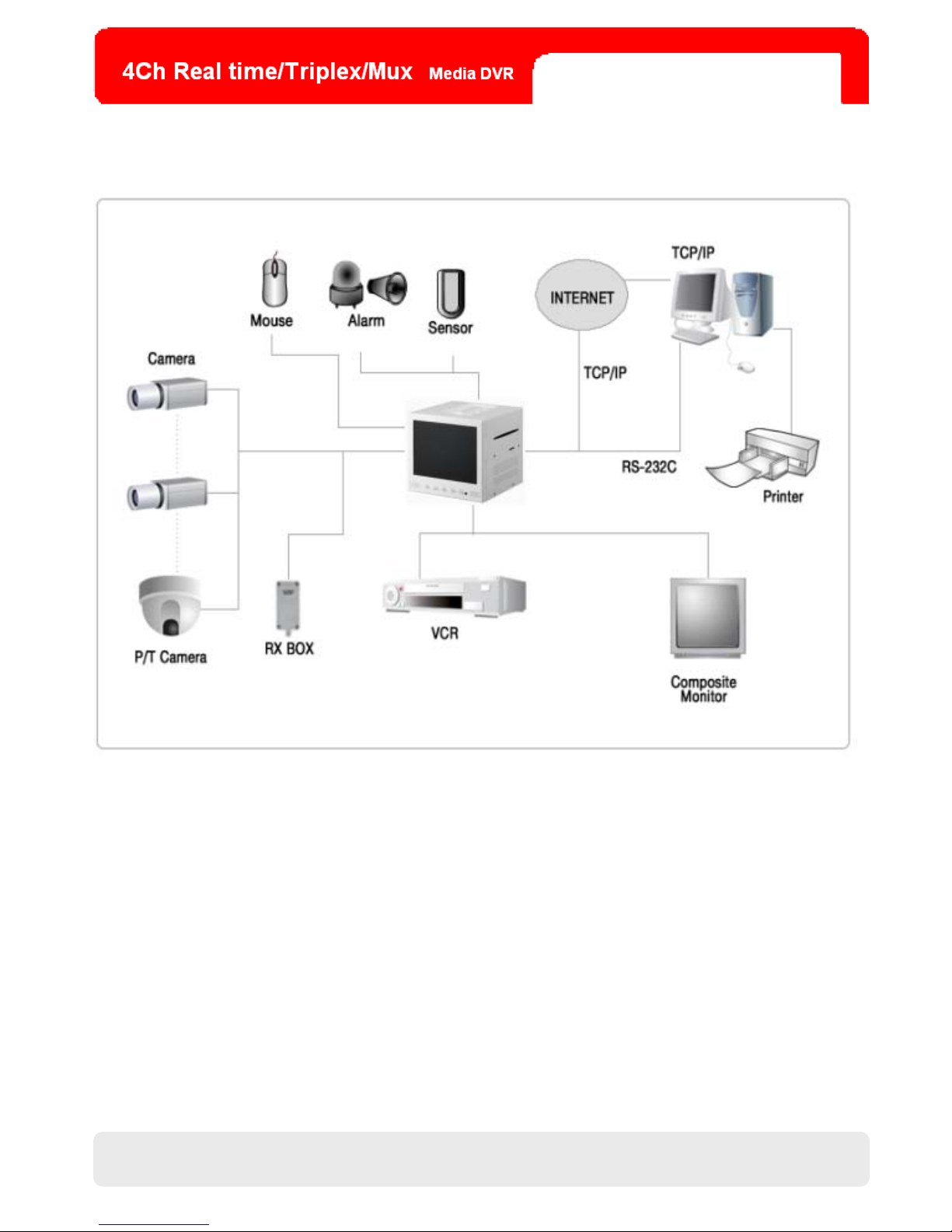

3-1. INSTALLATION CONFIGURATION................................................................................................................13
3-2. DETAILED INSTALLATION ...........................................................................................................................14
1. HDD .................................................................................................................................................................14
2. CAMERA .........................................................................................................................................................14
3. MONITOR / SPOT ...........................................................................................................................................15
4. POWER............................................................................................................................................................15
5. OTHER EXTERNAL DEVICES.......................................................................................................................16
CHAP.4 DVR OPERATION............................................................................ 17
4-1. MOUSE CONTROL .......................................................................................................................................17
4-2. DVR LOG-IN (OPEN MAIN MENU) ............................................................................................................17
4-3. FORMAT THE HDD .....................................................................................................................................18
4-4. TIME/DATE SETTING...................................................................................................................................18
4-5. LIVE RECORDING MODE ............................................................................................................................19
1. PLAYBACK......................................................................................................................................................19
2. SEARCH ..........................................................................................................................................................20
3. SEQUENCE......................................................................................................................................................21
4. ZOOM IN .........................................................................................................................................................21
5. PIP (PICTURE IN PICTURE).................................................................................................................................21
6. PTZ (PAN/ TILT/ ZOOM) ................................................................................................................................21
7. SCHEDULE RECORD .....................................................................................................................................22
8. FULL / 4-SPLIT SCREEN ................................................................................................................................22
4-6. MAIN MENU.................................................................................................................................................23
1. DISPLAY SETUP..............................................................................................................................................23
(1) SCREEN DISPLAY.........................................................................................................................................23
(2) OSD SETUP ....................................................................................................................................................23
5
5

6
Table of Contents
2. RECORD...........................................................................................................................................................24
(1) RECORD SETUP............................................................................................................................................24
(2) SCHEDULE SETUP .......................................................................................................................................24
(2) SCHEDULE SETUP .......................................................................................................................................25
3. CONFIGURATION ..........................................................................................................................................26
(1) HDD MANAGEMENT....................................................................................................................................26
(2) CAMERA SETUP ...........................................................................................................................................27
(3) MOTION SETUP............................................................................................................................................27
(4) ALARM SETUP ..............................................................................................................................................28
(5) INTERVAL SETUP .........................................................................................................................................28
(6) TIME/DATE SETUP .......................................................................................................................................29
(7) PASSWORD SETUP .......................................................................................................................................29
(8) BUZZER SETUP.............................................................................................................................................29
4. EXTERNAL DEVICE.......................................................................................................................................30
(1) TCP/IP SETUP................................................................................................................................................30
(2). PAN/TILT SETUP ..........................................................................................................................................31
(3) SPOT SETUP ..................................................................................................................................................31
5. BACK-UP .........................................................................................................................................................32
6. FIRMWARE UPGRADE ..................................................................................................................................32
7. LANGUAGE.....................................................................................................................................................32
CHAP.5 NETWORK SETUP .......................................................................... 33
5-1 DVR NETWORK CONFIGURATION..............................................................................................................33
5-2 STATIC IP ......................................................................................................................................................34
5-3 DYNAMIC IP .................................................................................................................................................35
5-4 DYNAMIC IP OF PPPOE (DSL) ...................................................................................................................36
CHAP.6 DVR PROGRAM SETUP................................................................. 37
6-1. REGISTERING DVR FOR DDNS (DDNS WEB-SERVER) ...........................................................................37
6-2. DDNS SETUP IN DVR .................................................................................................................................39
6-3. DVR WEB VIEWER (VIA IE).......................................................................................................................42
6-4. DVR BACKUP PLAYER (VIA IE) .................................................................................................................44
6-5. WEB NETWORK BACKUP (VIA IE)..............................................................................................................46
6-6. DVR REMOTE VIEWER ..............................................................................................................................49
1. MAIN INTERFACE ...............................................................................................................................................49
2. IP/PORT SETTING .............................................................................................................................................50
3. DDNS SETTING .................................................................................................................................................51
6

7
Table of Contents
4. PTZ/SAVE SETTING..........................................................................................................................................52
5. PLAYBACK INTERFACE THROUGH THE DVR REMOTE VIEWER............................................................................53
6-7. BACKUP CD PLAYER...................................................................................................................................55
CHAP.7 MEDIA PLAYER ( ※ THIS CHAPTER IS FOR LR-804J02 ONLY) .............. 57
7-1. REMOTE CONTROLLER ..............................................................................................................................57
■FUNCTION OVERVIEW OF BUTTONS..............................................................................................................58
7-2. SUPPORTED MEDIA TYPE/ PLAYBACK FORMATS .....................................................................................58
7-3. INTRODUCTION OF ON-SCREEN DISPLAYS ................................................................................................59
7-4. SETUP MENU................................................................................................................................................61
APPENDIX ......................................................................................................... 63
Ⅰ. SPECIFICATION ................................................................................................................................................63
Ⅱ. LIST OF ALL SUPPORTED HDDS....................................................................................................................65
Ⅲ. DIMENSIONS ..................................................................................................................................................65
Ⅳ. TABLE OF HDD RECORDING TIME (FOR A 250 GB HDD) ........................................................................66
Ⅴ. MENU PARAMETERS TABLE ..........................................................................................................................68
7

8
CHAP.1
Features & Package Contents
CHAP.1 Features & Package Contents
1-1. Features
░Live Display
●Real-time display for 4 cameras
●Auto sequence
●PIP (picture in picture)
●Digital zoom of display
●Simple playback modes
●Easy PTZ camera control
░Record
●Variable record resolution (For higher picture quality or recording speed)
●Efficient image quality setup of 5 levels
●Schedule recording
●Event recording for alarms and motion detection
░Network
●To monitors or searches using the remote viewer via the network
░Playback
●To search and replay by the percent, date/time, or events of the recorded video data
●Multiple forward playback speeds (X 2,4,8,16,32 fast playback; X 1/16,1/8,1/4,1/2 slow playback)
●Multiple backward playback speeds (X 2,4,8,16,32 fast playback; X 1/16,1/8,1/4,1/2 slow playback)
░Data Backup
●Simple backup using an USB mass-storage device
●Remote viewer backup in the format of AVI or JPEG
●Supports a high-capacity HDD.
░Media Playing
●Supports music playing (MP3), photo playing, and movie playing
●Supports SD cards for flash media files.
(※ For LR-804J02 only)
░Others
●Supports SPOT monitor.
●PAL/NTSC auto detection
8

9
CHAP.1
Features & Package Contents
1-2. Package Contents
2. Power Cable
1. Main Unit 3. Power Adapter 4. Quick Guide
No. Package Contents Description
1 DVR Main Unit Stand-alone Digital Video Recorder with Media Player
2 Power Cable AC Power Supply to Adapter for DC 12V Power
3 Power Adapter DC 12V Power Supply
4 Quick Guide (Manual) Instructs users how to operate the Media DVR.
5 Software CD Contains: (1) manuals (English/Chinese) (2) quick guide (English) (3) software tools (4)
README.
6 Mouse Controls all functions of the Media DVR.
7 Remote Controller IR Remote Controller for Media Player
8 Screws (X4) Fix an HDD to the HDD drawer.
9 Audio Cable Connects left and speakers.
10 BNC Adapter BNC-to-RCA Video Adapter
5. Software CD 6. Mouse 7 Remote Controller 8. Screws (X 4)
9. Audio Cable 10. BNC Adapter
( ※ Item 9 and 10 are for LR-804J02 only.)
9

10
CHAP.2 Outlook
CHAP.2 Outlook
2-1. Front
2
1
2
5 4 3
No. Items Function
1 8” LCD Display Displays images.
2 Speakers Gives sounds.
3 Receiver (IR Port) Receives IR signals out of the remote controller.
4 Power LED Gives red light when the power is on.
5 Control Buttons Control the OSD menu of the LCD.
DISPLAY LCD Power Switch (On / Off)
SOURCE Video Source Switch (DVR / MEDIA)
MENU Open OSD menu for LCD adjustment.
UP Move up. / Increase values or volume.
DOWN Move down. / Decrease values or volume.
10

11
CHAP.2 Outlook
2-2. Rear
12 10
2
13 8
4 3
5
16
15
14
911 7 6
1
No. Items Function
1 Power Switch Media DVR Power Switch (On/Off)
2 MONITOR Connects a monitor (NTSC / PAL).
3 MOUSE Connects a USB mouse.
4 HOST (1) For Backup of DVR Video Images
(2) For DVR Firmware Upgrade
5 MEDIA AUDIO OUT Connects a monitor for the Media Player.
6 DC 12 V Connects a DC 12 V / 5A power supply.
7 PS/2 Connects a PS/2 mouse.
8 SPOT Connects a SPOT monitor.
9 CH 1~4 Connect cameras.
10 HDD Drawer For HDD Combination
(※(1) The jumper must be master. (2)The HDD is expandable to 500 GB.)
11 ETHERNET Connects the Ethernet.
12 MEDIA VEDIO OUT Connects a monitor for the Media Player.
13 FUNCTION Function Port for External Devices
1~2 For External Devices (eg. Speed Domes)
3~5 For Sirens (Relay Output)
14 Function Port Note
6~10 For Inputs of 4 Alarms
15 Fan Moderates the Media DVR’s temperature.
16 RS-232C Allows engineers to debug the DVR’s firmware.
( ※ Item 5 and 12 are for LR-804J02 only.)
11

12
CHAP.2 Outlook
2-3. Side
1
2
No. Items Function
1 DVD Driver For Media Player Only (CD / VCD / DVD)
2 SD Slot For Media Player Only (SD Card / MMC Card)
( ※ Item 1 and 2 are for LR-804J02 only.)
12

13
CHAP.3 Installation
CHAP.3 Installation
3-1. Installation Configuration
13

14
CHAP.3 Installation
3-2. Detailed Installation
1. HDD
1. Connect the main board with an HDD by an IDE cable plus an HDD power wire.
2. To install the HDD, the jumper setting must be master.
3. Combine the HDD with the HDD drawer by using the 4 screws.
4. Fix the HDD drawer back to the main unit. Panel
DVD Player
(
※ For LR-804J02 only.)
CF Card Reader
( ※ For LR-804J02 only.)
DVR Main Board
Hard Disk
※NOTE :
1. Please refer to the list of all supported HDDs in the appendix (on the page 65) for information of HDDs compatible with this
DVR.
2. To know the maximal recording time for various HDDs, please use the table of HDD recording time (on the pages 66 and 67) as
reference.
3. The screws for the HDD are attached in the package.
2. CAMERA
VIDEO
LENS
VIDEO
DC
AC24V/DC12
V.P
DC
LEVEL
Rear view of CAMERA
Rear View of A Camera
Connect a camera to a video input (CH1~4) on the rear panel of the DVR.
14

15
CHAP.3 Installation
3. MONITOR (LOOP) / SPOT
VIDEO A
IN OUT
VIDEO C
IN OUT
VIDEO B
IN OUT
Rear View of A Monitor
Connect the MINOTOR (LOOP) or SPOT video output of the DVR with a video input of a main monitor.
※NOTE :
1. A monitor combined with the video output jack MONITOR displays the identical images to the DVR’s.
2. A monitor combined with the video output jack SPOT sequentially displays the images of each connected channel.
4. POWER
Connect the DC plug of the power adapter into the DC input jack of the DVR.
Power Supply
15

16
CHAP.3 Installation
5. OTHER EXTERNAL DEVICES
(1) FUNCTION PORT:
■RS 485 D -/+ (Function Pin 1,2): Control external devices such as PTZ cameras.
■RELAY COM /NC/NO (Function Pin 3~5): Relay output for devices such as sirens.
■ALARM GROUND (Function Pin 6): Connects the ground wires of the connected alarm sensors.
■ALARM D1~4 (Function Pin 7~10): Connect alarm sensors.
※NOTE :
1. The DVR affords multiple sirens.
2. The DVR affords up to 4 PTZ cameras.
(2) ETHERNET JACK:
For LAN or WAN connection.
(3) MEDIA (VIDEO / AUDIO) OUTPUTS:
1. For an external display device.
2. For 2 external loudspeakers.
(4) RS-232C PORT:
For engineers to debug the DVR’s firmware.
External Speakers
(3) External Display Device
(4) (1) (2)
Camera
PTZ
Computer
Alarm Sensors
Siren
( ※ For LR-804J02 only.)
16

17
CHAP.4 DVR Operation
CHAP.4 DVR Operation
4-1. Mouse Control
※NOTE :
1. Some of the items displayed in setting menus are merely listed as indication, which users are unable to select or adjust by the cursor.
2. The background color of a selectable or adjustable item will turn white when a user moves the cursor onto it. A user can interact with
it using the buttons or the wheel of a mouse.
4-2. DVR Log-in (Open Main Menu)
(1) Move the cursor to the lower right corner on the display.
Then, click to log into MAIN MENU. ( →DVR LOG-IN
→MAIN MENU)(2) The message of “DVR LOG-IN” shows as the
right figure. Log in as an administrator (ADMIN), and input the
password (PW) composed of up to 8 digits.
No. Mouse Control Functions
1 Left Button (1) Executes. (2) Confirms. (3) Enters. (4) Increases setting values.
2 Right Button (1) Cancels. (2) Recovers. (3) Decreases setting values.
3 Wheel
(1) Increases/Decreases setting values.
(2) Speeds up/down playback.
(3) Zooms in/out in a PTZ mode.
DVR LOG-IN
USERID ADMIN
USERPW --------
ENTER EXIT
0123456789
(3) To exit, click EXIT.
(※As for MAIN MENU, refer to the page 23.)
※NOTE :
1. The USER ID is unchangeable and fixed as an administrator (ADMIN).
2. The password default is none. When logging in for the first time, please straightly click ENTER.
3. If the inputted password matches the one you already set, you will be allowed to enter the MAIN MENU. Contrarily, if an incorrect
password is inputted, a message of “PW IS NOT CORRECT” will show on the display.
17

18
4-3. Format The HDD
When an HDD is combined with the DVR, you must format it initially. You can format this HDD in HDD MANAGEMENT (MAIN
MENU →CONFIGURATION →HDD MANAGEMENT). In this menu, click the FORMAT, and the HDD will be formatted just in seconds.
Then, it is enabled to record images.
4-4. Time/Date Setting
If the DVR is operated for the first time, please set the time and date in TIME/DATE SETUP (MAIN MENU →CONFIGURATION →
TIME/DATE SETUP) to accord with the time zone of your location.
HDD MANAGEMENT
CAMERA SETUP
MOTION SETUP
ALARM SETUP
INTERVAL SETUP
TIME/DATE SETUP
PASSWORD SETUP
BUZZER SETUP
ESC
MODEL
SERIAL
BLOCKS
SIZE
SPEED
OVERWRITE
FORMAT ESC
CHAP.4 DVR Operation
DATE
TIME
DATE FORMAT
HOUR FORMAT
MONTH FORMAT
DEFAULT ESC
CONFIGURATION
HDD MANAGEMENT
TIME/DATE SETUP
CONFIGURATION
HDD MANAGEMENT
CAMERA SETUP
MOTION SETUP
ALARM SETUP
INTERVAL SETUP
TIME/DATE SETUP
PASSWORD SETUP
BUZZER SETUP
ESC
18

19
4-5. Live Recording Mode
Live Recording Toolbar:
1) PLAYBACK
2) SEARCH
3)SEQUENCE
4)ZOOM
5)PIP
6)PTZ
MAIN MENU
(※To log onto MAIN MENU, refer
to page 17. The details of MAIN
MENU are depicted from the page
23.)
PTZ
1. PLAYBACK
Click to enter the playback mode shown as belown.
ETHERNET Status:
Connected
Disconnected
7) SCHEDULE RECORD
Alarm Recording
Motion Recording
Continuous Recording
Li
Rdi
Md
HDD Status (Playback Mode):
Amount of Displayed Data
PlaybackToolbar:
Separated Forward Playback x 1/4~1/2 Time
Backward Playback
Pauses
Forward Playback
Separated Backward Playback x 1/4~1/2 Time
Speed Up Playback x 2, 4, 8, 16, 32 Times
Speed Down Playback x 1/16, 1/8, 1/4, 1/2 Times
(※Rolling the wheel also speed up/down playback)
. SEARCH
.Exit
Current Time/Date Camera Title
8) FULL /4-SPLIT SCREEN
Overwriting Status:
Overwriting the HDD switched on
(※Please refer to the page 26.)
ETHERNET Status:
Recording
Not Recording
(※Please refer to the page 22.)
HDD Status (Recording Mode):
Amount of Recorded Data
CHAP.4 DVR Operation
Pla
y
back
19

20
CHAP.4 DVR Operation
2. SEARCH
There are 3 approaches for a user to search for the recorded images via SEARCH:
Mode Function
PERCENT SEARCH Searches by the percentage of total recorded images. Click on the search bar or the percent number
and click PLAY, and the DVR will replay from the corresponding recorded image.
TIME/DATE SEARCH Searches by time and date. Target a time point between START and END, from which the recorded
image will be replayed. Then click PLAY.
EVENT SEARCH Searches via the event list that covers all events of motion detection, alarm input, and video loss.
The DVR will replay the targeted event from when it occurred.
※NOTE :
Recorded images in different modes (alarm recording, motion recording, and continuous recording) are successively accumulated in
chronological order.
SEARCH
PERCENT SEARCH
TIME/DATE SEARCH
EVENT SERACH
EXIT
PERCENT SEARCH
START 2006 / JUL / 09 PM 01 : 58 : 56
END 2006 / JUL / 10 PM 11 : 58 : 56
TARGET 2006 / JUL / 09 PM 05 : 58 : 56
PERCENT 020%
PLAY ESC
EVENT SEARCH
TIME/DATE SEARCH
START 2006 / JUL / 09 PM 01 : 58 : 56
END 2006 / JUL / 10 PM 11 : 58 : 56
TARGET 2006 / JUL / 09 PM 05 : 58 : 56
PLAY ESC
DATE/TIME CHANNEL EVENT
----/--/-- --:--:-- - ----
----/--/-- --:--:-- - ----
----/--/-- --:--:-- - ----
PAGE 000/000
ESC
20
