TAIYO YUDEN WYSAAVDX7 User manual

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 1/20
WYSAAVDX7
Wireless LAN Module
WYSAAVDX7
(IEEE802.11b/g/n)
User Manual
In case you adopt this module and design some appliance, please
ask for the latest specifications from the local sales office.
We wish the customer to request the Specification Report when the
design for the mass production begins because the content of this
Data Report might change without a previous notice to the customer.

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 2/20
WYSAAVDX7
Document constituent list
Control name Control No. Document Page
General Items HD-AG-A100174 1/2 - 2/2
Absolute maximum ratings HD-AM-A100174 1/1
Electrical characteristics HD-AE-A100174 1/5 - 5/5

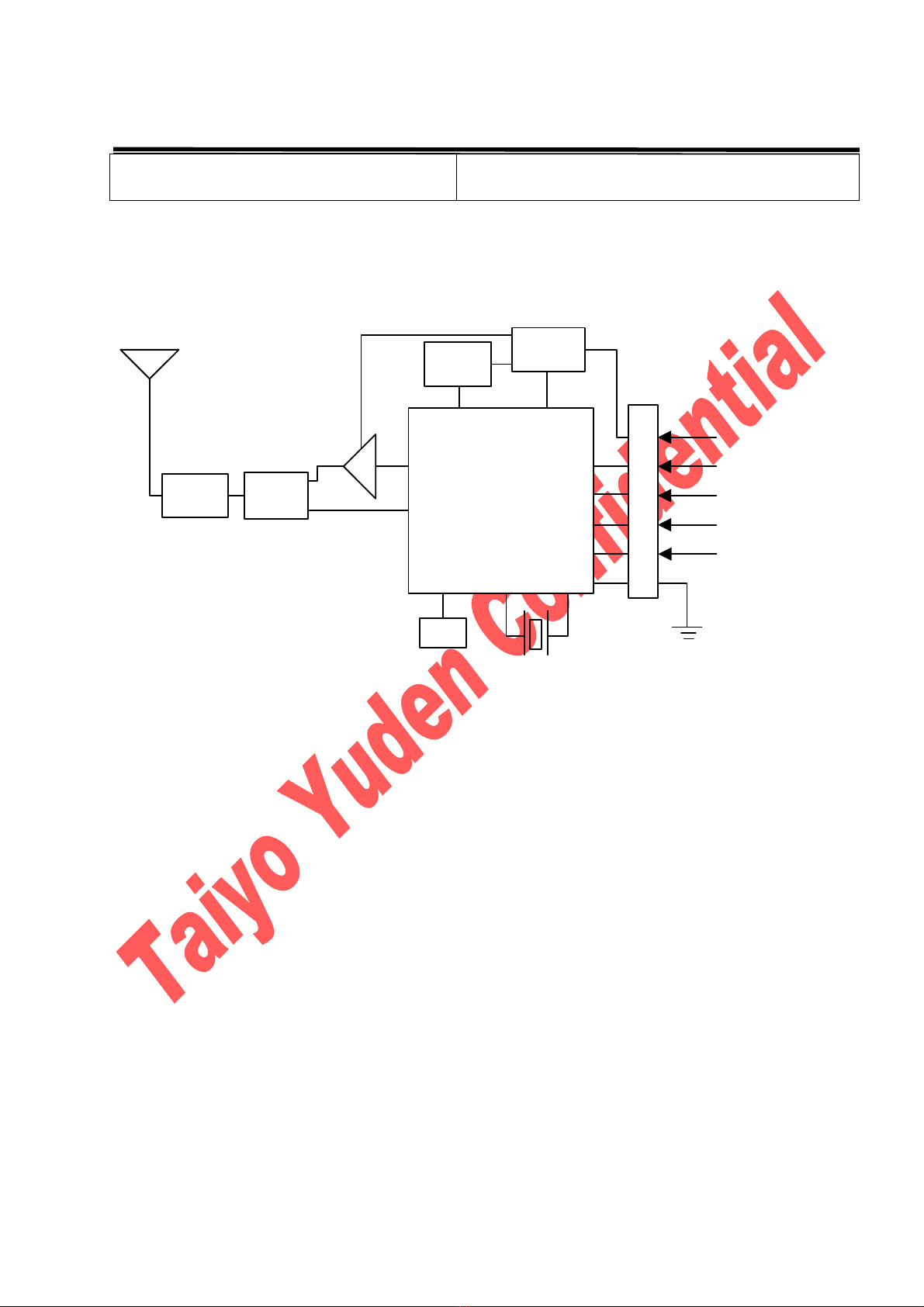

Circuit schematic HD-MC-A100174 1/1

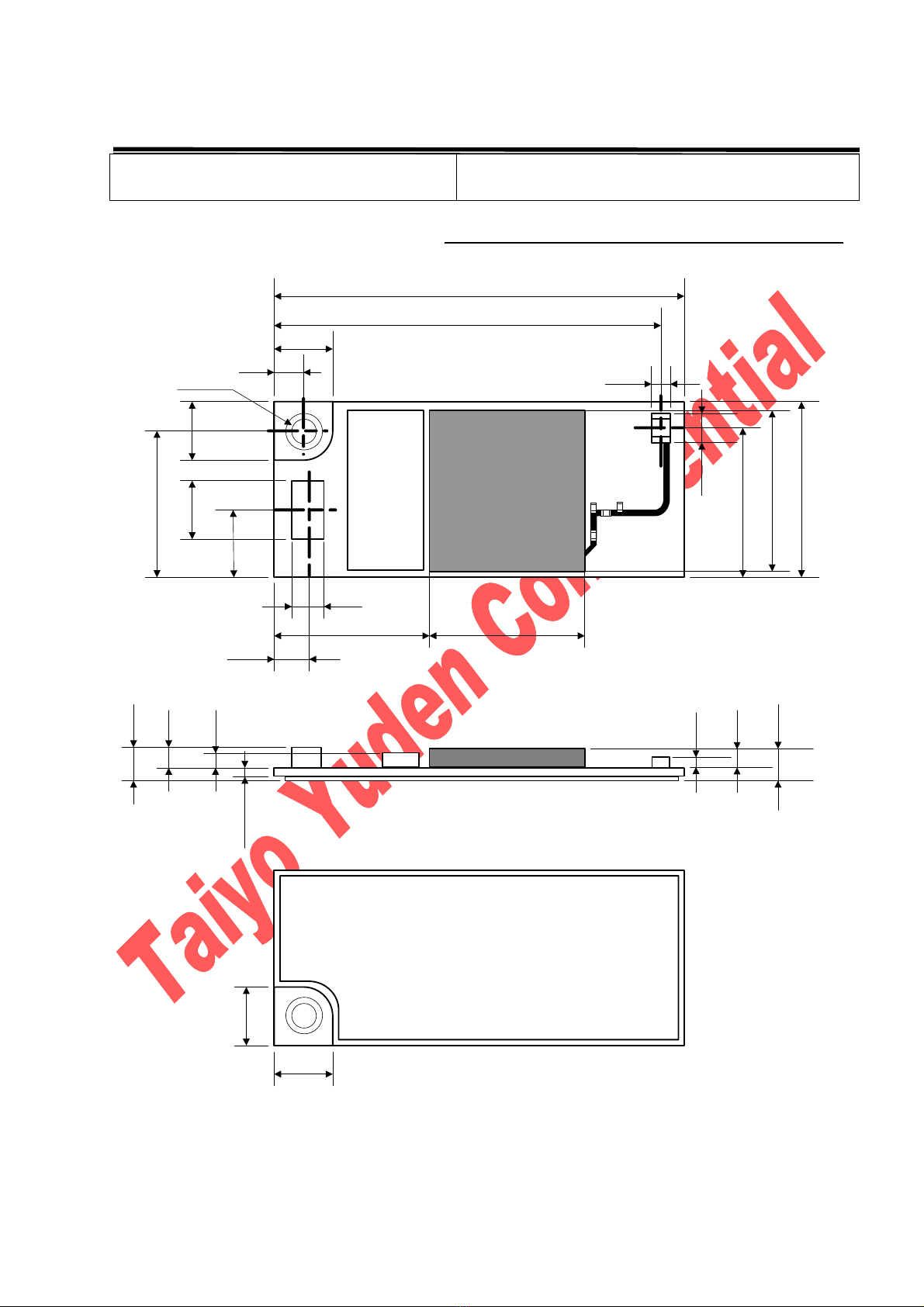

Outline / Appearance HD-AD-A100174 1/1
Pin Layout HD-BA-A100174 1/1
Label Information HD-CA-A100174 1/1
Regulatory Information HD-CB-A100174 1/6 – 6/6
Rev. records
9-Mar.-2011> Ver.0.5
6-May-2011> Ver.0.6

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 3/20
WYSAAVDX7
Control No.
HD-AG-A100174 (1/2) Control name General Items
Scope
This specification (“Specification”) applies to the hybrid IC for use Wireless LAN module (“Product”)
manufacture by TAIYO YUDEN Co., Ltd. (“TAIYO YUDEN”)
1. User Code: WYSAAVDX7
Digit3: Customer Code ex) S: TAIYO YUDEN Standard
Digit8: Software Code ex) X: TAIYO YUDEN Standard
Digit9: Hardware Code ex) 7: TAIYO YUDEN Standard
* User Code may be modified for mass production or other cases.
Please see “k” for more information.
2. Function: Radio frequency transfer Module. (IEEE802.11bgn standard conformity)
3. Application: PC peripheral, Handy terminal
4. Structure: Hybrid IC loaded with silicon monolithic and GaAs semiconductor
Ability of lead free mounting at customer's assembly (Heat resistance of this Product) : Yes
Containment of hazardous substance in this Product
*This product conforms to RoHS Directive (2002/95/EC).
5. Outline: Stacking Connector Type
6. Marking: TBD
7. Features:
-IEEE802.11bgn standard conformity
-Interface: SDIO
-Embedded MPU for reducing loads on host processor
-Built-in EEPROM (MAC address)
8. Security: WEP (64/128), TKIP, AES, WPA, WPA2, WAPI
9. Packing: TBD
10. Terminal: Data input-output (20pin Stacking Connector)
“Panasonic Electric Works Co., Ltd: AXK820145WG”
RF input-output (Antenna)
11. Mount: with M2 screw
12. Notes:
a. Any question arising from this Specification shall be solved through mutual discussion by the parties
hereof.
b. This Product is not designed for radiation durable and should not be used under the circumstance of
radiation.
c. The operating conditions of this Product are as shown in this Specification. Please note that TAIYO
YUDEN shall not be liable for a failure and/or abnormality which is caused by use under the conditions
other than the operating conditions hereof.
d. This Product mentioned in this Specification is manufactured for use in consumer products. Before using
this Product in any special equipment (such as medical equipment, space equipment, air craft, disaster
prevention equipment), where higher safety and reliability are duly required, the applicability and
suitability of this Product must be fully evaluated by the customer at its sole risk to ensure correct and
safety operation of those special equipments. Also, evaluation of the safety function of this Product even
for use in general electronics equipment shall be thoroughly made and when necessary, a protective circuit
shall be added at design stage, all at the customer’s sole risk.

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 4/20
WYSAAVDX7
Control No.
HD-AG-A100174 (2/2) Control name General Items
e. i) You are requested to fully check and confirm by the start of mass production of this Product that (1) no
bug, defect or other failure is included in firmware incorporated in this Product (“Incorporated Software”),
(2) no bug defect or other failure is caused by installation of this Product with Incorporated Software into
customer’s products, and that Incorporated Software fully meets customer’s intended use, although TAIYO
YUDEN sufficiently inspects or verifies quality of Incorporated Software.
ii) Please note that TAIYO YUDEN is not responsible for any failure arising out of bugs or defects in
Incorporated Software.
f. TAIYO YUDEN warrants only that this Product is in conformity with this Specification for one year after
purchase and shall in no event give any other warranty.
g. Communication between this Product and others might not be established nor maintained depending upon
radio environment or operating conditions of this Product and other ISM band at 2.4GHz products.
h. In order to take tests for getting the certification of each country’s Radio Law with a device incorporating
this module, it is necessary to make the software in Host to put the module into test condition. Please
contact TAIYO YUDEN for further details.
i. This Product operates in the unlicensed ISM band at 2.4GHz. In case this Product is used around the other
wireless devices which operate in same frequency band of this Product, there is a possibility that
interference occurs between this Product and such other devices. If such interference occurs, please stop
the operation of other devices or relocate this Product before using this Product or do not use this Product
around the other wireless devices.
j. Please evaluate adequately our module incorporated to your products before mass production.
k. User Code Modification Notice.
User Code for sample modules or part numbers you see in this Specification are TAIYO YUDEN standard
part numbers. When any modification is made to modules to meet requested specifications, the part
number will carry a different part number, due to forfeit originality. Additionally, part numbers may be
modified based on mass production stage or other related stages. Please contact TAIYO YUDEN to
confirm whether your part number needs to be modified.
Please see the following examples for cases that part numbers are modified:
- for specific firmware version (our standard item firmware will be upgraded occasionally)
- for specific MAC address (our standard item MAC address is owned by TAIYO YUDEN )
- for other relevant cases (specific or different setting, form, sizes, or display etc..)
m. In some cases, TAIYO YUDEN may use replacements as component parts of Products. Such replacement
shall apply only to component part of Products, which TAIYO YUDEN deems it possible to replace or
substitute according to (i) Scope provided in this Specification (e.g. Official Standard (Type Approvals
etc.)) and (ii) Quality of Products. TAIYO YUDEN also ensures traceability of such replacement on
production lot basis.
n. Do not alter Hardware and/or Software of this Product.
Please note that TAIYO YUDEN shall not be liable for any problem if it is caused by customer's alteration
of Hardware or/and Software without Taiyo Yuden's prior approvals.
p. Caution for Export Control
This Product may be subject to governmental approvals, consents, licenses, authorizations,
declarations, filings, and registrations for export or re-export of the Product, required by Japanese
Foreign Exchange and Foreign Trade Law(including related laws and regulations) and/or any other
country’s applicable laws or regulations related to export control.
In case you will export or re-export this Product, you are strongly recommended to check and confirm,
before exporting or re-exporting, necessary procedures for export or re-export of this Product which is
required by applicable laws and regulations, and if necessary, you have to obtain necessary and
appropriate approvals or licenses from governmental authority at your own risk and expense.

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 5/20
WYSAAVDX7
Control No.
HD-AM-A100174 (1/1) Control name Absolute maximum ratings
Absolute maximum ratings Rating
Item Symbol
Min. Typ. Max. Unit Remark
Supply voltage 1 VBAT -0.3 6.0 V
Supply voltage 2 VIO - 4.0 V
Storage temperature range Tstg -30 100 Degrees C
Operation temperature range Topr -20 25 55 Degrees C
Recommendation operating range Rating
Item Symbol
Min. Typ. Max. Unit Remark
Supply voltage 1 VBAT 3.5 5.0 5.5 V
Supply voltage 2 VIO 1.62/2.97 1.8/3.3 1.98/3.63 V

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 6/20
WYSAAVDX7
Control No.
HD-AE-A100174 (1/5) Control name Electrical characteristics
DC Specifications
Peak Current / Power consumption
The Specification applies for Topr.= 25 degrees C, Supply voltage=Typical voltage (5.0V).
RF output power = Typ.
No. Parameter Condition Symbol Min. Typ. Max. Unit Remark
1 Peak Current1 VIO Ip1 - 30 mA
2 Peak Current2 VBAT Ip2 - 400 mA
4 Power consumption1 Burst Tx (150Mbps) Pc1 TBD TBD TBD mW Duty 2.4%
5 Power consumption2 Continuous Rx (150Mbps) Pc2 TBD TBD TBD mW
6 Power consumption3 Burst Tx (72.2Mbps) Pc3 TBD TBD TBD mW Duty 4.2%
7 Power consumption4 Continuous Rx (72.2Mbps) Pc4 TBD TBD TBD mW
8 Power consumption5 Burst Tx (54Mbps) Pc5 TBD TBD TBD mW Duty 25.4%
9 Power consumption6 Continuous Rx (54Mbps) Pc6 TBD TBD TBD mW
10 Power consumption7 Burst Tx (11Mbps) Pc7 TBD TBD TBD mW Duty 43.4%
11 Power consumption8 Continuous Rx (11Mbps) Pc8 TBD TBD TBD mW
- TBD - VIO=3.3V
12 Power consumption9
Power save mode
(DTIM=1,
Beacon interval =100ms)
Pc9 - TBD - mW VIO=1.8V
- TBD - VIO=3.3V
13 Power consumption10 Deep Sleep Pc10 - TBD - mW VIO=1.8V
Digital Pad Ratings
No. Parameter Condition Symbol Min. Typ. Max. Unit Remark
1 Input high voltage VIH 0.7xVIO VIO+0.3 V
2 Input low voltage VIL -0.3 0.3xVIO V
3 Output high voltage VOH VIO-0.4 - V
4 Output low voltage VOL - 0.4 V

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 7/20
WYSAAVDX7
Control No.
HD-AE-A100174 (2/5) Control name Electrical characteristics
AC Specifications
Power-on timing / External sleep clock
Parameter Condition Symbol Min Typ Max Unit Remark
1 Valid Power / RESETn / Clock to PDn de-asserted Tpor 300 ms
2 Input SLP_CLK frequency Tf 32.768 KHz
3 Input SLP_CLK high voltage VIH 0.8 1.8 1.98 V
4 Input SLP_CLK low voltage VIL 0.0 0.25 V
5 Input SLP_CLK phase noise requirement PN -125 dBc/Hz @100KHz
6 Input SLP_CLK slew rate limit (10-90%) SR 100 ns
7 Input SLP_CLK duty cycle tolerance DC 20 80 %
<Power-on sequence>
PDn must remain asserted for minimum of Tpor after VBAT, VIO and SLP_CLK are stable.
RESETn must be inactive value (asserted high) when PDn is de-asserted (high level).
Tpor
PDn
VBAT
SLP_CLK
(32.768KHz)
Tf
VIO
External reset(RESETn), power down(PDn)
Parameter Condition Symbol Min Typ Max Unit Remark
1 RESETn pulse width Trpw 1 ms Note1
2 PDn pulse width Tppw 300 ms Notes2, 3
1. RESETn should be asserted while VBAT, VIO and SLP_CLK are stable and PDn is de-asserted (high level).
2. PDn should be asserted while VBAT, VIO and SLP_CLK are stable and RESETn is de-asserted (high level).
3. For lowest current consumption, apply all power rails to WYSAAVDX7 during the assertion of PDn pin.
Trpw
RESETn
Tppw
PDn

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 8/20
WYSAAVDX7
Control No.
HD-AE-A100174 (3/5) Control name Electrical characteristics

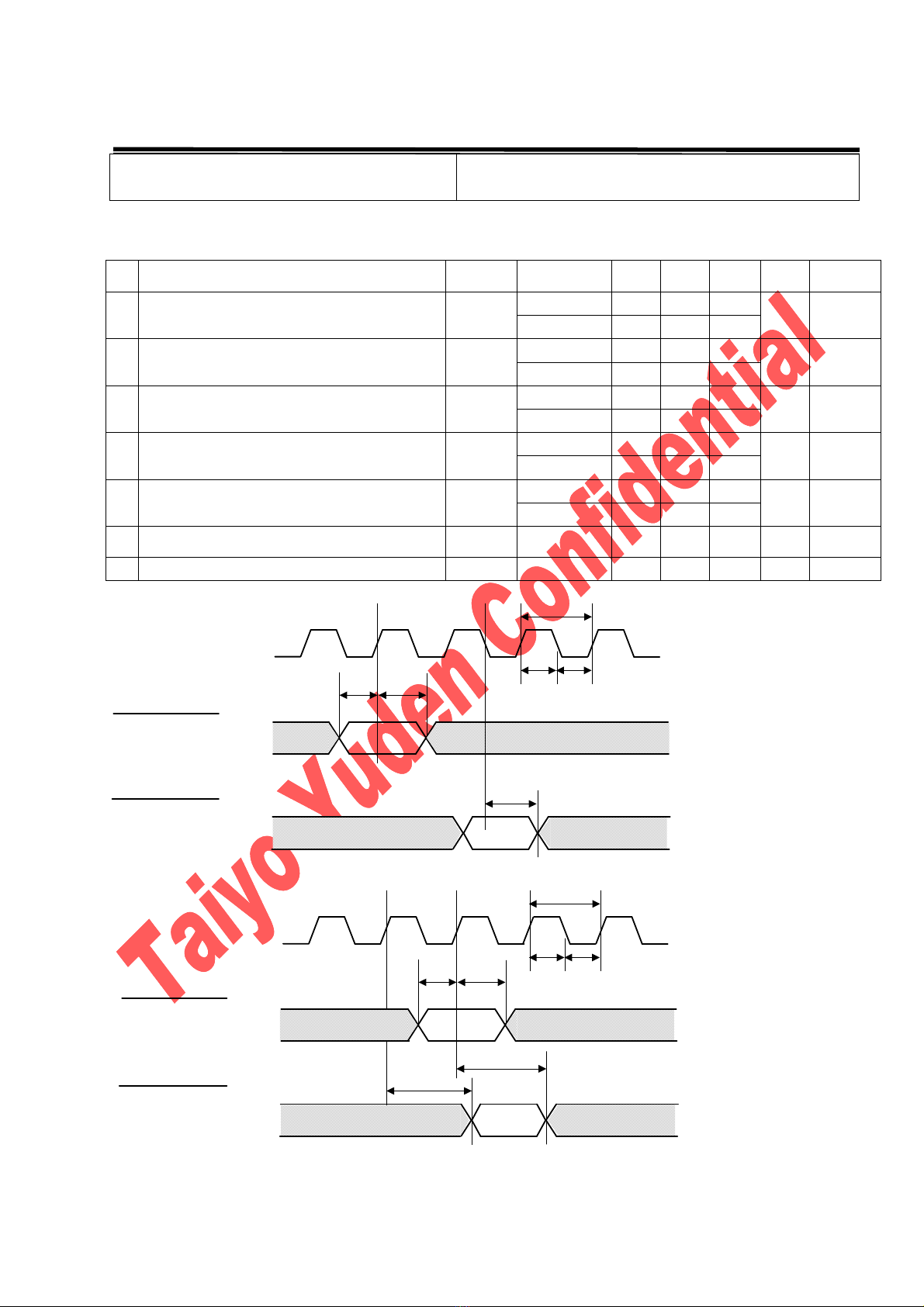

SDIO Interface Specifications
The Specification applies for Topr.= -20 to TBD degrees C , Supply voltage=Typical voltage(5.0V).
Parameter Symbol Condition Min Typ Max Unit Remark
Normal 0 - 25
1 Input SDIO_CLK Frequency Tf High Speed 0 - 50 MHz
Normal 10 - -
2 Input SDIO_CLK High Time Tch High Speed 7 - - ns
Normal 10 - -
3 Input SDIO_CLK Low Time Tcl High Speed 7 - - ns
Normal 5 - -
4 Input SDIO_CMD, DATA[3:0] Setup time Tsu High Speed 6 - - ns
Normal 5 - -
5 Input SDIO_CMD, DATA[3:0] Hold time Thd High Speed 2 - - ns
6 Output SDIO_CMD, DATA[3:0] Delay time Tod - - - 7.33 ns
7 Output SDIO_CMD, DATA[3:0] Hold time Toh High Speed 2.5 - - ns
Normal Mode
High Speed Mode
SD_CLK
SD_CMD
SD_DATA[3:0]
HOST > WiFi
WiFi > HOST
Tf
Tch Tcl
Tsu Thd
Tod
SD_CMD
SD_DATA[3:0]
SD_CLK
SD_CMD
SD_DATA[3:0]
HOST > WiFi
WiFi > HOST
Tf
Tch Tcl
Tsu Thd
Tod
SD_CMD
SD_DATA[3:0]
Toh

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 9/20
WYSAAVDX7
Control No.
HD-AE-A100174 (4/5) Control name Electrical characteristics
RF Specifications (WLAN 11n/150Mbps, OFDM)
The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage (5.0V).
No. Parameter Condition Symbol Min Typ Max Unit Remark
1 RF frequency range FREQ 2422 2462 MHz
2 TX Power Po 9 11 13 dBm
1st Side Lobe M1 - -20 dBc
2nd Side Lobe M2 - -28 dBc
3 Spectrum Mask
3rd Side Lobe M3 - -45 dBc
4 Symbol clock tolerance Ft -25 25 ppm
5 Frequency tolerance Ft -25 25 ppm
6 EVM Rms EVM - -28 dB
7 TX Out of band spurious1 30MHz to 1GHz TOS1 - -36 dBm
8 TX Out of band spurious2 1GHz to 12.75GHz TOS2 - -30 dBm
9 TX Out of band spurious3 1.8GHz to 1.9GHz
5.15GHz to 5.3GHz TOS3 -47 dBm
10 Rx sensitivity PER<10% SEN - -66 -61 dBm
11 Maximum Input Level PER<10% MIL -20 - dBm
12 RX Out of band spurious1 30MHz to 1GHz ROS1 - -57 dBm
13 RX Out of band spurious2 1GHz to 12.75GHz ROS2 - -47 dBm
RF Specifications (WLAN 11n/72.2Mbps, OFDM)
The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage (5.0V).
No. Parameter Condition Symbol Min Typ Max Unit Remark
1 RF frequency range FREQ 2412 2472 MHz
2 TX Power Po 9 11 13 dBm
1st Side Lobe M1 - -20 dBc
2nd Side Lobe M2 - -28 dBc
3 Spectrum Mask
3rd Side Lobe M3 - -45 dBc
4 Symbol clock tolerance Ft -25 25 ppm
5 Frequency tolerance Ft -25 25 ppm
6 EVM Rms EVM - -28 dB
7 TX Out of band spurious1 30MHz to 1GHz TOS1 - -36 dBm
8 TX Out of band spurious2 1GHz to 12.75GHz TOS2 - -30 dBm
9 TX Out of band spurious3 1.8GHz to 1.9GHz
5.15GHz to 5.3GHz TOS3 -47 dBm
10 Rx sensitivity PER<10% SEN - -69 -64 dBm
11 Maximum Input Level PER<10% MIL -20 - dBm
12 RX Out of band spurious1 30MHz to 1GHz ROS1 - -57 dBm
13 RX Out of band spurious2 1GHz to 12.75GHz ROS2 - -47 dBm

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 10/20
WYSAAVDX7
Control No.
HD-AE-A100174 (5/5) Control name Electrical characteristics
RF Specifications (WLAN 11g/54Mbps, OFDM)
The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage (5.0V).
No. Parameter Condition Symbol Min Typ Max Unit Remark
1 RF frequency range FREQ 2412 2472 MHz
2 TX Power Po 10 12 14 dBm
1st Side Lobe M1 - -20 dBc
2nd Side Lobe M2 - -28 dBc
3 Spectrum Mask
3rd Side Lobe M3 - -40 dBc
4 Symbol clock tolerance Ft -25 25 ppm
5 Frequency tolerance Ft -25 25 ppm
6 EVM Rms EVM - -25 dB
7 TX Out of band spurious1 30MHz to 1GHz TOS1 - -36 dBm
8 TX Out of band spurious2 1GHz to 12.75GHz TOS2 - -30 dBm
9 TX Out of band spurious3 1.8GHz to 1.9GHz
5.15GHz to 5.3GHz TOS3 -47 dBm
10 Rx sensitivity PER<10% SEN - -72 -65 dBm
11 Maximum Input Level PER<10% MIL -20 - dBm
12 RX Out of band spurious1 30MHz to 1GHz ROS1 - -57 dBm
13 RX Out of band spurious2 1GHz to 12.75GHz ROS2 - -47 dBm
RF Specifications (WLAN 11b/11Mbps, CCK)
The Specification applies for Ta=25 degrees C, Supply voltage=Typical voltage (5.0V).
No. Parameter Condition Symbol Min Typ Max Unit Remark
1 RF frequency range FREQ 2412 2472 MHz
2 TX Power Po 13 15 17 dBm
1st Side Lobe M1 - -30 dBc
3 Spectrum Mask 2nd Side Lobe M2 - -50 dBc
Power up TU - 2 us
4 Power up-down rump Power down TD - 2 us
5 Frequency tolerance Ft -25 25 ppm
6 EVM Peak EVM - 35 %
7 TX Out of band spurious1 30MHz to 1GHz TOS1 - -36 dBm
8 TX Out of band spurious2 1GHz to 12.75GHz TOS2 - -30 dBm
9 TX Out of band spurious3 1.8GHz to 1.9GHz
5.15GHz to 5.3GHz TOS3 -47 dBm
10 Rx sensitivity PER<8% SEN -86 -76 dBm
11 Maximum Input Level PER<8% MIL -10 dBm
12 RX Out of band spurious1 30MHz to 1GHz ROS1 - -57 dBm
13 RX Out of band spurious2 1GHz to 12.75GHz ROS2 - -47 dBm

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 11/20
WYSAAVDX7
Control No.
HD-MC-A100174 (1/1) Control name Circuit Schematic
Block Diagram
5V
SDIO
PA
Antenna
Crystal
EEPROM
88W8787
DCDC
3.3V
LDO
1.8V
BPF SP3T
TX
RX
VIO
Slow Clock
Other (4)
Connector

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 12/20
WYSAAVDX7
Control No.
HD-AD-A100174 (1/1) Control name Outline/Appearance
Unit: mm, Tolerances unless otherwise specified: ±0.2mm
15.0
35.0±0.3
D2.0±0.1
12.5±0.3
2.7
1.7
Max.
1.2
Max.
2.6
Max.
2.9
Max.
5.1
2.0
+0.3/-0.1
1.35
Max.
1.1±0.1
1.3
Max.
Power
Block
2.5
5.75
Shielding
Case
2.66
1.25
Indication Label
13.6
14.0
13.05
5.0
5.0
5.0
5.0
12.25
33.15

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 13/20
WYSAAVDX7
Control No.
HD-BA-A100174 (1/1) Control name Pin Layout
Pin Descriptions
Terminal
No. Terminal Name Input/ Output Pwr Domain Description Function
1 GND - GND Ground Power
2 SD_DATA1 Input/Output VIO SDIO Data-1 SDIO
3 SD_DATA0 Input/Output VIO SDIO Data-0 SDIO
4 GND - GND Ground Power
5 SD_CLK Input VIO SDIO Clock SDIO
6 VIO Input VIO 1.8V/3.3V Digital I/O Power Supply Power
7 SD_CMD Input/Output VIO SDIO Command SDIO
8 SD_DATA3 Input/Output VIO SDIO data-3 SDIO
9 SD_DATA2 Input/Output VIO SDIO data-2 SDIO
10 GND - GND Ground Power
11 GND - GND Ground Power
12 SLP_CLK Input 1.8V
Sleep Clock (32.768kHz)
Used for WLAN low-power modes. System
13 GND - GND Ground Power
14 PDn Input VIO
Power Down (active low)
with internal pull-up. System
15 RESETn Input VIO
Reset (active low)
with internal pull-up. System
16 WL_HOST_WKUP Input VIO WLAN wakeup System
17 HOST_WL_WKUP Output VIO HOST wakeup System
18 GND - GND Ground Power
19 VBAT Input VBAT 5.0V Power Supply Power
20 VBAT Input VBAT 5.0V Power Supply Power

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 14/20
WYSAAVDX7
Control No.
HD-CA-A100174 (1/1) Control name Label Information
1) Type ：WYSAAVDX7
2) Manufacturer ： Taiyo Yuden Co.,Ltd.
3) R&TTE CE mark ： Specified CE mark
4) FCCID ： RYYWYSAAVDX7
5) ICID ：4389B-WYSAAVDX7
6) Japan logo mark and ID ：Specified logo mark and XXXXXXXXXXX
7) Country of Origin ： China
8) MAC Address ： XXXXXXXXXXXX
9) ARIB Actual Indication：Indicates that this device is “Second Generation Low Power Data
Communication System”
10) Lot Number ： XXXX
11) DC mark and Operating Input Voltage ：DC mark and 5.0V
12) User Code ： XXXXXXXXX
13)UAEID ： TRA Logo and REGISTERED No and DEALER No
1)
2)
3) 4) 5)
6)
7)
8)
9)
10)
11)
MODEL: WYSAAVDX7
FCC ID: RYYWYSAAVDX7
IC: 4389B-WYSAAVDX7
WYSAAVDX7-XE
2.4DS/OF4
5.0V
Made in CHINATaiyo Yuden Co., Ltd.
XXXXXXXXXXXX XXXXX
7.5
33.0
13.0
27.52.5
2.5
Φ6.0
5.5
3.0
User Code:
TRA
REGISTERED No:
nnnnnn
DEALER No:
xxxxxxxxx
R001WWCA1266
3.5
12) 13)
User Code: XXXXXXXXX

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 15/20
WYSAAVDX7
Control No.
HD-CB-A100174 (1/6) Control name
Regulatory Information
Regulatory Information
1) Japan Regulatory Information
This product with a specific antenna is a radio system approved for Type Approval.
Please follow the instructions below on designing your product.
a) Please notify clearly below sentences in the product manual.
This product has a radio system which was approved as a radio station in a
low power data communication system based on the Radio Law and the
Telecommunication Business Law.
Name of the radio system: XXXXXXXXXXX
b) Please design your set structure in which this module can be easily attached and
taken off by end users (consumer public).
c) This module is certified by Type Approval as the device which has SDIO
Interface.
Please do not use other purposes except that of certified.
Please contact Taiyo Yuden for more details of purposes of this product.

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 16/20
WYSAAVDX7
Control No.
HD-CB-A100174 (2/6) Control name
Regulatory Information
2) Canada Regulatory Information
License-exempt low-power radiocommunication devices are required to describe
following or equivalent sentences in user manuals in section 7.1.5 User Manual of
Canadian regulations RSS-GEN. Therefore TAIYO YUDEN recommends describing an
appropriate comment in your product manual.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il
ne doit pas produire de brouillage et (2) l'utilisateur du dispositif doit être prêt à
accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de
compromettre le fonctionnement du dispositif.
Your product has been applied to requests of ICES. In some applied regulations, there
are mention requirements. Therefore please confirm applied regulations.
In the case of ICES-003:
Example 1
Canadian Radio Interference Regulations
This digital apparatus does not exceed Class B limits for radio noise emissions
from a digital apparatus as set out in the interference-causing equipment standard
entitled “Digital Apparatus”, ICES-003 of the Industry Canada.
Cet appareil numérique respecte les limites de bruits radio éléctiques applicables
aux appareils numériques de Classe B prescrites dans la norme sur le matériel
brouilleur: "Appareils Numériques", NMB-003 édictée par l'Industrie Canada.
Example 2
This Class [*] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [*] est conforme à la norme NMB-003 du
Canada.
[*] Insert either "A" or "B" but not both as appropriate for the equipment
requirements.
The following sentence has to be displayed on the outside of the device in which the
module is installed: “Contains Transmitter Module IC : 4389B-WTSAAVDX7”, or
"Contains IC : 4389B-WYSAAVDX7".

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 17/20
WYSAAVDX7
3) FCC Regulatory Information
Please describe contents mentioned below in users manual of your company.
CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the
supplied antenna.
Unauthorize antenna, modification, or attachments could damage the transmitter
and may violate FCC regulations.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
The following sentence has to be displayed on the outside of the device in which the
module is installed: “Contains Transmitter Module FCC ID: RYYWYSAAVDX7”, or
“Contains FCC ID: RYYWYSAAVDX7 ”.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Control No.
HD-CB-A100174 (3/6) Control name
Regulatory Information

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 18/20
WYSAAVDX7
Control No.
HD-CB-A100174 (4/6) Control name
Regulatory Information
4) CE
EN 300 328 V1.7.1: (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
Transmission systems;
Data transmission equipment operating in the 2,4 GHz ISM band and using spread
spectrum modulation techniques; Harmonized EN covering essential requirements
under article 3.2 of the R&TTE Directive
EN 301 489-1 V1.8.1: (2008)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 1: Common
technical requirements
EN 301 489-17 V2.1.1 (2009)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 17: Specific
conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance
RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in
all EU member states and EFTA countries, except in France and Italy where restrictive
use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in
order to obtain authorization to use the device for setting up outdoor radio links and/or
for supplying public access to telecommunications and/or network services.
This module does not intend to use it with cables more than 3m.

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 19/20
WYSAAVDX7
Control No.
HD-CB-A100174 (5/6) Control name
Regulatory Information
Česky
[Czech]
[Taiyo Yuden] tímto prohlašuje, že tento [WYSAAVDX7] je ve shoděse základními
požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede [Taiyo Yuden] erklærer herved, at følgende udstyr [WYSAAVDX7]
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Taiyo Yuden] , dass sich das Gerät [WYSAAVDX7] in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab [Taiyo Yuden] seadme [WYSAAVDX7] vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele
sätetele.
English Hereby, [Taiyo Yuden] , declares that this [WYSAAVDX7] is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [Taiyo Yuden] declara que el [WYSAAVDX7] cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [Taiyo Yuden] ΔΗΛΩΝΕΙ ΟΤΙ [WYSAAVDX7]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ
ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [Taiyo Yuden] déclare que l'appareil [WYSAAVDX7] est conforme
aux exigences essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Italiano
[Italian]
Con la presente [Taiyo Yuden] dichiara che questo [WYSAAVDX7] è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Latviski
[Latvian]
Ar šo [Taiyo Yuden] deklarē, ka [WYSAAVDX7] atbilst Direktīvas 1999/5/EK
būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo [Taiyo Yuden] deklaruoja, kad šis [] atitinka esminius reikalavimus ir kitas
1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart
[Taiyo Yuden] dat het toestel [WYSAAVDX7] in overeenstemming
is met de essentiële eisen en de andere relevante bepalingen van richtlijn
1999/5/EG.
Malti
[Maltese]
Hawnhekk, [Taiyo Yuden] , jiddikjara li dan [WYSAAVDX7] jikkonforma
mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva
1999/5/EC.
Magyar
[Hungarian]
Alulírott, [Taiyo Yuden] nyilatkozom, hogy a [WYSAAVDX7] megfelel a vonatkozó
alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym [Taiyo Yuden] oświadcza, że [WYSAAVDX7] jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.

6-May.2011 Ver.0.6
TAIYO YUDEN
Tentative
TAIYO YUDEN 20/20
WYSAAVDX7
Control No.
HD-CB-A100174 (6/6) Control name
Regulatory Information
Português
[Portuguese]
[Taiyo Yuden] declara que este [WYSAAVDX7] está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Taiyo Yuden] izjavlja, da je ta [WYAAVDX7] v skladu z bistvenimi zahtevami in
ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
[Taiyo Yuden] týmto vyhlasuje, že [WYSAAVDX7] spĺňa základné požiadavky a
všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
[Taiyo Yuden] vakuuttaa täten että [WYSAAVDX7] tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Svenska
[Swedish]
Härmed intygar [Taiyo Yuden] att denna [WYSAAVDX7] står I överensstämmelse
med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår
av direktiv 1999/5/EG.
