AW 1 Bluetooth sport earphone
█ Foreword
Music appreciation of Bluetooth equipment: cell phone, tablet PC, PC, player
█
○
○
○
○
○
○
Bluetooth®5.0, reliable transmission, high capacity of anti-interference
Al housing, light weight, compact design
IPX4 waterproof to meet the sport requirement
Chinese/English sound prompt for indication and operation
Supporting to connect with two Bluetooth equipments simultaneously
Magnetic design for anti-winding and convenient storage
Dear Customer,
Thank you for purchasing Takstar AW1 bluetooth sport earphone. Please read the user
manual carefully before operation and keep it for reference in future.
If you have any question or suggestion, please contact our local dealer.
█ Features
█ Product Content
Application
Bluetooth sport earphone 1pc
Charging cable……………………………………………………………………………… …1pc
Ear bud ( L/M/S) …………………………………………………………………………… 3pairs
Instruction manual…………………………………………………………………………………1pc
………………………………………………………………… ………
……
……
Specification
█
140
150

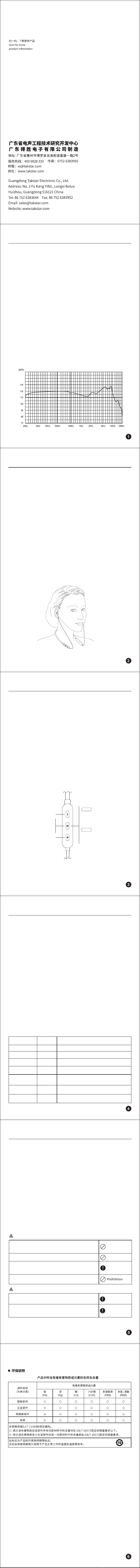

Frequency Response Curve
AW 1 Bluetooth sport earphone
█ Operation Instruction
A. Power On/Off
Power on: keep pressing the multifunction button for 2 seconds. The sound prompt indicates
power-on. The green LED lights up for 1 second and then lights off.
Power off: keep pressing the multifunction button for 5 seconds. The sound prompt indicates
power-off. The red LED lights up for 1 second and then lights off.
B. Bluetooth matching
1. Power on the earphone to enter into Bluetooth matching mode. The LED lights up red and
green alternatively means it enters into the matching mode.
2. In power off status, keep press the multifunction button for 5 seconds. The LED lights up
red and green alternatively means it enters into the matching mode.
(1) Turn on the Bluetooth of the equipment to be matched (cell phone/PC/player) to scan
adjacent equipment.
(2) Click the new bluetooth "TAKSTAR AW1" for matching. The earphone green LED flashes.
3. In power-on status, keep pressing the multifunction button for 2 seconds to enter into
Bluetooth matching mode.
Earphone function operation
█
Note: to wake up the vocal assistant needs the cell phone supports.
Power on: keeps pressing for 2 seconds.
Power off: keeps pressing for 5 seconds.
Matching: keeps pressing for 5 seconds
(in power off status).
volume +
Volume - Play/pause: press one time
Next song: press two times
Previous song: press three times
Vocal assistant: keep pressing for 2 seconds
Answer the call: press one time
Stop the call: press one time
Refuse the call: keep pressing
Music mode
Call mode
AW 1 Bluetooth sport earphone
█Caution
1. Code matching mode: if the equipment to be linked with has Bluetooth
version lower than 5.0, use the default code “0000”to link.
2. Delete matching/reset: press volume + and volume – simultaneously for 2 seconds. The
red and green LED light up alternatively. The matching has been deleted.
3. Language switching: press volume + and multifunction button for 2 seconds to switch
the language for sound prompt.
4. Dual equipment link: if two equipments are linked simultaneously, it supports only one
equipment to play the song. When two equipments are linked simultaneously, delay
happens during two equipment operation, e.g. it pauses equipment A to play, but starts
equipment B to play with a delay.
5. Power off automatically: the earphone powers off automatically if there is no linked
equipment after 5 minutes.
earphone
█ Correct Operation
To avoid hearing loss, please set the playing equipment volume to minimum before
connecting the earphone. After wearing the earphone, increase the volume to a proper
level. The noise is calculated by dB. The noise above 85 dB leads to hearing loss.
Please pay attention to your operation habit. The relationship of volume & hearing time
and hearing loss as below: the higher the volume is, the shorter the hearing time should be.
The more proper the volume level is, the longer the hearing time can be. The long time
hearing at high volume level leads to permanent hearing loss.
This dB table lists the comparison of some normal sounds and the potential hurt level to
your hearing.
Sound Source
whisper
quiet office
vacuum cleaner/
hair drier
food processor
garbage cleaning
machine or cement
mixer
electric motor saw/
electric drill
rock & roll concert
(it depends)
30dB
50-60dB
70dB
85-90dB
100dB
110dB
110-140dB
very quiet
It has some invasion and interference to the
telephone talking
85dB (continuously 8 hours) is the level to hurt the
hearing
It is recommended to hear the sound of 90-100dB
for less than 15 minutes
The painful hearing threshold is about 120dB
Hearing the sound over 100dB without any
protective measure leads to permanent hearing loss
Noise Level Consequence on Hearing
comfortable hearing level is below 60dB
AW 1 Bluetooth sport earphone
The average person can hear the music safely at 70% volume for 4.6 hours every day. It is very
important to know the volume and time when hearing music. Use your equipment sufficiently
at safe volume level to enjoy the outstanding sound performance.
█ Maintenance
• The rated power of AW1 is 3mW. Please do not operate it at overload status to avoid
earphone damage.
• Please keep the earphone in dry and clean environment. During operation, prevent the
earphone from water entering into it or dropping or colliding to avoid damage.
• Operating the earphone in high temperature or high humidity leads to earphone damage
or shortening the earphone life.
• Keep the earphone away from strong magnet to avoid demagnetizing or earphone
sensitivity decreased.
• Do not use strong chemical or detergent for cleaning.
• Do not use sharp article to scratch the product surface
• Please do not disassemble or repair the earphone by yourself to avoid
problem happens.
█ Caution
DANGER
• To guarantee personal safety, do not wear or keep the
earphone close (less than 10cm) to the pacemaker.
• To guarantee personal safety, do not operate the earphone
during driving or riding or walking.
• Keep the earphone away from fire to avoid explosion.
WARNING
• Supervise the children when they are using this product
because this product is not a toy.
• Abide by the relative regulation or law during operation. Do
not use this earphone if it is prohibited by regulation or law
to avoid accident.
• Do not connect the cable plug with AC power socket.
Implementation
Implementation
Implementation
Prohibition
Prohibition
AW 1 Bluetooth sport earphone
○
○
○
○
○
○
○ M
○
○ Charging Time: approx 1.5h
○ Operation Time: approx 10h
○ Charging: USB 5V/500mA
○
○
○
○
Unit Type: dynamic
Unit Diameter: 13mm
Frequency Range: 20Hz-20KHz
Impedance: 32Ω
Sensitivity: 100dB±3dB
Rated Power: 3mW
ax power: 10mW
Microphone: -42dB±3dB, @1KHz ref 1V/Pa
Bluetooth Version: Bluetooth®5.0
Bluetooth Protocol: A2DP、AVRCP、HFP、HSP
Transmission Range: 10m
Waterproof Level: IPX4
Ø
Note:
1. The charging time and operation time will be different in different situation.
2. The transmission range changes due to obstacle, magnetic field, static, receiving
sensitivity, antenna performance, operation system.
█ Wearing Diagram
