INSTRUCTION MANUAL
Professional 1000RS Incubating
Rocking Shaker
Professional 1000WS Incubating
Waving Shaker

Warranty
Manufacturer warrants this product to be free from defects in material and workmanship
when used under normal conditions for five (5) years. Please complete and return the
enclosed warranty card. For your reference, make a note of the serial number, date
of purchase and supplier here.
Serial Number: _______________________________________________________
Date of Purchase: ____________________________________________________
Supplier: ____________________________________________________________
table of Contents
Package Contents . . . . . . . . . . . . 1
Warranty . . . . . . . . . . . . 1
Installation . . . . . . . . . . . . 2
Maintenance & Servicing . . . . . . . . . . . . 2
Environmental Conditions . . . . . . . . . . . . 2
Safety Instructions . . . . . . . . . . . . 3
Standards & Regulations . . . . . . . . . . . . 3
Control Panel . . . . . . . . . . . . 4
Specifications . . . . . . . . . . . . 5
Operating Instructions . . . . . . . . . . . . 6-8
Troubleshooting . . . . . . . . . . . . 8

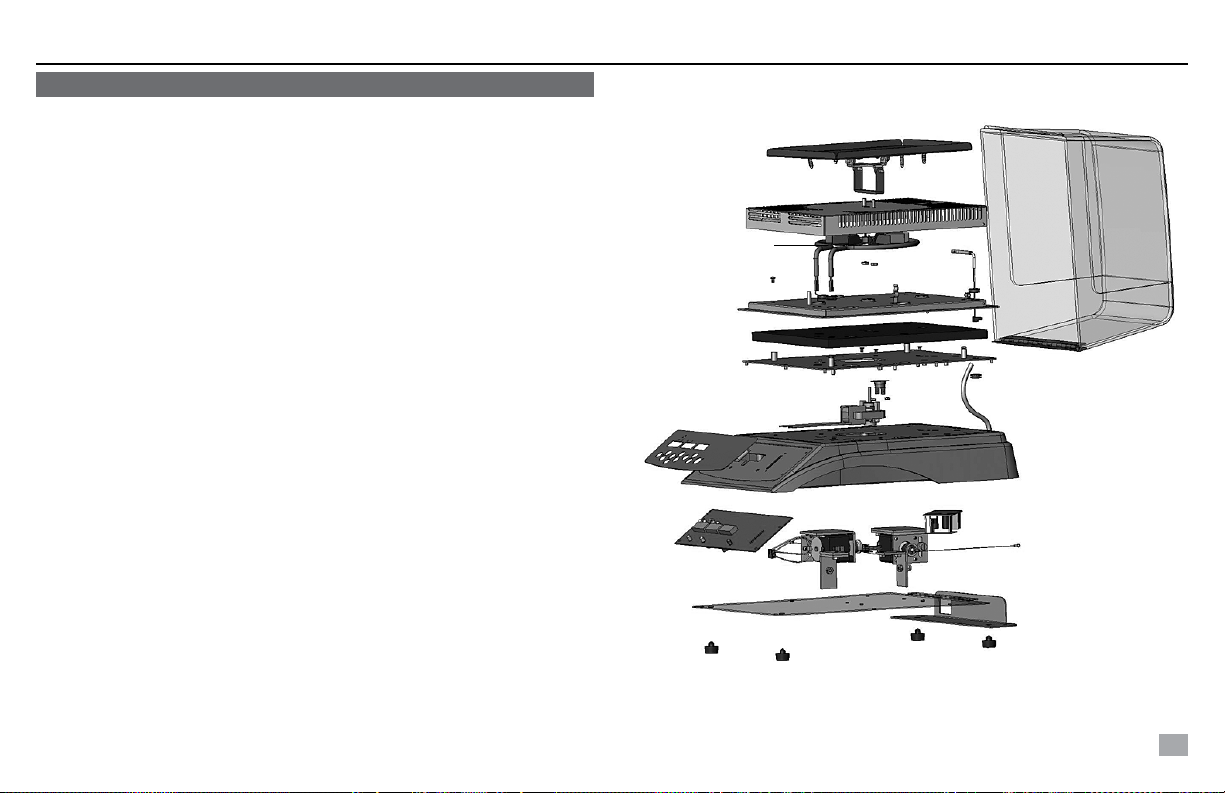

Replacement Parts . . . . . . . . . . . . 9-10

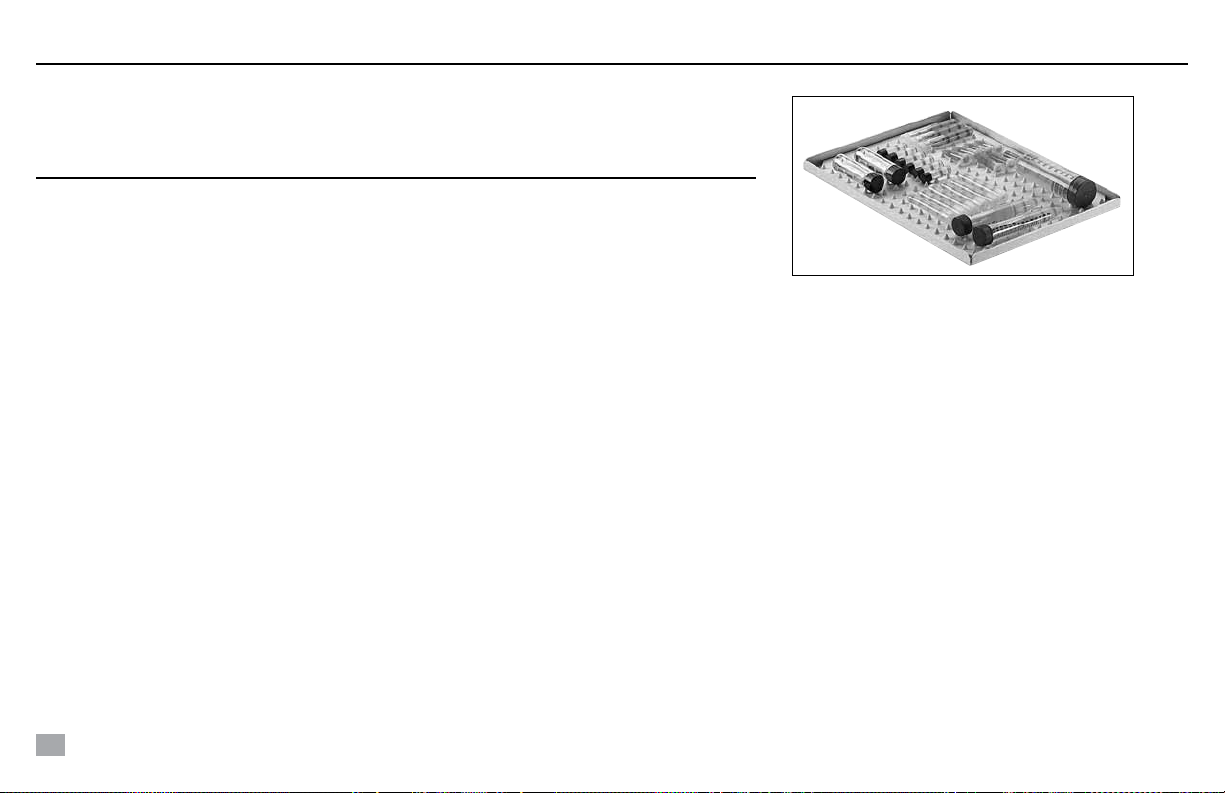

Accessories . . . . . . . . . . . . 11
PaCkage Contents
Professional 1000RS Incubating Rocking Shaker
or
Professional 1000WS Incubating Waving Shaker
92” (234cm) detachable power cord
Instruction manual
Warranty card
1

Upon receiving the Talboys Incubating Rocking/Waving Shaker, check to ensure that no
damage has occurred during shipment. It is important that any damage that occurred
in transport is detected at the time of unpacking. If you do find such damage the carrier
must be notified immediately.
After unpacking, place the Incubating Rocking/Waving Shaker on a level bench or
table, away from explosive vapors. Ensure that the surface on which the unit is placed
will withstand typical heat produced by the unit. Always place the unit on a sturdy
work surface.
The Incubating Rocking/Waving Shaker is supplied with a power cord that is inserted
into the IEC connector on the back of the unit first, then it can be plugged into a properly
grounded outlet. The 120V unit plugs into a 120 volt, 50/60 Hz source. The 230V unit
plugs into a 230 volt, 50/60 Hz source.
MaintenanCe & serviCing
The Incubating Rocking/Waving Shaker is built for long, trouble-free, dependable
service. No lubrication or other technical user maintenance is required. However at
least every three (3) months you should:
 • Unplugtheunit.
 • Removeanyaccumulateddirtfromthebaseandtray.
 • Checkallaccessibleitemstomakesuretheyareproperlytightened.
The unit should be given the care normally required for any electrical appliance. Avoid
wetting or unnecessary exposure to fumes. Spills should be removed promptly. DO NOT
use a cleaning agent or solvent on the front panel or lid which is abrasive or harmful to
plastics, nor one which is flammable. Always ensure the power is disconnected from
the unit prior to any cleaning. If the unit ever requires service, contact your Talboys
representative.
Operating Conditions: Indoor use only.
Temperature: 5 to 40°C (41 to 104°F)
Humidity: maximum 80% relative humidity, non-condensing
Altitude: 0 to 6,562 ft (2000 M) above sea level
Mains supply voltage: Fluctuations are not to exceed 10 percent of the nominal supply
voltage.
Non-Operating Storage:
Temperature: -20 to 65°C (-4 to 149°F)
Humidity: maximum 80% relative humidity, non-condensing
Installation Category II and Pollution Degree 2 in accordance with IEC 664.
equiPMent DisPosal
This equipment must not be disposed of with unsorted waste. It is your
responsibility to correctly dispose of the equipment at life-cycle-end by
handing it over to an authorized facility for separate collection and recycling.
It is also your responsibility to decontaminate the equipment in case of
biological, chemical and/or radiological contamination, so as to protect the
persons involved in the disposal and recycling of the equipment from health
hazards.
For more information about where you can drop off your waste of equipment, please
contact your local dealer from whom you originally purchased this equipment. By doing
so, you will help to conserve natural and environmental resources and you will ensure that
your equipment is recycled in a manner that protects human health.
installation environMental ConDitions
2

Please read the entire instruction manual before operating the Incubating Rocking/
Waving Shaker.
WARNING! DO NOT use the Incubating Rocking/Waving Shaker in a
hazardous atmosphere or with hazardous materials for which the unit was
not designed. Also, the user should be aware that the protection provided
by the equipment may be impaired if used with accessories not provided or
recommended by the manufacturer, or used in a manner not specified by the
manufacturer.
Always operate unit on a level surface for best performance and maximum
safety.
DO NOT lift unit by the tray or lid.
CAUTION! To avoid electrical shock, completely cut off power to the unit by
disconnecting the power cord from the unit or unplug from the wall outlet.
Disconnect unit from the power supply prior to maintenance and servicing.
Spills should be removed promptly. Biohazard spills should be cleaned up
using approved laboratory procedures. Solvent spills are a fire hazard. Stop
the unit immediately, and DO NOT operate until clean up is complete and
vapors have
dissipated (motor brushes arc and may ignite flammable vapors). DO NOT
immerse the unit for cleaning.
DO NOT operate the unit if it shows signs of electrical or mechanical damage.
Earth Ground - Protective Conductor Terminal
Alternating Current
Henry Troemner LLC hereby declares under it’s sole responsibility that the
construction of this product conforms in accordance with the following standards:
Safety standards:
IEC 61010-1 Safety requirements for electrical equipment for measurement,
control and laboratory use. Part I: General Requirements.
IEC 61010-2-010 Part II: Particular requirements for laboratory equipment for the
heating of materials.
IEC 61010-2-051 Part II: Particular requirements for laboratory equipment for mixing
and stirring.
UL Std. No. 61010-1
EMC standards:
EN55022-B EN6100-4-5
EN61000-3-3/3-2 EN61000-4-3
EN61000-4-4 EN61000-4-6
EN61000-4-11 EN61326-1 Class A
Associated EU guidelines:
EMC directive 2004/108/EC
LVD directive 2006/95/EC
RoHS directive 2011/65/EU
3
safety instruCtions stanDarDs & regulations

Control Panel
The front panel of the Incubating Rocking/Waving Shaker contains all the controls and
displays needed to operate the unit.
A. Standby button/standby indicator light: The standby indicator light will illuminate
when the unit is plugged in. The unit will be in standby mode. Press the standby
button to activate the temperature, speed/tilt angle and time functions. The standby
indicator light will shut off and the temperature, speed/tilt angle and time displays
will illuminate. Press the standby button again and the unit will once again be in
standby mode.
B. Temperature display: Displays the actual/set-point temperatures in conjunction
with the actual/set-point indicator lights. C. Up/down arrows for set-point control.
On/off button starts/stops the heating function. D. The heat indicator light will be
illuminated when the unit is heating.
E. Actual indicator light: Illuminates when the temperature displayed is the actual
temperature of the air in the chamber.
F. Set-point indicator light: Illuminates when the set-point temperature is displayed.
G. Caution hot indicator light: Illuminates when the air temperature of the chamber
is above 40°C (104°F).
H. Speed/tilt angle display: Displays the speed and tilt angle of the unit. I. Up/down
arrows for set-point control. On/off button starts/stops the rocking/waving function.
J. The speed/tilt angle indicator light will be illuminated when the unit is rocking/
waving.
K. Function button: Press to choose the function you are setting: speed or tilt.
L. Speed indicator light: Illuminates when the speed is displayed.
M. Tilt indicator light: Illuminates when the tilt angel is displayed.
N. Time display: Displays accumulated time (continuous mode) or how much time is
remaining (timed mode). The display range is from 0 to 9,999 minutes in one (1)
second increments. The display will indicate minutes and seconds until the timer
reaches 99 minutes and 59 seconds (99:59), then the display will automatically
display minutes up to 9,999.
O. Up/down arrows for set-point control. On/off button starts/stops the time function.
L.
G.
K.
D.
A.
C.
B. M.
I.
H. N.
O.
F.
J.
E.
4

Overall dimensions (L x W x H): 17 x 11 x 10.5” (43.2 x 27.9 x 26.7cm)
Interior dimensions (L x W x H): 10.75 x 7.75 x 3.8” (27.3 x 19.7 x 9.7cm)
Tray dimensions (L x W): 10 x 7.5” (25.4 x 19.1cm)
Electrical (50/60 Hz): 120 volts AC, 5 amps, 450 watts
230 volts AC, 5 amps, 450 watts
Fuses: 5mm x 20mm, 5 amp quick acting
Temperature range: ambient +5° to 65°C
Temperature uniformity: ±0.5°C at 37°C
Speed range: 1 to 50rpm *
Speed accuracy: ±1rpm
Tilt angle: 0 to 15° *
Timer: 1 second to 9999 minutes
(increased in 1 second increments)
Maximum weight capacity: 10lbs (4.5kg) **
Controls: see page 4
Tray material: aluminum
Ship weight: 22lbs (10kg)
* Maximum speed/tilt angle may vary with heavy or unbalanced loads.
** Centered on tray.
Overall dimensions (L x W x H): 17 x 11 x 10.5” (43.2 x 27.9 x 26.7cm)
Interior dimensions (L x W x H): 10.75 x 7.75 x 3.4” (27.3 x 19.7 x 8.6cm)
Tray dimensions (L x W): 9.25 x 7.25” (23.5 x 18.4cm)
Electrical (50/60 Hz): 120 volts AC, 5 amps, 450 watts
230 volts AC, 5 amps, 450 watts
Fuses: 5mm x 20mm, 5 amp quick acting
Temperature range: ambient +5° to 65°C
Temperature uniformity: ±0.5°C at 37°C
Speed range: 1 to 30rpm *
Speed accuracy: ±1rpm
Tilt angle: 0 to 20° *
Timer: 1 second to 9999 minutes
(increased in 1 second increments)
Maximum weight capacity: 5lbs (2.3kg) **
Controls: see page 4
Tray material: aluminum
Ship weight: 22lbs (10kg)
* Maximum speed/tilt angle may vary with heavy or unbalanced loads.
** Centered on tray.
5
Professional 1000rs inCubating roCking shaker sPeCifiCations Professional 1000Ws inCubating Waving shaker sPeCifiCations

The Incubating Rocking/Waving Shakers have been designed for the temperature,
speed/tilt angle and time functions to work independently of one another. The
temperature and speed/tilt angle can be reset without resetting the timer and the
timer can be stopped and started without interrupting the heating or rocking/waving
functions.
1. Getting ready:
a. Plug the power cord into a properly grounded outlet. The standby indicator
light will illuminate, verifying power to the unit. Manually move the tray to a near
horizontal “home” position before powering unit.
b. Press the standby button to move the unit from standby mode. The standby
indicator light will shut off and the temperature, speed/tilt angle and time displays
will illuminate, displaying the previously used settings.
2. Setting temperature:
a. Press the up/down arrows below the temperature display until you reach the
desired temperature. When you release the arrow button, the display will blink
off and then on indicating the new set temperature has been accepted.
b. Press the on/off button to start the heating function. The indicator light below the
temperature display will illuminate to indicate the heating function is in use. You
will hear five (5) audible beeps that indicate set temperature has been reached.
c. Temperature adjustments can be made without interrupting heating by using
the up/down arrows below the temperature display. After the change has been
made and you release the button, the display will blink off and then on indicating
the new set temperature has been accepted.
d. To stop the heating function, press the on/off button below the temperature
display. The heat indicator light will turn off.
Professional inCubating roCking/Waving shaker oPerating instruCtions
CAUTION HOT Indicator:
The caution hot indicator light warns that the temperature of the
air in the chamber is above 40°C (104°F). The light will illuminate
and remain lit when the temperature of the air in the chamber
reaches approximately 40°C (104°F). When the heat is turned
off, the caution hot indicator light will stay lit until the temperature of the air in the
chamber is less than 40°C (104°F).
3. Setting tilt angle: Electronic tilt enables the user to adjust the angle of tray
movement while the unit is rocking/waving or while the unit is stopped.
a. Press the function button below the speed/tilt angle display until the tilt indicator
light illuminates. You are now ready to set the tilt angle.
b. Press the up/down arrows below the speed/tilt angle display until you reach
the desired angle. When you release the button, the display will blink off and
then on indicating the new set angle has been accepted. The unit will complete
one rotation at the previously set angle, then smoothly change to the newly
programmed angle. The tilt indicator light will flash until the transition to the new
tilt angle is complete.
4. Setting speed:
a. Press the function button below the speed/tilt angle display until the speed
indicator light illuminates. You are now ready to set the speed.
b. Press the up/down arrows below the speed/tilt angle display until you reach the
desired speed. When you release the button, the display will blink off and then
on indicating the new set speed has been accepted.
c. Press the on/off button to start the rocking/waving function. The indicator light
below the speed/tilt angle display will illuminate and blink until the set-point is
reached. Once the set-point is reached the light will stop blinking and remain lit
until rocking/waving has ceased.
6

d. To stop the rocking/waving function, press the on/off button below the speed/tilt
angle display. The unit will complete one full rotation then stop in the horizontal
“home” position. The speed indicator light will flash until the rotation is complete.
When the cycle is complete, the unit will automatically move to standby mode
and the standby indicator light will
illuminate.
OPERATING TIPS
When the unit is running at slow speeds or high angles, making large changes to
the tilt angle or speed may take several minutes to complete. The quickest way to
make large changes is to stop the unit, change the speed or tilt angle, then restart by
pressing the on/off button below the speed/tilt angle display.
5. Setting time to zero (0:00) and continuous mode: Accumulated time.
a. Press and hold the on/off button below the time display. After three (3) seconds
the display will indicate the previous set time.
b. Simultaneously press both the up and down arrows, the display will indicate
zero (0:00). The unit time is now set to zero (0:00) minutes. Alternately, you can
use the up/down arrows to get to zero (0:00).
c. Press the on/off button below the time display. The display will indicate the
accumulated time. The up/down arrows will become inactive. To stop timer,
press the on/off button again. IMPORTANT:This will NOT interrupt the rocking/
waving function. Press the on/off button below the speed/tilt angle display to
interrupt the rocking/waving function.
d. To reset, press and hold the on/off button below the time display. After three (3)
seconds the display will indicate the previous set time, which was zero (0:00).
6. Setting timed mode: Programmed time.
a. Press the up/down arrows below the time display until you reach the desired
time.
b. Start this function by pressing the on/off button below the time display. The unit
will run for the selected time, the up/down arrows will become inactive while the
timer is running. The unit will stop rocking/waving when time display reaches
zero (0:00). Four (4) audible beeps will indicate the count down function is
complete. The time display will default back to the set time. To repeat for the
same time, simply press the on/off button again.
c. To interrupt an automatic timing cycle before it is completed, press the on/off
button below the time display. The time display will flash off and on to indicate
the time function is on “hold”. IMPORTANT: This will NOT interrupt the rocking/
waving function. Press the on/off button below the speed/tilt angle display to
interrupt the rocking/waving function. Restart the timer by pressing the on/off
button below the time display. Unit will continue counting down to zero (0:00).
When the display reaches zero (0:00), you will hear the four (4) audible beeps
that indicate the count down function is complete and the rocking/
waving function will cease.
7. Turning unit off:
a. To turn unit off, press the standby button. The temperature, speed/tilt angle
and time displays will be blank, the standby indicator light will illuminate. The
Incubating Rocking/Waving Shaker should be kept in standby mode when not
in use. To completely cut off power to the unit, disconnect the power cord from
the unit or unplug from the wall outlet.
OPERATING TIPS
As a safety feature, a built-in program will shut power off to the motor if the tray is
prevented from rocking/waving, or the unit is overloaded beyond its recommended
weight capacity.
Built-in memory maintains the last used temperature, speed/tilt angle and time settings
during a power interruption.
7
Professional inCubating roCking/Waving shaker oPerating instruCtions Cont’D

During operation, any rattling or ticking sounds may indicate a loose screw on the
tray, a tray attachment or an accessory. All accessories should be sufficiently tightened
in place before starting the unit.
Error Code Software Test Cause
E04 unit overloaded maximum load exceeded
Press the standby button to clear this error. Be sure the load is within the maximum
load capacity before restarting the unit. If the E04 error persists, switch the unit off and
contact your Talboys representative for repairs.
Error Code Software Test Cause
E03 drive system failure ceased motor
drive belt broken
mechanical obstruction
In the event of someone/something inadvertently touching the tray while the unit
is running, the unit will display an E03 error message, and automatically go to the
horizontal “home” position and restart.
In the event of a mechanical obstruction, the unit will attempt to auto “home” and
restart four (4) times and then stop running, displaying an E03 error message. Press
the standby button to clear this error and remove the mechanical obstruction.
If the E03 error persists the reason may be a ceased motor or broken drive belt
and should NOT be addressed by the end user. Switch the unit off and contact your
Talboys representative for repairs.
Error Code Cause
E02 RTD shorted or temperature below 0°C (32°F)
E01 RTD open or temperature over 100°C (212°F)
The E02 and E01 errors should NOT be addressed by the end user. Switch the unit
off and contact your Talboys representative for repairs.
troubleshooting
8

Professional 1000rs inCubating roCking shaker rePlaCeMent Parts
1.
13.
12.
11.
10.
9. 8. 7.
6.
5.
4.
3.
2.
14.
15.
9
DesCriPtion Part nuMber
1. Tray assembly 880529-00
2. Spring 180062-00
3. Heater 120V: 380710-00
230V: 380711-00
4. Fan 280357-00
5. Temperature sensor 380721-00
6. Lid 280309-00
7. Motor fan, 120V: 380731-00
230V: 380732-00
8. Thermostat 380723-00
9. Front panel 385725-00
10. Circuit board 380736-00
11. Motor assembly 880535-00
12. Idler assembly 880531-00
13. Power supply 386453-00
Fuse 380238-00
14. Feet 149023-00
15. Power entry module, 120V: 380758-00
230V: 380237-00
Detachable 92” (234cm) power cord: 120V: 330100-00
Eurp Plug: 330101-00
UK: 330102-00
Swiss Plug: 330103-00

Professional 1000Ws inCubating Waving shaker rePlaCeMent Parts
1.
13.
12.
11.
10.
9.
8.
7.
6.
5.
4.
3.
2.
14.
15.
16.
10
DesCriPtion Part nuMber
1. Tray assembly 880530-00
2. Spring 180062-00
3. Heater: 120V: 380710-00
230V: 380711-00
4. Fan 280357-00
5. Temperature sensor 380721-00
6. Lid 280309-00
7. Motor fan: 120V: 380731-00
230V: 380732-00
8. Thermostat 380723-00
9. Front panel 385727-00
10. Circuit board 380736-00
11. Motor assembly 880534-00
12. Idler assembly 880531-00
13. Power supply 386453-00
Fuse 380238-00
14. Cable 280404-00
15. Feet 149023-00
16 Power entry module: 120V: 380758-00
230V: 380237-00
Detachable 92” (234cm) power cord: 120V: 330100-00
Euro plug: 330101-00
UK: 330102-00
Swiss plug: 330103-00

aCCessories
DIMPLED MAT
Designed to hold centrifuge tubes, vials, culture tubes, and micro-tubes securely in place. Mat can be easily
removed for cleaning and transporting tubes from bench to tray.
Description Dimensions (L x W) Part Number
Dimpled Mat, Incubating Rocking Shaker 10 x 7.5” (25.4 x 19.1cm) 980536
Dimpled Mat, Incubating Waving Shaker 9.25 x 7.25” (23.5 x 18.4cm) 980543
11

201 Wolf Drive • PO Box 87 • Thorofare, NJ 08086 • Phone: 1-888-TALBOYS • Fax: [phone]
E-mail: [email protected] • www.troemner.com
715080-00 (REV 9 - 5/15)
Manufactured by:
