Talboys Advanced Series User manual

INSTRUCTION MANUAL
Advanced Hotplates, Stirrers,
Hotplate-Stirrers

Table of ConTenTs
Package Contents . . . . . . . . . . . . . . . 1
Warranty . . . . . . . . . . . . . . . 1
Installation . . . . . . . . . . . . . . . 2
Maintenance & Servicing . . . . . . . . . . . . . . . 2
Intended Use . . . . . . . . . . . . . . . 2
Environmental Conditions . . . . . . . . . . . . . . . 2
Safety Instructions . . . . . . . . . . . . . . . 3-4
Standards & Regulations . . . . . . . . . . . . . . . 3-4
4 x 4 Specifications . . . . . . . . . . . . . . . 5
7 x 7 Specifications . . . . . . . . . . . . . . . 6
10 x 10 Specifications . . . . . . . . . . . . . . . 7
Heating Operating Instructions . . . . . . . . . . . . . . . 8-9
Stirring Operating Instructions . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . 11
Replacement Parts . . . . . . . . . . . . . . . 12-14
1
WarranTy
Manufacturer warrants this product to be free from defects in material and workmanship
when used under normal conditions. For your reference, make a note of the serial
number, date of purchase and supplier here.
Serial Number: _______________________________________________________
Date of Purchase: ____________________________________________________
Supplier: ____________________________________________________________
PaCkage ConTenTs
Hotplate, Stirrer or Hotplate-Stirrer
92” (234cm) detachable power cord (except 10 x 10, 120V heating models)
Spin bar (stirring models only)
Instruction manual

Upon receiving the Talboys Hotplate/Stirrer/Hotplate-Stirrer, check to ensure that no damage has
occurred in shipment. It is important that any damage that occurred in transport is detected at the time
of unpacking. If you do find such damage the carrier must be notified immediately.
After unpacking, place the Hotplate/Stirrer/Hotplate-Stirrer on a level bench or table, away from explo-
sive vapors. Ensure that the surface on which the unit is placed will withstand typical heat produced
by the unit and place the unit a minimum of six (6) inches (15.2cm) from vertical surfaces. Always place
the unit on a sturdy work surface.
The Hotplate/Stirrer/Hotplate-Stirrer is supplied with a power cord that is inserted into the IEC connector
on the back of the unit first, then it can be plugged into a properly grounded outlet. The 120V unit plugs
into a 120 volt, 50/60 Hz source. The 230V unit plugs into a 230 volt, 50/60 Hz source. Be sure the
power cord is fully and correctly installed into the IEC connector before powering the unit.
Note: 10 x 10, 120V heating models have a fixed power cord terminated with a NEMA 5-15P appliance
connector.
MainTenanCe & serviCing
The Hotplate/Stirrer/Hotplate-Stirrer is built for long, trouble-free, dependable service. It needs no user
maintenance beyond keeping the surfaces clean. The unit should be given the care normally required
for any electrical appliance. Avoid wetting or unnecessary exposure to fumes. Spills should be removed
promptly after the unit has cooled down. Do not use a cleaning agent or solvent on the front panel
or top plate which is abrasive or harmful to plastics, nor one which is flammable. Always ensure the
power is disconnected from the unit prior to any cleaning. If the unit ever requires service, contact your
Talboys representative.
CLEANING CERAMIC TOPS:
First remove any burnt-on deposits or spills from the top plate with a scraper (similar to scraping paint
off of windowpanes in your home). For your safety, please wear an insulated mitt when using a metal
scraper. When the top plate has cooled, apply a few dabs of a non-abrasive cleaner over the surface
with a damp paper towel. As a final step, clean with water and wipe surface with a clean, dry paper towel.
CLEANING ALUMINUM TOPS:
For simple dust and dirt, clean the aluminum top by using a damp cloth with soap and water. For
more stubborn deposits, try using a flat edge wooden spatula to scrape off as much as possible. For
more stubborn stains, try using a couple of tablespoons of white vinegar to two pints of water and mix
well. Dip a clean cloth into the mixture and gently rub the exterior of the aluminum surface. Generally,
it is not a good idea to use abrasive pads or cleaners on aluminum, as the metal will scratch easily. If
you must use some type of abrasive, try applying baking soda to the surface and then rubbing with a
moist cloth. This will work as well as most scouring pads and is less likely to create deep scratches in
the surface. Be careful not to use steel wool or scouring pads as they can leave the aluminum riddled
with little scratches that make it harder to clean in the future. If you feel you must use steel wool, use
the finest grade you can find and use as sparingly as possible with as little pressure as possible. Go
with the grain rather than using circular motions.
inTended Use
These Hotplates/Stirrers/Hotplate-Stirrers are intended for general laboratory use.
environMenTal CondiTions
Operating Conditions: Indoor use only.
Temperature: 5 to 40°C (41 to 104°F)
Humidity: 20% to 80% relative humidity, non-condensing
Altitude: 0 to 6,562 ft (2000 M) above sea level
Non-Operating Storage:
Temperature: -20 to 65°C (-4 to 149°F)
Humidity: 20% to 80% relative humidity, non-condensing
Installation Category II and Pollution Degree 2 in accordance with IEC 664.
eqUiPMenT disPosal
This equipment must not be disposed of with unsorted waste. It is your responsibility to
correctly dispose of the equipment at life-cycle-end by handing it over to an authorized
facility for separate collection and recycling. It is also your responsibility to decontaminate the
equipment in case of biological, chemical and/or radiological contamination, so as to protect
the persons involved in the disposal and recycling of the equipment from health hazards.
For more information about where you can drop off your waste of equipment, please contact
your local dealer from whom you originally purchased this equipment. By doing so, you will help to conserve
natural and environmental resources and you will ensure that your equipment is recycled in a manner that
protects human health.
2
insTallaTion MainTenanCe & serviCing ConT’d

Please read the entire instruction manual before operating the Hotplate/Stirrer/
Hotplate-Stirrer.
WARNING! DO NOT use the Hotplate/Stirrer/Hotplate-Stirrer in a hazardous
atmosphere or with hazardous materials for which the unit was not designed.
Also, the user should be aware that the protection provided by the equipment
may be impaired if used with accessories not provided or recommended by the
manufacturer, or used in a manner not specified by the manufacturer.
Always operate unit on a level surface for best performance and maximum safety.
DO NOT lift unit by the top plate.
CAUTION! To avoid electrical shock, completely cut off power to the unit
by disconnecting the power cord from the unit or unplug from the wall outlet.
Disconnect unit from the power supply prior to maintenance and servicing.
Spills should be removed promptly after the unit has cooled down. DO NOT
immerse the unit for cleaning. Alkalis spills, hydrofluoric acid or phosphoric
acid spills may damage the unit and lead to thermal failure.
CAUTION! The top plate can reach 500°C, DO NOT touch the heated
surface. Use caution at all times. Keep the unit away from explosive vapors
and clear of papers, drapery and other flammable materials. Keep the power
cord away from the heater plate.
DO NOT operate the unit at high temperatures without a vessel/sample on the
top plate.
WARNING! Units are NOT explosion proof. Use caution when heating volatile
materials.
Replace the ceramic top immediately if damaged. A damaged top can break
in use.
DO NOT operate the unit if it shows signs of electrical of mechanical damage.
Earth Ground - Protective Conductor Terminal
Alternating Current
sTandards & regUlaTions
Troemner, LLC hereby declares under it’s sole responsibility that the construction of
this product conforms in accordance with the following standards:
Safety standards:
EN 60101-1
EN 61010-2-010
EN 61010-2-051
CAN/CSA C22.2 61010-1
CAN/CSA C22.2 61010-2-010
CAN/CSA C22.2 61010-2-051
UL 61010-1
EMC standards:
EN 61326-1 IEC 61000-4-4
EN 55022-B IEC 61000-4-5
IEC 6100-3-2 IEC 61000-4-6
IEC 61000-3-3 IEC 61000-4-11
IEC 61000-4-3
Associated EU guidelines:
EMC directive 2004/108/EC
LVD directive 2006/95/EC
ROHS directive 2011/65/EU
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This Class A digital apparatus complies with Canadian ICES-003.
3
safeTy insTrUCTions safeTy insTrUCTions ConT’d

Remplacez la plaque céramique immédiatement si celle-ci est endommagée. Une
plaque endommagée peut se fendre si elle est utilisée.
N’UTILISEZ PAS le dispositif s’il y a des signes de dommages électriques ou
mécaniques.
Mise à la terre - Borne du conducteur de protection
Courant alternatif
norMes eT régleMenTaTions
Troemner, LLC déclare par la présente sous sa seule responsabilité que la conception
de ce produit répond aux exigences des normes suivantes:
Normes de sécurité:
EN 60101-1
EN 61010-2-010
EN 61010-2-051
CAN/CSA C22.2 61010-1
CAN/CSA C22.2 61010-2-010
CAN/CSA C22.2 61010-2-051
UL 61010-1
Normes EMC:
EN 61326-1 IEC 61000-4-4
EN 55022-B IEC 61000-4-5
IEC 6100-3-2 IEC 61000-4-6
IEC 61000-3-3 IEC 61000-4-11
IEC 61000-4-3
Directives UE associées:
EMC directive 2004/108/EC
LVD directive 2006/95/EC
ROHS directive 2011/65/EU
Veuillez lire la totalité du manuel d’instruction avant d’utiliser le dispositif Agitateur/
Agitateur à plaque chauffante.
AVERTISSEMENT! N’UTILISEZ PAS le dispositif Plaque chauffante/Agitateur/
Agitateur à plaque chauffante dans une atmosphère dangereuse ou avec des
matériaux dangereux pour lesquels l’emploi du dispositif n’a pas été conçu.
L’utilisateur doit en outre toujours être conscient du fait que la protection fournie
par le fabricant peut être désactivée si le dispositif est utilisé avec des accessoires
non fournis ni recommandés par le fabricant ou s’il est utilisé de manière non
stipuléepar le fabricant.
Utilisez toujours le dispositif sur une surface à niveau pour optimiser non seulement la
performance mais la sécurité.
NE SOULEVEZ PAS le dispositif en saisissant la plaque supérieure.
ATTENTION! Pour éviter tout choc électrique, coupez le courant vers le dispositif
en débranchant le cordon d’alimentation du dispositif ou de la prise murale.
Débranchez le dispositif de l’alimentation avant d’effectuer toute opération de
maintenance ou de réparation.
Les liquides renversés doivent être nettoyés tout de suite après le refroidissement
du dispositif. N’IMMERGEZ PAS le dispositif pour le nettoyer. Les produits
déversés comme les alcalis et les acides hydrofluorique et phosphorique peuvent
entraîner un choc thermique.
ATTENTION! La plaque supérieure peut atteindre 400°C, NE TOUCHEZ PAS la
surface chauffée. Faites preuve de prudence à tout moment. Tenir le dispositif
loin des vapeurs explosives et des papiers, rideaux et autres substances
inflammables. Tenir le cordon d’alimentation loin de la plaque chauffante.
N’UTILISER PAS le dispositif à des températures élevées si un récipient/échantillon
n’est pas sur la plaque supérieure.
AVERTISSEMENT! Les dispositifs NE SONT PAS antidéflagrants. Faites preuve
de prudence lors du chauffage de substances volatiles.
4
Consignes de séCUriTé Consignes de séCUriTé ConT’d

Dimensions (L x W x H): 10.80 x 6.58 x 4.27” (27.4 x 16.7 x 10.8cm)
Top plate dimensions (L x W): 4 x 4” (10.2 x 10.2cm)
Electrical (50/60 Hz):
Hotplate: 120V: 2.9 amps/350 watts
230V: 1.5 amps/350 watts
Stirrer: 120V: 0.4 amps/50 watts
230V: 0.2 amps/50 watts
Hotplate-Stirrer: 120V: 3.3 amps/400 watts
230V: 1.7 amps/400 watts
Fuses: 5mm x 20mm, 5 amp quick acting
Temperature range: ceramic: ambient +5°C to 500°C
aluminum: ambient +5°C to 400°C
Temperature stability: ceramic*: +/-3%
aluminum*: +/-2%
Speed range: 60 to 1600rpm
Speed stability: +/-2%
Capacity: 600mL
Controls: see diagram
Ship weight: 6.2lbs (2.8kg)
* Below 100°C +/-2°C. Environmental and sample conditions permit-
ting.
NOTE: On all units, the Max. temperature setting on the display is 500°C for a
ceramic top and 400°C for an aluminum top.
heat adjust knob
stir adjust knob
caution hot top
indicator light
recall last temp. button
temperature display

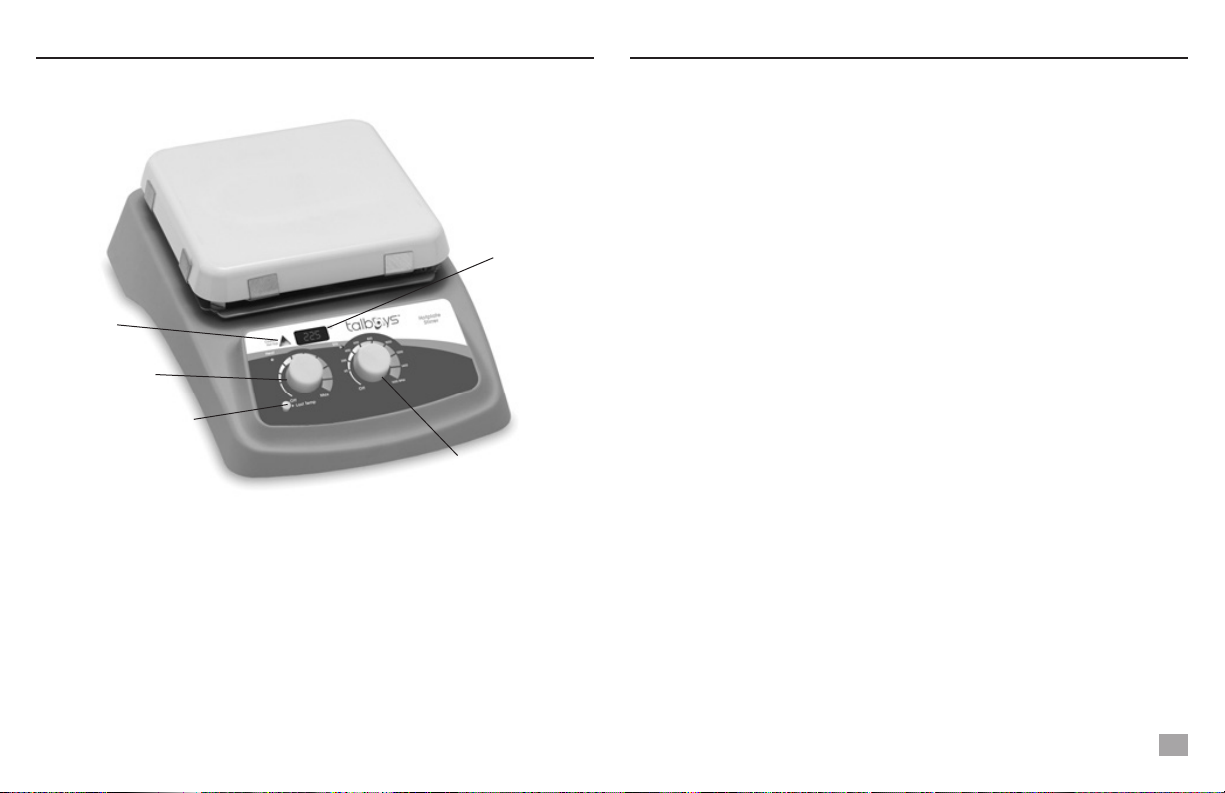

Talboys Advanced 4x4, Ceramic Hotplate-Stirrer
5
advanCed series 4 x44 x4 HoTPlaTe/sTirrer/HoTPlaTe-sTirrer sPeCifiCaTions

heat adjust knob
stir adjust knob
caution hot top
indicator light
recall last
temp. button
temperature
display
Talboys Advanced 7x7, Ceramic Hotplate-Stirrer
6
Dimensions (L x W x H): 14.77 x 9.85 x 4.27” (37.5 x 25 x 10.8cm)
Top plate dimensions (L x W): 7 x 7” (17.8 x 17.8cm)
Electrical (50/60 Hz):
Hotplate: 120V: 7.9 amps/950 watts
230V: 4.4 amps/1000 watts
Stirrer: 120V: 0.4 amps/50 watts
230V: 0.2 amps/50 watts
Hotplate-Stirrer: 120V: 8.3 amps/1000 watts
230V: 4.6 amps/1050 watts
Fuses: HP/HPS: 5mm x 20mm, 10 amp slow blow
Stirrer: 5mm x 20mm, 5 quick acting
Temperature range: ceramic: ambient +5°C to 500°C
aluminum: ambient +5°C to 400°C
Temperature stability: ceramic*: +/-3%
aluminum*: +/-2%
Speed range: 60 to 1600rpm
Speed stability: +/-2%
Capacity: 2500mL
Controls: see diagram
Ship weight: 10.5lbs (4.8kg)
* Below 100°C +/-2°C. Environmental and sample conditions permit-
ting.
NOTE: On all units, the Max. temperature setting on the display is 500°C for a
ceramic top and 400°C for an aluminum top.
7 x7 HoTPlaTe/sTirrer/HoTPlaTe-sTirrer sPeCifiCaTionsadvanCed series 7 x 7

* Glassware not included.
heat adjust knob
stir adjust knob
caution hot top
indicator light
recall last
temp. button
temperature display
optional support rod
and clamp kit
Talboys Advanced 10x10, Aluminum Hotplate-Stirrer with
optional probe kit and glassware*
7
Dimensions (L x W x H): 17.90 x 13.00 x 4.27” (45.5 x 33.0 x 10.8cm)
Top plate dimensions (L x W): 10 x 10” (25.4 x 25.4cm)
Electrical (50/60 Hz):
Hotplate: 120V: 10.8 amps/1300 watts
230V: 6.7 amps/1550 watts
Stirrer: 120V: 0.4 amps/50 watts
230V: 0.2 amps/50 watts
Hotplate-Stirrer: 120V: 11.2 amps/1345 watts
230V: 7.0 amps/1600 watts
Fuses: 120V HP/HPS: 1 1/4 x 1/4 in, 15 amp quick acting (internal)
230V HP/HPS: 5mm x 20mm, 16 amp slow blow
Stirrer: 5mm x 20mm, 5 quick acting
Temperature range: ceramic: ambient +5°C to 500°C
aluminum: ambient +5°C to 400°C
Temperature stability: ceramic*: +/-3%
aluminum*: +/-2%
Speed range: 60 to 1600rpm
Speed stability: +/-2%
Capacity: 6000mL
Controls: see diagram
Ship weight: 15.9lbs (7.2kg)
* Below 100°C +/-2°C. Environmental and sample conditions permit-
ting.
NOTE: On all units, the Max. temperature setting on the display is 500°C for a
ceramic top and 400°C for an aluminum top.
advanCed series 10 x 1010 x10 HoTPlaTe/sTirrer/HoTPlaTe-sTirrer sPeCifiCaTions

HeaTing oPeraTing insTrUCTions
The Hotplates and Hotplate-Stirrers have a micro-processor controlled heater that is
designed to bring samples to temperature quickly and accurately.
1. Getting ready:
a. Turn the heat knob to the off position. Plug power cord into a properly grounded
3-prong outlet.
b. Place a vessel with solution and the appropriate accessories in the center of the
top plate. This is important because the vessel should be over the hottest part
of the top plate.
2. Setting temperature for Advanced Series:
a. Turn the heat knob clockwise until the display reaches the desired heat setting.
The display will flash the set-point temperature until the temperature is reached,
at which time the display will stop flashing and beep 5 (five) times. When the heat
is turned on the indicator light above the heat knob is illuminated. Removing or
adding more to a sample content could cause the temperature to fluctuate. If this
occurs, the display will again start to flash until the set-point value is stabilized.
b. Temperature adjustments can be made without interrupting heating by turning
the heat knob clockwise to increase heat or counter-clockwise to decrease
heat.
c. To stop heating, turn the heat knob to the off position. Your vessel can then be
removed.
Caution hot top indicator:
The caution hot top indicator light warns that the top plate
is too hot to touch. The caution hot top indicator light will
illuminate when the heat is turned on and remain on until the
top plate cools down.
Recall last temperature button:
Advanced Series Hotplate/Hotplate-Stirrers have a built-in memory that allows users
to recall the last set temperature, even after the unit has been turned off. (The
temperature in memory is the last temperature that ran for more than 5 minutes.)
Max Temperature:
If the unit has an aluminum top, the max temperature setting is 400°C. If the unit has
a ceramic top, the max temperature setting is 500°C.
OPERATING TIPS
The unit may overshoot the temperature up to 10°C before stabilizing at the set-point.
The two methods suggested to minimize overshoot are:
1. Metal containers minimize overshoot. CAUTION: When heating metal
containers on a ceramic top it is recommended to use the lowest
temperature setting possible to limit thermal stress to the ceramic top.
2. If a glass vessel is used, anticipate overshoot. Start with a setting 5-10°C below the
desired temperature. When the temperature stabilizes at this lower setting, turn the
heat knob to the final temperature. Overshoot is then reduced to about 1°C.
The temperature display on the Advanced units show the actual temperature of the
heater not the top plate or sample. The vessel contents being heated may be at a lower
temperature depending on the size and insulating qualities of the vessel. It may be
beneficial to monitor the temperature of the vessel contents and adjust the set-point
temperature accordingly.
8

This method can be used for calibrating the top plate surface.
To set a Single Point Calibration (SPC) adjustment:
a. Turn the heat knob clockwise until the display reaches the desired heat setting,
and let the unit stabilize to the user input temperature. The heater temperature
has stabilized when the temperature display is no longer blinking and the unit
will beep five times.
b. Wait ten minutes for the surface temperature to stabilize. Measure the top plate
with a traceable surface temperature measuring device.
c. Press and hold the Last Temperature button. The display will start to scroll
through the available SPC options (“UP”, “dn”, “SEt” and “dEL”) as long as
the Last Temperature button is held down. Once you select “UP” or “dn” mode
and release the Last Temperature button the unit will beep two times and the
display will begin to blink quickly. This lets you know you are programming in
SPC mode.
NOTE: There is a thirty second time out (Last Temperature button must be pressed at
least once in thirty seconds, or unit will exit SPC mode). Do not touch the heat knob
while in SPC mode. If the heat knob is adjusted during this procedure you will exit
SPC mode.
d. Once the desired option is displayed, release the Last Temperature button.
Please see the explanation below for each option.
e. Selecting the “SEt” option saves the Single Point Calibration adjustment for that
temperature set point and allows you to exit this SPC mode (see Section c).
When the “Set” option is selected “SEt” will be displayed. To save the current
SPC point and exit the SPC programming mode, release the Last Temperature
button when “SEt” is on the display. The display will now show your set point
temperature with a decimal point for that setting.
f. Select the “UP” option if your externally measured temperature of the top plate
is higher than the set point on the display. When the “UP” option is selected
the current SPC adjusted temperature is displayed and blinking quickly. To
increase the SPC, press and release the Last Temperature button multiple
times (do not touch heat knob) until the display reads the value you recorded
CERAMIC TOP
Size of Top Plate Volume of Water Time
4 x 4 500ml in 600ml beaker 40
7 x 7 1500ml in 2,000ml beaker 45
10 x 10 5000ml in 6000ml
Erlenmeyer Flask 60
TyPiCal TiMe Toboil WaTer
The chart below is an example of an approximate time to boil for the specified amount
of water in a specific vessel. These values are only approximate and can
vary from unit to unit. Values are based on 23ºC water in an ambient
environment of 23ºC.
9
ALUMINUM TOP
Size of Top Plate Volume of Water Time
4 x 4 500ml in 600ml beaker 40
7 x 7 1500ml in 2000ml beaker 60
10 x 10 5000ml in 6000ml
Erlenmeyer Flask 70
TeMPeraTUre CalibraTion ProCedUre (single PoinT CalibraTion)

TeMPeraTUre CalibraTion ProCedUre ConT’d
as the measured temperature of the top plate. Changes are not saved until
the “SEt” option is selected (and the Last Temperature button is pressed and
released), if the temperature is adjusted too high, delete the SPC adjustment
and repeat procedure.
g. Select the “dn” option if your externally measured temperature of the top plate
is lower than the set point on the display. When the “dn” option is selected
the current SPC adjusted temperature will be displayed and blinking quickly.
To decrease the SPC, press and release the Last Temperature button
multiple times (do not touch the heat knob) until the display reads the value
you recorded as the measured temperature of the top plate. Changes are not
saved until the “SEt” option is selected (and the Last Temperature button is
pressed and released), if the temperature is adjusted too low, delete the SPC
adjustment and repeat procedure.
h. Selecting the “dEL” option will delete all Single Point Calibration points and
allow you to exit this SPC mode (see Section c). When the “dEL” option is
selected “dEL” will be displayed. To delete all SPC points and exit the SPC
mode release the Last Temperature button when “dEL” is on the display.
i. For set point temperatures with a SPC adjustment, there will be a decimal point
in the display. Once the SPC adjustment is set, the display will blink while the
unit’s temperature is settling. When the SPC set point is reached, the display
will stop blinking and the unit will beep five times.
j. This process may be repeated for up to three separate set points. If a fourth
SPC set point is entered, the first set point will be overwritten. To readjust an
existing SPC set point, you must delete the current settings (all SPC points
will be deleted, and the decimal points will no longer be displayed at those
temperatures) and repeat the SPC procedure. If SPC adjustments are not
deleted prior to resetting SPC for a set point then the temperature adjustment
will not be accurate
k. The SPC adjustments are limited to the maximum and minimum temperatures
and limits allowed by the particular unit.
10
sTirring oPeraTing insTrUCTions
The micro-processor controlled ramping feature slowly increases speed until the set-
point is reached. This feature helps to avoid splashing, improves magnetic coupling and
provides excellent low end control. The micro-processor also monitors and regulates the
stirring speed, sensing your requirements whether you’re stirring an aqueous, viscous or
semi-solid solution.
Initial stirring speed may exceed set speed if the following conditions exist:
1. The stirrer is set at a low speed and the stirrer has not been operated for a extended
period of time.
2. The stirrer is set at a low speed and it is the stirrer’s initial use.
1. Getting ready:
a. Turn stir knob to the off position. Plug power cord into a properly grounded outlet.
b. Place a vessel with solution and the appropriate spin bar in the center of the top
plate.
2. Setting speed:
a. Turn the stir knob clockwise until the pointer reaches the desired speed setting. The
stir indicator light above the stir knob will illuminate to indicate the stirring feature is
in use. The stir indicator light will blink while reaching the set-point. Once the set-point
is reached the light will remain lit.
b. Speed adjustments can be made without interrupting stirring by turning the stir knob
clockwise to increase speed, or counter-clockwise to decrease speed.
c. To stop stirring, turn the stir knob to the off position. Your vessel can then be
removed.
Stir protection for Hotplate-Stirrers:
If stirrer motor stops or fails, the unit will automatically shut down the heater.
The stirrer increases speed at a steady rate until the set-point is reached, if the stir bar is
too large or the liquid is too viscous, the stirrer may not reach its set-point. The set-point
speed needs to be reduced. The magnetic strength of stir bars reduce over time and may
need to be replaced.
Stirring vessels in oil baths:
When heating and stirring a reaction vessel within an oil bath or similar set-up, the stirring
function will stir up to approximately one (1) inch (2.54cm) from the top plate. The stirring
speed will vary according to liquid viscosity, stir bar length and distance from the top plate.
Adjust one or all of these to achieve the desired stirring speed.

If the unit gives an error code, immediately switch the unit off. See error table below for proper corrective action. If the error cannot be cleared, please contact your Talboys
representative for repairs.
TroUblesHooTing (HoTPlaTe / HoTPlaTe-sTirrers)
The stirring units do not have LED displays. In the event of a malfunction, the unit will beep 10 (ten) times. To clear the error, turn the control knob to the off position and cycle
the power by disconnecting the power cord from the source. Reconnect power cord and resume operations. If the error persists, turn the unit off and contact your Talboys
representative for repair.
11
Error Cause of Error How to Fix
E1 An “E1” error means the heater sensor is open or malfunctioned. This error cannot be fixed by the end user. Please contact your Talboys representative
for repair.
E2 An “E2” error means the heater sensor shorted or malfunctioned. This error cannot be xed by the end user. Please contact your Talboys representative
for repair.
E3 An “E3” error means there is either no motion on the motor or the motor is
not working properly.
Reset the unit by rotating the knobs for speed and heat to the off positions until
they click then turn them back on. If it still doesn’t work, please contact you Talboys
representative for repair.
E6 An “E6” error means there is an internal electronics system error. This error cannot be xed by the end user. Please contact your Talboys representative
for repair.
E8
An “E8” error means the unit had a catastrophic over temperature condition
or temperature runaway condition (temperature greater than 600°C) and
therefore automatically shut down to prevent damage.
This error cannot be xed by the end user. Please contact your Talboys representative
for repair.
E9
An “E9” error means the heater failed. This might occur if heater temperature
fails to rise when asked to, or there is a sudden drop in heater temperature
for no apparent reason.
This error cannot be xed by the end user. Please contact your Talboys representative
for repair.
TroUblesHooTing (sTirrrers)

12
desCriPTion ParT nUMber
1. Top plate assembly: 120V, ceramic, Hotplate, Hotplate-Stirrer 886310-00
230V, ceramic, Hotplate, Hotplate-Stirrer 886311-00
120V/230V, ceramic, Stirrer 886312-00
120V, aluminum, Hotplate, Hotplate-Stirrer 886313-00
230V, aluminum, Hotplate, Hotplate-Stirrer 886314-00
120V/230V, aluminum, Stirrer 886315-00
2. Front panel overlay: Stirrer 386217-00
Hotplate 386218-00
Hotplate-Stirrer 386219-00
3. Control knobs 286116-00
4. Last temperature (Advanced Heating Units only): switch 386104-00
button 386101-00
5. Support stand thumb knob 186208-00
6. Housing 286613-00
7. Heat Shield 286607-00
8. Magnet assembly: Stirrer, Hotplate-Stirrer 286616-00
9. IEC module 386680-00
Fuse 5 amp 380238-00
10. Motor: 120V 286623-00
230V 286627-00
11. Main PCB: 386660-00
12. Pot PCB/Assy: 386661-00
13. Display PCB Hotplate, Hotplate-Stirrer 386663-00
Stirrer 386662-00
14. Bottom Plate 286610-00
15. Bottom Plate plug 186201-00
16. Feet 186200-00
17. Internal Lock Washer 130015-00
18. Ground Jumper Wire aluminum top units 386678-00
Detachable 92” (234cm) power cord: 120V 330100-00
Euro plug 330101-00
4 x4 rePlaCeMenT ParTs

7 x7 rePlaCeMenT ParTs
desCriPTion ParT nUMber
1. Top plate assembly: 120V, ceramic, Hotplate, Hotplate-Stirrer 886316-00
230V, ceramic, Hotplate, Hotplate-Stirrer 886317-00
120V/230V, ceramic, Stirrer 886318-00
120V, aluminum, Hotplate, Hotplate-Stirrer 886319-00
230V, aluminum, Hotplate, Hotplate-Stirrer 886320-00
120V/230V, aluminum, Stirrer 886321-00
2. Front panel overlay: Stirrer 386220-00
Hotplate 386221-00
Hotplate-Stirrer 386222-00
3. Control knobs 286116-00
4. Last temperature (Advanced Heating Units only): switch 386104-00
button 386101-00
5. Support stand thumb knob 186208-00
6. Housing 286614-00
7. Heat Shield 286608-00
8. Magnet assembly: Stirrer, Hotplate-Stirrer 286616-00
9. IEC module 386681-00
Fuse 10 Amp Hotplate, Hotplate-Stirrer 386005-00
Fuse 5 Amp Stirrer 380238-00
10. Motor: 120V 286623-00
230V 286627-00
11. Main PCB: Hotplate 386660-00
12. Pot PCB/Assy: 386661-00
13. Display PCB Hotplate, Hotplate-Stirrer 386663-00
Stirrer 386662-00
14. Bottom Plate 386611-00
15. Bottom Plate plug 186201-00
16. Feet 186200-00
17. Internal Lock Washer 130015-00
18. Ground Jumper Wire aluminum top units 386678-00
Detachable 92” (234cm) power cord: 120V 330100-00
Euro Plug 330101-00
13

14
desCriPTion ParT nUMber
1. Top plate assembly: 120V, ceramic, Hotplate, Hotplate-Stirrer 886322-00
120V, aluminum, Hotplate, Hotplate-Stirrer 886325-00
2. Front panel overlay: Stirrer 386279-00
Hotplate 386280-00
Hotplate-Stirrer 386281-00
3. Control knobs 286116-00
4. Last temperature (Heating Units only): switch 386100-00
button 386101-00
5. Support stand thumb knob 186208-00
6. Housing 286615-00
7. Heat Shield 286609-00
8. Magnet assembly: Stirrer, Hotplate-Stirrer 286616-00
9. Motor: 286627-00
10. Main PCB: Hotplate 386660-00
11. Pot PCB/Assy: 386661-00
12. Display PCB Hotplate, Hotplate-Stirrer 386663-00
Stirrer 386662-00
13. Bottom Plate 286612-00
14. Bottom Plate plug 186201-00
15. Feet 186200-00
16. Internal Lock Washer 130015-00
17. Motor to Chassis wire, AI plate 386696-00
18. PCBA to Chassis wire 386697-00
19. PCBA to fuse holder wire 386698-00
20. Fixed AC power cord 380109-00
21. Face plate 286644-00
22. Strain relief bushing 386688-00
23. Retention plate 286645-00
24. Fuse, 15 amps 386034-00
25. Fuse holder 386126-00
10 x10, 120v HoTPlaTe, HoTPlaTe-sTirrer rePlaCeMenT ParTs

201 Wolf Drive • PO Box 87 • Thorofare, NJ 08086 • Phone: 1-888-TALBOYS • Fax: [phone]
E-mail: [email protected] • www.troemner.com
586061-00 (REV 9 - 11/18)
Manufactured by:
desCriPTion ParT nUMber
1. Top plate assembly: 230V, ceramic, Hotplate, Hotplate-Stirrer 886323-00
120V/230V, ceramic, Stirrer 886324-00
230V, aluminum, Hotplate, Hotplate-Stirrer 886326-00
120V/230V, aluminum, Stirrer 886327-00
2. Front panel overlay: Stirrer 386279-00
Hotplate 386280-00
Hotplate-Stirrer 386281-00
3. Control knobs 286116-00
4. Last temperature (Heating Units only): switch 386100-00
button 386101-00
5. Support stand thumb knob 186208-00
6. Housing 286615-00
7. Heat Shield 286609-00
8. Magnet assembly: Stirrer, Hotplate-Stirrer 286616-00
9. IEC module 386681-00
Fuse 16 Amp Hotplate, Hotplate-Stirrer 386033-00
Fuse 5 Amp Stirrer 380238-00
10. Motor: 230V 286627-00
11. Main PCB: Hotplate 386660-00
12. Pot PCB/Assy: 386661-00
13. Display PCB Hotplate, Hotplate-Stirrer 386663-00
Stirrer 386662-00
14. Bottom Plate 286612-00
15. Bottom Plate plug 186201-00
16. Feet 186200-00
17. Internal Lock Washer 130015-00
18. Ground Jumper Wire aluminum top units 386678-00
Detachable 92” (234cm) power cord: Stirrer 120V 330100-00
Euro Plug 330101-00
10 x10 rePlaCeMenT ParTs - 120v sTirrer, 230v all UniTs
