Talgil BERMAD Irrigation BIC 1000 DC User manual

BERMAD Irrigation
BIC1000 DC
With and Without Radio
Operator Manual
VERSION : SOFTWARE DC-3.34

CONTENTS
1. INTRODUCTION 3
2. CONTROLLER FACE PANEL 4
3. SETTING TIME AND DAY 5
4. CREATING AN IRRIGATION PROGRAM 6
4.1 IRRIGATION DAYS AND START TIMES 6
4.2 WATER AND FERTILIZERS RUN TIME 7
5. ADDITIONAL PROGRAM FEATURES 8
5.1 % ADJUST 8
5.2 STOP TIME 8
5.3 DAILY CYCLE 9
5.4 PAUSE PROGRAM 10
5.5 MANUAL OPERATION 10
5.6 PROGRAM STATUS 13
6. SYSTEM OPERATIONS 15
6.1 GROUPS 15
6.2 WATER BEFORE/AFTER 16
6.3 FILTER BACK FLUSH 17
6.4 RAIN OFF DELAY 19
6.5 I/O STATE/ TEST 20
6.5.1 INPUT / OUTPUT STATE 20
6.5.2 TEST CYCLE 21
6.6 SYSTEM STATUS / ACCUMULATION 22
6.6.1 RADIO RTU STATUS 22
6.6.2 PROGRAMS STATUS 23
6.6.3 SYSTEM FLOW 23
6.6.4 TIME ACCUMULATION PER VALVE / SYSTEM 23

BERMAD Irrigation
The information herein is subject to change without notice. BERMAD shall not be held liable for
any errors. All rights reserved. © Copyright by BERMAD.
1. Introduction
The BIC 1000 DC is a user friendly, professional time based irrigation controller. The system can manage irrigation, fertilization,
filter station back flushing and the activation of a pump, all in a simple and straightforward manner.
The system includes 4 irrigation programs that may contain any number of valves and groups of valves that will be irrigated
sequentially. Each valve or group may have its own run time and fertilization program. Each program may have 6 start times or
irrigate in a cycle for any number of cycles. The programs may run in parallel without disturbing each other.
The fertilization can be carried out in three stages, including pre-watering, injection, and post-watering. The mode of fertilizers
injection can be proportional or continuous.
The user may change the defined run times per program by percentage. For eliminating irrigation during rainy days, a rain delay
can be defined.
The modular structure of the system enables expansion of the number of outputs from 16 to 32.
The available outputs can be allocated to the desired number of irrigation valves, up to 3 fertilizer injectors, 1 pump/main-valve
and to the required number of filters.
There are 4 digital inputs to which the user may connect a water meter for display of the flow, a pressure switch to protect the
system from excess pressure, a differential pressure sensor for triggering filter back flush cycle and a start contact that may
activate program #4 and halt the regular programs when needed.
The user friendly control panel consists of rotary selector push buttons LCD display and LED indicators.
3
Features and Benefits
Independent of the main power supply grid
Protected against unreliable power supply
Protected against high and low power supply spikes
Lightning protection
BIC1000 is simple to operate
Built-in radio ready
Any combination of local and radio control outputs
No need for external BUS systems
Professional time based control
Up to 32 valves operating simultaneously in groups or indi-
vidual scheduling
Pump start/stop
Filter flush program with optional different flush time per filter
Up to three fertilizers, injection continues or proportional.
Irrigation cycles; continues cycle, interval or number of
cycles
Pressure surge protection settings.
Four Inputs
Pressure Differential gauge for Filter flush - Digital or analog
with PD display and settings
Water meter - Pulse or frequency
Line pressure switch
Program start for irrigation and cooling / frost dual systems
Technical Specifications
Power Supply
Rechargeable 12V, 7aH battery
20 Watt Solar panel
Built-in charge controller
Outputs
16 or 32 Local DC Latch
16 or 32 Combination of local and radio controlled valves
32 Radio controlled valves
Inputs
4 dedicated dry contact
1 Analog Pressure Differential (PD) gauge
1 Frequency water meter

BERMAD Irrigation
1849 Thunderbolt Drive, Porterville, CA 93257
Tel: 877-577-4283 Fax: 800-839-3884
2. Controller Face Panel
4
VALUES SETTING KEYS –
these 4 keys are designed
to choose the desired val-
ues/option for the currently
edited field. For setting
numeric values, use the left
most key for the left most
digit, the right most key for
the right most digit etc…
Program Function buttons.
Each button represents a
different subject. The sub-
jects controlled by these
buttons are illustrated to the
right of each button.
Main rotary switch.
Rotates between
system configura-
tion subjects and 4
programs.
Esc key – allows exiting
edit mode without changing
the data and returning the
previous screen (if available)
Enter key – this key enters
edit mode, allowing changes
to be made by the user, and
to confirm them afterwards.

BERMAD Irrigation
The information herein is subject to change without notice. BERMAD shall not be held liable for
any errors. All rights reserved. © Copyright by BERMAD.
3. Setting Time and Day
The first step in the controller setup is the definition of time and day.
Turn the rotary switch to “Time and Day” position
Setting Current Time:
1. Press the enter button to start edit mode. The current time
numbers will start flashing.
2. Use the 4 “VALUE SETTING” keys to set the current time. In
order to change from AM to PM use the left most key of the
“VALUE SETTING” which will cycle between the following – 1
AM, 0 PM, 1 PM and 0 AM.
3. After selecting the current system time press enter to confirm.
Using the Up arrow blue key, scroll to set the Run-List Length.
The Run List is the number of days in the irrigation cycle.
1. Press the enter button to start edit mode. The run list span
numbers will start flashing.
2. Use the 2 right most “VALUE SETTING” keys to select the
desired run list span.
3. After setting the run list span press enter to confirm.
Using the Up arrow blue key, scroll to set the Current Day.
Day 01 is the first day of the irrigation schedule usually represent
Sunday or Monday
Setting Current Day:
1. Press the enter button to start edit mode. The current day’s
numbers will start flashing.
2. Use the 2 right most “VALUES SETTING” keys to select the
current day.
3. After selecting the current day press enter to confirm.
5

BERMAD Irrigation
1849 Thunderbolt Drive, Porterville, CA 93257
Tel: 877-577-4283 Fax: 800-839-3884
6
4.1 Irrigation days and Start times
4. Creating an irrigation program
The first step in the controller setup is the definition of time and day.
Turn the rotary switch to program 1, 2, 3, or 4
Pay attention to which program the dial is positioned, this will help
in avoiding unwanted changes in other programs.
Click “Irrigation Days” button - The green LED illuminates
Click “Start Times” button - The green LED illuminates
Setting Irrigation days On and Off:
1. Press the enter button to start edit mode. The arrows will be
replaced with the number of the day which is currently being
edited and the cursor will start flashing.
2. Use the flipping keys to move the cursor to the desired day.
3. Use any one of the 4 “VALUES SETTING” keys to change the
setting of the selected day –
+ Allows irrigation & fertilization.
-No irrigation day.
4. Repeat steps 2 and 3 until all the days are set.
5. Press enter to confirm the changes.
6. If necessary use the flipping keys in order to reach the next 12
days screen and repeat the process.
Setting Start Time:
1. Press the enter button to start edit mode. The start time num-
bers will start flashing.
2. Use the 4 “VALUES SETTING” keys to select the desired start
time. In order to change from AM to PM use the left most key
of the “VALUES SETTING” it will cycle between the following –
1 AM, 0 PM, 1 PM and 0 AM.
3. After selecting the start time press enter to confirm.
4. Use the blue arrow keys to scroll to the next start time and
repeat steps 1-3.
Note: 12:00 AM is not a legal start time.

BERMAD Irrigation
The information herein is subject to change without notice. BERMAD shall not be held liable for
any errors. All rights reserved. © Copyright by BERMAD.
7
4.2 Water and Fertilizers run time
Define which the participating valves and the water and fertilizer run time.
• Refer to paragraph 5.1 for valves groups
• Time units are set per program and can be changed in the Configuration menu
• Valves and groups operates in sequence, starting with the smallest valve number 1 -> 2 -> 4 etc …), the same rule apply
to groups. In case of a mixed program (valves and groups) the Valves will operate first, in a sequential order, and then the
groups.

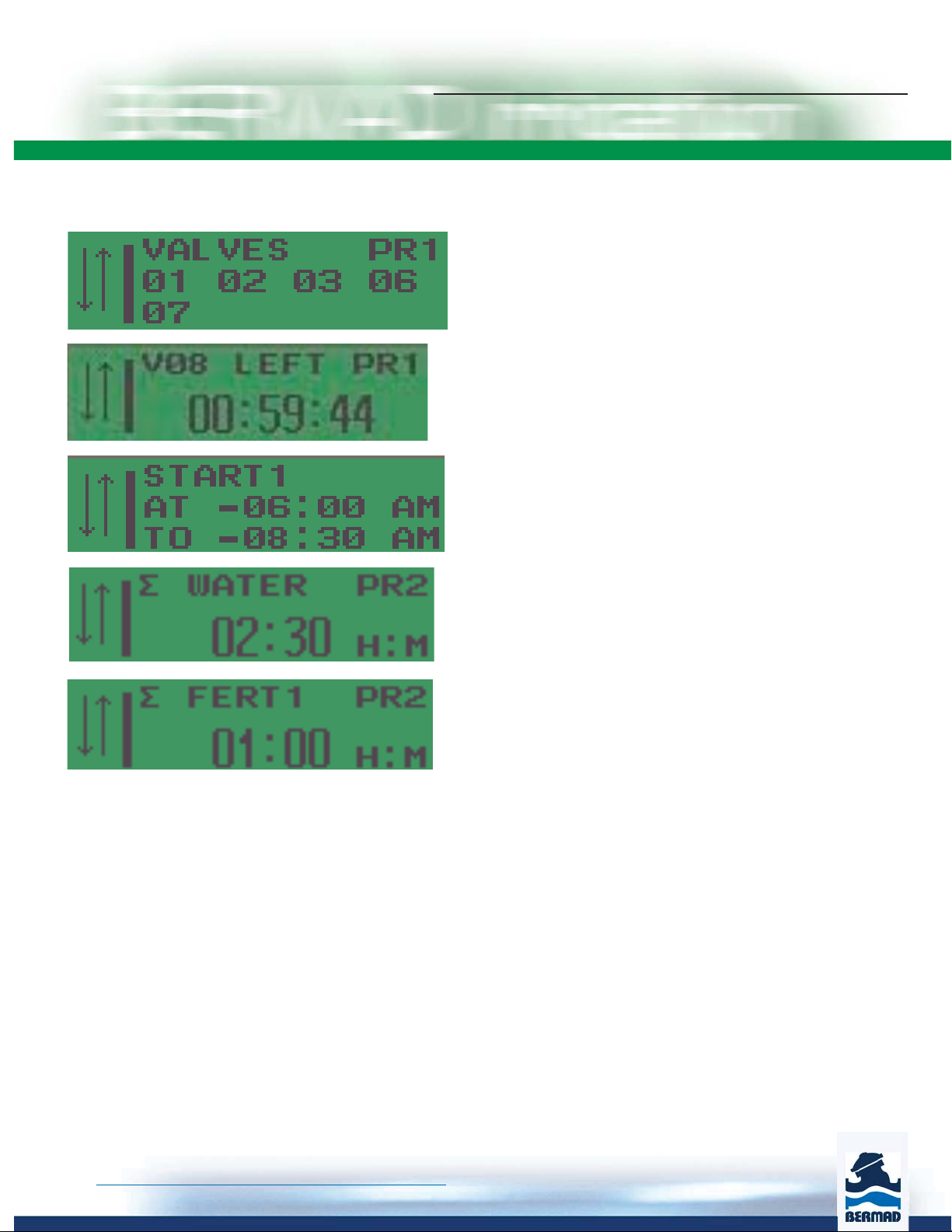

• Note: The total irrigation time should be shorter then the time between starts! Otherwise if a program is still irrigating when
the next start time is reached, the start will be ignored! The overall irrigation time can be viewed in the program status
screens that display for each part of the program the start and end times.
Click “Water Run Times” button - The green LED illuminates
Click “Fertilizer Run Times” button - The green LED illuminates
The fertilization method, continuous or proportional sec./min., Can be changed in the configuration mode. Contact your dealer or
installer for changes.
The difference between the two methods is in the way the injection will be implemented, continuously or in pulses.
Note: Fertilizer Run Time should be equal or shorter then Water Run Time!
The controller will allow entering a value greater then Water Run Time but will not fertilize after Water Run Time elapsed.
Setting Water Run Time:
1. Press the enter button to start edit mode. The water run times
numbers will start flashing.
2. Use the 4 “VALUES SETTING” keys to select the desired wa-
tering run time, the limit for the run time is 99:59 (no matter
what the time units are)
3. After selecting the water run time press enter to confirm.
4. Use the flipping keys to scroll to the next valve/group (if neces-
sary) and repeat steps 1-3.
Fertilizer Pump Run Time setting:
1. Use the flipping keys to reach the desired fertilizer pump num-
ber.
2. Click Enter to select.
3. Click Enter button to start edit mode. The fertilizer run times
numbers will start flashing.
4. Use the 4 “VALUES SETTING” to select the desired fertilizing
run time, the limit for the run time is 99:59 (no matter what the
time units are)
5. Click Enter to confirm the run time.
6. Use the flipping keys to cycle to the next valve/group as nec-
essary and repeat steps 1-3.
7. Click Esc key in order to return to the previous screen (fertilizer
pump selection screen), choose the next fertilizer pump and
repeat steps 1-4 as necessary.

BERMAD Irrigation
1849 Thunderbolt Drive, Porterville, CA 93257
Tel: 877-577-4283 Fax: 800-839-3884
8

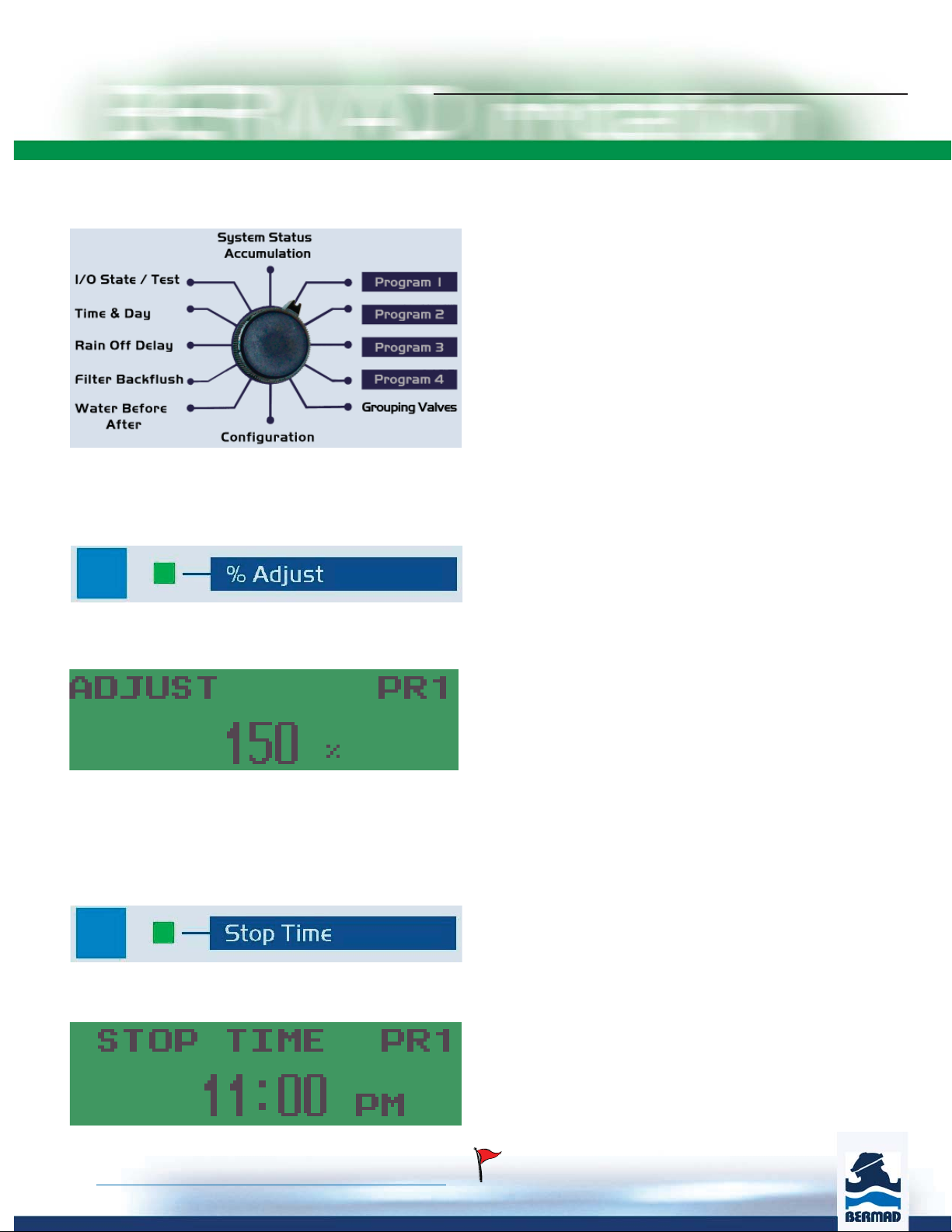

5.1 % Adjust
5.2 Stop Time
5. Additional program features
This chapter reviews the additional features available for each program
To set a feature for a specific program, Turn the rotary switch to the
relevant program 1, 2, 3, or 4
Pay attention to which program the dial is positioned, this will help
in avoiding unwanted changes in other programs.
Click “% Adjust” button - The green LED illuminates
The “% Adjust” feature allows the user to change the Water Run Times for all the valves / groups participating in a selected pro-
gram, without having to re-write the irrigation program.
The change is made by percentage, from 0-250%. Default setting is 100%.
The “Stop Time” allows a per program definition of a specific time when a program will stop all operation and future start times.
This option also works with Daily Cycle as described in section 5.3
Click “Start Times” button - The green LED illuminates
Setting the % of Run Time:
1. Click Enter button to edit. The percentage adjust numbers will
start flashing.
2. Use the three right most “VALUES SETTING” keys in order to
set the % of the irrigation run time
3. Click Enter to confirm.
Setting Stop Time:
1. Click the Enter button to edit. The stop time will start flashing.
2. Use the 4 “VALUES SETTING” keys to select the desired stop
time. In order to change from AM to PM use the left most key
of the “VALUES SETTING”; it will scroll between the following –
1 AM, 0 PM, 1 PM and 0 AM.
3. Click Enter to confirm.
4. To discontinue using stop time, set the value 00:00. The pro-
gram will resume.
Note: 12:00 AM is not a legal stop time.

BERMAD Irrigation
The information herein is subject to change without notice. BERMAD shall not be held liable for
any errors. All rights reserved. © Copyright by BERMAD.
9
5.3 Daily Cycle
Click “Daily Cycle” button - The green LED illuminates
Allows the user to define only one start time and a delay between cycles plus a stop time if needed. If a Stop Time is not set, the
program will repeat itself, while waiting the delay time before starting the next cycle.
The Daily Cycle feature is activate only If the value in the delay between cycles is different then zero
• Delay between cycles counted from end of one cycle to start of the next.
• If the value in the delay between cycles is different then zero:
• The Start Times screen shows only 1 start. If more then 1 start time is define, the earliest Start Time will be selected auto-
matically as the relevant Start Time.
• Number of Cycles feature is enable.
Note: If no number of cycles and stop time is defined the program will continue to cycle until it reaches a no irrigation day.
Setting delay between cycles:
1. Click Enter button to edit. The delay time will start flashing.
2. Use the 4 “VALUES SETTING” keys to select the desired delay
time.
3. Click Enter to confirm.
To set continues cycles without stopping the pump or closing
main valve, set the delay between cycles to 00:01
To resume operation with several starts per day enter the
value 00:00 in the delay between cycles field.
To enter the desired start times at the Start Times screen, see
paragraph 2.1
To set a specific number of cycles:
Using the blue arrow button scroll to the number of cycles screen
1. Click the Enter button to edit. The number of cycles will start
flashing.
2. Use the 3 right most “VALUES SETTING” keys to select the
desired number of cycles.
3. Click Enter to confirm.

BERMAD Irrigation
1849 Thunderbolt Drive, Porterville, CA 93257
Tel: 877-577-4283 Fax: 800-839-3884
10
5.4 Pause Program
5.5 Manual Operation
Click “Pause Program” button - The green LED illuminates
Allows the user to manually pause (freeze) the operation of a selected program for a selected period or endlessly.
Note: a paused program will not perform any irrigation or fertilization during the paused time, if the program is paused for an
endless period (99:99) it will stay paused until it is manually released.
The manual operation allows the user to perform various manual operations with active or non active programs. These operations
include – manual start of a full cycle, a partial cycle and single valve in non active programs. Manual stop and skip valve for active
programs.
Click “Manual Operation” button - The green LED illuminates
This is an information screen reminding the user how the pause
program function.
Click Enter to continue.
Setting Pause Time:
1. Click Enter button to edit. The pause time left numbers will
start flashing.
2. Use the 4 “VALUES SETTING” keys to set the pause time.
3. Click Enter to confirm.
The Pause Program starts after confirmation; countdown starts.
To reset pause time, repeat steps 1-3 above.
To resume operation enter 00:00 as pause time. The program
will resume operation from the current time and stage of irrigation
program.
Manual Full Start a Program:
1. Click Enter button, the word “Yes” will show flashing.
2. Use any one of the 4 “VALUES SETTING” keys to toggle be-
tween Yes and No.
3. Click Enter to confirm.
If the YES option was selected, a full cycle of the selected pro-
gram will start and the screen will change into the first screen
of manual operations for active programs.

BERMAD Irrigation
The information herein is subject to change without notice. BERMAD shall not be held liable for
any errors. All rights reserved. © Copyright by BERMAD.
11

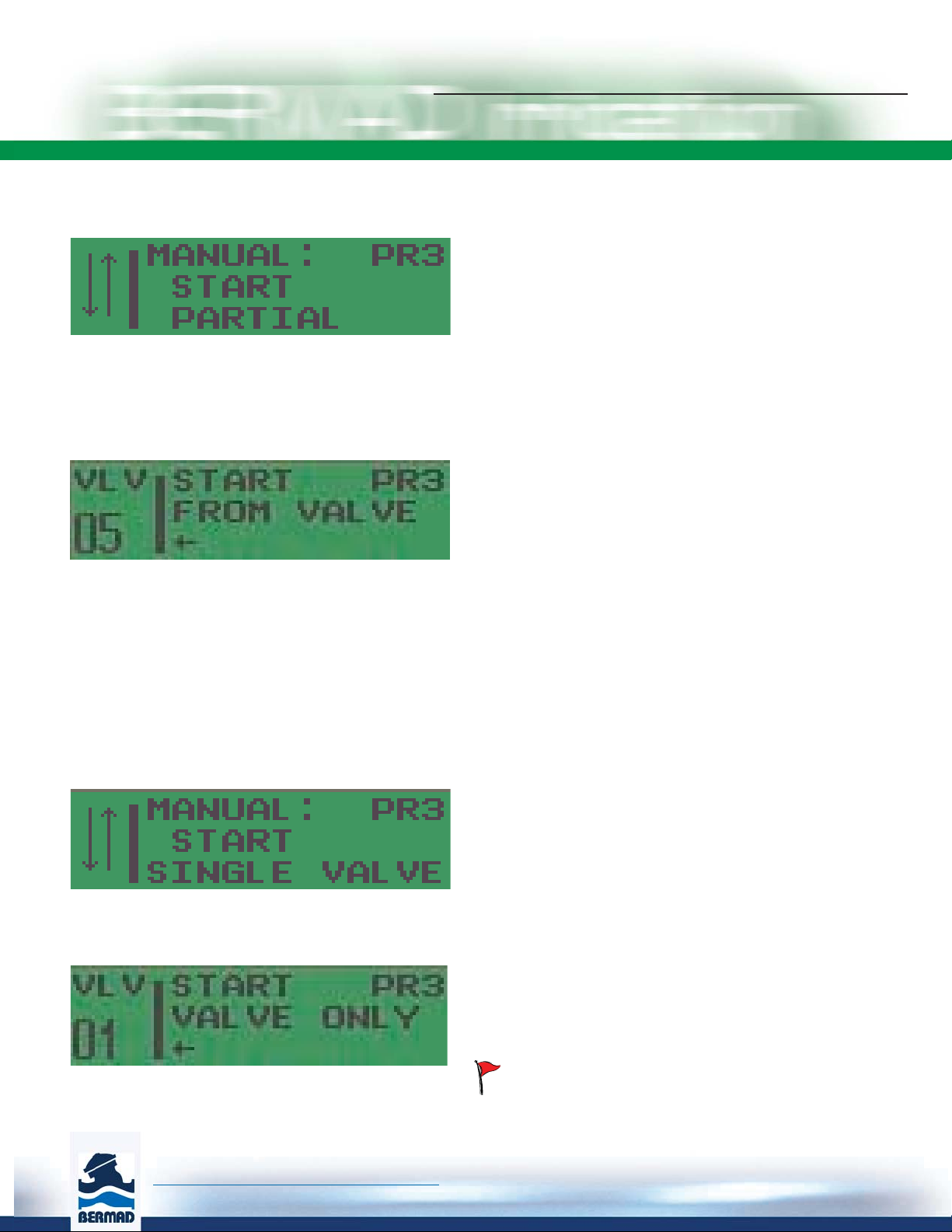

Manual Start of Partial Program:
1. Use the blue arrow up key and scroll to the “Manual Start
Partial” screen
Manual Start of Partial Program:
1. Use the blue arrow keys to select the valve or group you want
to start the cycle from.
2. Click Enter, the word “Yes” will appear flashing.
3. Use any one of the 4 “VALUES SETTING” keys to choose Yes
or No.
4. Click Enter to confirm.
If selected YES, the program will start from the valve selected
and the screen will change into the first screen of manual op-
eration for active programs.
Note: If the program is set to Daily cycle with delay between
cycles, the program will start at the valve selected for this cycle
only. The second cycle will start from the first valve set in the
original program for a full cycle, until it reaches its stop time or
none irrigation day.
Manual Start of a Single Valve:
1. Use the blue arrow keys and scroll to the “Manual Start Single
Valve” screen
Manual Start of Single Valve:
1. Use the flipping keys to select the valve you want to activate
manually.
2. Click Enter button, the word “Yes” will appear flashing.
3. Use any one of the 4 “VALUES SETTING” keys to choose Yes/
No.
4. Click Enter to confirm.
If the YES selected, the valve will open manually and will work
according to its original planning. The screen will change into
the first screen of manual operation.

BERMAD Irrigation
1849 Thunderbolt Drive, Porterville, CA 93257
Tel: 877-577-4283 Fax: 800-839-3884
12
Manual Stop Program:
In case the selected program is active, the following screen will be
available when the Manual Operation button is selected
Manual Skip Valve:
When a program is running, use the blue arrow buttons to scroll to
the Skip Valve screen
Manual Stop a Program:
1. Click Enter, the word “Yes” will appear flashing.
2. Use any one of the 4 “VALUES SETTING” keys to toggle be-
tween Yes and No.
3. Click Enter to confirm.
If YES, the selected program will be manually stopped and the
screen will change into the first screen of manual operations
for non active programs.
Manually Skip Valve:
1. Click Enter, the word “Yes” will appear flashing under the cur-
rently open valve number.
2. Use any one of the 4 “VALUES SETTING” keys to toggle be-
tween Yes and No.
3. Click Enter to confirm.
If YES, the current open valve in the selected program will be
skipped and the next valve in the sequence will open. If the
program was at its last valve, the program will stop and the
screen will change into the first screen of manual operation for
active programs.

BERMAD Irrigation
The information herein is subject to change without notice. BERMAD shall not be held liable for
any errors. All rights reserved. © Copyright by BERMAD.
13
5.6 Program Status
Click “Program Status” button - The green LED illuminates
Only one of the below screens can appear at a given time, depends
on the current status of the program
The BIC1000 allows the user to review the status of the selected program including the irrigation stage, the currently irrigating
valve/group with the left run time, the list of participating valves, total water planned, total fertilization planned (for each fertilizer
type) and a review of the start and ending times per each start time. All the screens are display only and are meant to give the
user a summery of each program.
The program is missing Water Run Times definition.
The program is missing start times or irrigation days definition. The
program can be activated manually.
The program is planned to irrigate later today and there are irriga-
tion days, start times and water run times set.
The irrigation days, start times and water run times set for this pro-
gram, the next irrigation day is in 2 days.
The program is currently paused until the displayed time
The program is currently running this screen shows the active
valve/group, the current stage of the program including irrigation,
fertilization, and back flush.

BERMAD Irrigation
1849 Thunderbolt Drive, Porterville, CA 93257
Tel: 877-577-4283 Fax: 800-839-3884
14
The following screen and sometimes several screens below show
the valves/groups participating in this program.
Using the blue arrow buttons, scroll to the next screen
How much time left for the currently irrigating valve
For each defined start time, shows the Start and Stop times (“TO”
is calculated automatically from the Run Time).
Total water run time, per start including all the valves participat-
ing in the program, when there are several start times defined, the
number of starts will appear as a multiplier to the total run time.
Total fertilizer run time, per start for the displayed program multi-
plied by the number of starts defined. There is a separate screen
for each fertilizer.

BERMAD Irrigation
The information herein is subject to change without notice. BERMAD shall not be held liable for
any errors. All rights reserved. © Copyright by BERMAD.
15
Setting Groups:
1. Scroll using the blue arrow keys to reach the group for edit.
2. Click Enter to select the group.
Add / Remove valves from group:
1. Click Enter to edit. The arrows will be replaced with the valve
number being edited and the cursor will start flashing.
2. Scroll using the blue arrow keys to reach the desired valve
number.
3. Use any one of the 4 “VALUES SETTING” keys to change
valve’s status:
+ Indicates this valve is part of the group.
- Indicates this valve is not part of the group.
4. Repeat steps 2 and 3 until all the valves are at the desired
status.
5. Click Enter to confirm.
6. Click Esc to go to the main Grouping Valve screen
7. To set or edit the next group scroll using the blue arrow keys,
select the next group for edit and repeat steps 1- 6.
6. System Operations
6.1 Groups
Group definition is one of the BIC1000 biggest advantages. The user can group several valves to work simultaneously at any
program.
This feature eliminates the need to set the valves in separate programs to allow simultaneous operation of valves.
If opening / closing of multiple valves at the same time can cause “water hammer” or overload the pump, refer to “special
features”, appendix b to set gradually open and close or overlap of the valves in the group.
After a group is defined, it is treated by the irrigation programs as a valve. The group is set with one water run time and one
fertilization run time, the only difference is that all the valves of the specific group will open and close simultaneously.
To set groups of valves that will open simultaneously, turn the rotary
switch to the Grouping Valves position

BERMAD Irrigation
1849 Thunderbolt Drive, Porterville, CA 93257
Tel: 877-577-4283 Fax: 800-839-3884
16
Setting Water Before and Water After times:
1. Scroll using the flipping keys to choose between Water Before
and Water After screens
2. Click Enter to select.
Setting Water Before:
1. Click Enter to edit. The water before numbers will start flashing.
2. Use the 4 “VALUES SETTING” keys to select the desired water
before time.
3. Click Enter to confirm.
4. Scroll using the flipping keys to the next valve or group as
needed and repeat steps 1-3 until all the valves/groups have
been set with water before time.
5. Press the Esc key in order to return to the previous screen
(water before or water after), Scroll to the Water After and
repeat steps 1-4.
The water before and water after values are per valve/group,
these values will take affect regardless of which program the
valve is participating.
6.2 Water Before/After
The water before/after is another professional irrigation feature offered by the BIC1000 for the benefit of efficient fertilization.
There is no need to calculate when to start the fertilization process and when it will be finished. The user simply defines 2 periods
of time per valve or group – water before and water after. This will ensure that the fertilization starts when the irritated block is
ready and stops before the end of the irrigation cycle to allow proper flushing of the irrigation system.
Turn the rotary switch to the Water Before After position

BERMAD Irrigation
The information herein is subject to change without notice. BERMAD shall not be held liable for
any errors. All rights reserved. © Copyright by BERMAD.
17

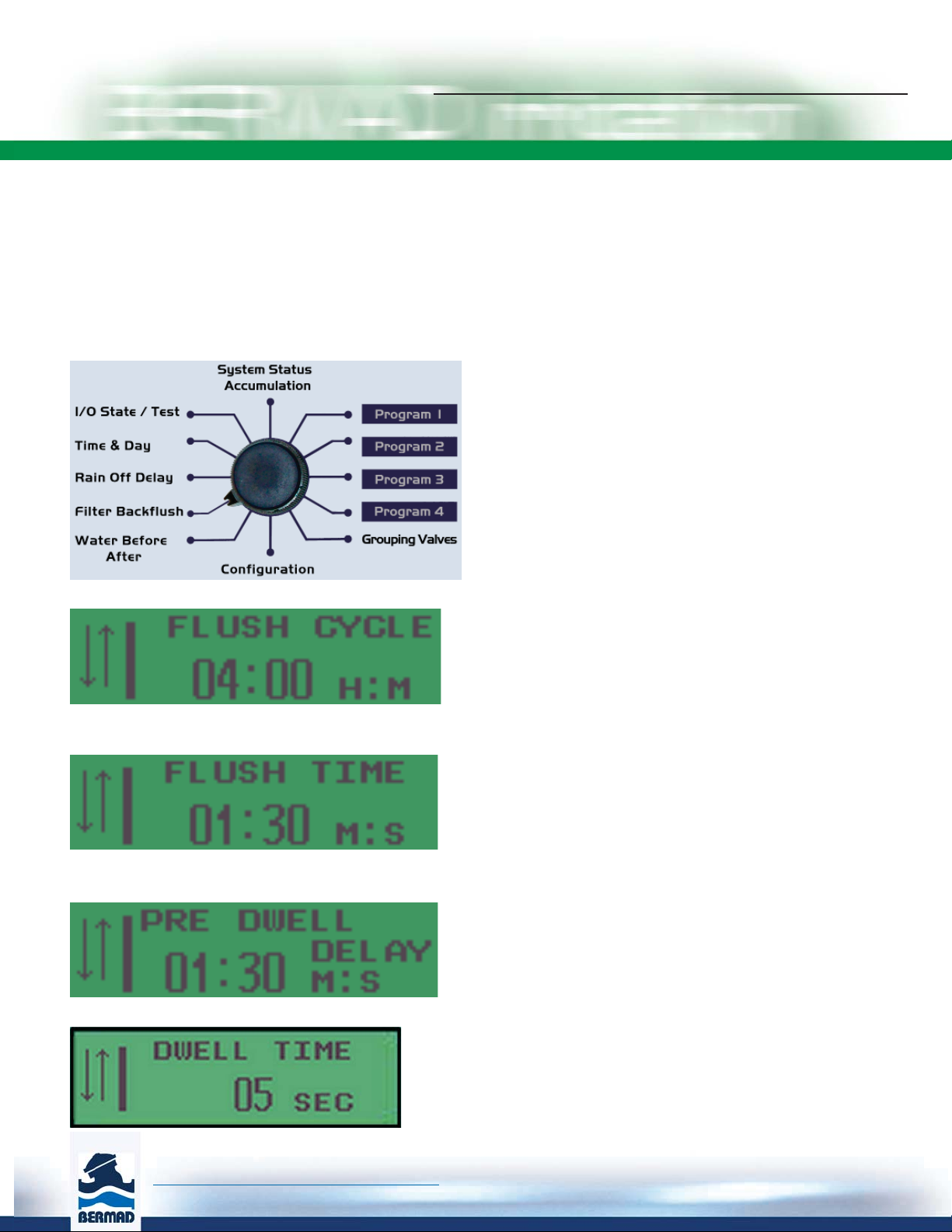

Setting interval between flushes:
1. Click Enter to edit. The flush cycle time will start flashing.
2. Use the 4 “VALUES SETTING” keys to select the desired inter-
val between flush cycles.
3. Click Enter to confirm.
4. Scroll using the flipping keys to reach the next screen in Filter
Back flush operations.
Setting Flush Time:
1. Click Enter button to edit. The flush time will start flashing.
2. Use the 4 “VALUES SETTING” keys to select the flush time
(same time for all the stations).
3. Click Enter to confirm.
4. Scroll using the flipping keys to reach the second screen in
Filter Back flush operations.
Setting Pre Dwell Delay:
1. Click Enter button to edit. The flush time will start flashing.
2. Use the 4 “VALUES SETTING” keys to select the flush time
(same time for all the stations).
3. Click Enter to confirm.
4. Scroll using the flipping keys to reach the second screen in
Filter Back flush operations.
Setting Dwell Time:
1. Click Enter button to edit. The dwell time will start flashing.
2. Use the 4 “VALUES SETTING” keys to select the desired dwell
time.
3. Click Enter to confirm.
6.3 Filter Back flush
The BIC 1000 includes a program for automatic filter(s) back-flushing. The user may set the interval between the flushing cycles,
flushing time per station, and the dwell time between the stations. The back-flushing program can be triggered by time intervals
or by pressure differential measured by a DP (differential pressure) switch. Regardless of what triggered the flush cycle, the coun-
ter of the “Flush by Time” will be reset.
The BIC1000 can use a standard digital PD gauge such as Murphy or an Analog gauge supplied by Bermad.
If an Analog DP switch is installed, the DP definitions and delay are set in System Configuration screen – for further informa-
tion refer to “Installer Manual”.
Turn the rotary switch to the Filter Back flush position

BERMAD Irrigation
1849 Thunderbolt Drive, Porterville, CA 93257
Tel: 877-577-4283 Fax: 800-839-3884
18
The screen has no work order and is for viewing purposes only.
The screen indicates if a flush program is defined or not
When flush program is defined this will become an informative self
changing screen which shows the time (irrigation time) since the
last flush ,while not flushing,
The current status of the filter station during flus cycle: pre dwell,
current filter, dwell times and the time left for each stage.
These two screens allow the user to see (and re-set) the accumu-
lated number of flushes, the 1st is for flushes by time and the 2nd
is for flushes by DP. The data can be changed by pressing enter
and using the “Value setting keys” in the regular manner. Press
“Enter” to confirm.
To start or stop the flush cycle manually, scroll to the following
screen:
Start flush cycle manually:
1. Click Enter key to edit, “YES” will appear flashing.
2. Click Enter to confirm
3. To stop, use the 4 “VALUES SETTING” keys to change the
“YES” to “NO” and click Enter to confirm.

BERMAD Irrigation
The information herein is subject to change without notice. BERMAD shall not be held liable for
any errors. All rights reserved. © Copyright by BERMAD.
19

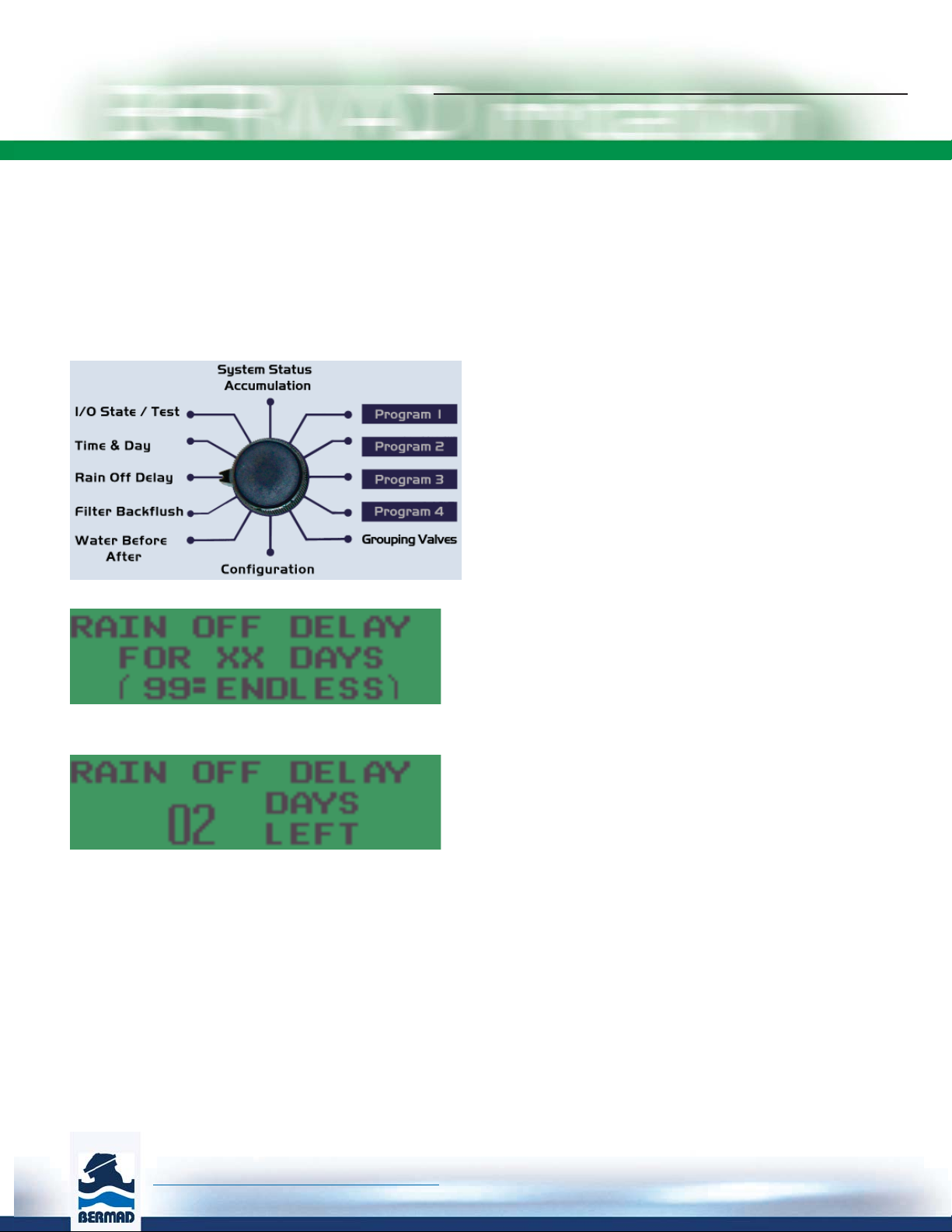

This is an information only screen, reminding the user how the Rain
OFF Delay function operates.
CLICK ENTER TO CONTINUE
Setting Rain off Delay:
1. Click Enter button to edit. The Rain OFF days remaining will
start flashing.
2. Use the 4 “VALUES SETTING” keys to select/change the num-
ber of RAIN OFF days.
3. Click Enter to confirm.
6.4 Rain Off delay
The BIC1000 is capable of halting all activities for a designated time. This option is useful if the user wants to stop the irrigation
for the next few days, and resume irrigation automatically after the halt time elapsed.
• The rain delay function takes effect and countdown starts immediately after confirmation. An off day is counted until mid-
night including the day it was entered. The value can be changed at anytime.
• To terminate the rain delay, enter 00, and the controller will resume its normal operation.
• A program exiting rain delay mode will wait until the next start time to begin its operation.
Turn the rotary switch to the Rain Off Delay position

BERMAD Irrigation
1849 Thunderbolt Drive, Porterville, CA 93257
Tel: 877-577-4283 Fax: 800-839-3884
20
Open / Close an output manually:
1. Click Enter button to edit. The arrows will be replaced with the
number of the output which is currently being edited and the
cursor will start flashing.
2. Use the flipping keys to reach the desired output.
3. Use any one of the 4 “VALUES SETTING” keys to open/close
an output manually.
“M” – The output is currently opened manually.
“+”– The output is currently opened by program and cannot
be changed.
“-“ – The output is currently closed and can be opened
manually.
4. Repeat steps 2 and 3 as necessary.
5. Click Enter to confirm.
This is a display only screen, giving the user an overview of the
inputs state.
Abbreviations:
WM – Water meter
DP – Differential Pressure switch
PR – Pressure switch
ST – Start contact.
6.5 I/O State/ Test
The BIC 1000 allows the user to review the state of all the outputs, manually open/close each one of them and to perform a test
cycle.
In each screen there are 12 outputs displayed, the number of screens of I/O state depends on the total outputs available in the
system.
• A valve left open manually will remain open until midnight.
• The limitation of the number of outputs starting at the same time is determined by the maximum power draw available and
the hydraulic limitations of the irrigation system. Consult your authorized dealer/installer about the maximum number of out-
puts allowed to be open simultaneously.
Turn the rotary switch to the I/O State / Test position
6.5.1 INPUT / OUTPUT STATE
Table of contents
Other Talgil Controllers manuals
