TALITOR(FAR EAST) CO. CW1103 User manual

Digital Wireless Series Product
User’s Guide
This User’s Guide is applicable to the following products:
#CW1103 - Digital Wireless Camera
#CW1105 - Digital Wireless Transmitter
#CW1104 - Quad Digital Wireless DVR
#CW1106 - Quad Digital Wireless 7” DVR
Ver.1.1
121029

- 2 -
Table of contents
Package contains.......................................................................................................................3
User’s Interfaces........................................................................................................................4
Get unit work quickly..................................................................................................................8
Useful Operation Advices.........................................................................................................10
Recording Duration ..................................................................................................................10
IR Remote Controller Instruction..............................................................................................11
OSD Introduction......................................................................................................................12
Software & Hardware Specifications on PC, iPhone, iPad.......................................................12
ASP4 (PC Player) User’s Interface...........................................................................................15
Remote View Steps for CW1104 / CW1106.............................................................................17
Remote View Steps for iPhone / iPad ......................................................................................20
Technical Specification.............................................................................................................23
Annex1 (Compatible Router list) ..............................................................................................25
Annex2 (Incompatible Router list)....................................................................................................... 25

3

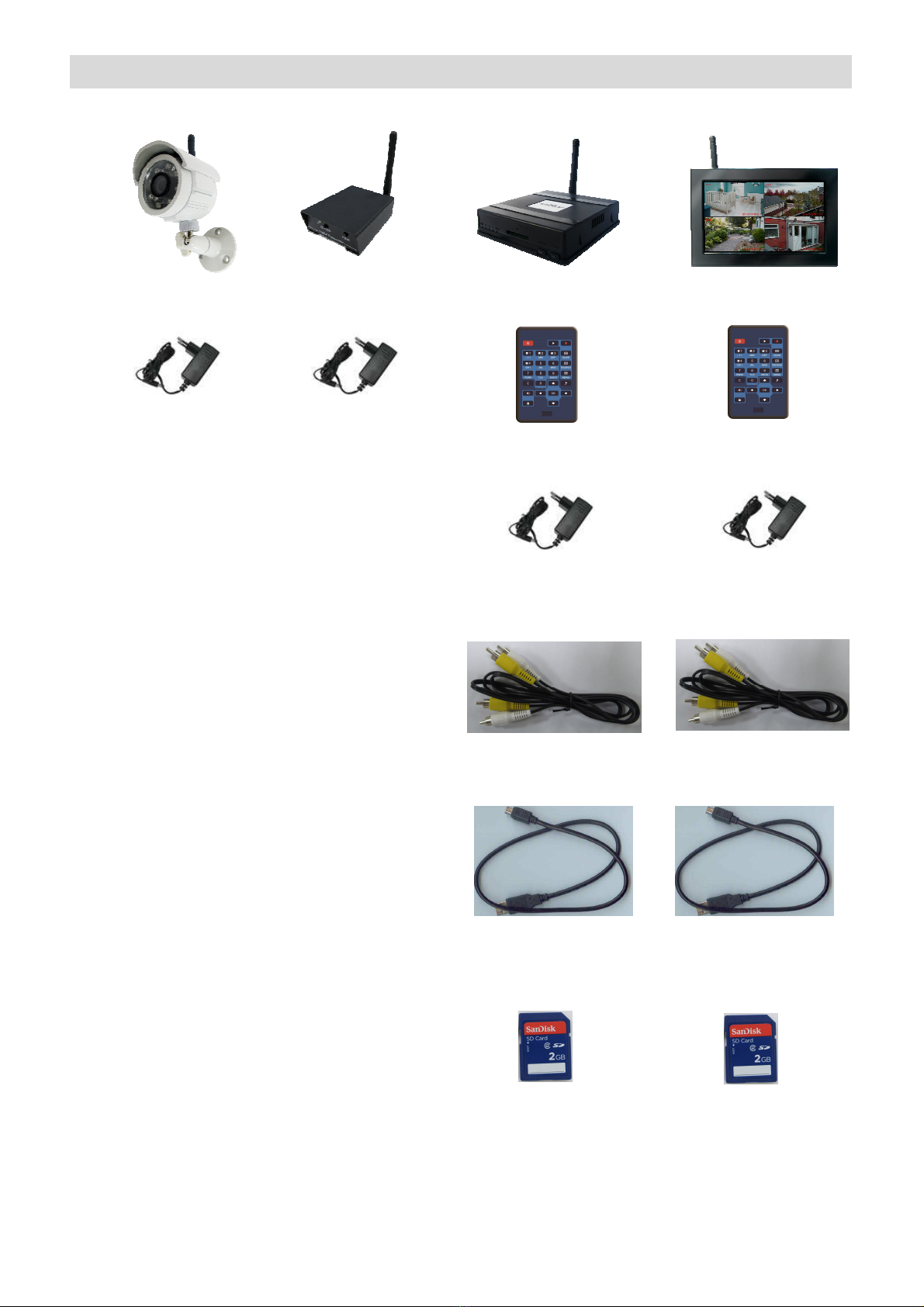

Package contains
CW1103 CW1105 CW1104 CW1106
Main Unit x1 Main Unit x1 Main Unit x1 Main Unit x1
Power Adapter x 1 Power Adapter x 1 Remote Controller x 1 Remote Controller x 1
Power Adapter x 1 Power Adapter x 1
AV Output Cable x 1
AV Output Cable x 1
USB Cable x 1 USB Cable x 1
2GB SD Card x 1
(Optional)
2GB SD Card x 1
(Optional)

4
User’s Interfaces

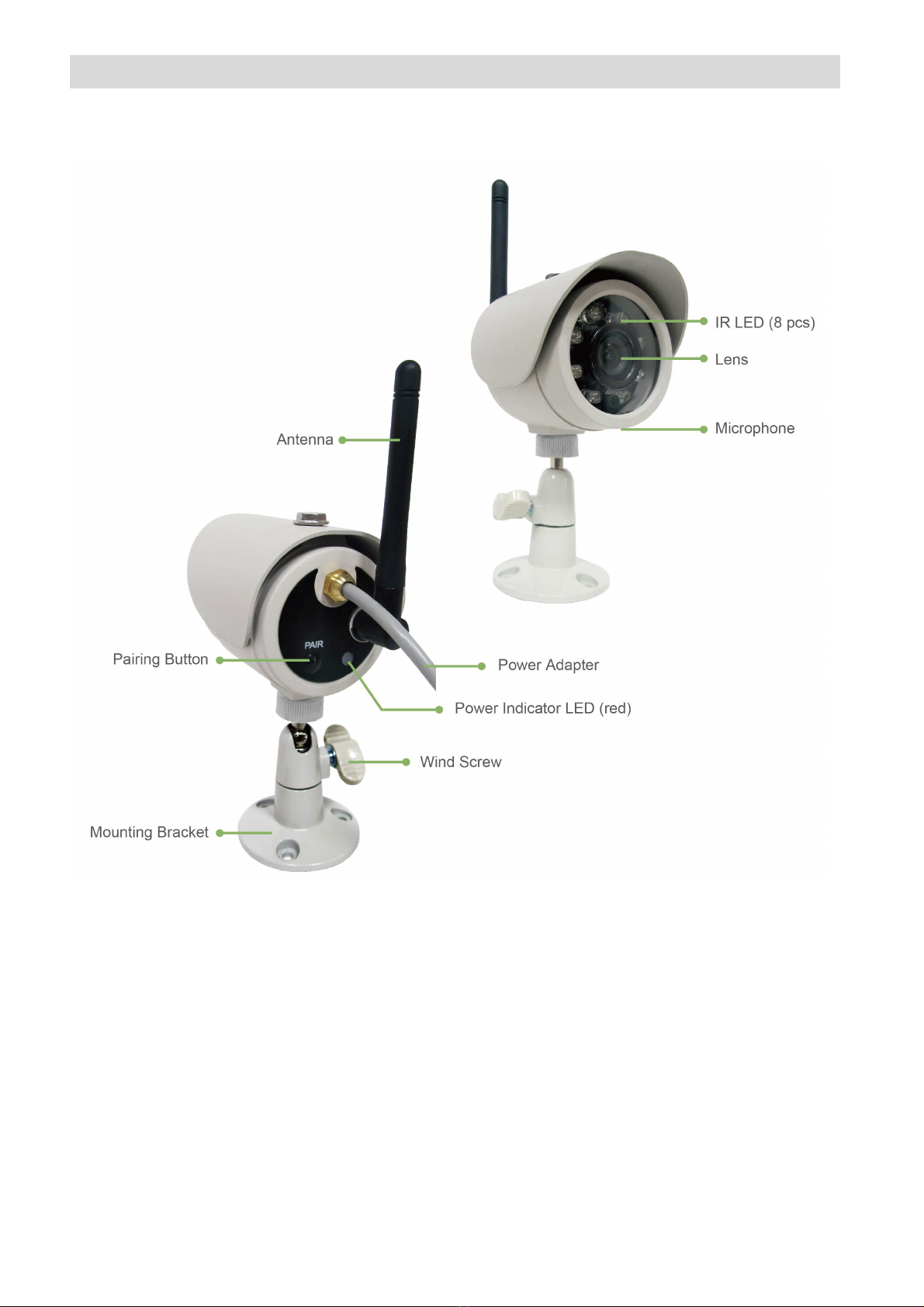

CW1103

5
CW1105

6

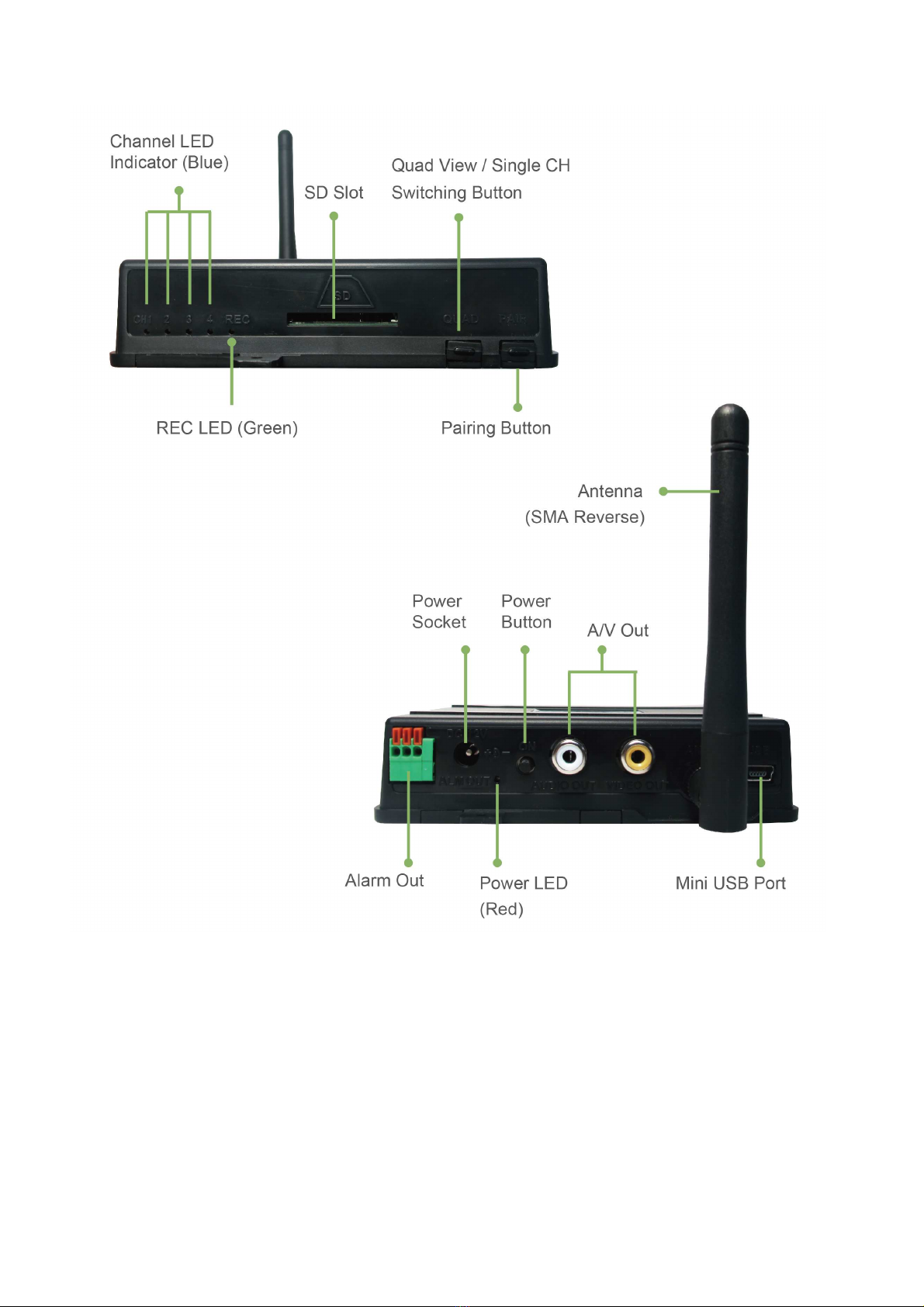

CW1104

7
CW1106

8
Get unit work quickly
1. The Power LED (red) will be on when the Transmitter/Receiver is turned on.
2. Below transmitters and receivers are fully inter-operable.
3. How to Pair Up:
3.1 Select a channel on the Receiver (use remoter controller), long press the pairing button till
the channel LED (blue) is flashing.

9
3.2Press the pairing button on the transmitter.
3.3After pairing is completed and successful, the Channel LED (blue) on Receiver will be
flashing rapidly, and the image will show on the Monitor.
A Receiver is able to be paired up to 4 different Transmitters, and to receive image from 4
Transmitters simultaneously.

10
Operation Advices
1. Once #CW1104 / #CW1106 is powered on and with SD card inserted, recording is factory
preset at motion detection.
It can be reset as continuous recording, having schedule through OSD menu.
For panic recording, please press on the remote controller.
2. Press on the remote controller to get into playback menu.
3. For #CW1106- 7’’ DVR, press Hotkey + on remote controller to turn off the
LED indication; press + to turn on.
4. Press + on remote controller to turn off the LCD monitor, press any key to
turn on.
5. There is 10 seconds timer count down when start recording, during count down, no remote
control command would be accepted.
6. Receiver USB plug into PC, the video will stream to PC and can be viewed / recorded with
bundled ASP4 software on PC directly. After streaming the video to PC, the recording setup
on receiver will be no function.
The PC Operation System required Windows XP (SP2) or above.
Hardware Environment: CPU P4 2.0G / RAM 2GB or above.
7. The settings on ASP4 can not be applied on Receiver DVR (CW1104 or CW1106), and vice
versa.
8. Remote View function is supported by bundled ASP4 software; please refer to “Remote
View Quick Guide for CW1104 / CW1106” section. (Page 15)
Recording Duration
Single Channel (full screen) with Audio & Continuous Recording
1GB 4GB 8GB 16GB 32GB
3.95 hr 15.84 hr 31.58 hr 63.26 hr 126.56 hr
Quad-View / 4 Channels with 1CH Audio & Continuous Recording
1GB 4GB 8GB 16GB 32GB
2.91 hr 11.65 hr 23.22 hr 46.56 hr 93.31 hr

11
IR Remote Controller Instruction
Button Function Description
Power
Playback Press the button to get to
the playback menu.
During playback, press
the button to pause, press
again to continue.
Panic Record
Start to record manually.
Press again to cancel
recording mode.
QUAD Quad display mode.
SEQUENCE Auto sequence display
mode
MENU Menu
CH1 Channel 1 & Number 1 &
punctuation marks
“- / +”
CH2 Channel 2 & Number 2 &
“A B C”
CH3 Channel 3 & Number 3 &
“ D E F”
CH4 Channel 4 & Number 4 &
“G H I”
Button Function Description
Numbers Numbers 5 to 0, English
characters, and
punctuation marks “，_．
”
Clear
Return Return to last page
Confirm Enter
Up / Down /
Right / Left
Mute Key sound off
Lock Key Lock

12
OSD Introduction
1. Press to enter MAIN MENU
2. Press to select item
3. Press to enter the selected item
4. Press to get back to live view
5. Press to get back to last page
Recording Setup
Peripheral Setup
System Setup
Brightness (CW1106 only)
Recording Setup
OSD MENU Description
- Schedule Setup
- Setup Continuous recording or Motion Detection
recording Mode in a week.
(Default Setting: Motion Detection recording)
- Audio Record from
- CH 1 (Default setting)
- CH 2
- CH 3
- CH 4
- SD Information
- Total: GB
- Remain: GB
- Fullstop or Overwrite (Default setting: Overwrite)
- Format SD Card
- OK
- Close
Press to change the recording mode; exit this
option to save the schedule.
To choose the audio source in Quad View during
Recording /Live view. To adjust the speaker volume,
press or on the remote controller.
To choose SD method with Fullstop or Overwrite, press
or on the remote controller.

13
Peripheral Setup
OSD MENU Description
- Buzzer Setup
- Video Loss
- ON
- OFF
- Motion Detect
- ON
- OFF
- Buzzer Duration
- 02 ~ 10 sec
- Display Setup (TV-out only)
- Left Pos
- Right Pos
- Up Pos
- Down Pos
Press or to change Buzzer ON / OFF.
Default setting is ON.
To setup the Buzzer beep duration time.
Default setting: 2 seconds.
To adjust the display position for TV Out; press
to move.
System Setup
OSD MENU Description
- Date/Time Setup
- Display Format
- YYYY-MM-DD
- MM-DD-YYYY
- DD-MM-YYYY
- Time Format
- 24 H
- 12 H
-YEAR
- MONTH
- DAY
- HOUR
- MINUTE
- SECOND
- AV Output (CW1106 only)
- Video Out
- LCD
- TV-out NTSC
- TV-out PAL
Press to select item, and press to
change the format.
Press Number keys to setup the Date/Time directly.
Press to select item, and press to
change the option. Press to confirm and exit the
menu.

14
- Audio Out
- Speaker Out (Default setting)
- Line Out
- Channel Sequence Time:
- 05 ~ 30 sec.
- Factory Default:
- Yes
- Cancel
- Firmware Version
- Vxxxx.xx
Default setting: 5 seconds.
Brightness Setup
(CW1106 Only)
OSD MENU Description
Level 6
Level 5
Level 4
Level 3
Level 2
Level 1
To adjust the Brightness for LCD monitor; Level 6 is the
brightest. Press to select, and press
to confirm.

15
Software & Hardware Specifications on PC, iPhone, iPad
To use the remote viewing on PC, we highly recommend you to have the following software and
hardware specifications on your PC,
Microsoft® Windows XP, or Windows 7 (.NET Framework 3.5 higher)
Internet Explorer® 8 or higher.
CPU: 2.0GHz or higher (only support x86 and x64)
Memory: 1GB (up)
Display card: Independent display card and support DirectX 9.0 or higher.
To use the remote viewing on iPhone / iPad, we highly recommend you to have the following
software and hardware with your iPhone / iPad,
iPhone 3 or higher
iPad
iOS 4.3 or higher

16
ASP4 (PC Player
) User’s Interface
System Setting Recording Mode
Open file, to search the
recording files
Network ON / OFF
(for remote view)
Snapshot, to save JPG
picture CH1 Full screen display
CH2 Full screen display CH3 Full screen display
CH4 Full screen display
Quad-View display
Manual recording during
live view & backup files
during playback Backwards
Pause Forwards
Stop Play

17
Remote Viewing Steps for CW1104 / CW1106
Easy 3 steps to see the Live View remotely:
Step 1. Install the bundled software ASP4 on PC, and highly recommend to change the log-in
User Name / Password (default User Name & Password: Admin / Admin ) in “Network
Setting”. The “ID” means receiver ID number, it would automatically show on the network
setting when you plug-in your USB cable.
** Click OK to complete the setting and protect the data security.

18
Step 2. Finished the network setting, the Remote viewing web link and the surrounding view will
display on the PC ASP4 software.
** http://www.ez-see.net/10001901
Receiver ID number (8 digit), each Receiver device has its
own ID number. User have to key in
www.ez-see.net xxxxxxxx (Receiver ID number) on IE
browser and to enter the remote viewing page.
Server domain name

19
Step 3. You could key in the remote viewing web link on PC IE browser (e.g.,
http://www.ez-see.net/10001901), log-in your account on remote PC IE browser, see the Live
View!
(*Remark: currently IE is the only PC web browser supported for remote viewing.)
PC log-in page:
(Remote viewing page)

20
Remote Viewing Steps for iPhone / iPad
Step1. Search “EZ-SEE” app on APP Store.
Step2. Press "add" to create an account as your EZ-SEE ID,
