Tamas Z-Block User manual

Z-Block
Hydronic Zoning Block

Z-Block Manual version 1.1
Page 2
Table of Contents
Overview, Options and Dimensions 3
Assembly 4-5
Application Examples 6-7
Included Components 8
Optional Accessories 9
Flow Diagram 9
Technical Data 10
Limited Warranty 11

Tamas Hydronic Systems Inc. Page 3
Overview and Operations
Thank you for purchasing the Tamas Zone Block Module. The
Z-Block is designed for multiple applications:
1) Zoning in a hydronic system for individual or multiple zones. The
maximum amount of connected Z-block modules is 10 in a single
supply to the manifolds.
2) As an injection pump in a Tamas multiple zone application, to
temper the water temperature. You must use optional part #025-
0005 180° End Connection for creating primary/secondary piping
arrangement. Injection pump controller not supplied.
3) As a boiler pump in a Tamas multiple zone application. You must
use optional part #025-0005 180° End Connection for creating
primary/secondary piping arrangement.
Dimensions
Proprietary and Confidential
The information contained in this drawing is the sole property of Tamas Hydronic
Systems Incorporated. Any reproduction in part or as a whole without the written
permission of Tamas Hydronic Systems Incorporated is prohibited.
*Dimensions are in Inches
[130]
5.118
[115]
4.528
[35]
1.378
[40]
1.575
[56]
2.205
[198.80]
7.827
[200.45]
7.892

Z-Block Manual version 1.1
Page 4
Assembly
The Tamas Z-Block is designed to be assembled and installed in
multiple configurations and orientations. This will serve as a guide
for the assembly of the components, but does not cover all of the
applications this unit can be used in.
1) O-Ring Installation
2) Air Vent Installation
Add Silicon Grease
to the O-ring.
Slide O-ring onto
Attachment.
Insert Attachment
into the Z-Block.
Twist to lock.
1 2 3
Insert Automatic Air
Vent with O-Ring
(Part #025-0013
Refer to step 2 of FIG 1.)
1
Push and
twist air vent
to lock and
seal.
2
FIG 1.
FIG 2.

Tamas Hydronic Systems Inc. Page 5
3) Purge/Drain Valve Installation
3) Install Connection Fittings
Insert Purge Valve
into Z-Block.
(part #025-0014)
1
Push Valve Clip
into
Z-Block to secure
the Valve.
(part #025-0015)
2
Note: Depending on orientation, the Purge Valve can be installed
in one of the End Caps. To do this, drill a 5mm (0.2”) hole through
the center opening on the end cap, and insert Purge valve. Lock with
Valve Clip.
End cap can
also house
sensor fitting.
Line up Z-Blocks and install
both Connection Fittings.
(Part #025-0003)
1When connected, turn
Both Levers on fittings
up or down to lock and
seal.
2
FIG 4.
FIG 3.
FIG 5.

Z-Block Manual version 1.1
Page 6
Application Examples
1) Vertical Multi-Zone Installation
The Tamas Z-Block can be installed in a vertical
Configuration. When installing multiple
Z-Block modules vertically, the optional Vent
Fitting (part # 025-0021) must be used for the
air vent or thermistor sensor. This fitting is a
1/8” MPT thread which can house any
manufacturers automatic or manual Air Vent.
When used for venting purposes, it is
required that the user drill a 5mm (0.2”)
hole in the bottom of the fitting. The user
must also drill a 5mm (0.2”) hole in the
bottom of the end cap that the fitting will
be installed in. (Refer to FIG 4. on page 5)
e.g. Vertical Installation with 180° End Connection (#025-0005), and
End Cap Vent Fitting.
180° End Connector
This component can be fitted
with a multitude of optional
accessories, such as Air Vents,
Thermistors and Purge Valves.
Drill 5mm (0.2”) hole
in bottom of fitting.
FIG 6.
FIG 7.
FIG 8.

Tamas Hydronic Systems Inc. Page 7
2) Injection Pump Installation
e.g. Horizontal Installation with Injection Pump and 180° End Connection
(#025-0005).
When using the Z-Block as an Injection Pump, connect the Z-Block
to the manifold in an inverted position. In this position, the Pump
Head (part #025-0010) will need to be inverted 180° as well. To
do this, remove the 4 pump bolts and turn the pump head to the
desired location. Replace the screws when finished. Do not spin
the pump base.
WARNING: Remove Sweat connections from Z-Block BEFORE
attempting to solder to them.
FIG 9.
Remove all 4 Pump
Bolts
1
Flip the Pump Head 180°, so that
the top faces away from the Au-
tovent. Bolt the Pump Head back
into place.
2
Final
Configuration
FIG 10.

Z-Block Manual version 1.1
Page 8
x 1
Z-Block Base
#025-0001
x 2
End Cap
#025-0002
x 2
Connecting
Nipple
#025-0003
x 2
1 G Fitting
#025-0004
x 4
O-ring
#025-0006
x 2
1” Nut
#006-0306
x 2
3/4” Tail
Piece
#006-0311
x 2
1” Nut Seal
#006-0310
x 2
11/4” Nut
#006-0325
x 2
1” Tail Piece
#006-0331
x 2
11/4” Nut Seal
#006-0332
x 1
Silicon
Grease
#025-0007
x 1
Sensor &
Purge Valve
Clip
#025-0015
x 1
Auto Vent
#025-0013
x 1
Purge Valve
#025-0014
x 1
Check Valve
#025-0018
x 2
5mm Mount
Screws
#025-0008
x 2
Pump Mount
Screws
#025-0022
x 1
Pump Base
#025-0009
x 1
Pump Head
#025-0010
x 1
Pump Base
Large O-ring
#025-0011
x 1
Pump Base
Small O-Ring
#025-0012
x 1
Pump Power
Cable
#025-0020
Included Components

Tamas Hydronic Systems Inc. Page 9
Optional
Tamas Slip
Fitting
#006-0313
Optional
Tamas Ball
Valves
#025-0049
Optional
22 x 32mm
Slip Adapter
Fitting
#006-0315
Optional
180 End
Connector
#025-0005
Optional
Sensor &
Vent Fitting
#025-0021
Optional
Sensor
Cable
#025-0017
Optional
Pressure &
Temp Sensor
#025-0016
Accessories available from Tamas Hydronic Systems INC.
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Optional Accessories
Flow Diagram
Type UPS 15-58
IMPEDANCE PROTECTED
FOR INDOOR USE ONLY
P/N: 59506262
115V ~
60Hz
10µF
0.51
0.66
0.75
60
1/1 (A) P 1 (A)
75
Max. water temp 203°F
85
PC: 1340
IP 42
TF 95
Max 1.0MPa
3
1
4
6
0
2
4

Z-Block Manual version 1.1
Page 10
Head (feet)
Flow (gpm)
Pump Performance Curve UPS-15-58
1st Speed 2nd Speed 3rd Speed
2
0 2 4 6 8 10 12 14 16
0
4
6
8
18
20
10
12
14
16
AMPS
115V
WATTS HP CAPACITOR
0.75
0.66
Spd. 3
Spd. 2
85
75
1/25
1/25
10mF/180V
10mF/180V
0.51Spd. 1 60 1/25 10mF/180V
1
2
3
Component Information
Inlet cone, bearing retainers, rotor
can, rotor cladding, shaft retainer
304 Stainless Steel
Stator housing Aluminum
Shaft, upper and lower radial bearings Aluminum Oxide Ceramic
Thrust bearing Metal Impregnated Carbon
Check Valve ACETAL with 302 Stainless Steel Spring &
Nitrile Rubber Seals
Pump housing (Volute) Composite
O’Ring and gaskets EP (Ethylene Propylene Rubber)
Impeller PES Composite (30% Glass Filled)
UPS 15-58 (3 Speed Pump)
 •Flowrange:0-17U.S.GPM
 •Headrange:0-19Feet
 •Motors:2Pole,SinglePhase
 •Maximumfluidtemperature:230°F(110°C)
 •Minimumfluidtemperature:36°F(2°C)
* Maximum fluid temperature with Check Valve present: 200°F
Technical Data

Tamas Hydronic Systems Inc. Page 11
Limited Warranty
Tamas Hydronic Systems Inc. warrants each of its products to be free from defects in workmanship and materials
under normal use and service for a period of 24 months from date of purchase from a Tamas Hydronic Systems inc.
authorized Dealer.
If the product proves to be defective within the applicable warranty period, Tamas Hydronic Systems inc. on its
sole discretion will repair or replace said product. Replacement product may be new or refurbished of equivalent
or better specifications, relative to the defective product. Replacement product need not be of identical design or
model. Any repair or replacement product pursuant to this warranty shall be warranted for not less than 90 days
from date of such repair, irrespective of any earlier expiration of original warranty period. When Tamas Hydronic
Systems Inc. Provides replacement, the defective product becomes the property of Tamas Hydronic Systems Inc.
Warranty Service, within the applicable warranty period, may be obtained by contacting your nearest Tamas
Hydronics Systems inc. office via the original Authorized Agent and requesting a Return Material Authorization
Number (RMA #). Proof of purchase in the form a dated invoice/receipt must be provided to expedite the issuance
of a Factory RMA.
After an RMA number has been issued, the defective product must be packaged securely in the original or other
suitable shipping package to ensure that it will not be damaged in transit. The RMA number must be visible on the
outside of the package and a copy included inside the package. The package must be mailed or otherwise shipped
back to Tamas Hydronic Systems Inc. with all costs of mailing/shipping/insurance prepaid by the warranty claimant.
Any package/s returned to Tamas Hydronic Systems Inc. without an approved and visible RMA number will
be rejected and shipped back to purchaser at purchaser’s expense. Tamas Hydronic Systems Inc. Reserves the
right, if deemed necessary, to charge a reasonable levy for costs incurred, additional to mailing or shipping costs.
Limitation of Warranties.
If the Tamas Hydronic Systems Inc. product does not operate as warranted above the purchasers sole remedy shall
be, at Tamas Hydronic Systems option, repair or replacement. The foregoing warranties and remedies are exclusive
and in lieu of all other warranties, expressed or implied, either in fact or by operation of law, statutory or otherwise,
including warranties of merchantability and fitness for a particular purpose/application. Tamas Hydronic Systems
Inc. neither assumes nor authorizes any other person to assume for it any other liability in connection with the sale,
installation maintenance or use of Tamas Hydronic Systems Inc. products.
Tamas Hydronic Systems Inc. shall not be liable under this warranty; if its testing and examination discloses
that the alleged defect in the product does not exist or was caused by the purchasers or third persons misuse,
neglect, improper installation or testing, unauthorized attempts to repair or any other cause beyond the range of
intended use, or by accident, fire, lightning or other hazard.
Limitation of Liability.
In no event will Tamas Hydronic Systems Inc. be liable for any damages, including loss of data, loss of profits,
costs of cover or other incidental, consequential or indirect damages arising out of the installation, maintenance,
commissioning, performance, failure or interruption of a Tamas Hydronic Systems Inc. product, however caused
and on any theory of liability. This limitation will apply even if Tamas Hydronic Systems Inc. has been advised of the
possibility of such damage.
Local Law.
This limited warranty statement gives the purchaser specific legal rights. The purchaser may also have other rights
whichvaryfromstatetostateintheUnitedStates,fromProvincetoProvinceinCanadaandfromCountryto
Country elsewhere in the world.
To the extent this Limited Warranty Statement is inconsistent with local law, this statement shall be deemed
modifiedtobeconsistentwithsuchlocallaw.Undersuchlocallaw,certaindisclaimersandlimitationsofthis
statementmaynotapplytothepurchaser.Forexample,somestatesintheUnitedStates,aswellassome
governmentsoutsidetheUnitedStates(includingCanadianProvinces),may:
Preclude the disclaimers and limitations in this statement from limiting the statutory rights of a consumer (e.g.
UnitedKingdom);
Otherwise restrict the ability of a manufacturer to enforce such disclaimers or limitations; or
Grant the purchaser additional warranty rights which the manufacturer cannot disclaim, or not allow limitations on
the duration of implied warranties.

Service Information:
Tamas Hydronic Systems Inc.
4516 - 112th Avenue SE, Calgary, AB T2C 2K2
Telephone: [phone] • Fax: [phone]
Email: [email protected] • Web: tamashydronic.com
@TamasHydronicSystems /TamasHydronics
Accessories available from Tamas Hydronic Systems INC.

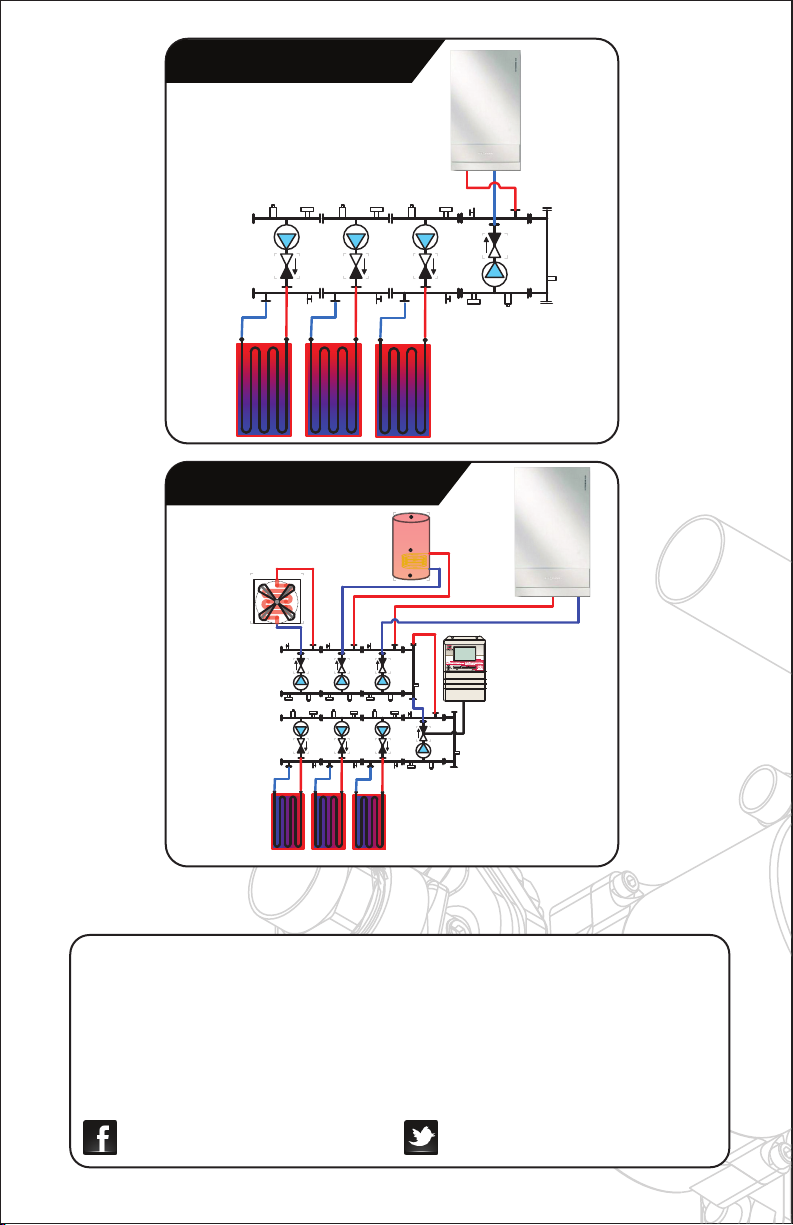

3 Zones with Boiler Pump
Z-Bloc with Injecon Pump Mixing
Injection
Mixing
CPU-0550
CentralProcessingUnit
Relays:
240VAC5A Max
Input:
120VAC15A Max
ModOutput:
1-10V
ENTER
HBX
CPU-0550
