Tanda TXC3150 User manual

TXC3150
ConventionalManual Call Point
Installationand Operation Manual
TANDA Development Copyright ©2015, All right reserved.

TXC3150 Conventional Manual Call Point
Installation & Operation Manual
Specifications are subject tochange withoutprior notice
2
Table of Content
1. General................................................................................................................................................... 3
2. Features .................................................................................................................................................. 3
3. Technical Parameters............................................................................................................................... 3
4. Structure features and operating principle: ............................................................................................... 3
5. Installation and wiring.............................................................................................................................. 4
6. Testing.................................................................................................................................................... 6
7. Operation................................................................................................................................................ 6
8 Transportation and storage ....................................................................................................................... 6
9. Notes ...................................................................................................................................................... 6
4050100458-Rev1.0-1017
TANDA

TXC3150 Conventional Manual Call Point
Installation & Operation Manual
Specifications are subject tochange withoutprior notice
3
1. General
TXC3150 manual fire alarm button (hereinafter referred to as manual button) has a beautiful structure
and wiring is easy and reliable. After fire is manually confirmed, press metal dome on manual button
to send alarm signal to the controller. After the controller receives alarm signal, encoded information
of manual button and installation positionwill be displayed and an alarm sounds.
2. Features
1.Hardware circuit is stable and reliable, which is not affected by electromagnetic interference.
2.After metal dome is pressed, a special key shall be used to reset it manually.
3.After metal dome is pressed, manual button provides separate output contact to control other
external equipment directly.
4.Plug-type structure isinstalled easily and reliably.
3. Technical Parameters
1.Operating voltage: DC24V, 12-28V
2.Operating current:
1）Normal current: 0mA
2）Alarm current: ≤30mA
3.Output capacity: rated DC30V/0.1A passive output contact signal and contact resistance
≤100mΩ
4.Type of starting parts: reusable
5.Start type: press metal dome manually
6.Reset type: a special key is used to reset it. After an alarm is sent, open key cover of manual
button and insert the key to rotateby 90°to the right.
7.Status indicator: fire alarm indicator, red; in normal state, red indicator is off; but after alarming, it
is normallyon.
8.Wiring system: two-wiresystem, without polarity
9.Operating environment: indoors, temperature -20℃~+55℃, relative humidity ≤95%RH, without
condensation
10.Housing material and color: ABS, red
11.Weight: about 172g
12.Outline dimension: 95.0mm×95.0mm×46.0mm (with base)
13.Mounting hole pitch: 60mm
14.Conforming standard: EN54-11 Compliance
4. Structure features and operating principle:
4.1.Outline diagram of manual button as shownin Fig. 1.
4050100458-Rev1.0-1017
TANDA

TXC3150 Conventional Manual Call Point
Installation & Operation Manual
Specifications are subject tochange withoutprior notice
4
4.2.Operating principle
This manual button adopts depressing alarm type. It is self-locked by mechanical structure to reduce
triggering possibility by mistake. Press metal dome of manual button, red indicator of fire alarm is on.
Fire alarm information issent to the controller. The controller displays fire alarm information.
5. Installation andwiring
Warning: before installation, cut off power supply of the circuit and confirm all bottom cases are
reliably installed.
5.1Installation method: Incoming line conduit of manual button adopts concealed installation (as
shown in Fig. 2).
墙壁
按片
预埋盒
进线管
Press Here
Wall
Wall Tube
Embedded box
Fig. 1 Outline diagram of manual button
Fig. 2 Installationdiagram ofmanual button
4050100458-Rev1.0-1017
TANDA

TXC3150 Conventional Manual Call Point
Installation & Operation Manual
Specifications are subject tochange withoutprior notice
5

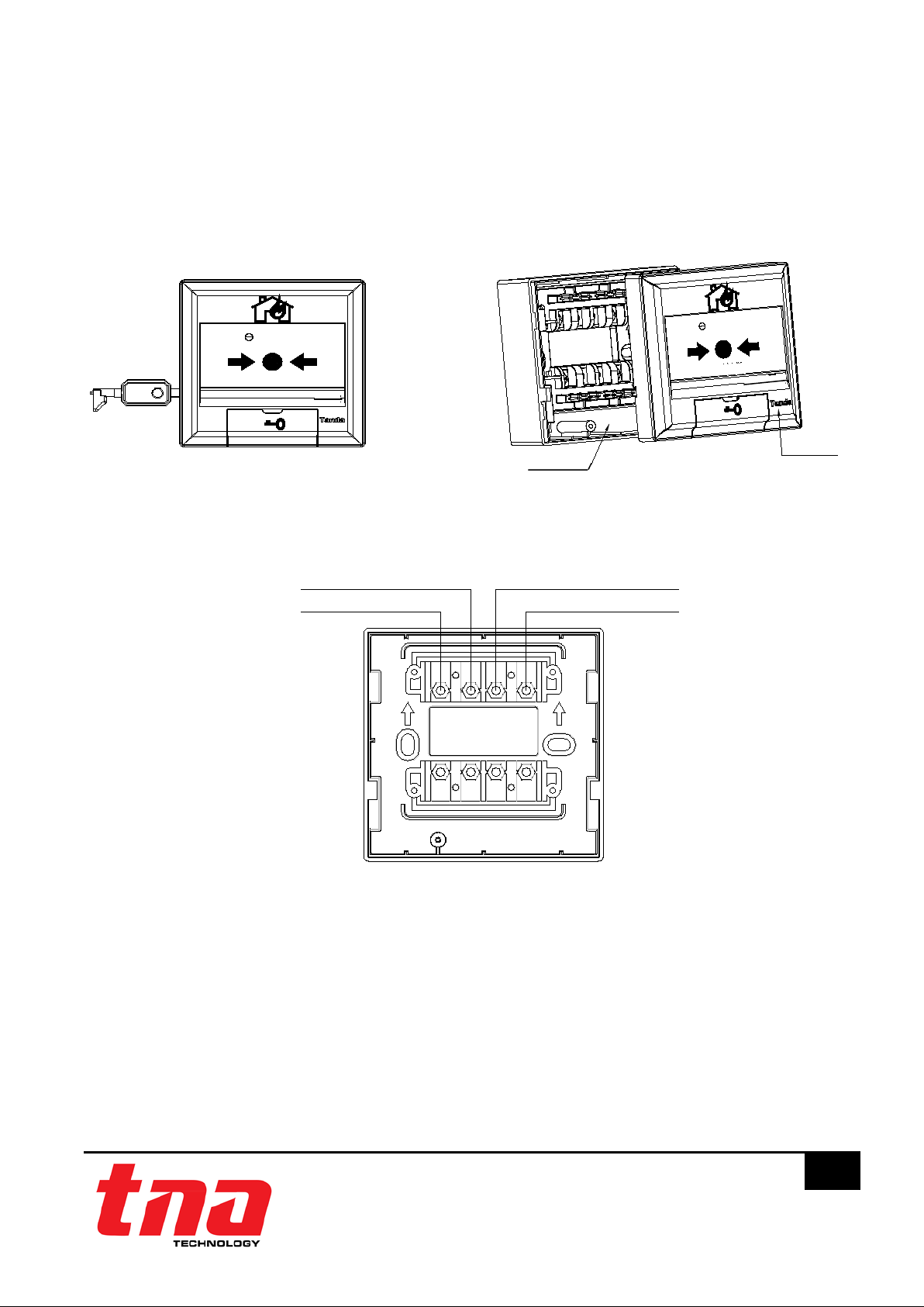

5.2Removal method (as shown in Fig. 3)
Plug-in type is used between base and upper cover of this manual button. A special key is inserted to
remove the base and upper cover of the manual button.
火警
按下报警
上盖
底座
5.3Terminal description (as shown in Fig. 4 )
O2
O1 I2
I1
K2 K1
O2 O1 I2 I1
I1 and I2: powersupply input terminal,without polarity.
O1 and O2: cascade connection to the next equipment (no polarity) or connecting with 5.1KΩ
terminal resistance.
K1 and K2: normally-on signal output terminal (rated capacity 30V/0.1A).
5.4Wiring requirements:
In order to avoid wiring confusion, different colors shall be used for wiring; the connection between
wire and manual button base terminal shall be sealed (without exposed copper wire).
Wiring method is as shown in Fig. 5. When wiring the base of manual button, do not tighten incoming
Base
Uppercover
Fig. 3 Removingdiagram ofmanual button
Fig. 4 Terminal description
4050100458-Rev1.0-1017
TANDA

TXC3150 Conventional Manual Call Point
Installation & Operation Manual
Specifications are subject tochange withoutprior notice
6
line and wirefor cascading connection to the next base of manual button onto one terminal.
5.5Metal dome reset of manual button
After metal dome of this manual button is pressed, only a special reset key is used to reset it. If
manual button is to be reset after action, first open reset hole cover and then insert the key into key
hole and rotateit by 90° clockwise. Reset diagram as shown in Fig.5
6. Testing
Warning: after all equipment is installed, power on.
1.Before manual button is tested, related management department shall be notified that the system
will be maintained and the work will stop temporarily. At the same time logic control function of
area or system to be maintained shall be cut off to avoid unnecessary alarm linkage.
2.Press metal dome of manual button. Red alarm indicatorof manual button shall be on.
3.After testing is over, reset key is used to reset manual button and related management department
is notifiedthat the system restores normally.
4.During the course of test, check if wiring of unqualified manual button is normal. Then test it again. If
it does not pass the test, it shall be returned for repair.
7. Operation
This manual button is non-encoded type, and not required to make encode setting. It is used
according to wiring type in Fig. 4.
8 Transportation and storage
The equipment shall be packed for transportation, handling and storage. During the course of
loading and unloading, handle with care to prevent from being damaged. Storage environment
shall be ventilated and dry. Do not store it in open air.
9. Notes
按片
钥匙插孔
此处用辅助片上取下的
螺钉插入固定前盖
火警
按下报警
The screws removed from auxiliary
plates are inserted to fix front
cover
Key hole
Press here
Fig. 5 Reset diagram ofmetal dome
4050100458-Rev1.0-1017
TANDA

TXC3150 Conventional Manual Call Point
Installation & Operation Manual
Specifications are subject tochange withoutprior notice
7
1. If manual button has a fault after it is used for a long time, first check if manual button is
damaged or if installation position has not been changed, and then consider other faults of
manual button.
2. This product is fire control product. Regulations for on-duty and duty shifting system shall be
carried out. Running records shall be made.
3. Manual button shall be tested on alarm function once every six months.
4. A special reset tool of this manual button shall be kept and used by a special person. Our
company will not be responsible for any loss caused by incorrect operation done by non-
authorized person.
5. It is forbidden to wipeoff manual button withdry cloth.
