Tanda TX7120 User manual

TX7120
Intelligent Addressable Smoke & Heat Detector
Installation and Operation Manual
TANDA UK Technology Copyright ©2015, All right reserved.

TX7120 Intelligent Smoke & Heat Detector
Installation & Operation Manual
4050100264-Rev1.1-0815
TANDA UK
Specifications are subject to change without prior notice
2
Product Safety
To prevent severe injury and loss of life or property, read the instruction carefully before installing the
detector to ensure proper and safe operation of the system.
European Union directive
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed
of as unsorted municipal waste in the European Union. For proper recycling, return
this product to your local supplier upon the purchase of equivalent new
equipment, or dispose of it at designated collection points.
For more information please visit the website at www.recyclethis.info

TX7120 Intelligent Smoke & Heat Detector
Installation & Operation Manual
4050100264-Rev1.1-0815
TANDA UK
Specifications are subject to change without prior notice
3
Table of Content
1 Introduction............................................................................................................................................................ 4
1.1 Overview ......................................................................................................................................................... 4
1.2 Feature and Benefits..................................................................................................................................... 4
1.3 Technical Specification ................................................................................................................................ 4
2 Installation .............................................................................................................................................................. 5
2.1 Installation Preparation................................................................................................................................. 5
2.2 Installation and Wiring .................................................................................................................................. 5
3 Detector Configuration ....................................................................................................................................... 6
3.1 Preparation ..................................................................................................................................................... 6
3.2 Write: Addressing ........................................................................................................................................... 6
3.3 Set: LED On/Off .............................................................................................................................................. 7
3.4 Read Configuration ...................................................................................................................................... 7
4 General Maintenance......................................................................................................................................... 8
4.1 Cleaning.......................................................................................................................................................... 8
5 Troubleshooting Guide ........................................................................................................................................ 9
Appendix 1 ................................................................................................................................................................ 9
Limitation of Smoke & Heat Detectors............................................................................................................. 9

TX7120 Intelligent Smoke & Heat Detector
Installation & Operation Manual
4050100264-Rev1.1-0815
TANDA UK
Specifications are subject to change without prior notice
4
1 Introduction
1.1 Overview
The TX7120 Intelligent Addressable Optical Smoke & Heat Detector is the ideal device for most
applications, due to its spiffing linear response to a wide variety of different types of smoke patterns
and combining with heat sensing sensor for temperature response. The unit manufactured base on
the sensitivity requirement of EN 54 part 29, European Standard. The unit is aesthetically pleasing with
unobtrusive design that will complement modern building designs. The unit incorporates an
intelligent processor that provides Algorithm map, inbuilt A/D converter, Drift compensation, and
Self-Diagnosis and History log.
Secure and speedy communication through the on-board processor enables the detector to make
its own decision, resulting in greater automation. In the event of fire, the integral microprocessor
analyses the signal according to factors such as signal strength and rate of increase, then confirms
these patterns with the pre-programmed fire scenarios, smoke and heat patterns including rate of
rise temperature, for a faster and safer response. Once it is confirmed, the LED indicates the sensor
status and parallel sending communication signal to the control panel. The TX7120 detector is
compatible to the TX7004 Analogue Intelligent Fire Alarm Control Panel, produced by single
manufacture T&A, to avoid addressable communication compatibility problem.
1.2 Feature and Benefits
EN54-29 Compliance
Using microprocessor technology with memory capacity up to 10 events
Analogue sending and digital addressing
Provide real time algorithm to the control panel
Smart linear drift compensation
360 degree visual indicator
Onsite Adjustable Parameter
Removable chamber against dust and small insect
Ancillary remote indicator output
Aesthetically pleasing design
1.3 Technical Specification
Listed LPCB Pending
Compliance EN54-29
Input Voltage 24VDC [16V to 28V]
Current Consumption Standby 0.6mA, Alarm: 4mA
Protocol/Addressing T&A, Value range from 1 to 254
Smoke Sensitivity As per stipulated standard
Heat Class Type A2R
Indicator Single LED / 360 degree Visual
Material / Colour ABS / White Glossy finishing
Dimension / Height Diameter 99.7 mm / 57 mm
Weight 145g (with Base), 90g (without Base)
Operating Temperature -10°C to +50°C
Humidity 0 to 95% Relative Humidity, Non condensing

TX7120 Intelligent Smoke & Heat Detector
Installation & Operation Manual
4050100264-Rev1.1-0815
TANDA UK
Specifications are subject to change without prior notice
5
2 Installation
2.1 Installation Preparation
This sensor must be installed, commissioned and maintained by a qualified or factory trained service
personnel. The installation must be installed in compliance with all local codes having a jurisdiction in
your area or BS 5839 Part 1 and EN54.
The TX7120 Smoke & Heat detectors operate on the principle of infra-red light refracting off smoke
particles entering the chambers. This makes detector more sensitive to smouldering fires such as
modern fabric or furnishing. Optical detectors are more prone to false alarm from steam or dusty
environment. For best sensing ability, avoid installing the smoke detector in these areas.
In open air applications as the detectors require ceilings to direct the smoke from the plume
by convection.
On side walls, this will severely delay the response time of a detector and where ceiling
heights exceed 10.5m.
In Rooms where cooking will take place such kitchens, or similar areas where steam and
condensation are present.
Where exhaust fumes are present like car parks.
Where smoke particles will not be produced by fire.
Plant Rooms (unless full discussions regarding the room contents and status subject to a fire
have been made between Client and Manufacturer), Boiler and Generator Rooms.
2.2 Installation and Wiring

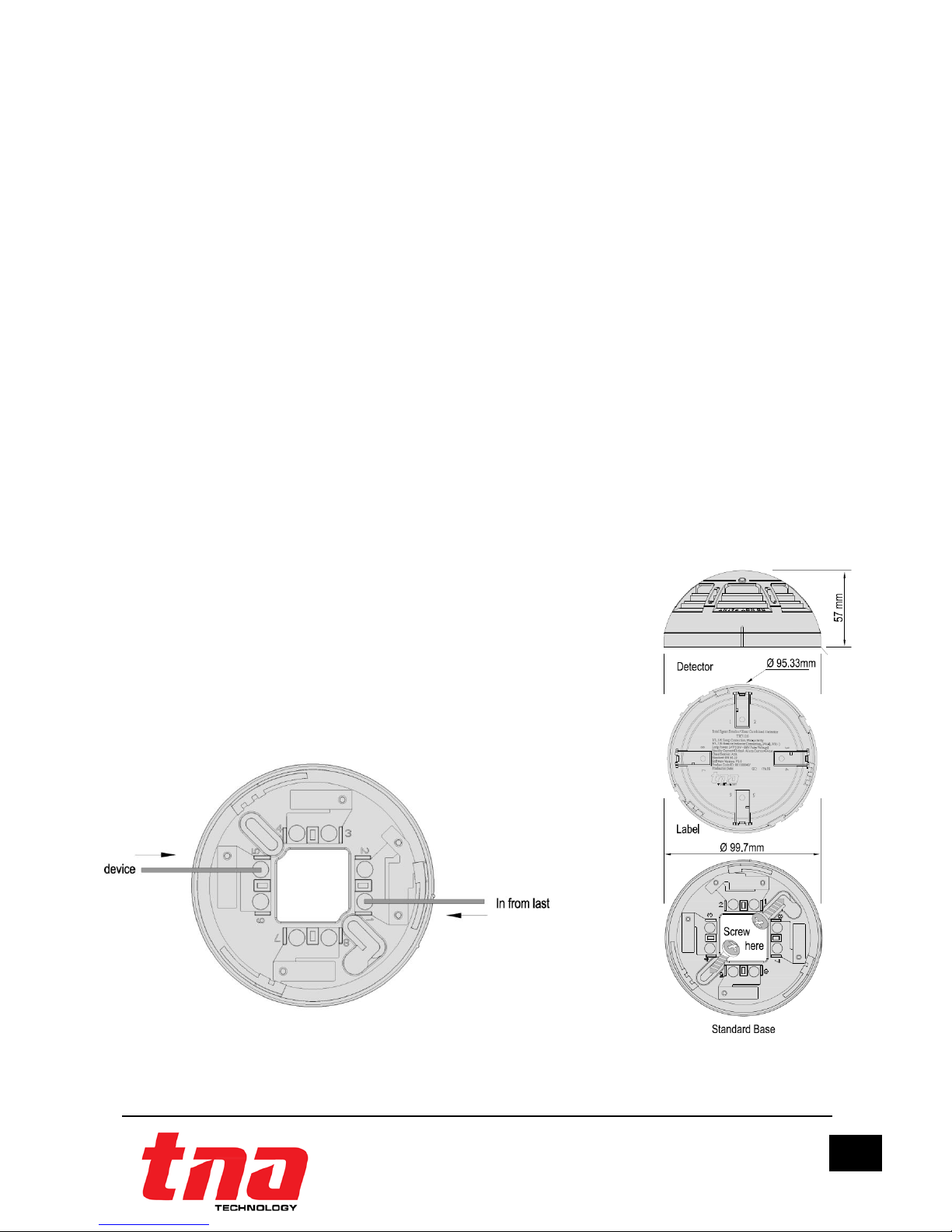

1. Mount the T&A standard base on standard one [1] gang electrical
back box. Do not over-tighten the screws otherwise the base will
twist. Use M4 standard screws.
2. Connect the wire in terminal as shown in Figure two [2]. Verify the
device number or other device parameters if desired using
handheld programmer then stick on the label before attaching
detector. The sticker labels are available on the control panel.
3. Attach the detector to the base, point the detector in the base by
the mark-line and secure the detector in that position by rotating it
clockwise, until it reaches the next mark line.
4. Do not remove the red plastic dust cover until the final handover is
done.
Figure 2
Figure 1
Terminal Description
1Signal In (+)
2Signal Out (+)
3Remote Indicator (+)
4Remote Indicator (+)
5Signal In (-)
6Signal Out (-)
7Remote Indicator (-)
8Remote Indicator (-)
