Page 1 of 9 TANDBERG DUAL PLASMA CART ASSEMBLY | D50526.06
TANDBERG Dual Plasma Cart Assembly D50526.06
PARTS LIST
A. CART BASE WITH WHEELS
B. VERTICAL SUPPORT POSTS (3)
C. HORIZONTAL “U” CHANNELS (2)
D. CART HANDLES (2)
E. COVER PANEL
F. SPEAKER BAR
G. CABLE MANAGEMENT RACEWAY
H. DISPLAY BRACKETS (4)
I. DISPLAY BRACKET CLAMPS (8)
J. POWER BAR
K. AUDIO AMPLIFIER (OPTIONAL)
L. SPEAKER BRACKET A (3)
M. SPEAKER BRACKET B (3)
N. HD CAMERA BRACKET
O. HD CAMERA SHELF
P. HD CAMERA
Q. CODEC BRACKETS (2)
R. CODEC
S. UPS SHELF
T. COMPUTER MOUNTING PLATE (VESA)
U. STORAGE BIN
V. HARDWARE FOR ASSEMBLY
MAY 2009

Page 2 of 9 TANDBERG DUAL PLASMA CART ASSEMBLY | D50526.06
PARTS OVERVIEW
CART BASE WITH WHEELS
A
CART HANDLE – 2X
D
HORIZONTAL “U” CHANNEL – 2X
C
VERTICAL SUPPORT POST – 3X
B
SPEAKER BAR
F
COMPUTER MOUNTING
PLATE (VESA)
T
COVER PANEL
E
CABLE MANAGEMEN
T
RACEWAY
G
DISPLAY BRACKET – 4X
H
STORAGE BIN
U
UPS SHELF
S
SPEAKER BRACKET (A) – 3X
L
POWER BAR
J
DISPLAY BRACKET CLAMP – 8X
I
HD CAMERA SHELF
O
HD CAMERA
P
SPEAKER BRACKET (B) – 3X
M
HARDWARE
FOR ASSEMBLY
V
HD CAMERA BRACKET
N
CODEC BRACKET – 2X
Q
AUDIO AMPLIFIER
OPTIONA
L
K
CODEC
R

Page 3 of 9 TANDBERG DUAL PLASMA CART ASSEMBLY | D50526.06
ASSEMBLY HARDWARE KIT
QTY DESCRIPTION
29 3/8-16 x 1" hex-head bolt
verticals to base, handles to horizontals & wheels
47 washer for 3/8" bolt, 7/8" outside diameter
washers for all 3/8" and M8 bolts
12 3/8-16 x 2.75" hex-head bolt
mounting horizontals to verticals
3 1/4-20 x 3.25" hex-head bolt
mounting speaker bracket to verticals
9 1/4-20 hex nut
mounting speaker brackets
16 washer for 1/4" screw, 7/8" outside diameter
mounting speaker brackets & handles
3 Nylon spacer for 1/4" screw 1/2" long, 1/2" OD.
mounting speaker brackets ‘A’ ‘to verticals
8 Aluminum spacer
for plasma brackets to plasma
1 1/4-20 x .3/8" Phillips flat-head SS BLK screw
for HD camera
6 1/4-20 x 3 " flat-head SS BLK screw
for mounting cover panel
QTY DESCRIPTION
26 10-32 x .5" Phillips pan-head SS BLK screw
plasma adapters, UPS/storage shelf & cam bracket
4 #10 x .438OD SS BLK washer
1 1" DIA ADHESIVE BACK FELT PADS BLACK
4 8-32 x 1/2" Phillips pan-head screw
for pc bracket
3 M3 x 8 Phillips pan-head screw
for audio amplifier
1 T10 Torx L key
for audio amplifier
2 cart handle
3 2" x 3" black rectangular plug
4 2" x 4" black rectangular plug
8 M8 x 35mm Pan-head Phillips
for plasma brackets to plasma
16 1/4-20 x 1/2”Pan-head Phillips SS BLK screw
clamps to horizontal “U” channel
TOOLS REQUIRED:
•7/16 wrench
•7/16 socket & ratchet handle
•9/16 wrench
•9/16 socket & ratchet handle
•#2 Phillips screwdriver

Page 4 of 9 TANDBERG DUAL PLASMA CART ASSEMBLY | D50526.06

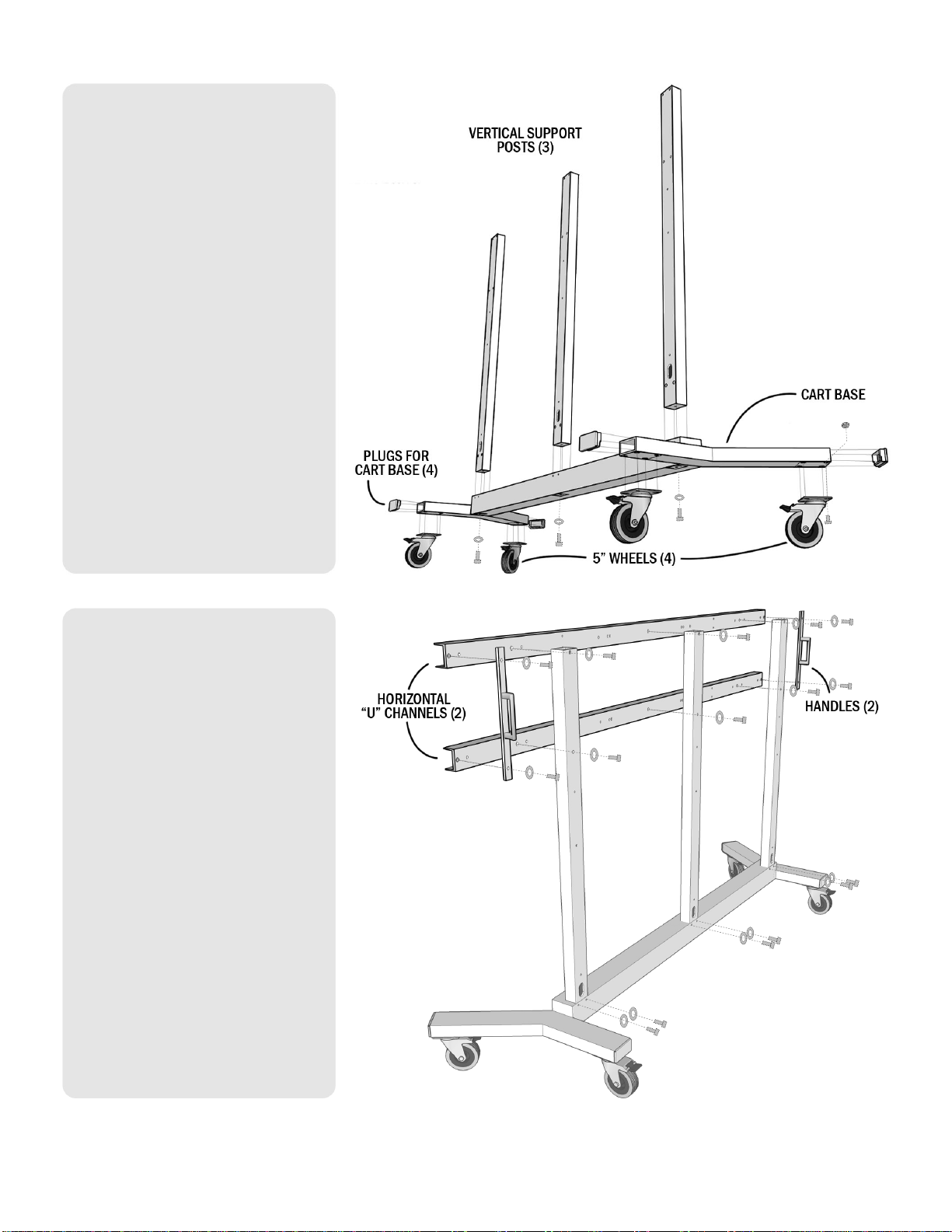

1. Attach 5” WHEELS (4) to the
CART BASE using 3/8”–16 x
1” HEX BOLTS & NUTS (16).
2. Insert the PLUGS (4) into the
open ends of the CART BASE.
3. Position the UPRIGHT POSTS
(3) into the CART BASE.
4. Use 3/8”–16 x 1” HEX BOLTS
& WASHERS (3) to secure the
UPRIGHT POSTS to
t
he bottom
of the cart.
5. Use 3/8”–16 x 1” HEX BOLTS
& WASHERS (6) to secure the
UPRIGHT POSTS at the back of
the cart.
6. Mount the HORIZONTAL “U”
CHANNELS (2) to the UPRIGHT
SUPPORT POSTS using 3/8”–
16 x 2¾“ HEX BOLTS and
WASHERS (6).
7. Fasten the cart’s HANDLES (2)
to the HORIZONTAL “U”
CHANNELS using 3/8”–16 x
1” HEX BOLTS & WASHERS
(4).
8. It is recommended that you
fish any required SYSTEM
CABLES down any VERTICAL
POST as it may be difficult to
do so once the displays are
mounted.

Page 5 of 9 TANDBERG DUAL PLASMA CART ASSEMBLY | D50526.06
9. Affix POWER BAR with Velcro
and CABLE RACEWAY with
double-sided tape as shown.
10. Mount COVER PANEL using
¼“–20 x 3” BOLTS & NUTS (6).
11. If the AUDIO AMPLIFIER
OPTION is available, use the
M3 x 8 SCREWS (2) to attach
the AMPLIFIER to any of the
SPEAKER BRACKETS-A.
12. Place .5” SPACERS (3) behind
the SPEAKER BRACKETS-A (3)
and mount them to each of
the POSTS using ¼”–20 x 3¼”
BOLT & NUTS and ¼”
WASHERS. The CENTER
BRACKET should include the
AUDIO AMPLIFIER.
DO NOT TIGHTEN SPEAKER
BRACKETS AT THIS TIME.
13. Remove the top cover for the
display box. Leave the
display in the bottom
packaging for the next step.
14. Align and secure the DISPLAY
MOUNTING BRACKETS (2 x2)
to the matching pair of
mounting holes on the rear
of the DISPLAY using the M8
BOLTS (4 x2)*.
* If needed, install the brackets with
the included ALUMINIUM
SPACERS.
MAX WEIGHT = 200LBS. EACH

Page 6 of 9 TANDBERG DUAL PLASMA CART ASSEMBLY | D50526.06
16. Attach SPEAKER BRACKETS-B
(3) to the SPEAKER BAR using
the EXISITING SCREWS (6).
17. Attach the SPEAKER CABLE
t
o
the SPEAKER BAR.
The optional AUDIO
AMPLIFIER will require the
DB-9 connection.
18. Mount the SPEAKER BAR and
BRACKET-B to the existing
studs on SPEAKER BRACKET-
A using NUTS and ¼”
WASHERS (6)
19. Adjust the SPEAKER BAR to
align with the DISPLAY’S front
and bottom and securely
tighten the screws.
THE FOLLOWING REQUIRES THE
HELP OF AT LEAST ONE OTHER
PERSON TO LIFT AND MOUNT
THE HEAVY DISPLAYS!
14. Lift and hook the DISPLAYS to
the top HORIZONTAL “U”
CHANNEL – center align the
displays to mount onto to the
CART.
15. Attach the CLAMPS (8) to the
FRAME/DISPLAY using the ¼-
20 x ½” BOLTS (16).
Use all CLAMPS – 4 for each
display as shown.

Page 7 of 9 TANDBERG DUAL PLASMA CART ASSEMBLY | D50526.06

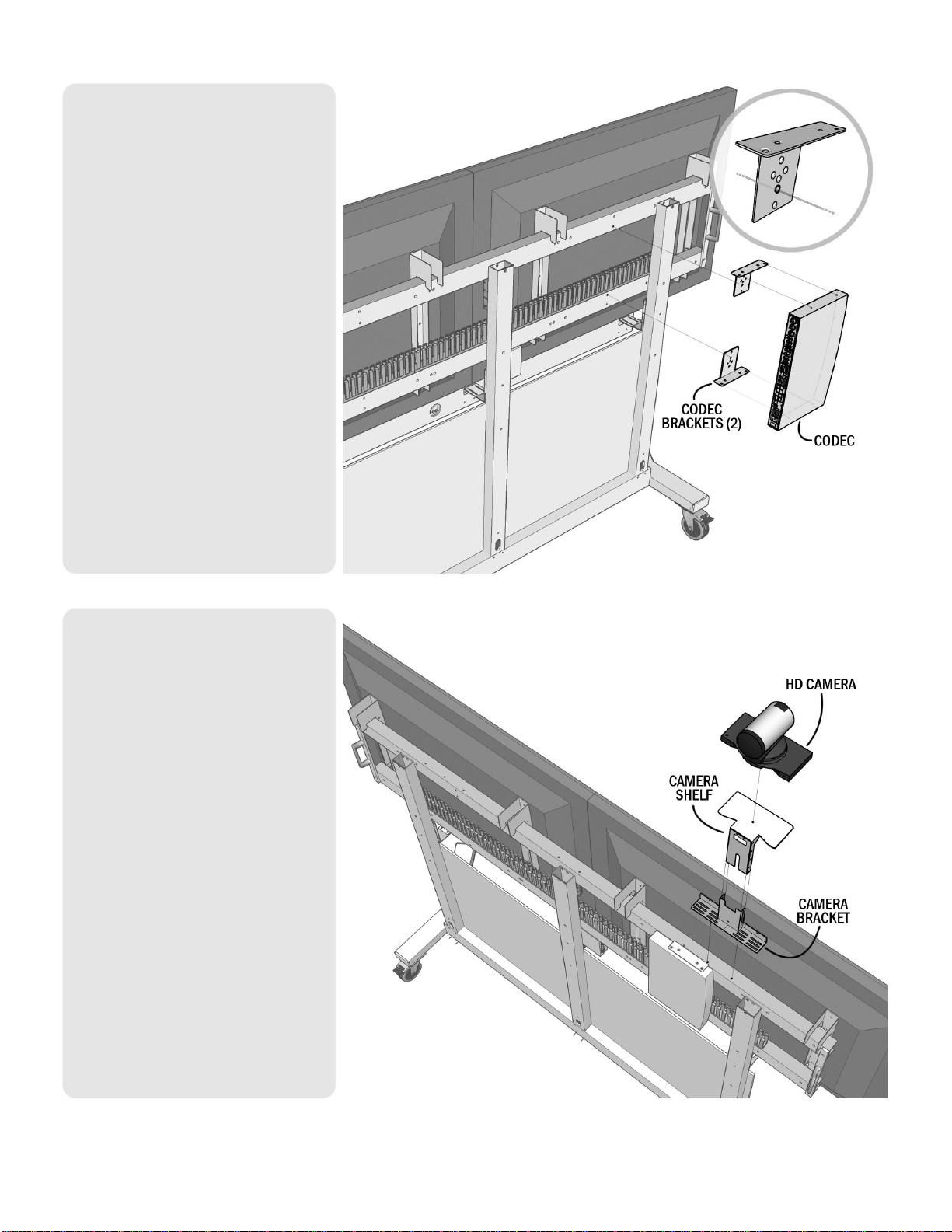

20. Attach CODEC BRACKETS (2)
to the rear of the FRAME, as
shown, using M8 x 16
SCREWS (2).
21. Mount the CODEC to the
BRACKETS by removing the
screws on each side of the
CODEC and using the same
screws to secure the CODEC.
22. Determine what position you
prefer the HD CAMERA to be
in -- left, center, or right.
23. Align the CAMERA BRACKET
with the left, center, or right
set of bracket holes along the
top “U” CHANNEL and secure
the bracket using 10-32 x .5”
SCREWS (2).
24. Use the ¼”–20 x 3/8” SCREW
to secure the HD CAMERA to
the CAMERA SHELF*.
*Affix the FELT PAD to the
bottom of the CAMERA SHELF
to protect from scratching the
top of the DISPLAY.
25. Slide the CAMERA SHELF into
the CAMERA BRACKET and
secure the two parts together
with 10-32 x .5” SCREWS (2).
mirror this bracket
to secure the other
side of the codec.
MAX WEIGHT = 10LBS.
MAX WEIGHT = 20LBS.

Page 8 of 9 TANDBERG DUAL PLASMA CART ASSEMBLY | D50526.06
26. Use the following instructions
to integrate a VESA-mount PC,
a storage box, or a UPS shelf:
PC (VESA) MOUNT
Use M8 x 16 SCREWS (2)
STORAGE BOX
Use 10-32 x .5” SCREWS (3)
MAX WEIGHT: 25 LBS
UPS SHELF
Use 10-32 x .5” SCREWS (3)
MAX WEIGHT: 50 LBS
Straps are supplied for fastening
a UPS to the UPS SHELF.
NOTE: The mounting locations
for the CODEC and PC MOUNTS
can be interchanged, as can the
UPS SHELF and STORAGE BOX.
27. Wire the CABLES and make
appropriate connections
according to the WIRING
DIAGRAM on the following
page.
28. System assembly is now
complete. For further
information on system
configuration and operation
refer to the CODEC GUIDE.
STORAGE BOX: MAX WEIGHT = 25 LBS.
UPS SHELF: MAX WEIGHT = 50 LBS.
PC (VESA) MOUNT: MAX WEIGHT = 20 LBS.
