Tape Drive
Quick Installation Guide

2
Mechanical Installation Internal Tape Drive
For mechanical mounting specifications, please refer to Figure 1.
Allowed mounting position is either horizontal with the indicator LEDs to the
right, or vertical with the LEDs up.
The drive occupies a half-size 5.25-inch slot with standard holes for mounting
screws on both sides of the drive chassis and at the bottom of the drive.

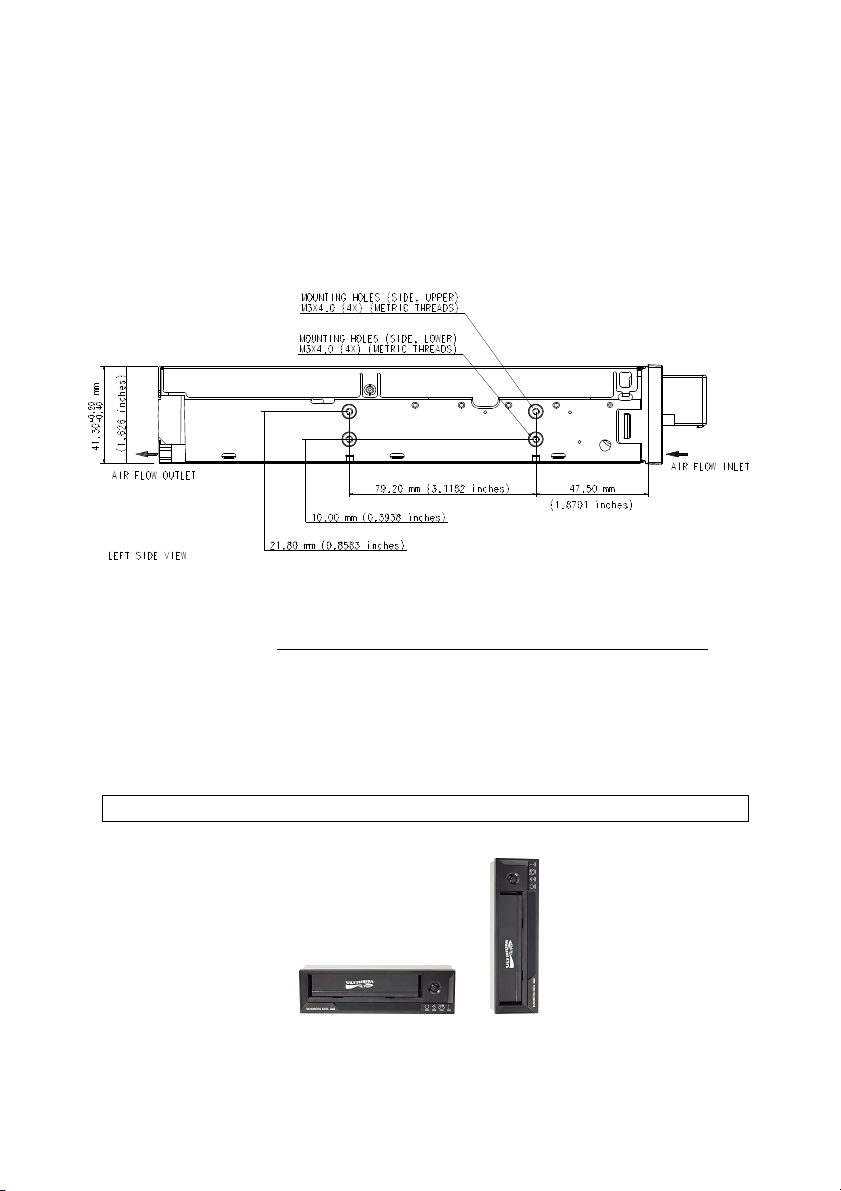

Figure 1 Mounting specifications
Important!
Mounting screw
requirements
•Only M3 (metric) screws must be used for mounting the drive
•Maximum permitted screw penetration: 2.5 mm
•Minimum required screw penetration: 2.0 mm
•Screw torque, mounting screws: 0.5 Nm
•Screws are supplied with all the Tandberg 220/420/820LTO drive
variants
•Bags with 4 screws and 4 SCSI ID jumpers are available
(Ordering no. 43 32 65)
Do not use longer screws or higher screw torque than specified!
Figure 2 Allowed mounting orientations

3
SCSI Identification on Internal Tape Drive
Make sure that the drive unit has the proper SCSI-ID before it is connected to a
computer system. Refer to manuals for host computer and application software to
obtain the correct ID.
For correct mounting of ID-jumpers at the rear of the internal drive, please refer to
Figure 3 and Table 1 for internal tape drive.

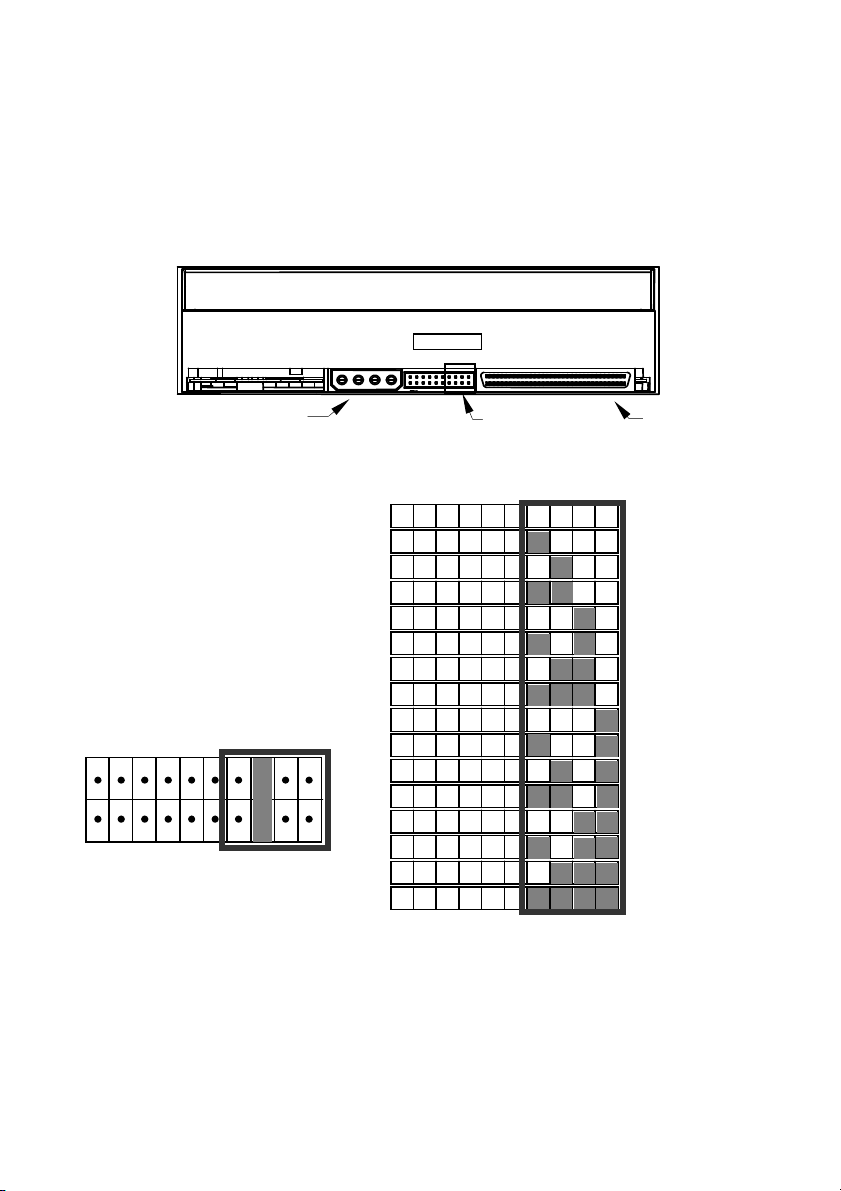

Figure 3 Drive connectors
The factory default drive
number setting is SCSI ID = 2.
If the drive has to be set up
with a different unit number,
the jumpers (on the Service
Connector) have to be
connected according to
Table 1.
Example: SCSI ID = 2
Table 1
Service Connector jumper settings for SCSI
ID (Dark = Jumper mounted)
Power Connector
SCSI Connector
Service Connector
SCSI ID=0
SCSI ID=1
SCS
I ID=2
Default
SCSI ID=3
SCSI ID=4
SCSI ID=5
SCSI ID=6
SCSI ID=7
SCSI ID=8
SCSI ID=9
SCSI ID=10
SCSI ID=11
SCSI ID=12
SCSI ID=13
SCSI ID=14
SCSI ID=15

4
Termination Internal Tape Drive
The Internal SCSI-bus cable must be terminated as shown in Figure 4 according to
SCSI specifications. If the tape drive is the last device on the bus, the bus must be
terminated within 10 cm of the tape drive connection.
Tandberg LTO-1, LTO-2, LTO-3 have a combined SCSI-LVD/SE interface
embedded. The PC-98 Specification specifies that the termination of the SCSI-bus
system is a part of the SCSI-cable and not a part of the SCSI-device. As a result,
termination cannot be turned on or off directly on the tape drive itself.
For internal devices, a SCSI-cable with an integrated terminator or a separate
terminator applied to the end connector of the cable, 10 cm from the last device,
must be used.
Figure 4 Internal SCSI cable and termination
External Tabletop Enclosure
For front view, please see the picture on the front page.
Figure 5 External tabletop enclosure, rear side
SCSI Identification on External Tabletop
Make sure that the drive unit has the proper SCSI-ID before it is connected to a
computer system. Refer to manuals for host computer and application software to
obtain the correct ID.
External Tabletop Enclosures have a thumb-wheel switch to set the SCSI-ID for
the tape drive (see Figure 5).
Host
Last SCSI Device
Internal Terminator Connector
SCSI
-
bus
10 cm
Cooling Fan
SCSI_ID Switch
SCSI Interface Connectors Power Connector
ON/OFF Switch

5
Termination External Tape Drive
External devices must be terminated with an external terminator on the last device
on the SCSI-bus. Please see Figure 5 for SCSI connectors and Figure 6 for SCSI
termination.
Figure 6 External SCSI cabling and termination
SCSI Cables Ordering no.
•Internal SCSI-LVD/SE-cable with 5 connectors (Ordering no. 43 20 51)
•Internal, removable SCSI-LVD/SE-terminator (Ordering no. 43 20 53)
•External, removable SCSI-LVD/SE-terminator (Ordering no. 43 26 17)
•External SCSI 68HD/VHDCI 320MBs-cable (Ordering no. 43 32 64)
External terminator on the last device
on the SCSI bus
SCSI Interface adapter

6
Front LED Indicators

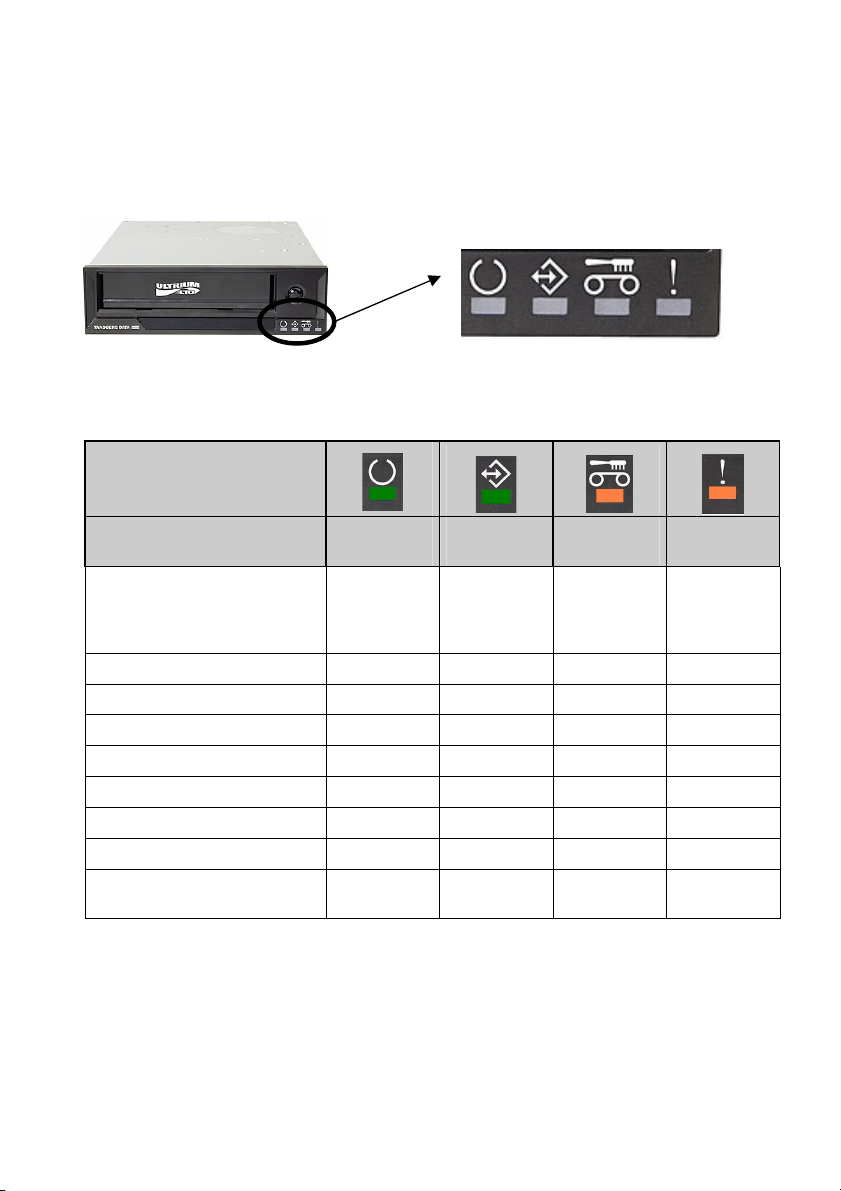

Figure 7 Light Emitting Diodes (LED)
Drive State READY LED
(Green left)
ACTIVITY LED
(Green)
CLEAN LED
(Amber)
FAULT LED
(Amber right)
LED-test.
The LEDs are turned N one-by-one.
Power- n Self-Test starts in parallel
with the LED-test .
N N N N
Cartridge not loaded. FF FF N / FF FF
Cartridge loaded, no activity N FF N / FF FF
Cartridge loaded, activity N Flashing N / FF FF
Cleaning FF Flashing N FF
Cartridge loading or unloading FF Flashing N / FF FF
Unrecoverable drive failure N / FF FF N / FF Flashing
ver temperature FF FF N / FF N
Media Error (wrong, write protected or
harmed media) FF Flashing N / FF Flashing
Table 2 Front LED behavior during normal operation

7
Software Installation
For Software Application support and software drivers, please see
www.tandbergdata.com. Then select SUPPORT and Select Product.
For installation of Backup Application software, refer to the software vendor’s
software application user guide supplied with the software or on the software
vendor’s web.
Media and Capacities
To achieve and maintain the maximum quality of your Tandberg Data tape drive,
we recommend using Tandberg Data media.
Drive
odel
edia Name Tape
Length
Capacity
(Native)
Ordering
no.
LT -1 LT Ultrium Generation 1 (Native format) 609 m 100 GByte 43 26 30
LT -2 LT Ultrium Generation 2 (Native format)
LT Ultrium Generation 1 (Read/Write compatible)
609 m
609 m
200 GByte
100 GByte
43 27 44
43 26 30
LT -3 LT Ultrium Generation 3 (Native format)
LT Ultrium Generation 2 (Read/Write compatible)
LT Ultrium Generation 1 (Read compatible)
680m
609 m
609 m
400 GByte
200 GByte
100 GByte
43 32 16
43 27 44
43 26 30
LT 1, 2, 3 Cleaning Cartridge for LT 1, LT 2 and LT 3 43 26 31
Table 3 Media alternatives
Power Requirements
Tandberg LTO-1, LTO-2, LTO-3 in external tabletop enclosure:
AC Input: 100 VAC / 0.6 A or 240 VAC / 0.3 A, 50-60 Hz
Tandberg LTO as standalone: LTO-1/LTO-2 LTO-3
DC Input (typical operation) 5 VDC 2.1 A 0.8 A
DC Input (typical operation) 12 VDC 0.6 A 0.7 A
Heat Dissipation
Tandberg LTO as standalone: LTO-1/LTO-2 LTO-3
Operating: 18 W 13 W
Sleep mode with cartridge inserted: 9 W 6 W
