TaoTronics TT-BA09 User manual

Rev_1.4
www.taotronics.com
MADE IN CHINA User Guide
Model:TT-BA09 Pro
WIRELESS ADAPTER
Manufacturer: Shenzhen NearbyExpress Technology
Development Co.,Ltd.
Address: Floor 7, Building E, Galaxy World Phase II,
Shenzhen, China
E-mail: [email protected]

A
B
SBC
APTX
LL
1 2 3
45 6
①1 x TaoTronics Wireless Adapter (TT-BA09 Pro)
②1 x 3.5mm Audio Cable
③1 x 3.5mm Female to RCA Male Cable
④1 x Optical Cable
⑤1 x USB-C Charging Cable
⑥1 x User Guide
①1 x TaoTronics kabelloser Adapter (TT-BA09 Pro)
②1 x 3,5 mm Audiokabel
③1 x 3,5mm weiblich-zu-Cinch-männlich-Kabel
④1 x Optisches Kabel
⑤1 x USB-C-Ladekabel
⑥1 x Bedienungsanleitung
①1 x Adaptateur Sans Fil TaoTronics (TT-BA09 Pro)
②1 x Câble Audio 3.5mm
③1 x Câble 3.5mm Femelle vers RCA Mâle
④1 x Câble Optique
⑤1 x Câble de Charge USB-C
⑥1 x Guide d’Utilisation
DE
FR
PACKAGE CONTENTS
Lieferumfang
Contenu du Package
EN Package Contents
A
B
SBC
APTX
LL
1 2 3
45 6
①1 x TaoTronics Wireless Adapter (TT-BA09 Pro)
②1 x 3.5mm Audio Cable
③1 x 3.5mm Female to RCA Male Cable
④1 x Optical Cable
⑤1 x USB-C Charging Cable
⑥1 x User Guide
①1 x TaoTronics kabelloser Adapter (TT-BA09 Pro)
②1 x 3,5 mm Audiokabel
③1 x 3,5mm weiblich-zu-Cinch-männlich-Kabel
④1 x Optisches Kabel
⑤1 x USB-C-Ladekabel
⑥1 x Bedienungsanleitung
①1 x Adaptateur Sans Fil TaoTronics (TT-BA09 Pro)
②1 x Câble Audio 3.5mm
③1 x Câble 3.5mm Femelle vers RCA Mâle
④1 x Câble Optique
⑤1 x Câble de Charge USB-C
⑥1 x Guide d’Utilisation
DE
FR
PACKAGE CONTENTS
Lieferumfang
Contenu du Package
EN Package Contents

①1 x Adaptador inalámbrico TaoTronics (TT-BA09 Pro)
②1 x Cable de audio de 3,5 mm
③1 x Cable macho de 3.5mm hembra a RCA
④1 x Cable óptico
⑤1 x Cable de carga USB-C
⑥1 x Guía del usuario
①1 x Adattatore Wireless di TaoTronics (TT-BA09 Pro)
②1 x Cavo Audio da 3.5mm
③1 x Cavo Maschio da 3.5mm - connettore femmina a RCA
④1 x Cavo Ottico
⑤1 x Cavo di Ricarica USB-C
⑥1 x Guida Utente
①1xTaoTronicsワイヤレスアダプター(TT-BA09Pro)
②1x3.5mmオーディオケーブル
③1x3.5mmメスからRCAオス変換ケーブル
④1x光ケーブル
⑤1xUSB-C充電ケーブル
⑥1x取扱説明書
AUX
SPDIF IN
SPDIF OUT
DC5V
A
B
SBC APTX
LL
TX
RX
ES
IT
JP AUX DC5V
SPDIF IN SPDIF OUT
AUX OPT USB-C
12
3
4
5
6
Contenido del paquete
Contenuto della Confezione
パッケージ 内 容
PRODUCT DIAGRAM

①A for 1st Device
②B for 2nd Device
③Codec Indicators
④Transmitter (TX) / Receiver (RX) Mode Switch
⑤Power ON/OFF/Pairing
⑥Power Indicator
①A für 1. Gerät
②B für 2. Gerät
③Codec-Anzeigen
④Transmitter (TX) / Empfänger (RX) Modusschalter
⑤Power AN/AUS/Koppeln
⑥Stromanzeige
①A pour 1er appareil
②B pour 2eme appareil
③Indicateurs codec
④Interrupteur mode Transmetteur (TX) / Récepteur (RX)
⑤Alimentation ON/OFF / Appairage
⑥Indicateur d'allumage
①A para el primer dispositivo
②B para el segundo dispositivo
③Indicadores del Códec
④Transmisor (TX) / Receptor (RX) Cambio de Modo
⑤ON/OFF/Emparejando
⑥Indicador de Encendido
①A per il 1° Dispositivo
②B per il 2° Dispositivo
③Indicatori Codec
④Pulsante Modalità Trasmittente (TX) / Ricevitore (RX)
⑤Accensione/Spegnimento/Accoppiamento
⑥Indicatore di Alimentazione
①Aは１台目の機器
②Bは２台目の機器
③コーデックインジケーター
④トランスミッター(TX)/レシーバー(RX)モードスイッチ
⑤電源オン/オフ/ペアリング
⑥電源インジケータ
EN
DE
FR
ES
IT
JP
Product Diagram
Produktdiagramm
Description du Produit
Diagrama del producto
Schema del Prodotto
製品図

BUTTON CONTROL LED INDICATOR STATUS
Function
Power ON
Power OFF
Standby Mode
Battery Low
Charging
Fully Charged
Pairing
Connected
Re-connect
Pairing
Connected
Connected using
the SBC codec
Connected using
the Apt-X® codec
Connected using the
Apt-X Low Latency® codec
Status
Flashing twice
Flashing twice
Flashing every 5 seconds
Solid on
Solid on
Off
Flashing quickly
Solid on
Flashing slowly
Flashing quickly
Solid on
Solid on
Solid on
Solid on
Indicators
Power
Indicator
A
B
SBC
APTX
LL
AUX
SPDIF IN
SPDIF OUT
DC5V
A
B
SBC APTX
LL
TX
RX
Power ON/OFF:
Press and hold for 3 seconds
Mode Switch:
Slide to select TX/RX mode
Pairing:
When powered on,
press twice to enter
pairing mode
ENGLISH / 01 ENGLISH / 02

BUTTON CONTROL LED INDICATOR STATUS
Function
Power ON
Power OFF
Standby Mode
Battery Low
Charging
Fully Charged
Pairing
Connected
Re-connect
Pairing
Connected
Connected using
the SBC codec
Connected using
the Apt-X® codec
Connected using the
Apt-X Low Latency® codec
Status
Flashing twice
Flashing twice
Flashing every 5 seconds
Solid on
Solid on
Off
Flashing quickly
Solid on
Flashing slowly
Flashing quickly
Solid on
Solid on
Solid on
Solid on
Indicators
Power
Indicator
A
B
SBC
APTX
LL
AUX
SPDIF IN
SPDIF OUT
DC5V
A
B
SBC APTX
LL
TX
RX
Power ON/OFF:
Press and hold for 3 seconds
Mode Switch:
Slide to select TX/RX mode
Pairing:
When powered on,
press twice to enter
pairing mode
ENGLISH / 01 ENGLISH / 02

· SBC: SBC codec, supported by most Bluetooth® devices
· APTX: Apt-X® codec, the Bluetooth® device shall support Apt-X®
codec. Prior than SBC.
· LL: Apt-X Low Latency® codec, the Bluetooth® device shall
support Apt-X low latency®. Prior than SBC and Apt-X®.
HOW TO USE
Charging
1. Connect the charging port with any USB charging adapter or
active computer USB port.
2. The Power indicator will stay solid on during charging. Once
fully charged, it will turn off.
Note:
· You can use the adapter during charging, however,
there might be background buzz noise.
· We recommend charging the unit for at least 2 hours
before using it for the first time.
AUX
SPDIF IN
SPDIF OUT
DC5V
A
B
SBC APTX
LL
TX
RX
AUX
SPDIF IN
SPDIF OUT
DC5V
A
B
SBC APTX
LL
TX
RX

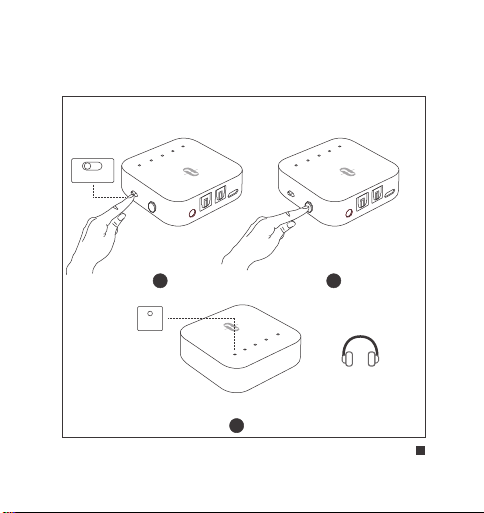

Use in TX Mode | Initial Pairing
TX RX
Turn on: Press and hold the
Power button for 3 seconds
1 2
A
B
SBC
APTX
LL
Pairing: “A” flashes quickly
3
A
Pair with the 1st Bluetooth® Device
ENGLISH / 03 ENGLISH / 04

· SBC: SBC codec, supported by most Bluetooth® devices
· APTX: Apt-X® codec, the Bluetooth® device shall support Apt-X®
codec. Prior than SBC.
· LL: Apt-X Low Latency® codec, the Bluetooth® device shall
support Apt-X low latency®. Prior than SBC and Apt-X®.
HOW TO USE
Charging
1. Connect the charging port with any USB charging adapter or
active computer USB port.
2. The Power indicator will stay solid on during charging. Once
fully charged, it will turn off.
Note:
· You can use the adapter during charging, however,
there might be background buzz noise.
· We recommend charging the unit for at least 2 hours
before using it for the first time.
AUX
SPDIF IN
SPDIF OUT
DC5V
A
B
SBC APTX
LL
TX
RX
AUX
SPDIF IN
SPDIF OUT
DC5V
A
B
SBC APTX
LL
TX
RX
Use in TX Mode | Initial Pairing
TX RX
Turn on: Press and hold the
Power button for 3 seconds
1 2
A
B
SBC
APTX
LL
Pairing: “A” flashes quickly
3
A
Pair with the 1st Bluetooth® Device
ENGLISH / 03 ENGLISH / 04

SBC APTX LL
Successfully paired:
“A” solid on, the Codec
indicator for the current
streaming codec will
light up
4
A B SBC APTX LL
A
Note:
· If you want to experience LIP SYNC, make sure your
Bluetooth® device supports apt-X Low Latency®
codec. After connected, the Codec indicator “LL” will
light up to indicate the low latency streaming codec.
· The default input mode is SPDIF. When the AUX cable
is plugged in, it will switch to AUX mode automatically.
· Please do not connect TT-BA09 Pro to an amplifier
output in TX mode, which may cause over-voltage and
damage the adapter.
Pair with the 2nd Bluetooth® Device
AUX
SPDIF IN
SPDIF OUT
DC5V
A
B
SBC APTX
LL
TX
RX
Press the Power button twice,
“B” flashes quickly
1
2
B
SBC APTX LL
A B SBC APTX LL
B
Successfully paired:
“B” solid on, the Codec
indicator for the current
streaming codec will light up
ENGLISH / 05 ENGLISH / 06

SBC APTX LL
Successfully paired:
“A” solid on, the Codec
indicator for the current
streaming codec will
light up
4
A B SBC APTX LL
A
Note:
· If you want to experience LIP SYNC, make sure your
Bluetooth® device supports apt-X Low Latency®
codec. After connected, the Codec indicator “LL” will
light up to indicate the low latency streaming codec.
· The default input mode is SPDIF. When the AUX cable
is plugged in, it will switch to AUX mode automatically.
· Please do not connect TT-BA09 Pro to an amplifier
output in TX mode, which may cause over-voltage and
damage the adapter.
Pair with the 2nd Bluetooth® Device
AUX
SPDIF IN
SPDIF OUT
DC5V
A
B
SBC APTX
LL
TX
RX
Press the Power button twice,
“B” flashes quickly
1
2
B
SBC APTX LL
A B SBC APTX LL
B
Successfully paired:
“B” solid on, the Codec
indicator for the current
streaming codec will light up
ENGLISH / 05 ENGLISH / 06

Note:
· After connecting with two Bluetooth® devices, the
Codec indicator for the highest codec supported by
both devices will light up (e.g., if device “A” supports
SBC and Apt-X codec, while device “B” supports SBC
codec, then Codec indicator “SBC” will light up).
· After disconnecting with one of the devices, the Codec
indicator for the highest codec supported by the
remaining device will stay on.
Use in TX Mode | Automatic Re-connect
TT-BA09 Pro can remember the devices paired previously, and will
attempt to pair with the last connected devices (up to 2 devices)
automatically once it is turned on.
Use in TX Mode | Clear Pairing History
When the adapter is off, clear the pairing history by sliding the
Mode switch to “RX”, then power it on.
Use in TX Mode | Use with your TV

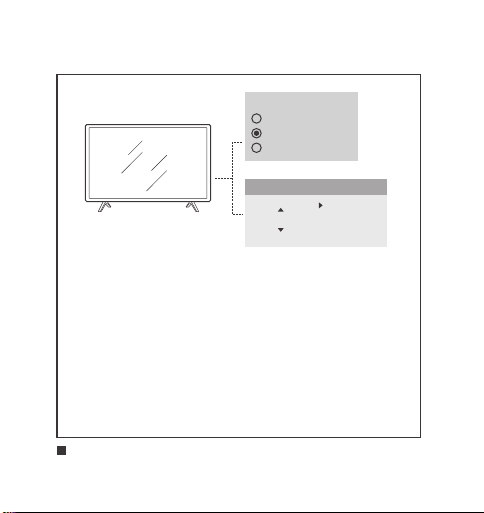

Check your TV output options before the set up
AUX/3.5mm Optical Out AUDIO OUT AUDIO IN
TVs with OPTICAL audio out
AUX DC5V
SPDIF IN SPDIF OUT
A B SBC APTX LL
Optical Audio Cable
R L R L
ENGLISH / 07 ENGLISH / 08

Note:
· After connecting with two Bluetooth® devices, the
Codec indicator for the highest codec supported by
both devices will light up (e.g., if device “A” supports
SBC and Apt-X codec, while device “B” supports SBC
codec, then Codec indicator “SBC” will light up).
· After disconnecting with one of the devices, the Codec
indicator for the highest codec supported by the
remaining device will stay on.
Use in TX Mode | Automatic Re-connect
TT-BA09 Pro can remember the devices paired previously, and will
attempt to pair with the last connected devices (up to 2 devices)
automatically once it is turned on.
Use in TX Mode | Clear Pairing History
When the adapter is off, clear the pairing history by sliding the
Mode switch to “RX”, then power it on.
Use in TX Mode | Use with your TV
Check your TV output options before the set up
AUX/3.5mm Optical Out AUDIO OUT AUDIO IN
TVs with OPTICAL audio out
AUX DC5V
SPDIF IN SPDIF OUT
A B SBC APTX LL
Optical Audio Cable
R L R L
ENGLISH / 07 ENGLISH / 08

Speakers
Internal Speakers
External Speakers
Headset
1) Ensure your TV speaker is set to "External Speaker".
2) Ensure TV audio format is set to "PCM" or "Dolby/DTS"
is OFF (This is IMPORTANT).
3) Ensure the optical audio cable is plugged in “SPDIF IN”
port on TT-BA09 Pro.
Note:
Setting menu may be different depending on different TV
brands and models.
Audio Format
PCM
Dolby/DTS
DTS Neo 2.5
Settings
TVs with AUX 3.5mm audio out
AUX DC5V
SPDIF IN SPDIF OUT
A B SBC APTX LL
AUX 3.5mm Audio Cable
Ensure your TV speaker is set to
“Headset”.
Speakers
Internal Speakers
External Speakers
Headset
ENGLISH / 09 ENGLISH / 10

Speakers
Internal Speakers
External Speakers
Headset
1) Ensure your TV speaker is set to "External Speaker".
2) Ensure TV audio format is set to "PCM" or "Dolby/DTS"
is OFF (This is IMPORTANT).
3) Ensure the optical audio cable is plugged in “SPDIF IN”
port on TT-BA09 Pro.
Note:
Setting menu may be different depending on different TV
brands and models.
Audio Format
PCM
Dolby/DTS
DTS Neo 2.5
Settings
TVs with AUX 3.5mm audio out
AUX DC5V
SPDIF IN SPDIF OUT
A B SBC APTX LL
AUX 3.5mm Audio Cable
Ensure your TV speaker is set to
“Headset”.
Speakers
Internal Speakers
External Speakers
Headset
ENGLISH / 09 ENGLISH / 10

AUX DC5V
SPDIF IN SPDIF OUT
A B SBC APTX LL
AUX 3.5mm
Audio Cable
3.5mm to RCA
Audio Cable
TVs with RCA audio out (Red/White ports labeled "AUDIO OUT")
1) Ensure TV Red/White ports labeled “Audio Out” is used, other
Red/White ports are incorrect.
2) Ensure your TV speaker is set to “External Speaker”.
Speakers
Internal Speakers
External Speakers
Headset
R L
AUDIO OUT
COMPUTER IN
VIDEO IN
AUDIO OUT
R L

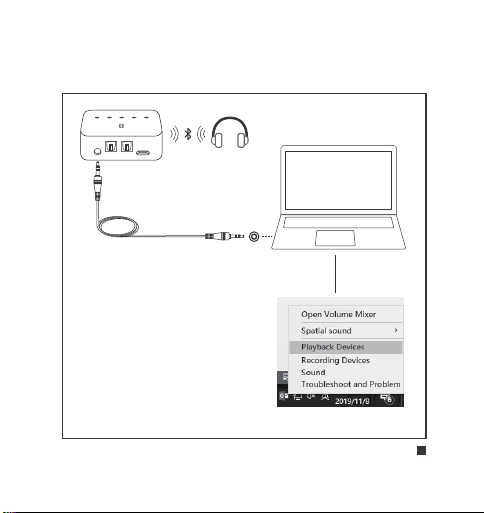

Use in TX Mode | Use with your PC/Laptop
AUX DC5V
SPDIF IN SPDIF OUT
A B SBC APTX LL
1) Set as default "Playback device"
on PC/laptop - Right-click the
speaker icon in the bottom-
right of the taskbar and select
"Playback devices".
2) Set the “TT-BA09 Pro" as the
"Default Device".
AUX 3.5mm
Audio Cable
ENGLISH / 11 ENGLISH / 12

AUX DC5V
SPDIF IN SPDIF OUT
A B SBC APTX LL
AUX 3.5mm
Audio Cable
3.5mm to RCA
Audio Cable
TVs with RCA audio out (Red/White ports labeled "AUDIO OUT")
1) Ensure TV Red/White ports labeled “Audio Out” is used, other
Red/White ports are incorrect.
2) Ensure your TV speaker is set to “External Speaker”.
Speakers
Internal Speakers
External Speakers
Headset
R L
AUDIO OUT
COMPUTER IN
VIDEO IN
AUDIO OUT
R L
Use in TX Mode | Use with your PC/Laptop
AUX DC5V
SPDIF IN SPDIF OUT
A B SBC APTX LL
1) Set as default "Playback device"
on PC/laptop - Right-click the
speaker icon in the bottom-
right of the taskbar and select
"Playback devices".
2) Set the “TT-BA09 Pro" as the
"Default Device".
AUX 3.5mm
Audio Cable
ENGLISH / 11 ENGLISH / 12

Use in RX Mode | Initial Pairing
Pair with the 1st Bluetooth® Device
1) Slide the Mode switch to “RX” mode.
2) Press and hold the Power button for 3 seconds to turn on the adapter.
3) For the first use, TT-BA09 Pro will enter pairing mode
automatically with indicator “A” flashing quickly.
4) Activate the Bluetooth® function on your phone/tablet, find
“TaoTronics TT-BA09 Pro” in the search results and tap to connect.
Once connected, the indicator “A” will turn solid on.
Pair with the 2nd Bluetooth® Device
1) After connecting with the 1st Bluetooth® device, press the Power
button twice, the indicator “B” will flash quickly.
2) Place your 2nd Bluetooth® device close to the adapter (within 3
feet / 1 meter). Activate the Bluetooth® function on your phone/
tablet, find “TaoTronics TT-BA09 Pro” in the search results and tap
to connect. Once connected, the indicator “B” will turn solid on.
Use in RX Mode | Automatic Re-connect
TT-BA09 Pro can remember the devices paired previously, and will
attempt to pair with the last connected devices (up to 2 devices)
automatically once it is turned on.
Use in RX Mode | Clear Pairing History
When the adapter is off, clear the pairing history by sliding the
Mode switch to “TX”, then power it on.
ENGLISH / 13 ENGLISH / 14

Use in RX Mode | Initial Pairing
Pair with the 1st Bluetooth® Device
1) Slide the Mode switch to “RX” mode.
2) Press and hold the Power button for 3 seconds to turn on the adapter.
3) For the first use, TT-BA09 Pro will enter pairing mode
automatically with indicator “A” flashing quickly.
4) Activate the Bluetooth® function on your phone/tablet, find
“TaoTronics TT-BA09 Pro” in the search results and tap to connect.
Once connected, the indicator “A” will turn solid on.
Pair with the 2nd Bluetooth® Device
1) After connecting with the 1st Bluetooth® device, press the Power
button twice, the indicator “B” will flash quickly.
2) Place your 2nd Bluetooth® device close to the adapter (within 3
feet / 1 meter). Activate the Bluetooth® function on your phone/
tablet, find “TaoTronics TT-BA09 Pro” in the search results and tap
to connect. Once connected, the indicator “B” will turn solid on.
Use in RX Mode | Automatic Re-connect
TT-BA09 Pro can remember the devices paired previously, and will
attempt to pair with the last connected devices (up to 2 devices)
automatically once it is turned on.
Use in RX Mode | Clear Pairing History
When the adapter is off, clear the pairing history by sliding the
Mode switch to “TX”, then power it on.
ENGLISH / 13 ENGLISH / 14

TROUBLESHOOTING
Solutions
Make sure that you have followed the
instructions for cable connections and
settings on TV/PC/Laptop.
Make sure your Bluetooth® device
supports apt-X Low Latency® codec.
After connected, the Codec indicator
“LL” will light up to indicate the low
latency streaming codec.
When TT-BA09 Pro is powered on, press
the Power button twice to enter pairing
mode before reconnecting to the
paired device.
Each time you switch the modes, the pairing
history will be cleared. Please re-pair with
your Bluetooth® device as instructed.
Problem
No audio input
Audio delay
Pair with a new
Bluetooth® device
Can’t reconnect
with the last
connected device
ENGLISH / 15 ENGLISH / 16
WARRANTY AND SERVICE
Thank you for choosing the TaoTronics TT-BA09 Pro Wireless
Adapter. If any problems occur, please contact the TaoTronics
Customer Care Centre in your country via the contact information
listed in this User Guide.

TROUBLESHOOTING
Solutions
Make sure that you have followed the
instructions for cable connections and
settings on TV/PC/Laptop.
Make sure your Bluetooth® device
supports apt-X Low Latency® codec.
After connected, the Codec indicator
“LL” will light up to indicate the low
latency streaming codec.
When TT-BA09 Pro is powered on, press
the Power button twice to enter pairing
mode before reconnecting to the
paired device.
Each time you switch the modes, the pairing
history will be cleared. Please re-pair with
your Bluetooth® device as instructed.
Problem
No audio input
Audio delay
Pair with a new
Bluetooth® device
Can’t reconnect
with the last
connected device
ENGLISH / 15 ENGLISH / 16
WARRANTY AND SERVICE
Thank you for choosing the TaoTronics TT-BA09 Pro Wireless
Adapter. If any problems occur, please contact the TaoTronics
Customer Care Centre in your country via the contact information
listed in this User Guide.
