302mkII & 322
7733 Telegraph Road • Montebello, CA 90640 • [phone] • http://www.tascamcontractor.com
All features and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.
Page 1 of 2
322_TECHDOC.pdf
101102

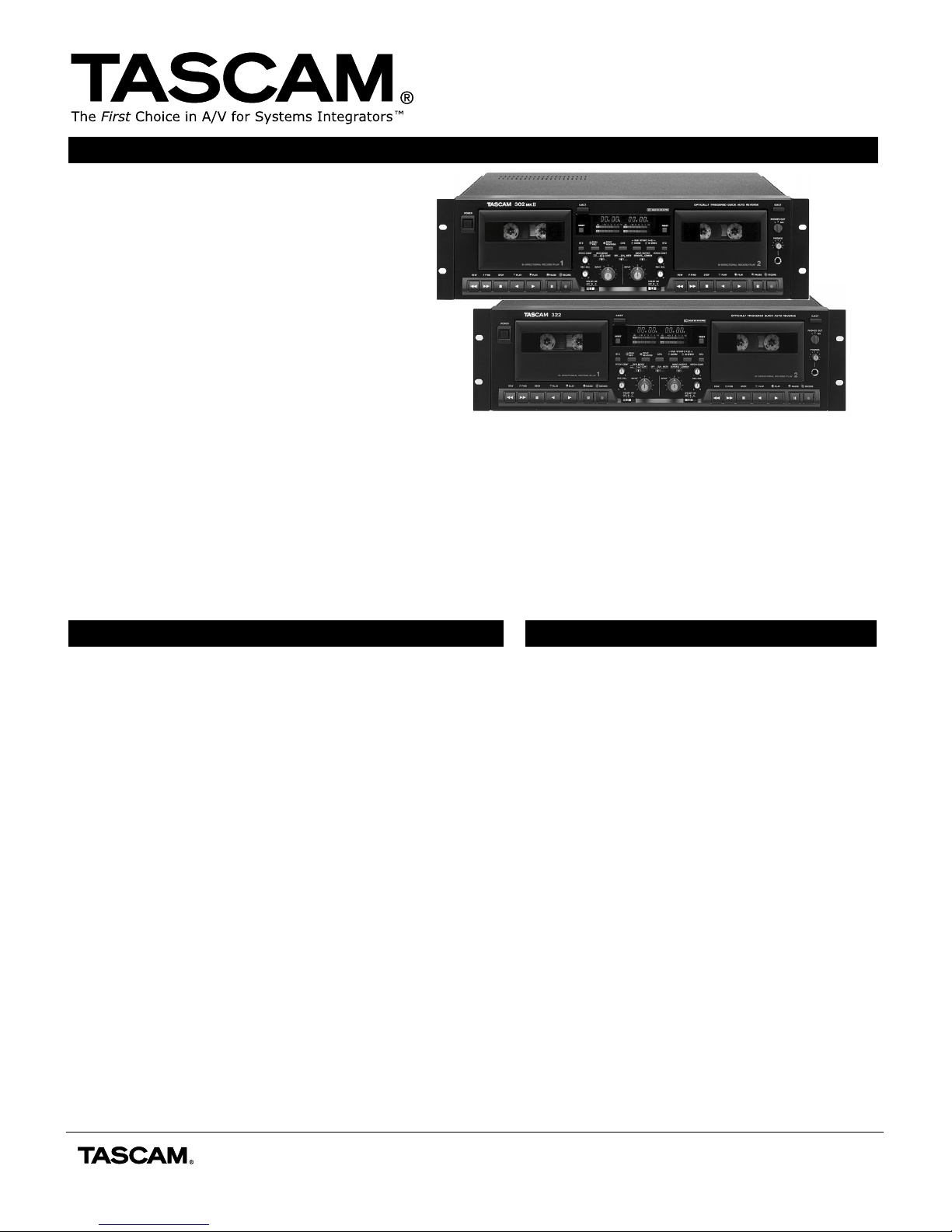

• 3-U Rack Mountable Advanced Dual Cassette Deck
• Optical Leader Sensing for Quick Auto Reverse
• Both Decks Record Capable for Simultaneous Masters
• Independent Unbalanced RCA I/O For Each Deck
• Common I/O Mode for Saving Inputs On Mixer
• RTZ (Return to Zero) Function on Each Deck
• ±10% Pitch Control Independent for Each Deck
• Headphone Output With Level Control
• Cascade Logic and I/O for Duplication or Logging
• Dolby B and C with HX Pro Headroom Extension
• Normal and High Speed Dubbing Capability
• Auto Music Search Function (CPS)
• RC-322A Wired Remote Standard
• RS-232 Control Port (322 only)
• Optional WR-7000 Cascade Cables
• Optional LA-322 Balancing Kit (322 only)
PRODUCT OVERVIEW
APPLICATIONS
Performance Specifications:
Track System:
Heads (per deck):
Type of Tape:
Tape Speed:
Pitch Control:
Fast Wind Time:
Frequency Response:
Signal to Noise Ratio:
Wow and Flutter:
Distortion:
Line RCA Inputs:
Line RCA Outputs:
Cascade Output:
Headphone TRS Output:
General Specifications:
Power Requirements:
Power Consumption:
Dimensions:
Weight:
Standard Accessories:
Optional Accessories:
4 track, 2 channel stereo
(1) Erase, (1) Record/Reproduce
Cassette C-30/60/90, Normal, CrO2, Metal
1 7/8 ips, 4.76 cm/sec
3 3/4 ips, 9.52 cm/sec (high speed dub)
Approx ±10%
Approximately 120 seconds for C60
63Hz-18kHz ±3dB Metal
63Hz-16kHz ±3dB CrO2
63Hz-16kHz ±3dB Normal
>79dB Dolby C, CCIR ARM
>69dB Dolby B, CCIR ARM
>59dB Dolby off, 3% THD, Weighted
<0.15% (WRMS)
<2.5%, 1kHz, 160nWb/m (Metal)
-10dBV, 0.3V, 24kOhms
-5dBu, 0.6V, 1.5kOhms
-10 dBV (0.3V), 100 Ohms
7mW/side, 32 Ohms
120-230V AC, 50-60Hz switchable
(US/Canada/General Export Model)
230V AC, 50Hz (Europe Model)
240V AC, 50Hz (Australia)
33W
483 x 140 x 323.9 mm
19" x 5.5" x 12.8"
7.8Kg, 17.19 lbs
RC-322A Wired Remote
LA-322 Balancing Kit (322 only)
SPECIFICATIONS
TASCAM's 302mkII and 322 cassette decks are sister
products, designed to offer the simplicity of a standard
dual cassette deck, yet the sophistication for the most
demanding A/V installation. These decks are well suited
for almost any recording or playback application.
Both decks offer optical leader sensing, allowing the deck
to minimize the play or record time lost in reversing tape
direction. The decks can operate independently with their
own audio I/O, or they can work together for dual
recording of a single master. Built-in cascade out and
transport logic also allows multiple machines to be used in
duplication rigs or logging set-ups.
The 322 adds an RS-232 control port for use with
advanced control systems, as well as an optional slot for
the LA-322 Balancing Kit.
Meeting Facilities (Boardrooms, Lecture Halls, etc)
The 302mkII and 322 are commonly used in installed sound for meeting
spaces because of their flexibility for playback and recording
simultaneously. The 322 can record a meeting while playing back a
different tape. These are ideal for logging applications as well, since
multiple machines can be linked together for longer recording capacity.
House of Worship, Live Theater, Multipurpose Rooms
Many houses of worship are making recordings of their services for
members who could not attend. The 302mkII and 322 are ideal decks for
this, taking advantage of optical leader sensing to minimize the time lost
while reversing tape direction. Since the two wells of the 302mkII can
work independently, one well could be used for cueing a tape while the
other well is playing. The 322's ability to add the LA-322 Balancing Kit
allows direct connection to balanced devices.
Control System Integration
In applications where control systems are being integrated, the RS-232
port on the 322 is perfect. Many designers and installers are using the
status information from the RS-232 port to build intelligent automated
dubbing systems and logging rigs, or to simply report the cassette status to
a touch panel at a lectern. For more basic systems, the wired port on the
rear of the 302mkII or 322 offers control from IR/Serial outputs.
Music Educators - Dance Instructors - Health Clubs
Band, Choir, Theater and Dance programs often need to be able to make
copies of rehearsal tapes for their performers to practice with. Many
competitions for dance and music still require masters to be submitted on
cassette. The 302mkII and 322 offer high quality masters and tape speed
control (up to ±10%). Since the speed control is separate per deck, the
speed change can be committed to a separate tape.

302mkII & 322 Technical Documentation
7733 Telegraph Road • Montebello, CA 90640 • [phone] • http://www.tascamcontractor.com
All features and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.
Page 2 of 2
FRONT AND BACK PANEL
WIRED REMOTE
322_TECHDOC.pdf
101102
302mkII & 322 Front Panel302mkII Rear Panel 322 Rear Panel
Optional LA-322 (1 kit includes balancing cards for both wells)
DUAL
REC
DUB STDBY (1>2)
SYNC
REVERSE
RC-322A REMOTE CONTROL UNIT
NORM HI SPEED
1
REW F FWD REC MUTE RECORD
RTZ
COUNTER
RESET
CPS
STOP PAUSE
PLAY
2
REW F FWD REC MUTE RECORD
RTZ
COUNTER
RESET
CPS
STOP PAUSE
PLAY
