Tascam CD-9010 User manual

D01167920A
OWNER'S MANUAL
CD-9010
CD Player

2 TASCAM CD-9010
Important Safety Information
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, with-
in equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral trian-
gle is intended to alert the user to the presence
of important operating and maintenance (servic-
ing) instructions in the literature accompanying
the appliance.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8 Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A ground-
ing type plug has two blades and a third grounding
prong. The wide blade or the third prong are pro-
vided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replace-
ment of the obsolete outlet.
10 Protect the power cord from being walked on or
pinched particularly at plugs, convenience recep-
tacles, and the point where they exit from the appa-
ratus.
11 Only use attachments/accessories specified by the
manufacturer.
12 Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the appa-
ratus. When a cart is used, use caution when moving
the cart/apparatus combination to avoid injury from
tip-over.
13 Unplug this apparatus during lightning storms or
when unused for long periods of time.
14 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
The apparatus draws nominal non-operating power from
•
the AC outlet with its POWER or STANDBY/ON switch not in
the ON position.
The mains plug is used as the disconnect device, the
•
disconnect device shall remain readily operable.
Caution should be taken when using earphones or
•
headphones with the product because excessive sound
pressure (volume) from earphones or headphones can
cause hearing loss.
If you are experiencing problems with this product, contact
•
TEAC for a service referral. Do not use the product until it
has been repaired.
CAUTION
Do not expose this apparatus to drips or splashes.
•
Do not place any objects filled with liquids, such as
•
vases, on the apparatus.
Do not install this apparatus in a confined space
•
such as a book case or similar unit.
The apparatus should be located close enough to
•
the AC outlet so that you can easily grasp the power
cord plug at any time.
If the product uses batteries (including a battery
•
pack or installed batteries), they should not be
exposed to sunshine, fire or excessive heat.
CAUTION for products that use replaceable lithium
•
batteries: there is danger of explosion if a battery is
replaced with an incorrect type of battery. Replace
only with the same or equivalent type.
WARNING
Products with Class !construction are equipped with a
power supply cord that has a grounding plug. The cord
of such a product must be plugged into an AC outlet
that has a protective grounding connection.

TASCAM CD-9010 3
Safety precautions
In North America use only on 120V supply.
For U.S.A.
8
TO THE USER
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user
will be required to correct the interference at his own
expense.
CAUTION
Changes or modifications to this equipment not expressly
approved by TEAC CORPORATION for compliance could
void the user's authority to operate this equipment.
For European Customers
8
CE Marking Information
a) Applicable electromagnetic environment: E4
b) Peak inrush current: 14 A
Disposal of electrical and electronic equipment
(a) All electrical and electronic equipment should be
disposed of separately from the municipal waste
stream via collection facilities designated by the
government or local authorities.
(b) By disposing of electrical and electronic equipment
correctly, you will help save valuable resources and
prevent any potential negative effects on human
health and the environment.
(c) Improper disposal of waste electrical and electronic
equipment can have serious effects on the
environment and human health because of the
presence of hazardous substances in the equipment.
(d) The Waste Electrical and Electronic Equipment (WEEE)
symbol, which shows a wheeled bin that has been
crossed out, indicates that electrical and electronic
equipment must be collected and disposed of
separately from household waste.
(e) Return and collection systems are available to end
users. For more detailed information about the
disposal of old electrical and electronic equipment,
please contact your city office, waste disposal service
or the shop where you purchased the equipment.
Disposal of batteries and/or accumulators
(a) Waste batteries and/or accumulators should be
disposed of separately from the municipal waste
stream via collection facilities designated by the
government or local authorities.
(b) By disposing of waste batteries and/or accumulators
correctly, you will help save valuable resources and
prevent any potential negative effects on human
health and the environment.
(c) Improper disposal of waste batteries and/or accumu-
lators can have serious effects on the environment and
human health because of the presence of hazardous
substances in them.
(d) The WEEE symbol, which shows a wheeled bin that
has been crossed out, indicates that batteries and/
or accumulators must be collected and disposed of
separately from household waste.
Pb, Hg, C d
If a battery or accumulator contains more than the
specified values of lead (Pb), mercury (Hg), and/
or cadmium (Cd) as defined in the Battery Directive
(2006/66/EC), then the chemical symbols for those
elements will be indicated beneath the WEEE symbol.
(e) Return and collection systems are available to end
users. For more detailed information about the
disposal of waste batteries and/or accumulators,
please contact your city office, waste disposal service
or the shop where you purchased them.
WARNING
This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the
user may be required to take adequate measures.
For Canada
THIS CLASS A DIGITAL APPARATUS COMPLIES WITH
CANADIAN ICES-003.CET
APPAREIL NUMERIQUE DE LA CLASSE B EST CONFORME
A LA NORME NMB-003 DU CANADA.

4 TASCAM CD-9010
8CAUTIONS ABOUT LASER RADIATION
This product has been designed and manufactured
according to FDA regulations “title 21, CFR, chapter 1,
subchapter J, based on the Radiation Control for Health
and Safety Act of 1968,” and is classified as a class 1 laser
product. There is no hazardous invisible laser radiation
during operation because invisible laser radiation emitted
inside of this product is completely confined in the
protective housings.
The label required in this regulation is shown at .
CAUTIONS
DO NOT REMOVE THE PROTECTIVE HOUSING USING A
•
SCREWDRIVER.
USE OF CONTROLS OR ADJUSTMENTS OR
•
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
IF THIS PRODUCT DEVELOPS TROUBLE, CONTACT
•
YOUR NEAREST QUALIFIED SERVICE PERSONNEL, AND
DO NOT USE THE PRODUCT IN ITS DAMAGED STATE.
Optical pickup
Type: HOF-1501XB
Manufacturer: Hitachi Media Electronics
Laser output: Lessthan0.5mWontheobjectivelens
Wavelength: 785 nm ±22 nm
Standard: IEC60825-1 : 2007
This appliance has a serial number located on the
rear panel. Please record the model number and
serial number and retain them for your records.
Model number
______________________________
Serial number
______________________________
Safety precautions

TASCAM CD-9010 5
Contents
1 – Introduction ...................................................................... 6
Features..................................................................................6
Included items ..................................................................... 6
Conventions used in this manual.................................. 6
Intellectual property rights ............................................. 7
Precautions for placement and use..............................7
Connecting the power......................................................7
Beware of condensation...................................................7
Cleaning the unit.................................................................7
About discs............................................................................ 7
Handling of compact discs ....................................... 7
2 – Names and Functions of Parts........................... 8
Front panel ............................................................................ 8
Rear panel............................................................................10
Home Screen .....................................................................11

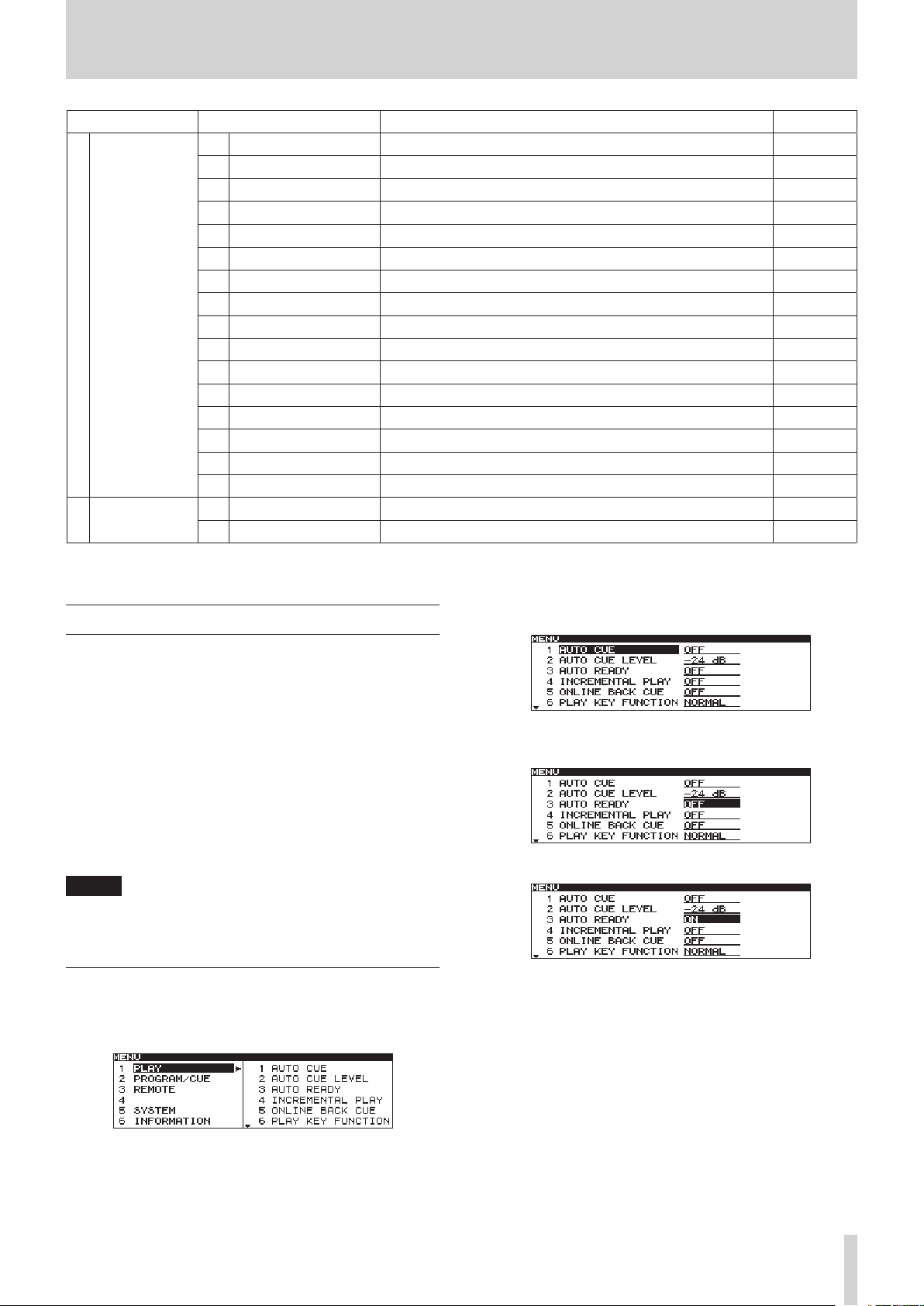

Menu structure ..................................................................12
Menu operation basics ...................................................13
Menu operation procedures..................................13
3 – Preparations....................................................................14

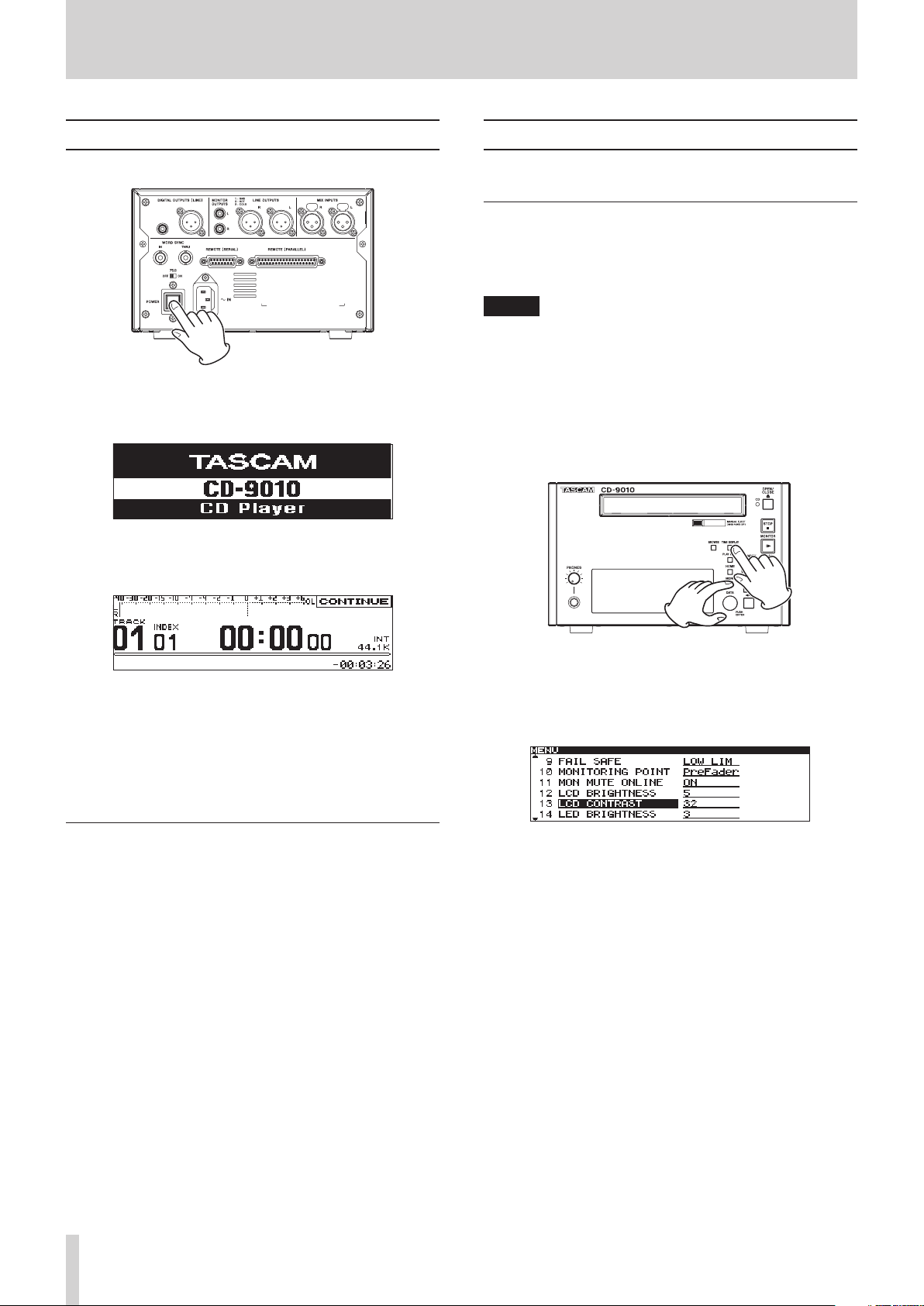

Turning the power ON and OFF...................................14
Turning the power OFF ............................................14
Adjusting the display.......................................................14
Adjusting display contrast ......................................14
Adjusting display and indicator brightness......15
Connecting headphones ...............................................15
Setting the panel lock function...................................16
4 – Playback..............................................................................17
Monitoring and online playback.................................17
Monitoring playback.................................................17
Online playback..........................................................17
Setting the playback mode....................................17
Playing a track once from the beginning..........18
Playing a track from the middle............................18
Automatic cue point memory (last cue) ............18
Setting the playback point............................................19
Selecting tracks...........................................................19
Operation after selection of a track.....................19
Searching within tracks............................................19
Auto cue function ............................................................19
Auto ready function.........................................................20
Incremental playback function....................................20
ONLINE BACK CUE function ..........................................20
PLAY KEY FUNCTION setting .......................................20
MONITOR PLAY STBY function.....................................21
ONLINE PLAY STBY function .........................................21
Repeat playback................................................................21
Ordinary repeat playback .......................................21
EOM functions....................................................................22
Setting EOM tally output trigger..........................22
How to use the EOM .................................................22
Checking the ends of tracks..........................................22
Setting the amount of time checked..................22
How to use the end check function ....................22
Pitch control playback.....................................................23
Turning pitch control playback ON/OFF............23
Setting the pitch control value .............................23
PITCH/TIME FIT function..........................................23
5 – Program and cue playback.................................24
Program playback.............................................................24
Program menu operation ......................................24
Adding tracks to a program ...................................24
Clearing a program....................................................25
Removing tracks from a program........................25
Moving tracks within a program ..........................25
Cue point playback...........................................................26
Using the cue menu..................................................26
Adding cue points .....................................................26
Clearing the cue list...................................................26
Clearing a cue point ..................................................26
Editing cue point names..........................................27
Editing text ...................................................................27
Automatic cue point loading options .......................27
6 – Working with files and folders........................28
Opening the BROWSE screen .......................................28
Navigating the BROWSE screen...................................28
Icons on the BROWSE screen........................................28
Folder operations..............................................................28
File and folders on data CDs .........................................28
7 – Other settings and information display.29
Setting the digital reference level...............................29
Setting the analog reference level ............................29
Adjusting R/L analog reference levels.......................29
Setting the online function...........................................29
Master clock and digital output combinations......30
Setting the master word clock.....................................30
Mono mix setting..............................................................30
Fail safe function setting................................................31
Setting the level meter display type..........................31
Monitoring point setting................................................31
Muting monitoring when online.................................31
Restoring the factory settings......................................32
Setting the digital output format ...............................32
Viewing media information ..........................................32
Viewing system information.........................................32
8 – Using the remote connectors...........................33
Using the serial connector ............................................33
Fader use setting........................................................33
Fader start function setting....................................33
Fader stop function setting....................................33
Fader stop action setting ........................................34
Setting the fader scale used...................................34
Transmission speed setting....................................34
Using the parallel connector ........................................35
Parallel port 3-pin/13-pin setting.........................35
9 – Message list......................................................................36
Error messages...................................................................36
Warning messages ...........................................................36
Operation messages........................................................36
10 – Troubleshooting .......................................................37
11 – Specifications ..............................................................38
Media and file formats ....................................................38
Inputs and outputs...........................................................38
Analog audio inputs and outputs........................38
Digital audio output..................................................38
Control inputs and outputs ...................................38
Audio performance..........................................................38
Backup memory ................................................................39
General .................................................................................39
Dimensional drawings ....................................................39

6 TASCAM CD-9010
1 – Introduction
Thank you very much for purchasing a TASCAM CD-9010 CD
Player.
Please read this manual thoroughly before using the unit so that
you understand correct operating procedures and can use its
functions fully. We hope that you enjoy using this unit for many
years.
Please keep this manual so that you can refer to it at any time.
A digital copy of this manual can also be downloaded from our
website (http://tascam.com/).
Features
This professional CD player is designed for a variety of uses,
including broadcasting, postproduction and installation applica-
tions. Here are some of its features.
In addition to commercially-available audio CDs, CD-DA
•
format audio CDs and CD-R discs with WAV format files
(except unfinalized data CDs) can be played back
Analog inputs:
•MIX INPUTS stereo pair (signal can mixed
with the CD playback signal or passed through as is to the
LINE OUTPUTS)
Analog outputs:
•LINE OUTPUTS stereo pair, MONITOR
OUTPUTS stereo pair and stereo PHONES monitoring
output
Digital output:
•2 outputs (stereo) with sample rate
conversion
Playback signals of the two playback modes—online
•
playback for live/on-air use and monitoring playback for
confirmation/rehearsal use—can be output from different
connectors
Auto cue function enables standby at the point when audio
•
begins in a track
Auto ready function enables automatic standby at the
•
beginning of the next track after one track completes
playback
JOG
•dial enables searching one frame at a time
Searching by index is possible
•
Fail safe function prevents misoperation during critical
•
playback situations
Synchronization with external word clock (44.1 or 48 kHz) is
•
possible and the CD playback signal can be output digitally
with a 48kHz sampling frequency when synchronized with
48kHz external clock
±12.5% pitch control function
•
Connect a TASCAM RC-9010/RC-9010S remote control (sold
•
separately) to enhance operation and increase functionality
End check function allows playback of the ends of tracks
•
Up to 9 cue points can be remembered for each disc
•
Manual eject mechanism allows CDs to be removed even
•
when the power is off
Included items
This product includes the following items.
Take care when opening the package not to damage the items.
Keep the packing materials for transportation in the future.
Please contact TASCAM if any of these items are missing or have
been damaged during transportation.
Main unit• ................................................................................................. 1
Power cord• .............................................................................................. 1
Warranty card• ........................................................................................ 1
Owner's Manual (this manual)• ......................................................... 1
Conventions used in this manual
In this manual, we use the following conventions:
When instructed to select an item, use the controls so that
•
item appears to be light letters on a dark background.
Buttons, connectors and other parts of the unit and external
•
devices are indicated like this: STOP
Messages on the unit’s display are shown like this:
•
MENU
CD-DA format discs are sometimes called ”audio CDs”
•
A CD with WAV files is sometimes called a “data CD”
•
Additional information is provided as necessary as tips,
•
notes and cautions.
TIP
These are tips about how to use the unit.
NOTE
These provide additional explanations and describe special
cases.
CAUTION
Failure to follow these instructions could result in injury, damage
to equipment or lost recording data, for example.

TASCAM CD-9010 7
1 – Introduction
Intellectual property rights
TASCAM is a trademark of TEAC Corporation, registered in
•
the U.S. and other countries.
Other company names, product names and logos in this
•
document are the trademarks or registered trademarks of
their respective owners.
Precautions for placement and use
The operating temperature should be between 5°C and
•
35°C (41°F and 95°F).
Do not install in the following types of places. Doing so
•
could degrade the sound quality and/or cause malfunctions.
Places with significant vibrations or that are otherwise
•
unstable
Near windows or other places exposed to direct sunlight
•
Near heaters or other extremely hot places
•
Extremely cold places
•
Places with bad ventilation or high humidity
•
Very dusty locations
•
This unit can be installed at an angle of ±5°.
•
In order to assure good heat dissipation, do not place any
•
object on top of the unit.
Do not install this unit on top of any heat-generating
•
electrical device such as a power amplifier.
Connecting the power
Insert the included power cord into the
•AC IN connector
completely.
Hold the power cord by the plug when connecting or
•
disconnecting it.
Beware of condensation
If the unit is moved from a cold to a warm place, or used
immediately after a cold room has been heated or otherwise
exposed to a sudden temperature change, condensation could
occur. Should this happen, leave the unit for one or two hours
before turning the unit on.
Cleaning the unit
To clean the unit, wipe it gently with a soft dry cloth. Do not
wipe with chemical cleaning cloths, benzene, paint thinner, ethyl
alcohol or other chemical agents to clean the unit as they could
damage the surface.
About discs
In addition to commercially-available music CDs, this unit can
play CD-R discs that have been recorded in audio CD (CD-DA)
format, as well as CD-R discs that have WAV audio files recorded
on them. It can also playback 8cm discs.
Handling of compact discs
Always load compact discs with their labels facing upward.
•
To remove a disc from its case, press down on the center of
•
the disc holder, then lift the disc out, holding it carefully by
the edges.
Do not touch the signal side (the unlabeled side).
•
Fingerprints, oils and other substances can cause errors
during playback.
To clean the signal side of a disc, wipe gently with a soft dry
•
cloth from the center towards the outside edge.
Dirt on discs can lower the sound quality, so clean them and
always store them in a clean state.
Do not use any record spray, anti-static solutions, benzene,
•
paint thinner or other chemical agents to clean CDs as they
could damage the delicate playing surface. It may cause
CDs to become unplayable.
Do not apply labels or other materials to discs. Do not use
•
discs that have had tape, stickers or other materials applied
to their surface. Do not use discs that have sticky residue
from stickers, etc. Such discs could become stuck in the unit
or cause it to malfunction.
Never use a commercially available CD stabilizer. Using
•
stabilizers with this player will damage the mechanism and
cause it to malfunction.
Do not use cracked discs.
•
Only use circular compact discs. Avoid using non-circular
•
promotional discs, etc.
Music discs with copy control, a copy-protection system,
•
have been released form several record companies in an
attempt to protect the copyright. Since some of these discs
do not comply with the CD specifications, they may not be
playable on the unit.

8 TASCAM CD-9010
2 – Names and Functions of Parts
Disc tray

Press the OPEN/CLOSE button to open the disc tray to load
or remove discs.
Press the OPEN/CLOSE button again to close the disc tray.
MANUAL EJECT

Use this to remove a disc when the power is off.
BROWSE button

Press to open the
BROWSE
screen.
Use this screen to look inside folders on data CDs, for
example.
With audio CDs, use the screen to see its tracks.
TIME DISPLAY button

Press when the Home Screen is open to switch the time
display between elapsed track time and remaining track
time. This button only changes the display on this unit.
To change the time display on a connected TASCAM
RC-9010/RC-9010S remote control (sold separately), press
the TIME DISPLAY button on the remote.
When the Home Screen is open, press and hold this button
while turning the DATA dial to adjust the display contrast.
NOTE
This operation only adjusts the contrast of this unit. It does not
adjust the contrast of a connected TASCAM RC-9010/RC-9010S
remote control (sold separately).
CD indicator

This blinks when a CD is loaded. When data reading is
complete, the indicator stays lit and playback is possible.
OPEN/CLOSE button

Press this to open the disc tray.
NOTE
In order to reduce the amount of time required to remove a disc,
the disc tray will open before the disc has completely stopped.

PHONES jack/knob
Use this standard stereo jack to connect stereo headphones.
Use the PHONES knob to adjust the headphones output
level.
The knob can be pushed in and locked, allowing the unit
to be stored and transported safely. To unlock it, push it in
again. (See "Connecting headphones" on page 15.)
CAUTION
Before connecting headphones, use the PHONES knob to lower
the volume. Failure to do so might result in sudden loud sounds,
which could harm your hearing or result in other trouble.
STOP button/indicator
Press this button at any time to stop playback at the current
point.
Press this button during online or monitoring playback or
when in playback standby to stop playback.
This button lights when playback is stopped.
MONITOR button/indicator
Press this button to start monitoring playback.
The playback signal is output through the MONITOR
OUTPUTS (R/L) and the PHONES jack.
This button lights during monitoring playback.
PLAY button/indicator
Press when playback is stopped or in standby to start
playback. This button lights during playback or when in
playback standby.
When the ON LINE button on a connected TASCAM
RC-9010/RC-9010S remote control (sold separately) is
lit, or the
SYSTEM
menu
ONLINE FUNCTION
item is set to
AlwaysON
, online playback occurs and the playback signal is
output through the LINE OUTPUTS (R/L) and the DIGITAL
OUTPUT.
To send the signal through the MONITOR OUTPUTS (R/L)
and PHONES jack, set the
SYSTEM
menu
MON MUTE ONLINE
item to
OFF
. (See "Muting monitoring when online" on page
31.)
This button lights during online playback.
Front panel

TASCAM CD-9010 9
2 – Names and Functions of Parts
STANDBY button/indicator
When playback is stopped or during jog playback, press this
button to pause and start playback standby at the current
point.
When in monitoring playback mode and
MONITOR PLAY STBY
is set to
BACK CUE
in the
PLAY
menu, press this button
to return to the point at which monitoring playback last
started and enter standby. When
MONITOR PLAY STBY
is set
to
NORMAL
, press to enter playback standby at the current
point.
When using online playback, pressing this button has a
different function depending on the playback mode.
Playback mode Function
CONTINUE
or
SINGLE
When
ONLINE PLAY STBY
is set to
NOR-
MAL
in the
PLAY
menu, enter playback
standby at the current position.
When set to
BACK CUE
, locate to the last
cue point and enter playback standby.
PROGRAM
When
ONLINE PLAY STBY
is set to
NOR-
MAL
in the
PLAY
menu, enter playback
standby at the beginning of the next
track.
When set to
BACK CUE
, locate to the last
cue point and enter playback standby.
This button lights when in playback standby.
TRACK .//buttons
Use these buttons to skip between and select tracks.
SEARCH m/,buttons
Search while pressing these buttons.
While pressing the SEARCH ,(or SEARCH m) button
to search, you can change the search speed by pressing the
other SEARCH m/,button.
Display
This shows disc information, the operation mode, menus
and other data.
PLAY MODE button
When the Home Screen is open, press this button to cycle
through the playback modes in the following order.
CONTINUE mode SINGLE mode PROGRAM mode
HOME button
When the
MENU
screen,
BROWSE
screen,
PROGRAM
screen or
CUE LIST
screen is open, press this to return to the Home
Screen.
Press this button when the Home Screen is open to scroll
CD-TEXT file names and data in the information area of the
Home Screen.
Press the MENU button while pressing and holding this
button to turn the panel lock function ON and OFF. (See
"Setting the panel lock function" on page 16.)
When the Home Screen is open, press and hold this button
while turning the DATA dial to adjust the brightness of the
display and the indicators.
You can adjust the brightness of the display alone by
pressing and turning the DATA dial while pressing and
holding this button.
NOTE
This operation only adjusts the contrast of the display and
indicators of this unit. It does not adjust the contrast of a
connected TASCAM RC-9010/RC-9010S remote control (sold
separately).
MENU button
Press to open the
MENU
screen.
Press this button while pressing and holding the HOME
button to turn the panel lock function ON and OFF. (See
"Setting the panel lock function" on page 16.)
DATA dial
Turn the DATA dial to select items on the
MENU
screen.
Press the dial to use it as an ENTER button when confirming
operations on the
MENU
screen.
When the Home Screen is open, press and hold the HOME
button while turning the dial to adjust the brightness of the
display and the indicators.
To adjust the brightness of the display alone, press and turn
this dial while pressing and holding the HOME button.
Press and hold the TIME DISPLAY button while turning the
DATA dial to adjust the display contrast.
NOTE
These operations only adjust the brightness and contrast of
the display and indicators of this unit. They do not adjust the
brightness and contrast of a connected TASCAM RC-9010/
RC-9010S remote control (sold separately).

10 TASCAM CD-9010
2 – Names and Functions of Parts
WORD SYNC IN
Input a word clock signal through this connector. When
this unit is set to use an external clock (EXT), the word clock
input through this connector is used.
75Ω (ON/OFF) switch
Turns the 75Ω word clock terminator ON or OFF.
POWER switch
Turns the power ON or OFF.
CAUTION
Before turning on the power, turn down the volume of other
equipment connected to this unit. Failure to do so might cause
sudden loud sounds, which could harm your hearing or result in
other trouble.
AC IN connector
Connect the included power cord here.
REMOTE (PARALLEL)
This D-sub 37-pin I/O connector is for parallel control.
Use it for external control, including fader starting. (See
"Using the parallel connector" on page 35.)
REMOTE (SERIAL)
This D-Sub 15-pin I/O connector is for serial control.
Connect a TASCAM RC-9010/RC-9010S remote control (sold
separately) here.
Rear panel
DIGITAL OUTPUT (COAXIAL)
This outputs a digital CD playback signal. The digital output
signal depends on the
DIGITAL OUT TYPE
setting on the
SYSTEM
menu screen. (See "Setting the digital output format"
on page 29.)
The digital output signal depends on the master clock
setting. (See "Setting the master word clock" on page 30.)
DIGITAL OUTPUT (XLR)
This outputs a digital CD playback signal. The digital output
signal depends on the
DIGITAL OUT TYPE
setting on the
SYSTEM
menu screen. (See "Setting the digital output format"
on page 29.)
The digital output signal depends on the master clock
setting. (See "Setting the master word clock" on page 30.)
MONITOR OUTPUTS (R/L) (unbalanced)
These unbalanced RCA analog outputs can be connected to
a monitoring system.
The nominal output level is –10 dBv.
LINE OUT OUTPUTS (R/L) (balanced)
These are balanced analog XLR outputs.
The default nominal output level is +4 dBu (+6 dBu only
when the maximum output level is +15 dBu), but can be set
to –20 dBu.
(1: GND, 2: HOT, 3: COLD)
MIX INPUTS (R/L) (balanced)
These balanced analog XLR inputs are used for mix input
with a nominal output level of +4 dBu.
(1: GND, 2: HOT, 3: COLD)
Signals input here are mixed with the playback signal from
the CD and output from the LINE OUTPUTS. Even when the
power is off, signals input here will be output unchanged
through the LINE OUTPUTS.
WORD SYNC THRU
The input word clock signal is thru output from this
connector, allowing it to be sent to other digital devices.
