TATA Motors TIAGO User manual

OWNER’S MANUAL

CUSTOMER ASSISTANCE
2
In our constant endeavour to provide assistance and complete
service backup, TATA MOTORS has established an all India cus-
tomer assistance centre.
In case you have a query regarding any aspect of your vehicle,
our Customer Assistance Centre will be glad to assist you on
our Toll Free no. 1800 209 7979
You can also approach nearest TATA MOTORS dealer. A sepa-
rate Dealer network address booklet is provided with the
Owner’s manual.
TATA MOTORS 24X7 Roadside Assistance Program offers tech-
nical help in the event of a breakdown. Call to the toll-free
Roadside Assistance.
For additional information, refer to "24X7 Roadside Assis-
tance" section in the Owner’s manual.

3
Dear Customer,
Welcome to the TATA MOTORS family.
We congratulate you on the purchase of your new vehicle and are privileged to have you as our valued customer.
We urge you to read this Owner's Manual carefully and familiarize yourself with the equipment descriptions and operating instruc-
tions before driving.
Always carry out prescribed service / maintenance work as well as any required repairs at an authorized TATA MOTORS Dealers
or Authorized Service Centre’s (TASCs). Use only genuine parts for continued reliability, safety and performance of your vehicle.
You are welcome to contact our dealer or Customer Assistance toll free no. (1800 209 7979) in case of any query or support
required.
We wish you a safe and pleasant driving experience.
Bombay House, 24, Homi Modi Street,
Hutatma Chowk, Fort, Mumbai – 400001

CUSTOMER ASSISTANCE
4
 Before driving, read this Owner’s manual carefully and familiarize yourself with your vehicle. For your own safety and a longer
vehicle life, follow the instructions, ‘Warnings’ and ‘Notes’ in this manual. Ignoring them could result in damage to the vehicle
or personal injury to you or others.
 The Owner’s manual and other booklets are important documents and should always be kept in the vehicle. If you sell the
vehicle, always pass on the documents to the new owner.
 This Owner's Manual describes all variants of the model and all standard/optional equipment of your vehicle available at
the time of printing. Please note that your vehicle may not be equipped with all features described.
 TATA MOTORS Limited reserves the right to introduce changes in the design, equipment and technical features without any
obligation to install them on the vehicles previously sold. The equipment in your vehicle may therefore differ from that shown
in the descriptions and illustrations.
 Do not carry out any modification including fitment of non-genuine accessories on your vehicle. Safety, handling, performance
and durability, may otherwise be adversely affected and may violate government regulations. TATA MOTORS Limited accepts
no liability for damage resulting from the modifications or use of non-genuine accessories.
 All rights reserved. The information in this manual shall not be copied, translated or otherwise reproduced, in whole or in
part, without written permission from TATA MOTORS.
© Copyright 2016 TATA MOTORS

CONTENTS
5
1
Safety
Important Information……………9
Safe Driving………………………9
Seat Belts………………………..10
Child Restraint System (CRS)...13
Anti-theft Device: Immobilizer…15
Child Lock……………………….16
Air Bags………………………….17
ABS………………………………18
EBD………………………………18
2
Opening & Closing
Flip Key…………………………..21
Doors……………………………..23
Windows…………………………24
Bonnet…………………………...25
Tailgate and Fuel lid……………26
3
Dashboard & Features
Cockpit…………………………...29
Instrument Cluster………………30
Driver Information Display…..…34
Driver Information Settings…….38
Warning Lamps………………….41
Audio Reminders………………..46
Combi Switches…………….......47
Fascia Switches………..………..49
Steering Wheel Switches……....50
Mic………………………………..50
Infotainment System…………....51

CONTENTS
6
3
Dashboard & Features
USB/AUX………………………...51
Power Socket.…….……………..51
Antenna…………………………..52
Roof Lamp……………………….52
Roof Grab Handles.…………….53
Boot Lamp……………………….53
Tag Holder……………………….53
4
Stowage Areas
Storage Compartments…………55
Glove Box...............……….........56
Pocket on Dashboard………......56
Utility pockets on doors….......…56
Center Console…...……………..56
Tailgate Compartment………….57
Card Holder……………………...58
Hooks…………………………….59
5
Climate Control
Air Vents & Distribution…………61
HVAC Controls…………………..62
Functions & Settings...............…65

CONTENTS
7
6
Starting & Driving
Pre-Driving Checks….................67
Driving Tips................................68
Seat Adjustments.......................71
Rear View Mirrors......................72
Sun Visors.................................73
Steering Wheel Adjustments.....74
Starting the Engine....................75
Gear Shifting & Driving..............76
Drive Modes..............................76
Braking/Parking Brake...............77
Reverse Park Assist..................80
7
Emergency & Break-
down Assistance
Emergency Equipment...............83
Hazard Warning Switch..............84
In Case of Flat Tyre....................85
Jump Lead Starting....................88
Towing........................................90
Fuses.........................................91
Bulb Specification.......................97
Bulb Replacement......................98
24x7 Road Side Assistance.....101
8
Maintenance
Maintenance & Service….........105
Engine Compartment...............106
Engine Oil/Coolant Level..........108
Battery......................................110
Spark Plug................................111
Tyres........................................112
Key Battery Replacement……..115
On Board Diagnostic (OBD).....116
Service Instructions...…………117
Service Schedule...……..….....118
Parking for Long Durations…...124

CONTENTS
8
9
Technical Information
Fuel Specification.....................125
Lubricant Specification.............127
Technical Specification............128
Vehicle Dimensions..................131
Aggregate Identification Nos....132
10
Car Care and Value
Added Services
Car Care...................................133
Washing...................................133
Waxing.....................................134
Polishing...................................134
Interior Fabric Cleaning............134
Paint Care................................135
Wiper Care...............................135
Value Added Services..............136
11
Warranty – Terms and
Conditions
12
Environment Safety

SAFETY
9
Important Information
In this Owner's Manual, you will find the
text under the heading “WARNING” and
“NOTE” which highlights important infor-
mation. Pay particular attention to these
highlighted messages.
WARNING
Indicates procedures or infor-
mation that must be followed pre-
cisely in order to avoid the possibil-
ity of severe personal injury and se-
rious damage to the vehicle.
Safe Driving
Safety consciousness not only ensures
your safety and the safety of other road
users, but it also helps to reduce the
wear and tear on your vehicle.
Safe driving depends on:
How quickly you make decisions to
avoid an accident.
Your ability to concentrate.
How well you can see and judge ob-
jects.
How well familiar you are with your
vehicle controls and its capabilities.
NOTE
Fatigue is a result of physical or
mental exertion that impairs judg-
ment. Driver fatigue may be due to
inadequate sleep, extended work
hours, strenuous work or non-work
activities or combination of other
factors. Take rest at regular inter-
vals.
Safety Tips
Always take into account the road
conditions, weather conditions, vehi-
cle speed in order to prevent acci-
dents.
Turn ‘ON’ the side indicators at least
30 meters before taking a turn or
changing the lane.
Decelerate to a safe speed before
taking turn. Do not apply brakes dur-
ing cornering.
When overtaking other vehicles,
watch out for the oncoming vehicle.
Never drive under the influence of al-
cohol or drugs.
If your vehicle is equipped with info-
tainment/navigation system, set and
make changes to your travel route
only when the vehicle is parked.
Program radio presets with the vehi-
cle parked, and use your pro-
grammed presets to make radio use
quicker and simpler.
NOTE
Indicates additional information
that will assist you in gaining the
optimum benefit and care for your
vehicle.

SAFETY
10
Driving through water
Do not drive through flooded areas.
Judge the depth of water before driving
through it. Otherwise, water may enter
the vehicle interior or the engine com-
partment.
If at all the situation demands that you
have to drive through water then;
Keep engine in higher RPM and crawl
the vehicle in low gear.
Flowing or rushing water creates
strong forces. Driving through flow-
ing water could cause the vehicle to
be carried away. Be very cautious
about trying to drive through flowing
water.
Lightly apply the brake pedal to dry
the liners until the brakes work nor-
mally once you are out of water.
WARNING
Do not attempt to start the engine
if vehicle gets flooded due to wa-
ter. Tow the vehicle to a safe place.
Contact a nearest TATA MOTORS
Authorised Service Centre.
Driving on a rainy day
Check wiper blades, lights and
brakes for proper functioning and
condition.
Check the tyre treads depth, the con-
dition of the tread and tyre.
Avoid harsh braking and sharp turns.
It may cause loss of control and lead
to a skid.
For slowing down, shift to lower gears
and brake gently.
Keep lights ‘ON’ if visibility is poor.
Driving through wet roads
On wet road or during light showers, “Aq-
uaplaning” can occur. “Aquaplaning” is
the loss of direct contact between the
road surface and the vehicle’s tires due
to a water film forming between them.
Steering or braking the vehicle can be
very difficult, and loss of control can oc-
cur.
There is no hard and fast rule about aq-
uaplaning. The best advice is to slow
down when the road is wet.
NOTE
If you have driven for a long time
in heavy rain without braking,
there may be a delayed reaction
from the brakes when braking for
the first time. You have to depress
the brake pedal more firmly. Main-
tain a greater distance from the
vehicle in front.

SAFETY
11
Night driving
Ensure that all light are working and
windshield, window glasses are
clean.
Drive more slowly at night than in the
daytime, as the visual range is re-
stricted at night. Maintain a speed
such that you can stop within illumi-
nated distance of head lamps.
Do not use the high beam unless in-
evitable. It may dazzle the driver of
the oncoming vehicle, thus causing
an accident.
Use head lamp main/dip beam to
alert other road users on turns/
cross roads etc.
Use side indicators for lane change
or turning.
Driving on gradients
When climbing gradient, the vehicle may
begin to slow down and show a lack of
power. If this happens, shift to a lower
gear and apply power smoothly so that
there is no loss of traction.
When driving down a hill, the engine
braking should be used by shifting into a
lower gear. Do not drive in neutral gear
or switch off the engine.
WARNING
On long and steep gradients you
must reduce the load on the
brakes by shifting early to a lower
gear. This allows you to take ad-
vantage of the engine braking ef-
fect and helps avoid overheating of
service brakes resulting in reduced
braking efficiency.
Driving on highway
Stopping distance progressively in-
creases with vehicle speed. Maintain a
sufficient distance between your vehicle
and the vehicle ahead.
For long distance driving, perform safety
checks before starting a trip and take
rest at certain intervals to prevent fa-
tigue.

SAFETY
12
Seat Belts
Seat-belt is a safety device designed to
secure the occupant travelling in the ve-
hicle. TATA MOTORS strongly recom-
mends that all the occupants should al-
ways wear seat belts while travelling, ir-
respective of journey duration.
In normal driving, the belt lets you move
freely in your seat. In case of an accident
or sudden braking, inertia reel automati-
cally tightens the belt to help restrain
your body.
Importance of wearing seat belt
Reduces the risk of being thrown in-
side the vehicle in case of a colli-
sion/sudden braking.
It will help to keep you in the proper
position when the air bag inflates.
Reduces the risk of harm in
frontal/angular collisions that are
not enough to activate the air bag.
Reduces the risk of harm in rollover,
side or rear impact collisions.
WARNING
Never wear seat belt over rigid or
breakable objects, such as eye-
glasses, pens, keys etc., as these
might cause injuries.
Make sure the seat belt is always
fitted comfortably.
Place the seat backrest in a posi-
tion that is as upright as possible.
Make sure that the seat belts are
not twisted which can cause injury
in a collision as the full width of the
belt isn’t available to absorb the
impact. This could cause serious
injury.
The maximum protection which
seat belts can offer is only
achieved if you are correctly
seated.
NOTE
Do not bleach or dye seat belts as
this may severely weaken them. In
a crash they may not be able to
provide adequate protection.
Cleaning should be carried out us-
ing mild soap and water only.

SAFETY
13
How to use seat belts
1. Buckle 2. Tongue 3. Press Button
1. Pull the belt tongue across your body
and insert it into the buckle until click
sound is heard.
2. Check and ensure that the belt is not
twisted.
3. Position the lap portion of the belt as
low as possible across your hip bone.
4. Pull up the shoulder part of the belt
to remove the slack. Make sure that
the belt goes over your collar bones
and across chest.
5. The lap portion of the belt should be
worn across the pelvis, not across
the waist.
6. To unlatch the belt, press the red but-
ton on the buckle. Guide the belt to
the pillar as it retracts.
WARNING
The seat belts are intended for
adults and each belt should be
used by one occupant only.
Use approved child restraint
system for children.
If the belt has withstood serious
accidentor shows signs of severe
fraying/damage or cut, replace it
with an approved belt kit.
Do not make any modification
that could change the effective-
ness of the seat belts.
If seat belt needs to be replaced,
then it should be replaced, by
TATA MOTORSAuthorized Ser-
vice Centre only.

SAFETY
14

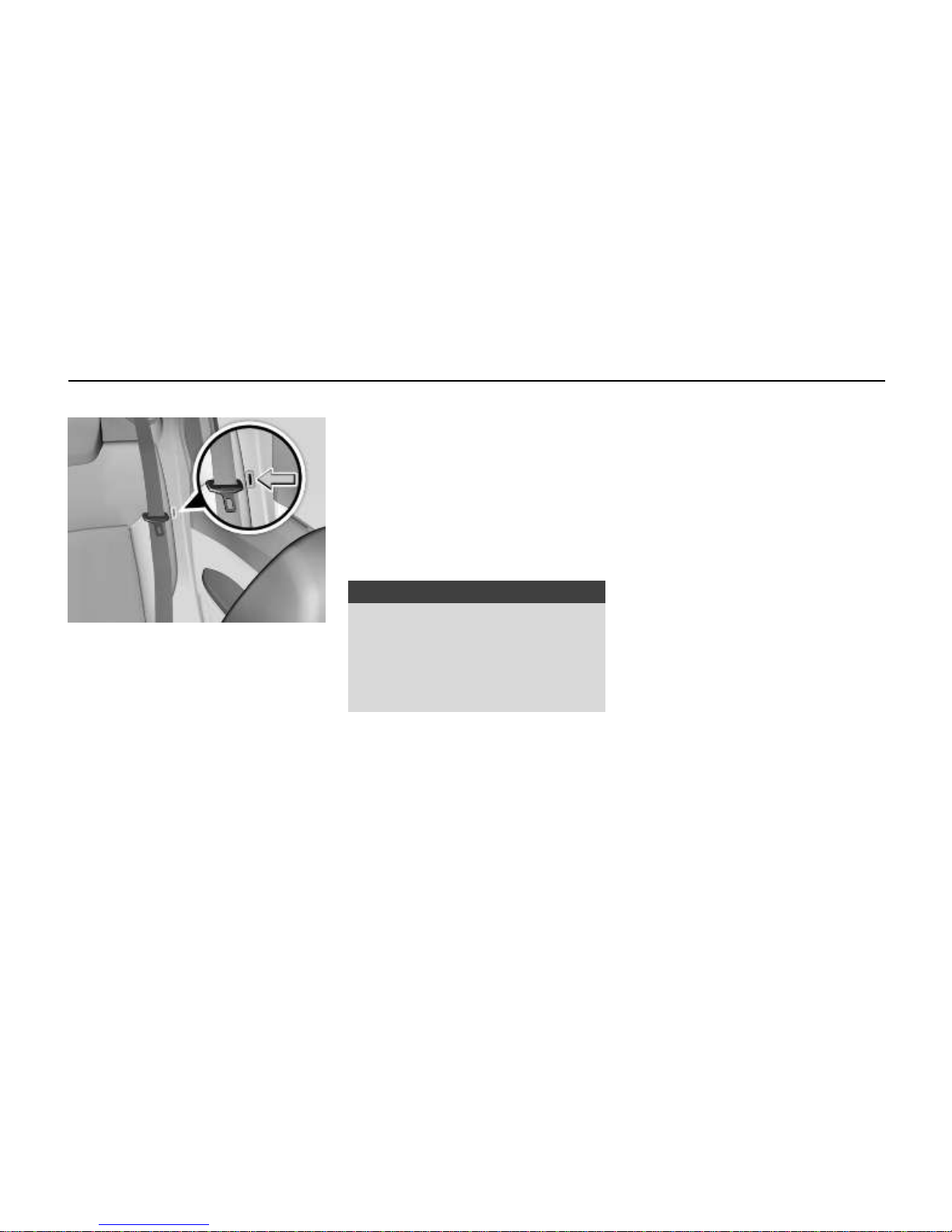

Seat belt hanger (if equipped)
Insert the rear seat belt tongue (except
middle seat) in the slit (shown in fig.) pro-
vided when not in use or during seat fold-
ing.
Make sure the belt webbing is not
twisted.
Lap belt (for rear middle seat)
Pull the belt tongue to the desired
length. Insert it into the buckle until you
hear a click.
Adjust the belt length. To lengthen the
belt, hold the tongue at a right angle to
the webbing and pull. To shorten, pull
the loose end of the webbing. To unfas-
ten, press the button in the buckle.
WARNING
Position the lap belt as low as pos-
sible on your hip bone and not
across the abdomen. If the lap belt
is positioned across your abdo-
men, it could cause serious inju-
ries in a crash.
Pregnant woman
Pregnant women should also always use
a lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hip bones to avoid any possible
pressure on the abdomen.

SAFETY
15
Child Restraint System (CRS)
TATA MOTORS strongly recommends
the use of Child Restraint Systems
(CRS) for all children up to age of 12
years.
Children kept unrestrained while trav-
elling, may face serious injuries in case
of an accident.
Selection and installation of CRS
Always select the child restraint system
that complies with latest safety stand-
ards (AIS072 / ECE R44).The CRS are
classified according to the child's size,
height and weight. Select the appropri-
ate CRS for your child. Ensure that the
child fits properly in the CRS and CRS
is securely installed in the vehicle.
For installation, please refer CRS man-
ufacturer’s instruction manual.
Recommended CRS position
The suitability of seat position for carriage of children and recommended category of
child restraint system is shown in the table below.
X - Seat Position not suitable for children in this age group.
U - Suitable for “universal” category restraints approved for use in this age
group.
NOTE
Universal is a category in the AIS072 / ECE R44norm.
Group
Mass
Group
Age Group
Front
Passen-
ger
Rear
Out-
board
LH
Rear
Out-
board
RH
Rear
Center
0
Up to 10 kg
Upto 9 months
X
U
U
X
0+
Up to 13 kg
Upto24months
X
U
U
X
I
9to18 kg
9monthsto48months
X
U
U
X
II
15to25kg
Approx. 3 to 7 years
X
U
U
X
III
22to36kg
Approx. 6 to 12 years
X
U
U
X

SAFETY
16
NOTE
When installing CRS in rear seat,
push the front seat fully forward so
that child’s feet do not touch the
front seat back.
NOTE
If a child is to be seated in the front
seat (if recommended only), push
the vehicle seat fully rearward and
keep the child in an approved for-
ward facing CRS. Adjust the seat
backrest to an upright position.
Storage for CRS
Always secure CRS safely in the vehicle
or stow it in the luggage compartment if
not being used.
While the vehicle is in motion an unre-
strained CRS could flung through the ve-
hicle interior in the event of a sudden
braking, maneuver or an accident. This
could cause injuries to the travelling oc-
cupants.
WARNING
Replace CRS that has withstood
any force during an accident as it
could have sustained damage
which may not be visible.
Check list
1. Never carry children on some-
body’s lap when vehicle is in mo-
tion.
2. Always secure children in the ve-
hicle in a CRS. The CRS must be
suitable for the child’s height,
weight and build.
3. Observe the instructions from the
manufacturer of the CRS and al-
ways keep the instruction manual in
the vehicle.
4. Always make sure that the seat belt
routing is correct for children and
they are sitting in the correct posi-
tion.
5. Do not leave any toys or other ob-
jects loose in the CRS or on the seat
while the vehicle is in motion.
WARNING
Each CRS should be used for
one child only.

SAFETY
17
Anti-Theft Device- Immobilizer
Immobilizer system is designed to pre-
vent vehicle theft by electronically disa-
bling the engine ignition system. The en-
gine can be started only with vehicle’s
original Immobilizer ignition key which
has an electronic identification pro-
grammed code.
NOTE
Use only E-key, the other should be
kept in a safe location. Note down
“key Tag no.” information (and
keep it safe) which is required
while getting new/spare keys. Re-
member that it is not possible to
prepare new/spare keys without
the “key Tag number.” Take pre-
caution about E-key, as without E-
key vehicle cannot be started.
Vehicle Condition
Immobilizer
Lamp Status
Vehicle State
Meaning / Function of the state
Ignition OFF
Blinking
Locked
Vehicle Immobilized and awaiting electronic key
Ignition ON
OFF
Unlocked
Normal condition and ready to start the vehicle
Ignition ON
ON
Locked
-Problem with key (Wrong key used to start vehicle)
-Problem with Immobilizer system. Contact a TATA MOTORS
Authorized Service Centre
Ignition ON
Blinking
Unlocked
- Contact a TATA MOTORS Authorized Service Centre immediately

SAFETY
18
E- Key
An E-Key is an electronic access and au-
thorization system which is provided as
a standard feature on your vehicle.
Unlocking principle
The transponder which is built into the
ignition E-Key carries a unique identifica-
tion code. The vehicle unlocks when the
code on the E-Key matches with the
code on the Engine Management Sys-
tem (EMS).
Engine starting
When the key is inserted and the ignition
is switched ‘ON’, all codes are communi-
cated within E-Key, Immobilizer and
EMS. The engine will start only if all the
codes match.
Loss of keys
If one of the keys is lost, contact your
nearest TATA MOTORS authorised
dealer immediately.
WARNING
Do not turn ‘ON’ ignition switch by
using E-key with any type of metal
wound around its grip or in con-
tact with it. This may be detected
as abnormal condition by immo-
bilizer and prevent engine from
starting.
Do not leave the E-key in areas of
high temperature. The tran-
sponder in it will behave abnor-
mally when reused.
Do not try to start the vehicle
when the Immobilizer indicator
lamp on the instrument cluster is
glowing. In this condition the ve-
hicle will not start and the vehi-
cle’s battery will also be drained
due to frequent cranking.
Child Lock
Both the rear doors of the vehicle are
provided with a child proof lock. Push the
lock lever located on vertical face of the
door downward before closing the door.
The door which has been locked by acti-
vating the child lock cannot be opened
from inside, it can be opened only from
the outside.
NOTE
Lift the lock lever upward to deac-
tivate the childproof lock when not
required.

SAFETY
19
Air Bags - Supplemental Restraint
System (if equipped)
The driver’s front air bag is located be-
hind the center pad of the steering wheel
and the front passenger’s front air bag is
located on dashboard above glove box.
Front air bags are designed to inflate in
severe frontal collisions when the igni-
tion switch is in the ‘ON’ position.
Front air bags are not designed to inflate
in rear impacts, side impacts, rollovers
or minor frontal collisions, since they
would offer no protection in those types
of accidents.
Remember, since an air bag deploys
only one time during an accident, seat
belts are needed to restrain occupants
from further movements during the acci-
dent.
Therefore, an air bag is NOT a substitute
for seat belts. To maximize your protec-
tion, always wear your seat belts.
In a frontal collision, the crash sensors
detect and trigger the inflators. The in-
flators inflate the air bags with nitrogen
or argon gas. The movement of the
driver and of the front passenger is cush-
ioned when they make contact with the
fully inflated airbag and the risk of injury
to head and chest is reduced. You may
hear a noise along with some smoke,
dust and smell of burnt propellant imme-
diately after the air bag has inflated. DO
NOT PANIC as this is normal and is not
an indication of fire in the vehicle.
NOTE
An air bag supplements, or adds
to, the crash protection offered by
seat belts. The driver and all pas-
sengers must be properly re-
strained by wearing seat belts at
all times.
Drive with the seat belt fastened
correctly and in a position that is
as upright as possible with your
back against the backrest.
Do not lean your head or chest
close to the steering wheel or
dashboard.
WARNING
Do not attach any objects to, or
place any objects over, the steer-
ing wheel or dashboard. These ob-
jects may interfere with air bag op-
eration or may be propelled by the
air bag in the event of a crash. Ei-
ther of these conditions may cause
severe injury.
