CONNECTNEXT® INFOTAINMENT SYSTEM USER’S MANUAL
Dear Customer,
Welcome to the CONNECTNEXT® Infotainment System User's Manual. The infotainment system in your vehicle provides you with
state of the art in-car entertainment to enhance your driving experience.
Before using the infotainment system for the first time, please ensure that all users read this manual carefully. The manual will
familiarize you with the infotainment system of your car and its functionalities. It also contains instructions on how to use the
infotainment system in a safe and effective manner.
We insist that all service and maintenance of the infotainment system of your car must be done only at authorized TATA service
centers. Incorrect installation or servicing can cause permanent damage to the system.If you have any further questions about the
infotainment system, please get in touch with the nearest Tata Dealership. We will be happy to answer your queries and value your
feedback.
We wish you a safe and connected drive!

2
CONTENTS
CONTENTS
1ABOUT THIS MANUAL 2INTRODUCTION 3GETTING STARTED
Conventions ................................. 4
Safety Guidelines ........................ 5
Warranty Clauses ........................ 8
Control Elements Overview ....10
Other Modes of Control ...........19
System Usage ................................ 32
System ON/OFF ........................... 36
Manage General Settings ........ 38
Change Audio Settings ............ 41
Change Volume Settings ......... 44
Reset to Factory Default ........... 47
4RADIO 5MEDIA 6PHONE
Overview ........................................ 49
Radio Operations ........................ 51
Overview ........................................56
Playing a Media Source .............58
Music Related Functions ........... 61
Pair Devices ................................... 70
Manage Paired Devices ............ 73
Phone Functions ......................... 75

3
CONTENTS
7TURN-BY-TURN NAVIGATION 8VEHICLE 9FREQUENTLY ASKED QUES-
TIONS
General Information .................. 84
Installing APPs for Navigation 86
NaviMaps Getting Started ....... 98
NaviMaps App Operations ...... 117
CONNECTNEXT® TBT NAVI........ 139
Disclaimers .................................... 152
CONNECTNEXT® NAVI Limits .. 153
Display Vehicle Setup Screen .154
Set Lock/Unlock Options ..........155
Manage Park Assist .....................157
Manage Exterior Lights.............. 162
Frequently Asked Questions . 163
10 ABBREVIATIONS 11 INDEX
Abbreviations .............................. 167 Index ................................................168

4
ABOUT THIS MANUAL CONVENTIONS
ABOUTTHISMANUAL
This guide introduces you to the CONNECTNEXT®
Infotainment system and details its controls, options and
operations.
In addition, the guide contains:
 Illustrations to provide orientations or identification of
various options like buttons and menus.
 Cautions related to a topic such as Danger alerts,
Security alerts, Warning statements, Caution notices and
General notes.
 A list of abbreviations used in this guide with their
explanation.
 An alphabetical index for quick identification of required
topics.
CONVENTIONS
!DANGER :
Text that indicates to actions that might
cause harm to personnel.
!SECURITY ALERT:
Text that indicates to actions which
increases the potential for unauthorized
access.
!WARNING
:
Text that indicates to actions that might
cause harm to the equipment.
!CAUTION
:
Text that call for attention.
NOTE:
Text that provides some additional
important information, which when
ignored can cause inconvenience or tips
that will help you in using the equipment.
01

5
ABOUT THIS MANUALSAFETY GUIDELINES
SAFETYGUIDELINES
!DANGER :
The infotainment system must be used in
a way that allows you to drive the vehicle
safely at all times. Failure to do so may
result in an accident involving serious
injury or death.
Keep this manual in the vehicle, so it will be handy for you to
refer, when needed. If you sell or lend the vehicle, make sure
this manual is available in the vehicle along with other
standard booklets.
Please read and follow the safety guidelines listed in this
section to avoid injury or property damage.
GENERAL SAFETY GUIDELINES
!WARNING
:
The infotainment system is a
sophisticated electronic device. Do not
allow improper access of the infotainment
system.
!DANGER :
Permanent hearing loss may occur if you
play your music at loud volumes for
prolonged duration. Exercise caution
when setting the volume of your
infotainment system.
!DANGER :
Exposure of the infotainment system to
water or excessive moisture can cause
electric shocks, fire, or other damages.
01

6
ABOUT THIS MANUAL SAFETY GUIDELINES
SAFETY GUIDELINES WHILE DRIVING
!DANGER :
Glance at the screen of the infotainment
system only when necessary and safe to
do so. If prolonged viewing of the screen
is necessary, park in a safe location and
engage the hand brake.
!DANGER :
Make certain that the volume level of the
infotainment system is set to a level that
allows you to hear outside traffic and
other warnings.
SYSTEM CARE AND MAINTENANCE
Exert at most care while handling the infotainment system as
partial or complete loss of the infotainment system functions
due to intentional misuse is not covered under warranty.
Some guidance for using or maintaining the system are listed
below:
!WARNING
:
Parking under direct sunlight for
prolonged duration can result in high
temperatures inside your car, which can
damage your infotainment system, if
used. So, before using the system let the
car interior to cool down.
!WARNING
:
Do not open the infotainment system as
incorrect handling can damage the
system. Further, warranty is void, if seal is
broken.
!WARNING
:
Do not replace the vehicle speakers or fit
additional speakers with aftermarket
speakers. It may lead to the
malfunctioning or even damage of the
infotainment system.
01

7
ABOUT THIS MANUALSAFETY GUIDELINES
!WARNING
:
Do not apply sticky or strong alcohol
based spray, lotion or liquid on the
infotainment system while cleaning the
vehicle dashboard. This may cause
permanent damage to the system button
functions, knob operations or the display
screen. It may also lead to the
deterioration of the system paint.
!WARNING
:
Avoid addition of any accessories such as
external amplifiers, which will lead to the
modification of the standard factory
wiring connections. As such unauthorized
interconnections, can result in the
malfunctioning of the infotainment
system. Always contact the Tata dealer for
the changes to the vehicle or system.
!WARNING
:
Usage of paint or color on the
infotainment system can make the
moving parts sticky and stop them from
functioning correctly.
!WARNING
:
Ensure that any liquid does not enter the
infotainment system, as it will lead to the
failure of radio. The warranty of the
system will be void, if liquid ingress marks
are observed inside the system.
!WARNING
:
Do not use excessive force while handling
the infotainment system, USB slot, AUX-In
slot and so on. It might cause damage to
the system or component.
01

8
ABOUT THIS MANUAL WARRANTY CLAUSES
WARRANTY CLAUSES
The warranty clauses applicable to the infotainment system
are listed below:
1. Warranty is applicable in India only.
2. Warranty for the product is against defective materials
and manufacturing faults for 36 months / 36,000 km
(whichever comes earlier) from the date of the first
sale of vehicle.
3. Display and touch panel, if applicable to your system,
are covered for 12 months / 36,000km (whichever
comes earlier) from the date of the first sale of vehicle.
4. Warranty is expressly not applicable under the
following conditions:
1. Where the product has been dismantled, repaired,
altered, modified or damaged due to user
negligence and misuse
2. The serial number of the product been removed,
defaced or altered.
3. Warranty void sticker is removed or tampered
4. Improper usage such as wrong electrical supply /
voltage setting causing damage to the equipment.
5. Tampered or serviced or repaired by any agency
not authorized by Tata Motors Limited.
01

9
INTRODUCTION
INTRODUCTION
The CONNECTNEXT® infotainment system provides you with
a bundle of high-end functionalities to:
 Manage in-vehicle entertainment capabilities
 Handle certain vehicle feature controls
 View information about some vehicle features
Key features of the infotainment system include:
 90mX40mm DSTN Dot Matrix Screen
 4 Channel Audio
 AM and FM Tuner Bands with 6 station memories on
each band
 Speed Dependent Volume Control
 Display OFF feature for distraction free night drive
 USB, iPod, Aux and Bluetooth Audio media support
 Simultaneous pairing with multiple Phone handsets (up
to 10 devices) through Bluetooth for Phone and Music
supports like Phone book download & Audio streaming
 Support for Turn-By-Turn (TBT) Navigation using the
mobile application supported by Mapmyindia maps
 Integrated with vehicle components like FATC and Park
Assist System and displays related information
 Vehicle feature control support like handling vehicle
door locking and Approach lights
 Infotainment system control from Steering Wheel and IR
Remote Control.
NOTE:
Some of the vehicle features like park
assist system, Steering Wheel Controls
(SWC), Infra Red (IR) Remote Control,
locking, and lighting are not standard in
every vehicle variant. Features that are
unavailable in the vehicle cannot be
controlled using the infotainment system.
Please refer to the Owner’s Manual of your
vehicle or check with your vehicle dealer
to confirm the list of features available in
your vehicle.
02

10
INTRODUCTION CONTROL ELEMENTS OVERVIEW
CONTROL ELEMENTS OVERVIEW
The control elements, buttons and knobs, that are available
on the infotainment system allows you to control the
infotainment system. It provides you with quick and easy
access to the commonly used functions and options of the
infotainment system.
1
2
3
4
5
6
78 9 10 11 12 13 14
15
16
17
18
19
20
Figure 1: CONNECTNEXT® Infotainment System Control Elements
02

11
INTRODUCTIONCONTROL ELEMENTS OVERVIEW
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
1
button
 Single Press (SP) & Long Press (LP):
Sets infotainment system display OFF, if display is ON
Sets infotainment system display ON, if display is OFF
NOTE:
In the rest of the manual, Single Press and Long Press will be only referred as SP
and LP respectively.
2
button
 SP & LP:
Displays the options of the currently played audio source or the currently connected
phone as per the selection.
3
button
 SP & LP:
Displays setup menu.
4
Home button
 SP & LP:
Displays home screen with current media/audio source playing in the background.
02

12
INTRODUCTION CONTROL ELEMENTS OVERVIEW

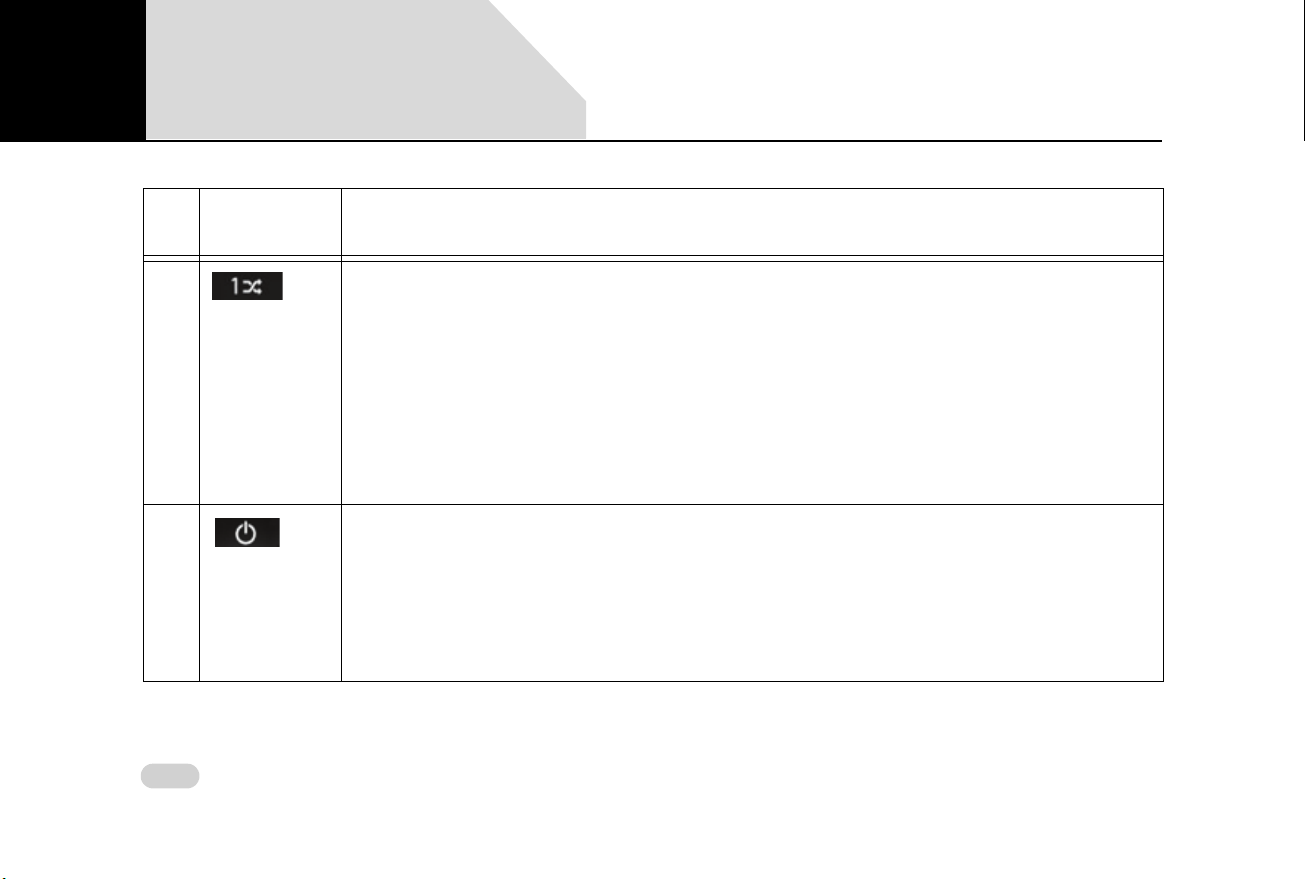

5
Preset 1 and
Random
button
 SP:
iPod: Sets Shuffle On i.e. random playing of songs. When pressed again, Sets Shuffle Off.
The infotainment system repeats this cycle when the button is repeatedly pressed.
USB, Bluetooth Audio: Randomly plays tracks in the current folder. When pressed again,
randomly plays all tracks in the media source. If pressed again, random playing of tracks is
switched off and the tracks are played in sequence. The infotainment system repeats this
cycle when the button is repeatedly pressed.
Radio: Plays tuner band stored as Preset 1.
 LP:
Radio: Stores current tuner band as Preset 1.
6
Volume Rotary
Knob
 Clock Wise:
Increases the volume.
 Anti-Clock Wise:
Decreases the volume.
 SP & LP:
System Audio ON/OFF.
One Hour Mode System Switched ON Mode: Switches OFF the infotainment system.
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
02

13
INTRODUCTIONCONTROL ELEMENTS OVERVIEW
7
Preset 2 and
Repeat button
 SP:
iPod: Repeats track. When pressed again, repetition of the track is switched off. The info-
tainment system repeats this cycle when the button is repeatedly pressed.
USB, Bluetooth Audio: Repeats song. When pressed again, repeatedly plays all tracks in
the current folder. If pressed again, repetition of tracks is switched off and the tracks are
played in sequence. The infotainment system repeats this cycle when the button is
repeatedly pressed.
Radio: Plays tuner band stored as Preset 2.
 LP:
Radio: Stores current tuner band as Preset 2.
8
Mute/Unmute
button
 SP & LP:
Mute/Un Mute currently played audio/media source.
9
Audio button
 SP & LP:
Displays audio setup options.
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
02

14
INTRODUCTION CONTROL ELEMENTS OVERVIEW
10
Preset 3 and
Previous
Folder button
 SP:
USB and Bluetooth Audio: Goes to the previous folder and starts playing tracks.
Radio: Plays tuner band stored as Preset 3.
 LP:
Radio: Stores current tuner band as Preset 3.
11
Preset 4 and
Next Folder
button
 SP:
USB and Bluetooth Audio: Goes to the next folder and starts playing tracks.
Radio: Plays tuner band stored as Preset 4.
 LP:
Radio: Stores current tuner band as Preset 4.
12
Fast Rewind
button
 SP:
iPod, USB, and Bluetooth Audio: Plays the previous track.
Radio: Enables auto seek down.
 LP:
iPod, USB, and Bluetooth Audio: Fast rewinds the current track.
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
02

15
INTRODUCTIONCONTROL ELEMENTS OVERVIEW
13
Fast Forward
button
 SP:
iPod, USB, and Bluetooth Audio: Plays the next track.
Radio: Enables auto seek up.
 LP:
iPod, USB, and Bluetooth Audio: Fast forwards the current track.
14
Preset 5 and
Play/Pause
button
 SP:
 iPod, USB, Bluetooth Audio: Pauses the currently played track. When pressed again, starts
playing the track. The infotainment system repeats this cycle when the button is repeat-
edly pressed.
Radio: Plays tuner band stored as Preset 5.
 LP:
Radio: Stores current tuner band as Preset 5.
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
02

16
INTRODUCTION CONTROL ELEMENTS OVERVIEW
15
Menu Rotary
Knob
 Clock Wise:
iPod, USB, and Bluetooth Audio: Previews next track. On knob press, plays the track.
Radio: Enables manual tune up of FM/AM stations.
Setup, Incoming and Active Phone Calls: Scrolls up through a menu/list like call logs,
contacts, setup options, media list or radio presets.
 Anti-Clock Wise:
iPod, USB, and Bluetooth Audio: Previews previous track. On knob press, plays the track.
Setup, Incoming and Active Phone Calls: Scrolls down through a menu/list like call logs,
contacts, setup options, media list or radio presets.
 SP & LP:
Selects the selection i.e. a track, a menu, an option, or a FM/AM station/preset.
Incoming Phone Calls: Receives the incoming phone call.
Outgoing Phone Call: Ends the outgoing phone call.
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
02

17
INTRODUCTIONCONTROL ELEMENTS OVERVIEW

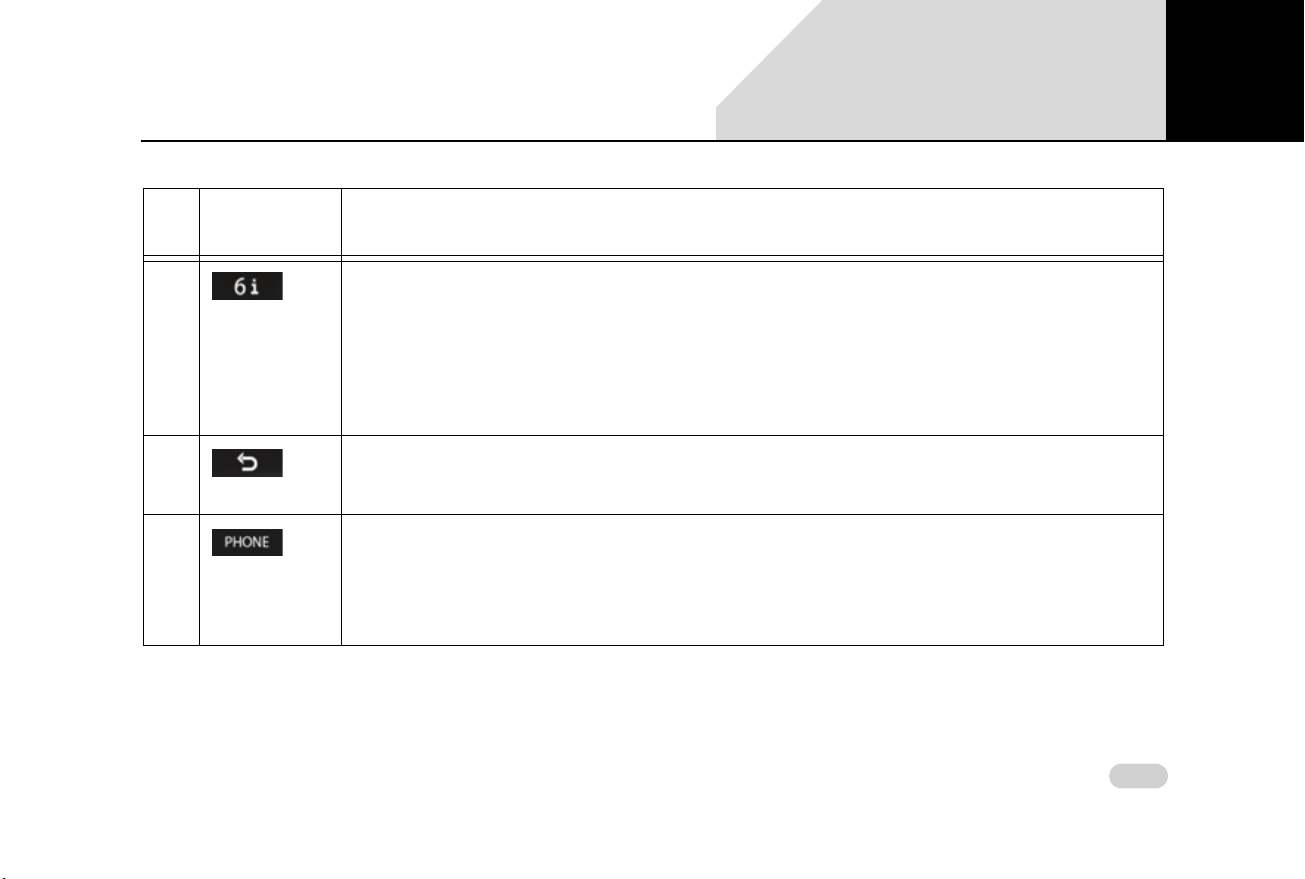

16
Preset 6 and
Information
button
 SP:
iPod, USB, Bluetooth Audio: Displays information regarding the current track like Track
title name, Track artist name, Album name for the track, Genre of the track, Year, album/
folder number and so on.
 Radio: Plays tuner band stored as Preset 6.
 LP:
Radio: Stores current tuner band as Preset 6.
17
Back button
 SP & LP:
Back to the previous menu, if applicable.
18
button
 SP & LP:
Displays the Phone menu. If not further action is taken, returns to the mode from which
the Phone button was pressed.
Incoming Phone Call: Accepts (Connects) the Phone call.
Active Phone Call: Displays the Phone Menu with Call Log, Contacts, and Keypad options.
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
02

18
INTRODUCTION CONTROL ELEMENTS OVERVIEW

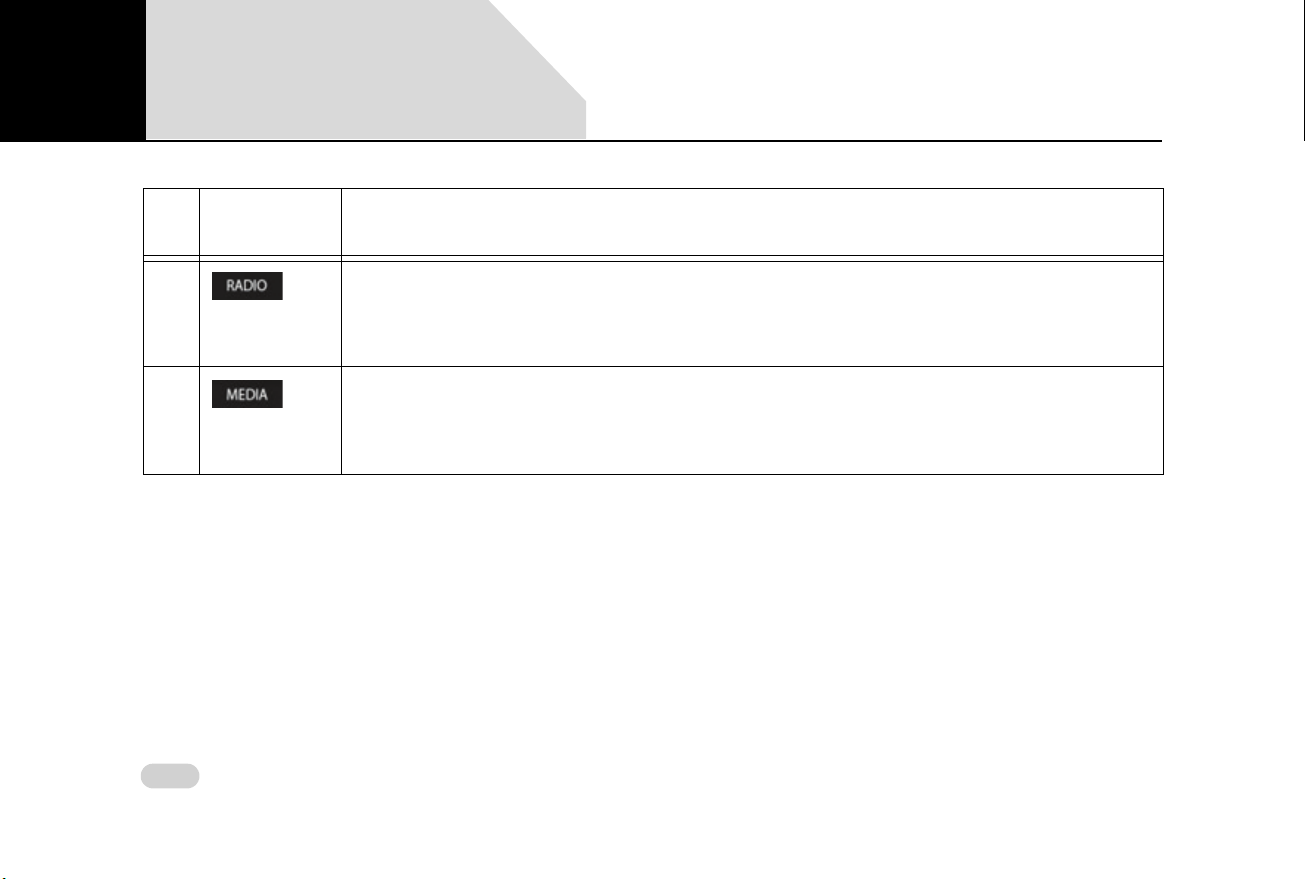

19
button
 SP & LP:
Plays Radio in the last tuner band (FM/AM station).
Radio: Displays the various tuner bands, FM1, FM2, FM3, AM1and AM2. When the Radio
button is pressed again, the infotainment system displays the stored FM/AM stations.
20
button
 SP & LP:
Plays last active media source.
Radio: Plays previous valid media source/default media source.
Media Types: Displays the different types of media source i.e. USB, iPod and AUX.
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
02

19
INTRODUCTIONOTHER MODES OF CONTROL
OTHER MODES OF CONTROL
In addition to the control elements on the infotainment
system, the system can also be controlled from the:
 Steering Wheel controls
 Infra-Red (IR) Remote controls
Steering wheel control elements provide you the flexibility of
controlling your infotainment system even while you are
driving without distracting your attention.
Using the IR Remote control elements, people in the back
seat can also control the infotainment system without asking
the people in the front seat.
NOTE:
The battery inside the IR remote control is
not covered under warranty.
NOTE:
Voice recognition feature is unavailable
for this variant of the vehicle.
02
