CONNECTNEXT® INFOTAINMENT SYSTEM USER’S MANUAL
Dear Customer,
Welcome to the CONNECTNEXT® Infotainment System User's Manual. The infotainment system in your vehicle provides you with
state of the art in-car entertainment to enhance your driving experience.
Before using the infotainment system for the first time, please ensure that all users read this manual carefully. The manual will
familiarize you with the infotainment system of your car and its functionalities. It also contains instructions on how to use the
infotainment system in a safe and effective manner.
We insist that all service and maintenance of the infotainment system of your car must be done only at authorized TATA service
centers. Incorrect installation or servicing can cause permanent damage to the system.If you have any further questions about the
infotainment system, please get in touch with the nearest Tata Dealership. We will be happy to answer your queries and value your
feedback.
We wish you a safe and connected drive!
2870 5840 9908

2
CONTENTS
CONTENTS
1ABOUT THIS MANUAL 2INTRODUCTION 3GETTING STARTED
Conventions .................................. 4
Safety Guidelines......................... 5
Warranty Clauses ........................ 9
Control Elements Overview ....11
Other Modes of Control.............16
System Usage ...............................30
System ON/OFF ........................... 39
Manage General Settings ........ 41
Change Audio Settings.............. 44
Change Volume Settings .......... 48
Reset to Factory Default ........... 51
4RADIO 5MEDIA 6PHONE
Overview ....................................... 53
Radio Operations ........................ 55
Overview ........................................60
Playing a Media Source .............63
Music Related Functions ..........68
Picture Viewer ..............................78
Video Playback .............................82
Enable Bluetooth ........................ 87
Pair Devices ................................... 88
Manage Paired Devices ............ 92
Manage Bluetooth Settings .... 95
Change Phone Settings ............ 97
Phone Functions ......................... 101
2870 5840 9908

3
CONTENTS
7CONNECTNEXT® APPS 8VEHICLE 9VOICE RECOGNITION FEATURE
General Information .................. 113
Install CONNECTNEXT® App ... 114
Config CONNECTNEXT® App .. 115
CONNECTNEXT® Apps .............. 118
Navigation Feature .................... 119
Install Apps for Navigation ..... 121
CONNECTNEXT® Navigation ... 123
NaviMaps App Disclaimers ..... 134
CONNECTNEXT® Nav Limits .... 135
Remote Control Application .. 136
Juke-Car Application ................. 142
Apps Disclaimer .......................... 147
Display Vehicle Setup Screen .149
Set Lock/Unlock Options ..........150
Manage Park Assist .....................152
Rear View Camera .......................157
Manage Exterior Lights .............158
Mood Lighting .............................159
Drive Modes ..................................162
Hill Descent Control ...................164
Voice Recognition Guidelines . 166
Voice Recognition Commands 170
10 FREQUENTLY ASKED QUES-
TIONS 11 ABBREVIATIONS 12 INDEX
Frequently Asked Questions .. 181 Abbreviations ...............................185 Index ............................................... 186
2870 5840 9908

4
ABOUT THIS MANUAL CONVENTIONS
ABOUTTHISMANUAL
This guide introduces you to the CONNECTNEXT®
Infotainment system and details its controls, options and
operations.
In addition, the guide contains:
 Illustrations to provide orientations or identification of
various options like buttons and menus.
 Cautions related to a topic such as Danger alerts,
Security alerts, Warning statements, Caution notices and
General notes.
 A list of abbreviations used in this guide with their
explanation.
 An alphabetical index for quick identification of required
topics.
CONVENTIONS
!DANGER :
Text that indicates to actions that might
cause harm to personnel.
!SECURITY ALERT:
Text that indicates to actions which
increases the potential for unauthorized
access.
!WARNING
:
Text that indicates to actions that might
cause harm to the equipment.
!CAUTION
:
Text that call for attention.
NOTE:
Text that provides some additional
important information, which when
ignored can cause inconvenience or tips
that will help you in using the equipment.
01
2870 5840 9908

5
ABOUT THIS MANUALSAFETY GUIDELINES
SAFETYGUIDELINES
!DANGER :
The infotainment system must be used in
a way that allows you to drive the vehicle
safely at all times. Failure to do so may
result in an accident involving serious
injury or death.
Keep this manual in the vehicle, so it will be handy for you to
refer, when needed. If you sell or lend the vehicle, make sure
this manual is available in the vehicle along with other
standard booklets.
Please read and follow the safety guidelines listed in this
section to avoid injury or property damage.
GENERAL SAFETY GUIDELINES
!WARNING
:
The infotainment system is a
sophisticated electronic device. Do not
allow improper access of the infotainment
system.
!DANGER :
Permanent hearing loss may occur if you
play your music at loud volumes for
prolonged duration. Exercise caution
when setting the volume of your
infotainment system.
!DANGER :
Exposure of the infotainment system to
water or excessive moisture can cause
electric shocks, fire, or other damages.
01
2870 5840 9908

6
ABOUT THIS MANUAL SAFETY GUIDELINES
SAFETY GUIDELINES WHILE DRIVING
!DANGER :
Glance at the screen of the infotainment
system only when necessary and safe to
do so. If prolonged viewing of the screen
is necessary, park in a safe location and
engage the hand brake.
!DANGER :
Make certain that the volume level of the
infotainment system is set to a level that
allows you to hear outside traffic and
other warnings.
SYSTEM CARE AND MAINTENANCE
Exert at most care while handling the infotainment system as
partial or complete loss of the infotainment system functions
due to intentional misuse is not covered under warranty.
Some guidance for using or maintaining the system are listed
below:
!WARNING
:
Parking under direct sunlight for
prolonged duration can result in high
temperatures inside your car, which can
damage your infotainment system, if
used. So, before using the system let the
car interior to cool down.
!WARNING
:
Do not open the infotainment system as
incorrect handling can damage the
system. Further, warranty is void, if seal is
broken.
01
2870 5840 9908

7
ABOUT THIS MANUALSAFETY GUIDELINES
!WARNING
:
Do not replace the vehicle speakers or fit
additional speakers with aftermarket
speakers. It may lead to the
malfunctioning or even damage of the
infotainment system.
!WARNING
:
Do not apply sticky or strong alcohol
based spray, lotion or liquid on the
infotainment system while cleaning the
vehicle dashboard. This may cause
permanent damage to the system button
functions, knob operations or the display
screen. It may also lead to the
deterioration of the system paint.
!WARNING
:
Usage of paint or color on the
infotainment system can make the
moving parts sticky and stop them from
functioning correctly.
!WARNING
:
Avoid addition of any accessories such as
external amplifiers, which will lead to the
modification of the standard factory
wiring connections. As such unauthorized
interconnections, can result in the
malfunctioning of the infotainment
system. Always contact the Tata dealer for
the changes to the vehicle or system.
!WARNING
:
Ensure that any liquid does not enter the
infotainment system, as it will lead to the
failure of radio. The warranty of the
system will be void, if liquid ingress marks
are observed inside the system.
!WARNING
:
Do not use excessive force while handling
the infotainment system, USB slot, AUX-In
slot and so on. It might cause damage to
the system or component.
01
2870 5840 9908

8
ABOUT THIS MANUAL SAFETY GUIDELINES
!WARNING
:
Avoid insertion of any other object in the
SD Card reader slot. Only SD Cards must
be inserted in the slot.
!WARNING
:
Do not insert wet, moist or worn out SD
Cards in the SD Card reader slot.
!WARNING
:
Do not insert Micro SD Cards into the SD
Card reader slot.
!WARNING
:
Avoid usage of hard or sharp objects like
pen, key, USB stick etc. to touch the
screen, as it can cause scratches on the
screen surface.
!WARNING
:
Use a soft, clean and dry cleaning cloth to
clean the touch screen surface. If required,
use a lint-free cloth damped with a
cleaning solution such as isopropyl
alcohol, or an isopropyl alcohol and water
solution ratio of 50:50. Be sure to follow
the solvent manufacturer's precautions
and directions.
!WARNING
:
Avoid spraying or spilling of cleaning
solutions, perfumes, car fresheners,
beverages, caustic chemicals or any
liquids on the touch screen surface, as it
can damage the screen or the
infotainment system.
01
2870 5840 9908

9
ABOUT THIS MANUALWARRANTY CLAUSES
WARRANTY CLAUSES
The warranty clauses applicable to the infotainment system
are listed below:
1. Warranty is applicable in India only.
2. Warranty for the product is against defective materials
and manufacturing faults for 36 months / 60,000 km
(whichever comes earlier) from the date of the first
sale of vehicle.
3. Display and touch panel, if applicable to your system,
are covered for 12 months from the date of the first
sale of vehicle.
4. Warranty is expressly not applicable under the
following conditions:
1. Where the product has been dismantled, repaired,
altered, modified or damaged due to user
negligence and misuse
2. The serial number of the product been removed,
defaced or altered.
3. Warranty void sticker is removed or tampered
4. Improper usage such as wrong electrical supply /
voltage setting causing damage to the equipment
5. Tampered or serviced or repaired by any agency
not authorized by Tata Motors Limited.
01
2870 5840 9908

10
INTRODUCTION WARRANTY CLAUSES
INTRODUCTION
The CONNECTNEXT® infotainment system provides you with
a bundle of high-end functionalities to:
 Manage in-vehicle entertainment capabilities
 Handle certain vehicle feature controls
 View information about some vehicle features
Key features of the infotainment system include:
 5” inch WQVGA Touch Screen
 4 Channel Audio
 AM and FM Tuner Bands with 20 station memories on
each band
 Speed Dependent Volume Control
 Display OFF feature for distraction free night drive
 USB, iPod, Aux, SD Card and Bluetooth Audio multimedia
support
 Video Playback and Image Viewing support from media
sources
 Hands-free/Bluetooth support with advance functions
like ‘Set contacts as Favorite’ and ‘Reject with SMS’ for
incoming calls
 Simultaneous pairing with multiple Phone handsets (up
to 10 devices) though Bluetooth for Phone and Music
supports like Phone book download & Audio streaming
 Support for navigation using mobile application
supported by MapmyIndia maps
 Integrated with vehicle components like Park Assist
System and displays related information
 Vehicle feature control support like door locking,
approach lights and mood lighting
 Infotainment system control from Steering Wheel and IR
Remote Control.
NOTE:
Some of the vehicle features like park
assist system, Steering Wheel Controls
(SWC), Infra Red (IR) Remote Control,
locking, and lighting are not standard in
every vehicle variant. Features that are
unavailable in the vehicle cannot be
controlled using the infotainment system.
Please refer to the Owner’s Manual of your
vehicle or check with your vehicle dealer
to confirm the list of features available in
your vehicle.
02
2870 5840 9908

11
INTRODUCTIONCONTROL ELEMENTS OVERVIEW
CONTROL ELEMENTS OVERVIEW
The control elements, buttons and knobs, that are available
on the infotainment system allows you to control the
infotainment system. It provides you with quick and easy
access to the commonly used functions and options of the
infotainment system.
1
2
3
4
5
6 7 8 9
10
11
12
13
14

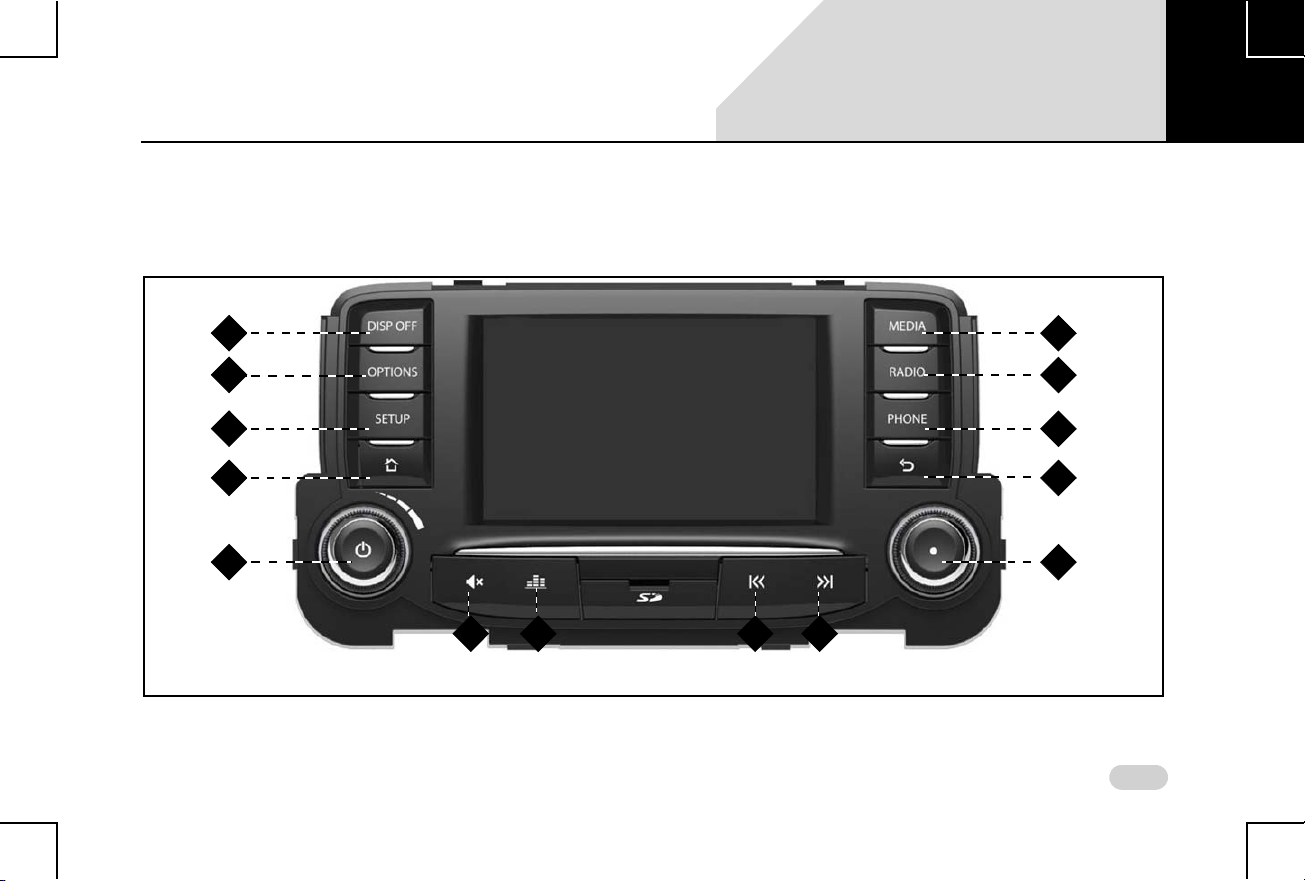

Figure 1: CONNECTNEXT® Infotainment System Control Elements
02
2870 5840 9908

12
INTRODUCTION CONTROL ELEMENTS OVERVIEW

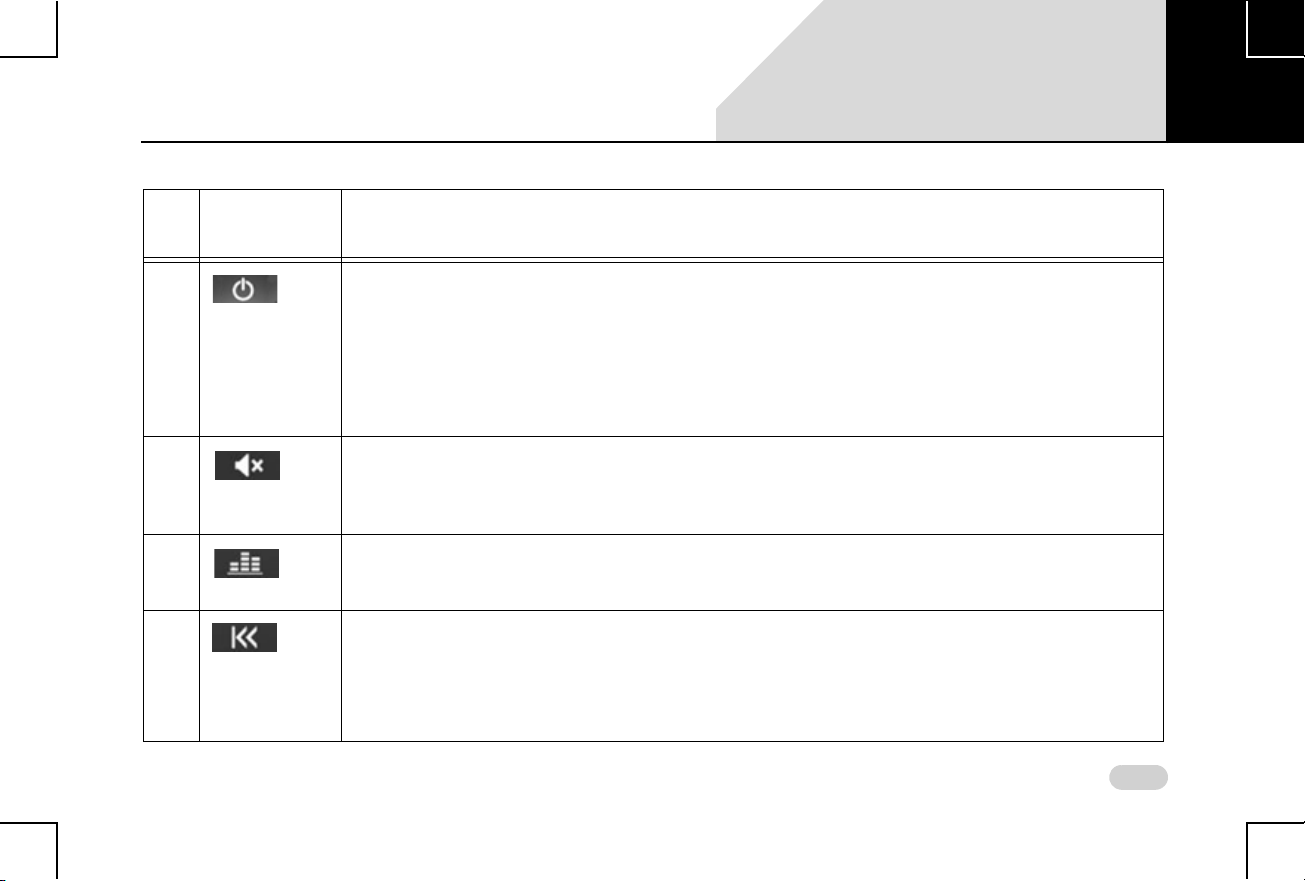

Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
1
button
 Single Press & Long Press:
Sets infotainment system display OFF, if display is ON
Sets infotainment system display ON, if display is OFF
2
button
 Single Press & Long Press:
Displays the options of the currently played audio source or the currently connected
phone. If a phone with navigation applications is connected to the system, displays
options of the Navigation feature.
3
button
 Single Press & Long Press:
Displays setup menu.
4
Home button
 Single Press & Long Press:
Displays home screen with current media/audio source playing in the background.
02
2870 5840 9908

13
INTRODUCTIONCONTROL ELEMENTS OVERVIEW
5
Volume Rotary
Knob
 Clock Wise:
Increases the volume.
 Anti-Clock Wise:
Decreases the volume.
 Single Press & Long Press:
System Audio ON/OFF.
One Hour Mode System Switched ON Mode: Switches OFF the infotainment system.
6
Mute/Unmute
button
 Single Press & Long Press:
Mute/Un Mute currently played audio/media source.
7
Audio button
 Single Press & Long Press:
Displays audio setup options.
8Fast
Rewind
button
 Single Press:
iPod, USB, Bluetooth Audio & SD: Plays the previous track.
Radio: Enables auto seek down.
 Long Press:
iPod, USB, Bluetooth Audio & SD: Fast rewinds the current track.
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
02
2870 5840 9908

14
INTRODUCTION CONTROL ELEMENTS OVERVIEW
9Fast
Forward
button
 Single Press:
iPod, USB, Bluetooth Audio & SD: Plays the next track.
Radio: Enables auto seek up.
 Long Press:
iPod, USB, Bluetooth Audio & SD: Fast forwards the current track.
10
Menu Rotary
Knob
 Clock Wise:
iPod, USB,SD and Bluetooth Audio: Previews next track. On knob press, plays the track.
Radio: Enables manual tune up of FM/AM stations.
Setup, Incoming and Active Phone Calls: Scrolls up through a menu/list like call logs,
contacts, setup options, media list or radio presets.
 Anti-Clock Wise:
iPod, USB, SD and Bluetooth Audio: Previews previous track. On knob press, plays the
track.
Setup, Incoming and Active Phone Calls: Scrolls down through a menu/list like call logs,
contacts, setup options, media list or radio presets.
 Single Press & Long Press:
Selects the selection i.e. a track, a menu, an option, or a FM/AM station/preset.
Incoming Phone Calls: Receives the incoming phone call.
Outgoing Phone Call: Ends the outgoing phone call.
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
02
2870 5840 9908

15
INTRODUCTIONCONTROL ELEMENTS OVERVIEW
11
Back
button
 Single Press & Long Press:
Back to the previous menu, if applicable.
12
button
 Single Press & Long Press:
Displays the Phone menu. If not further action is taken, returns to the mode from which
the Phone button was pressed.
Incoming Phone Call: Accepts (Connects) the Phone call.
Active Phone Call: Displays the Phone Menu with Call Log, Contacts, Favorites and Key-
pad options.
13
button
 Single Press & Long Press:
Plays Radio in the last tuner band (FM/AM station).
Radio: Displays the various tuner bands, FM and AM. When the Radio button is pressed
again, the infotainment system displays the stored FM/AM stations.
14
button
 Single Press & Long Press:
Plays last active media source.
Radio: Plays previous valid media source/default media source.
Media Types: Plays the next active media source.
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
02
2870 5840 9908

16
INTRODUCTION OTHER MODES OF CONTROL
OTHER MODES OF CONTROL
In addition to the control elements on the infotainment
system, the system can also be controlled from the:
 Steering Wheel controls
 Infra-Red (IR) Remote controls
 Mobile using Remote Control Application
Steering wheel control elements provide you the flexibility of
controlling your infotainment system even while you are
driving without distracting your attention.
Using the IR Remote control elements, people in the back
seat can also control the infotainment system without asking
the people in the front seat.
NOTE:
IR Remote Control is optional. Check with
your Vehicle dealer to confirm the list of
features available in your vehicle.
NOTE:
The battery inside the IR remote control is
not covered under warranty.
02
2870 5840 9908

17
INTRODUCTIONOTHER MODES OF CONTROL
STEERING WHEEL CONTROL ELEMENTS
Figure 2: Steering wheel control elements
1
2
3
4
567
8
02
2870 5840 9908

18
INTRODUCTION OTHER MODES OF CONTROL
Table 2: Steering Wheel Control Elements
Sl
No
Control
Element Description
1-
Increase
Volume
 Single Press:
Increases volume/ring tone volume by 1 unit.
 Long Press:
Increases volume or ring tone volume as long as the maximum volume is reached.
2-
Decrease
Volume
 Single Press:
Decreases volume/ring tone volume by 1 unit.
 Long Press:
Decreases volume/ring tone volume as long as volume value reaches 0.
02
2870 5840 9908

19
INTRODUCTIONOTHER MODES OF CONTROL
1
-Scroll Down
- Audio Source
Change
- Scroll Up
 Scroll Down SP:
Media Types (except AUX-IN): Opens the previous track.
Radio: Plays Previous Radio Preset.
 Scroll Down LP:
Media Types (except AUX-IN): Opens the previous folder.
Radio: Initiates Auto Seek by decreasing radio frequency until the button is pressed.
 SP/LP:
Plays the media in the following sequence Previous FM station-> Previous AM station-
>USB/iPod->SD Card->Bluetooth audio streaming->AUX in.
 Scroll Up SP:
Media Types (except AUX-IN): Opens the next track.
Radio: Plays Next Preset.
 Scroll Up LP:
Media Types (except AUX-IN): Opens the next folder.
Radio: Initiates Auto Seek by increasing radio frequency until the button is pressed.
Table 2: Steering Wheel Control Elements
Sl
No
Control
Element Description
02
2870 5840 9908

20
INTRODUCTION OTHER MODES OF CONTROL
6a
And
6b -
Mute / Reject
Phone Call
 Single Press & Long Press:
Mutes/Unmutes the audio track.
Incoming Phone Call: Reject call.
Outgoing Phone Call: Cancel call.
Active Phone Call: End call.
7a
And
7b -
Accept Phone
Call / Press To
Talk (if
available)
 Single Press:
Displays Phone screen.
 Incoming Phone Call: Accept call.Long Press:
Activates voice control system or cancels voice control, if active.
Table 2: Steering Wheel Control Elements
Sl
No
Control
Element Description
02
2870 5840 9908
