Audiovox VOD8521 - DVD Player / LCD Monitor User manual

Installation Guide
®
ELECTRONICS CORP .
VOD8521 / VOD8521S / VOD8521P
DVD PLAYER WITH DROP-DOWN
VIDEO MONITOR
SOURCE
V
OLUME FM
SELECT
ON OFF AUTO
SELECT
HEADPHONES
INPUT
AUDIO
LR
VIDEO
IR
S
P

Important Notice
AnLCDpaneland/orvideomonitormaybeinstalledinamotorvehicle
and visible to the driver if the LCD panel or video monitor is used for
vehicleinformation,systemcontrol,rearorsideobservation or
navigation.Ifthe LCD panel or video monitor is used for television
reception, video or DVD play, the LCD panel or video monitor must be
installedso thatthesefeatures willonlyfunction whenthevehicle isin
“park”orwhenthevehicle’s parking brake is applied.
An LCD panel or video monitor used for television reception, video or
DVDplaythat operates when the vehicle is in gear or when theparking
brake is not applied must be installed to the rear of the driver’s seat
whereitwill not be visible, directly or indirectly,to the operator of the
motorvehicle.
ImportantNote
ThisDVD player incorporates two new features:
1) AwirelessFMModulator
2) CapabilitytoaddanoptionalpluginTV tuner (Audiovox P/N
PODTVT–mustbe ordered separately)
Pleasebeadvised that the wireless modulator will perform well in
mostapplications. However,in certain applications the qualityof
thewirelesssignal may be less than optimal, resulting instaticor
stronglocal station bleed thru. If thisisthecase, an optional relay
boxisavailable. TheAudiovoxpartnumber is SIRSWB and plugs
intothe1/8" jack on the side of the chassis. Thisrelaybox is
installedbetween the vehicle antenna andthecarradio to provide
the best possible FM reception of the DVD player audio. When the
SIRSWBisinstalleditisrecommendedthatthewirelessFMan-
tennathat is plugged into the printedcircuitboardnext to the
3.5mm jack be unplugged. See page 6 of this manual for addi-
tionalinformation.

MATERIALS INCLUDED IN THIS PACKAGE:
1) VOD8521 TV/Video Monitor with DVD(1pc)
2) 12 Pin Power / Signal harness (P/N 112-3483) (1 pc)
3) 2 Pin Power Wire Harness with choke (P/ N 112B3143) (1 pc)
4) Hardware Package
#4 x 3/8” Screws (9 pcs)
#8 x 5/8” Self Drilling Screws (4 pcs)
#8 Washers (4 pcs)
5) Remote Control (1363855) (1pc)
6) PODTVT TV Tuner (P/N 136-3877) (1pc) (Optional)
7) SIRSWB Relay Box (P/N 112C3159) (1pc) (Optional)-See important note on previous page
8) Trim Ring (1pc)
-1-
TOOLS REQUIRED:
#2 Phillips Screwdriver
#1 Phillips Screwdriver
Utility or Razor Knife or Shears
Wire Strippers
Upholstery hook tool (for removal of panels as necessary)
ElectricalTape
MaskingTape
Multimeter (to verify 12 volt DC and continuity: Do not use a test light or logic probe)
Markerpen – tomark headliner
Scribe (to mark trim ring if used)
Misc. electrical connectors (to connect to vehicle power source). Requirements will vary from vehicle to
vehicle)
DVD Movie (to verify system operation after installation)
1 2 3
56
4
IRTA
ON /OF F ON /OF F
IRTB
7
8
(Optional)
(Optional)

GENERAL INSTALLATION APPROACH:
1) Decide upon system configuration and options that will be installed (i.e.: what components, VCP,
Video Game, external amp, wireless headphones, VCP, etc.).
2) Review all manuals to become familiar with electrical requirements and hook ups.
3) Decide upon mounting locations of all components and method of mounting.
4) Prep the vehicle by removing any interior trim necessary to gain access to vehicle's wiring as well as
all areas where interconnecting wire harnesses will need to be located. If any access holes need to
be cut into the vehicle (headliner, other trim components etc.), this should be done now as well.
(Refer to Page 3).
5) Route the wiring harnesses throughout the vehicle as necessary. (Refer to the Wiring Diagrams on
pages 6 of this manual as well as the wiring instructions for the individual components and accessory
options being installed). Be sure that all wiring is protected from sharp edges and is routed in such a
manner that it will not be pinched when all components and interior trim are fully installed. Be sure to
leave enough slack in the wiring at each component to allow working room.
6) Remove all A/V system components from their packaging and place them loosely in the vehicle at
their respective locations.
7) Connect all components together (electrically) and verify proper operation of all system functions.
Note: This is best done BEFORE, components have been permanently mounted.
8) After verifying proper operation of the system, proceed to mount of each component.
9) When all components are mounted, recheck function of entire system again to ensure that no wiring
was pinched or connected improperly during final installation.
GENERAL SYSTEM CONFIGURATIONS:
Thefollowing is intended toprovide some of thesystem configurations that arepossible with the VOD8521
series Drop Down Video Systems:
-2-
Notes :
There are a few audio output options that can be added as follows:
a) Wireless Headphones (P/N MVIRHS).
b) Wired relay box for wireless FM Modulator.
The VOD8521 video systems are only intended for an overhead, drop down installation. It is not
intended for Seatback or any other type of mounting. The hinging mechanism is designed for
horizontal, drop down use only.

VEHICLE PREPARATION:
1) Locate an accessory power source (+12v when key is in theACC. and run positions, and 0v when
key is off), and also a good ground generally, these wires can be found at the ignition switch or
fuse-box.
2) The mounting method and location will vary from vehicle to vehicle, so this manual will only focus
on the installation of the video monitor and related console accessories.
3) Generally, the best location for the video monitor is where the vehicle's factory dome light is in-
stalled. The monitor should be located in such a manner that it can be comfortably viewed by rear
seat passengers. NEVER INSTALLTHE MONITOR INAPLACE WITHIN THE DRIVER'S VIEW.
THIS IS NOT ONLY DANGEROUS, BUT ITISALSO ILLEGALIN MANYSTATES.
4) Once the mounting location of the monitor has been determined, there may be additional prepara-
tion work necessary, depending on the vehicle structure and installation method. Some of the
steps that may be required are:
A) Removal of the vehicle's dome light
B) The headliner may.
C) If the mini-console will be used, it will have to be trimmed to fit the
contour of the vehicle's headliner. Refer to the "Mini-Console installation" section in
this manual.
-3-

MINI CONSOLE INSTALLATION:
This page only covers special installation considerations for the mini-console installation. If the video
monitor is to be installed in a vehicle with the mini console, this console may need to be trimmed to fit the
contour of the vehicle headliner.
1) In this installation, the video monitor is mounted directly to the overhead cross-member in the roof
using the mounting screw bosses. These screw bosses should contact the cross-member di-
rectly (i.e.: no gap between the screw boss and the roof structure). Also, be sure that the screws
do not pierce the outer roof skin when fully fastened to the cross-member. The mini-console is
attached to the video monitor using the perimeter screw bosses. It is important that the screws
used in this installation are not overtightened, and that the video monitor and mini-console are
mounted in such a way that the assembly does not distort (or bend) when the mounting screws
are tightened. An alternate method is to use a piece of plywood (12"x9"x3/4"). First secure the
plywood block to the cross-member, then screw the monitor into the plywood. See the drawing on
page5.
2) It is best to mount the video monitor to the roof structure without the mini-console first. There
shouldbe a gap betweenthe headliner andthe outer flange ofthe video monitor. Themini-console
should be cut to full this gap. Apply masking tape to the outer surface of the mini-console in the
areas where the cut will be made.
3) Mark the cut to follow the necessary contour of the roof. The suggested method of marking is as
follows:A) First mark the narrowest point of the mini-console on the masking tape. Be careful
to consider not only vertical location, but fore-aft location.
B) Using the handle of a screwdriver, make a “transfer marking tool”. See diagram
below. Place the tool against the roof and the marker against the masking tape on
the mini-console. Trace the cut to be made around the entire perimeter of the mini-
console.
C) Cut the mini-console using a sharp utility knife or shears. Make the cut in several
passes over the marked line, each time cutting a little deeper. It is not necessary to
cut completely through the plastic, the cut only need be over 50% of the wall thick-
ness of the plastic. By bending the cut back and forth several times, the plastic will
break cleanly at the cut.
D) Check the fit of the trimmed console and make any minor adjustments necessary.
4) The mini-console can be painted or covered with a material that matches the headliner before
assembling the mini-console to video monitor.
5) Thefinished mini-console should be attached to the video monitor, then attachtheassembly to the
roof.

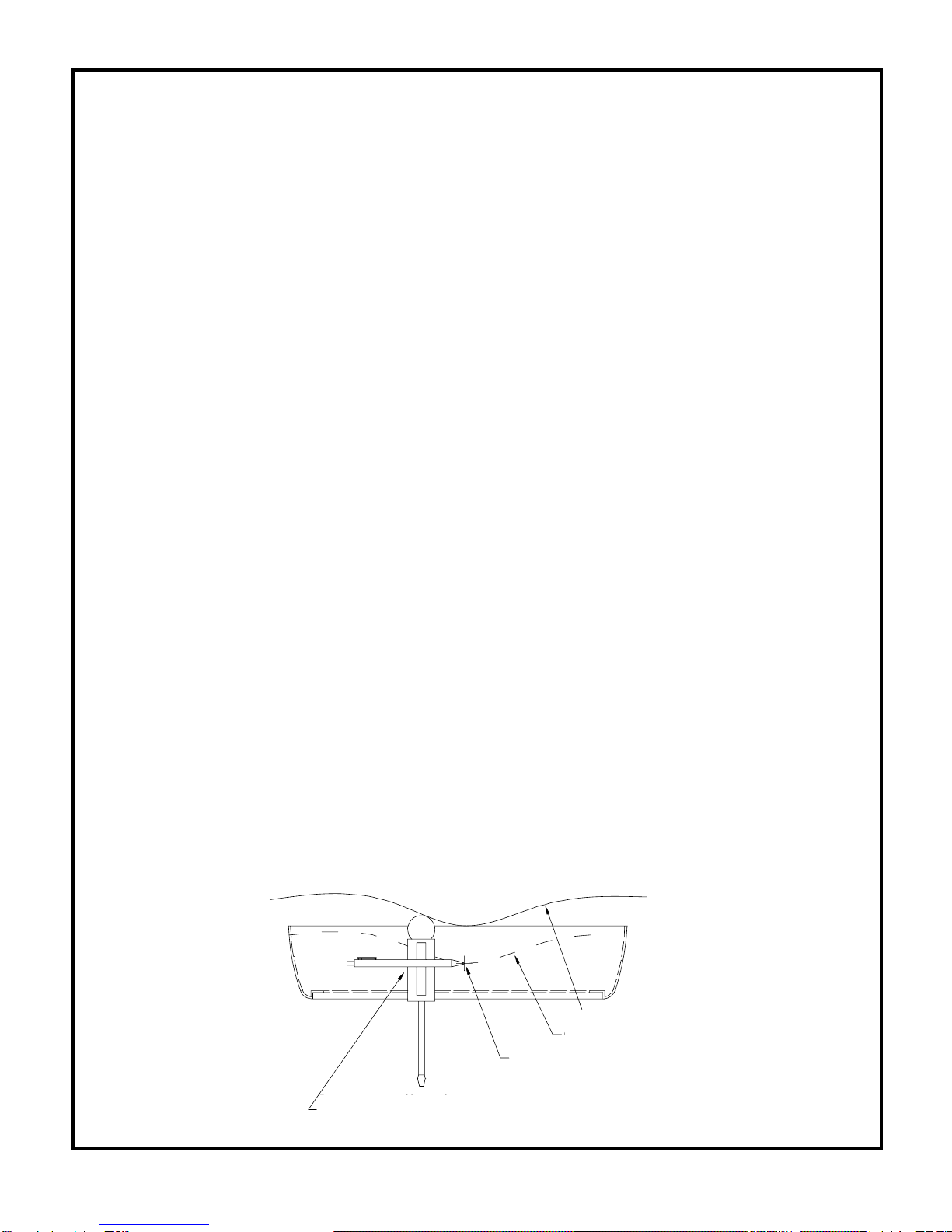

Tape marker to screwdriver starting at
your mark for the lowest point, then
trace the contour of theroof
Cut Line
Headliner
Lowest Point Mark
Referto Fig 7 for detail on attaching
console to video pod and video pod to
vehicle structure.
Figure 6
Tape marker to screwdriver. Starting at your mark
for the lowest point, trace the contour of the roof
Lowest point mark
Cut line
Headliner
-4-

-5-
MOUNTING THE MINI-CONSOLE
Roof
Roof Support
Headliner
12”x9”x3/4” Plywood
Block
(4) Self-Tapping Screws
(not supplied)
Mini-Console
Video Unit
(5) #8 Flat Washers
(5) #8x3/4” Self-Tapping
Screws

-6-
VOD8521
Figure A
1) Make the connections to the vehicle for the 12 pin wiring harness and battery wire.
2) Insert the Circular Mini-Din Connector of the source component harness through the wire tie loop on
the main PCB and into the Mini-Din Connector on the main PCB.
3) Pull the wire tie loop tight and cut off the excess.
4) Connect the 12 pin harness to the mating connector on the Video Monitor.
5) Connect power harness to vehicle’s electrical system by tapping into an accessory hot line and a
goodground.
6) Verify all functions of the System before final mounting of the finished assembly.
7) Mount and connect the Television antenna. (Optional)
Note: A VCP or other A/V Component can be connected to the video monitor system using a second
source component harness (purchased separately, part number: 8010730). This harness would plug
into the Mini-Din connector on the main PCB as in steps 2 and 3 above.
A/V Source Definitions:
1=AV1, VCP or VCP with TV Tuner (Mini-Din on main PCB)
2=AUX-IN (VCP, Game or future DVD etc...)
3= Built-in DVD
4= TV (TV Tuner)
TV
A
NTENNA
UNIT (BACK VIEW)
To T V A n t e n n a I n
Red RCA (Audio Right)
Clean the IR Receiver Window on the front of the VCP.
Remove Adhesive Backing and Apply IR LED to IR
Yellow RCA (Video)
White RCA (Audio Left)
"Y" Adapter
for use with
Non-Stereo
Installations
Item# 5
Power Connector
4 Pin
A
ccessory
Harness - Optional
(P/N:8010730)
DomeLight
Power Source
CHOKE
Auxillary
video display
12 VDC Power and Ground INPUT
VIDEO
(Yellow)
Line Out-R (Red)
LINE
OUT
VIDEO
Patch Cord
RCA-Female
RCA Male to Male
Line Out-L (White)
Line Out-V (Yellow)
To Secondary AV Monitor
Power Harness
Item #3
Power Harness
Item #3
OPTIONAL
TV
A
NTENNA
UNIT (BACK VIEW)
To T V A n t e n n a I n
Red RCA (Audio Right)
Clean the IR Receiver Window on the front of the VCP.
Remove Adhesive Backing and Apply IR LED to IR
Yellow RCA (Video)
White RCA (Audio Left)
"Y" Adapter
for use with
Non-Stereo
Installations
Item# 5
Power Connector
4 Pin
A
ccessory
Harness - Optional
(P/N:8010730)
DomeLight
Power Source
CHOKE
Auxillary
video display
12 VDC Power and Ground INPUT
VIDEO
(Yellow)
Line Out-R (Red)
LINE
OUT
VIDEO
Patch Cord
RCA-Female
RCA Male to Male
Line Out-L (White)
Line Out-V (Yellow)
To Secondary AV Monitor
Power Harness
Item #3
PODTVT
Item #3
OPTIONAL
* OPTIONAL RELAY BOX
TO
OPTIONAL
ADDITIONAL
MONITOR
TO
OPTIONAL
ADDITIONAL
MONITOR
TO
OPTIONAL
ADDITIONAL
MONITOR
TO
OPTIONAL
ADDITIONAL
MONITOR
* ANTENNA FOR WIRELESS FM MOD
SIRSWB
**
See Antenna Note Below
*NOTE: If the original relay box P/N SIRSWB is installed, it recommended that the antenna for the
wireless FM Modulator be unplugged. See FigureAfor antenna location.
**NOTE: Extending the wireless antenna beyond its 12 inch length will cause the FM Modulator to exceed
FCC limits for wireless transmission. When installing the unit position the antenna for best
reception.

Positive Switched Dome lighting
-7-
CONNECTING THE DOME LIGHTS
The dome lights in the video monitor require three connections to the vehicle's wiring. There are two
common types of dome light circuits used, positive or negative switched. Positive systems supply
voltage to the interior lights to turn them on, negative switched systems apply ground to illuminate the
bulbs. To determine which system you have you must locate the wires at the dome light. On a positive
switched system, with all the doors closed and the lights out, both wires at the dome light will rest at
ground. When the light is activated, one of these wires will switch to +12 vdc. This is the vehicle's
switching wire. On a negative switched system, with all the doors closed and the lights out, both wires at
the dome light will rest at + 12vdc. When the light is activated, one of these wires will switch to ground.
This is the switching wire.
For positive systems, connect the purple / brown (Lamp auto) wire to the vehicle's switched wire. Then
connect the red / black (lamp on) wire to a fused constant 12 volt source and the black / red (lamp
common) wire to a good ground. Positive systems are commonly found on Ford vehicles.
For negative systems, connect the purple / brown (Lamp auto) wire to the vehicle's switched wire. Then
connect the red / black (lamp on) wire to a good ground and the black / red (lamp common) wire to fused
constant 12 volt source. Negative systems are commonly found on General Motors and import vehicles.
Note:
Some vehicles which incorporate transistorized control of the dome light circuit, such as the 1999 Dodge
Caravan, may require that the purple / brown (Lamp auto) wire be connected to the door pin switch wire,
as the additional current draw of the Monitor's lights may not be supported by the output of the vehicles
body control computer.
Red / black - Lamp on
Black / red - Lamp common
Purple / brown - Lamp Auto
To 12pin
connector
onMonitor
To
constant
+12vdc
To
constant
+12vdc FactoryDoorajar
switch or Body
Control computer
Factory Dome light circuit

Troubleshooting:
SYMPTOM:
No power at Video Monitor
Power but no video or
sound
Picture, but no sound
Static on TV Stations
(Tuner Version Only)
No Infrared remote func-
tions for VCP (or other com-
ponents)
REMEDY:
-Verify +12 VDC onRed wire at2 pin Power Harnessbehind video monitor.
Verify ground connection with continuity test from known good ground to
black wire at 2 pin Power Harness
-Verify that the correct source is selected (i.e.: 1,2,3 or 4). Verify that the
sourceison and playingaknown good media (suchas a videotape). Verify
connections at both ends of the source component harness.
-Pushandholdthevolumeupbutton until sound is heard over headphones.
If problem is limited to the dash radio, verify radio is tuned to the correct
channel,and that power to thewired RF modulator is on. (Referto instruc-
tions with modulator kit). Otherwise, verify all connections per the wiring
diagram on page 6.
-Press Auto Program button. Then press CH up or CH down. Verify an-
tenna mounting and connections to the tuner.
Note: Due to the nature of TV signals, vehicle motion, direction the vehicle
is facing, distance from the transmitter, nearby surroundings and weather
may adversely affect TV reception. These conditions may result in the
following: picture roll, "snowy" picture, or momentary loss of color.
-Check batteries in the hand held remote (not included with this kit). Verify
that the IR LED ( page 6 Wiring Diagram) is properly attached to the sen-
sor window of the VCP (or other component).
-8-
Negative Switched Dome lighting
To 12pin
connector
To
constant
To
constant
FactoryDoorajar
switchor Body
Factory Dome light circuit
Red / black - Lamp on
Black / red - Lamp common
Purple / brown - Lamp Auto

© Copyright 2004 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788
128-7258A
WWW .audiovox.com
For Customer Service
Visit Our Website At
Product Information, Photos,
FAQ’s Owner’s Manuals
