CONNECTNEXT® INFOTAINMENT SYSTEM USER’S MANUAL
Dear Customer,
Welcome to the CONNECTNEXT® Infotainment System User's Manual. The infotainment system in your vehicle provides you with
state of the art in-car entertainment to enhance your driving experience.
Before using the infotainment system for the first time, please ensure that all users read this manual carefully. The manual will
familiarize you with the infotainment system of your car and its functionalities. It also contains instructions on how to use the
infotainment system in a safe and effective manner.
We insist that all service and maintenance of the infotainment system of your car must be done only at authorized TATA service
centers. Incorrect installation or servicing can cause permanent damage to the system.If you have any further questions about the
infotainment system, please get in touch with the nearest Tata Dealership. We will be happy to answer your queries and value your
feedback.
We wish you a safe and connected drive!
543858409904

2
CONTENTS
CONTENTS
1ABOUT THIS MANUAL 2INTRODUCTION 3GETTING STARTED
Conventions ................................. 4
Safety Guidelines ........................ 5
Warranty Clauses ........................ 9
Control Elements Overview ....11
Other Modes of Control ...........17
System Usage ...............................22
System ON/OFF ........................... 39
Manage General Settings ........ 41
Change Audio Settings ............ 45
Change Volume Settings .......... 48
Software Details .......................... 51
4RADIO 5MEDIA 6PHONE
Overview ....................................... 52
Radio Operations......................... 54
Overview ........................................60
Playing a Media Source .............63
Music Related Functions ..........67
Picture Viewer ..............................77
Video Playback .............................81
Enable Bluetooth ........................ 85
Pair Devices.................................... 86
Manage Paired Devices ............ 90
Change Phone Settings ............ 93
Phone Functions ......................... 96
543858409904

3
CONTENTS
7INFOTAINMENT SYSTEM APPS 8VEHICLE 9HELP
General Information .................. 110
Install CONNECTNEXT® App ... 112
Config CONNECTNEXT® App... 113
CONNECTNEXT® Apps .............. 115
Juke-Car Application.................. 116
Apps Disclaimer .......................... 118
Android Auto ............................... 120
CarPlay ............................................ 127
Display Vehicle Setup Screen .131
Set Vehicle Auto Relock ............132
Manage Park Assist......................133
Rear View Camera........................138
Manage Approach Lamps ........139
Overview of Climate Control ..140
Voice Alerts ...................................144
Drive Modes ................................. 146
Voice Recognition Feature ...... 148
10 FREQUENTLY ASKED
QUESTIONS 11 ABBREVIATIONS 12 INDEX
Frequently Asked Questions .. 163 Abbreviations ...............................166 Index ............................................... 167
543858409904

4
ABOUT THIS MANUAL CONVENTIONS
ABOUTTHISMANUAL
This guide introduces you to the CONNECTNEXT®
Infotainment system and details its controls, options and
operations.
In addition, the guide contains:
 Illustrations to provide orientations or identification of
various options like buttons and menus.
 Cautions related to a topic such as Danger alerts,
Security alerts, Warning statements, Caution notices and
General notes.
 A list of abbreviations used in this guide with their
explanation.
 An alphabetical index for quick identification of required
topics.
CONVENTIONS
!DANGER :
Text that indicates to actions that might
cause harm to personnel.
!SECURITY ALERT:
Text that indicates to actions which
increases the potential for unauthorized
access.
!WARNING
:
Text that indicates to actions that might
cause harm to the equipment.
!CAUTION
:
Text that call for attention.
NOTE:
Text that provides some additional
important information, which when
ignored can cause inconvenience or tips
that will help you in using the equipment.
01
543858409904

5
ABOUT THIS MANUALSAFETY GUIDELINES
SAFETYGUIDELINES
!DANGER :
The infotainment system must be used in
a way that allows you to drive the vehicle
safely at all times. Failure to do so may
result in an accident involving serious
injury or death.
Keep this manual in the vehicle, so it will be handy for you to
refer, when needed. If you sell or lend the vehicle, make sure
this manual is available in the vehicle along with other
standard booklets.
Please read and follow the safety guidelines listed in this
section to avoid injury or property damage.
GENERAL SAFETY GUIDELINES
!WARNING
:
The infotainment system is a
sophisticated electronic device. Do not
allow improper access of the infotainment
system.
!DANGER :
Permanent hearing loss may occur if you
play your music at loud volumes for
prolonged duration. Exercise caution
when setting the volume of your
infotainment system.
!DANGER :
Exposure of the infotainment system to
water or excessive moisture can cause
electric shocks, fire, or other damages.
01
543858409904

6
ABOUT THIS MANUAL SAFETY GUIDELINES
SAFETY GUIDELINES WHILE DRIVING
!DANGER :
Glance at the screen of the infotainment
system only when necessary and safe to
do so. If prolonged viewing of the screen
is necessary, park in a safe location and
engage the hand brake.
!DANGER :
Make certain that the volume level of the
infotainment system is set to a level that
allows you to hear outside traffic and
other warnings.
SYSTEM CARE AND MAINTENANCE
Exert at most care while handling the infotainment system as
partial or complete loss of the infotainment system functions
due to intentional misuse is not covered under warranty.
Some guidance for using or maintaining the system are listed
below:
!WARNING
:
Parking under direct sunlight for
prolonged duration can result in high
temperatures inside your car, which can
damage your infotainment system, if
used. So, before using the system let the
car interior to cool down.
!WARNING
:
Do not open the infotainment system as
incorrect handling can damage the
system. Further, warranty is void, if seal is
broken.
01
543858409904

7
ABOUT THIS MANUALSAFETY GUIDELINES
!WARNING
:
Do not replace the vehicle speakers or fit
additional speakers with aftermarket
speakers. It may lead to the
malfunctioning or even damage of the
infotainment system.
!WARNING
:
Do not apply sticky or strong alcohol
based spray, lotion or liquid on the
infotainment system while cleaning the
vehicle dashboard. This may cause
permanent damage to the system button
functions, knob operations or the display
screen. It may also lead to the
deterioration of the system paint.
!WARNING
:
Usage of paint or color on the
infotainment system can make the
moving parts sticky and stop them from
functioning correctly.
!WARNING
:
Avoid addition of any accessories such as
external amplifiers, which will lead to the
modification of the standard factory
wiring connections. As such unauthorized
interconnections, can result in the
malfunctioning of the infotainment
system. Always contact the Tata dealer for
the changes to the vehicle or system.
!WARNING
:
Ensure that any liquid does not enter the
infotainment system, as it will lead to the
failure of radio. The warranty of the
system will be void, if liquid ingress marks
are observed inside the system.
!WARNING
:
Do not use excessive force while handling
the infotainment system, USB slot, AUX-In
slot and so on. It might cause damage to
the system or component.
01
543858409904

8
ABOUT THIS MANUAL SAFETY GUIDELINES
!WARNING
:
Avoid usage of hard or sharp objects like
pen, key, USB stick etc. to touch the
screen, as it can cause scratches on the
screen surface.
!WARNING
:
Use a soft, clean and dry cleaning cloth to
clean the touch screen surface. If required,
use a lint-free cloth damped with a
cleaning solution such as isopropyl
alcohol, or an isopropyl alcohol and water
solution ratio of 50:50. Be sure to follow
the solvent manufacturer's precautions
and directions.
!WARNING
:
Avoid spraying or spilling of cleaning
solutions, perfumes, car fresheners,
beverages, caustic chemicals or any
liquids on the touch screen surface, as it
can damage the screen or the
infotainment system.
01
543858409904

9
ABOUT THIS MANUALWARRANTY CLAUSES
WARRANTY CLAUSES
The warranty clauses applicable to the infotainment system
are listed below:
1. Warranty is applicable in India only.
2. Warranty for the product is against defective materials
and manufacturing faults for 36 months / 60,000 km
(whichever comes earlier) from the date of the first
sale of vehicle.
3. Display and touch panel, if applicable to your system,
are covered for 12 months from the date of the first
sale of vehicle.
4. Warranty is expressly not applicable under the
following conditions:
1. Where the product has been dismantled, repaired,
altered, modified or damaged due to user
negligence and misuse
2. The serial number of the product been removed,
defaced or altered.
3. Warranty void sticker is removed or tampered
4. Improper usage such as wrong electrical supply /
voltage setting causing damage to the equipment
5. Tampered or serviced or repaired by any agency
not authorized by Tata Motors Limited.
01
543858409904

10
INTRODUCTION
INTRODUCTION
The CONNECTNEXT® infotainment system provides you with
a bundle of high-end functionalities to:
 Manage in-vehicle entertainment capabilities
 Handle certain vehicle feature controls
 View information about some vehicle features
Key features of the infotainment system include:
 6.5” inch WQVGA Touch Screen
 4 Channel Audio
 AM and FM Tuner Bands with 20 station memories on
each band
 Speed Dependent Volume Control
 Display OFF feature for distraction free night drive
 USB, iPod, Aux and Bluetooth Audio multimedia support
 Video Playback and Image Viewing support from USB
sources
 Hands-free/Bluetooth support with advanced functions
like ‘Set contacts as Favorite’ and ‘Reject with SMS’ for
incoming calls
 Simultaneous pairing with multiple Phone handsets (up
to 10 devices) through Bluetooth for Phone and Music
supports like Phone book download & Audio streaming
 Integrated with vehicle components like Park Assist
System and displays related information
 Vehicle feature control support like auto relock enable/
disable and approach lights
 Infotainment system control from Steering Wheel.
 SmartPhone or iPhone control from the vehicle
infotainment system through Android Auto or CarPlay
applications.
NOTE:
Some of the vehicle features like park
assist system, Steering Wheel Controls
(SWC), locking, and lighting are not
standard in every vehicle variant. Features
that are unavailable in the vehicle cannot
be controlled using the infotainment
system. Please refer to the Owner’s
Manual of your vehicle or check with your
vehicle dealer to confirm the list of
features available in your vehicle.
02
543858409904

11
INTRODUCTIONCONTROL ELEMENTS OVERVIEW

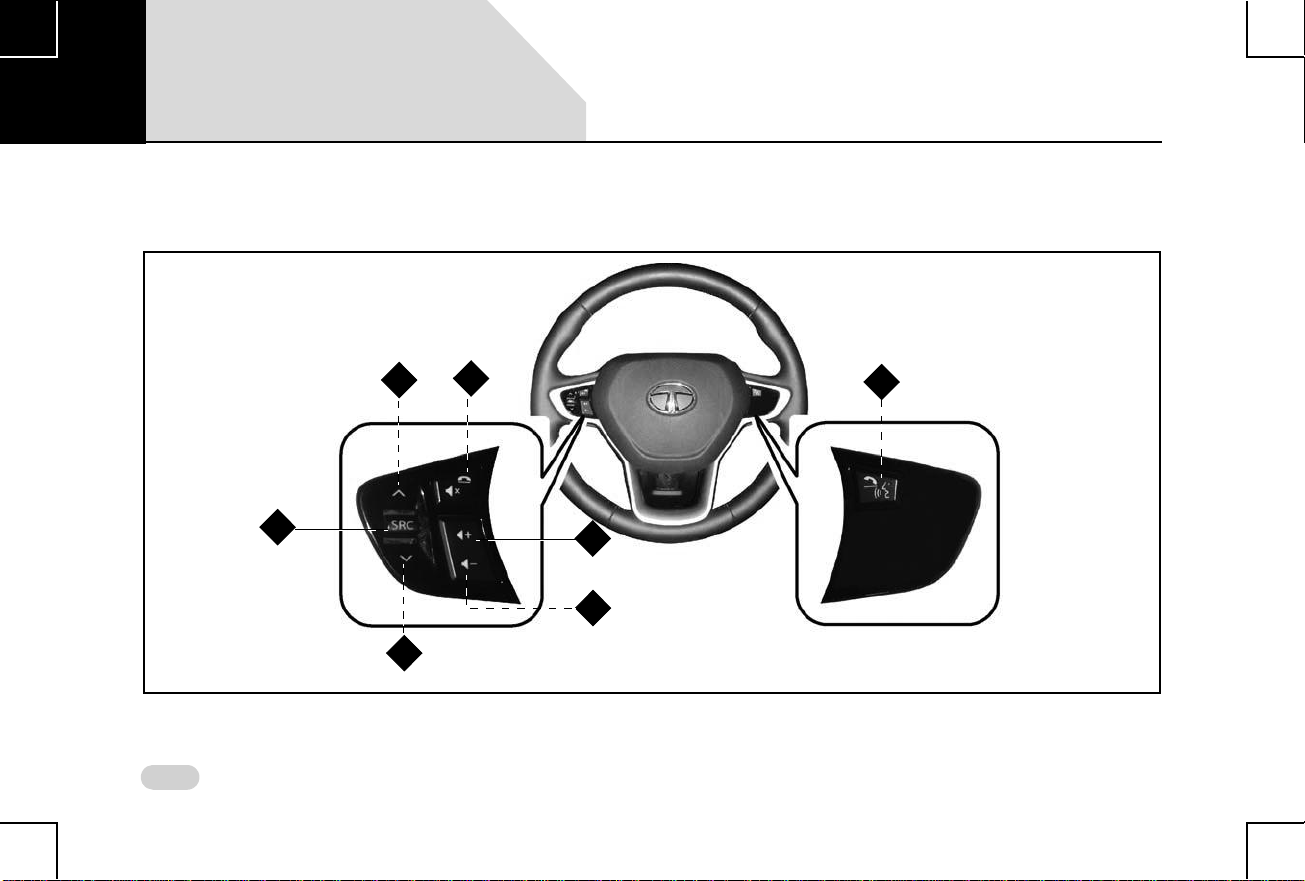

CONTROL ELEMENTS OVERVIEW
The control elements, buttons and knobs, that are available
on the infotainment system allows you to control the
infotainment system. It provides you with quick and easy
access to the commonly used functions and options of the
infotainment system.
678
Figure 1: CONNECTNEXT® Infotainment System Control Elements
1345
2
02
543858409904

12
INTRODUCTION CONTROL ELEMENTS OVERVIEW
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
1
Volume Knob
 Clock Wise:
Increases the volume.
 Anti-Clock Wise:
Decreases the volume.
 Short Press:
System Switch Off Mode: System On
Media/Android Auto/CarPlay: If Media OFF, Media ON, if Media ON, Play/Pause
Radio: Mute/Unmute
 Long Press:
System Switch Off Mode: System On
System in One Hour Mode: System Off
Media/Android Auto/CarPlay: Media ON/Media Off
2
Home button
 Short Press & Long Press:
Displays home screen with current media/audio source playing in the background.
Android Auto/CarPlay: Cancels Android Auto/CarPlay mode & displays the Home screen.
NOTE:
During high priority activities like Park Assist and Active Phone Call, if the Home
button is pressed, no action will be performed.
02
543858409904

13
INTRODUCTIONCONTROL ELEMENTS OVERVIEW
3
Favorite
button
This is a configurable button, which can be set as the shortcut for any of the below listed
functionalities:
1. Source (Toggle)
2. Audio Setup
3. Favorites (Contacts)
4. Voice Command
5. Android Auto (if applicable)
6. CarPlay (if applicable)
 Short Press
Opens the currently configured shortcut. If no shortcut is configured, lists the
configurable functionalities.
 Long Press
Displays the list of configurable functionalities or allows to set a different functionality as
the shortcut.
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
02
543858409904

14
INTRODUCTION CONTROL ELEMENTS OVERVIEW
4Seek
Down button
 Short Press:
iPod, USB, Android Auto/Car Play, Video Playback & Bluetooth Audio: If track played
duration <= the predefined threshold: Plays the previous track. If track played duration >
the predefined threshold: Replays the current track.
Radio: Starts auto seek down.
 Long Press:
iPod, USB, Android Auto/Car Play, Video Playback & Bluetooth Audio: Fast rewinds the
current track.
Radio: Starts auto seek down.
5Seek
Up button
 Short Press:
iPod, USB, Android Auto/Car Play, Video Playback & Bluetooth Audio: Plays the next
track.
Radio: Starts auto seek up.
 Long Press:
iPod, USB Android Auto/Car Play, Video Playback & Bluetooth Audio: Fast forwards the
current track.
Radio: Starts auto seek up.
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
02
543858409904

15
INTRODUCTIONCONTROL ELEMENTS OVERVIEW
6
button
 Short Press & Long Press:
Displays the Phone menu.
Incoming Phone Call: Accepts (Connects) and Rejects (Disconnects) the Phone call.
Active Phone Call: Displays the Phone Browse screen with Call Log, Contacts, Favorites
and Keypad options.
SMS Readout Popup: Activates SMS Readout.
Android Auto/CarPlay: Displays the Android Auto/CarPlay Phone menu.
7
Back
button
 Short Press & Long Press:
Back to the previous menu or screen, if applicable.
NOTE:
During high priority activities like Park Assist and Active Phone Call, if the Back
button is pressed, no action will be performed.
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
02
543858409904

16
INTRODUCTION CONTROL ELEMENTS OVERVIEW
8
Menu Knob
 Clock Wise:
iPod, USB and Bluetooth Audio: Previews next track, if supported. On knob press, plays
the track.
Radio: Enables manual tune up of FM/AM stations.
Setup, Home Screen, Incoming and Active Phone Calls: Scrolls up or down through a
menu/list like call logs, contacts, setup options, media list, home screen tiles or radio
presets.
Android Auto/CarPlay: Next Menu.
 Anti-Clock Wise:
iPod, USB and Bluetooth Audio: Previews previous track. On knob press, plays the track.
Setup, Home screen, Incoming and Active Phone Calls: Scrolls down or left through a
menu/list like call logs, contacts, setup options, media list, home screen tiles or radio
presets.
Android Auto/CarPlay: Previous Menu.
 Short Press & Long Press:
Selects the selection i.e. a track, a menu, an option, or a FM/AM station/preset.
Incoming Phone Calls: Allows to receive/end the incoming phone call, after selecting the
required option.
Outgoing Phone Call: Ends the outgoing phone call.
iPod, USB and Bluetooth Audio playback screen: Displays the Browse screen
Radio: Displays the Presets screen, wherein you can browse the presets
Table 1: Infotainment System Control Elements
Sl
No
Control
Elements Description
02
543858409904

17
INTRODUCTIONOTHER MODES OF CONTROL
OTHER MODES OF CONTROL
In addition to the control elements on the infotainment
system, the system can also be controlled from the:
 Steering Wheel Controls
Steering wheel control elements provide you the flexibility of
controlling your infotainment system even while you are
driving without distracting your attention.
02
543858409904

18
INTRODUCTION OTHER MODES OF CONTROL
STEERING WHEEL CONTROL ELEMENTS
Figure 2: Steering wheel control elements
1
2
3
4
567
02
543858409904

19
INTRODUCTIONOTHER MODES OF CONTROL
Table 2: Steering Wheel Control Elements
Sl
No
Control
Element Description
1-
Increase
Volume
 Short Press:
Increases volume/ring tone volume by 1 unit.
 Long Press:
Increases volume or ring tone volume till the maximum volume is reached.
2-
Decrease
Volume
 Short Press:
Decreases volume/ring tone volume by 1 unit.
 Long Press:
Decreases volume/ring tone volume till the volume value reaches 0.
02
543858409904
