USER MANUAL
THE RO Water Purifier

Sr.No Content Page No
1 Welcome Note 1
2 The technology in your purier- RO 2
3 Pack Contents 3
4 Electronic Circuit Diagram 3
5 Purication Process Diagram 4
6 5 Stage purication 4
7 Advanced Features of your
Tata Swach Silver RO purier
6
8 Double-i-care indications 7
9 Technical Specications 7
10 General Instructions 8
11 Installation Instructions 9
12 Safety Instructions 10
13 FAQ/Troubleshooting 12
14 Warranty Policy 14
15 Warranty Card 16
Table of Content:

1
1Welcome Note
Dear Customer,
Congratulations for bringing home the new Tata Swach Platina Silver RO!
Being the health minister of your home it is your conscientiousness to safeguard
your family from water-borne diseases.
The new Tata Swach Platina water purier includes the advanced RO technology and
Special Silver SafetyTM which acts as a shield of purity. Its user-friendly features like
Double-i-CareTM indicators, Modern Snap-Button tment and Zero-contamination
concealed storage tank ease your Mission Swach Jal by consistently providing clean
and pure drinking water for your family.
This user manual will help you know your Tata Swach Platina Silver RO Water Purier.
For any assistance, we are just a call away @ 1800-2-585858
Tata Swach Team

2
To fully understand the technology of Reverse Osmosis, it is a must to understand
normal osmosis. Osmosis is a natural process that occurs in all living things. For
instance, osmosis permits water and nutrients absorption through the root system of
plants; similarly, nutrition is assimilated from blood to cells in human bodies. So, if a
semi-permeable membrane separates a dilute solution and a concentrated solution,
pure water will ow from dilute to the concentrated side and will try to balance the
concentrations on both sides. This phenomenon is called Osmosis.

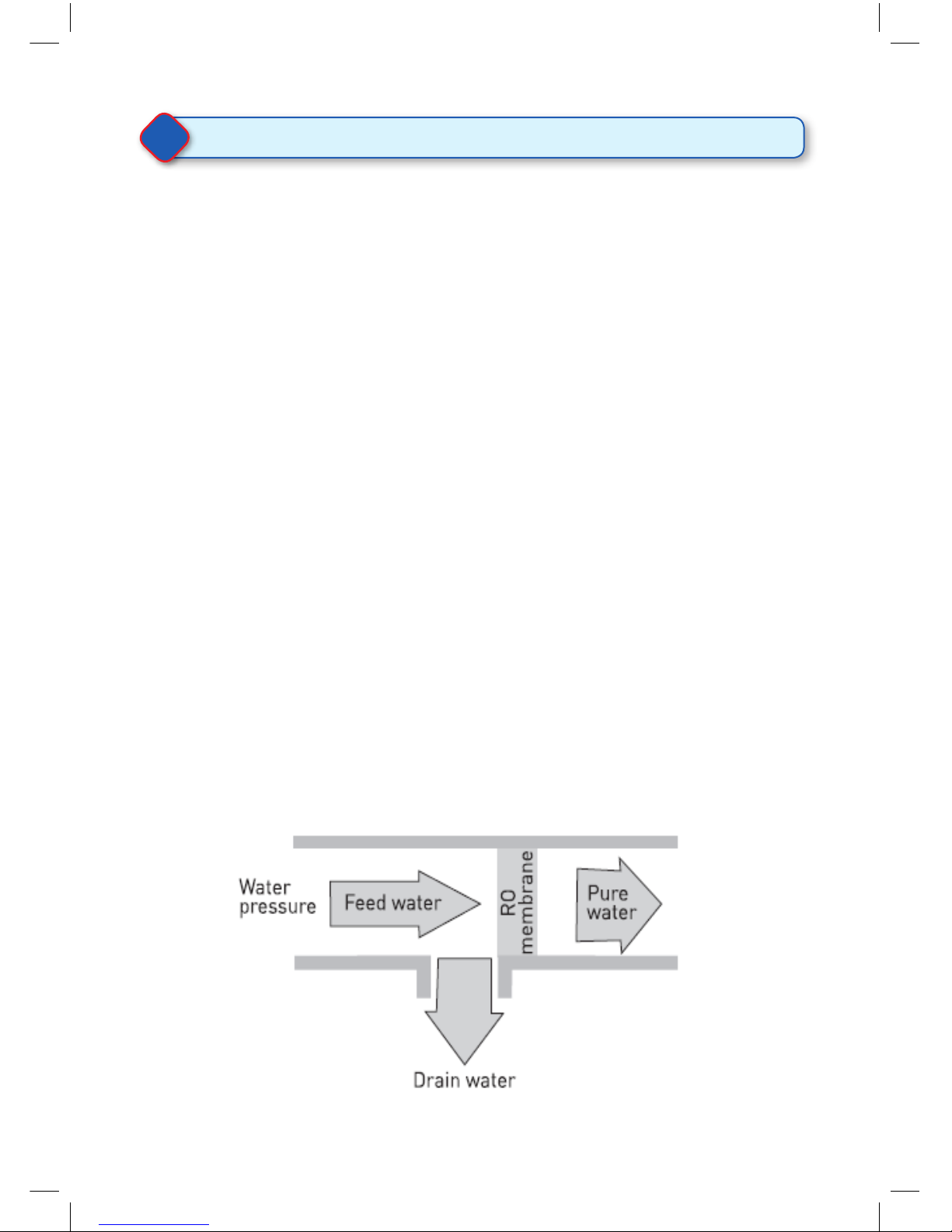

The RO membrane is not permeable to dissolved salts and only pure water can move
across a RO membrane. If pressure is applied to the concentrated solution side, the
ow of water across a membrane can be reversed. This phenomenon of moving pure
water across a membrane from a high TDS solution is called as Reverse-Osmosis.
Hence in Reverse Osmosis, as the water exerts pressure on a semi-permeable
membrane, the puried (or permeate) part enters through the pores of the
membrane, while the rejected (or concentrate) is diverted to the drain. When the
diameter of the pores is as low as 0.0001 microns, pure water and a little quantity
of minerals (sodium, potassium, calcium, and magnesium, etc) can pass through;
while other substances (such as dissolved solids, bacteria, viruses, metals, pesticides,
chemical products, etc) are rejected during the process. This gives you clean and safe
drinking water for consumption.
2THE TECHNOLOGY IN YOUR PURIFIER: RO

3

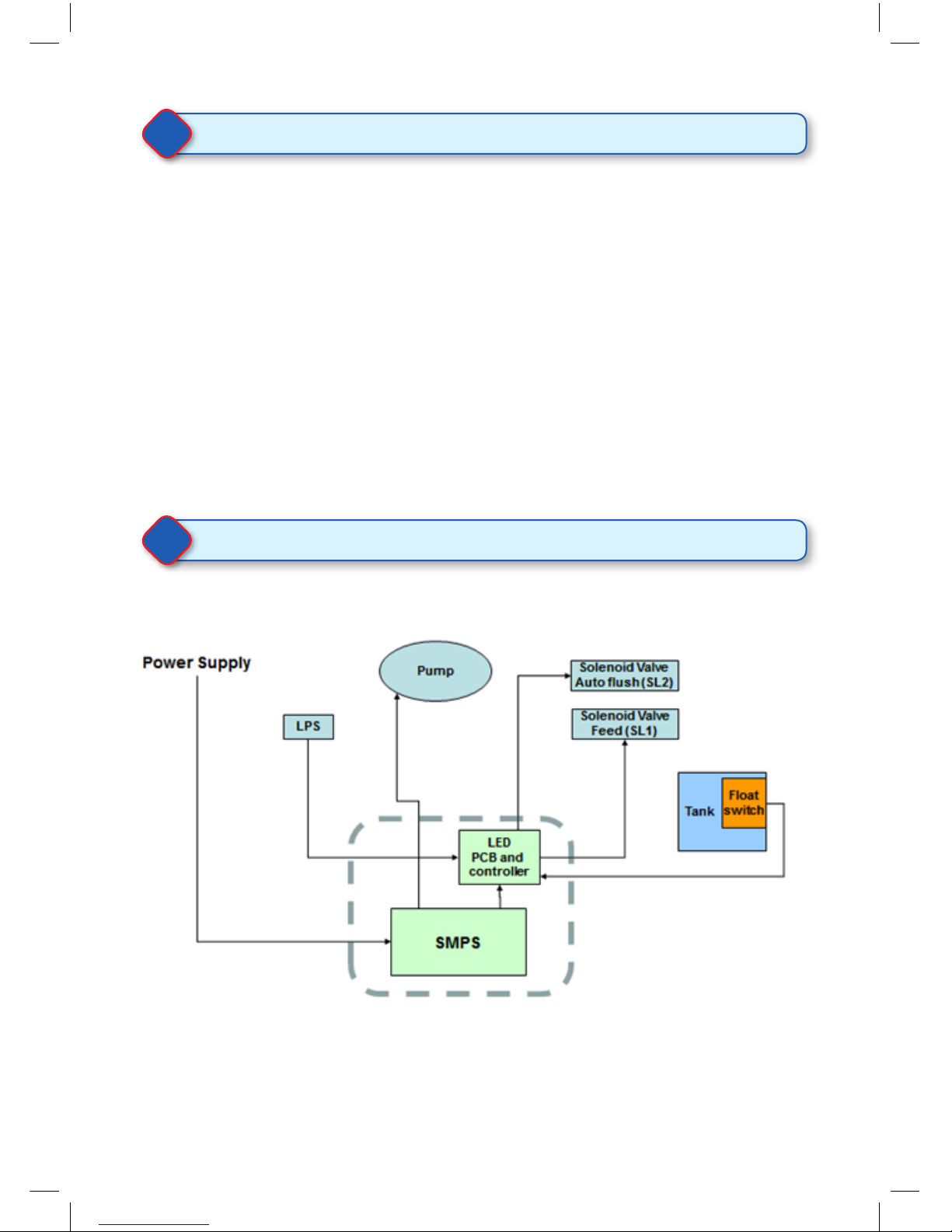

4ELECTRONIC CIRCUIT DIAGRAM :
1. Tata Swach Silver RO Purier
2. 1 RO Membrane
3. User Manual
4. Installation accessories:
 • 2SelfTappingScrews
 • 2PlasticAnchorPlugs
 • FlexiblePipe,1/4”OD
 • BallValve
 • Adaptor(tomountBallValve)
3PACK CONTENTS :

4
Stage 1: Sediment Filter Cartridge (Coarse)
This is the rst ltration process which reduces/removes impurities from the inlet
water. These impurities may be particles such as dust and sediments which are
above 10micron in size. The life of rst sediment lter depends upon the inlet water
quality. If this cartridge chokes, the low pressure switch will be activated and the
Double-i-CareTM indicator will show a fault indication.
Recommended replacement cycle: 6 months*
Stage 2 : Bacteriostatic Granular Activated Carbon (GAC) with Nano Silver
Impregnation technology
This GAC Cartridge reduces chlorine, bad taste and odor from the inlet water. It also
reduces volatile organic compounds and pesticides from water. The Nano-silver
impregnation technology used in this cartridge ensures improved bacteriostatic
performance for the entire life of the carbon capacity. This Special Silver SafetyTM of
the bacteriostatic GAC greatly reduces the chance of bio-fouling and hence increases
the life of carbon cartridge.
Recommended replacement cycle: 6 months/6000Ltr+
5PURIFICATION PROCESS DIAGRAM :
65 STAGE PURIFICATION :

5
Stage 3 : Sediment Filter Cartridge (Fine)
This is the third ltration process which reduces/removes ner impurities from the
inlet water which may have passed through the earlier two stages. These impurities
may be particles such as dust and sediments which are above 5 micron in size.
Recommended replacement cycle: 6 months / 6000Ltr#
Stage 4 : RO Membrane
This is the heart of your Tata Swach Silver RO Water Purier. This National Science
Foundation (US)- NSF certied membrane has ne pores as low as 0.0001 micron in
size to reduce water contaminants such as dissolved salts, pesticides, heavy metals
and water borne micro-organisms such as virus, bacteria etc.
100% dry membrane that comes with your system maximizes shelf life and is put in
your system at the time of installation.
Recommended replacement cycle: 2 years^
Stage 5 : Bacteriostatic Granular Activated Carbon (GAC) with Nano Silver
impregnation technology
This Post Carbon GAC cartridge imparts bacteriostatic property to the puried water
and enhances the taste of water.
Recommended replacement cycle: 1 year/ 12000 Ltr++
* If this cartridge chokes sooner than the recommended replacement cycle, it is advisable to install a pre-lter (available separately at a cost)
+ The life of GAC cartridge depends upon the organics, chlorine, etc present in the input water supply. Under standard test conditions the life
is measured as 6000 liters with 2 ppm chlorine water passing through the cartridge.
# The life of 3rd stage sediment lter depends upon the input water quality. Standard test conditions have ISO coarse A4 dust in water which
is passed through the cartridge for 6000Liters at a pressure of 60psi.
^Under standard test conditions of running the system at 10psi input pressure,TDS upto 750 PPM, turbidity less than 5 NTU and temperature
of 25oC. Depending upon the inlet hardness and TDS levels the membrane may need to be replaced earlier than 2 years.
++ The life of GAC cartridge depends upon the organics, chlorine, etc present in the input water supply. Under standard test conditions the
life is measured as 12000 liters with 2 ppm chlorine water passing through the cartridge.

6
7ADVANCED FEATURES OF YOUR TATA SWACH PLATINA SILVER RO WATER PURIFIER:
Purication rate 12.0 Liters/hour **
Auto Flush Mechanism Automatic Membrane Protection
Auto Low pressure cut-o Automatic system switch o below 5
psi pressure in input water to avoid dry
running of booster pump
Inlet water switch o mechanism Blocks inlet water supply when no
power is available to the system or
system is not purifying.
Special Silver Safety TM Nano Silver Impregnation technology
which imparts longer life to cartridges
Double-i- Care indicators TM Provides intelligent information through
its advanced indicators
Zero Contamination Storage Tank Saves you from the hassle of cleaning
the tank
Stylish faucet tap To match your modern lifestyle
Advanced Snap button tment Screw less front opening of the purier
makes servicing easy as it avoids
dismantling the unit
VoltageSpikeGuard Protects against power uctuation
**As per standard test conditions. 10psi input pressure and 750ppm TDS at 25degC.

7
Product TATA SWACH PLATINA SILVER RO
Applications Suitable for purication of tap water
upto 2000ppm TDS and hardness below
500ppm
Purication Capacity Upto 12L/hr**
Body Material ABS
Type Wall Mounted
Dimensions(HxWxD in mm) 537 x 420 x 168
Inlet water pressure Minimum 5 psi, Maximum – 35 psi.
Inlet water temperature 2
o
C to 49
o
C
Stages Sediment, Pre-carbon, Sediment, RO,
Post-carbon
Auto-ushing system Yes
Weight
10.05 Kgs
8DOUBLE-i-CARE INDICATORS
9TECHNICAL SPECIFICATIONS:
Introduces you to advanced/new era of modern & useful indications in an easy-to-
understand way:
S.No. Application Condition LED Indication
Mnemonic Color Status
1 System Fault Low Pressure
Red
ON
1st stage choked Red ON
2
Flushing
System is ushing ( power on
and every 6 hrs)
Green Blinking
3 Purication ON Tank Filling / Pump running Blue Solid
4 Tank Status Tank Full Blue ON
5System Power Power ON Green ON

8
TankVolume 7 Liters
Membrane Type TLC™ (Thin Layer Composite)
Booster Pump voltage 24VDC
Mains voltage 160-270VAC
**As per standard test conditions. 10 psi input pressure and 750ppm TDS at 25degC.
While our Service Technicians are trained to follow the installation safety guide,
it is imperative that you are aware of them
1. Match the packaging list with the items in the box
2. Always ensure that the Tata Swach Silver RO purier is installed by a trained
technician
3. Tata Swach Silver RO purier must be wall-mounted
4. Do not install the purier directly above an electric socket
5. Ensure you use the plug provided with the purier and do not change it
unless recommended by Company’s service technician
6. The length of the water inlet hose must be shorter than 3 meters to ensure
sucient pressure is available to the machine.
7. Always connect only with cold/normal water inlet only. Do not use with hot
water.
8. Do not conne water purier in a cabinet
9. Input water pressure needs to be between 5 PSI and 35 PSI. In case it is more
than35PSI,youneedtousea“pressurereducingvalve”andincaseitisless
than5PSI,youneedtousea“pressureboosterpump”.Eithercanbebought
from the market or from the Company technician at an additional cost.
10. Inlet water TDS should not exceed 2000 ppm. Hardness should not exceed
500 ppm.
11. Ensure the inlet, outlet and drain connections are properly connected and
that the drain point is not blocked.
12. Avoid sharp bends in the connecting pipes ensuring inlet pipe and reject
water pipe has free water ow path.
10 GENERAL INSTRUCTIONS

9
13. Avoid direct exposure to sunlight or humidity and ensure sucient
ventilation
14. Ensure waste/reject water pipe is connected to a drain point and water from
reject water pipe is never consumed.
PLEASE ENSURE THAT YOUR TATA SWACH PLATINA SILVER RO IS INSTALLED
BY A TATA SWACH TECHNICIAN ONLY
Pre-Installation Requisites:
1. 220VsinglephaseACconnectionnotmorethan2mawayfromthepointof
installation of purier. The wire length supplied with the system is 2m
2. Rawwatersupplywith½”nipplenotmorethan3maway
3. Drain for rejected water not more than 3m away
4. Space on the wall as per dimensions of the purier
5. Wall/plane surface for mounting two screws and holding the machine.
Installation Instructions
1. Turn-o the main water supply before accessing the nipple for connecting
the ball valve and adaptor.
2. Connect the adaptor to the nipple and thread in the ball valve to the
adaptor. Make sure Teon tape is applied to arrest any leakages from the
threads. Connect the ball-valve with the pipe provided.
3. Remove the front cover of the purier by pushing the snap button on top.
Take out both the GAC cartridges one-by-one and use the pipe attached to
the ball-valve to ush for 30 sec with water. After ushing, connect it back in
to the system.
4. Connect the pipe to the inlet marked on the purier. In case you choose to
install additional pre-lter (available at an additional cost), connect the pipe
to inlet of this pre-lter and connect the outlet of pre-lter to inlet of the
purier.
5. 100% dry RO membrane comes sealed in a pack (and not pre-tted) with
your system to maximize shelf life. Unpack and install the RO membrane.
11 INSTALLATION INSTRUCTIONS

10
6. Plug in the power supply and check for any leakages from any of the
connectors or pipes. If leakage, then ret. If there is no leakage, close the
front cover of the purier.
7. Wait for a few minutes for the system to auto-ush and start lling the
concealed storage tank.
8. Drain out rst 15 to 20 liters of puried water from the storage tank.
Your Tata Swach Platina Silver RO is now ready for use. Familiarize your family
members with operation and maintenance of the system.
If away from home :
If the purier is not going to be used for more than 2 weeks, shut o the system and
drain the stored water. Also, turn o the inlet water adapter valve.
Electrical Safety
These safety instructions must be read carefully to ensure your safety and prevent
property damage.
1. Ensure that the local voltage accords with the system voltage to prevent
electric shock or re.
2. Do not use a damaged power cord or plug, or a loose outlet.
3. Do not unplug by pulling the cord or handle the plug with wet hands. This
may result in electric shock or re.
4. Do not bundle the power cord tightly together, as it may cause damage.
5. If the cord or plug is wet, unplug the unit and let it dry completely before
subsequent use.
6. Unplug the unit before repair, inspection, or replacement to prevent any
damage.
7. Do not plug into an outlet or power strip that is being used by several
other appliances. Use a separate outlet for the unit to prevent re.
8. Shut the main water supply valve and unplug the power cord when not
using for a long time.
9. Do not attempt to repair the power cord yourself. Electric shock or re may
occur as a result.
12 SAFETY INSTRUCTIONS:

11
10. Remove any dust or water particles on the plug. Never use benzene or
gasoline to clean the plug. Electric shock or re may occur as a result.
11. Do not move the product by pulling the electrical cord.
12. Do not clean the system with wet cloth when power is on. Use a moist
cloth to clean the external surface of the purier.
Operation Safety Instructions
1. If water leaks from the product, close the ball valve and call the customer
service.
2. If the unit makes a strange noise or you notice an odd smell, unplug
immediately and call the customer service
3. Do not place candles, cigarettes or any other ammable objects on and
around the purier.
4. If you have not consumed water from the Tata Swach Silver RO purier
for more than 2 days, drain the water from storage tank and rell for
consumption.
5. Periodical cartridge replacement is a prerequisite for clean water. Use
Tata Swach genuine (with Tata Swach logo) purier products to maintain
expected product lifespan and performance.
6. Flushing is necessary after any cartridge replacement.
7. Do not expose the unit to direct sunlight and high humidity environment.
The optimal room temperature for the unit is 40C-500C.

12
What is the storage capacity of my Tata Swach Platina Silver RO?
Tata Swach Platina Silver RO has tank volume of 7ltrs.The process of lling the tank
is fully automatic and when you take water out of the tank, the purication process
automatically starts and rells the storage tank.
What is the purication rate of my Tata Swach Platina Silver RO?
Tata Swach Platina Silver RO can purify water upto 12 ltr/hr. However time taken to
purify water depends upon the life of lters, the input water pressure, TDS and other
impurities present in water.
Which consumables require periodic replacement?
Consumables such as the two Sediment Filter cartridges, Pre and Post GAC cartridges
and RO membrane need periodic replacement depending upon the end-of-life
indication, service schedule or fault indication as shown on display panel. Please
note that the life of the consumables is dependent on the input water quality.
What should I do when there is no puried water in the tank?
In case there is no puried water in the tank; you need to rst check for any red
indication on the Double-i-CareTM indicator. Please call Tata Swach Toll-free number
1800-2-585858 for change of cartridges or any other assistance required.
How long is the stored water in the Tata Swach Platina Silver RO safe to drink?
It is advised to drain out the stored water if not consumed within two days.
How can I use the rejected water?
It is not recommended to use reject water for any kind of consumption. However you
can use it for gardening or cleaning oors.
What should I do if any part of purier gets broken?
Please call the Tata Swach Toll-free number 1800-2-585858. Our technician will visit
your house and guide you on the repairs required. There will be a nominal visiting
charge and all replacements shall be on a chargeable basis
Can I open and service my Tata Swach Platina Silver RO?
It is not recommended to open and service the purier yourself. Call our customer
care if you face any issue which requires servicing or opening the purier.
13 FAQ/ TROUBLESHOOTING

13
What should I do if the output water tastes unusual?
This might be because of one or more of the following reason
• Waterisstoredfortoolonginthestoragetank.Pleasedrainthestoredwater
and ll fresh water.
• The lters/membrane need to be replaced. CallTata Swach customer care
and get replaced or cleaned
• Theinputwaterqualityhaschanged.Thiswillleadtoasudden changein
the output water taste. Please call the Tata Swach customer care to get your
system checked.
What should I do if the purication is taking more time?
This might be because of one or more of the following reason
• Theballvalvemaynotbeopenfully-Pleaseensurethatballvalveisopen
completely so that the water ow is not restricted
• Theincomingwaterlineortheballvalveischokedbecauseofdebrisinthe
incoming water. You can ask your plumber to check if this is the case.
• The temperature of input water might have dipped drastically(this will
happen rarely)
• Theltersmaybechokedorthemembraneneedsreplacement
What should I do if the storage tank is not getting lled?
This might be because of one or more of the following reason
• Checkiftheballvalveiskeptopen
• CheckifthesystempowerisON.
• CheckifanyoftheindicationsareblinkingREDorsolidRED
• Checkforanycloggingintheincomingwaterline.AREDindicationwillbe
there to show low pressure if this is the case.
• Checkforleakagesinthepurierandiffound,calltheTataSwachToll-free
number: 1800-2-585858

14
Your new Tata Swach Platina Silver RO water purier is warranted against material
defects arising from workmanship for a period of 12 months from the date of invoice
by the rst end user, subject to following conditions:
1. During this Warranty period, TATA CHEMICALS LTD (TCL) or its Authorized
Service Provider (ASP) will replace or repair any part of the Tata Swach Silver
RO water purier, that in the opinion of TCL or its ASP, arise due to faulty
material or workmanship (i.e. manufacturing defects)
2. Consumables like Sediment Filter, Carbon Filter and Membrane are input
water quality dependent hence not covered under warranty.
3. The product’s plastic body is not covered under Warranty and hence, it must
be handled with care to guard against breakage during transit and usage.
4. The customer will notify TCL customer care promptly about any defects
noticed and give the ASP adequate opportunity to inspect, test and remedy
them, for which the customer will deposit the purier if necessary with the
company’s service centre along with original invoice, in the city where the
product was purchased. Product so deposited for Warranty examination
must be shipped freight prepaid. TCL will be entitled to repair/replace the
defective part and retain the replaced part.
5. This Warranty is void if the unit is not installed by ASP and also if not
operated under normal municipal/well water conditions or is subjected to
the temperature above 35°C.
6. This warranty is void if any kind of repair or alteration is done by customer
or unauthorized service provider or for failures resulting from the lack of
proper maintenance or faulty electrical conditions or non-usage of Tata
Swach genuine spare parts.
7. Input water pressure needs to be between 5 PSI and 35 PSI. In case it is more
than 35 PSI, you need to use a“pressure reducing valve” and in case it is
lessthan5PSI,youneedtousea“pressureboosterpump”.Incaseconsumer
chooses not to install the required, any replacement of damages parts due
to uctuating input pressure shall be on payable basis.
14 WARRANTY POLICY

15
8. TCL or its ASP shall not be held liable for claims exceeding the cost of repair
of the defects in workmanship
9. This Warranty Agreement shall not be interpreted to render TCL or its
ASP liable for injuries or damages of any kind - direct, consequential or
contingent to persons or property.
10. TCL or its ASP shall not be held responsible by representative or buyer for
failure to abide by any of the obligations of this Warranty Agreement if such
failures are the result of circumstances of Forces Majeure : including but not
limited to Acts of God like oods, earthquakes, etc or transportation strikes,
labour disputes with outside suppliers or any other conditions beyond the
control of TCL or its ASP.
11. TCL or its ASP cannot and shall not be held liable for any sickness or illness
due to the consumption of drinking water from any water purier supplied
byTCL, sinceTCL or its ASP does not have any control over the quality of input
water, maintenance of purier and storage and consumption conditions of
puried water.
12. ThisWarranty Agreement excludes all products/component parts or damage
to any part of this water purier which, in the opinion of TCL or its ASP, have
been subjected to misuse, misapplication, negligence, alteration, accident
or operation contrary to TCL instructions, or incompatibility with accessories
not installed by TCL or its ASP, or that have been repaired with component
parts other than those manufactured by or obtained from TCL or its ASP. In
all such cases regular charges will apply. This limited Warranty does not
include service to diagnose a claimed malfunction in this unit.
13. TCL reserves the right to alter or improve design and specications of
Tata Swach Silver RO at any time, without any contingent obligations to
prospective buyers or owners of the products previously sold.
14. Any disagreements and obligations based upon the purchase of Tata
Swach Silver RO products and thereby imposed on TCL or its ASP shall be
governed by and construed according to the laws of India and subject to the
jurisdiction of Mumbai Courts only.
15. In case of product related queries or complaints, kindly report the same on
our Toll Free no. 1800-2-585858 or mail us at [email protected].

16
Product Details
Model name
Model Serial No.
Customer Details
Name
Telephone No.
Address
Email
Purchase Details
Retailer Name, City
Invoice No.
Invoice Date
Installation Date
Service Providers Details
Name
Address
phone no.
Customer Signature Service
Provider’s Stamp
Marketed By:
Tata Chemicals Ltd.
Product Details
Model name
Model Serial No.
Customer Details
Name
Telephone No.
Address
Email
Purchase Details
Retailer Name, City
Invoice No.
Invoice Date
Invoice amount
Installation Date
Service Providers Details
Name
Address
phone no.
Customer Signature Service
Provider’s Stamp
Marketed By:
Tata Chemicals Ltd.
Company Copy Customer Copy
15 WARRANTY CARD (to be lled by service provider)
