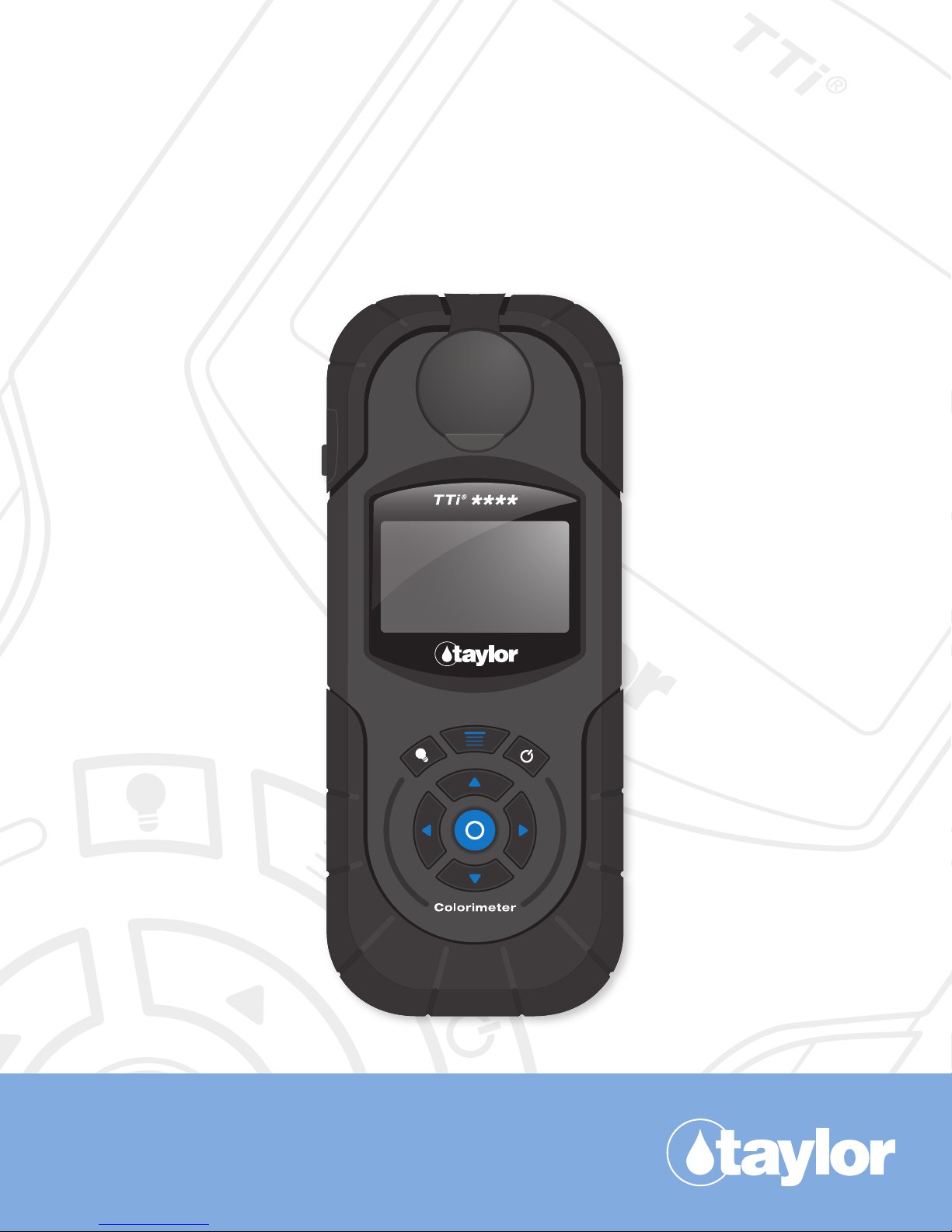

Taylor K-8000 User manual

TTi®
Colorimeter Series
User’s Manual
Taylor Technologies, Inc.
800-TEST KIT (837-8548)
www.taylortechnologies.com

TTi®
Colorimeter Series User’s Manual

TTi®
Colorimeter Series User’s Manual
First Edition
last revision to this edition 6/12/2017
Taylor Technologies, Inc. Sparks, Maryland

Taylor Technologies, Inc., Sparks, Maryland 21152
© 2012 Taylor Technologies, Inc.
All rights reserved. First edition published online 2012
For ready reference by the reader, the date of the last revision
to the manual is posted on the title page. The latest revision
date for each chapter or subsection is posted in parentheses
after its title in the table of contents. Check these periodically
to make sure your file copy is up to date.

vTTi®Colorimeter User’s Manual
TABLE OF CONTENTS
PART 1 GENERAL INFORMATION
Safety and General Precautions (4/21/15) .............................................................................................1-3
Colorimeter Description ........................................................................................................................1-3
Features (10/19/12).......................................................................................................................1-3
Optional Chemical Forms (4/19/13) ................................................................................................1-4
Components and Optional Accessories (6/12/17)...................................................................................1-5
Colorimeter Reagent Packs (6/12/17)....................................................................................................1-5
Supplementary Testing Supplies (4/7/15)...............................................................................................1-7
Registration (10/19/12) ........................................................................................................................1-7
Contacting Taylor Technologies (4/21/15) ..............................................................................................1-8
PART 2 TESTING PRIMER
Introduction to Colorimetric Absorption Analysis (10/19/12).....................................................................2-3
Best Practices .....................................................................................................................................2-3
Sampling (10/19/12)......................................................................................................................2-4
Filtering Samples (10/19/12) ..........................................................................................................2-4
Diluting Samples (10/19/12)...........................................................................................................2-4
Pretreating Samples (4/14/16)........................................................................................................2-5
Adding and Mixing Reagents (10/19/12)..........................................................................................2-6
Storing Reagents (10/19/12) ..........................................................................................................2-6
Inserting and Aligning Sample Cells (4/2 /13 ) ...................................................................................2-7
Performing a Test (10/19/12) .........................................................................................................2-8
Cleaning Sample Cells (10/19/12)...................................................................................................2-8
PART 3 COLORIMETER OPERATION
The PC App (10/19/12) ........................................................................................................................3-3
Guide to Operating Parts and Controls (10/19/12) ..................................................................................3-3
Battery Installation/Connection to a Power Supply (10/19/12)..................................................................3-4
Keypad (10/19/12)...............................................................................................................................3-5
Display (10/19/12) ...............................................................................................................................3-6
Screen Format and Navigation (10/19/12)..............................................................................................3-6
Icons and Symbols (10/19/12) ..............................................................................................................3-8
Main Menu (10/19/12) .........................................................................................................................3-9
Test Menus (10/19/12).........................................................................................................................3-10
Initial Start-Up (10/19/12).....................................................................................................................3-11

vi TTi®Colorimeter User’s Manual
PART 3 COLORIMETER OPERATION (cont’d)
Start Test ............................................................................................................................................3-12
How to Perform a Test (10/19/12)...................................................................................................3-12
Test Alerts (10/19/12)....................................................................................................................3-17
Test Timers and Auto-Read Option (10/19/12).................................................................................3-17
Adjust Calibration (10/19/12)..........................................................................................................3-21
Access Test Data (10/19/12) ................................................................................................................3-24
Edit Favorites (10/19/12) ......................................................................................................................3-26
Edit Series (10/19/12) ..........................................................................................................................3-29
How to Perform a Series Test (10/19/12)...............................................................................................3-32
Tools ...................................................................................................................................................3-35
Data Transfer (10/19/12)................................................................................................................3-36
User Timer (10/19/12) ...................................................................................................................3-37
Settings (10/19/12)..............................................................................................................................3-38
Absorbance and Transmittance Tests (10/19/12)....................................................................................3-42
User-Developed Tests...........................................................................................................................3-45
Program and Transfer a User-Developed Test (4/19/13)....................................................................3-45
Edit a User-Developed Test (4/15/13) ..............................................................................................3-48
Delete a User-Developed Test (4/15/13) ..........................................................................................3-48
Test Instruction Example (4/2/13) .........................................................................................................3-48
PART 4 USING THE PC APP
Transferring Test Data (4/15/13) ...........................................................................................................4-3
Maintaining a Customer Database (4/2 /13 )...........................................................................................4-4
Updating the PC App, Firmware, and Test Files (4/15/13).......................................................................4-5
Creating User-Developed Tests (4/19/13)..............................................................................................4-6
Accessing Helpful Links (4/2/13 ) .........................................................................................................4-6
PART 5 MAINTENANCE
Accuracy Check (10/19/12) ..................................................................................................................5-3
Routine Care (4/2 /13 ) ..........................................................................................................................5-3
Waste Disposal (4/21/15) .....................................................................................................................5-3
Warranty Information (10/19/12)...........................................................................................................5-4
PART 6 BEFORE YOU CALL FOR SERVICE
Error Codes (10/19/12) ........................................................................................................................6-3
Return Policy (10/19/12) ......................................................................................................................6-5

viiTTi®Colorimeter User’s Manual
PART 7 COLORIMETER SPECIFICATIONS
Specifications Summary (4/19/13) ........................................................................................................7-3
PART 8 COMPLIANCE SYNOPSIS
Certification (10/19/12) ........................................................................................................................8-3
Information to the User (10/19/12) ........................................................................................................8-3

1

1-1TTi®Colorimeter User’s Manual
Part 1 General Information
1Part 1
General
Information

1-3TTi®Colorimeter User’s Manual
Part 1 General Information
SAFETY AND GENERAL PRECAUTIONS
The TTi®Colorimeter Series User’s Manual and actual test instruction(s) should be read in their entirety before performing the initial setup, running any tests, or customizing the Colorimeter. We recommend
printing a hard copy of this manual for your files. The preprinted Quick-Start Guide supplied with the Colorimeter
summarizes key points in the User’s Manual and is intended to travel with the device for ready reference.
Observe the following precautions:
• Chemical safety:
Reagents for use with the instrument can be hazardous. Read and observe all information printed on reagent
labels and corresponding Safety Data Sheets (SDSs) prior to use. To view or print reagent SDSs, visit the
Product Info/Documents area of our website, www.taylortechnologies.com. You will need to know the
five-character product number signified by “R-XXXXX” on the reagent label and the test instruction. We
recommend printing file copies of the SDSs for all your reagents.
• Keep all reagents out of reach of children.
• Use only Taylor reagents for preprogrammed tests for operator safety and to avoid damage to the instrument.
• Operational requirements:
During operation place the instrument on a stable surface that is reasonably level, or hold in a horizontal
position if used as a handheld device.
• Environmental conditions:
Do not use or store the instrument in environments of extreme temperature or humidity.
Operational temperature range: 32°F–122°F (0°C–50°C)
Operational humidity limit: 90% @ 122°F (50°C) non-condensing
Do not immerse the instrument in water or use or store the instrument in environments with excessive
dust. The instrument has an IP67 environmental protection rating signifying that it is dust-tight and can
survive an accidental immersion in water of up to 1 meter for 30 minutes.
Do not leave the instrument exposed to direct sunlight for a prolonged period.
When not in use, keep the instrument stored in its carrying case.
• Voltage symbol indicates DC voltage. See instrument label.
COLORIMETER DESCRIPTION
The TTi®Colorimeter, manufactured by Taylor Technologies, Inc., is a handheld, multiwavelength,
microprocessor-controlled, menu-driven, direct-readout instrument that employs light-emitting diodes (LEDs)
as light sources. The instrument design combines technical performance with an intuitive user-interface, the
functional attributes most sought by water analysts, and durability. Its portability and data-logging capabilities
make it well suited for use in the field in addition to the laboratory.
FEATURES
• High performance spectral optics:
LEDs are durable and ideally suited for use in portable instruments.
Wavelength filters are used to narrow the bandpass of light emitted from LEDs to obtain accurate,
repeatable results. The instrument contains 6 wavelength filters (420, 470, 520, 570, 620, and 660 nm).
Wavelength filters are specified to provide a wavelength accuracy of ±1 nm and a wavelength bandwidth
of 10 nm ±1 nm. In addition, all filters are manufactured using a process that provides enhanced thermal,
environmental, and spectral stability.

1-4 TTi®Colorimeter User’s Manual
Part 1 General Information
• Preprogrammed tests for each model cover the most common tests sought by water analysts.
• Automatic wavelength selection for preprogrammed and user-developed tests.
• Integrated test timers (includes up to 4 preprogrammed test timers with AUTO-Read option) and 1 user
timer for general purposes.
• Test results displayed in concentration units (ppm, ppb, ppt, mg/L, µg/L, g/L), absorbance (ABS), or
transmittance (% T).
• Test results displayed in optional chemical forms (available for most preprogrammed tests).
• ADJUST CALIBRATION option allows adjustment of preprogrammed calibrations.
• Intuitive, easy to navigate user-interface.
• FAVORITES menu allows for a customized test menu to be created and edited.
• SERIES feature allows a group of selected tests to be chosen and performed consecutively in any order.
• Data storage and recall for 100 test results with time and date stamps.
• User-developed test capability allows users to program up to 8 proprietary tests of 12 data points each.
• Free PC App allows users to transfer test results, download test files and firmware, create user-developed
tests, and access helpful links.
• Custom graphical liquid crystal display (LCD) with anti-glare coating provides excellent contrast and
readability.
• Adjustable backlighting permits use in low-light environments; a timeout feature conserves battery life.
• Custom 8-button, silicone rubber keypad combines a soft, tactile feel with superior durability.
• Portable, rugged design that is waterproof and dust-tight.
• Powered by 4 AA batteries or an AC power adapter for connecting to a wall outlet, or a USB cable for
connecting to a PC or laptop (all power supply options are included with the instrument).
OPTIONAL CHEMICAL FORMS
Optional chemical forms for expression of test results are available for most tests. If available,  will appear
to the right of the chemical form. When an optional chemical form is selected within a test, the range (or range
upper limit) on the test screen will change to correlate with the selected chemical form, and all subsequent test
results and stored test data will be expressed in terms of the selected chemical form. The selected chemical
form will remain the default for that test until changed by the user.
NOTE: If a new Taylor test file is downloaded using the PC App, the optional chemical forms for all
tests will reset to the default chemical form.
Illustration of optional chemical forms available for testing molybdenum

1-5TTi®Colorimeter User’s Manual
Part 1 General Information
COMPONENTS AND OPTIONAL ACCESSORIES
Your meter purchase includes the following components:
Quantity Part Number Description
1M-XXXX TTi®Colorimeter (model number on instrument faceplate)
15543 Quick-Start Guide
46105 AA Alkaline Battery
16535 AC Power Adapter
16551 Dilution Vial, 50 mL w/ cap
1 6552 USB Cable
46649 Foam Brush
2 9601 Sample Cell, 25 mm w/ cap
29602 Sample Cell, 15 mm w/ cap
The following optional accessories, viewable on www.taylortechnologies.com, may be purchased separately:
Part Number Description
K-8000 TTI®Colorimeter Series Accuracy Check Kit
7146 Soft Carrying Case, gray (for use with TTi®2000 or 3000), 11"w x 7"d x 4.625"h
7203 Replacement Foam Insert (for 7146)
9502 Hard Carrying Case, gray (for use with TTi®3000), 20"w x 15.625"d x 5.5"h
9504 Hard Carrying Case, blue (for use with TTi®2000), 20"w x 15.625"d x 5.5"h
9506 Hard Carrying Case, gray (for use with TTi®2000), 10.75"w x 9"d x 7"h
All components and optional accessories, excluding batteries, as well as reagent packs (see next section), are
available directly from Taylor Technologies or authorized distributors. To order from Taylor, call toll-free
800-TEST KIT (837-8548).
COLORIMETER REAGENT PACKS
Currently available reagent packs for the TTi® 2000 Colorimeter are listed below. Each pack contains
an instruction and all the reagents needed to run the specified test, housed in a snap-fit kit of ABS plastic.
Instructions and kits are sized to fit securely in the optional Hard Carrying Case (#9504 or #9506).
Alternatively, the contents of the reagent packs may be transferred to your existing carrier.
Part Number Description
K-8001 Reagent Pack, Colorimeter, Chlorine (free/total), DPD (powder), 0-4.00, 0-8.0, or 0-10.0 ppm
K-8002 Reagent Pack, Colorimeter, Bromine (total), DPD (powder), 0-10.00 or 0-20.0 ppm
K-8005 Reagent Pack, Colorimeter, Phosphate, 0-3.00 ppm (20-3000 ppb)
K-8009 Reagent Pack, Colorimeter, Iron, 0-4.00 ppm
K-8012 Reagent Pack, Colorimeter, Copper, 0-3.00 ppm
K-8020 Reagent Pack, Colorimeter, Hydrogen Peroxide, 0-2.00 ppm
K-8023 Reagent Pack, Colorimeter, Sodium Chloride (Salt), 0-80 ppm
K-8024 Reagent Pack, Colorimeter, Alkalinity (total), 0-250 ppm
K-8027 Reagent Pack, Colorimeter, pH, 6.50-8.50
K-8027AB Reagent Pack, Colorimeter, pH (with Acid & Base Demand), 6.50-8.50
K-8029 Reagent Pack, Colorimeter, Hardness (total), 0-500 ppm
K-8030 Reagent Pack, Colorimeter, Hardness (calcium), 0-800 ppm
K-8031 Reagent Pack, Colorimeter, Monopersulfate, 0-10.0 ppm

1-6 TTi®Colorimeter User’s Manual
Part 1 General Information
Colorimeter Reagent Packs (cont’d)
K-8032 Reagent Pack, Colorimeter, Cyanuric Acid, 7-120 ppm
K-8034 Reagent Pack, Colorimeter, Manganese, 0-0.80 ppm
K-8035 Reagent Pack, Colorimeter, Nitrate, 0-44 ppm
K-8040 Reagent Pack, Colorimeter, Biguanide, 0-70 ppm
Currently available reagent packs for the TTi® 3000 Colorimeter are listed below. Each pack contains an
instruction and all the reagents needed to run the specified test, housed in a snap-fit kit of ABS plastic.
Instructions and kits are sized to fit securely in the optional Hard Carrying Case (#9502). Alternatively, the
contents of the reagent packs may be transferred to your existing carrier.
Part Number Description
K-8001 Reagent Pack, Colorimeter, Chlorine (free/total), DPD (powder), 0-4.00, 0-8.0, or 0-10.0 ppm
K-8002 Reagent Pack, Colorimeter, Bromine (total), DPD (powder), 0-10.00 or 0-20.0 ppm
K-8003 Reagent Pack, Colorimeter, Molybdenum, 0-3.30 ppm
K-8004 Reagent Pack, Colorimeter, Phosphate, 0-70.0 ppm
K-8005 Reagent Pack, Colorimeter, Phosphate, 0-3.00 ppm (20-3000 ppb)
K-8006 Reagent Pack, Colorimeter, Polymer, 0-20 or 20-500 ppm
K-8007 Reagent Pack, Colorimeter, Silica, 0-60.0 ppm
K-8008 Reagent Pack, Colorimeter, Silica, 0-4.00 ppm
K-8009 Reagent Pack, Colorimeter, Iron, 0-4.00 ppm
K-8010 Reagent Pack, Colorimeter, Iron (ferrous), 0-3.00 ppm
K-8011 Reagent Pack, Colorimeter, Iron (total), 0-0.300 ppm
K-8012 Reagent Pack, Colorimeter, Copper, 0-3.00 ppm
K-8013 Reagent Pack, Colorimeter, Copper (free), 0-0.200 ppm
K-8014 Reagent Pack, Colorimeter, Phosphonate, 0-30.0 ppm
K-8014-AC Reagent Pack w/ accessories, Colorimeter, Phosphonate, 0-30.0 ppm
K-8015 Reagent Pack, Colorimeter, Hydrazine, 0-1.50 ppm
K-8016 Reagent Pack, Colorimeter, Oxygen Scavenger, 0-1.000, 0-0.700, 0-2.450, 0-2.000, 0-3.000 ppm
K-8017 Reagent Pack, Colorimeter, Manganese, 0-30.0 ppm
K-8018 Reagent Pack, Colorimeter, Boron, 0-2.00 ppm
K-8019 Reagent Pack, Colorimeter, Zinc, 0-3.00 ppm
K-8020 Reagent Pack, Colorimeter, Hydrogen Peroxide, 0-2.00 ppm
K-8021 Reagent Pack, Colorimeter, Nitrite, 0-150 ppm
K-8022 Reagent Pack, Colorimeter, Hardness (total), 0-4.00 ppm
K-8023 Reagent Pack, Colorimeter, Sodium Chloride (Salt), 0-80 ppm
K-8024 Reagent Pack, Colorimeter, Alkalinity (total), 0-250 ppm
K-8025 Reagent Pack, Colorimeter, Sulfide, 0-1.00 ppm
K-8026 Reagent Pack, Colorimeter, Hardness (calcium), 0-4.00 ppm
K-8027 Reagent Pack, Colorimeter, pH, 6.50-8.50
K-8027AB Reagent Pack, Colorimeter, pH (with Acid & Base Demand), 6.50-8.50
K-8028 Reagent Pack, Colorimeter, Molybdenum, 0-60.0 ppm
K-8029 Reagent Pack, Colorimeter, Hardness (total), 0-500 ppm
K-8030 Reagent Pack, Colorimeter, Hardness (calcium), 0-800 ppm
K-8031 Reagent Pack, Colorimeter, Monopersulfate, 0-10.0 ppm

1-7TTi®Colorimeter User’s Manual
Part 1 General Information
Colorimeter Reagent Packs (cont’d)
K-8032 Reagent Pack, Colorimeter, Cyanuric Acid, 7-120 ppm
K-8033 Reagent Pack, Colorimeter, Azole, 0-25.0 ppm
K-8033-AC Reagent Pack w/ accessories, Colorimeter, Azole, 0-25.0 ppm
K-8034 Reagent Pack, Colorimeter, Manganese, 0-0.80 ppm
K-8035 Reagent Pack, Colorimeter, Nitrate, 0-44 ppm
K-8036 Reagent Pack, Colorimeter, Turbidity, 10-400 FAU
K-8038 Reagent Pack, Colorimeter, Ammonia-Nitrogen, 0-1.00 ppm
K-8039 Reagent Pack, Colorimeter, Chlorine Dioxide, DPD, 0-8.0 ppm
K-8040 Reagent Pack, Colorimeter, Biguanide, 0-70 ppm
K-8041 Reagent Pack, Colorimeter, BlueTrace (6120), 0-10 mg/L
SUPPLEMENTARY TESTING SUPPLIES
4029 Pipet, Calibrated (0.5 & 1.0 mL), plastic
4078 Pipet, Graduated (3 mL w/ 0.5 mL div), plastic
9198 Sample Tube, Graduated (25 mL) w/ cap, plastic
9601-3 Sample Cell, 25 mm, 3-pack
9602-3 Sample Cell, 15 mm, 3-pack
6649-4 Foam Brush, 4-pack
6656 UV Light, SteriPEN®(use with all tests requiring UV digestion)
9803 Syringe Filter Start-Up Pack (no filter discs), 60 mL, plastic (contains 6247, 6249, and instruction)
6247 Syringe Filter (no filter disc holder or filter discs), 60 mL, plastic
6260 Syringe Filter (no filter disc holder or filter discs), 30 mL, plastic
6249 Filter Disc Holder, 25 mm, Millipore™, (fits 6247 or 6260) use with filter discs 6261, 6248, 6257
6086-10 Filter Discs (w/ individual filter disc holders), 0.45 µm, Millipore™, 10-pack
6261 Filter Discs, 25 mm diameter, 0.45 µm, Millipore™, 100/box
6248 Filter Discs, 25 mm diameter, 5.0 µm, Millipore™, 100/box
6257 Filter Discs, 25 mm diameter, 2.5 µm, Whatman™, 100/box
6551 Dilution Vial, 50 mL w/ cap, plastic
REGISTRATION
To have full use of the TTi®Colorimeter’s features, you must first register as the owner of record. To begin the
process, go to www.taylorsoftwaresupport.com and enter the site through the TTi® Colorimeter portal. Be
prepared to enter the following information:
• Colorimeter serial number (S/N) - found on the product label on the bottom of the meter
• Owner’s (contact’s) name
• Business name
• Business mailing address
• Contact’s telephone number
• Contact’s e-mail – for notification about important news related to your meter model (e-mail addresses are
not shared with third parties)
Upon completion of the registration process, you will be able to download the TTi®Colorimeter Series PC App to
your computer. For complete information about this software, see Part 3, The PC App, and Part 4 in its entirety.

1-8 TTi®Colorimeter User’s Manual
Part 1 General Information
CONTACTING TAYLOR TECHNOLOGIES
General Office: 410-472-4340
Our business hours are 8:00 a.m.–4:45 p.m. (Eastern Time), Monday through Friday,
except major holidays.
Customer Service: 800-TEST KIT (837-8548)
Customer service representatives are available 8:00 a.m.–5:00 p.m. for application-
specific advice, to open an account, place an order, inquire about order status, or
report a problem with a shipment. If you require more advanced technical assistance,
your call or e-mail will be forwarded to the appropriate resource. You may also leave
us a voice-mail or e-mail message at anytime.
Exchanges and credits are only considered within 30 days of shipment. Please check
your order upon receipt and notify us immediately if there is any problem. To
assure the quality of our chemistries, we do not resell reagents returned to us. For this
reason they cannot be returned for credit, unless the reagents were shipped in error
by Taylor or their quality was compromised before they were shipped. To apply for an
exchange or credit under these mitigating circumstances, you will need to know the
lot number located on the lower left-hand corner of the reagent label.
Technical 800-TEST KIT (837-8548)
Assistance: General assistance for TTi®Colorimeter owners is available Monday through Friday
from 8:00 a.m. – 4:45 p.m. Eastern Time, except major holidays, from Taylor Technol-
ogies’ customer service group by calling 800-TEST KIT (837-8548). Outside normal
business hours you may record a message for us by using the same toll-free number,
or you can leave an e-mail message using [e-mail].
877-TEST KIT (837-8548)
Help specifically related to the TTi®Colorimeter Series PC App is available
9:00 a.m.–5:00 p.m. (Pacific Time), Monday through Friday (except major holidays),
from Taylor Technologies’ programmers. Online guidance may be found at
www.taylorsoftwaresupport.com. Enter through the TTi®Colorimeter portal.
E-mail: [e-mail]
Fax: [phone]
Mailing Address: Taylor Technologies, Inc.
31 Loveton Circle
Sparks, Maryland 21152
USA
Corporate Website: www.taylortechnologies.com
Here you will find product descriptions, including test instructions, potential interfer-
ences, and Safety Data Sheets; video product demonstrations; high- and low-resolution
product photography; and articles of interest to water analysts. While online, you may
apply for an open-terms account, place an order, or post a question for our staff.
Software Website: www.taylorsoftwaresupport.com
This site is dedicated to supporting Taylor software products only. Enter through the
TTi®Colorimeter portal. 2

2-1TTi®Colorimeter User’s Manual
Part 2 Testing Primer
2Part 2
Testing Primer
