INSTRUCTION MANUAL
Thank you for purchasing a Taylor digital weather station.
This weather instrument is an example of superior design and
craftsmanship. Please read instructions thoroughly to ensure
that you have the full benefit of all the unit’s features. Keep
these instructions handy for future reference.

BATTERY INSTALLATION AND INITIAL SET UP
The Digital Mood Light Weather Station base unit operates on (2)
1.5v AAA batteries (not included). The battery compartment is
located on the back of the Weather Station base unit. Insert 2
AAA batteries into the battery compartment according to the “+”
and “-“ polarity symbols. Replace the battery compartment cover.
When the batteries are installed, the icons on the LCD display
will briefly light up for 3 seconds, beep and detect indoor
temperature and humidity.
NOTE: Please recycle or dispose of batteries per local regulations.
Do not mix old and new batteries. Do not mix alkaline, standard
(carbon-zinc) or rechargeable (nicad, ni-mh, etc.) batteries.
WARNING: Batteries may pose a choking hazard. As with all small
items, do not let children handle batteries. If swallowed, seek
medical attention immediately.
PRECAUTION: Do not dispose of batteries in fire. Batteries may
explode or leak. Remove the batteries if the scale will not be
used for a long period of time.

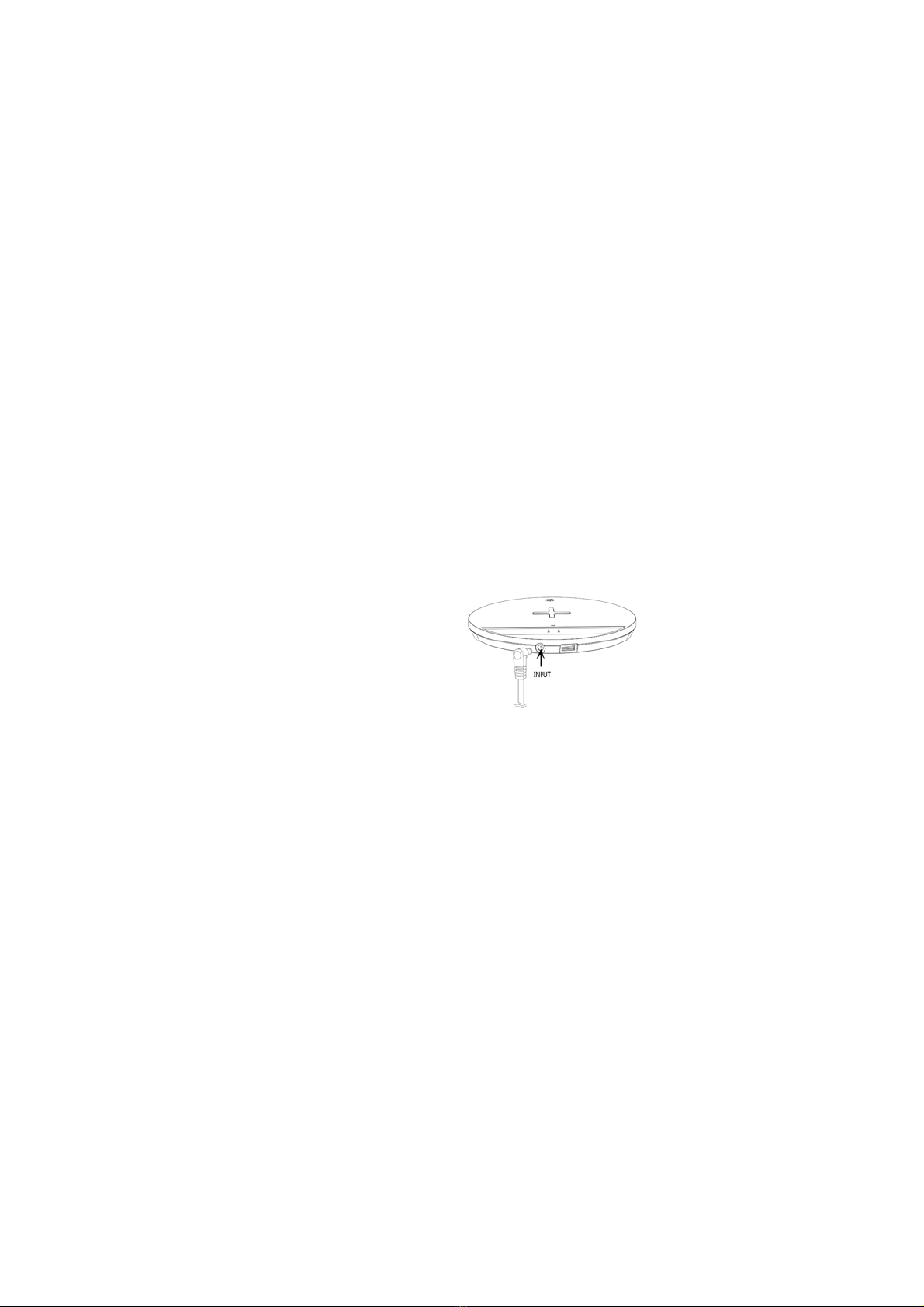

Insert the adapter DC plug into
the power socket on the back
of the charging plate. Plug the
AC adapter into an electrical
wall socket. The charging plate
will briefly light up.

DESCRIPTION OF PARTS
G: INDOOR sensor
H: MODE button
I: UP button
J: DOWN button
K: Alarm ON/OFF switch
L: Battery compartment cover
A: Time r
B: Indoor temperature (°F or °C)
C: Backlight /snooze button
D: Month and date
E: Day of week
F: Indoor humidity
1: Wireless charging status
indicator
2: Mood light emitting area
3: Anti-skid pad of mobile device
wireless charger
4: Mood light button
5: Weather Station DC power
supply terminals
6: DC terminal power supply to
base unit
7: Adapter DC input socket
8: USB charging socket (5V1.0A)

Place the base station onto the designated position on the
charging plate. The Weather Station will be powered from the DC
terminal of the charging plate.
WARNING: Do not allow metal and other conductive objects to
contact two power supply terminals (5) at the same time. There
is a magnetic field in the DC terminal supply area (6) of the
charging plate. Do not put the magnetic stripe of a card (credit
card, telephone card, bank card, boarding card, etc.) on it.
CLOCK SETTING
Press and hold the MODE button for 2 seconds and the 12/24Hr
starts to flash. Press the UP or DOWN buttons to select the
desired time format.
NOTE: When choosing 12hr format, if “PM” is displayed before the
hour, this indicates the hour is post meridiem.
• Press MODE to confirm your setting and the hour display
starts to flash. Press the UP or DOWN buttons to select the
correct hour.
• Press MODE to confirm your setting and the minutes display
starts to flash. Press the UP or DOWN buttons to select the
correct minute.

• Press MODE to confirm your setting and the date format
display starts to flash. Press the UP or DOWN buttons to
select Date/Month or Month/Date.
• Press MODE to confirm your setting and the year display
starts to flash. Press the UP or DOWN buttons to select the
correct year.
• Press MODE to confirm your setting and the month display
starts to flash. Press the UP or DOWN buttons to select the
correct month.
• Press MODE to confirm your setting and the date display
starts to flash. Press the UP or DOWN buttons to select the
correct date.
• Press MODE to confirm your setting and the languages
selection for the weekday display starts to flash. Press the
UP or DOWN buttons to select the desired language. Press
MODE to confirm and end setting procedures.
NOTE: Press and hold the UP or DOWN button to quickly scroll
through selection options. After 20 seconds without pressing
any button, the clock switches automatically from set mode to
normal mode.

SETTING DAILY ALRAMS
Move the ALARM switch to the ON position and the LCD displays
the icon. Move the ALARM switch to the OFF position and the
disappears.
While in set mode, press MODE once and the time will switch to
the alarm time display for 5 seconds. Within these 5 seconds,
press and hold MODE for 2 seconds until the hour of the alarm
time starts to flash. Press UP or DOWN to set the desired hour.
Press MODE to confirm your setting and the minutes of the alarm
time display starts to flash. Press UP or DOWN to set the desired
minute. Press MODE to confirm and end setting procedures.
NOTE: After 20 seconds without pressing any buttons, the clock
automatically switches from alarm setting mode to normal clock
mode.
The alarm will sound for 2 minutes if it is not deactivated by
pressing any buttons. In this event, the alarm will be repeated
automatically after 24 hours.
While the alarm is ringing, press any button except SNOOZE to
stop the alarm. It is not necessary to reactivate the alarm. It
automatically sets to the preset alarm time.
While the alarm is ringing press SNOOZE to go into snooze mode.
The alarm will sound again in 8 minutes.
°F |°C TEMPERATURE DISPLAYS
The temperature is displayed either in °F / °C, the weather
station defaults to Celsius. Press the UP button to switch
between Celsius and Fahrenheit.

BACKLIGHT MODE SETTINGS
When the charging plate is powered by the adapter and the base
unit is correctly positioned into the DC terminal power supply,
the backlight will always be on.
Press the BACKLIGHT button to adjust the 3 backlight modes:
• C1: Gradient of different colors at opposite ends of the
base unit
• C2: Same color gradient across the base unit
• C3: Dark mode for sleeping
When the base unit is removed from the charging plate and
is only powered by battery, press BACKLIGHT once and the
backlight will be powered on for 8 seconds.
MOOD LIGHT MODE
Press and hold the MOOD LIGHT button on the charging plate for 2
seconds to turn on the mood light and enter mode A.
• While in mode A, press the MOOD LIGHT button again to
enter mode B.
• While in mode B, press the MOOD LIGHT button again to
enter mode C.
• While in mode C, press the MOOD LIGHT button again to shut
OFF the mood light mode.
NOTE: In mode B, press and hold the MOOD LIGHT button for 1
second to lock in the current color and stop the gradual change.
Press and hold the MOOD LIGHT button for 1 second again to
restore the gradual change. In mode C, press and hold the MOOD
LIGHT button for 1 second to switch to another color fade.

WIRELESS CHARGING
Place a mobile device (must support QI standard) on the anti-
skid pad in the middle of the charging plate.
The wireless charging status indicator will be red when
charging normally and green when fully charged. Please note
only some Samsung mobile devices currently support this
feature. The indicator light flashes red when metal or similar
items are detected.
NOTE: A mobile device can be also be charged using a USB
cord (not included). The USB socket is located on the back
of the charging plate. Two mobile devices may be charged
simultaneously: one device on the charging plate and one
device using the USB cord.
SPECIFICATIONS
• Indoor temperature measurement ranges: 14°F to 122°F
(-10°C to 50°C)
• Indoor humidity measurement ranges: 20-95%
• High definition, 1.5” large LCD display
• Perpetual Calendar Up to Year 2099
• Time format in optional 12/24 HR
• Day of week in 7 languages
• Mood light features 3 modes and OFF
• LCD backlight features 3 modes
• Daily alarm clock and snooze function
• Temperature unit in optional °C /°F
• Smart home wireless charger charges any equipment in
accordance with QI wireless charging standard
• Wireless charging output: MAX.10W
• USB socket can charge for mobile device (5V1.0A)
• Power Supply:
Base unit: 2 x LR03 AAA size 1.5V
Charging plate: DC 9V 2000mA Adapter

PRECAUTIONS
1. The weather forecaster is intended for indoor use only. It
is not sealed against moisture and could be damaged if
used outdoors. Do not immerse it in water or allow snow
to accumulate on it. Do not use this product near water
sources and do not place this product in a damp place.
2. Do not leave it outdoors. Otherwise, permanent damage to
the unit’s internal circuits may occur.
3. Do not immerse in water. If you spill liquid on the base
station or charging plate, dry immediately with a soft, lint-
free cloth.
4. Do not clean the units with abrasive or corrosive materials.
This may scratch plastic parts and corrode electronic
circuits.
5. Do not subject unit to excessive force, shock, dust,
temperature or humidity. This may result in malfunction,
shorter electronic life span, damaged batteries or distorted
parts.
6. Do not tamper with the units’ internal components. Doing
so will invalidate the warranty on this product and may
cause damage. The units contain no user serviceable
parts.
7. Do not mix old and new batteries. Do not mix alkaline,
standard (carbonzinc) or rechargeable (ni-cad, ni-mh, etc.)
batteries. Do not dispose of batteries in fire. Batteries may
explode or leak. Remove the batteries/ charger if the units
will not be used for a long period of time.
8. Never dispose of empty batteries and rechargeable
batteries in household waste. As a consumer, you are
legally required to take them to your retail store or to
an appropriate collection site depending on national or
local regulations in order to protect the environment. The
symbols for the heavy metals contained are: Cd=cadmium,
Hg = mercury; Pb=lead. This instrument is labelled in
accordance with the EU Waste Electrical and Electronic
Equipment. Directive (WEEE).

PRECAUTIONS (CONT.)
9. Please do not dispose of this instrument in household
waste. The user is obligated to take end-of-life devices
to a designated collection point for the disposal of
electrical and electronic equipment, in order to ensure
environmentally-compatible disposal.
10. This product is for measuring weather temperatures
only. DO NOT PLACE UNITS INTO OVENS, GRILLS, FREEZERS or
MICROWAVE OVENS.
11. Keep out of direct sunlight and away from sources of heat.
12. Due to improper use of product damage, odor, smoke and
other phenomena, please immediately terminate use and
send to professional maintenance personnel.
13. Do not place the product in a strong electromagnetic
wave, strong static electricity and easy condensation.
14. Do not place the magnetic stripe card (credit card,
telephone card, bank card, boarding card, etc.) near the
product, otherwise, it will be damaged by the magnetic
field.
15. If you use a wireless charger in an area with weak network
signals, your mobile device may not be able to receive the
network.
16. Do not place metal, magnet, magnetic stripe card and
other foreign matters between the mobile device and the
wireless charger, otherwise, the mobile device will not
charge normally or be damaged due to overheating.
17. If the mobile devise has a thick protective case, the
wireless charging may not work properly. If the cover is
thick, remove it, and then put the mobile device on the
wireless charger for charging
18. Always read the instruction manual before operating this
product.

Caution: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on. The
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
We declare under our sole responsibility that the above referenced product has been
tested according to FCC requirements and this device complies with part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Party issuing Supplier’s Declaration of Conformity &
Responsible party – U.S. Contact information:
Taylor
2311 W. 22nd Street, Suite 200
Oak Brook, IL 60523
Equipment:
Product Name: Digital Mood Light Weather
Station
Model No.: 5287333
Trade Name: Taylor
FCC ID: WEC-EM9926
The distance between user and products should be no less than 20cm

LIMITED WARRANTY
This product is warranted against defects in materials or workmanship
(excluding batteries and adapters) for one (1) year from date of original
purchase for the original purchaser. It does not cover damages or wear
resulting from accident, misuse, abuse, commercial use, or unauthorized
adjustment and/or repair. Should this product require service (or replacement
at our option) while under warranty, do not return to retailer. Please pack the
item carefully and return it prepaid, along with store receipt showing date of
purchase and a note explaining reason for return to:
TAYLOR | 2220 Entrada Del Sol, Suite A
Las Cruces, New Mexico | 88001 USA
Email: [email protected] | www.taylorusa.com
There are no expressed warranties except as listed above. This warranty gives you specific
legal rights, and you may have other rights which vary from state to state. For additional
product information, or warranty information outside the USA, please contact us through www.
taylorusa.com.
©2021 Taylor division of Lifetime Brands Inc. All rights reserved.
Made to our exact specifications in China.
Not legal for trade.
5287333 5.21 WC
