Welcome to theTaylor®WeatherGuide System. Simple, reliable,
accurate…it allows you to monitor indoor or outdoor locations from
one room.The base unit reads indoor conditions, while the remote
sensor wirelessly reports outdoor weather conditions back to the base
unit for an all-in-one weather display.
Plan your work day, play day, every day. Now that’s smart!
Table of Contents
Powering the WeatherGuide™..................................................................3
How to Set Up the WeatherGuide™ ......................................................3
How to Display the WeatherGuide™ ......................................................5
Atomic Clock
Atomic Clock Setting ................................................................6
Manual Clock Setting..................................................................7
Alarm ............................................................................................8
Snooze ........................................................................................10
How to Read the WeatherGuide™........................................................11
Temperature/Humidity Displays ............................................12
Minimum/Maximum Records ................................................13
Temperature/Humidity Trends ..............................................14
Weather Forecast ....................................................................15
Backlight......................................................................................16
°F/°C Switch ..............................................................................16
Low Battery Display ................................................................16
TroubleShooting
Disconnected Signals................................................................17
Transmission Collision ............................................................18
Problem Solving ........................................................................18
Precautions ................................................................................19
2

To Power your WeatherGu de™
Base Unit
Your WeatherGuide™ base unit is powered by 2 AAA batteries (not
included).
Remove the battery compartment cover on the back of the unit.
nstall 2 AAA batteries. Replace the battery compartment cover.
mportant: Power the base unit before installing batteries in the re-
mote sensor, or the units’ transmissions may not properly connect.
Remote Sensor
Unscrew the 4 screws securing the remote sensor’s battery compart-
ment cover located on the back of the unit. nstall 2 AAA batteries.
(Tip: Lithium batteries are recommended in extremely cold or hot lo-
cations.)
How to Set up Your WeatherGu de™System
First, power up the base unit using 2 AAA batteries. Next, install 2 AAA
batteries into the remote sensor.
Place the base unit as close as possible to the remote unit.
There is a Channel switch in the remote
sensor battery compartment. Move the
switch to Channel 1.
Press the “TX” button located inside the
remote sensor battery compartment.This
will send a transmission signal to the base
unit.The red LED ndicator light will flash
when a signal is transmitted.
3
Move channel switch
to Channel 1
ress the Tx button to send
transmission signal to base unit

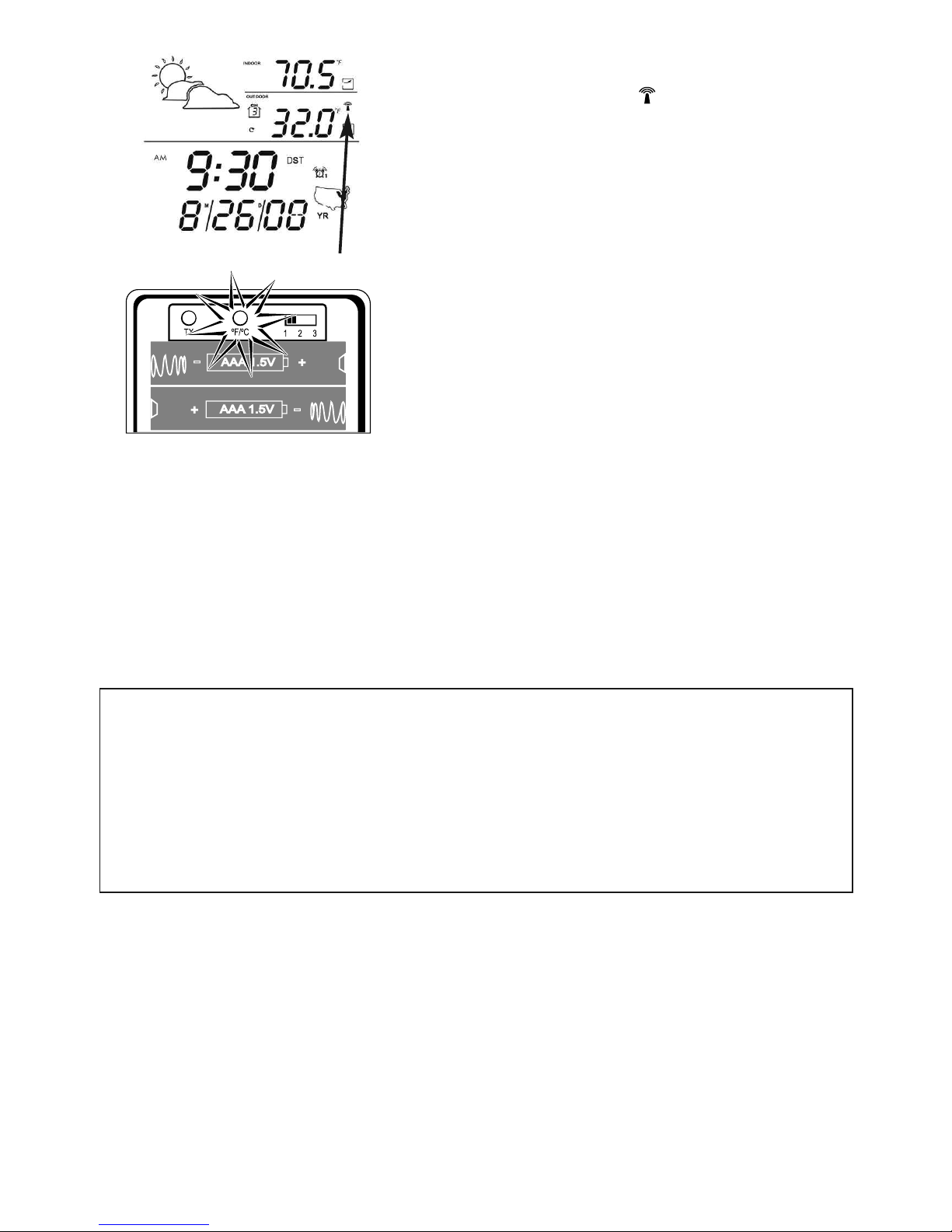

f the transmission is successful,the remote
sensor readings and a “ ” icon will appear
on the base unit. f dashes are still displayed
on the receiver unit, press the Tx button
again.
To change the remote sensor’s tempera-
ture display to Celsius, press the “+C/F”
button inside the remote’s battery com-
partment.
Replace the remote’s battery compart-
ment cover.
The remote will automatically transmit readings to the base unit.
• The first remote registered will transmit every 53 seconds.
• f a second remote is registered, it will transmit every 56 seconds.
• f a third remote is registered, it will transmit every 59 seconds.
Note: A maximum of 3 remote sensor units can be registered.
Should you purchase one or two additional remote units (Model 1536,
sold separately) to expand your thermometer monitoring capabilities
to multiple locations, slide the CH switch to Channel 2 to register the
second sensor and select Channel 3 to register the third sensor.The
Channel number assigned will appear on the remote’s LCD screen.
4
Transmission successful
Select °F or °C for remote

How to D splay your WeatherGu de™
Table top – use the Table Stand on the back of the base and remote
sensor units
Wall – use the keyhole on the back of the base and remote sensor units.
Base Unit Remote Sensor
Base unit location –
Place the unit indoors in a well-ventilated location away from direct sunlight.
Remote sensor location –
The transmission range of the remote sensor is 100 feet.The effective
transmission range is vastly affected by obstacles such as walls, sheds,
trees, etc.Try various set ups for the best results. Shorten the distance
between receiver and remote units when necessary. Place indoor in a
well ventilated location away from direct sunlight. Place the sensor in
a dry, shaded area. Direct sunlight will heat the casing and inflate tem-
peratures readings.
Important: Though the remote unit is weather proof, it should be
placed away from direct sunlight, rain, snow and should never be sub-
merged in water.
A maximum of 3 remote sensor units can be registered. One
remote sensor is included.To purchase additional Remote
Sensors (Taylor model 1536), please visit www.partshelf.com.
5
Keyhole
Table Stand

Atom c Clock and Calendar
Your WeatherGuide™ has a radio-controlled clock/calendar that sets
itself to the radio signal transmitted by the U.S.Atomic Clock located
in Colorado.To synchronize the atomic clock:

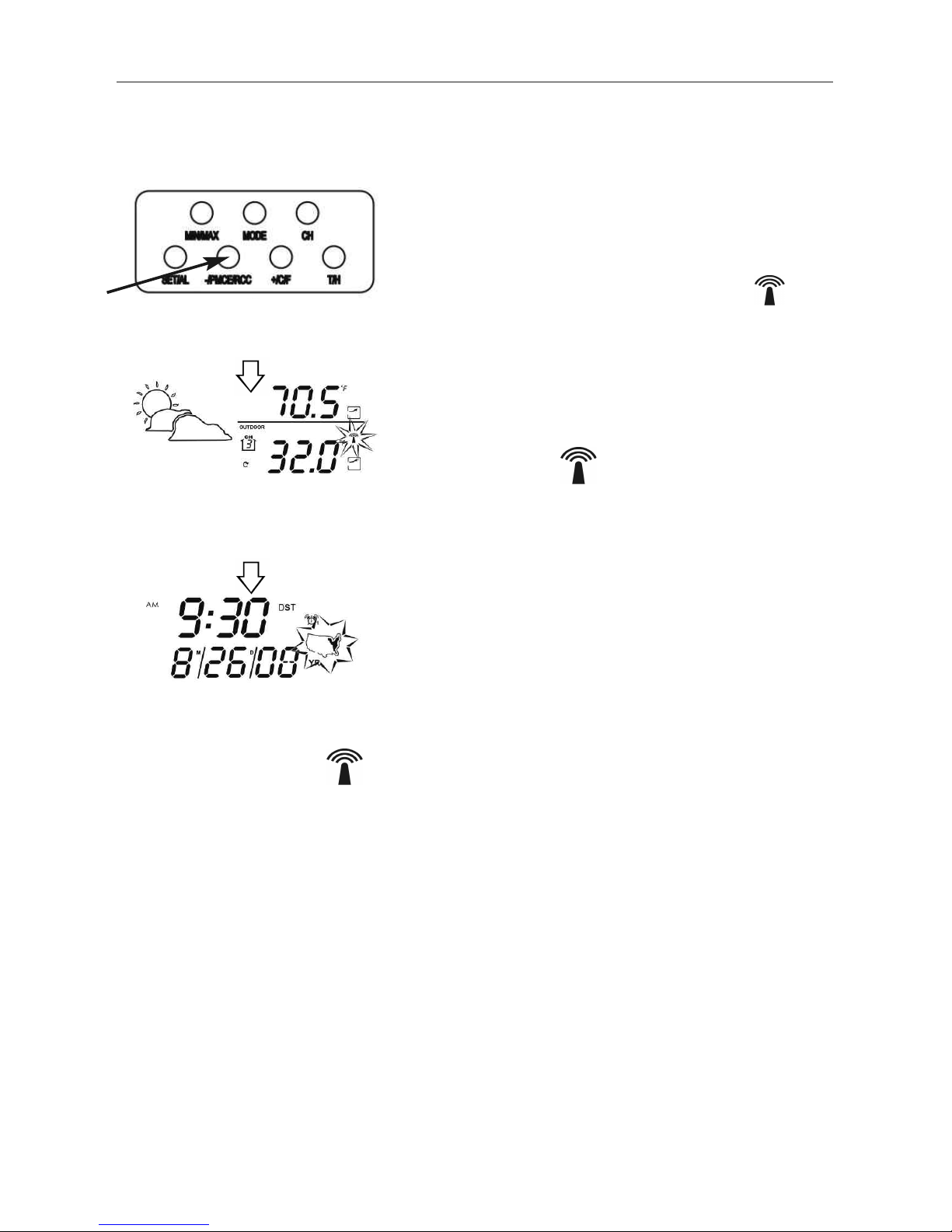

1. Press and hold the “-PMCE/RCC”
button on the back of the base unit.The
unit will beep.The antenna icon will
flash on the screen.
Please note: reception may take
2-10 minutes.
2. When the icon is steady, the
Atomic Clock has been successfully
synchronized.
3. Choose your time zone by pressing the
“PMCE/RCC” button.
Please note: f the icon disappears, the Atomic time signal is not
available at the moment.Try another location later away from possible
sources of interference, such as mobile phones, appliances, computers,
refrigerators,TVs, etc. Daytime conditions such as sunlight and other
atmospheric interferences can affect synchronization; try setting the
clock during evening hours. Please note:if the signal is weak, it may take
up to 24 hours for the atomic clock to establish a connection. n the
meantime, the clock may be manually set. Once the atomic signal is
found, it will override the manually programmed time and date.
The Atomic Clock will have a daily synchronization at 2:05 am Pacific
Time every day. Each reception cycle is 2.5 minutes minimum and 10
minutes maximum.
6
ress and hold - MCE/RCC to
synchronize atomic clock. Release
when unit beeps.
ress MCE/RCC to choose
time zone.
Steady Icon = Atomic clock
synchronized
(may take up to 24 hours to
capture signal).

7
How to Set the Clock Manually
To manually set the clock:
1. Press and hold the “SET/AL” button.
The unit will beep.
2. Press “+C/F” or “-PMCE/RCC” to
set the seconds to zero. Press
“SET/AL” to enter.
3. Press “+C/F” or “-PMCE/RCC” to
change the hours. Press “SET/AL” to
enter.
4. Press “+C/F” or “-PMCE/RCC” to
change the minutes. Press “SET/AL”
to enter.
5. Press “+C/F” or “-PMCE/RCC” to
choose either the month/date or
day/month display. Press “SET/AL” to
enter.
6. Press “+C/F” or “-PMCE/RCC” to
change the year. Press “SET/AL” to
enter.
7. Press “+C/F” or “-PMCE/RCC” to
change the month or day. Press
“SET/AL” to enter.
8. Press “+C/F” or “-PMCE/RCC” to
change the date or month. Press
“SET/AL” to enter.
9. Press “+C/F” or “-PMCE/RCC” to
choose a language* display. Press
“SET/AL” to enter.
10. Press “+C/F” or “-PMCE/RCC” to
choose either the 12 or 24 hour
time display.Press“SET/AL” to enter.
11. The clock/calendar is now set.
(*language options are: EN (English), DA
(Danish), ES (Spanish), NE (Dutch), FR
(French), T ( talian), GE (German).)
ress and hold SET/AL to start
clock setting
ress +C/F or - MCE/RCC to
reset seconds.
ress SET/AL to enter seconds.
ress +C/F or - MCE/RCC to
change hours.
ress SET/AL to enter hours.
Repeat to set rest of
clock/calendar settings.

Tip: Hold down the “+C/F” or
“-PMCE/RCC” buttons to advance the dig-
its quickly.
Dayli ht Savin s Time – to turn DST
on, press “MODE” until “OFF” appears in
the clock digits. Press and hold the
“SET/AL” button until it switches to “ON”.
DST is now on. Press “MODE” to return
to the clock display.
How to Set the Alarm
Your WeatherGuide™ has 2 separate alarm settings.
To set one alarm:

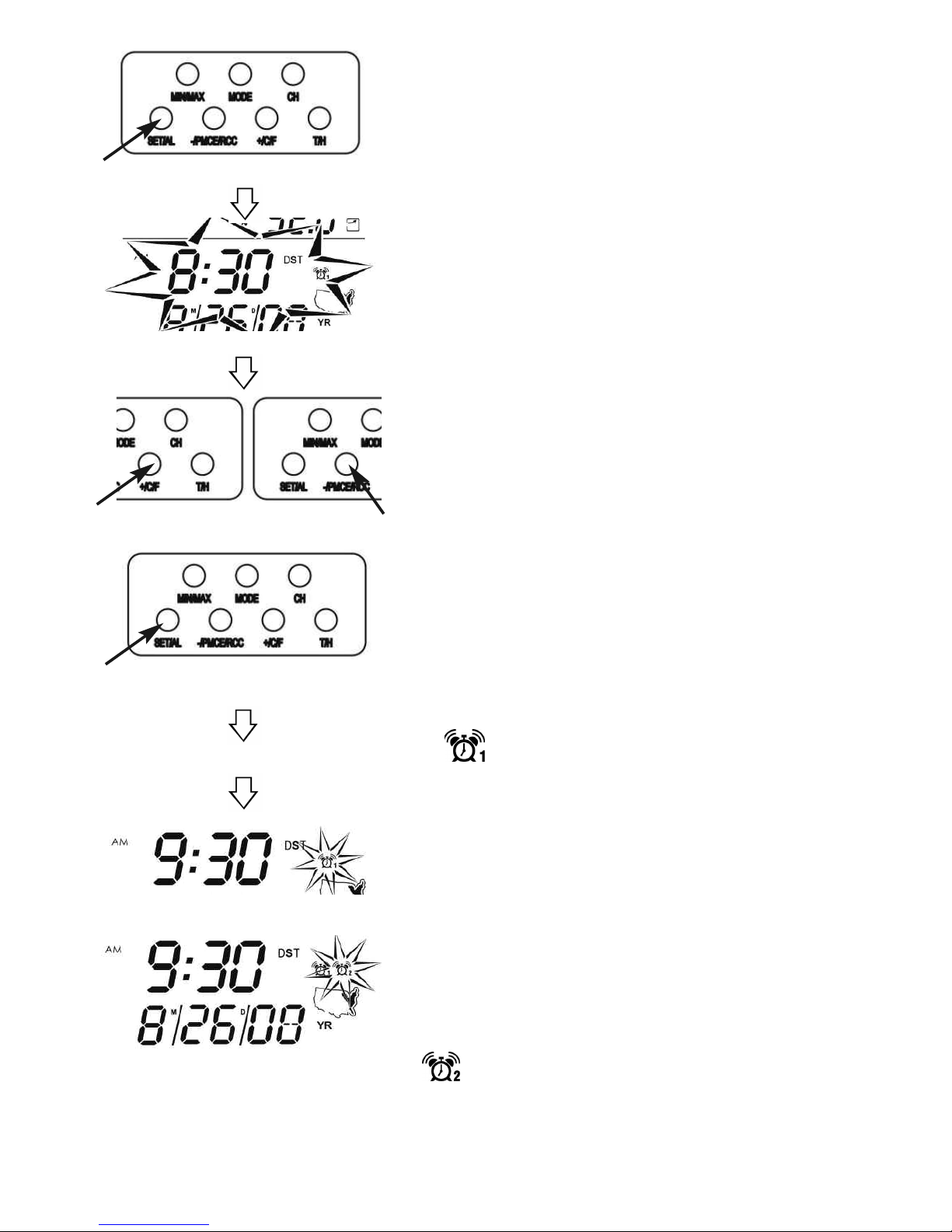

1.Press the “MODE” button on the back of
the base unit.The unit will beep.The clock
time changes to the alarm time. “A1” ap-
pears next to the time.
8
ress Mode, then press and
hold SET/AL, then press Mode
to change DST.
ress SET/AL after choosing
12/24 hour time.
Clock is set
ress MODE to start alarm
setting
A1

2. Press and hold the “SET/AL” button.The
unit will beep and the alarm’s hour digits
will flash.
3. Press “+C/F” or “-PMCE/RCC” to
change the hours. Press “SET/AL” to enter.
The minutes will flash.
4. Press “+C/F” or “-PMCE/RCC” to
change the minutes. Press “SET/AL” to
enter.The unit will return to the clock dis-
play.
5.A icon by the time indicates Alarm
1 is active.The unit will return to the clock
display after approximately 15 seconds, or
press “MODE” until the clock display re-
turns.
To set two alarms:
Press the “MODE” button until A2 appears.
Repeat programming steps for A1.
A icon by the time indicates
Alarm 2 is active.
9
ress and hold SET/AL
Alarm 1 is active
Alarm 2 is active
Hour digits flash
ress +C/F or - MCE/RCC to
change hours.
ress SET/AL to enter hours.
Minutes digits flash.
Repeat to set minutes.

To turn off the alarm:
Press “MODE” until the Alarm display ap-
pears. Press the “SET/AL” button. The
alarm icon will disappear. The alarm is
turned off.
Snooze feature

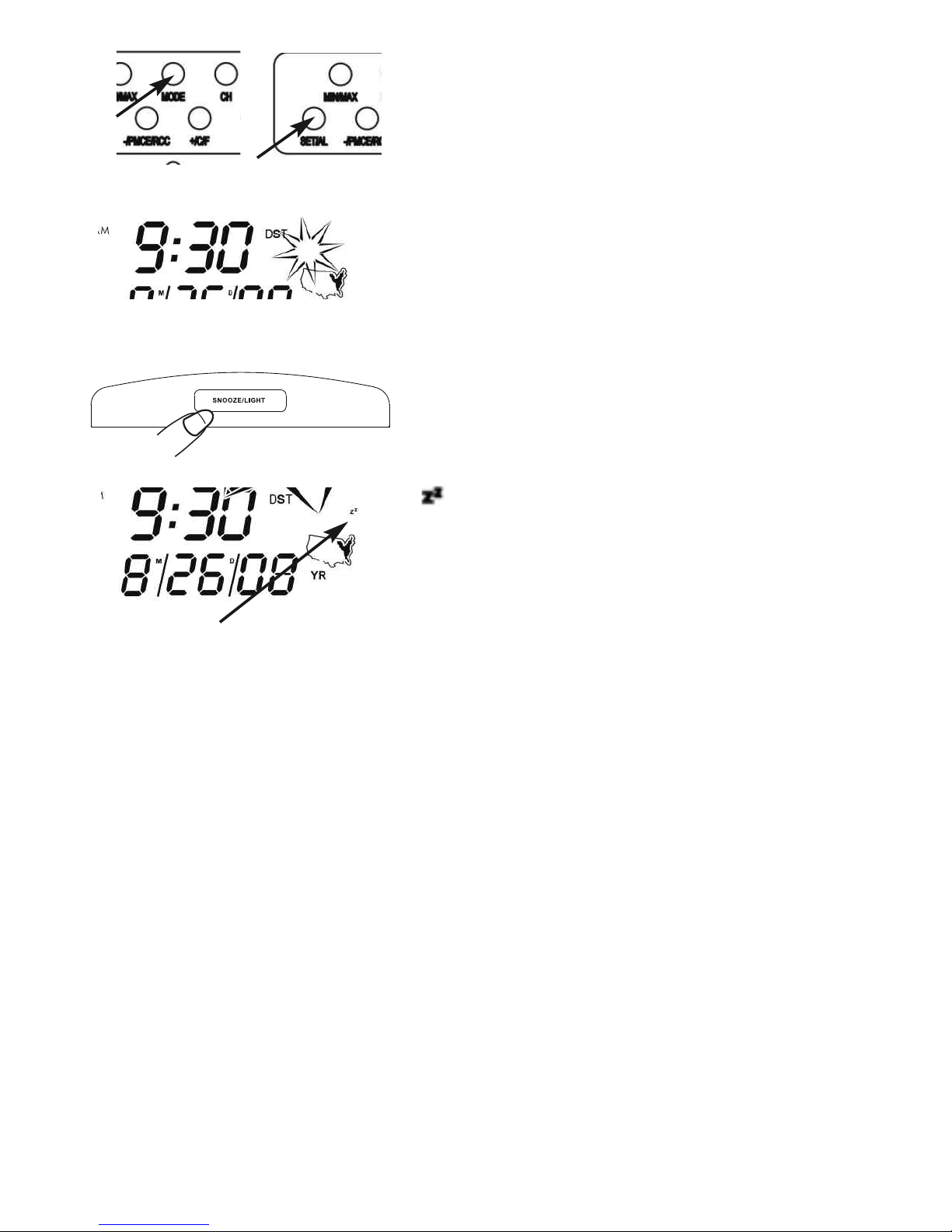

Press the “Snooze/Light” button on the top
of the base unit to silence the alarm for 5
minutes.
A icon will flash as long as the snooze is
active.The snooze will deactivate when the
alarm is turned off.
10
ress Snooze/Light to silence alarm
ress Mode then SET/AL to turn
off alarm
No alarm icon = alarm is off.
Snooze icon

11
How to read your WeatherGu de™
The base unit displays indoor conditions from its location.
The remote unit will transmit weather readings from its location back
to the base unit.
Alternately, the remote sensor’s probe cord may be used. Plug the
probe cord into the rubber plug on the remote sensor.Allow the end
to hang where you wish to measure temperatures (out of a window,
aquariums, swimming pools, etc.)

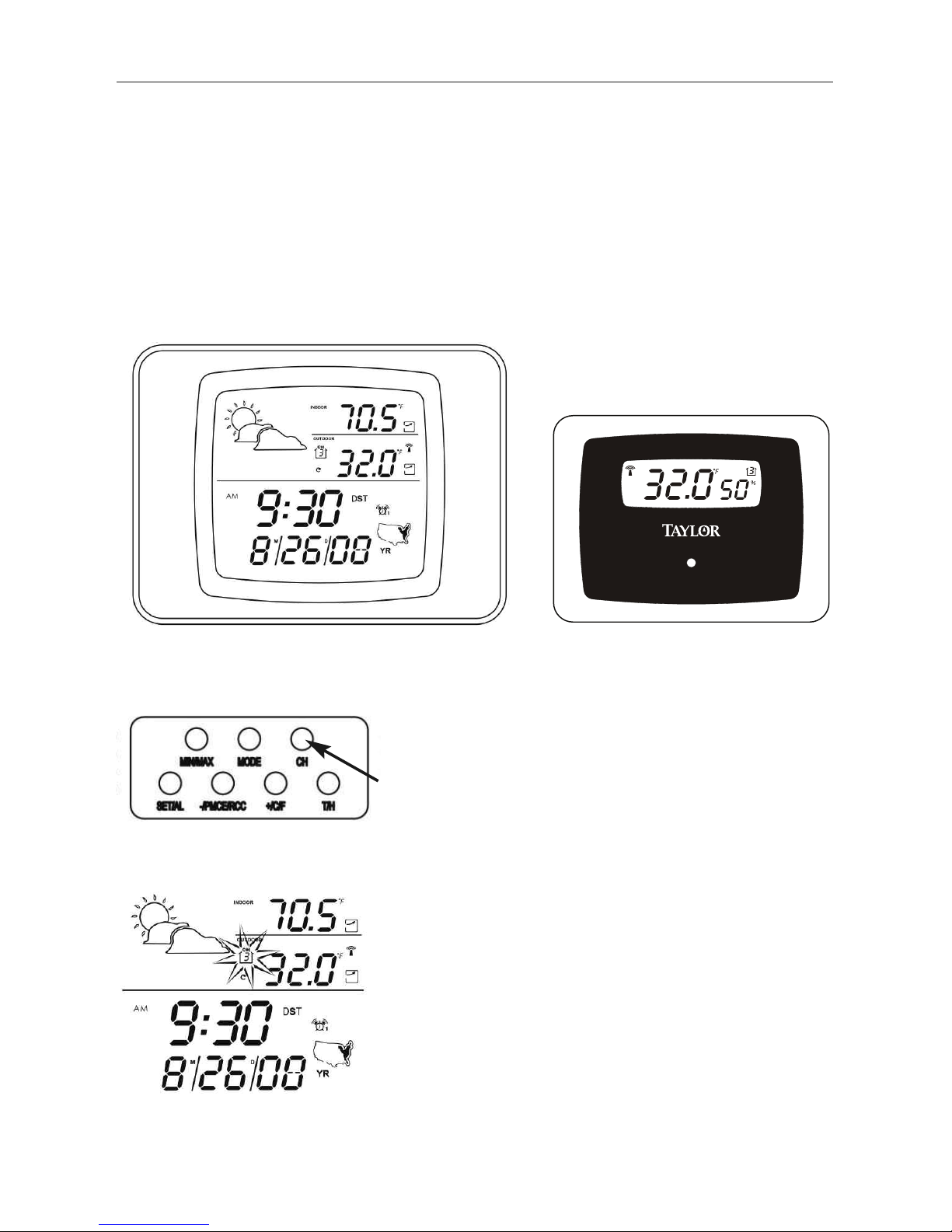

f more than one remote sensor is in use,
press the “CHANNEL” button on the back
of the base unit to toggle between sensor
displays.
A Channel icon on the base unit indicates
which remote sensor readings are dis-
played.
Base unit – Indoor and Outdoor readings Remote unit – outdoor readings
ress Channel to see different
remote sensor readings
Channel icon indicates which
channel is displayed.

12
Auto Scroll feature – the base unit can
be set to automatically scroll through read-
ings. To activate Auto Scroll, press the
“Channel” button on the back of the base
unit until the auto scroll symbol appears on
the LCD. The base unit will automatically
display base and remote readings for 10
seconds each.
Temperature/Hum d ty Read ngs
Indoor temperature readin s – these
are temperatures at the base unit’s loca-
tion.
Outdoor temperature readin s –
these are temperatures that are measured
by the remote sensor.
Indoor humidity readin s – these are
temperatures at the base unit’s location.
Outdoor humidity readin s – these are
temperatures that are measured by the re-
mote sensor.
Press the T/H button to switch between
temperature and humidity displays.
Auto scroll will toggle between
different remote sensor readings
Temperature displays
Humidity displays
ress the T/H button to switch
between temperature and
humidity displays.

To View Minimum/Maximum
temperature/humidity readin s
Your WeatherGuide™ will store the last
recorded high and low temperatures and
humidity levels over a 24 hour period.The
24 hour period starts when the batteries
are installed.
1. Press the “Min/Max” button once to see
the highest temperature/humidity of the
day.
2. Press the “Min/Max” button again to see
the lowest temperature/humidity of the
day.
3.Press the “Min/Max” button a third time
to see current temperature/humidity again.
To Clear the minimum or maximum read-
ings, press and hold the “Min/Max” button
while those readings are on the screen.The
reading will reset to the current tempera-
ture.
13
ress and hold Max/Min to
reset high/low temperature or
humidity
ress MIN/MAX to see high
and low daily temperature &
humidity
Minimum or Maximum readings
Back to current readings
Minimum or Maximum readings
on screen
Min/Max readings are cleared.
Current readings

14

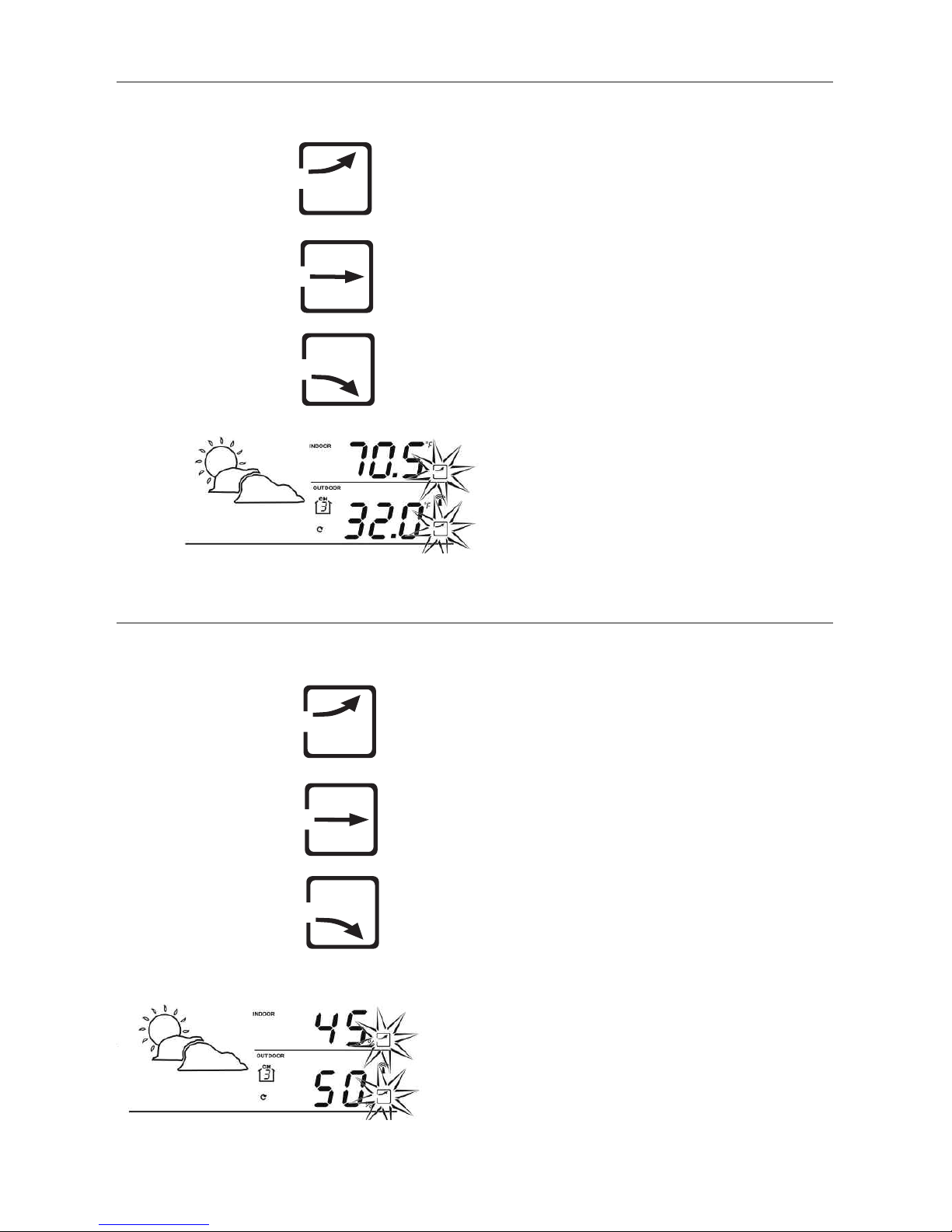

Temperature Trend Ind cators
Your WeatherGuide™ will indicate if temperatures are rising, falling,
or steady.
indicates Rising Temperatures readings
(temperatures have gone up more than 2
degrees in an hour)
indicates Steady Temperature readings
indicates Falling Temperatures (tempera-
tures have gone down more than 2 degrees
in an hour)
Temperature trending up
Hum d ty Trend Ind cators
Your WeatherGuide™ will indicate if humidity levels are rising, falling,
or steady.
indicates Rising Humidity readings (humid-
ity has gone up more than 2 degrees in an
hour)
indicates Steady Humidity readings
indicates Falling Humidity (humidity has
gone down more than 2 degrees in an
hour)
Humidity trending up

12-24 Hour Weather Forecast
Your WeatherGuide™ will estimate weather conditions over the next
12 to 24 hours.These estimates are based on altitude and changes in
barometric pressure.

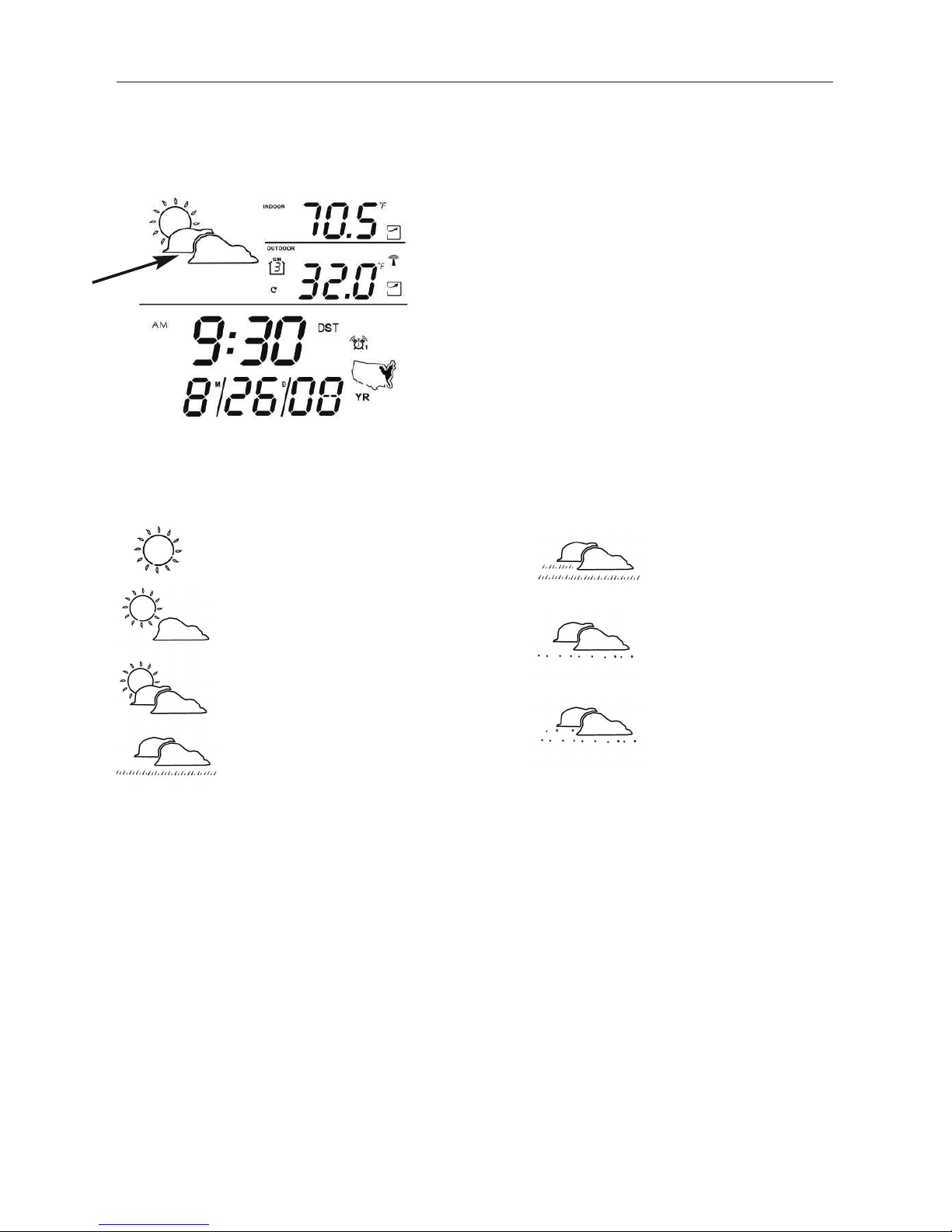

One of these weather icons will appear at the top of the display:
15
Sunny
Becoming Cloudy
Cloudy
Rain
Stormy
Snowy
Snowstorm
Weather Icons

16
Backl ght Feature
The base unit has a backlight for easy viewing of the screen. Press the
“Snooze/Light” button to turn the backlight on for 3 seconds.
ress SNOOZE/LIGHT for a 3 second backlight
To Sw tch Between °F and °C
Press the “+C/F” button to switch between
Fahrenheit and Celsius temperature dis-
plays.
Low Battery Ind cator
A on the LCD indicates the batteries are running low and should
soon be replaced.
- A by the indoor temperature display indicates the base unit bat-
teries are low.
- A on the remote sensor indicates the remote batteries are low.
Base unit batteries low
ress +C/F to switch between °F&°C
Base Unit
Remote Sensor
Remote sensor
batteries low

17
Trouble-Shoot ng
Disconnected Si nals
f the receiver unit does not receive a transmission from a remote chan-
nel for 1 hour, the display will show dashes.To correct this problem:
1. Check that the remote is properly positioned, within the appro-
priate transmission range. Transmissions are vastly affected by
building materials and where the receiver and remote units are
positioned.Try various set ups for the best results. Shorten the
distance between receiver and remote units when necessary.
2. Check to make sure the transmission path is clear of obstacles
and interference.
3. f new batteries are faulty on the initial installation, install fresh
batteries. f you did not notice the Low Battery icon warning and
the product performed correctly after initial set up, the batteries
have lost their charge. Replace batteries (see the Power Sources
section of this manual.)
4. Press the “Tx” button in the battery compartment of the remote
to send a transmission signal to the base unit.
5. Press and hold the “Channel” button on the back of the base unit.
This will clear the channel setting and the base unit will begin
searching for remote sensor transmissions. Press the“Tx” button
in the battery compartment of the remote to send a transmis-
sion signal to the base unit.
6. Please note that below 32ºF / 0ºC the LCD readout on the re-
mote unit may begin to fail display.When this happens the remote
will still transmit correct temperature readings to the receiver
unit but will not appear on the remote LCD.When the tempera-
ture rises above 32ºF / 0ºC the display will begin to function nor-
mally again.

18
Transmission Collision
Signals from other household devices, such as doorbells, home security
systems and entry controls, may interfere.This is normal and does not
affect the general performance of this product.The transmission will
resume once the interference recedes.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.This equipment gen-
erates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful in-
terference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. f this equip-
ment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the
following measures:
--Reorient or relocate the receiving antenna.
-- ncrease the separation between the equipment and receiver.
Modifications not authorized by the manufacturer may void users
authority to operate this device.
Problem Solv ng
1. f the LCD readout is faint, replace the batteries.
2. f outdoor temperature does not display on the base unit:
a) Remove and reinstall all batteries;
b) Use fresh batteries ;
c) Place the remote sensor closer to the base unit;
d) Position the base and remote so that the transmission
path is free of any obstacles, such as buildings, trees, etc.Try to
have no more than 2 or 3 walls between the units.
3. The temperature sensors are manufactured to the accurate within
plus or minus one degree, so 2 units placed next to each other
may report different readings.This is a normal occurrence with
digital sensors and should not be considered a defect.

19
Precaut ons
1. The receiver is intended for indoor use only. t is not sealed against
moisture and could be damaged if used outdoors.
2. Do not immerse the unit in water. f you spill liquid on it, dry imme-
diately with a soft, lint-free cloth.
3. Do not clean the unit with abrasive or corrosive materials.This may
scratch plastic parts and corrode electronic circuits.
4. Do not subject unit to excessive force, shock, dust, temperature or
humidity.This may result in malfunction, shorter electronic life span,
damaged battery or distorted parts.
5. Do not tamper with the unit's internal components.Doing so will in-
validate the warranty on this product and may cause damage.The
unit contains no user-serviceable parts.
6. Do not mix old and new batteries.Do not mixAlkaline,carbon-zinc
(standard) or Nickel-Cadmium (rechargeable) batteries.Do not dis-
pose of batteries in fire. Batteries may explode or leak.Remove the
batteries if the units will not be used for a long period of time.
7. Always read the instruction manual before operating this product.
8. Due to continuous product improvements, the displays shown in
this manual may differ from the actual display.
Important:Thou h the remote unit is weather proof,it should
be placed away from direct sunli ht, rain, snow and should
never be submer ed in water.
Spec f cat ons
Range of temperature measurement:
Receiver unit (indoor only): 14°F to 158°F (-10°C to 70°C)
Remote unit: -40°F to 158°F (-40°C to 70°C)
Humidity: 20% - 99% RH
Resolution: 0.1 degree for temperature, 1% for humidity
Temperature/Humidity trends – rising, falling or steady
Minimum/Maximum daily temperature/humidity records
Weather Forecast – 12-24 hour forecast graphics
Atomic Clock with Alarm and Snooze
Low Battery ndicator
Channels: maximum of 3 remote sensors
Transmission: Max. 100 ft (30m) open area
Power: 2 AAA alkaline batteries (not included) for receiver unit
and 2 AAA alkaline batteries for remote sensor (not included)

20
1526 8.08
One Year Warranty
This product is warranted against defects in materials or workmanship
for one (1) year from date of original purchase. t does not cover
damages or wear resulting from accident, misuse, abuse, commercial
use, or unauthorized adjustment and/or repair. Should this product re-
quire service (or replacement at our option) while under warranty, do
not return to retailer. Please pack the item carefully and return it pre-
paid, along with store receipt showing date of purchase and a note ex-
plaining reason for return to:
Taylor Precision Products
2220 Entrada Del Sol, Suite A
Las Cruces, New Mexico 88001
www.taylorusa.com
There are no express warranties except as listed above.This warranty
gives you specific legal rights, and you may have other rights which
vary from state to state.
For additional product information, or warranty information in Canada
or elsewhere outside the USA, please contact us through
www.taylorusa.com.
Made to our exact specifications in China.
© 2008 Taylor Precision Products and its affiliated companies, all rights
reserved. Taylor® and Leading the Way in Accuracy® are registered
trademarks of Taylor Precision Products and its affiliated companies.
WeatherGuide™ is a trademark ofTaylor Precision Products and its af-
filiated companies.All rights reserved.
