TCL 2927 User manual

TCL
SERVICE MANUAL
1. Caution……………………………………………………………2
2. Specification………………………………………………………6
3. BOM List…………………………………………………………..9
4. Alignment Procedure………………………………………….…39
5. Block Diagram……………………………………………………43
6. Schematic Diagram………………………………………………44
7. PCB Layout………….……………………………………………45
8. Exploded ViewDiagram…………………………………………..47
This manual is the latest at the time of printing, and does not
include the modification which may be made after the printing, by
the constant improvement of product.
2927

WARNING: TOREDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SER VICING TO
QUALIFIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION
RISKRISK OFOF ELECTRIELECTRICC
SHOCKSHOCK DODO NOTNOT OPEN.OPEN.
2
dangerous

3
FOR YOUR PERSONAL SAFETY
1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance.Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Save these instructions for later use.Follow all Warnings and
Instructions marked on the audio equipment.
1. Read Instructions- All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
IMPORTANT SAFETY INSTRUCTIONS

4
PROTECTION AND LOCATION OF YOUR SET
11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water.If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
PROTECTION AND LOCATION OF YOUR SET
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits.When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE

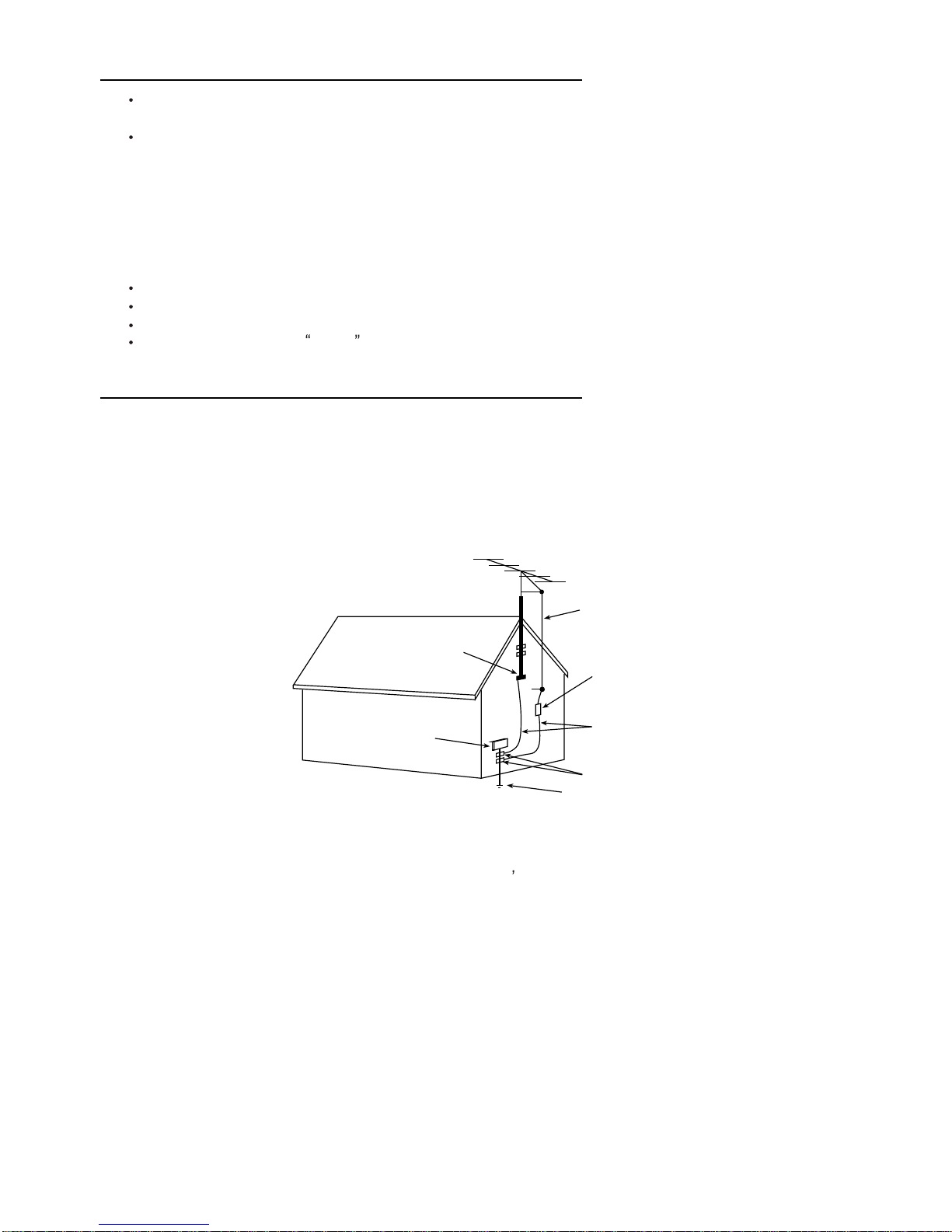

EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s

OPERATION OF YOUR SET
18. This television set should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
IF THE SET DOES NOT OPERATE PROPERLY
21. If you are unable to restore normal operation by following the detailed procedure in your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off.If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
FOR SERVICE AND MODIFICATION
24. Do not use attachments not recommended by the television set manufacturer as they may cause hazards.
25.When replacement parts are required, be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
5
off

PFS2 FORMAT-1 Report
Date: 2004-11-16 15:33
ProductView......:
Re
p
ort b
y
............:
Specs / Products
SRF NO./ODF NO. ON44036903
MasterData
Customer Id RADIO VICTORIA
Version 0.1
Status WG Archived
Brand TCL
EAN \
UPC \
Rece
p
tion
+Tunin
g
-
p
resets/channels 181
+Tunin
g
- technolo
gy
PLL
+Tunin
g
- Indication ---
+Fre
q
Bands FS TUNER
+Channels VHF:2-13, UHF:14-69,
CATV: 1-13, A-W.W+1---
W+84,A-5---A-1,5A
+IF Fre
q
PICTURE 45.75MHz
+TV Systems Off Air PAL M/N NTSC M (3.58 -
4.433)
+Add S
y
stems Ext In ---
+TV S
y
stems Multi PAL NTSC
+Sound S
y
stems AV STEREO, BTSC
Picture - Processin
g
+Scan Standard
+Scan Modes 4:3
+Wide Screen Switchin
g
+Combfilter X
+Picture Control 4 Picture Modes,
Brightness, Color, Contrast,
Tint, Sharpness Cont Var
+Pict Enhancement Black Stretch
+Pict Noise Reduction ---
Picture - Dis
p
la
y
+Dis
p
la
y
T
yp
eDV - CRT - FSQ
+Screen Format 4:3
+Size
(
Visual
)
" - size/vis. cm 29"
+Deflection S
y
stem
(
CRT onl
y)
+Tube Technolo
gy
(
CRT onl
y)
Black Matrix, Iron
+CRT Defl
+CRT Gun Stand Gun
+CRT Ma
g
n field Normal
+Resolution
+Coatin
g
(
onl
y
for D.V. sets
)
+White Point
Sound
+Leaflet Power
+RMS Power Intern
+RMS Power Extern
+Surround Sound
+Sound Features Mute, BTSC
+Sound Control Volume, AVL,
Sound - S
p
eakers
+S
p
eaker confi
g
uration 2 speakers
+S
p
eakers used Normal Range
+S
p
eaker Size
User Interface
+Interface Name 2927
+Voice Control
+Menu Cursor Control
+Menu Colours
+Menu Languages Spanish, English,
Portuguese, French
+Special Features V-Chip, CCD, Channel lock,
Child Lock, Note
Book,Calendar, Favorite
Channel
+O
p
erational Features
+PP Features
Product:@
2927
2004-11-16 15:45 2927 pfs 1 of 3

Date: 2004-11-16 15:33
ProductView......:
Re
p
ort b
y
............:
Specs / Products
Product:@
2927
+Tuning/Install Features Auto Store, Factory Mode,
Language Selection,
Service Mode
+Clock/Timer Functions Sleep timer
+Local Controls Front
+Local Controls To
p
+Indicators - screen
+Indicators - front
+Numb of Loc Cont
(
incl Mains
)
7
+Number of Ind.
(
incl Mains
)
+Local Controls (Old) Channel +-, Tact Switch,
Vol +-, TV/AV, MENU
Remote Control
+Remote Control - sco
p
eTV
+Remote Control - t
yp
eStandard
+Remote Control - t
yp
enr
+Remote Control - features
Connectors Rear
+Scart RGB+Y/C+CVBS
+Scart RGB+CVBS
+Scart CVBS+Y/C
+Com
p
onent In
(
Y/U/V
)
Cinch X
+In Y/C+Cinch
(
CVBS+St
)
+In Y/C+Cinch
(
CVBS+Mo
)
+In Y/C+Cinch
(
St
)
+In BNC
(
CVBS
)
+In Cinch
(
CVBS+St
)
X
+In Cinch
(
CVBS+Mo
)
---
+Out Cinch
(
CVBS+St
)
X
+Out Cinch
(
CVBS+Mo
)
+Out Cinch Audio Stereo
+Out Cinch Audio Mono
+Out Cinch Dolb
y
Surround
+Di
g
Audio Out
+Louds
p
eakers
+Control Busses
+Feature Slot
+ITV Smart Port
+Terr. Antenna in 75 Ohms (F type)
Guide + IR Blaster Jack
Connectors Front
+In Cinch
(
CVBS + St
)
+In Cinch
(
CVBS+Mo
)
+Head
p
hone Out
Connectors Side
+In Y/C + Cinch
(
CVBS+St
)
x
+In Y/C + Cinch Stereo
+In Cinch
(
CVBS + St
)
+IN Cinch
(
CVBS + Mo
)
+Head
p
hone Out
Connectors To
p
Connectors Mechanical
St
y
lin
g
+Cabinet Name 2927
+Confi
g
uration Symm
+Gra
p
hics/Lo
g
o's TCL
+Cabinet Colour and Finish
+Mechanics
+S
p
eaker Visibilit
y
Standard
General
+Se
g
ment Standard 4:3
+Chassis M134
+Software Deliver
y
Mode
+Software Version
+Mains Volta
g
e110-240V
+Mains Fre
q
uenc
y
50/60Hz
+T
yp
e Mains Cord ARGENTINA
Power Consum
p
tion
(
P
)
TV in On
Power Consum
p
tion SB in Watts Less than 6
Power Consum
p
tion Semi SB in W
2004-11-16 15:45 2927 pfs 2 of 3

Date: 2004-11-16 15:33
ProductView......:
Re
p
ort b
y
............:
Specs / Products
Product:@
2927
+Power in "ON" for
+Power in Standb
y
for
+Power in "OFF" for
Wei
g
ht
(
P
)
TV
(
incl. Packa
g
in
g)
Wei
g
ht
(
P
)
TV
(
excl. Packa
g
e
)
Wei
g
ht AVUnit excl Packa
g
in
g
+INDICATION on BACKCOVER
+Channel
Final E
q
ui
p
ment
+Packa
g
in
g
- methods
+Documents and manuals
+Lan
g
ua
g
es DFU
+Cables Su
pp
lied
+Antenna Su
pp
lied
+Stand Su
pp
lied
+Aux E
q
ui
p
m Su
pp
lied Batteries for RC (2 x AA)
Packa
g
in
g
- width cm
Packa
g
in
g
- hei
g
ht cm
Packa
g
in
g
- de
p
th cm
Miscellaneous
+EAN Indication
+A
pp
robation CB
+Tests
+Local Inte
g
ration
Various Perf. Param.
+Service Call-Rate
PIP/POP
+T
yp
eNo PIP/POP
+Features n/a
Di
g
ital Rece
p
tion
+Transmission
Built-in Data S
y
stem
+Text Standard
+
(
Tele
)
text Features
+Nbr bck
g
rnd
p
a
g
e / Mem Size
+Text Technolo
gy
+Di
g
ital Data handlin
g
+Pro
g
ram Guide
Built-in Clock/Timer
+T
yp
e
+Features
Built-in Radio
+T
yp
e
Built-in PC dis
p
la
y
+PC S
y
nch
+PC Control
Built-in DVD drive
+T
yp
e of Medium
+T
yp
e of Deck
Phased Out Items
+Tuner/Frontend
+Sensitivit
y
+CRT EHT
+Li
g
htnin
g
Protection NO
+Account
+XX
(
Radio Antenna in
)
+Non Volatile Memor
y
+In Y/C + Cinch
(
CVBS+Mo
)
Version of deck
2004-11-16 15:45 2927 pfs 3 of 3

Item No. Description Quantity Req. Designator Remarks
08-002975-FRY ASS'Y - PACKING FOR F/R CAB. 1
74-120120-8CD POLYBAG (120CMX120CM) 1
74-145120-8CD POLYBAG (145CMX120CM) 1
74-339010-50C EPE BOARD (800mmX530mmX5mm) 0.25
74-339030-50C EPE BOARD (1200MMX300MMX5MM) 1
74-345900-50C EPE BOARD (600MMX400MMX5MM) 0.25
76-001497-0AF CARTON BOX LWH 640X460X360MM 0.035
76-002980-0AP CARTON BOX LWH 820X600X600MM 0.25
76-002980-0AP CARTON BOX LWH 820X600X600MM 0.5 FOR REAR CAB.
76-346740-01A CARTON SHEET LWH 440X620X3MM 0.04
77-120120-6WC BUBBLE BAG (120cmX120cm) 0.5
74-339020-50C EPE BOARD (800mmX600mmX5mm) 0.5 FOR R.CAB
08-0029S6-MAY ASS'Y - MAIN BD 1
10-0BY228-F0X DIODE BY228 1 D411
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D412
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D421
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D441
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D431
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D432
10-1N4001-EBX DIODE 1N4001 (RECTIFIER) 1 D301
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D202
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D203
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D204
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D205
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D601
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D602
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D603
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D604
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D206
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D410
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 R212
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D215
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D310
10-79C8V2-DBX DIODE ZENER 8V2 1/2W 5% 1 D303
10-HS5V1B-DBX DIODE 500mW 5.1HSB 1 D001
9

Item No. Description Quantity Req. Designator Remarks
11-2SA817-AAX TRANSISTOR 2SA817AY 1 Q208
11-C124ES-0BX TRANSISTOR PDTC124ES (NPN) 1 Q209
11-C124ES-0BX TRANSISTOR PDTC124ES (NPN) 1 Q918
11-C124ES-0BX TRANSISTOR PDTC124ES (NPN) 1 Q919
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q008
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q412
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q413
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q601
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q912
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q915
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q916
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q003
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q007
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q901
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q203
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q204
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q402
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q911
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q913
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q914
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q917
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q902
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q903
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q904
11-SC2482-0BX TRANSISTOR 2SC2482 1 Q401
11-SC3779-DBX TRANSISTOR 2SC3779D (RF AMPL) 1 Q101
13-000040-52P IC 4052 1 IC901
13-00M24C-08P IC EEPROM 8K M24C08 (WRITE) 1 IC001
13-0TDA81-77S IC TDA8177 1 IC301
18-CB0100-JNX RES. C.F. 10 OHM 1/6W +/-5% 1 R244
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R023
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R232
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R937
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R245
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R234
10

Item No. Description Quantity Req. Designator Remarks
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R101
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R101A
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R920
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R003
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R004
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R031
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R032
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R248
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R911
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R453
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R904
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R906
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R910
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R912
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R924
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R925
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R926
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R929
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R932
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R932A
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R934
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R934A
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R936
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R601
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R948
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R033
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R913
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R916
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R917
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R239
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R006
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R025
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R026
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R043
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R213
11

Item No. Description Quantity Req. Designator Remarks
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R228
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R314
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R619
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R944
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R945
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R618
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R209
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R034
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R310
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R620
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R947
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R222
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R223
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R254
18-CB0121-JNX RES. C.F. 120 OHM 1/6W +/-5% 1 R235
18-CB0123-JNX RES. C.F. 12k OHM 1/6W +/-5% 1 R938
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R102
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R108
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R258
18-CB0153-JNX RES. C.F. 15k OHM 1/6W +/-5% 1 R933
18-CB0201-JNX RES. C.F. 200 OHM 1/6W +/-5% 1 R235A
18-CB0220-JNX RES. C.F. 22 OHM 1/6W +/-5% 1 R104
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R401
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R930
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R931
18-CB0122-JNX RES. C.F. 1.2k OHM 1/6W +/-5% 1 R420A
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R616
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R942
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R946A
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R044
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R417
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R005
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R951
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R617
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R903
12

Item No. Description Quantity Req. Designator Remarks
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R905
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R952
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R953
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R935
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R954
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R255
18-CB0224-JNX RES. C.F. 220k OHM 1/6W +/-5% 1 R220
18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R214
18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R215
18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R216
18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R241
18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R227
18-CB0303-JNX RES. C.F. 30K OHM 1/6W +/-5% 1 R219
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R225
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R233
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R247
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R233A
18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R230
18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R613
18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R614
18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R231
18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R007
18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R008
18-CB0394-JNX RES. C.F. 390K OHM 1/6W +/-5% 1 R939
18-CB0470-JNX RES. C.F. 47 OHM 1/6W +/-5% 1 R024
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R036
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R103
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R238
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R211
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R010
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R257
18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R229
18-CB0560-JNX RES. C.F. 56 OHM 1/6W +/-5% 1 R107
18-CB0562-JNX RES. C.F. 5.6k OHM 1/6W +/-5% 1 R256
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R940
13

Item No. Description Quantity Req. Designator Remarks
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R106
18-CB0562-JNX RES. C.F. 5.6k OHM 1/6W +/-5% 1 R418
18-CB0683-JNX RES. C.F. 68K OHM 1/6W +/-5% 1 R941
18-CB0750-JNX RES. C.F. 75 OHM 1/6W +/-5% 1 R923
18-CB0820-JNX RES. C.F. 82 OHM 1/6W +/-5% 1 R902
18-CB0820-JNX RES. C.F. 82 OHM 1/6W +/-5% 1 R908
18-CB0822-JNX RES. C.F. 8.2K OHM 1/6W +/-5% 1 R246
18-CB0829-JNX RES. C.F. 8.2 OHM 1/6W +/-5% 1 R610
18-CB0829-JNX RES. C.F. 8.2 OHM 1/6W +/-5% 1 R621
18-CD0479-JNX RES. C.F. 4.7 OHM 1/4W +/-5% 1 R030
18-DD0103-FNX RES. M.F. 10K OHM 1/4W +/-1% 1 R311
18-DD0183-FNX RES. M.F. 18K OHM 1/4W +/-1% 1 R312
18-DD0392-FNX RES. M.F. 3.9K OHM 1/4W +/-1% 1 R302
18-FF0242-JGX RES. M.O. 2.4K OHM 1W +/-5% 1 R402
18-FF0681-JGX RES. M.O. 680 OHM 1W +/-5% 1 R419
18-FG0103-JHX RES. M.O. 10K OHM 2W +/-5% 1 R421
18-FG0399-JHX RES. M.O. 3.9 OHM 2W +/-5% 1 R415
18-RG0109-JHX RES. WIRE ROUND 1 OHM 2W +/-5% 1 R422
18-RG0228-JHX RES. WIRE ROUND 0.22 OHM 2W +/-5% 1 R611
25-264610-M1X CAP. ELEC 4.7UF 50V +/-20% NP 1 C415
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C021
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C025
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C028
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C033
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C041
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C228
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C619
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C620
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C904
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C905
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C909
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C910
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C924
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C927
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C928
14

Item No. Description Quantity Req. Designator Remarks
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C209
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C219
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C233
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C912
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C914
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C930
25-BCB220-M1X CAP. ELEC 22 UF 16V +/-20% 1 C645
25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% 1 C926
25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% 1 C646
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C213
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C229
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C903
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C908
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C644
25-BDA102-M1X CAP. ELEC 1000 UF 25V +/-20% 1 C632
25-BDB100-M1X CAP. ELEC 10 UF 25V +/-20% 1 C641
25-BEA221-M1X CAP. ELEC 220 UF 35V +/-20% 1 C301
25-BEA221-M1X CAP. ELEC 220 UF 35V +/-20% 1 C308
25-BEB101-M1X CAP. ELEC 100 UF 35V +/-20% 1 C302
25-BFB100-M1X CAP. ELEC 10 UF 50V +/-20% 1 C237
25-BFB101-M1X CAP. ELEC 100 UF 50V +/-20% 1 C105
25-BFB101-M1X CAP. ELEC 100 UF 50V +/-20% 1 C224
25-BFB108-M1X CAP. ELEC 0.1 UF 50V +/-20% 1 C211
25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C218
25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C248
25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C221
25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C241
25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C243
25-BFB478-M1X CAP. ELEC 0.47 UF 50V +/-20% 1 C227
25-BFB478-M1X CAP. ELEC 0.47 UF 50V +/-20% 1 C923
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C101
25-BJB479-M1X CAP. ELEC 4.7 UF 160V +/-20% 1 C401
25-GFB228-K1X CAP. ELEC 0.22 UF 50V +/-10% 1 C216
25-GFB478-K1X CAP. ELEC 0.47 UF 50V +/-10% 1 C246
25-GLA100-M1X CAP. ELEC 10 UF 250V +/-20% 1 C421
15

Item No. Description Quantity Req. Designator Remarks
25-GLA220-M1X CAP. ELEC 22UF 250V +/-20% 1 C442
26-ABC104-ZFX CAP. CER 0.1 UF 50V +80-20% F 1 C230
26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C441
26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C433
26-AIC332-KBX CAP. CER 3300 PF 500V +/-10% B 1 C402
26-AIC391-KBX CAP. CER 390 PF 500V +/-10% B 1 C403
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C109
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C226
26-EBP272-KBX CAP. CER 2700pF 50V +/-10% B 1 C003
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C915
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C916
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C022
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C029
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C034
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C106
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C107
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C108
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C214
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C220
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C225
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C027
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C234
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C236
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C244
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C911
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C913
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C929
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C633
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C643
26-EBP152-KBX CAP. CER 1500pF 50V +/-10% B 1 C002
26-EBP181-JCX CAP. CER 180PF 50V +/-5% CH 1 C922
26-EBP221-JCX CAP. CER 220PF 50V +/-5% CH 1 C030
26-EBP221-JCX CAP. CER 220PF 50V +/-5% CH 1 C431
26-EBP222-KBX CAP. CER 2200PF 50V +/-10% B 1 C217
26-EBP222-KBX CAP. CER 2200PF 50V +/-10% B 1 C231
16

Item No. Description Quantity Req. Designator Remarks
26-EBP270-JCX CAP. CER 27PF 50V +/-5% CH 1 C008
26-EBP330-JCX CAP. CER 33PF 50V +/-5% CH 1 C925
26-EBP390-JCX CAP. CER 39PF 50V +/-5% CH 1 C031
26-EBP390-JCX CAP. CER 39PF 50V +/-5% CH 1 C032
26-EBP470-JCX CAP. CER 47PF 50V +/-5% CH 1 C253
26-EBP470-JCX CAP. CER 47PF 50V +/-5% CH 1 C254
26-EBP471-JCX CAP. CER 470PF 50V +/-5% CH 1 C239
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C631
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C634
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C642
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C238
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C242
27-MBC684-J0X CAP. M.P.E 0.68UF 63V +/-5% 1 C305
27-PBC102-J0X CAP. P.E 0.001UF 63V +/-5% 1 C635
27-PBC102-J0X CAP. P.E 0.001UF 63V +/-5% 1 C638
27-PBC822-J0X CAP. P.E 0.0082UF 63V +/-5% 1 C247
27-RHQ563-J0X CAP. PP 0.056 UF 400V +/-5% 1 C451
34-A109K0-1IX COIL CHOKE 1 UH +/-10% 1 L102
34-R100J2-0EX COIL PL - 10 UH +/-5% 1 L002
34-R100J2-0EX COIL PL - 10 UH +/-5% 1 L212
34-R101K2-1BX COIL CHOKE 100 UH +/-10% 1 J622
34-R220J2-0EX COIL PL - 22 UH +/-5% 1 L204
34-R220J2-0EX COIL PL - 22 UH +/-5% 1 L205
34-R220J2-0EX COIL PL - 22 UH +/-5% 1 L950
34-R220J2-0EX COIL PL - 22 UH +/-5% 1 L208
34-R220J2-0EX COIL PL - 22 UH +/-5% 1 L206
34-R470J2-0EX COIL PL - 47 UH +/-5% 1 L101
36-HDR001-AX1 TRANSFOR HOR. DRIVE (MAGNETIC CORE) 1 T401
41-DE0280-1BB WIRE 1 FOR S1 TO S1
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J026
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J220A
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 L201
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J104
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J220
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J222
17

Item No. Description Quantity Req. Designator Remarks
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J301
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J306
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J901
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J921
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J107
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J108
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J103
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J204
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J037
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J038
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J039
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J221
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J603
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J605
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J903
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J935
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J946
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 R027
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 R028
41-WJ0070-B00 WIRE BARE JUMPER 7MM 1 J205
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J025
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J027
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J031
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J033
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J035
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J229
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J307
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J609
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J610
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J612
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J922
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J930
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J937
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 D311
41-WJ0080-B00 WIRE BARE JUMPER 8 MM 1 J032
18

Item No. Description Quantity Req. Designator Remarks
41-WJ0080-B00 WIRE BARE JUMPER 8 MM 1 J304
41-WJ0080-B00 WIRE BARE JUMPER 8 MM 1 J303
41-WJ0080-B00 WIRE BARE JUMPER 8 MM 1 J623
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J202
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J203
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J206
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J905
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J907
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J924
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J936
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J945
41-WJ0095-B00 WIRE BARE JUMPER 9.5MM 1 J105
41-WJ0095-B00 WIRE BARE JUMPER 9.5MM 1 J106
41-WJ0095-B00 WIRE BARE JUMPER 9.5MM 1 J614
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J001
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J002
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J406
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J906
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J932
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J933
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J934
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J602
41-WJ0105-B00 WIRE BARE JUMPER 10.5MM 1 J018
41-WJ0105-B00 WIRE BARE JUMPER 10.5MM 1 J607
41-WJ0105-B00 WIRE BARE JUMPER 10.5MM 1 J608
41-WJ0105-B00 WIRE BARE JUMPER 10.5MM 1 J214A
41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J024
41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J028
41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J228
41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J613
41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J919
41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J927
41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J022
41-WJ0115-B00 WIRE BARE JUMPER 11.5MM 1 J034
41-WJ0115-B00 WIRE BARE JUMPER 11.5MM 1 J912
19

Item No. Description Quantity Req. Designator Remarks
41-WJ0115-B00 WIRE BARE JUMPER 11.5MM 1 J939
41-WJ0120-B00 WIRE BARE JUMPER 12MM 1 J023
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J004
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J109
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J212
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J213
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J231
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J305
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J404
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J617
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J618
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J929
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 R308
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J601
41-WJ0130-B00 WIRE BARE JUMPER 13MM 1 J005
41-WJ0130-B00 WIRE BARE JUMPER 13MM 1 J615
41-WJ0130-B00 WIRE BARE JUMPER 13MM 1 J616
41-WJ0130-B00 WIRE BARE JUMPER 13MM 1 J920
41-WJ0130-B00 WIRE BARE JUMPER 13MM 1 J931
41-WJ0135-B00 WIRE BARE JUMPER 13.5MM 1 J030
41-WJ0135-B00 WIRE BARE JUMPER 13.5MM 1 J909
41-WJ0135-B00 WIRE BARE JUMPER 13.5MM 1 J910
41-WJ0140-B00 WIRE BARE JUMPER 14MM 1 J226
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J019
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J020
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J224
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J613A
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J619
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J620
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J621
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J938
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 L412
41-WJ0160-B00 WIRE BARE JUMPER 16MM 1 J208
41-WJ0160-B00 WIRE BARE JUMPER 16MM 1 J214
41-WJ0165-B00 WIRE BARE JUMPER 16.5MM 1 J009
20
