TCL EU MT23L User manual

TCL
SERVICE MANUAL
EU MT/ SERIALS
1. Caution…………………………………………………………………………2
2. Specification …………………………………………………………………6

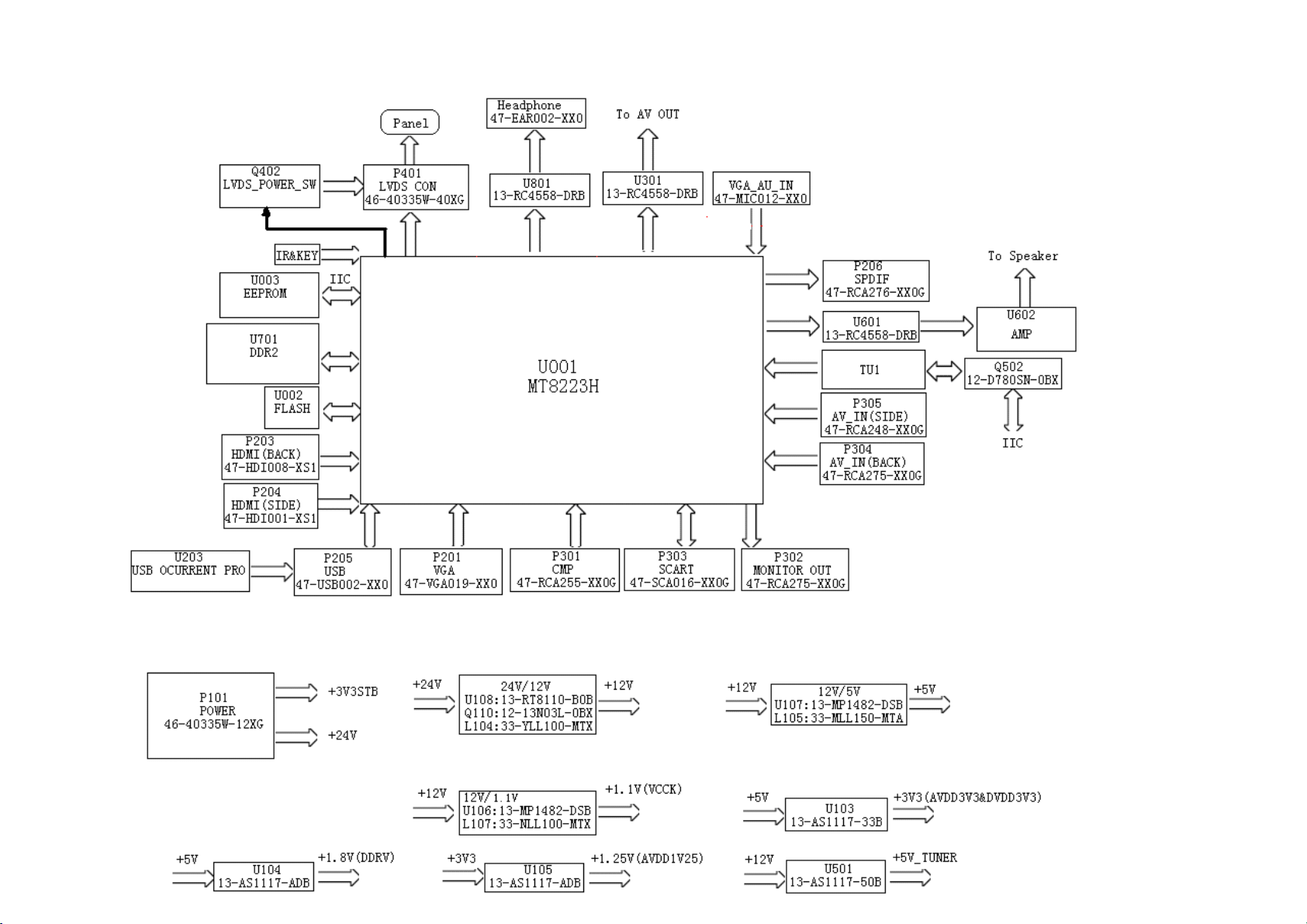

3. Block Diagram..................................................................................................7
4 . Alignment Procedure…………………………………………………………8

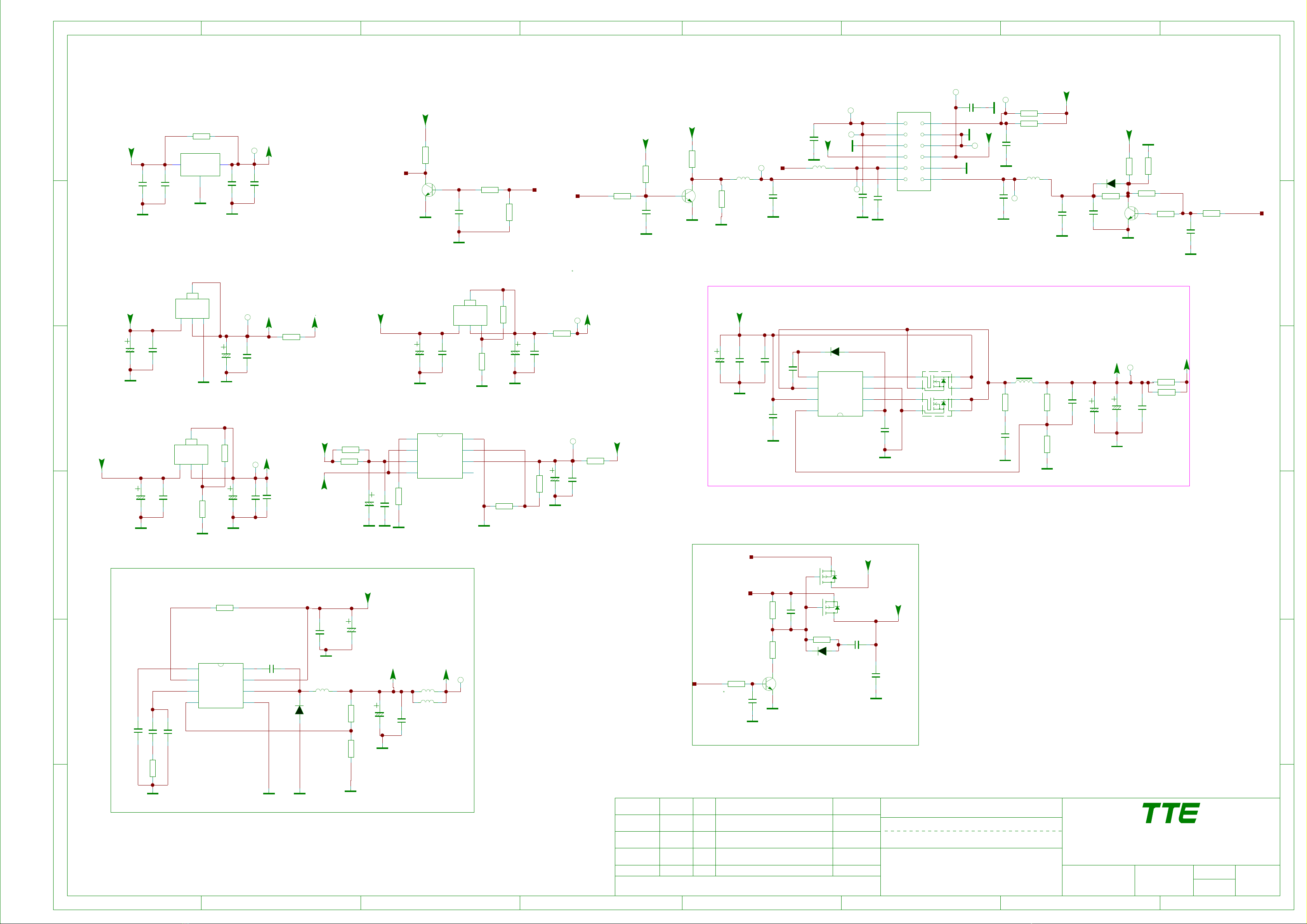

5. Scheme Diagram…………………………………………………………… 18
This manual is the la test a t the time of p rinting, an d does not
include the modification which may be made after the printing, by
the constant improvement of product

CA UTION: TO RE DUCE THE RIS K OF
ELECTR ICA L SHOCK, DO NOT RE MOVE
COVER (OR BACK). NO USER SERVICEABLE
PAR TS INSIDE . RE FER SER VIC ING TO
QUALIFIE D SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CA U T ION
RISK
RISK OF
ELECTRI
ELECTRIC
SHOCK
SHOCK DO
NOT
NOT
OPEN.
OPEN.
2
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
SCHNEIDER ELECTRONICS GMBH-GERMANY
1. CAUTION
2

1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and
Instructions marked on the audio equipment.
1. Read Instructions-All the safety and operating instructionsshouldbe read before the productis operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
3
SCHNEIDER ELECTRONICS GMBH-GERMANY
IMPORTANT SAFETY INSTRUCTIONS
FOR YOUR PERSONAL SAFETY
3

11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s
4
SCHNEIDER ELECTRONICS GMBH-GERMANY
PROTECTION AND LOCATION OF YOUR SET
PROTECTION AND LOCATION OF YOUR SET
4

18. This television set should be operated only from the type of power source indicated on the marking label.If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
21. If you are unable to restore normal operation by followingthe detailedprocedurein your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.
25. When replacementparts are required, be sure the service technicianhas used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
off
5
SCHNEIDER ELECTRONICS GMBH-GERMANY
OPERATION OF YOUR SET
IF THE SET DOES NOT OPERATE PROPERLY
FOR SERVICE AND MODIFICATION
5

Key Features
Update:2010/04/7 V:1.1
机芯号 Model # MT23H 备注
使用范围： TCL/中国大陆
主要功能特点
★低成本模拟电视
★USB多媒体（图片、音乐）
★HDMI1.3接口*2
★睡眠定时 1.切台或换信源黑屏.
主要芯片 Main IC
处理芯片
型号 Module MT8223H
功能定义：
图像
动态背光 Yes
动态对比度 Yes
色温调整 Adjustable Color Temperature Yes
比例模式 Format Control 4：3、全屏(16:9)、宽屏、16：9字幕 自适应 共
五种
背光调节 Backlight Adjust Yes
梳状滤波Comb Filter 3D
降噪Noise Reduction 3D
声音SOUND
声音功率Audio Power (Watts) Front Speakers 8W/CH x 2
音效 新闻、电影、音乐、标准、自设定共五种
平衡 Yes
均衡 高低音
智能音量 Yes
音响单独听 Yes
信号格式SIGNAL FORMAT CAPABILITY
射频格式 RF Tuning Capability PAL(I/D/K/B/G)
AV制式 AV Formats (PAL/NTSC/SECAM) PAL/NTSC/SCAM
YPbPr最高格式 1080P
HMDI最高格式 1080P
VGA支持分辩率:1920*1080
点对点显示（VGA、YPbPr、HDMI）Yes
电视功能
频道数 channel quantity 99
频道跳跃 Yes
智能搜台 Yes
频道互换 Yes
其它 同公司标准
多媒体/娱乐 Yes
音乐播放 Yes MP3
图片播放（数码相册） Yes JEPG
音画播放 Yes
系统功能
睡眠定时 Yes
OSD语言 中文简体/英语 EM语言根据需求另定
OSD时间调节 固定
开机LOGO 标准 标准LOGO
能效及认证
待机功耗 －－
能效等级 －－
节能认证 Yes
环保证认 No 符合中国ROHS要求
摇控器REMOTE CONTROL Yes
摇控器型号 Remote Model Number RC300
码值格式 RCA 38K
键数 37
后端子 CONNECTIONS — REAR
HDMI 1
Dsub15 VGA 1
VGA音频 Audio input for Dsub 15 VGA Φ3.5*1
分量输入 Composite Video input(HDTV) 1
分量音频 Component Aideo Input (YCrCb/YPrPb) (synchroscan) 1R+1L
AV input 1 AV (AV1)
RF Input (PAL) 1
AV输出 AV Output 1 AV
侧置端子 FAV
AV input 1（AV2）
HDMI 1
USB 1
第1页共1页

Factory Alignment Specification of normal SIACP
Page 1 of 10
TCL WW R&D
FPD CENTER
Factory Alignment Specification of normal SIACP
For MT8223 serial
Version：V0.1
For the following Chassis：
MT8223L:
MT8223H:
PREPARED BY : LiuShuBiao DATE : 2010-05-13
APPROVEDBY: DATE:

Factory Alignment Specification of normal SIACP
Page 2 of 10
Disclosure
The information contained in this document is proprietary to TCL SZ FPD lab and shall not be
disclosed by the recipient to third persons without the written permission of the team leader or
GM of R&D.
Revision History
Status, Ver Date, Drafter Description of changes
V0.10 2010-02-07 This is the first version of normal SIACP
·HDMI as the main absolute input
·The password of factory menu is 9735

Factory Alignment Specification of normal SIACP
Page 3 of 10
These chassises are designed for ALL GLOBE LCD TV. The main chip is from Mediatec
(MT8223 series) and supports below inputs and outputs:
class item MT8223L MT8223H
ATV
( PAL B/G D/K I)
√√
DTV
(DVB-T,DVB-C,DVB-S)
HDMI
(480i/p, 576i/p, 720p up to
1080i/p, compliant v1.3. with
HDCP)
1 2
VGA 1 1
VGA/DVI audio 1 1
CMP
(YPrPb can support from 480i up
to 1080p,audio)
1 1
SCART1
(CVBS & RGB,audio)
SCART2
(CVBS & YC,audio)
Side AV or back AV
(CVBS,audio)
1/1 1/1
USB player
(picture,video,audio)
audio
Picture,
audio
SCART1 output
(CVBS,audio)
SCART2 output
(CVBS,audio)
Headphone output
SPDIF output Coaxial Optical
AV out 1 1
input
&
output
MEMC
CI+
function
Serial connector P001 P001
Others I2C connector of MEMC
module
Serial connector of MT8223 definition:
Pin1:VCC Pin2:RXD Pin3:TXD Pin4:GND
INFO:
ªAll tests and measurements mentioned hereafter have to be carried out at a normal mains voltage
(220 ~ 240 VAC)TBD
ªAll voltages have to be measured with respect to ground, unless otherwise stated

Factory Alignment Specification of normal SIACP
Page 4 of 10
ªAll final tests have to be done on a complete set including LCD panel in a room with temperature of
25+/-7°C
ªThe White Balance (color temperature) has to be performed into subdued lighted room after at
least 1 hour of warm-up/burn-in. This is applicable for both Alignment and Picture Performance
evaluation at OQA in order to be set free of any temperature drift ( colorimetry vs time)
1. Electrical Assembly Alignment
1.1. Preconditions – DC/DC Check
Before power on, please check the board according to the relevant block diagram and circuit
diagram, and make sure that no serious error should destroy the board. For example,the output
of DC/DC and LDO should not shorted to ground.
Supply a suited voltage and power on , then check the voltage according to the relevant block
diagram , circuit diagram and voltage spec . the error should less than 5% .For example, the
voltage for main chip(AVDD3V3, DVDD3V3, VCCK,etc.), the voltage for DDR (DDRV) , the
voltage for amplifier(AUDIO_PWR),etc. Only the standby voltage is necessary if there is no
software in the flash .
1.2. SW download
Download the latest release MT8223_SW into the flash using MTK SW tool. See Appendixo
“How to download FLASH SW”. Or upgrade the SW from USB port See Appendixp” How to
upgrade FLASH SW from USB”.
1.3.Panel ID check and modify
There is different ID stored in the NVM depended on different Panels. Modify it with Hyper
terminal if the initial ID or a wrong ID make the set can not display clearly. See Appendixr. It can
be checked and modified in Factory menu->Feature->Panel ID if the set can display clearly .
The set should be restart if the panel ID is changed .
1.4.Functional Test
Once the boards (chassis, KB, IR, PSU…) and the panel are well interconnected, connect all
external generator devices to relevant inputs/outputs below according to their respective test
patterns format and check picture content and sound quality accordingly:
Source Test signal (generator) Test pattern (format/image)
Analog Tuner RF cable Full Band (VHF/UHF) + CATV
Composite(CVBS) Chroma/Fluke PAL Half Color & Gray bars
VGA Chroma/QuantumData 1024x768@60Hz
Half Color & Gray bars
CMP (YPrPb) Chroma/QuantumData 1080i@60Hz
Half Color & Gray bars
HDMI DVD with HDMI compliancy Movie 720p@60Hz
Headphone RF cable First channel
Loud Speakers RF cable First channel
Audio tones can be defined by the factory (ie: 1KHz & 3KHz, sweep, …).
Picture video formats can be changed by the factory according to their own standard.
1.5. ADC Calibration
To ensure the ADC performance, the error of “generator+cable” must be less than 2%. The

Factory Alignment Specification of normal SIACP
Page 5 of 10
following inputs require an ADC calibration for the time being.
VGA(skip this step if no VGA input on the chassis)
Provide a test signal 1024×768@60Hz with WhiteBlack squares.
Select the corresponding FactoryMenu-> ADC -> Auto ADC , then press ”OK” key on
RemoteControl to start. Value of status will change to “OK” if succeed.
CMP
Provide a test signal 720p@60Hz with 100% 8 steps ColorBar.
Select the corresponding FactoryMenu-> ADC -> Auto ADC , then press ”OK” key on
RemoteControl to start. Value of status will change to “OK” if succeed.
Scart RGB(skip this step if no SCART input on the chassis)
Provide a test signal PAL 576i with 100% 8 steps ColorBar.
Select the corresponding FactoryMenu-> ADC -> Auto ADC , then press ”OK” key on
RemoteControl to start. Value of status will change to “OK” if succeed.
The mean of status value:
“NONE”= no input is successful in ADC calibration.
“OK”= current input is successful in ADC calibration.
“NOK”= current input is fail in ADC calibration.
“ALL”= all inputs required are successful in ADC calibration.
R Gain, G Gain, B Gain, R Offset, G Offset, B Offset in FactoryMenu-> ADC page can be
fine-tuned if necessary but not required.
1.6.DDC & EDID Test
The E-EDID data structure are according to VESA Enhanced EDID 1.3 (and EIA/CEA-861B for
HDMI).
Both VGA and HDMI have their own separate bin files:
For EDID check, it’s needed to check whether the correct EDID is downloaded by checking
corresponding EDID NVM Checksum or read them out to check bit by bit if it is in line with the
released EDID bin file.
1.7.HDCP Test
For HDCP compliancy, it’s needed to check whether the HDCP key has been well set.
1.8.CI+ Key activation and test(This step is only for the models with CI+ function )
(FOR EU MODEL)
Select factory menu-> Update CI+ Credential-> Update CI+ Credential , then press ”OK” key
on RemoteControl to active the CI+ KEY. The Valid(CI+ state) state turn to “Yes” and Cus
Code(Custom Code), Serial Num display if succeed. Download the CI+ Key and try to active it
again if fail.
2. Final Assembly Alignment
2.1.FactoryMenu
Follow the below steps to pop-up the Factory Menu in case of “FactoryKey” is disable:
- press RemoteControl key “MENU” to display main menu

Factory Alignment Specification of normal SIACP
Page 6 of 10
- Select “Picture” and press “OK” key to enter the picture submenu
- Select “Contrast” item
- press the subsequence RemoteControl keys “9”, “7”, “3” and “5”
Press RemoteControl key “Return” To pop-up the Factory Menu in case of “HotKey” is
enable.(TBD)
The status of “HotKey” can be changed in FactoryMenu-> HotKey
Press RemoteControl “OK” key or “RIGHT” key to enter the submenu.
Press RemoteControl “Menu” key to go back to the root menu.
Press RemoteControl “RIGHT”or “LEFT” key to change the values.
Press RemoteControl “OK” key run the function.
Press RemoteControl “Exit” key exit the factorymenu.
2.2.Entering to “P” Mode
Turned on the factory key to enter into “P” mode.The TV will display “P” in bottom left corner
in “P” mode.
2.3.White Balance Alignment
Make sure that the picture mode is “vivid”, enter to “P” mode(turned on the factory key) and
switch off “Pic. Enhance” in Factory Menu-> WD Alignment before white balance alignment .
VGA,CMP,SCART RGB,CVBS_PAL Color Coordinates are relative to HDMI.
CVBS_SECAM and CVBS_NTSC Color Coordinates are relative to CVBS_PAL.
Warm and Cool Color Coordinates are relatives to Normal mode.
Only HDMI(YUV 720p@60Hz) input requires color temperature adjustment. All the Relative
Matrix Offsets should be set while doing alignment.
Expected Targets and Tolerances
The measured parameters should be “x, y” coordinates.
The White Balance alignment should be performed using a contact less analyzer (ei: Minolta
CA-210). The analyzer may not touch the screen surface, and measurement must be performed in a
dark environment keeping the probe(s) at 90+/-2° from the panel.
The result should measure up the relevant spec.
The alignment have to fulfill the requirements in Application Form.
Alignment FlowChart
Provide a test signal on the input and align the WB as described inside attached document
ensuring first that the BackLight value is matching below table:
2.4.High Pot. and Insulating Resistance Tests
At the end of the process, a High Pot. and an Insulating Resistance tests are required for

Factory Alignment Specification of normal SIACP
Page 7 of 10
matching Safety Electrical requirements (ei: xxxx)
High Voltage Withstanding requirements
- “Voltage” Ö3500 VAC
- “Max Leakage Current” Ö10mA
- “Test Time” Ö5 sec
Insulating Resistance requirements
- “Voltage” ÖDC500V
- “Threshold Max” Ö
- “Threshold Min” Ö4MΩ
- “Test Time” Ö3 sec
3. Factory default settings
Do the “Shop init” before packing.The detail of reset shop follow OOB setting.
“Factory Menu” Definition
1)．HotKey
Item Sub-item
Hotkey OFF：Factory Key is invalidation
ON ：Factory Key is availability, and “RETURN” key is the shortcut
key.
2)．Warm up
Item Sub-item
Warm up OFF：
ON ：
3)．ADC
Item Sub-item
ADC Source YPbPr1 / VGA
Auto ADC DO / WAIT / OK
R GAIN
G GAIN
B GAIN
R OFFSET
G OFFSET
ADC
B OFFSET
4)．WB
Item Sub-item
BalanceSource AV1\ VGA\ HDMI1
Color Temp Cool \ Normal\ Warm
R GAIN
WB
G GAIN

Factory Alignment Specification of normal SIACP
Page 8 of 10
B GAIN
R OFFSET
G OFFSET
B OFFSET
WB Init DO / WAIT / OK
Auto ADC DO / WAIT / OK
Pattern Off / On
PATTERN LUMA 0-255
5)．Shop Init
Item Sub-item
Shop Init DO / WAIT / OK
6)．NVM Reset
Item Sub-item
NVM
Reset
DO / WAIT / OK
7)．Pre Channel
Item Sub-item
Pre
Channel
VOL_0 HuiZhou\ TTET \WUXI
8)．PowerMode
Item Sub-item
Power
Mode
ON\ last \Standby
9)．DesignMenu1
Item Sub-item
InitVol 0--100
PicPreset User\ Standard\ Soft\ Vivid
BacklightPreset 0--100
TunerAGC (default value is0)
Project ID See appendix○
4
Pattern Pattern1\Pattern2\Pattern3\Pattern4\
Pattern4\ PatternCose
PrintMessage Off/On
Sound Count 0—255
DBC
DesignM
enu1
DB_CP

Factory Alignment Specification of normal SIACP
Page 9 of 10
DBC_BP
10)．DesignMenu2
Item Sub-item
DesignM
enu2
Panel Control On/Off
Panel Freq 0-255
Panel Percent 0-255
BlueMute On/Off
OtherCTI On/Off
FleshTone On/Off
LumaControl On/Off
Hotel Menu On/Off
USB UPG USB download software
BackIT On/Off
11)．Sound Curve
Item Sub-item
Vol_1
Vol_10
Vol_20
Vol_40
Vol_50
Vol_70
Vol 100
TV Pre
AV Pre
Sound
Curve
I2S
12)．Version
Item Sub-item
Version Prj. Project ID
Ver. SW Vx.x
Panel Mode
PSU
SIACP_VER
Date Month Date Year
Appendix o“How to download FLASH SW”
Prepare MTK SW tool for update.
1. Connect the PC to the serial connector on board using a special serial device (USB or
COMx).

Factory Alignment Specification of normal SIACP
Page 10 of 10
2. Provide the a correct voltage to the board

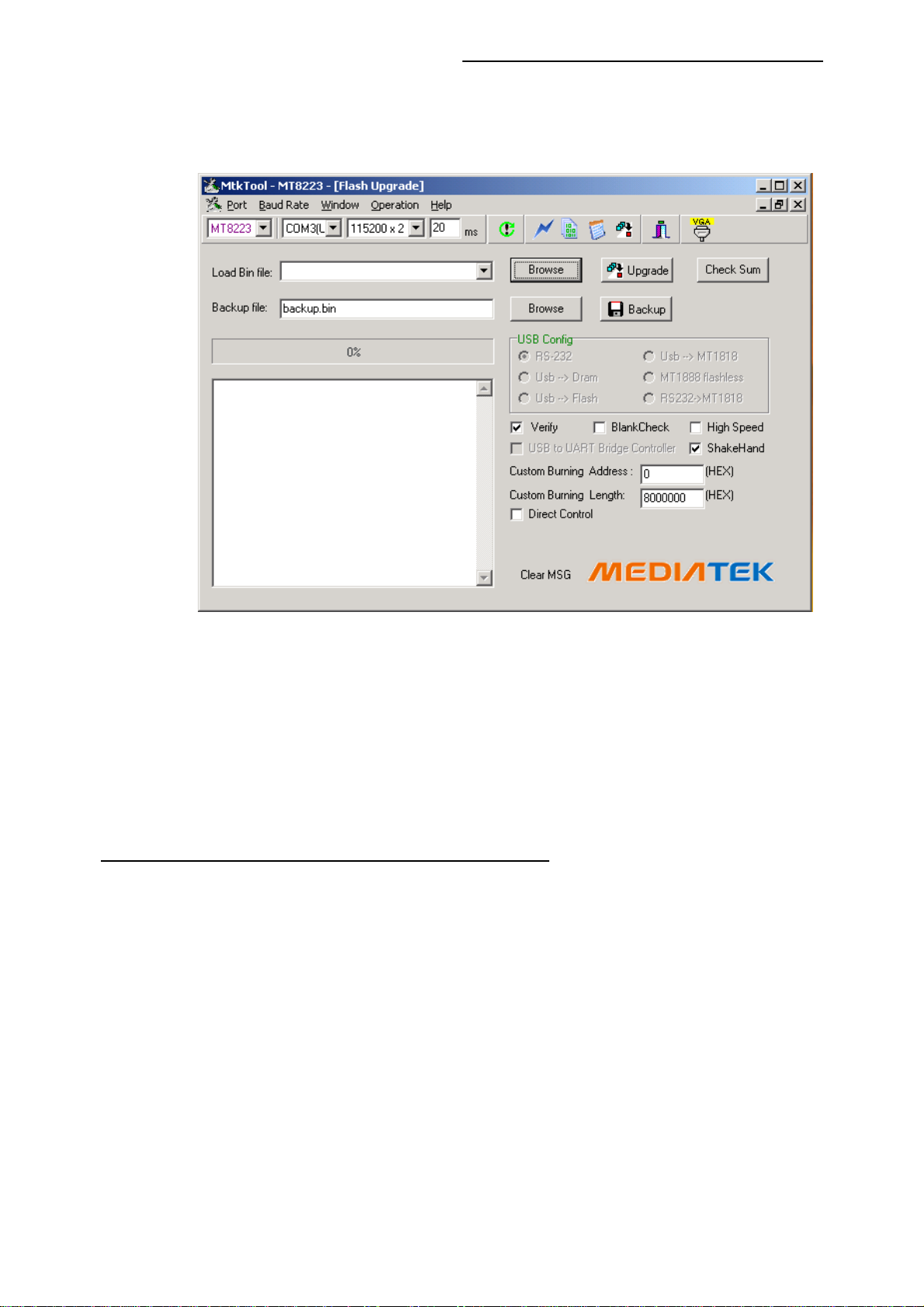

3. Start “MTKTOOL.exe” application under MTKxx folder, and set the parameters as below
picture(notice:select MT8223 chassiss):
4. Press “Browse” button to select the corresponding SW bin file to upload
5. Press “Upgrade” button to start downloading the SW and wait the gauge displayed “100%”
that means the SW has been successfully downloaded.
In the meanwhile, all operations such erasing flash and so… are parsed into the debug
window script.
6. Once the SW is downloaded, switch-off/on the chassis board and wait few seconds for
eeprom update.
See Appendixp” How to upgrade FLASH SW from USB”
Upgrade with loader:
1. Save the new software file(*.bin) in the root directory of USB, and modify it’s name as
upgrade.bin. (The file name must be one of the” TCLCNH、TCLCNL、TCLAPH、TCLAPL、
TCLLAH、TCLLAL” and should be same as the file name on the model)
2. Select Factory Menu—>DesignMenu2—>USB UPG,Then press “OK” key on the remote.
Upgrade without loader(The TV set should be able to display normally):
1. Save the new software file(*.bin) in the root directory of USB, and modify it’s name as
upgrade.pkg.
2. Plug in the USB.
3. Press the “Program +” for a long time.

......
.............
DESIGNATION
The JTC Summit SINGAPORE 609434
OF :
PAGE:
ON:
BY:
BY:
ON: CHECKED
DRAWN
DATE
Last saved :DESCRIPTION Last modifNAME
A
321
F
E
D
C
B
8 7 6 5
5
4 3 2 1
THIS DRAWING CANNOT BE COMMUNICATED TO UNAUTHORIZED PERSONS COPIED UNLES S PERMITTED IN WRITING
F
E
D
C
B
A
4678
FORMAT DIN A2
Index-Lab
SBU :
TCL Thomson Electronics Singapore Pte. Ltd.
8 Jurong Hall Road #28-01/06
Tel [phone] Fax [phone]
TCLNO:
DESIGNATION
XTAL
POWER
8223L
TUNER
32.59mA
power supply
document
AS1117
AS1117
RT9116
+5V
12V/24 DC/DC
SDR_V=2.5v VCCK=1.1V
367mA
AVDD3V3
LDO #4
LDO #1
MP1482 LDO #2
AS1117 LDO #3
AS1117
LDO #5
RT9042
DVDD3V3 /3.03mA
3.3V/5VSTB

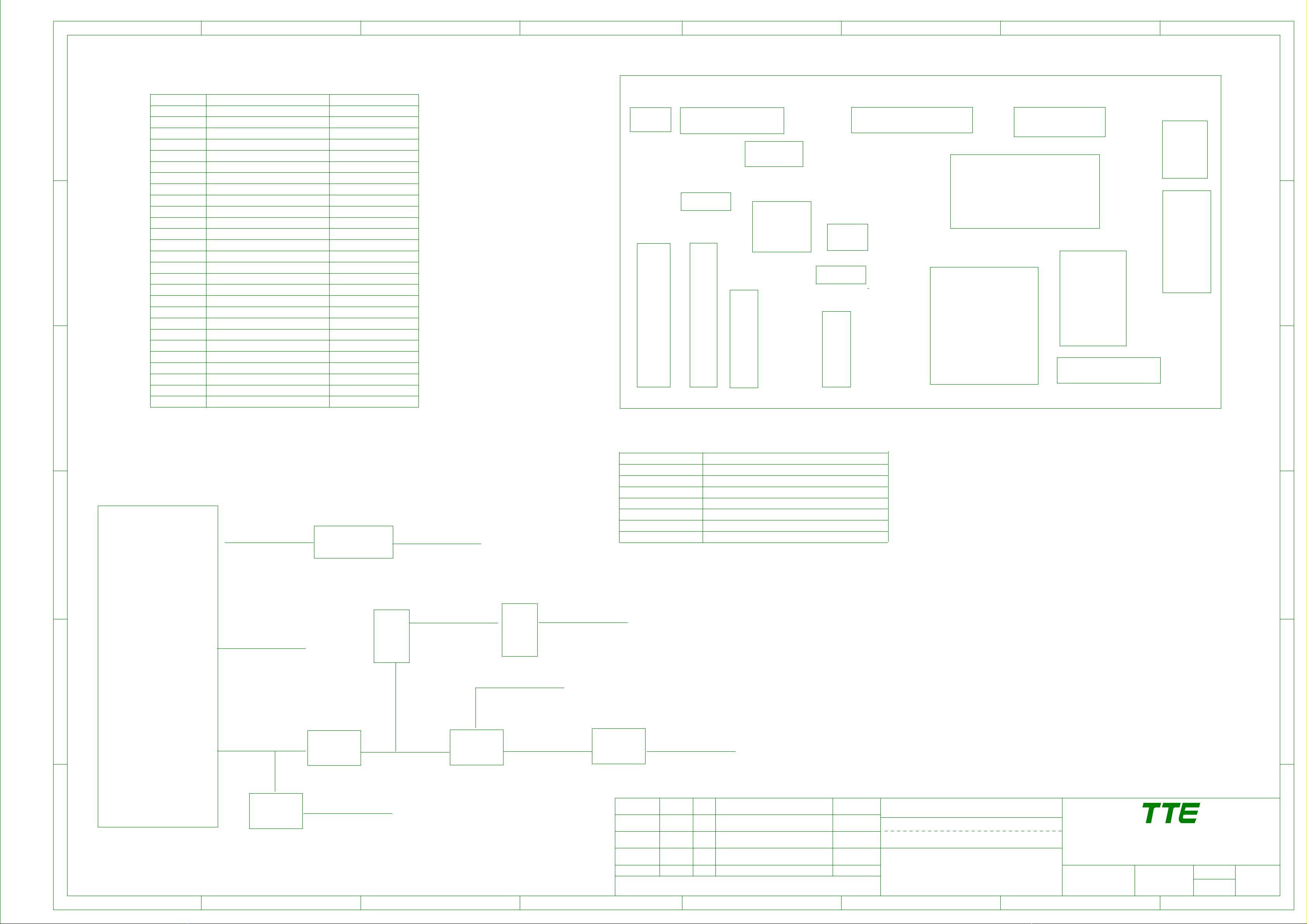

POWER TREE BLOCK
HPD to source device(fall edge)
HDMI power detect
JTAG/A ALL mute(power on/off mute)
VGA-SCL/JTDI
BOOST PWM
LVDS CTRL0
LVDS PWR CTRL
LVDS CTRL0
BL ON/OFF
Boost PWM for tuner 30v
VGA-SDA/JTMS
JTAG/SYS-EDID-WP(L WP)
JTAG/AU-AMP-MUTE(H AMP Mute)
HDMI CEC
HDMI SCL
HDMI SDLHDMI SDL
HDMI SCL
HDMI CEC
PWR5V-IN
HDMI HPD
JTRST#
JTDO
JTCK
OPWRSB
ADIN3
RF-AGCO
U1TX AU-SWA
AU-SWBU1RX
RXD1 PIN41:GPIOL[0]
HDMI-PC0 PIN241:GPIOE[0]
HDMI_SW2/SCL
HDMI_SW1/SDA
ADIN0
BL-Dimming
TCL MULTIMEDIA TECHNOLOGY HOLDINGS LTD
JTAG/VGA-SDA
JTAG/VGA-SDA
function defineGPIO
PIN240:GPIOE[1]
PIN239:GPIOE[2]
LVDS PWR CTRL(H POWER Enable)
sheet4
sheet5
sheet6
sheet7
sheet3
sheet2
sheet1

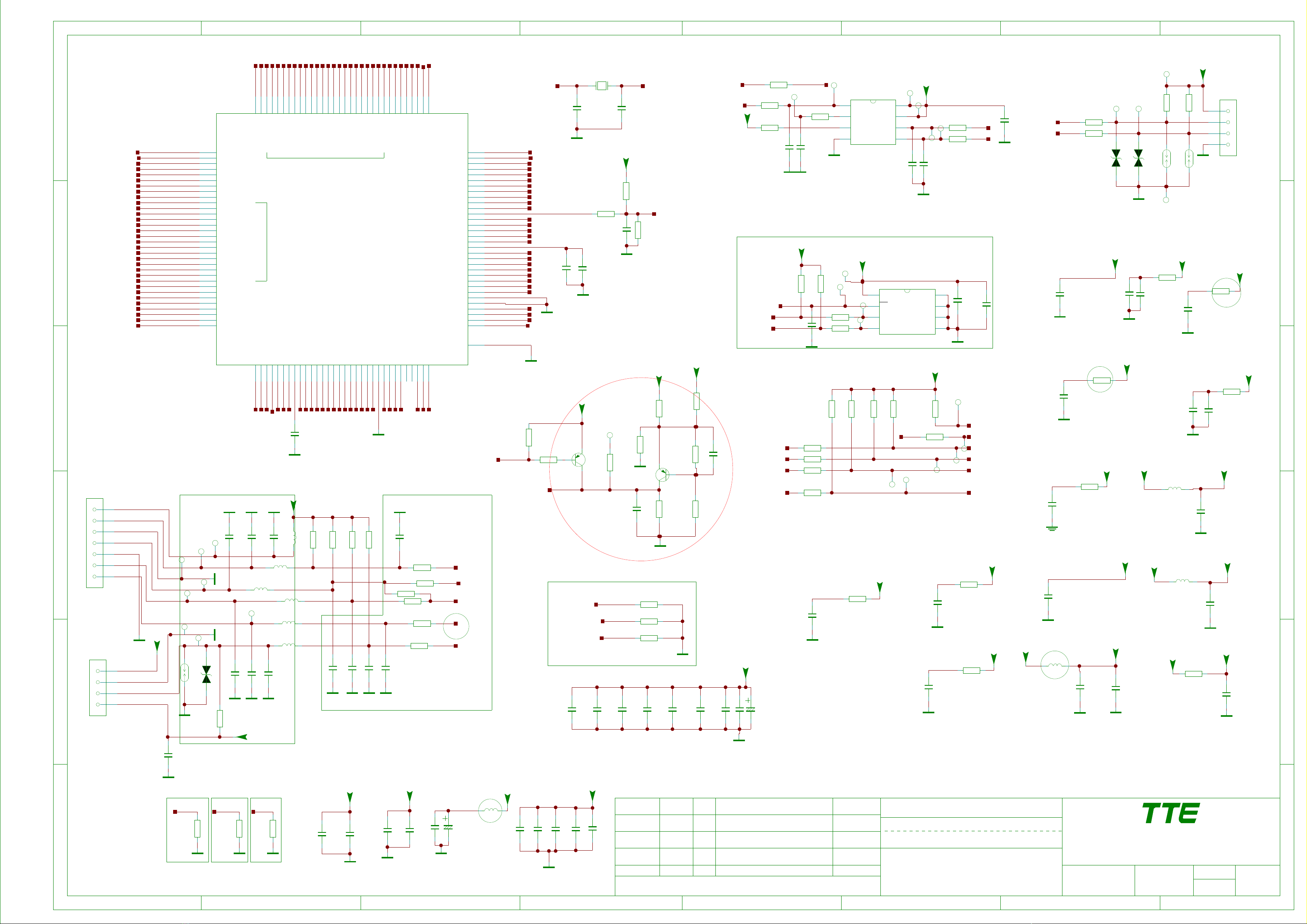

8223L,Flash/XTAL/JTAG/UART,Backlight
HDMI,USB,VGA
AV/YPbPr/Audio MUX
Speaker/Line out/Mute
AVDD1V25
125.74mA
3.3VSTB
80mA
LDO #6
332mA
423mA
760mA
Main power supply
5V-TUNER
ON/OFF From MT8223L
LVDS/ Tuner
LVDS Socket
VGA P201
AV2 P305
YPBPR L/R P301
SCART & AV OUT P303&P302
USB P203
AV1
P304
TU1 TU2 U503
U601
spi flash u001
AUDIO OUT P601
key Main power P101
EEPROM U003
HDMI P202
LED & IR Socket
POWER Module on(L)/off(H) Control
Backlight Dimming
BL ON/OFF
RF AGCO
KEY pad
SCT1-FS
AMP TPA3113D2
MT22/21/20 MAIN SCHEMATIC
04-13-2009 7
4
3-25-2010_21:26

GND
GND
GND
GND
GND
GND
D1B
D1A
G2
G1
S2
D2B
D2A
S1
GND
GND
GND
GND
T
GND
GND
GND
T
GND
GND
GND
GND
GND
GND
GND
T
GND
GND
GND
T
GND
GND
GND
GND
GND
GND
T
GND
T
GND
GND
GNDGND
......
.............
DESIGNATION
The JTC Summit SINGAPORE 609434
OF :
PAGE:
ON:
BY:
BY:
ON: CHECKED
DRAWN
DATE
Last saved :DESCRIPTION Last modifNAME
A
321
F
E
D
C
B
8 7 6 5
5
4 3 2 1
THIS DRAWING CANNOT BE COMMUNICATED TO UNAUTHORIZED PERSONS COPIED UNLES S PERMITTED IN WRITING
F
E
D
C
B
A
4678
FORMAT DIN A2
Index-Lab
SBU :
TCL Thomson Electronics Singapore Pte. Ltd.
8 Jurong Hall Road #28-01/06
Tel [phone] Fax [phone]
TCLNO:
DESIGNATION
GND
GND
T
GND
GND
GND GND
GND
GND
GND GND GNDGND
GND GND
BS
IN
SWCOMP
5FB
SS
GND
EN
GND/ADJ
OUT
VIN
4
GND/ADJ
OUT
VIN
4
EN
VIN VOUT
NC
GND
VDD
ADJ
PGOOD
T
T
T
T
T
T
T
GND/ADJ
OUT
VIN
4
GND
GND
GND
T
VCC
LGATE
GNDPHASE
BOOT
FB
UGATE
VIN
IN OUT
GND
1V0SB
GND
GND
GND
3.3/5VSB
GND
3.3/5VSB
TCL MULTIMEDIA TECHNOLOGY HOLDINGS LTD
ANALOG POWER AVDD3V3 ANALOG POWER AVDD1V25
PW-ON
PB-ADJ
PB-ON/OFF
VCCK POWER
For 19&22 Model
STANDBY POWER for 19&22 +12V_IN+12V_IN
+12V_IN
For 26&32 Model
For >=32 Model
DRAM POWER
R134
10K
R105
1K
R104
2K7
32
1
U101
RT9166-33
1
2
36
5
8
4
7
U102
RT8110B
C103
4U7
C101
4U7
NC
R111
0R
C122
220U
35V
+12V
+5V
STBV3V3
12V +12V
+12V_IN
R113
0R
R112
0R
0
L112
+12V_IN
4K7
R110 NC
B
C
E
Q102
BT3904
C166
3300P
R151
330R
0.1U
C172
0.1U
C107
C148
10U
C134
47U
10V
C144
47U
10V
C170
470U
16V
C138
100U
16V
C136
100U
16V
C142
100U
16V
C140
100U
16V
C120
100U
16V
C118
100U
16V
C141
0.1U
R132
0R
10K
R106
22K
R108
BL_ON/OFF
GD
S
Q107
PMV65XP/NC
1K
R107
+24/12V
120R
R130
10K
R117
NC
1U
C115
+5V
R121
10K
1
10
1112
2
34
56
78
9
P101 LL4148
D103
D102
SR34
NC
C039
0.1U
NC
C105
0.1U
C114
10U
NC
1 2 3
4
U103
AS1117-3.3
R137
10K
NC
R138
22K
NC
C147
0.22U
NC
D106
LL4148
NC
R136
820K
NC
C156
0.1U
NC
+5VSB
C146
1U
NC
C169
470U
16V
BL-ADJUST
C106
1000P
+5V
+5V
R1532R7
R1492R7
L114
15UH
3V3
VCCK1V1
1V25
0.1U
C167 0.1U
C171
R145
2K2
C145
0.1U
C143
0.1U
R148
11K R147
51K
Z3
Z6
+24/12V
PB-ADJ
2
3 6
5
8
4
7
1U106
RT9042
R150
0R
1 2 3
4
U105
AS1117AD
+5VSB
+5V
SDR_V
1 2 3
4
U104
AS1117AD
R126
0R
+5VSB
1
2
36
8
4
7
U108
MP1482
5V_OUTSIDE
+12V
AVDD1V25
R131
0R
C165
0.1U
R146100K
5V_OUTSIDE
C121
0.1U
C137
0.1U
GD
S
Q108
PMV65XP/NC
VCCK
R135100K
AVDD3V3
SDR_V
R139
10K
NC
B
C
E
Q106
BT3904/NC
Z3V3
SW
DVDD3V3DVDD3V3
+5V+5V
BL_DIMMING
MT23H MAIN SCHEMATIC
04-13-2009 9
1
4-1-2010_20:32
1K
R109
+5VSB
+5VSB
L102
0R
B
C
E
Q103
BT3904
L101
0
PB-ON/OFF
PW-ON
1000P
C108 1000P
C109
1000P
C110
+5VSB
C112
0.1U
0.1U
C111
0R
L103
Z2
0.1U
C113
R116
1K
100R
R119
NC
B
C
E
BT3904
Q104
4K7
R120 R122
100R
C117
33P
C104
0.1U
C102
0.1U
C139
0.1U
C135
0.1U
OPWRSB
SW
SW
SDR2V5
C119
0.1U
AVDD3V3 DVDD3V3
0.1U
C168
5V
0
L113
+24/12V
+24/12V
+12V
R152
330R
R101
0R
NC
C131
10U
16V
C130
470U
16V
C123
1U L104
10UH
C124
0.1U
7
8
4
2
3
5
6
1
Q101
D13N03LT
+24/12V
C129
0.015U
R125
360R
R124
5K1
C128
0.033U
R123
2R2
C127
2U2
C125
1U
D105
LL4148
C126
0.1U
C132
0.1U
R114
0R
R133
22K

SDA
SCL
WC
VCC
VSS
E2/NC
E1/NC
E0/NC
GND
GND
GND
T
GNDGNDGND
GNDGND
GND
GND GNDGND
GND
GND GND
T
T
T
T
T
GND
GND
GND
GND
GND
GND
GND
GNDGND GND GND
......
.............
The JTC Summit SINGAPORE 609434
OF :
PAGE:
ON:
BY:
BY:
ON: CHECKED
DRAWN
DATE
Last saved :DESCRIPTION Last modifNAME
A
321
F
E
D
C
B
8 7 6 5
5
4 3 2 1
THIS DRAWING CANNOT BE COMMUNICATED TO UNAUTHORIZED PERSONS COPIED UNLES S PERMITTED IN WRITING
F
E
D
C
B
A
4678
FORMAT DIN A2
Index-Lab
SBU :
TCL Thomson Electronics Singapore Pte. Ltd.
8 Jurong Hall Road #28-01/06
Tel [phone] Fax [phone]
TCLNO:
DESIGNATION
GND
GND
GND
GND
GND
GND
GND
GND
GND GND GND
GND
GND
GND
GND
GND
GND
T
TT
GND T
T
T
T
T
T
GND
GND
T
GND
GND
GND
GND
GND
T
GND
GND
GND
CVBSN SY BP GP SC RP COM1 PR1P AVSS1V25_RGB AVDD3V3_VDAC VSYNC AVDD10_LDO VCCK3 OPWRSB U0TX Y1P HSYNC CVBS1 CVBS2 VCCK4 SOG COM SOY1 OIRI PB1P AVDD1V25_RGB VDAC_OUT VDAC_FS AVDD3V3_VGA_STB STB3V3 ORESET# U0RX
SDRV
SDRV1
SDRV2
VCCK1
VCCK2
USB_DM
USB_DP
AVDD3V3_USB
USB_VRT
RX_CB
RX_C
RX_0B
RX_0
RX_1B
RX_2B
RX_2
AVDD3V3_HDMI
RX_1
HDMI_HPD
JTDO
VGA_SDA/JTMS
VGA_SCL/JTDI
OSCL0
HDMI_SDA
AVDD1V25_HDMI
HDMI_CEC
HDMI_SCL
IFP
AVSS33_DEMOD
ADIN0
AVDD3V3_XTAL_STB
OXTALI
VMID_AADC
AVDD3V3_AADC
VCCK5
BOOST_PWM
S_CE
S_D0
PWR5V_IN
JTRST#
JTCK
STB3V3_1
OSDA0
AVDD1V25_PLL
U1TX
U1RX
AVSS1V25_DEMOD
AVDD1V25_DEMOD
IFN
SDRV3
AVDD3V3_DEMOD
ADIN3
OXTALO
AIN_L
AIN_R
SDRV4
S_D1
RF_AGCO
DVDD3V3IO1
S_CLK
AVDD3V3_CVBS
BL_ON/OFF
LVDS_PWR_CTRL
BL_DIMMING
DVDD3V3IO
OCKN
O2P
O3N
LVDS_CTRL0
AOL0
AOR0
AVDD3V3_ADAC0
AOL1
VCCK6
AOR1
E0N
E0P
E1N
AVDD1V25_LVDS
O3P
E1P
ECKN
E2P
E2N
ECKP
E3N
E3P
OCKP
O2N
O1P
O1N
O0P
O0N
AVDD1V25_MEMPLL
VCCK7
AVDD3V3_LVDS
E-PAD
LVDS
HDMI
GND
GND
T
T
TT
T
T
T
T
T
GND
T
TT
SI/SIO0
SCLK
HOLD#
VCC
GND
WP#ACC
SO/SIO1
CS#
3v
SYSTEM EEPROM
Strap_IN2
NEAR IC
20091113
By Frank Chi
6 mil
Closec to Main Chip
Flash
LO = > WRITE
NEAR MT23L
Strap_IN1
Strap_IN0
Strap_IN1
? LICENSE
MT8223L STRAPPING MODE
Strap_IN2
NEAR CONNECTOR
Near IC
Strap_IN0
1
2
3
4
P004
1
2
3
4
5
6
7
P003
+5V
5
6
7
8
4
3
2
1U002
MX25L3205D
X27
27M Z5
SO
Z1
C057
0.1U
SCL
SDA
WP
Z7
CS
DI
SCLK
HOLD DVDD3V3_SPI
S_Q
MCU-RESET
C055
10U
R0680R NC
R064100R
R063 100R
LICENSE_NC
PWM_LOGO/NC
SDR_V
C001
4U7 AVDD10_LDO
1
2
3
4
P001
LED2 R045 0R
63 61 44 46 60 48 51 53 55 57 42 40 38 36 34 50 43 64 62 59 45 47 49 33 52 54 56 58 41 39 37 35
1
2
4
3
5
6
7
8
9
10
11
12
13
14
16
17
18
15
24
26
28
30
32
22
19
20
21
67
70
72
74
76
79
81
84
86
88
90
23
25
27
29
31
77
92
93
69
66
68
83
71
73
75
78
80
82
91
85
87
89
65
95
96
94
98 120 121 118 97 99 100 101 102 104 103 115 114 113 105 117 112 109 110 111 108 107 106 119 122 123 124 125 126 127 128 116
129
U001
MT8223L
RESET_CON
STBV3V3
R056 0R L002
120R
L003
120R
L004
120R
L006
0
R002 100K
NC
R003 22K
NC
C04410U
NC
C043
100U
16V
+5V
RF_AGCO
R026
100R
R025
100R
C048
0.1U
C041
470U
6V3
L009
22UH
VIMD_AADC
R00410K
SYS_EDID_WP
R027
10K R028 10K R029 10K R030 10K R032
1K
JTDI
JTCK_MUTE
R046 0R
OPWRSB
R010
0R
C004
0.047U
LISENCE L007
0
C4
0.1U
C8
1000P
STBV3V3
21
R067
V270RA
NC
F003
C12
0.1U
R066 10K
STBV3V3
R038
10K
R034
100R
C0340.1U
C0130.1U
C038 10U
C012
0.1U
R051 0R
R052 1R
C045
0.1U
C003
10U
NC
TVTREF
21
R020
V270RA
NC
21
R019
V270RA
NC
R065 10K
C014
0.1U
OCKP
C050
0.1U
R007
10K
R006
560R
R005
5K1
LED2
VCCK
C002
0.1U
C018
10U
R047 1R
L008
0
AVDD3V3_VDAC
OXTALO
C006
47P
NC
C008
47P
NC
C6
47P
NC
C005
47P
NC
OSCL0 C061
47P
R016
100R
VCCK
JTDO
JTRST
R033
100R
JTDI
JTMS
JTCK
Z002
URX UTX
Z14
C060 1U
NC
ADIN1
OPWRSB
DVDD3V3
OPWRSB
AVDD3V3_VDAC
VDAC_OUT
VDAC_FS
CVBSN
CVBS2
CVBS1
AVDD1V25_DEMOD
AVDD3V3_CVBS
AVDD1V25_DEMOD
R041
4K7
AVDD1V25
AVDD3V3_LVDS
R054 0R
AVDD3V3
AVDD3V3
R049 0R
AVDD3V3
AVDD1V25
OSDA0
R014
0R
R018
4K7
OXTALI
C051
0.1U
C052
0.1U
C010
0.1U
F002
R017
4K7
R009
0R
C020
27P
C019
27P R015
100R
F001
U0RX
U0TX
STBV3V3
R022
4K7
BOOST_PWM
R040
4K7
R042
4K7
R037
100R
R036
100R
R035
100R
DVDD3V3
DVDD3V3
R023
4K7
DVDD3V3_SPIDVDD3V3
C009
0.1U
S_D
S_CLK
R013
0R
DVDD3V3_SPI
R011
1K
S_CE
FLASH_WP#
R012
0R
MT22/21/20 MAIN SCHEMATIC
04-13-2009 7
2
4-2-2010_10:57
TCL MULTIMEDIA TECHNOLOGY HOLDINGS LTD
C049
0.1U C047 0.1U C046 0.1U
JTRST#VDAC_FSUSB_VRT
C042
0.1U
C007
0.1U
C053
0.1U
DVDD3V3
C0110.1U
AVDD1V25
AVDD3V3
AVDD1V25_LVDS
AVDD3V3_XTAL_STB
AVDD3V3_VGA_STB
STBV3V3
C026
0.1U
C023
0.1U
C017
0.1U
GND
C022
0.1U
AVDD3V3_HDMI
AVDD3V3
C0320.1U
AVDD1V25_HDMI
AVDD1V25
C0330.1U
AVDD3V3 AVDD1V25
C025
0.1U
C0240.1U
C040
0.1U
AVDD3V3_ADAC0
R044 0R
AVDD1V25
C036
0.1U
AVDD3V3
C037
0.1U
AVDD3V3_DEMOD
C031
0.1U
C030
0.1U
C029
0.1U
C028
0.1U
C027
0.1U
LVDS_PWR_CTRL
JTMS
JTCK
JTDO AVDD3V3_AADC
AVDD3V3_LVDS
VCCK
AVDD1V25
O0N
O0P
O1N
O1P
O2N
E3P
E3N
ECKP
E2N
E2P
ECKN
E1P
O3P
AVDD1V25_LVDS
E1N
E0P
E0N
AOR1
VCCK
AOL1
AVDD3V3_ADAC0
AOR0
AOL0
O3N
O2P
OCKN
DVDD3V3
BL_DIMMING
LVDS_PWR_CTRL
BL_ON/OFF
S_CLK
DVDD3V3
S_D
SDR_V
AIN_R
AIN_L
OXTALO
ADIN3
AVDD3V3_DEMOD
SDR_V
IFN
U1RX
U1TX
AVDD1V25_PLL
OSDA0
STBV3V3
JTCK
JTRST#
PWR5V_IN
S_Q
S_CE
BOOST_PWM
VCCK
AVDD3V3_AADC
OXTALI
AVDD3V3_XTAL_STB
SCT1_FS
IFP
HDMI_SCL
HDMI_CEC
AVDD1V25_HDMI
HDMI_SDA
OSCL0
JTDI
JTMS
JTDO
HDMI_HPD
RX_1
AVDD3V3_HDMI
RX_2
RX_2B
RX_1B
RX_0
RX_0B
RX_C
RX_CB
USB_VRT
AVDD3V3_HDMI
USB_DP
USB_DM
VCCK
VCCK
SDR_V
SDR_V
SDR_V
U0RX
ORESET#
STBV3V3
AVDD3V3_VGA_STB
AVDD1V25
PB1P
OIRI
SOY1
COM
SOG
HSYNC
Y1P
U0TX
VCCK
VSYNC
PR1P
COM1
RP
GP
BP
L005
0
STBV3V3
L4
0
KEY
LED2/NC
GND IRSTB3V3
C14
0.1U C13 0.1U
C11
100P
R23
6K8
C7
100P
C5
0.1U
L3
0
R21
10K
C3
100P
R20
10K
NC
R18
10K
R10
100R
C2
100P C1 100P
LED1
SCT1_FS
OIRI
ADIN3
JTRST#
TVTREF#1
AVDD3V3_CVBS
AVDD1V25_PLL
RF_AGC
+12V
STBV3V3
R075
10K
R074
10K B
E
C
Q001
BT3906
B
E
C
Q003
BT3906
R062
5K6
47K
R2
100K
R069
C056
0.1U
R073
10K
1K
R060
2K7
R061
R072
47K
+5VSB
ORESET#
RESET_CON
SYS_EDID_WP 1
2
36
5
8
4
7
U003
M24C32MN
