SERVICE MANUAL
LCD20V6AT
1. Caution………………………………………….2
2. Specification…………………………………….6
3. BOM List………………………………………..8
4. Alignment Procedure………………………….14

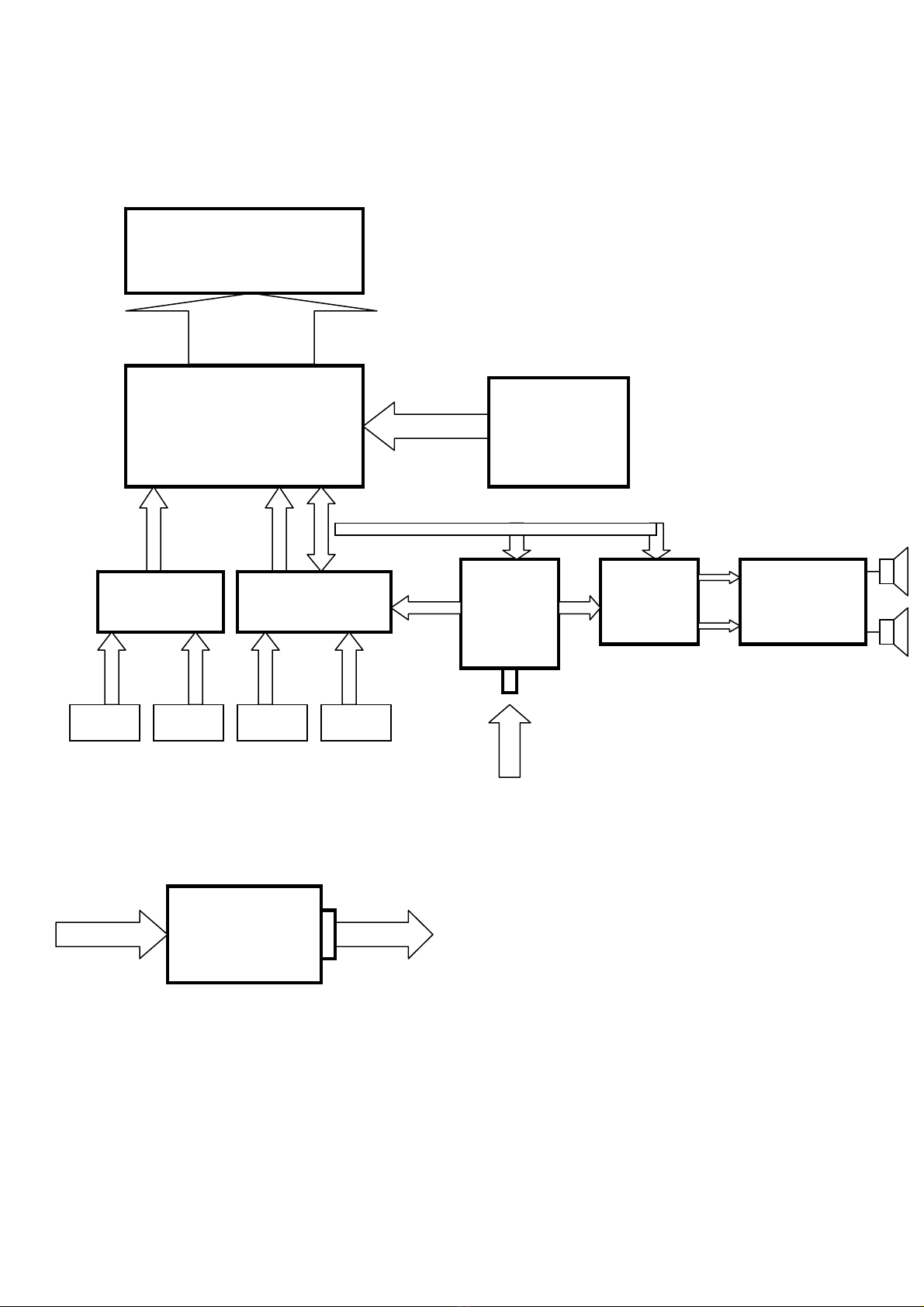

5. Circuit Block Diagram…….…………………..15

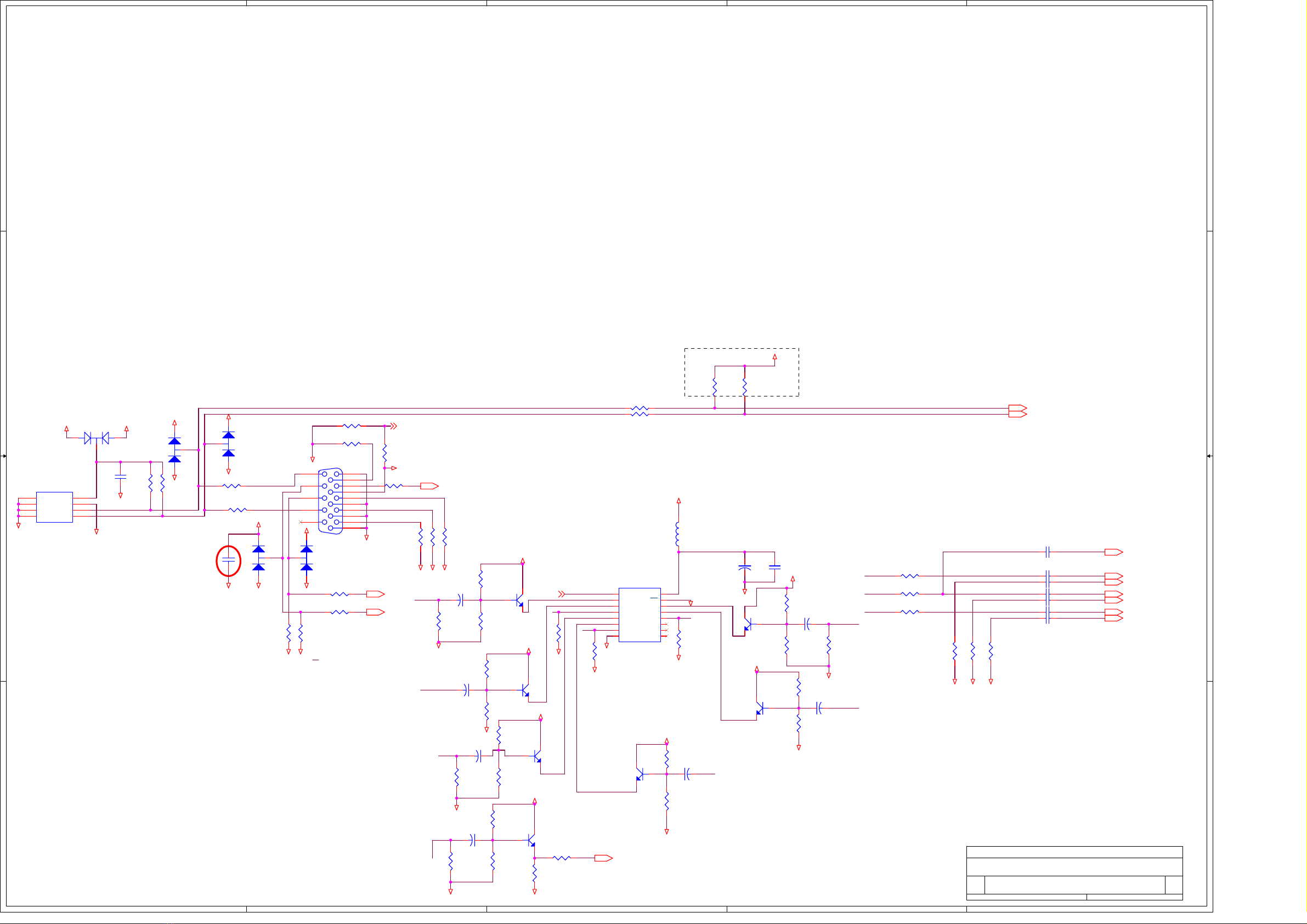

6. Schematic Diagram……………………………18
7. Explode View Diagram………………………..27
This manual is the latest at the time of printing, and does not
include the modification which may be made after the printing, by
the constant improvement of product.

CA UTION: TO RE DUCE THE RIS K OF
ELECTR ICA L SHOCK, DO NOT RE MOVE
COVER (OR BACK). NO USER SERVICEABLE
PAR TS INS IDE . RE FER SER VIC ING TO
QUALIFIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CA U T ION
RISK
RISK
OF ELECTRI
ELECTRI
C
SHOCK
SHOCK
DO NOT
NOT
OPEN.
OPEN.
2
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
SCHNEIDER ELECTRONICS GMBH-GERMANY
1. CAUTION
2

1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Sa ve these instructions for later use . Follo w all Warnings and
Instructions marked on the audio equipment.
1. Read Instructions-All the safety and operating instructionsshouldbe read before the productis operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
3
SCHNEIDER ELECTRONICS GMBH-GERMANY
IMPORTANT SAFETY INSTRUCTIONS
FOR YOUR PERSONAL SAFETY
3

11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s
4
SCHNEIDER ELECTRONICS GMBH-GERMANY
PROTECTION AND LOCATION OF YOUR SET
PROTECTION AND LOCATION OF YOUR SET
4

18. This television set should be operated only from the type of power source indicated on the marking label.If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
21. If you are unable to restorenormal operation by followingthe detailedprocedurein your operatinginstructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.
25. When replacementparts are required,be sure the service technicianhas used replacementparts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
off
5
SCHNEIDER ELECTRONICS GMBH-GERMANY
OPERATION OF YOUR SET
IF THE SET DOES NOT OPERATE PROPERLY
FOR SERVICE AND MODIFICATION
5

2. SPECIFICATION
Operation Temperature( ):℃0～50 Store Temperature( ):℃-20~60
Operation Humidity(%): 20%~90%RH(0~40℃) Store Humidity(%): 20%~90%RH(-20~40℃)
Environment
Air Pressure(kps):
Screen Size(inch)：20.1 Panel size(mm x mm x mm):
448.6mm(H) X 339.6mm(V) X 23.6 (D)
Effective Size(mm x mm)：
408mm(H) X 306mm(V)
Panel Type：TFT LCD
Angle of View (H/V)：□160/160 ■160/140 □Other:
Responsive Time (ms)：
■8 □12 □16 □25 □Other：
Image Size(mm x mm)：
0.2125(H) x 0.6375(V)
Contrast ( Darkness, Nakedness): 600 Luminance of Peak Value(cd/m²)：500
Background Light：6-CCFL Backlight unit Ratio: □16:9 ■4:3 □Other：
Colors：Supporting 16.7 M
Gray：256
Color Temperature(°K):
Cool: 11000, Standard: 9300, Warm:7000
Max. V. Frequency(Hz): 70Hz Max. H. Frequency(KHz): 56.5kHz
Resolution: ■640×480 □852×480 □1024×768 □1280×720 □1280×768
□1280×1024 □1366×768 □1920×1080 □Other：
Max. Resolution（H×V）: □640×480 □800×600 ■1024×768 □1400×1050
□1600×1200 □1280×800 □1280×854 □1920×1200 □Other：
Screen Parameter
HDTV/SDTV(p): ■1920×1080i □1920×1080p □1920×1125i □1440×1080i
■1280×720P ■576P ■720×480p □Other：
Color System
TV：■PAL – DK ■PAL – I ■NTSC-M ■PAL – BG □PAL – N □PAL – M □SECAM □SECAM-L □Other：
AV：■NTSC4.43 ■NTSC3.58 ■PAL ■SECAM □Other：
Nicam
■NICAM □MTS □FM-FM □German Stereo □BTSC □SAP □Other：
Program
□Program Auto Mark □Program Compositor ■Auto Searching ■Manual Searching ■Tuning □Other：
Teletext Type：Pages：
□CCD □V-CHIP □Macro Vision □HDCP
Audio:
□Insert SPK. ■Insert Amplifier ■Sound Effect ■AVC □Output Power(W): 1.5W*2
□SRS □EQ: Steps：
■Sound Effect Adjustment：■Bass ■Treble □Balance □Others：
Antenna Input: □BNC ■IEC □Other：
■VGA Input (Type:D-15 Quantity: 1 )
■Component ( ■RCA □BNC □SCART □Other：)
■Composite ( ■RCA □BNC □SCART □Other：)
□DVI Input (Type：Quantity：)
□HDMI Input (Type：Quantity：)
□RGB Input (□SCART □Other：)
Video
■S-Video Input (Quantity: 1 )
Input
Audio ■Audio Input（RCA）(Quantity : 1 )
■Earphone Input (Quantity : 1 )
6

Video □Composite Video (□RCA □BNC □SCART □Other：)
Output
Audio
□Audio Output (L/R) (□RCA)
□Audio Output 5.1
□Speaker (Insert Amplifier)
□Audio Digital Coaxial (RCA)
□Audio digital optical
■Earphone Output
OSD:
Languages：□Chinese ■English ■Russian □Other:
Adjustment via OSD:
■Contrast ■Chroma ■H/V - size（YCbCr）□Picture Rotation ■Brightness ■Tint ■H/V - position（YCbCr）□Other：
Certification
□CCC □CE □UL □CUL □FCC □FDA ■CB □RoHS □Other
Power Supply:
Max. Power Consumption(W): 55W Voltage(V): 110-240V~
Standby Power Consumption(W):< 6W ■Switchon/off ■Auto stand-by (Timer：5 Min.) ■Other：Time On
Accessories:
■Remote Control ■Stand (Optional) □Scart Cord ( m) □Bracket(Optional) □Bracket Accessories(Optional)
■Power Supply Cord □Antenna (1.8 m) □Speakers (Optional) □VGA line (Type：）■Other：Adapter
Unit Size(w×h×d, mm): 609X500X79 NET(kg):11
Packing
Packing Size(w×h×d, mm): 700X590X290 Gross Weight(kg): 15.5
7

ITEM SPEC. QTY LOCATION
T6-0Q0036-H027X REMOTE HANDSET ASSEMBLY 1
11-0BC337-0BX TRANSISTOR (NPN) BC337-40 1 Q1
13-00AS12-13B IC AS1213B 1 U1
14-IRE05B-XX0 IR EMITTING DIODE TSAL6200 1 D2
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R2
18-CB0229-JNX RES. C.F. 2.2 OHM 1/6W +/-5% 1 R1
25-HBB479-M1X CAP. ELEC 4.7 UF 10V +/-20% 1 C4
26-EBP101-JCS CAP. CER 100 PF 50V +/-5% 2 C2;C1
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C3
40-LD40V8-RMC1X P.C.B.REMOTE HANDSET BD 1
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J1
45-COS455-KY0 CERAMIC RESONATOR 455KHZ 1 Y1
67-X38064-0E2 BATTERY SPRING (+/-) 1
67-X38065-0E2 BATTERY SPRING (+) 1
67-X38066-0E2 BATTERY SPRING (-) 1
71-270870-0A9 LABEL 1
74-007026-60C POLYBAG (70MMX260MMX0.06MM) 1
T6-0Q0036-H027XZ REMOTE HANDSET ASSEMBLY 1
49-HS36Q0-00X1E RUBBER PAD KEYS 1
55-HS36QB-0HA1A QREMOTEHANDSET-BOTTOMCABINET 1
55-HS36QD-0HA1A QBATTDOOR-REMOTEHANDSET 1
55-HS36QT-0HA1H TOP CASE 1
56-399030-0HC5Z REMOTE HANDSET LENS 1
58-HS36Q0-FUI1A INLAY REMOTE HANDSET 1
T8-JV6TRT-BSY ASS'Y - BASE 1
59-100010-000 FOOT CUSHION 8
63-B30080-BT3 SCREW BT BID 3 X 8 STL BZN 10 MTG BASE COVER-SEEEL-PLATE
63-B30120-AB2 S/T SCREW B 3 X 12 AB 2 MTG BASE FRONT CAB & BASE REAR CAB
64-F40080-103 M/C SCREW F 4 X 8 9 MTG HINGE-ASSEM & SEEEL PLATE
67-M80437-0E0 SOLEPLATE 1
68-804360-000 HINGE-ASSEMBLY 1
T8-JV6TRT-BSYZ ARFBASE ASSEMBLY 1
55-803720-0HA1B BASE COVER 1
55-803740-0HA6L FRONT PANEL 1
55-803750-0HA6L REAR PANEL 1
T8-JV6TRT-FBY FRONT CONTROL BD ASSEMBLY 1
40-LD20V6-FBD1X P.C.B.FRONT CTL BD 1
46-35199W-03X PIN BASE *3 PITCH=2.0MM 1 J001
46-35199W-05X CONN.PH-5A 5PIN PITCH=2.0MM 1 J1001
46-39699H-03X 3P UL2547#24 610MM 1 FRONT CTL BD TO DIGITAL (J11)
46-39737H-05X UL20080#28 510MM 1 J1001 TO DIGITAL (J7)
48-POW001-XX0 SWITCH POWER KDC-A11 B2 1 SW001
48-TAC002-XX0 TACT SWITCH 6 SW1006;SW1005;SW1004;SW1003;SW1002;
SW1001
57-LEDH05-000 LED BRACKET 1 FOR IR01
3.Bom List
8

ITEM SPEC. QTY LOCATION
02-IRR001-XX1 IR RECEIVER MODULE HRM380017 1 IR01
11-SC1815-YBX TRANSISTOR 2SC1815-Y (NPN) 1 Q1001
14-LED03R-XX1 LED RED Φ3MM FO203 1 LED1001
18-CB0100-JNX RES. C.F. 10 OHM 1/6W +/-5% 1 R1008
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R1006
18-CB0122-JNX RES. C.F. 1.2K OHM 1/6W +/-5% 1 R1005
18-CB0182-JNX RES. C.F. 1.8K OHM 1/6W +/-5% 1 R1004
18-CB0272-JNX RES. C.F. 2.7K OHM 1/6W +/-5% 1 R1003
18-CB0332-JNX RES. C.F. 3.3K OHM 1/6W +/-5% 1 R1002
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R1007
18-CB0562-JNX RES. C.F. 5.6K OHM 1/6W +/-5% 1 R1001
25-HCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C1002
T8-JV6TRT-FCN FRONT CABINET ASSEMBLY 1
42-51208D-XX3 SPEAKER YDA512-6C 8 OHM 5W 2
4A-LCD20T-CM2 20"CMO TFTSCREEN V201V1-T03 1
81-BLI006-XX4 INVERTER 1
T8-JV6TRT-FCNZ ASS'Y-ARFFRONTCABINET 1
55-803700-0UA1B FRONT CABINET 1
56-707220-0HA4R POWER KNOB 1
56-804690-0HA4R PUSH BUTTON 1
57-804860-0HC1B DECORATE BAR 1
T8-JV6TRT-PAN PACKING ASSEMBLY 1
49-204260-BAT 7# BATT. UM4 R03P SIZE AAA 2
51-PC0220-0ZU08 POWER CORD 1
54-LCPVC1-001 PROTECT INLAY 1
81-ADT125-201 ADAPTER SAWA-02-520 1
T8-JV6TRT-PANZ ASS'Y-ARFPACKINGPARTS 1
T8-JV6TRT-RCN REAR CABINET ASSEMBLY 1
63-B30120-AB3 S/T SCREW B 3.0 X 12 4 MTG REAR CAB -FRONT CAB
64-F40080-103 M/C SCREW F 4 X 8 6 MIG REAR CAB & HINGE- ASSEMBLY
T8-JV6TRT-RCNZ ASS'Y-ARFREARCABINET 1
55-718300-0HA1A COVER BOARD(LEFT) 1
55-718310-0HA1A RIGHT COVER 1
55-803710-0UA1B REAR CABINET 1
55-803730-0HA1B BASE SUPPORT COVER(LEFT) 1
55-804790-0HA1B BASE SUPPORT COVER(RIGHT) 1
58-20B6MP-0UI1A PLATE MODEL NO. 1
58-805930-0UI1B INLAY(LEFT) 1
58-805940-0UI1B INLAY(RIGHT) 1
T8-JV8AXT-DIY DIGITAL BD ASSEMBLY 1
09-0BAV99-ATX HIGH SPEED DOUBLE DIODE BAV99 6 D8;D7;D6;D4;D1;D3
09-BAV70L-ATX SMD. DIODE BAV70LT1(SOT-23) 215 2 D5;D2
09-FM4001-ETX SMD.DIODE FM4001 2 D12;D11
09-LL4148-ATX SMD. SWITCHING DIODE LL4148 1 D10
10-1N5820-F0X DIODE 1N5820 1 D9
12-BC847C-0BX SMD.TRANSISTOR BC847C 7 Q6;Q5;Q4;Q3;Q2;Q10;Q1
12-BC848B-0BX TRANSISTOR BC848B 1 Q11
9

ITEM SPEC. QTY LOCATION
12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) 3 Q8;Q9;Q7
13-024LC1-6BB IC 24LC16B 1 U7
13-1117MP-18B IC LM1117MPX-1.8 2 U14;U13
13-39SF02-0AB IC 39SF020A-PLCC32 (WRITE) 1 U6
13-AT24C0-20B IC AT24C02 SO-8 EEPROM 2K BIF(WRITE) 1 U2
13-GM2221-00B SCALER IC GM2221 1 U4
13-IC1084-CMB IC AIC1084-33CM 3.3V (TO-263) 1 U10
12-30PF03-0BX TRANSFORMER STD30PF03LT4 1 U11
13-LD1117-33B IC LD1117 3.3V 1 U12
13-MIC457-6UB IC MIC4576-5.0 1 U9
13-PI5V33-0QB IC PI5V330Q (QSOP) 1 U3
13-SI9953-DYB IC SI9953DY(8-PIN) 1 U8
13-SN74HC-14B IC SN74HC14D-SOP14 1 U5
13-TVP514-7PB IC TVP5147PFP 1 U15
19-AB0000-JTX RES SMD 0 OHM 1/10W +/-5% 0603 7 0R3;R107;R13;R85;0R2;R10;R11
19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 16 R121;R122;R124;R127;R129;R17;R18;R4; R6
;R99;R143;R118;R120;R117;R116;R100
19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 10 0R4;0R1;R90;R84;R82;R37;R34;R29;R140;
R138
19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 24 R33;R31;R30;R68;R59;R56;R52;R51;R50;R35;R 48;R45;R43;R9;R8;R78;R75;R74;R1;R102;
R115;R12;R135;R14
19-AB0104-JTX SMD. RES 100K OHM 1/10W 0603 1 R101
19-AB0121-JTX SMD. RES 120 OHM 1/10 J 0603 5 R110;R112;R108;R105;R103
19-AB0152-JTX SMD. RES 1.5K OHM 1/10W +/-5% 0603 1 R128
19-AB0202-JTX SMD. RES 2K OHM 1/10W +/-5% 0603 1 R79
19-AB0220-JTX SMD RES 22 OHM 1/10W 0603 9 R7;R5;R93;R92;R94;R95;R137;R23;R27
19-AB0222-JTX RES SMD 2.2K OHM 1/10W 0603 7 R133;R134;R126;R125;R123;R131;R132
19-AB0223-JTX SMD. RES 22K OHM 1/10W +/-5% 0603 7 R47;R46;R42;R41;R26;R24;R136
19-AB0271-JTX SMD. RES 270 OHM 1/10W +/-5% 0603 1 R53
19-AB0272-JTX RES SMD 2.7K OHM 1/10W 0603 1 R16
19-AB0333-JTX RES. SMD 33K OHM 1/10W 0603 1 R139
19-AB0470-FTX RES SMD 47 OHM 1/10W +/-1% 0603 3 R28;R25;R22
19-AB0471-JTX SMD. RES 470 OHM 1/10W +/-5% 2 R80;R119
19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 5 R83;R91;R64;R76;R77
19-AB0473-JTX SMD. RES 47K OHM 1/10W 0603 2 R89;R15
19-AB0682-JTX RES SMD 6.8K OHM 1/10W 0603 1 R130
19-AB0820-JTX SMD. RES 82 0HM 1/10W +/-5% 0603 14 R111;R49;R40;R39;R104;R106;R109;R113;
R19;R20;R38;R36;R32;R21
19-BB0101-JTX SMD. RES 100 OHM 1/10W +/-5% 1 R96
19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% 1 R97
19-BB0222-JTX SMD. RES 2.2K OHM 1/10W +/-5% 1 R98
19-CC0000-JTX CHIP RESISTOR 1 R87
23-A08220-JBX NETWORK RES. 22 OHM +/-5% 6 RN4;RN2;RN1;RN3;RN6;RN5
23-A08470-JBX CHIP ARRAY RES. 47 OHM +/-5% 0603*4 2 RN7;RN8
25-BCB331-M1X CAP. ELEC 330 UF 16V +/-20% 3 C83;C86;C82
25-BCL100-M1X CAP.ELEC 10UF 16V +/-20% 2MM 7 C11;C13;C14;C4;C17;C16;C15
25-BCL101-M1X CAP.ELEC 100UF 16V +/-20% 15 C104;C105;C110;C111;C114;C115;C125;C78;C
85;C94;C95;C97;C99;C230;C232
10

ITEM SPEC. QTY LOCATION
25-BCL220-M1X CAP. ELEC 22 UF 16V +/-20% (5X11) 8 C48;C73;C75;C38;C29;C18;C108;C102
25-BDA471-M1X CAP. ELEC 470 UF 25V +/-20% 2 C91;C79
28-AB0100-JCX SMD. CAP 10 PF 50VDC +/-5% 1 C143
28-AB0102-ZFX CAP.SMD 1NF 50V +80-20% 0603 1 C3
28-AB0103-ZFX CAP.SMD 10NF 50V +80-20% 0603 7 C7;C6;C8;C9;C5;C12;C10
28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F 90
C19;C34;C33;C32;C31;C30;C28;C27;C26;
C25;C160;C159;C155;C153;C152;C151;C150;
C139;C2;C161;C162;C163;C165;C167;C168;
C173; C134;C133;C124;C122;C121;C116; C113;
C112;C109;C107;C106;C103;C101;C24;
C23;C223; C220;C22;C21;C20;C138;C100;
C137;C136; C135;C35;C36;C37;C39;C40;C41;
C42; C43; C44;C45;C49;C50;C51;C52;C53;
C54;C93; C57;C60;C61;C62;C65;C67;C68;
C69;C70; C71;C72;C74;C80;C81;C84;C87;
C56;C225; C98;C96;C231;C233
28-AB0150-JCX CAP.SMD 15P 50V +/-5% 0603 2 C171;C169
28-AB0221-JCX CAP.SMD 220PF 50V C 0603 +/-5% 5 C55;C64;C66;C46;C47
28-AB0222-KBX CAP.SMD 2200PF 50V +/-10% 0603 6 C190;C184;C180;C177;C176;C175
28-AB0330-JCX SMD CAP 33PF 50V +/-5% 2 C118;C117
28-AB0331-JCX SMD. CAP 330 PF 50V +/-5% 0603 14 C120;C127;C141;C142;C148;C149;C229;C228;
C164;C158;C156;C224;C226;C227
28-AB0470-JCX CAP.SMD 47PF 50V +/-5% 0603 1 C76
28-AB0479-CCX SMD. CAP 4.7 PF 50V +/-0.25PF 5 C119;C126;C157;C147;C140
28-AB0509-CCX CAP.SMD 5PF 50V +/-0.25PF 2 C58;C59
28-AB0561-JCX SMD. CAP 560 PF 50VDC +/-5% 0603 1 C166
28-AB0682-KBX SMD. CAP 6800PF 50VDC +/-10% 1 C172
28-AB0683-ZFX SMD CAP. 68NF 50V +80/-20% 0603 1 C174
28-AB0809-CCX CAP.SMD 8PF 50V +/-0.25PF 1 C63
28-BB0101-JCX SMD CAP. 100 PF 50V C 0805 1 C89
28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 10 C92;C90;C88;C77;C154;C146;C145;C144;
C130;C128
33-ELL339-KTX SMD. COIL 3.3 UH +/-10% 0805 5 L46;L47;L49;L51;L50
33-GLN100-NTX CHIP BEAD 10 OHM +/-25% 3 FB2;FB3;FB1
33-GLN300-NTX CHIP BEAD 30 OHM +/-25% 38
L32;L31;L25;L13;L33;L38;L4;L40;L41;L12;L26;
L9;L8;L7;L6;L5;L27;L28;L29;L3;L18;L19;L14;
L16;L17;L2;L1;F1;L20;L21;L22;L23;L24;L11;
L10;L39;L48;L52
33-KLL279-KTX SMD. COIL 2.7UH +/-10% 0603 5 L37;L36;L35;L34;L30
33-KLN121-NTX CHIP BEAD 120 OHM +/-25% 1 R114
36-LIF020-XX0 LINE FILTER LC-33-TCL 1 L15
40-20V8AT-DIB4X P.C.B DIGIBOARD 1
43-SFSS11-2DM RELAY SF-SS-112DM 1 RELA1
45-OSC14M-3Y2 CRYSTAL 14.31818MHZ 2 X2;X1
46-33079W-04X PIN BASE *4 TJC3-4A 1 J1
46-35199W-02X CONN. PH-2A PITCH=2.0MM 2 T2;J11
46-35199W-05X CONN.PH-5A 5PIN PITCH=2.0MM 1 J7
46-35199W-07X CONN.PH-7A PITCH=2.0MM 7PIN 1 J9
46-39555W-50X CONNECTION(FFC FPC) 1 J2
46-39707H-15X 15P UL20080#28 60MM 1 J3、J5
11

ITEM SPEC. QTY LOCATION
46-40001H-50X HS 50PIN PSK0500035A-006222 VER 0 1
46-FF045F-07B 6P UL1007#26 450MM 1
46-FH006F-10P01 UL20080#28 PH-10Y/JC20-5Y+JC25-5Y 1 J4、J8
47-PWS012-XX0 SOCKET DSW-47 1 JP1
47-RCA125-XX1 RCA SOCKET AV-3.2-3W-051 1 P1
47-VGA002-XX0 VGA JACKET D-SUB-15WP 1 CN2
64-B30080-104 M/C SCREW B 3 X 8 1 FOR U11
65-Z30050-23M NUT M 3 1 FOR U11
67-387190-0A0 HEAT SINK 1 FOR U4
71-268390-0A0AF LABEL (QC) GREEN 1
71-AV0000-T02 BARCODE LABEL 1
13-L7809C-D2B IC L7809CD2T-TR (DDPAK) 1 U11B
13-L7805C-2TB IC L7805CD2T (REGULATOR) 1 U11C
V8-LM21V6-01D01 SOFTWARE CODE 1 FOR U2
V8-LM21V6-01F01 SOFTWARE CODE 1 FOR U6
T8-JV8AXT-ANY CONGRAGATE BD ASSEMBLY 1
07-380FI5-TB0G TUNER TMQZ6-429B 1 TU701
09-LL4148-ATX SMD. SWITCHING DIODE LL4148 4 D701;D501;D505;D504
12-BC847A-0BX SMD TRANSISTOR BC847A (NPN) 4 Q707;Q704;Q706;Q705
12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) 4 Q508;Q702;Q501;Q701
13-MC3406-3AB IC MC34063AD (SO-8) 1 U701
13-MSP341-0TB IC MSP3410G(64PINS) 1 IC502
13-TPA151-7NP IC TPA1517NE 1 IC503
19-AB0000-JTX RES SMD 0 OHM 1/10W +/-5% 0603 6 R527;R706;R539;R535;R534;R538
19-CC0000-JTX CHIP RESISTOR 2 D502;R525
19-AB0273-JTX SMD. RES 27K OHM 1/10W +/-5% 2 R528;R547
19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 9 R515;R507;R530;R516;R508;R740;R714;R711;
R506
19-AB0102-FTX RES SMD 1K OHM 1/10W +/-1% 0603 1 R748
19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 10 R512;R514;R509;R729;R727;R734;R735;R737;
R741;R752
19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 9 R731;R732;R733;R728;R730;R503;R510;R533;
R532
19-AB0104-JTX SMD. RES 100K OHM 1/10W 0603 5 R713;R717;R738;R739;R526
19-AB0109-JTX RES SMD 1 OHM 1/10W +/-5% 1 R504
19-AB0181-JTX SMD. RES 180 OHM 1/10W 0603 1 R707
19-AB0184-JTX RES SMD 180K OHM 1/10W +/-5% 0603 1 R779
19-AB0221-JTX RES SMD 220 OHM 1/10W 0603 2 R744;R501
19-AB0223-JTX SMD. RES 22K OHM 1/10W +/-5% 0603 6 R724;R723;R722;R704;R701;R502
19-AB0229-JTX SMD. RES 2.2 OHM 1/10W J 0603 1 R746
19-AB0243-FTX 0603 RES. SMD 24K OHM 1/16W +/-1% 1 R747
19-AB0331-JTX RES. SMD 330 OHM 1/10W 0603 3 R505;R703;R709
19-AB0332-JTX SMD RES 3.3K OHM 1/10W 0603 2 R710;R715
19-AB0471-JTX SMD. RES 470 OHM 1/10W +/-5% 1 R705
19-AB0473-JTX SMD. RES 47K OHM 1/10W 0603 1 R719
19-AB0682-JTX RES SMD 6.8K OHM 1/10W 0603 2 R712;R716
19-AB0683-JTX RES SMD 68K OHM 1/10W 0603 1 R708
19-AB0820-JTX SMD. RES 82 0HM 1/10W +/-5% 0603 3 R742;R743;R736
12

ITEM SPEC. QTY LOCATION
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 3 C701;C724;C560
25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% 3 C542;C704;C703
25-BDB221-M1X CAP. ELEC 220UF 25V +/-20% 2 C549;C548
25-BDB470-M1X CAP. ELEC 47 UF 25V +/-20% 5 C528;C522;C527;C530;C513
25-BFB100-M1X CAP. ELEC 10 UF 50V +/-20% 6 C537;C524;C550;C551;C536;C511
25-BFB220-M1X CAP. ELEC 22 UF 50V +/-20% 1 C726
25-BFB229-M1X CAP. ELEC 2.2 UF 50V +/-20% 1 C541
25-BFB339-M1X CAP. ELEC 3.3 UF 50V +/-20% 1 C533
25-BFB470-M1X CAP. ELEC 47 UF 50V +/-20% 2 C546;C720
25-HCB220-M1X CAP. ELEC 22 UF 16V +/-20% 7 C717;C716;C714;C710;C709;C719;C718
28-AB0102-KBX SMD. CAP 1000 PF 50V +/-10% B 7 C552;C553;C556;C557;C526;C538;C525
28-AB0103-ZFX CAP.SMD 10NF 50V +80-20% 0603 8 C512;C721;C509;C521;C702;C705;C523;C516
28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F 5 C715;C510;C540;C532;C544
28-AB0151-JCX SMD. CAP 150 PF 50V +/-5% C 1 C723
28-AB0152-KBX SMD. CAP 1500 PF 50V +/-10% B 1 C531
28-AB0222-KBX CAP.SMD 2200PF 50V +/-10% 0603 1 C543
28-AB0224-ZFX CAP.SMD 0.22UF 50V +80-20%0603 4 C722;C725;C727;C707
28-AB0339-CCX SMD.CAP. 50V 3.3PF +/-0.25PF 2 C518;C519
28-AB0470-JCX CAP.SMD 47PF 50V +/-5% 0603 2 C508;C507
28-AB0471-JCX CAP.SMD 470PF 50V +/-5% 0603 4 C501;C502;C529;C503
28-AB0560-JCX SMD CAP. 56 PF 50V +/-5% 0603 2 C515;C517
28-DC0107-MTX TANTALUM CAP. 100 UF 16VDC +/-20% 1 C706
28-XC0106-MTX TANTALUM CAP.10 UF 16V +/-20% 1 C713
33-KLN102-NTX SMD.COLL MGGB1608M102HB 2 L704;L702
34-R101J2-0EX COIL PL - 100 UH +/-5% 3 L505;L504;L703
34-R120J2-0EX COIL PL - 12 UH +/-5% 3 L506;L503;L701
34-R221J2-0EX COIL PL - 220 UH +/-5% 1 LN701
45-OSC18M-4Y0 CRYSTAL 18.432M 1 X501
46-30627H-02X HS 2P24 360/7 F/W TJC3-2Y 1 J704 TO SPEAKER(L)
46-33079W-02X PIN BASE *2 TJC3-2A 1 J704
46-35199W-02X CONN. PH-2A PITCH=2.0MM 1 J703
46-35199W-10X CONN. PH-10 10PIN PITCH=2.0MM 1 J707
46-35199W-15X CONN. PH-15A PITCH=2.0MM 1 J706
46-FT050T-02H CONNECTION 1 J703 TO SPEAKER(R)
47-EAR002-XX0 EARPHONE SOCKET CK3-3.5-9WK-B 2 JP702;JP701
47-RCA009-XX4 RCA SOCKET AV-3.2-3W-052 1 AV701
47-SVI008-XX1 SOCKET DSW-506WT-L 1 SZ701
71-268390-0A0AF LABEL (QC) GREEN 1
71-270870-0A9 LABEL 2
40-20V8AT-AMC2X P.C.B AM BD 1
13

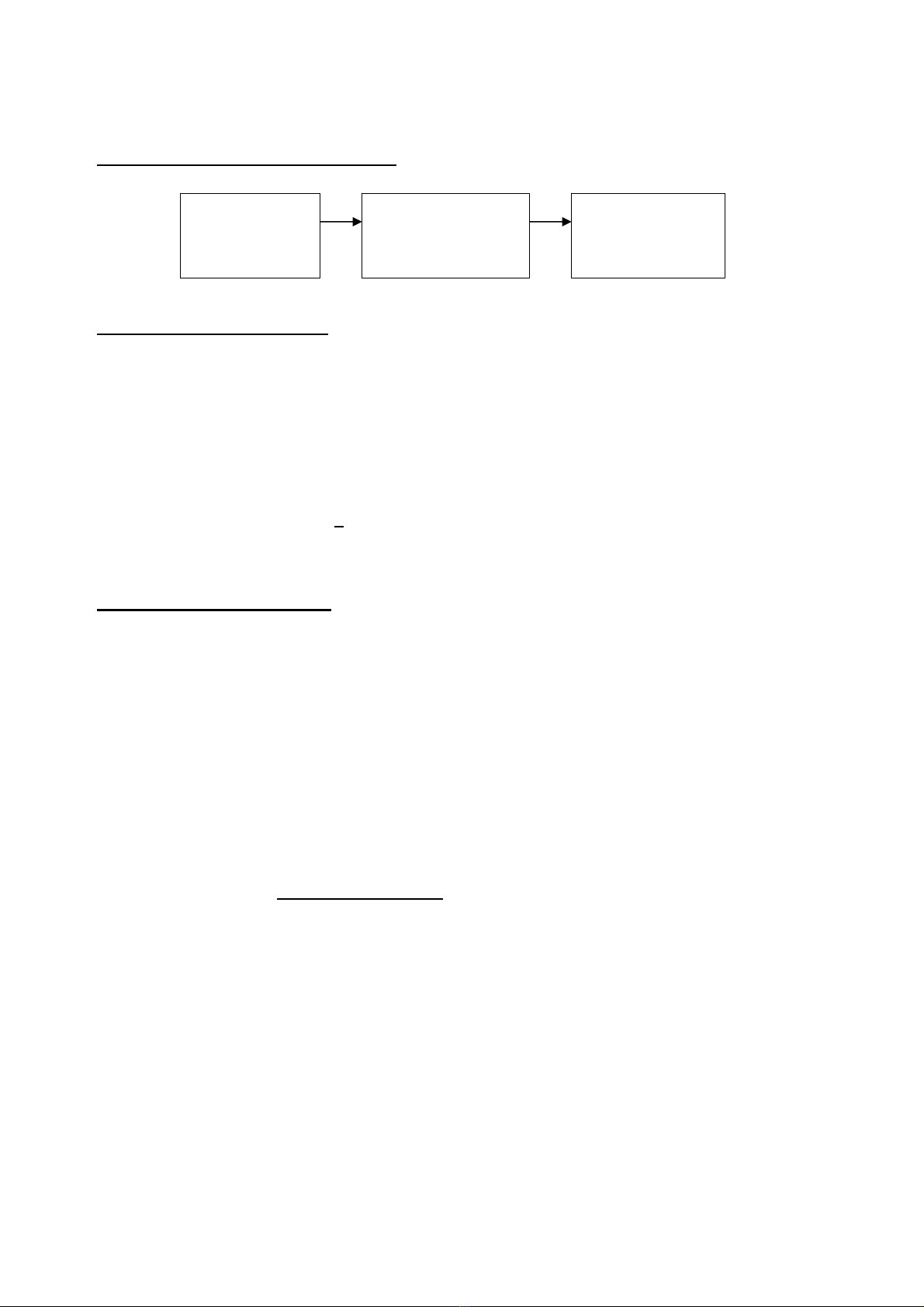

4. ALIGNMENT PROCEDURE
Flowchart of alignment procedure
To enter the Factory Mode
1. Press MENU button to enter the main menu, and press the password “3210” continuously to
enter the Factory Mode.
2. Press ▼/▲to select item, press ◀/▶ button to adjust the value.
3. Press MENU button to quit the Factory Mode.
Note: Set the FACTORY MODE to 1 in Advanced Setting of factory menu, then after exiting the
menu, press “OK” button to enter the factory mode directly without pressing password. Exit the
menu by pressing MENU button.
But it must be set to 0 before delivery: Select the Init Value item, then press ▶
button to set FACTORY MODE to 0.
ALIGNMENT PROCEDURE
1. Adjustment in VGA mode:
1) Required equipment: 2225 Signal Generator.
2) Connect the power adapter and generator, and press POWER button to switch the unit
on.
3) Press “PC Input” button to switch to VGA mode.
4) Input
1024 x 768 @ 60 Hz, Chessboard pattern signal. Enter Color Setting in Factory
Mode, and select Auto Adjust. to calibrate ADC to standard state.
5) Make sure the color is OK in these modes: 640×400 (60Hz) , 720×400 (60Hz), 640×480
(60Hz), 800×600 (60Hz), 1024X768(60HZ).
2. Auto adjustment of White Balance:
1) Auto adjustment in VGA /HDTV mode:
Required equipment: Color analyzer Chroma7120, Specific series port interface
HDTV signal generator.
A. Input 720p, Full White signal from Chroma7120.
B. Switch to HDTV mode, and press PRESETS button to set the picture mode to
standard.
C. Confirm the baud rate of the Colour analyser is 9600(unlock the lock key—red led on is
locked, and select the RS-232 key, the row 1 in the display screen will display the baud rate, you can
press the number key to change the value.). After setting, press the lock key to lock the baud rate.
D. Enter the Factory Mode.
Select cool or standard or warm. Then enter the sub menu to select Y item, and
measure Y with the colour analyser and adjust it to a needed value (about 100cd/㎡in VGA mode,
250 cd/㎡). Then select AUTO item, and activate the auto adjustment.
1. Adjustment
in VGA mode 2, 3. Adjustment of White Balance
4. Check the
setting in the
Factory mode
14

2) Auto adjustment in TV/AV mode:
A. Switch to AV mode.
B. Input the Gray Scales signal.
C. Set the picture mode to Standard.
D. Enter the Basic Setting of Factory Mode to adjust Blacklight until the second dark
scale is just visible.
E. Change the input signal to H/2 White Reference signal and enter the Factory Mode.
Set Y to 250 cd/㎡, the method is same to that in VGA/HDTV mode.
3. Manual adjustment of white balance
1) VGA/HDTV mode
A. Select HDTV mode, then press PRESETS key in remote control to select Standard
picture mode.
B. Input H/2 White Reference signal, then adjust white balance.
a. Cool color temperature: select cool in factory menu, and revise R, G, B gain value until
x=276±15, y=286±15.
b. Standard color temperature: select standard in factory menu, and revise R, G, B gain
value until x=284±15, y=299±15
c. Warm color temperature: select warm in factory menu, and revise R, G, B gain value
until x=305±15, y=320±15.
2) AV/TV mode
A. Select AV mode, then press PRESETS button to select Standard picture mode.
B. Input the Gray Scales signal and adjust Blacklight in factory menu until the second
dark scale is just visible.
C. Input
H/2 White Reference signal, then adjust white balance.
The method is same as above.
Note: If the EEPROM is fire-new, the values are set to default after powering on. In normal
condition, it needs just a little adjustment on the base of default values.
4. Check the setting in the Factory mode:
1) Basic Setting:
Item Default Description
Backlight ** Back light
Blacklight ** Sub brightness
NVRAM Addr ** NVRAM’s address
NVRAM VAL ** NVRAM’s value
Note: Adjustment of NVRAM is done only under the necessity.
2) Color Setting:
Item Default Description
Auto Adjust Auto adjusting ADC in PC mode
RED ** Manually adjusting ADC in PC mode.
GREEN ** Manually adjusting ADC in PC mode.
15

BLUE ** Manually adjusting ADC in PC mode.
RED OFFSET ** Manually adjusting ADC in PC mode.
GREEN OFFSET ** Manually adjusting ADC in PC mode.
BLUE OFFSET ** Manually adjusting ADC in PC mode.
Note: If the White Balance is adjusted automatically, the manual adjustment will
not be available.
3) Sound Setting:
Item Default Description
Min Volume 0 Minimum Volume
Max Volume 100 Maximum Volume
Dot1 ** Volume value
Dot2 ** Volume value
Dot3 ** Volume value
Dot4 ** Volume value
4) 4200K/5000K/WARM/STANDARD/COOL/CUSTOM：
Only WARM, STANDARD and COOL need to be adjusted in White Balance adjustment.
Item Default Description
Brightness 50 Brightness
Contrast 50 Contrast
RED ** Red Gain
GREEN ** Green Gain
BLUE ** Blue Gain
Y ** The brightness of auto adj.
AUTO Auto adjustment
5) Advanced Setting:
Item Default Description
Factory Mode 0 To set the method of entering the Factory
Mode.
Power Mode 1 To set the state of the unit after powered on.
Panel index 20 Panel index
Decoder SatHue 0 Decoder adjustment
Enable Zoom 0 To switch Zoom function on or off
Enable AVIPort 0 Enable or disable AVI Port
Enable DVIPort 0 Enable or disable DVI Port
Factory Reset Reset in Factory Mode
Set Init Value Reset before delivery
16

DIAGRAM
I2CBUS
L
CVBS SIF
R
GM2221
LVDS OR TTL
LCD PANEL
B
US
FLASH
39SF020A
SWITCH
PI5V330Q
R G B Y U V
A/D
TVP5147
CVBS Y C
TUNER
PHILIPS
1316
MSP3410 AMPLIFIER
1517
ADAPTER
A
C
I
N
P
U
T 12
V
D
C
R
F
17

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
5
SignatureOrganization
02. Input
GM21 LCD TV__for EU
SCHEMATIC
03. GM2221
2
04.SPI/RESET/KEYPAD
6
Approval
SHEET
3
4
Date
CONTENTS
1
7
05. LVDS_ Out
06. TTL_ Out
8
01. Contents
07. Power
08. VIDEO DECODER
CHY 04-05-17
040108 chy
GM21
B
19Tuesday, October 18, 2005
Title
Size Document Number Rev
Date: Sheet of
18

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
DVI test points right on the trace to avoid extra length
NOT TO BE MOUNTED
DVI INPUT
CONNECTOR
ANALOG DDC
DNP
Near VGA pins
VGA RGB In
MUXED RGB
TO 5221ADC
INPUT
EDID VGA
13-PI5V33-0QB
For update
040108 chy
GM21-input
C
29Tuesday, October 18, 2005
Title
Size Document Number Rev
Date: Sheet of
5V_VGA
VGASDA
VGASCL
VGA_SDA
VGA_SCL
A-RED
A-BLUE
Pr/R
Pb/B
Y/G
A-VS Pr/R
A-RED
Y/G
Pb/B
A-BLUE
A-GREEN
A-GREEN
A-PB
A-Y
A-PR
VGACON
SEL_RGB3
+5V
GND
VGA_5V
GND
+5V
GND
GND
GND
GND
GND
VGA_5V
GND
GND GND GND
GND
+5V_MUX
GND
GND GND
GND
GND
GND
+5V_MUX
+5V_MUX
+5V_MUX
+5V_MUX
+5V +5V
+5V +5V
GND
GND
GND
+5V_MUX
GND
+5V_MUX
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
+5V_MUX
R28 47R 1%
R3884.5 1%
R26
22k
R?
330
D6
BAV99
1 2
3
Q4
BC847c
1
2 3
R8
10K
L1
33R FB
D4
BAV99
1 2
3
R15
4k7
R11 100R
R16
4K7 R18 100R
C8 0.01uF
Q3
BC847c
1
2 3
R30
10K R31
10K
+
C4
10uF
Q6
BC847c
1
2 3
R33
10k
C13
10uF/16V
1 2
C5 0.01uF
R1982
R49
82
R24
22k
C6 0.01uF
R10 100R
C220
0.1UF
R?
75
R3984.5 1%
R35
10k
R36
82
D7
BAV99
1 2
3
C2
0.1uF
Q?
BC847c
1
2 3
Q5
BC847c
1
2 3
D8
BAV99
1 2
3
R2082
C11
10uF/16V
12
R2182
C10 0.01uFR27 20R
1%
R?
82
R4084.5 1%
A1 A2
C
BAT54C
D5
R25 47R 1%
R12 10K
R14
10K
R46
22k
C15
10uF/16V
12
R45
10k
R32
82
C?
10uF/16V
12
R43
10k
R42
22k
R9
10K
C17
10uF/16V
12
R34
1k
R37
1k
R13 0R
R50
10k
R?
10k
R29
1k
Q1
BC847c
1
2 3
R22 47R 1%
R47
22k
R23 20R
1% C9 0.01uF
C14
10uF/16V
1 2
R?
22k
Q2
BC847c
1
2 3
C16
10uF/16V
1 2
R17 100R
U2
24AA02
4
81
2
37 6
5
GND
VCCA0
A1
A2 WP SCL
SDA
C3 0.01uF
R41
22k
CN2
DB15 HD
1
6
2
7
3
8
4
9
5
11
12
13
14
15 10 R? 10K
R48 10k
C12 0.01uF
C7 0.01uF
U3
PI5V330
15
14
13
12
11
10
9
7
1
5
2
3
6
4
16
8
EN
SD1
SD2
DD
SC1
SC2
DC
DB
IN
SB1
SA1
SA2
SB2
DA
VCC
GND
DDC_SCL_VGA 5
DDC_SDA_VGA 5
HSYNC 5
VSYNC 5 BLUE+ 5
BLUE- 5
RED+ 5
RED- 5
SOG_MCSS 5
GREEN- 5
GREEN+ 5
RMADDR8 3
Vin2
8
19

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Close to respective power Pins
32-Pin PLCC Socket
Close to respective power Pins
Close to respective power Pins
ADC_TEST
Close to respective power Pins
RS232
Route (LBADC_IN1, LBADC_RET) and
(LBADC_IN2, LBADC_RET) as differential
tracks close to each other and ground the
return track of each pair very close to the
5221 and ground pin
RMADDR[6:0]
For I2C address [6:0] to JTAG bridge
Host I/F, to determine device address.
RMADDR[12:7]
User_Bits[5:0] for configuration setting
RMADDR[14:13]
11 = External parallel control bus using
ROM Addr/Data
RMADDR15
SPI_EN: 0 = parallel ROM I/F. 1 = SPI
serial ROM and Cache control
RMADDR16
1 = Internal ROM off. The external ROM
mapped to entire upper 512K of OCM address.
OCM boot from external ROM code.
RMADDR17
OSC_SEL: 0 = Xtal and internal oscillator.
1 = TTL oscillator (on TCLK pin)
BootStrap Signals
OP_MODE[1:0]:
01 = I2C to JTAG bridge.
10 = JTAG port, 5 wires
00 = Normal op. UART in 186 on system pins.
Initial state of OCM ROM:
0 = internal ROM on, and mapped to top 32K
of OCM and OCM boot will be from internal
ROM codes.
Close to respective power Pins
SOCKET:
IC51-2084-1052
GPROBE
DEBUG
PORT
JTAG
DEBUG
I2C SEL
BOOTSTRAP OPTIONS SELECT
(NOT POPULATED SHOULD BE
HARD WIRED) KEYBOARD
INPUT TO
LBW ADC
DIFFERENT FOROM EM & CHINA
SOP8
040108 chy
GM21-gm5221
C
39Tuesday, October 18, 2005
Title
Size Document Number Rev
Date: Sheet of
HOST_SCL/UART_DI
LV_O1
PBIAS
RX2+
YUV2 YUV6
LV_E4
LV_O0
RX1-
LV_E1
LV_O4
VGAHS
TCLK
RX1+
GPIO2
LV_E6
DECCLK
LV_O6
XTAL
RX0+
YUV0 YUV1
PD23
MCSCL
DDC_SCL_DVI
LV_E3
LV_E8
YUV7
LV_E2
LV_E0
RESET
RXC+
LV_E5
LV_O7
YUV5
GPIO5
MCSDA
LV_O3
YUV4
LV_O5
DDC_SDA_DVI
LV_O2
LV_E9
PD21
YUV3
LV_O8
DDC_SDA_VGA
DDC_SCL_VGA
TCLK
RXC-
XTAL
GPIO6
LV_O9
PD22
RX2-
LBADC_RET
GPIO3
GPIO0
LV_E7
PD20
PPWR
VGAVS
RX0-
CVDD_1.8
GPIO1
YUV[0..7]
RMDATA4
RMDATA1
RMDATA7
ROM_CSn
RMDATA2
RMDATA[0..7]
ROM_WEn
RMDATA6
RMDATA0
RMDATA4
RMADDR17
RMDATA7
RMDATA5
RMDATA5
RMDATA2
RMDATA3
RMDATA1
RMDATA0
RMDATA3
RMDATA[0..7]
RMDATA6
RMADDR11
RMADDR14
RMADDR4
RMADDR13
RMADDR15
RMADDR12
RMADDR2
RMADDR10
RMADDR7
RMADDR0
RMADDR5
RMADDR6
RMADDR9
RMADDR16
RMADDR1
RMADDR3
RMADDR17
RMADDR16
RMADDR15
RMADDR14
RMADDR13
RMADDR12
RMADDR11
RMADDR10
RMADDR9
RMADDR8
RMADDR7
RMADDR6
RMADDR5
RMADDR4
RMADDR3
RMADDR2
RMADDR1
RMADDR0
DHS
DVS
DCLK
DEN
ROM_OEn
RMADDR3
RMADDR1
RMADDR6
RMADDR5
RMADDR9
RMADDR7
RMADDR2
RMADDR4
RMADDR16
RMADDR13
RMADDR11
RMADDR10
RMADDR12
RMADDR0
RMADDR17
HOST_SDA/UART_DO
DDC_SCL_VGA
DDC_SDA_VGA
VGAVS
VGAHS
RMADDR8
HOLD ROM_CSn RMADDR15
WPRMADDR17
RMADDR16
RMADDR15
RMADDR14
LV_E[0..9] 7,8
LV_O[0..9] 7,8
PD[20..23] 8
ADC_IN1
SWTCH1
VGACON
LED
YUV[0..7]
DECCLK
MCSDA
PWM0
HOLD
MCSCL
SEL_RGB
RET_OTHER
IR_IN
WP
SWTCH3
SWTCH2
TELE_SDA
TELE_SCL
TELE_INR
BLNK2
AMP_MUTE & 9V suspend
GND
3.3V_AVDD
+1.8V_DVDD
+3.3V_AVDD
GND
AVDD_1.8
3.3V_AVDD
GND
+5V
GND
CVDD_1.8
GND
3.3V_AVDD
CVDD_1.8
AVDD_1.8
3.3V_AVDD
3.3V_DVDD
+5V
GND
+5V
+5V
GND
GND
3.3V_AVDD
GND
GND
+3.3V_DVDD 3.3V_DVDD
GND
GND
GND GND
3.3V_DVDD
GND
3.3V_AVDD
GND
3.3V_DVDD
3.3V_DVDD
GND
GND
TP9
C45
0.1uF
C18
22uF/16V
C33
0.1uF
C52
0.1uF
TP10
C19
0.1uF
C46
220pF
SW1
SW PUSHBUTTON
U5
74LCX14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
3.3V_A
AGND
U4
gm2221
PQFP-208
151
152
147
148
142
143
119
118
124
123
129
128
169
170
98
99
100
101
35
36
133
132
114
71
72
77
78
79
80
178
92
93
69
202
201
200
199
198
197
196
195
194
185
4
3
2
1
208
207
204
203
186
187
193
189
192
188
5
154
150
149
153
144
122
117
23
50 73 190 205 166 9 41 75 96 116
67
68
12
121
25
126
28
115
171
26
172
24
137
11
164
181
182
8
42
51
74
76
94
97
140
180
163
165
136
155
48
47
87
86
66
65
33
34
62
59
61
60
58
57
63
64
46
45
44
43
38
37
55
56
32
31
30
29
22
21
49
54
18
17
16
15
14
13
19
20
167
70
135
27
40
113
120
125
130
134
141
145
7
6
95
184
183
191
206
139 179
177
39
168
156
131
127
146
81
82
83
84
85
88
89
90
91
138
10
102 103 106 107 108 109 110 111 112 52 53 104 105 157 158 159 160 161 162
173
174
175
176
RED+
RED-
GREEN+
GREEN-
BLUE+
BLUE-
RX2-
RX2+
RX1-
RX1+
RX0-
RX0+
XTAL
TCLK
PWM0/GPIO11
PWM1/GPIO12
PWM2/GPIO13
PWM3/GPIO14
CH1P_LV_O(PD16/EB0)
CH1N_LV_O(PD17/EB1)
RXC-
RXC+
REXT
HOST_SCL/UART_DI
HOST_SDA/UART_DO
DDC_SCL_VGA
DDC_SDA_VGA
DDC_SCL_DVI
DDC_SDA_DVI
RESETn
GPIO9/SCL
GPIO10/SDA
STI_TM1/GPIO15
ROM_ADDR0
ROM_ADDR1
ROM_ADDR2
ROM_ADDR3
ROM_ADDR4
ROM_ADDR5
ROM_ADDR6
ROM_ADDR7
ROM_ADDR8
ROM_ADDR15
ROM_DATA0
ROM_DATA1
ROM_DATA2
ROM_DATA3
ROM_DATA4
ROM_DATA5
ROM_DATA6
ROM_DATA7
ROM_ADDR14
ROM_ADDR13
ROM_ADDR9
ROM_ADDR11
ROM_ADDR10
ROM_ADDR12
ROM_OEn
AVDD_ADC_33
AVDD_RED_33
AGND_GREEN
AGND_RED
AGND_BLUE
AGND_RX1
AGND_RX2
AVSS_OUT_LV_E
RVDD_33 RVDD_33 RVDD_33 RVDD_33
VDD_RPLL_18
CVDD_18 CVDD_18 CVDD_18 CVDD_18
VDD_RX2_18
PPWR
PBIAS
AVSS_OUT_LV_E
VDD_RX1_18
AVSS_LV
VDD_RX0_18
AVSS_OUT_LV_O
AGND_IMB
AVDD_RPLL_33
AVDD_LV_33
LBADC_VDD_33
AVDD_OUT_LV_E_33
VDD_RXPLL_18
AVDD_OUT_LV_E_33
VDD1_ADC_18
HSYNC
VSYNC
CRVSS
CRVSS
CRVSS
CRVSS
CRVSS
CRVSS
CRVSS
CRVSS
CRVSS
GND1_ADC
GND_RPLL
GND_RXPLL
ADC_TEST
DHS
DEN
CRVSS
CVDD_18
PD37/OG5
PD33/OG1
CH2P_LV_O(PD14/EG6)
CH2N_LV_O(PD15/EG7)
PD30/OR6
PD27/OR3
PD29/OR5
PD28/OR4
PD26/OR2
PD25/OR1
PD31/OR7
PD32/OG0
PD23/EB7
PD22/EB6
PD21/EB5
PD20/EB4
CH0N_LV_O(PD19/EB3)
CH0P_LV_O(PD18/EB2)
DCLK
PD24/OR0
CLKN_LV_O(PD13/EG5)
CLKP_LV_O(PD12/EG4)
CH3N_LV_O(PD11/EG3)
CH3P_LV_O(PD10/EG2)
CH0N_LV_E(PD9/EG1)
CH0P_LV_E(PD8/EG0)
DVS
NC
CH2N_LV_E(PD5/ER5)
CH2P_LV_E(PD4/ER4)
CLKN_LV_E(PD3/ER3)
CLKP_LV_E(PD2/ER2)
CH3N_LV_E(PD1/ER1)
CH3P_LV_E(PD0/ER0)
CH1P_LV_E(PD6/ER6)
CH1N_LV_E(PD7/ER7)
VBUFC_RPLL
STI_TM2
VBUFC_DVI
AVDD_OUT_LV_O_33
AVDD_OUT_LV_O_33
AVDD_IMB_33
AVDD_RX2_33
AVDD_RX1_33
AVDD_RX0_33
AVDD_RXC_33
AVDD_BLUE_33
AVDD_GREEN_33
ROM_CSn
ROM_WEn
RVDD_33
ROM_ADDR16
ROM_ADDR17
CRVSS
CRVSS
CVDD_18 CVDD_18
LBADC_GND
AVSS_OUT_LV_O
AGND_RPLL
AGND_ADC
AGND_RXC
AGND_RX0
SOG_MCSS
GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7/IRQin
GPIO8/IRQout
CLKOUT
VCO_LV
VDATA7/GPIO16 VDATA6/GPIO17 VDATA5/GPIO18 VDATA4/GPIO19 VDATA3/GPIO20 VDATA2/GPIO21 VDATA1/GPIO22 VDATA0/GPIO23 VCLK NC NC NC NC NC NC NC NC NC NC
LBADC_IN1
LBADC_IN2
LBADC_IN3
LBADC_RETURN
10KR60
C35
0.1uF
R53 250/1%
10KR73
10KR57
U?
SPI:SST25VF040
1
2
3
45
6
7
8#CE
SO
#WP
VSSSI
SCK
#HOLD
VCC
10KR64
10KR58
C42
0.1uF
C44
0.1uF
C50
0.1uF
10KR61
100R? 100R?
C20
0.1uF
TP12
100R?
J1
1
2
3
4
100R?
C62
0.1uF
L3
33R FB C34
0.1uF
100R?
C36
0.1uF
100R?
C47
220pF
C28
0.1uF
10KR54
C24
0.1uF
C60
0.1uF
C22
0.1uF
C62
0.1uF
10KR55
L2
33R FB
TP14 VP
C58
5pF
C21
0.1uF
R74 10K
TP11
C38
22uF/16V
OR30R
L4
33R FB
C55
220pF
C37
0.1uF
C57
0.1uF
C51
0.1uF
10KR72
OR20R
C43
0.1uF
C40
0.1uF
R59 10K
10KR70 10KR71
C41
0.1uF
C48
22uF/16V
C30
0.1uF
C31
0.1uF
10KR68
T2 For_Update
1
2
X1
14.318MHz
R5110K
OR10R
C26
0.1uF
10KR66
OR40R
C63
8P2
10KR67
C49
0.1uF
C23
0.1uF
10KR69
R?4K7
C61
0.1uF
C29
22uF/16V
R?4K7
R5210K
R56 10K
C32
0.1uF
U6
AT49HF/F010-45JC
3
29
28
4
25
23
26
27
5
6
7
8
9
10
11
12
21
20
19
18
17
15
14
13
24
31
32
116
2
30
22
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0
OE
WE
VCC
NC GND
A16
NC/A17
CE
C53
0.1uF
C59
5pF
C27
0.1uF
C25
0.1uF
C54
0.1uF
10KR62
R?4K7
10KR63
R?4K7
C39
0.1uF
L5
33R FB
10KR65
DDC_SCL_VGA3 DDC_SDA_VGA3 DDC_SCL_DVI3 DDC_SDA_DVI3
BLUE+3 BLUE-3 SOG_MCSS3 GREEN+3 GREEN-3 RED+3 RED-3
RX2+3RX2-3RX1+3RX1-3RX0+3RX0-3RXC+3 RXC-3
DEN
DHS
DVS
DCLK
PPWR 7,8
PBIAS 7
HSYNC3
VSYNC
3
20
