TCMM RC Night Phoenix User manual
Night Phoenix
Catalog
Package Include....................................................................................... - 1 -
1.1 Frame kit............................................................................................ - 2 -
2.1 Brushless motor (purple)...................................................................- 2 -
3.1 100A ESC 3-8S....................................................................................- 3 -
4.1 F405 Bluetooth flight control............................................................ - 3 -
5.1 FOXEER Arrow MICRO PRO Camera..................................................- 4 -
6.1 TX5804 VTX........................................................................................- 5 -
7.1 DALPROP T5046C Propeller...............................................................- 6 -
8.1 Recommended power supply........................................................... - 6 -
9.1 Adjusting parameter..........................................................................- 6 -
(1) Configuration of UART port parameters
...........................................- 6 -
(2) Frequency grouping and channel number configuration
........... - 7 -
①Enter OSD parameter menu..............................................- 7 -
②Start grouping and channel configuration........................- 8 -
③Output power configuration............................................. - 9 -
④Channel number indication.............................................- 10 -
⑤power control..................................................................- 10 -
Night Phoenix
- 1 -
Package Include
1 x 3D printing GoPro Session Mount（Selective
collocation）
1x FPV Drone（Without GoPro, battery, receiver or
Receiver included, NO battery, and GoPro）
4 pairs of T5046C 3-Blade propeller
10 X black nylon tie (25 * 100mm)
2X Carbon fiber ornament small parts(random
thickness)
Spare screw pack (chamfer m3 * 8mm 4pcs / m3
* 12mm 2pcs / m3 locknut 2pcs / m3 * 30mm
aluminum column 1pcs )
Night Phoenix
- 2 -
1.1 Frame kit
Wheelbase: 225mm
Boom thickness: 5mm
X plate thickness: 2mm
Base plate thickness: 2mm
Thickness of upper plate: 2mm
2.1 Brushless motor (purple)
Motor kV: 1800rpm / V
No load current (IO / 10V): 0.72a
Supporting lithium battery: 3-6s
Maximum continuous current: 25A
Maximum continuous power: 600W
Maximum thrust: 1116g (6S / 5 ")
Configuration: 12n / 14P
Motor resistance (RM): 0.109 Ω
Stator diameter: 22mm
Stator thickness: 6mm
Motor diameter: 27.7mm
Motor length: 19.2mm
Total length of shaft: 34.2mm
Shaft diameter: M5
Installation hole spacing: 16mm
Mounting screw: M3
Recommended propeller: 5-7 inches
Night Phoenix
- 3 -
3.1 100A ESC 3-8S
Name：E70ReachUP
Constant current：100A
Peak current：110A（10S）
Input voltage：3-8 S Lipo
MCU：STM 32F4051
MOS Tube：Toshiba 5×6
BEC ouput：NO
Firmware：BL_32
Protocol：DSHOT1200
PCB Size：43.4*42mm
Mounting Hole：M3*30.5*30.5 mm
4.1 F405 Bluetooth flight control
Name：F4LA5
MCU：STM32F405
Gyro：MPU6000
BEC：10V 1A, 4.5V,3.3V
voltage：3-6 S Lipo
Receiver：PPM,Ibus,Sbus,Dsmx
Black box：YES
Barometer：YES
Firmware：MATEKF405
Buzzer interface：YES
Betaflight OSD：AT7456E
PCB Size：37*37 mm
Mounting Hole：M3*30.5*30.5 mm
Night Phoenix
- 4 -
5.1 FOXEER Arrow MICRO PRO Camera
Image sensor: 1 / 3 "Sony super had II CCD + nextchip 2040
DSP
Pixels: pal: 976 (H) x 494 (V); NTSC: 768 (H) x 494 (V)
TV system: pal
Resolution: 600TVL (color) 650tvl (black and white)
Synchronization: internal
Minimum illumination: 0.01LUX
WDR: support
OSD programming board: support
White spot fix: support
DNR:2D DNR
Camera Title: support
Image adjustment: supported
OSD: edit name, power supply, flight time
Input power: 5-40v
Storage temperature: - 40 C ~ 60 C
Working temperature: - 10C ~ 50c
Power consumption: 70ma
Low pressure alarm: support
Default modes: def, vivacive, sunny, cloud, led TR, usr1
Size: 18.5 * 19mm (excluding bracket)
Weight: 5.3g (excluding bracket)
Note:Be sure to weld the receiver
protocol selection pad
Night Phoenix
- 5 -
6.1 TX5804 VTX
Stable output power, long transmission distance: ≥ 0.5km
@ 25MW, ≥ 1km @ 200MW, ≥ 2km @ 600MW (rod antenna)
Transmission power shift 3: 25MW / 200MW / 600MW
Output 48 frequency points, and have 16 competition
frequency points of group E and group F to use at the same
time without mutual interference
Fast frequency locking, no interference with peers when
power on
Self check function of output power
Full format video format: NTSC / PAL
Wide input voltage range, low power consumption: 7V ~ 24V,
+ 12V / 260ma @ 600MW
Small volume: 36mm × 36mm × 5mm, mounting hole
completely corresponding to cc3d naze32 f3f4 flight
control
Light weight: ≤ 6G (excluding antenna)
Night Phoenix
- 6 -
7.1 DALPROP T5046C Propeller
Specification: 5046 * 3
Brand name: dalprop
Product Name: 5046 propeller
Material: imported Bayer PC
Quantity: 4 pairs (8 pieces)
Color: transparent
Weight: 5.1g/piece
Center thickness: 7mm
Screw diameter: 127mm
8.1 Recommended power supply
Recommended voltage: 3s-6s
Recommended capacity: 1050-1500 Mah
9.1 Adjusting parameter
(1) Configuration of UART port parameters
Enter the Ports item, select the UART port (UART6 in this case),
and then select the TBS Smart Audio item (Figure 1) in the Peripheral
column to complete the configuration of the flight control image serial
port.
If the connection between the image transmission and the
selected flight control UART port remains unchanged, this step only
needs to be operated once.
Night Phoenix
- 7 -
(2) Frequency grouping and channel number configuration
1Enter OSD parameter menu
When VTX1 image transmission, corresponding image
transmission receiver display screen and flight control are powered on,
the information shown in Figure 2 will appear on the receiving screen.
Figure 2 Electrical display information
At this time, according to the screen prompt operation THR MID
(throttle center), YAW LEFT (YAW rocker to the left), PITCH UP (PITCH
rocker to the top) into the OSD parameter adjustment menu (Figure 3).
Figure 3 OSD parameter menu
Night Phoenix
- 8 -
2Start grouping and channel configuration
Under the OSD MAIN menu, the PITCH rocker can move the cursor
arrow up and down to select the menu item, select the FEATURES item,
then select the ROLL rocker to the right, and enter the lower
configuration menu (Fig. 4).
Figure 5 FEATURES Menu
In the menu of Figure 4, select the desired frequency grouping
BAND and channel CHAN by swinging the ROLL rocker left and right.
Note: Because VTX1 supports 48 channels, users can select any of
the 48 channels by pressing keys. But at present, Betaflight's OSD
parametric function only supports 40 channels, so users can only
configure 40 channels on the OSD screen.
If the user chooses one of the eight channels that OSD parameters
do not support and enters OSD parameters, the system will
automatically change the user's original channel to A1 channel on our
frequency table (5865 Mhz), that is, the user can configure only 40
channels with OSD parameters.
After configuring the grouping and channel, you need to enter the
SET item and select YSE to take effect (Figure 6).
Night Phoenix
- 9 -

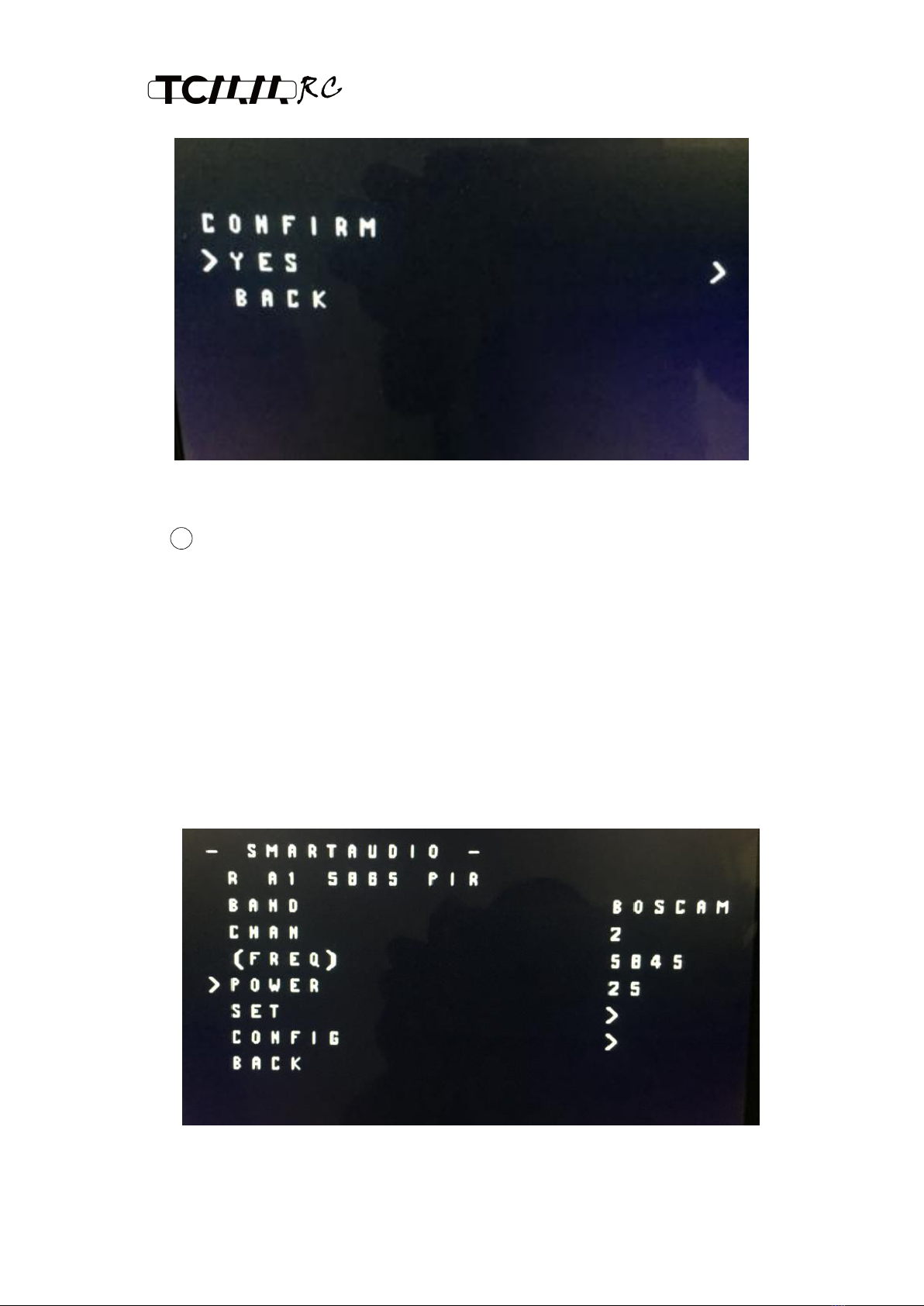

Figure 6 Grouping and channel configuration validation
3Output power configuration
As in the previous section, the POWER item can be entered by
remote control selection, and the required transmission power can be
selected (Fig. 7). VTX1 currently supports only 25 mW power options,
while the POWER menu with OSD parameters has four options: 25 mW,
200 mW, 500 mW and 800 mW. Therefore, users need to pay attention
to the choice of 200 mW, 500 mW, 800 mW options will be VTX1 set to
25 mW transmission power.
Note: Unlike configuring BAND and CHAN, POWER settings do not
need to enter the SET entry confirmation, and take effect immediately.
Figure 7 Transmission Power Selection
Night Phoenix
- 10 -
4Channel number indication
The LED lamp displays the set grouping and channel, and the
corresponding working frequency is shown in the table below.
BAND
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
A（BOSCAM）
5865M
5845M
5825M
5805 M
5785 M
5765 M
5745 M
5725 M
b（BOSCAM）
5733 M
5752 M
5771 M
5790 M
5809 M
5828 M
5847 M
5866 M
C（BOSCAM）
5705 M
5685 M
5665 M
5645 M
5885 M
5905 M
5925 M
5945 M
d（FATSHAR)
5740 M
5760 M
5780 M
5800 M
5820 M
5840 M
5860 M
5880 M
E（RACEBAN)
5658 M
5695 M
5732 M
5769 M
5806 M
5843 M
5880 M
5917 M
F
5362M
5399M
5436M
5473M
5510M
5547M
5584M
5621M
Note: Group F channel in italic part is not supported in Betaflight
OSD configuration.
5power control
Key function control: press the key for 10 seconds and then
change the power level 25MW / 200MW / 600MW (see the power
indicator diagram below for details)
25mW
200mW
600mW
FR lamp
CH lamp
Power switch indication diagram
Power indication: (see power indication diagram below for
details)
25mW
200mW
600mW
fault
Power
indicator
Flash 1, stop
for 3 seconds
Flash 2, stop
3 seconds
Flash 3, stop
3 seconds
Chang Liang
Power indicating diagram
Frequency control method:
Key frequency control:
Long press the key for 2 seconds, short press the key to change
the frequency point, change the channel number CH (ch1-ch8),
Press and hold the key for 2 seconds again, and then press and
hold the key to change the frequency group fr (A-E);
Night Phoenix
- 11 -
Blue light indicates FR, green light indicates CH, hollow circle indicates off,
solid circle indicates ON
Precautions for use:
Before power on, make sure that the output terminal has an
antenna installed to avoid damaging the internal components;
Note that the input voltage is within the specified range and
positive and negative, so as to avoid damaging the internal
components;
If you want to change the antenna, please choose the antenna
with good standing wave and gain to get a long transmission
distance;
Pay attention to electrostatic protection during
transportation, installation and use;
