TDC 9.8 Foot Rome Gazebo User manual

9.8 Foot Rome Gazebo
Steel and Aluminum Frame with Powder Coating
INSTRUCTIONS
Parts 3
Assembly 4-8
Warranty 9-10
Customer Service
1-800-599-8898

Rome Gazebo
2 Item #21883
Rome Gazebo
Item #21883 3
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898

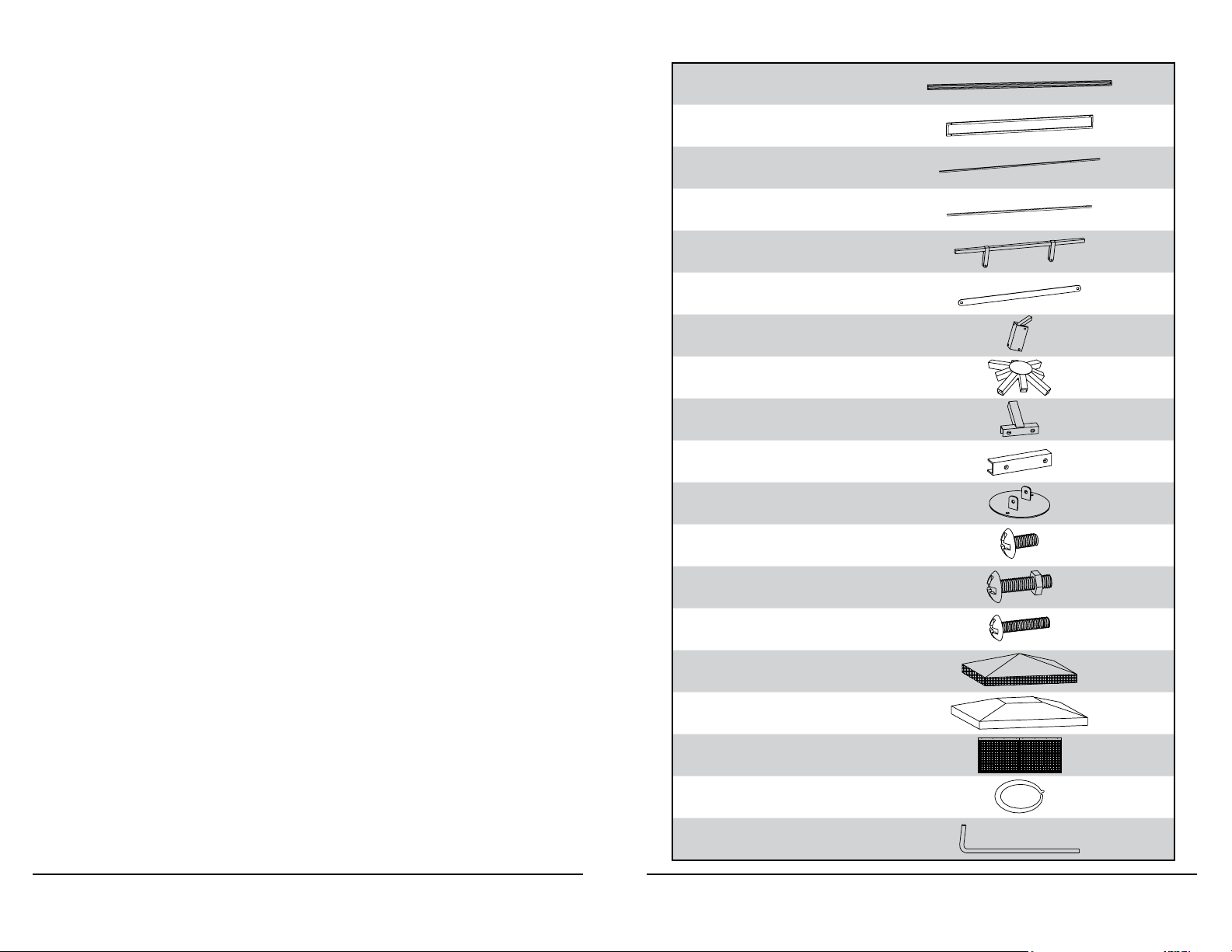

APole 4
BCrossbeam 8
CCorner Canopy Rib 4
DCanopy Middle
Rib 4
ETwo Tier Rib 4
FSupport 8
GCorner Connector 4
HConnector 1
IMiddle Connector 4
JCrossbeam
Connector 4
KFoot 4
LM6 *15 Screw 24
MM6 * 28
Screw & Nut 28
NM6 * 30 Screw 16
OSmall Canopy 1
PMain Canopy 1
QNetting Panel 4
RRings 32
SStakes 8
Parts
Identify all parts packaged in carton against the parts list. Remove
all protective materials and place parts on a non-abrasive surface
to avoid scratching. If any parts are missing or damaged, DO NOT
attempt to assemble. Please contact our customer service center
(Monday-Friday 9:00am – 5:00pm EST) at 1-800-599 -8898 or email:
[email protected].
Caution: Read all the instructions before assembly. Failure
to do so may result in faulty assembly and potential injury!
Assemble product on a soft, non-abrasive surface such as a
carpet or cardboard to avoid damaging the item. Seek assistance

sure all bolts and nuts are securely tightened with screw covers
pressed in place.
Getting Started
Getting Started

Rome Gazebo
4 Item #21883
Rome Gazebo
Item #21883 5
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898

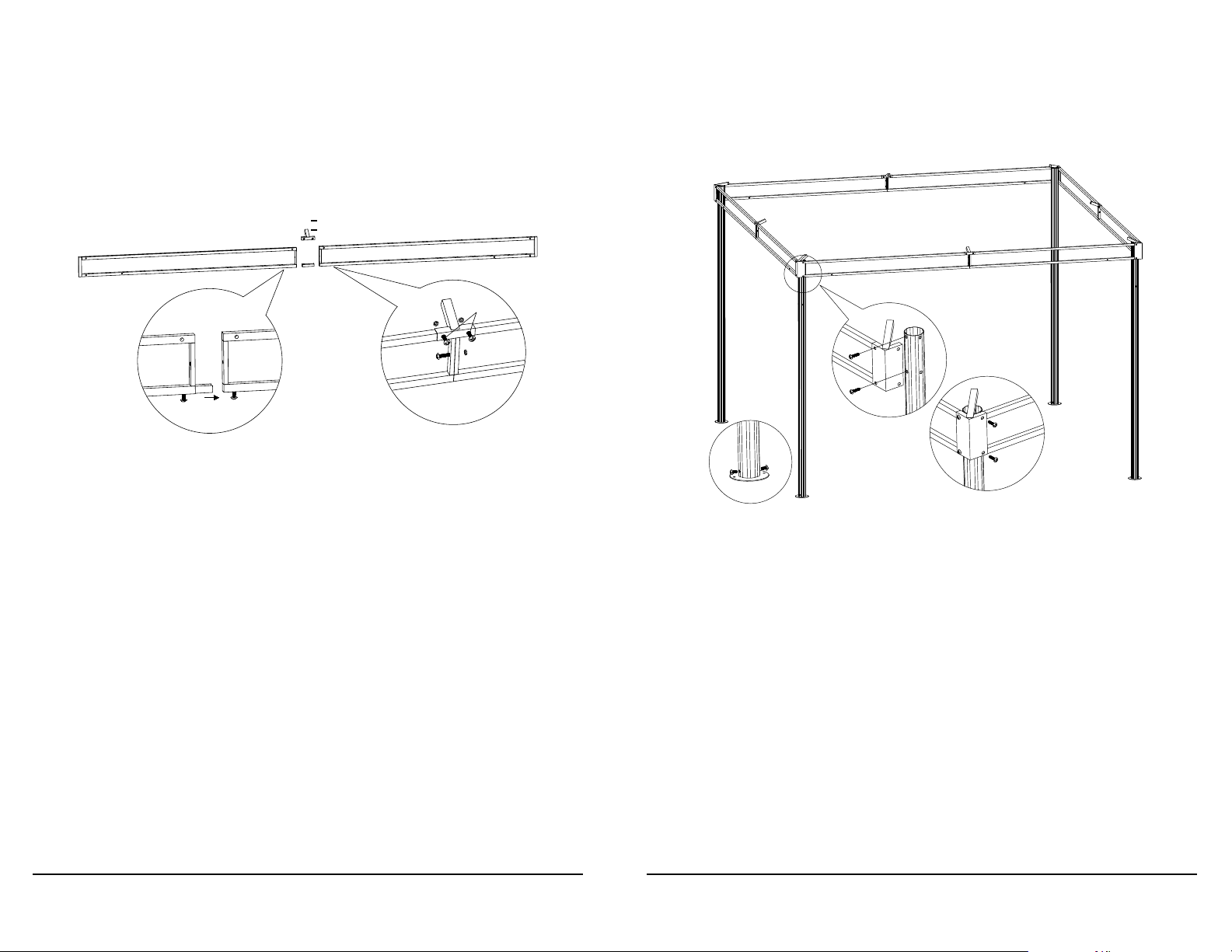

Step 1:
Connect the Crossbeams (B) together by, first, inserting and then
screwing the Crossbeam Connector (J) into one Crossbeam (B), using
M6 * 15 Screw (L). Do the same to the other Crossbeam (B). See Fig. 1.
Second place the Middle Connector (I) on top of the two Crossbeams
(B) and screw together with M6 * 28 Screw & Nut (M).
Also, using M6 * 28 Screw & Nut (M), screw the two Crossbeams (B)
together at the adjoining section. See Fig. 2.
Assembly Instructions
Step 2:
Insert Foot (K) into the bottom of the Pole (A) and screw together
with M6 * 15 Screw (L). Repeat for the other 3 Poles (A). Fig. 3
Referencing Fig. 4a, screw Corner Connector (G), Crossbeam (B) and
Pole (A) together with M6 * 30 Screw (N) to one side of the Pole (A).
Repeat using a different Crossbeam (B) for the other side of that Pole
(A). See Fig. 4b. Do not tighten the screws. Do this for the other 3
Poles (A).
Assembly Instructions
BB
I
J
J
LL
M
M
B
B
B
B
BB
B
B
A
A
A
A
N
G
G
N
L
K
Fig. 1 Fig. 2
Fig. 3
Fig. 4a
Fig. 4b

Rome Gazebo
6 Item #21883
Rome Gazebo
Item #21883 7
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898
E
C
M

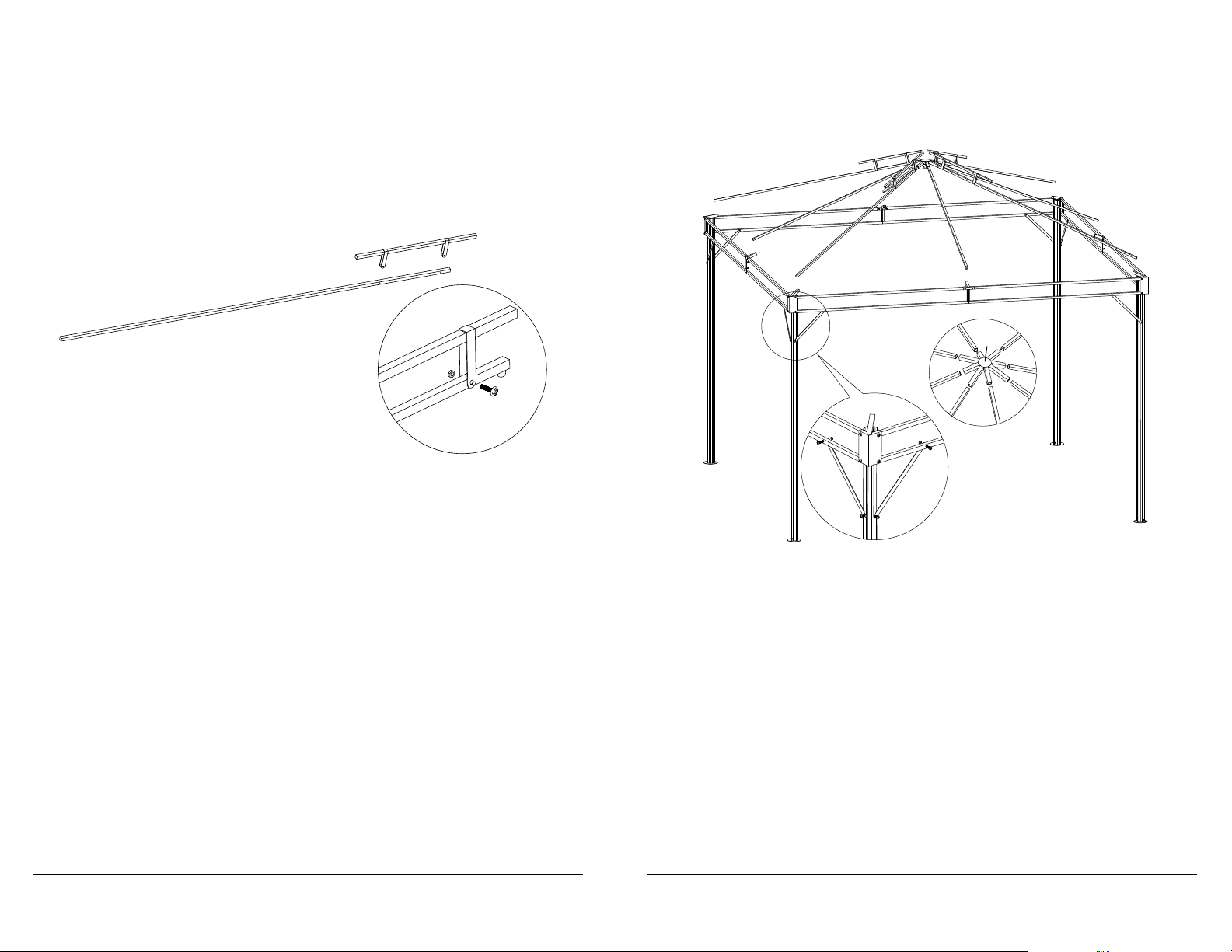

Step 3:
Connect Two Tier Rib (E) with the Corner Canopy Rib (C) using M6 *
28 Screw & Nut (M).
Assembly Instructions
Step 4:
Insert Corner Canopy Rib (C) into the longer tubes of Connector (H).
Insert Canopy Middle Ribs (D) into the shorter tubes on Connector
(H). This creates the frame for the roof. See Fig. 5.
Place the roof frame on top of the gazebo by placing Corner Canopy
Ribs (C) into the Corner Connectors (G) and Canopy Middle Ribs (D)
into the Middle Connectors (I).
Secure Support (F) onto the Pole (A) and Crossbeam (B), using M6 *
28 Screw & Nut (M). See Fig. 6. Repeat for the other 3 Poles (A).
Assembly Instructions
C
C
CD
BB
M
M
F
F
L
D
D
D
D
C
C
C
C
H
Fig. 6
Fig. 5

Rome Gazebo
8 Item #21883
Rome Gazebo
Item #21883 9
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898

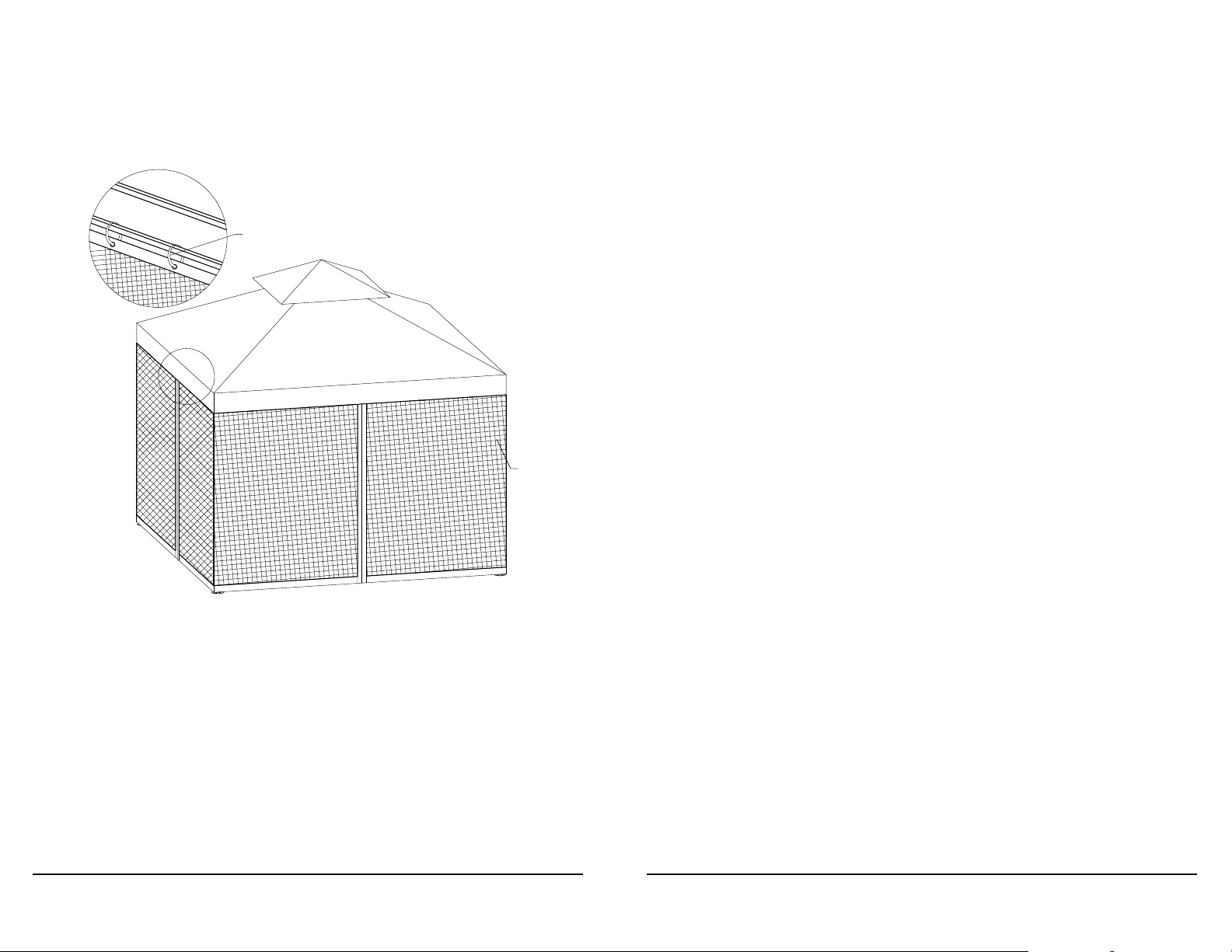

Place the Small Canopy (O) onto the roof frame, then the Main Canopy
(P).
Place Rings (R) onto the Netting Panels (Q) and hang onto the lower
bar of the Crossbeams (B). The elastic bands and straps on the Netting
Panels (Q) should be inside the gazebo.
Tighten all screws.
Step 5:
R
O
P
Q
Assembly Instructions Limited Warranty
All furniture manufactured and sold by TDC USA, Inc. is warranted to the original
purchaser against defects in workmanship and materials. If a product manufactured by
TDC fails during the rst year from date of purchase under the terms of our limited
warranty, TDC will replace the item at no charge. After one year, it will be the original
purchasers’ responsibility to pay for freight and packing. TDC reserves the right, in the
case of discontinued or out of production models, to replace with an item of similar
quality. (Glass breakage is not warranted.)
Note: You must retain original receipt to obtain warranty!
Frames:
Frames are warranted against defects in materials and workmanship from the date of
original purchase. Damage to frames or welds due to commercial use, improper assembly,
exposure to water and sub-freezing temperatures, and/or abuse are not covered.
Fabric:
Fabric on cushions, slings, and umbrellas is warranted against separation at the seams.
Fading, mildew, and/or discoloration due to exposure to elements, chemicals, and spills
are not covered.
Powder coat and/or Paint:
The nish is warranted against blistering, peeling, or cracking. Fading resulting from
exposure to elements, chemicals, and spills are not covered. Scratches and chips due to
normal wear and use are not covered
Umbrella:
Umbrella frames are warranted against manufacturer’s defects in workmanship and
materials.
Safety Warning! Umbrellas must be closed when not in use and taken down in windy
conditions.
LIMITED WARRANTY
Please contact our service hotline by phone, email or fax before
sending the device. This allows us to provide support in the event
of possible operator errors.

Rome Gazebo
10 Item #21883
Customer Service 1-800-599-8898
Limited Warranty
Freight & Packing:
TDC will be responsible for shipping, handling, and packaging charges for all valid
warranty claims.
Care & Maintenance:
Be careful to never allow water build up in frames as this will cause corrosion and freeze
damage in cold climates. Wash all frames with a solution of mild soap and water. Rinse
with clean water and dry with a soft absorbent cloth towel. Frames can be treated with
a liquid wax for maximum protection against UV rays and/or salty damp air. If your
set includes cushions, slings, and/or an umbrella, they may be cleaned by hand with a
solution of soap and water with a clean water rinse.
EXCLUSION:
• Damage caused by acts of nature
• Wind damage
• Failure caused by unreasonable, unanticipated or abusive use
• Failure caused by a lack of reasonable and necessary care and maintenance
• Normal fade of fabrics, upholstery or woven materials
• Glass table tops
• Bursting or cracking of tubing due to exposure to water and freezing
temperatures
• Changes in wood color due to the natural aging of the wood
Lack of original receipt will void warranty.
Customer Service: Monday-Friday 9:00am-5:00pm EST
By Phone: [phone]
By E-mail: [e-mail]
.

Distributed By T.D.C. USA INC.
Fairfield, NJ 07004
©2016 All Rights Reserved. Made in China
