TDK T5919 User manual

T5919
Bottom Port PDM Digital Output Multi-Mode Microphone
TDK, Inc. reserves the right to change the detail
specifications as may be required to permit
improvements in the design of its products.
TDK Corporation
1745 Technology Drive, San Jose, CA 95110 U.S.A
[phone]
www.tdk.com
Document Number: DS-000363
Revision: 1.0
Release Date: 3/9/2021
GENERAL DESCRIPTION
The T5919 is a multi-mode, low noise digital MEMS
microphone in a small package. The T5919 consists of a
MEMS microphone element and an impedance converter
amplifier followed by a fourth-order Σ-Δ modulator. The digital
interface allows the pulse density modulated (PDM) output of
two microphones to be time multiplexed on a single data line
using a single clock.
The T5919 has multiple modes of operation: High Quality,
Low-Power (AlwaysOn), and Sleep. The T5919 has high SNR in
all operational modes. It has 135 dB SPL AOP in High Quality
Mode and 120 dB SPL AOP in Low-Power mode.
The T5919 is available in a standard 3.5 × 2.65 × 0.98 mm
surface-mount package. It is reflow solder compatible with
no sensitivity degradation. The package integrates a Particle
Ingress Filter (PIF) for enhanced robustness to environmental
contaminants such as water and dust.
APPLICATIONS
•Smartphones
•Microphone Arrays
•Tablet Computers
•Cameras
FEATURES
SPEC
HIGH QUALITY MODE
LOW-POWER MODE
Sensitivity
−41 dB FS ±1 dB
−26 dB FS ±1 dB
SNR
64.5 dBA
62 dBA
Current
590 µA
220 µA
AOP
135 dB SPL
120 dB SPL
Clock
2.0 MHz to 3.3 MHz
400 kHz to 800 kHz
•3.5 × 2.65 × 0.98 mm surface-mount package
•Extended frequency response from 40 Hz to >20 kHz
•Sleep Mode: 9 µA
•Fourth-order Σ-Δ modulator
•Digital pulse density modulation (PDM) output
•Compatible with Sn/Pb and Pb-free solder processes
•RoHS/WEEE compliant
•Features PIF (Particle Ingress Filter) to enhance
product robustness to water & dust

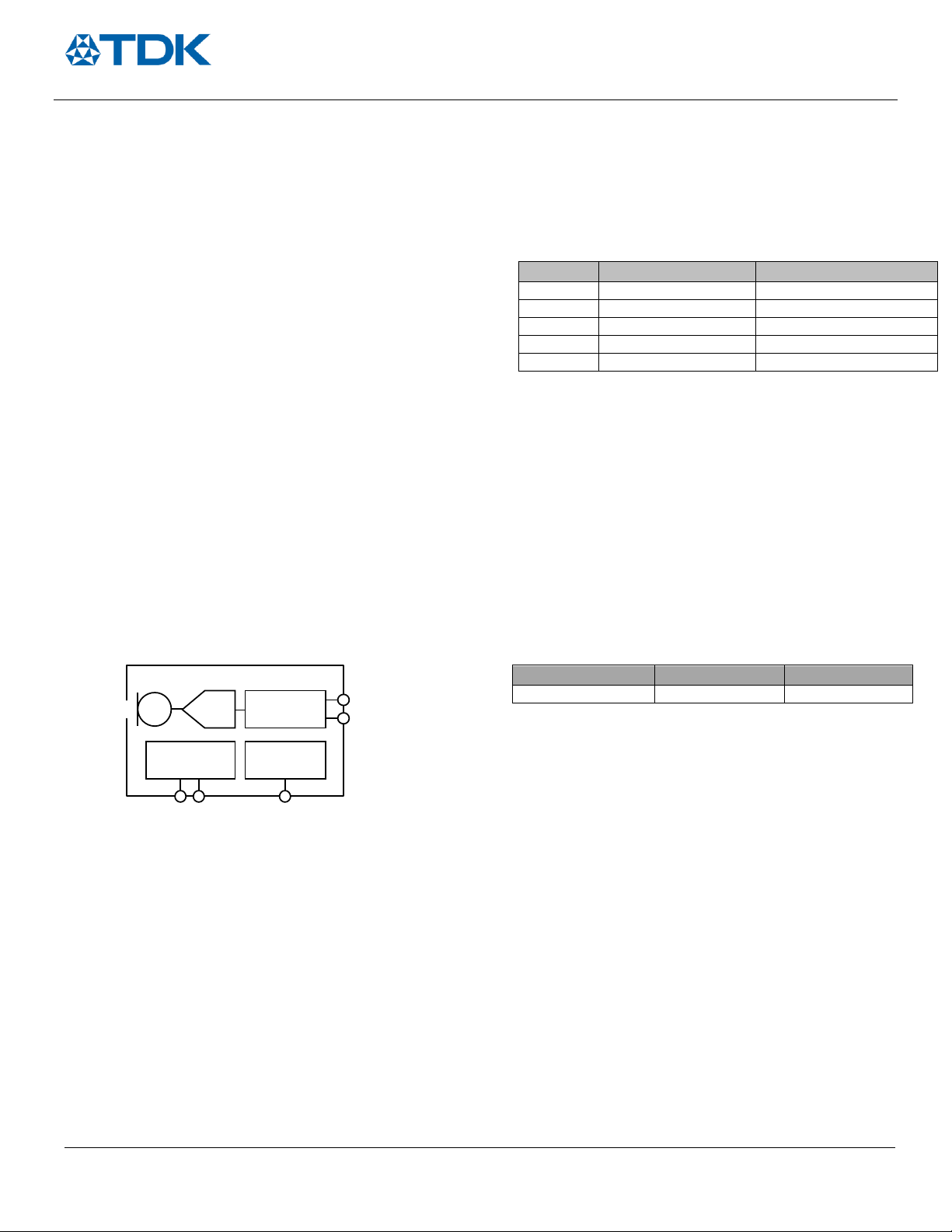

FUNCTIONAL BLOCK DIAGRAM ORDERING INFORMATION
PART
TEMP RANGE
PACKAGING
MMICT5919-00-012
−40°C to +85°C
13” Tape and Reel
ICS-51360
ADC
POWER
MANAGEMENT
CLK
DATA
VDD
GND
PDM
MODULATOR
CHANNEL
SELECT
SELECT
T5919

T5919
Page 2 of 22
Document Number: DS-000363
Revision: 1.0
TABLE OF CONTENTS
General Description..................................................................................................................................................................... 1
Applications ................................................................................................................................................................................. 1
Features ....................................................................................................................................................................................... 1
Functional Block Diagram ............................................................................................................................................................ 1
Ordering Information................................................................................................................................................................... 1
Table of Contents.................................................................................................................................................................................... 2
Specifications .......................................................................................................................................................................................... 4
Table 1. Acoustical/Electrical Characteristics –General.............................................................................................................. 4
Table 2. Acoustical/Electrical Characteristics –High Quality Mode ............................................................................................ 4
Table 3. Acoustical/Electrical Characteristics –Low-Power Mode.............................................................................................. 5
Table 4. Digital Input/Output Characteristics .............................................................................................................................. 5
Table 5. PDM Digital Input/Output.............................................................................................................................................. 6
Timing Diagram............................................................................................................................................................................ 6
Absolute Maximum Ratings.................................................................................................................................................................... 7
Table 6. Absolute Maximum Ratings ........................................................................................................................................... 7
ESD Caution ................................................................................................................................................................................. 7
Soldering Profile........................................................................................................................................................................... 8
Table 7. Recommended Soldering Profile*.................................................................................................................................. 8
Pin Configurations And Function Descriptions ....................................................................................................................................... 9
Table 8. Pin Function Descriptions............................................................................................................................................... 9
Typical Performance Characteristics..................................................................................................................................................... 10
Theory Of Operation ............................................................................................................................................................................. 12
PDM Data Format ...................................................................................................................................................................... 12
Table 9. T5919 Channel Setting ................................................................................................................................................. 12
PDM Microphone Sensitivity ..................................................................................................................................................... 12
Applications Information ...................................................................................................................................................................... 14
Low-Power Mode....................................................................................................................................................................... 14
Dynamic Range Considerations ................................................................................................................................................. 14
Connecting PDM Microphones.................................................................................................................................................. 14
Sleep Mode................................................................................................................................................................................ 16
Start-Up Time............................................................................................................................................................................. 16
Supporting Documents ......................................................................................................................................................................... 17
Application Notes –General...................................................................................................................................................... 17
PCB Design And Land Pattern Layout ................................................................................................................................................... 18
PCB Material And Thickness ...................................................................................................................................................... 18
Handling Instructions............................................................................................................................................................................ 19
Pick And Place Equipment ......................................................................................................................................................... 19
Reflow Solder............................................................................................................................................................................. 19

T5919
Page 3 of 22
Document Number: DS-000363
Revision: 1.0
Board Wash................................................................................................................................................................................ 19
Outline Dimensions............................................................................................................................................................................... 20
Ordering Guide .......................................................................................................................................................................... 20
Revision History ......................................................................................................................................................................... 21
Compliance Declaration Disclaimer ...................................................................................................................................................... 22

T5919
Page 4 of 22
Document Number: DS-000363
Revision: 1.0
SPECIFICATIONS
TABLE 1. ACOUSTICAL/ELECTRICAL CHARACTERISTICS GENERAL
TA= 25°C, VDD = 1.8 V, SCK = 2.4 MHz, CLOAD = 30 pF unless otherwise noted. Typical specifications are not guaranteed.
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
NOTES
PERFORMANCE
Directionality
Omni
Output Polarity
Input acoustic pressure vs. output
data
Non-Inverted
Supply Voltage (VDD)
1.65
1.8
1.98
V
Sleep Mode Current (IS)
SCK < 200 kHz
9
µA
TABLE 2. ACOUSTICAL/ELECTRICAL CHARACTERISTICS HIGH QUALITY MODE
TA= 25°C, VDD = 1.8 V, SCK = 2.4 MHz, CLOAD = 30 pF unless otherwise noted. Typical specifications are not guaranteed.
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
NOTES
Sensitivity
1 kHz, 94 dB SPL
−42
−41
−40
dB FS
1
Signal-to-Noise Ratio (SNR)
20 kHz bandwidth, A-weighted
64.5
dBA
Equivalent Input Noise (EIN)
20 kHz bandwidth, A-weighted
29.5
dBA SPL
Acoustic Dynamic Range
Derived from EIN and acoustic
overload point
105.5
dB
Total Harmonic Distortion (THD)
94 dB SPL
0.15
%
Low Frequency Roll Off
-3dB, relative to 1kHz Sensitivity
40
Hz
Power Supply Rejection (PSR)
20 Hz, 100 mVpp applied to VDD
1 kHz, 100 mVpp applied to VDD
5 kHz, 100 mVpp applied to VDD
10 kHz, 100 mVpp applied to VDD
20 kHz, 100 mVpp applied to VDD
-89
-116
-93
-98
-87
dB FS(A)
Power Supply Rejection (PSR)
217 Hz, 100 mV p-p squarewave
superimposed on VDD = 1.8 V, A-
weighted
-106
dB FS (A)
Power Supply Rejection—Swept Sine
1 kHz sine wave
−116
dB FS
Acoustic Overload Point
10% THD
135
dB SPL
Supply Current (IS)
VDD = 1.8 V, no load
590
µA
Note 1: Sensitivity is relative to the RMS level of a sine wave with positive amplitude equal to 100% 1s density and negative amplitude equal to 0% 1s density.

T5919
Page 5 of 22
Document Number: DS-000363
Revision: 1.0
TABLE 3. ACOUSTICAL/ELECTRICAL CHARACTERISTICS LOW-POWER MODE
TA= 25°C, VDD = 1.8 V, SCK = 768 kHz, CLOAD = 30 pF unless otherwise noted. Typical specifications are not guaranteed.
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
NOTES
Sensitivity
1 kHz, 94 dB SPL
−27
−26
−25
dB FS
2
Signal-to-Noise Ratio (SNR)
8 kHz bandwidth, A-weighted
62
dBA
Equivalent Input Noise (EIN)
8 kHz bandwidth, A-weighted
32
dBA SPL
Acoustic Dynamic Range
Derived from EIN and acoustic overload point
88
dB
Total Harmonic Distortion (THD)
105 dB SPL
0.15
%
Power Supply Rejection (PSR)
217 Hz, 100 mV p-p square wave superimposed on
VDD = 1.8 V, A-weighted
−90
dB FS
Power Supply Rejection—Swept Sine
1 kHz sine wave
−99
dB FS
Acoustic Overload Point
10% THD
120
dB SPL
Supply Current (IS)
VDD = 1.8 V, no load
220
µA
Note 2: Sensitivity is relative to the RMS level of a sine wave with positive amplitude equal to 100% 1s density and negative amplitude equal to 0% 1s density.
TABLE 4. DIGITAL INPUT/OUTPUT CHARACTERISTICS
TA= 25°C, VDD = 1.8 V, unless otherwise noted.
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
NOTES
Input Voltage High (VIH)
0.65 × VDD
V
Input Voltage Low (VIL)
0.35 × VDD
V
Output Voltage High (VOH)
ILOAD = 0.5 mA
0.7 × VDD
VDD
V
Output Voltage Low (VOL)
ILOAD = 0.5 mA
0
0.3 × VDD
V
Output DC Offset
Percent of full scale
3
%

T5919
Page 6 of 22
Document Number: DS-000363
Revision: 1.0
TABLE 5. PDM DIGITAL INPUT/OUTPUT
TA= 25°C, VDD = 1.8 V, unless otherwise noted.
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
NOTES
MODE SWITCHING
Sleep Time
Time from fCLK falling <200 kHz
1
ms
Wake-Up Time
High Quality mode, Sleep Mode to fCLK >1.2
MHz, output within 0.5 dB of final sensitivity,
power on
7
ms
Wake-Up Time
Low-Power Mode, Sleep Mode to fCLK >400
kHz, output within 0.5 dB of final sensitivity,
power on
7
ms
Switching time
Between Low-Power and High Quality Mode
7
ms
INPUT
tCLKIN
Input clock period
303
2500
ns
Clock Frequency (CLK)
Sleep Mode
200
kHz
Low-Power Mode
400
800
kHz
High Quality Mode
2.0
3.3
MHz
Clock Duty Cycle
fCLK <3.3 MHz
45
55
%
tRISE
CLK rise time (10% to 90% level)
25
ns
3
tFALL
CLK fall time (90% to 10% level)
25
ns
3
OUTPUT
t1OUTEN
DATA1 (right) driven after falling clock edge
30
ns
t1OUTDIS
DATA1 (right) disabled after rising clock edge
5
18
ns
t2OUTEN
DATA2 (left) driven after rising clock edge
30
ns
t2OUTDIS
DATA2 (left) disabled after falling clock edge
5
18
ns
Note 3: Guaranteed by design
TIMING DIAGRAM
Figure 1. Pulse Density Modulated Output Timing
tCLKIN
CLK
DATA2
DATA1
t2OUTDIS
t1OUTDIS
t2OUTEN
t1OUTEN
tRISE tFALL

T5919
Page 7 of 22
Document Number: DS-000363
Revision: 1.0
ABSOLUTE MAXIMUM RATINGS
Stress above those listed as Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only
and functional operation of the device at these conditions is not implied. Exposure to the absolute maximum ratings conditions for
extended periods may affect device reliability.
TABLE 6. ABSOLUTE MAXIMUM RATINGS
PARAMETER
RATING
Supply Voltage (VDD)
−0.3 V to +3.63 V
Digital Pin Input Voltage
−0.3 V to VDD + 0.3 V or 3.63V, whichever is less
Mechanical Shock
10,000 g
Vibration
Per MIL-STD-883 Method 2007, Test Condition B
Temperature Range
Operating
−40°C to +85°C
Storage
−55°C to +150°C
ESD CAUTION
ESD (electrostatic discharge) sensitive device.
Charged devices and circuit boards can
discharge without detection. Although this
product features patented or proprietary
protection circuitry, damage may occur on
devices subjected to high energy ESD.
Therefore proper ESD precautions should be
taken to avoid performance degradation or
loss of functionality.

T5919
Page 8 of 22
Document Number: DS-000363
Revision: 1.0
SOLDERING PROFILE
Figure 2. Recommended Soldering Profile Limits
TABLE 7. RECOMMENDED SOLDERING PROFILE*
PROFILE FEATURE
Sn63/Pb37
Pb-Free
Average Ramp Rate (TLto TP)
1.25°C/sec max
1.25°C/sec max
Preheat
Minimum Temperature
(TSMIN)
100°C
100°C
Maximum Temperature
(TSMAX)
150°C
200°C
Time (TSMIN to TSMAX), tS
60 sec to 75 sec
60 sec to 75 sec
Ramp-Up Rate (TSMAX to TL)
1.25°C/sec
1.25°C/sec
Time Maintained Above Liquidous (tL)
45 sec to 75 sec
~50 sec
Liquidous Temperature (TL)
183°C
217°C
Peak Temperature (TP)
215°C +3°C/−3°C
260°C +0°C/−5°C
Time Within +5°C of Actual Peak
Temperature (tP)
20 sec to 30 sec
20 sec to 30 sec
Ramp-Down Rate
3°C/sec max
3°C/sec max
Time +25°C (t25°C) to Peak Temperature
5 min max
5 min max
*The reflow profile in Table 7 is recommended for board manufacturing with TDK MEMS microphones. All microphones are also
compatible with the J-STD-020 profile
tP
tL
t25°C TO PEAK TEMPERATURE
tS
PREHEAT
CRITICAL ZONE
TLTO TP
TEMPERATURE
TIME
RAMP-DOWN
RAMP-UP
TSMIN
TSMAX
TP
TL

T5919
Page 9 of 22
Document Number: DS-000363
Revision: 1.0
PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS

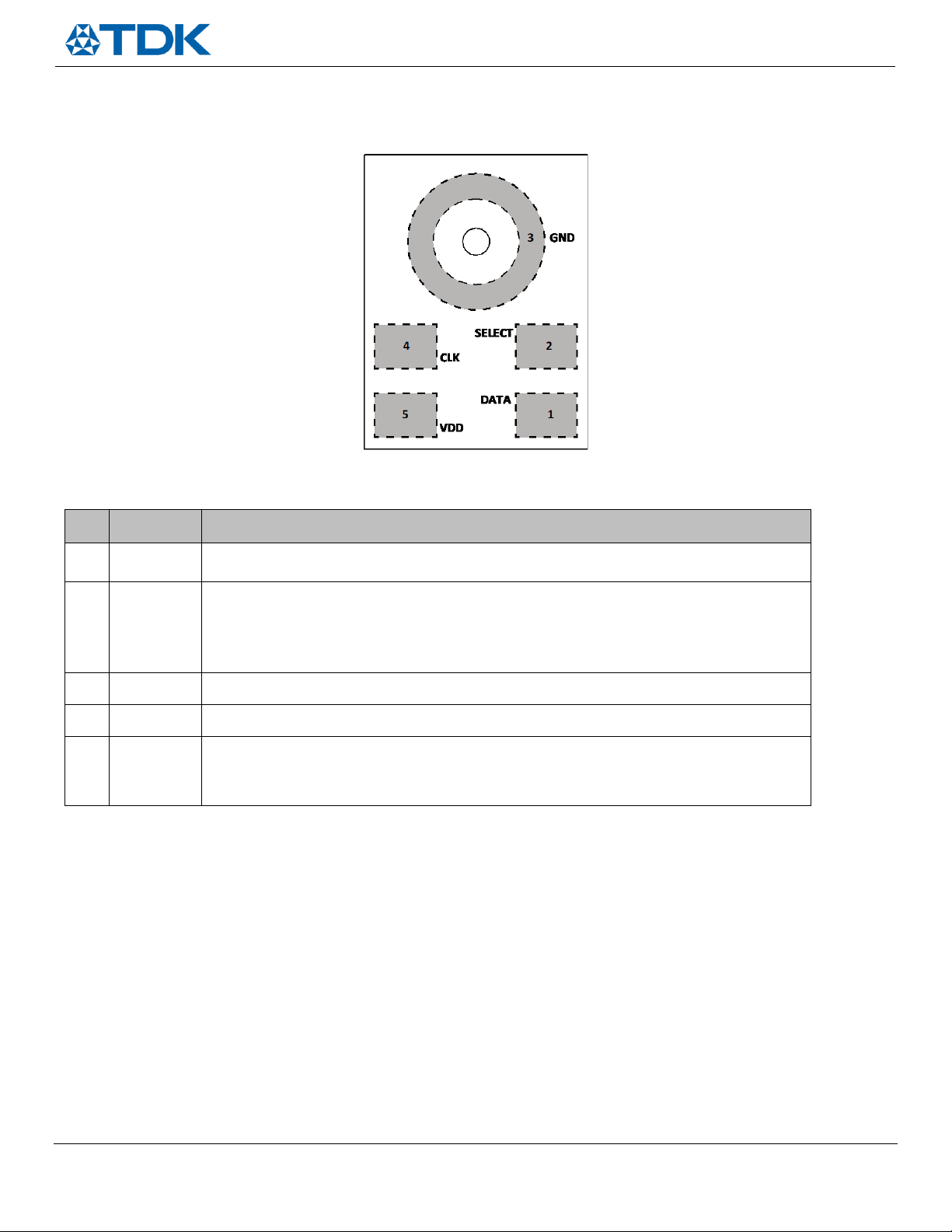

Figure 3. Pin Configuration (Top View, Terminal Side Down)
TABLE 8. PIN FUNCTION DESCRIPTIONS
PIN
NAME
FUNCTION
1
DATA
Digital Output Signal (DATA1 or DATA2)
2
SELECT
Left Channel or Right Channel Select:
DATA 1 (right): SELECT tied to GND
DATA 2 (left): SELECT tied to VDD. In this setting, SELECT should be tied to the same voltage
source as the VDD pin.
3
GND
Ground
4
CLK
Clock Input to Microphone
5
VDD
Power Supply. For best performance and to avoid potential parasitic artifacts, place a 0.1 µF
(100 nF) ceramic type X7R capacitor between Pin 5 (VDD) and ground. Place the capacitor as
close to Pin 5 as possible.

T5919
Page 10 of 22
Document Number: DS-000363
Revision: 1.0
TYPICAL PERFORMANCE CHARACTERISTICS

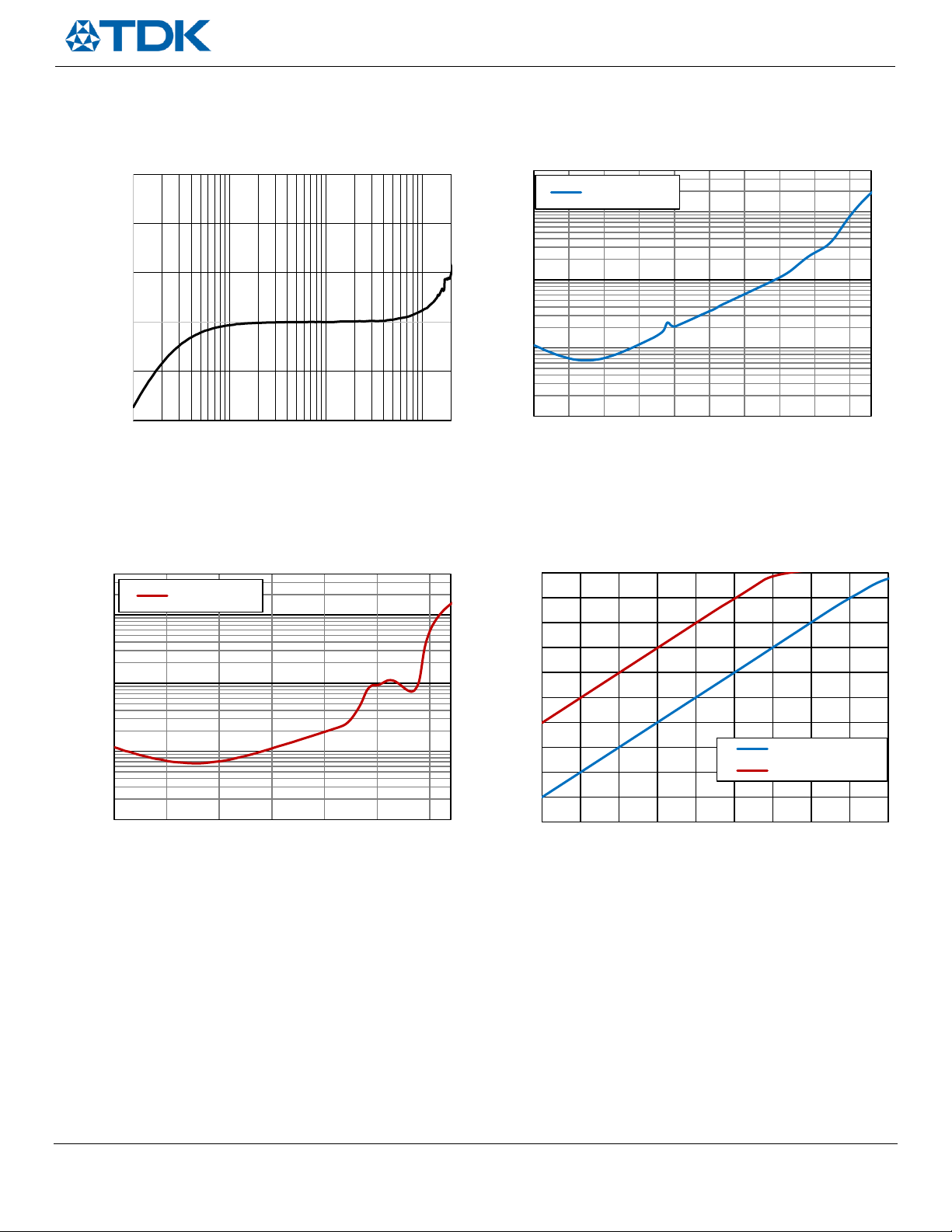

Figure 4. Typical Audio Frequency Response, High Quality Mode
Figure 5. THD + N High Quality Mode
Figure 6. THD + N Low-Power Mode
Figure 7. Linearity
-20
-10
0
10
20
30
10 100 1000 10000
NORMALIZED AMPLITUDE (dB)
FREQUENCY (Hz)
0.01
0.1
1
10
90 95 100 105 110 115 120 125 130 135
THD+N (%)
INPUT AMPLITUDE (dB SPL)
High Quality Mode
0.01
0.1
1
10
90 95 100 105 110 115 120
THD+N (%)
INPUT AMPLITUDE (dB SPL)
Low Power Mode
-50
-40
-30
-20
-10
0
90 100 110 120 130
OUTPUT AMPLITUDE (dB FS)
INPUT AMPLITUDE (dB SPL)
High Quality Mode
Low-Power Mode
