TDK Tremor S60 User manual

SAFETY AND CARE
INSTRUCTIONS
WATER AND MOISTURE -Keep away from water and
moisture. Avoid showers, bathtubs, sinks, swimming pools,
open windows, rain or wet basements.
HEAT -Keep away from heat sources such as radiators,
heat registers, stoves, amplifiers or similar devices.
POWER SOURCES -The product should be connected to
a power supply only of the type described in the operating
instructions or as marked on the product.
VENTILATION -Allow airflow to the system. Don’t use
closed bookcases or racks without proper ventilation.
GROUNDING OR POLARIZATION -This product may be
equipped with a polarized AC line plug with one blade wider
than the other, which fits into the outlet only one way. Do
not defeat the safety purpose of this polarized plug.
OBJECT AND LIQUID ENTRY - Do not let objects fall into
the system obstructing use. Keep liquids away from spilling
on the system.
POWER CORD PROTECTION -Place power cords so that
they are not stepped on, pinched, squeezed, or pulled.
Unplug the system if not in use for long periods of time.
CLEANING -Unplug the system from the power source and
clean with a damp cloth. Do not use liquid or aerosol cleaners.
SERVICING -Do not service the system yourself. Servicing
should be done by qualified personnel. For additional
assistance, call TDK Customer Care (1-866-629-3893).
INSTALLING - Turn off all power to your computer and
peripherals before plugging your system in.
MEDIA - Do not place any magnetic media near or around
the system. Stored information could get erased if media is
too close to any magnetic source.

TDK TREMOR MULTIMEDIA
SPEAKER SYSTEM AT
A GLANCE
TDK Tremor multimedia speaker systems are designed
to deliver high-fidelity sonic performance. The Tremor
systems utilize breakthrough *NXT Surface Sound™ flat-
panel technology, innovative tuned subwoofers and powerful
amplification to deliver pure, full, richly detailed sound.
The slim-profile satellites produce sound in an entirely
different manner than speakers with standard drivers
delivering pure, coherent and uncolored sound. The speakers’
wider dispersion pattern fills the listening area with a more
expansive soundfield. TDK Tremor systems eliminate the
"beaming" of conventional multimedia speakers and create
a wider sonic "sweet spot." TDK Tremor systems add an
exciting new sonic dimension to computer games, music
listening, movies and multimedia presentations. When
paired with a portable audio device, game console or AV
component source, Tremor is also perfect for creating a
complete high-quality compact audio system.
PACKAGE CHECKLIST
1Subwoofer
2Satellite Speakers
1User Manual
13.5mm Mini-Plug to 3.5mm Mini-Plug Cable
*NXT and SurfaceSound are trademarks of New Transducers Limited.
Tremor has a wide sweet spot
that covers the entire room!

QUICK SET-UP AND GO
1) Attach desired stands to satellites.(S-150 and S-80 only)
2) Place speakers in their desired spot.
3) Connect all speaker cables to subwoofer.
4) Connect sound source to subwoofer.
5) Plug in subwoofer to any wall outlet and switch ON.
6) Start your application and turn up the volume!
SATELLITE PLACEMENT
•Before connecting the wires to the speaker system, place
one satellite on each side of the monitor.
•Position both satellites facing straight out or at a slight
angle toward the listening position. Because the satellites
have a wider dispersion pattern with a larger "sweet spot"
than conventional speakers, the placement angle is not critical.
•Do not place the speakers behind the monitor, or the
monitor will block the sound, creating reflections and
degrading the sound quality.
PREPARING THE S•60
SATELLITES
• Place the satellites on a flat surface.

SUBWOOFER PLACEMENT
•Place the subwoofer on the floor for best results.
•Place subwoofer parallel and cornered near a wall.
•Reflections from floors and walls help reinforce
low-end frequencies.
•If floor placement is not feasible, place on a table or
desktop. Locate the subwoofer as close to the rear
wall as possible. REMEMBER:
Experiment with placement of
the speakers and subwoofer to
determine what sounds the best.

SUBWOOFER PLACEMENT
•Place the subwoofer on the floor for best results.
•Place subwoofer parallel and cornered near a wall.
•Reflections from floors and walls help reinforce
low-end frequencies.
•If floor placement is not feasible, place on a table or
desktop. Locate the subwoofer as close to the rear
wall as possible. REMEMBER:
Experiment with placement of
the speakers and subwoofer to
determine what sounds the best.

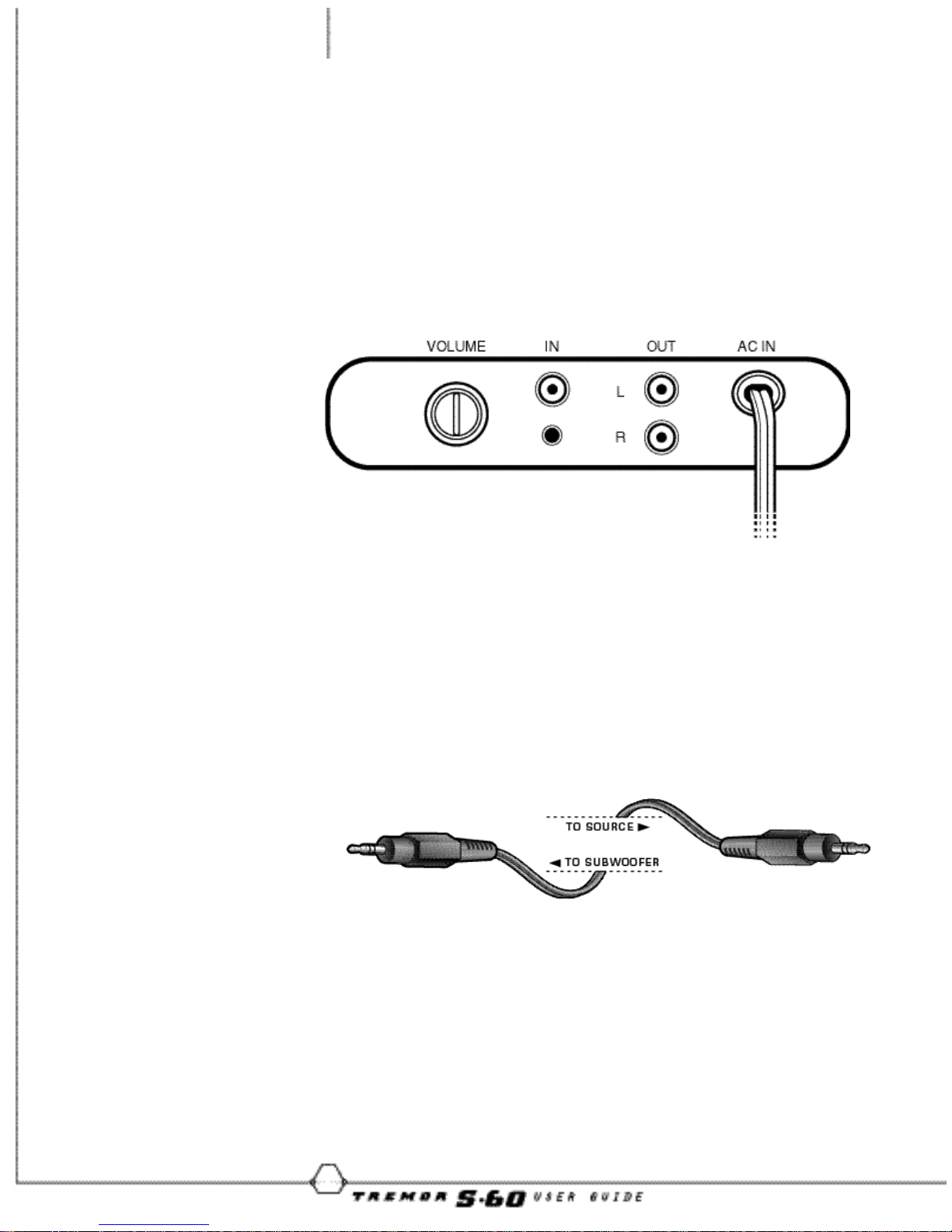

CONNECTING THE TREMOR
MULTIMEDIA SOUND SYSTEM
TO AN AUDIO SOURCE
1) Make sure the computer or audio source is turned off.
2) Turn down all volume controls before you start.
3) Connect the brown mini-plug from the right satellite to the
R OUT on the subwoofer.
4) Connect the brown mini-plug from the left satellite to the
L OUT on the subwoofer.
5) Connect the green mini-plug cable to the line IN connection
of the subwoofer. Connect the other end of the cable to
the line out of your soundcard or other audio device.

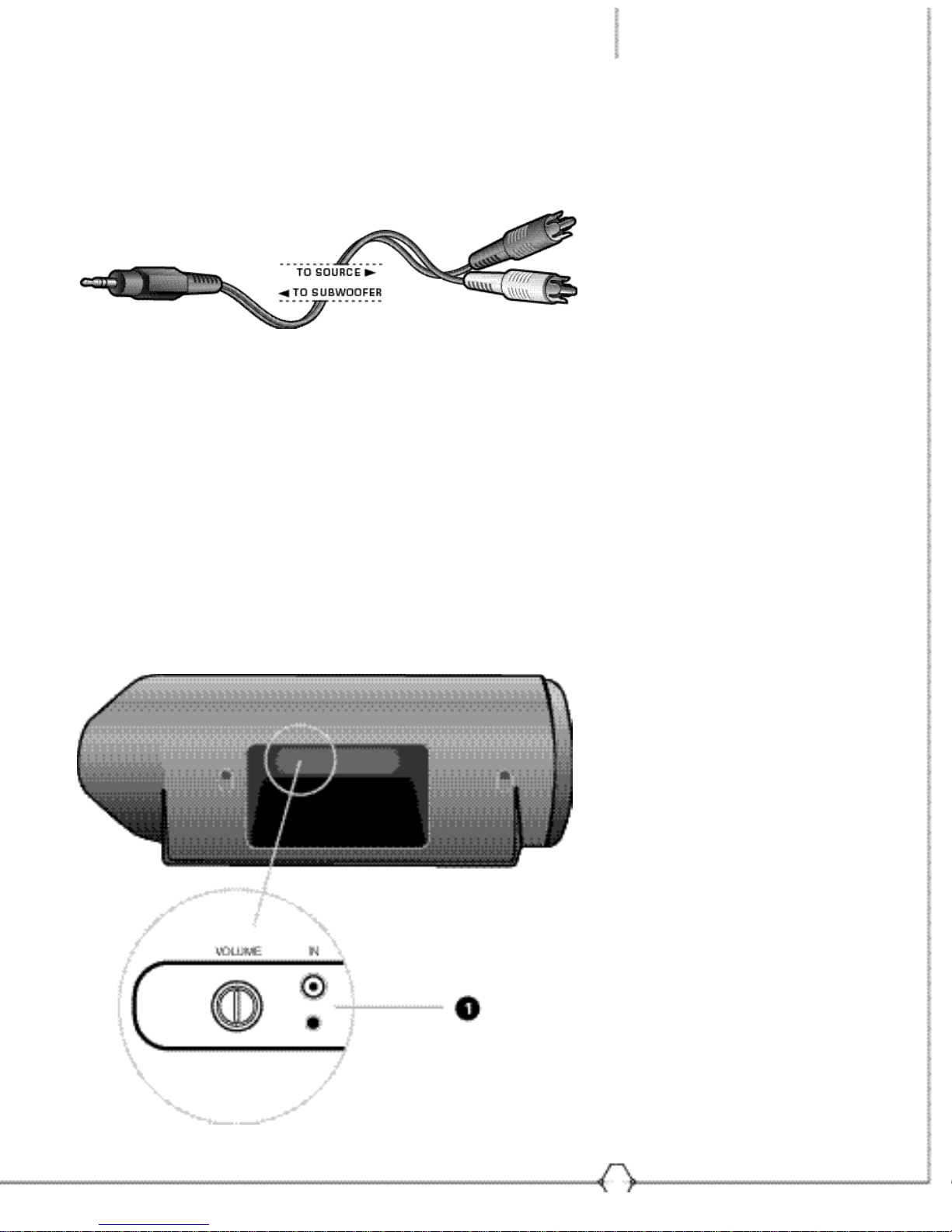

6) If connecting the speaker system to a receiver
or other component that uses RCA jacks, use
a mini-plug - to - RCA “Y” cable. (not included)
7) Plug the subwoofer’s power cord into an available
outlet or power strip and push the power switch ON.
(S-60 model will automatically turn on)
CONTROLS
1) Volume control: Adjusts the volume of the entire system.
Use the main volume control on the subwoofer to
adjust volume.

S•60
SYSTEM SPECIFICATIONS
COMMON SOUNDS IN
DECIBELS
30
d
d
d
d
d
d
d
d

TROUBLESHOOTING
NO SOUND:
•Make sure the AC power cord is plugged into
a working AC outlet.
•Check that the power is turned on.
•Check that all cables are connected properly.
•If connected to a computer, verify that the sound card
is properly installed and functioning with the computer
volume turned up.
ONE OR BOTH SPEAKERS HAVE NO SOUND OR
LOW SOUND LEVELS:
•Check that all cables are connected properly, with all
connectors firmly inserted in the jacks.
•Check to see if the volume for each channel is turned up
high enough in the Control Panel menu of your computer.
NOISE OR HISS:
•If the volume of the TDK Tremor is set too high or
to maximum, turn the volume of the system down to
halfway and raise the output level of the computer
or audio device.
•Try turning down the treble.
•Check that all cables are connected properly.

WARRANTY
ONE YEAR LIMITED WARRANTY
TDK Electronics Corporation (“TDK”) warrants to the end-user customer that the TDK
Tremor Multimedia Speaker System will be free from defects in material and workmanship
for a period of one (1) year from date of purchase. If TDK receives notice of any such
defects during the warranty period, TDK will, at its option, either repair or replace the
Product which it finds to be defective at no charge (except for shipping and insurance).
Repair of defective Product may be with either new or rebuilt replacement parts that will
be warranted for the remainder of the original warranty period. Any exchanged parts
under this warranty will become the property of TDK. Replacement Product may be either
new or reconditioned. If the Product is discontinued and no longer available, then it may be
replaced with Product determined by TDK to be of similar value and performance.
TDK does not warrant that the operation of the Product will be uninterrupted or error free.
This Limited Warranty does not apply to defects resulting from (1) acts of God, accident,
misuse, abuse, negligence, abnormal, or unusually heavy use; (2) improper installation,
operation, testing or maintenance; (3) power failure or connection to improper voltage
supply; or (4) attempted repair by any party other than TDK. This Limited Warranty does
not apply when the malfunction results from the use of the Product in conjunction with
other products, software or accessories, or where it is determined by TDK that there is
no fault with the Product itself. This Limited Warranty is invalid if the factory-applied serial
number has been altered or removed from the Product.
This Limited Warranty extends only to the original end-user customer and is not transferable
to any subsequent purchaser. This Limited Warranty is valid only within the United States.
For areas outside the United States, contact the authorized dealer from whom you pur-
chased the Product to determine what warranty, if any, applies.
In order to obtain warranty service, you must deliver the Product to TDK freight prepaid,
in either its original package or packaging providing a degree of protection equivalent to
that of the original packaging, along with proof of purchase. [Please contact TDK at the
number listed below or in the manual for further information.]
TDK MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. TO THE EXTENT THAT ANY IMPLIED WARRANTIES APPLY, DESPITE THEIR
EXCLUSION UNDER THIS LIMITED WARRANTY, SUCH WARRANTIES SHALL BE LIMITED
TO THE DURATION OF THE EXPRESS WARRANTIES PROVIDED HEREUNDER.
THE REMEDIES PROVIDED UNDER THIS LIMITED WARRANTY ARE THE SOLE AND
EXCLUSIVE REMEDIES. TDK’S LIABILITY UNDER ANY LEGAL THEORY FOR ANY LOSS OR
DAMAGE IN ANY WAY RELATED TO THE PRODUCT SHALL IN NO EVENT EXCEED THE
PURCHASE PRICE OF THE PRODUCT. IN NO EVENT SHALL TDK BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT.
Some states do not allow limitations on how long an implied warranty lasts or any exclusion
or limitation of incidental or consequential damages, so the above limitations or exclusions
may not apply to you. This warranty gives you specific legal rights, and you may have other
rights which vary from state to state.
TDK Electronics Corp.
901 Franklin Ave.
Garden City, NY 11530
1-866-629-3893
[email protected]
U.S.A.

REGISTERING
For added support and more updates, please register your
Tremor speakers at www.TDK.com/speakers.
