TEA AIRQINO AIR AWARE User manual

1
AIRQINO
AIR AWARE
Cod. 800506
Instrucon manual

2
Table of Contents
The contents of the box.
• CONTENTS OF THE BOX………………………………………………………………………………………………… …………………..3
• INTENDED PURPOSE, SYNBOLS, CLASSIFICATION OF EQUIPMENT, WARNINGS..........................................4
• TECNICAL SPECIFICATIONS .......................................................................................................................5
• INSTRUCTION FOR INSTALLATIONS...........................................................................................................5
• INSTRUCTIONS FOR INSTALLATION...........................................................................................................6
• FLASHING LED TABLE................................................................................................................................... 7
• GENERAL FEATURES..................................................................................................................................... 8
• MAINTENANCE ............................................................................................................................................ 9
• GUARANTEE .............................................................................................................................................. 10
TEA Group Tecnologie Eleroniche Avanzate
Website: www.tea-group.it | E-mail: [e-mail]
Sede Legale: Firenze: Via Giacomo Maeo, 6, 50058 | Signa (Fi) Tel / Fax: [phone] |
Cod.Fisc. / P. IVA: 07944280721

3
The contents of the box.
The contents of the box:
1. Airqino Outdoor Staon with metal bracket
2. Power supply (cable 9 mt)
3. Bag with 4 screws, 4 plasc dowels and 2 cable ties
4. Instrucon booklet
TEA Group Tecnologie Eleroniche Avanzate
Website: www.tea-group.it | E-mail: [e-mail]
Sede Legale: Firenze: Via Giacomo Maeo, 6, 50058 | Signa (Fi) Tel / Fax: [phone] |
Cod.Fisc. / P. IVA: 07944280721
AIRQINO

4

AIRQino staons resulted to be a robust tool for invesgang air quality dynamics at a higher spa-
al and me-scales, providing further informaon compared to those provided by the sole refer-
ence staon. These staons, installed over several key areas within a small municipality character-
ized by atmospheric pollutants and unfavourable weather condions, were able to capture air pol-
lutant dynamics connuously.
Please read and follow all instrucons in this manual.

Symbol Meaning
Cauon, Consult User’s Manual
Cauon, High Voltage
This product conforms to the requirements of the applicable European
Community direcves.
TEA Group Tecnologie Eleroniche Avanzate
Website: www.tea-group.it | E-mail: [e-mail]
Sede Legale: Firenze: Via Giacomo Maeo, 6, 50058 | Signa (Fi) Tel / Fax: [phone] |
Cod.Fisc. / P. IVA: 07944280721

Item Classicaon
Protecon of Harmful Ingress of Water IP65 outdoor use
Mode of Operaon Connuous

General Warnings
CAUTION: To avoid the risk of electric shock
CAUTION: No modicaon of this equipment is allowed.
CAUTION: Do not restrict the air ow of the product.
CAUTION: Not to be used by persons (including children) with reduced physical, sensory or mental capabilies, or lack of ex-
perience and knowledge, unless they have been given supervision or instrucon.
Children should be supervised to ensure that they do not play with the appliance.
CAUTION: If the Power Cord is damaged in any way it must be replaced by a special cord or assembly available from the manu-
facturer or its service agent

5

a) Power Requirements: 110/230 VAC, 50/60 Hz, 5 W.
b) Mounng: wall or pole installaon.
c) Operang Condions: -30 + 70°C, 0 - 100% Relave Humidity.

TEA Group Tecnologie Eleroniche Avanzate
Website: www.tea-group.it | E-mail: [e-mail]
Sede Legale: Firenze: Via Giacomo Maeo, 6, 50058 | Signa (Fi) Tel / Fax: [phone] |
Cod.Fisc. / P. IVA: 07944280721
For the installaon It must be considered that Airqino must be exposed to the outside of the house. Here are 3 examples.
Please note that the power cord is approximately 9 meters long.
1. PLACED ON A TABLE OR BOX
Remove the 4 screws to separate the bracket

6
TEA Group Tecnologie Eleroniche Avanzate
Website: www.tea-group.it | E-mail: [e-mail]
Sede Legale: Firenze: Via Giacomo Maeo, 6, 50058 | Signa (Fi) Tel / Fax: [phone] |
Cod.Fisc. / P. IVA: 07944280721
7. ON VERTICAL POLE
8. FIXED TO THE WALL
max55 Ø
8 Ø
8 Ø

7

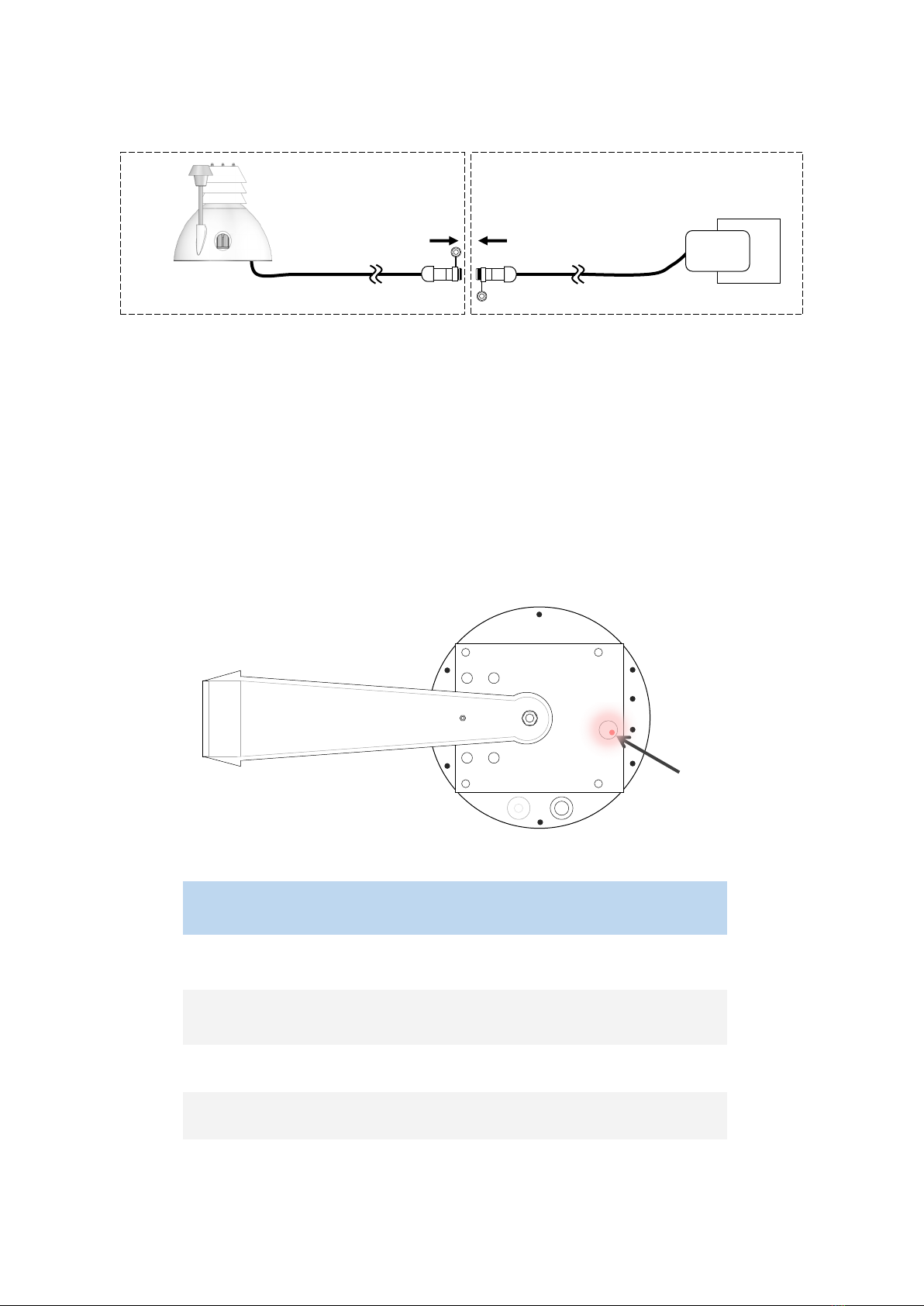

AFTER INSTALLING THE AIRQINO, CONNECT THE POWER SUPPLY CABLE TO THE AIRQINO AND THE PLUG TO THE MAIN AC
110/230 Vac 50/60 Hz
1. At startup, the LED flashes once per second (slow flashing); If the LED is off, check that
the power cable is connected correctly.
2. If the instrument encounters a FAIL condition (modem, sd-card, internal memory) within
10 seconds the LED starts flashing 5 times per second (fast flashing);
3. If the modem has no GSM coverage, after 10 minutes the LED changes from slow flashing
to fast flashing;
4. In case of normal operation, the flashing is kept slow.
Number of Led’s
ashing
Component being
checked
Timing Status
Led o Unit Power supply
conecon
Check conector of
power supply
5 ash for second modem, sd-card,
internal memory
Aer 10 seconds FAIL condition
1 ash for second GSM connection Aer 10 seconds Search connecon
5 ash for second GSM connection after 10 minutes FAIL condition
1 ash for second Unit Startup OK
LED
TEA Group Tecnologie Eleroniche Avanzate
Website: www.tea-group.it | E-mail: [e-mail]
Sede Legale: Firenze: Via Giacomo Maeo, 6, 50058 | Signa (Fi) Tel / Fax: [phone] |
Cod.Fisc. / P. IVA: 07944280721
Connect in the right
direcon of polarizaon
IP65
IP44
Connect to
the socket
FLASHING LED TABLE

8
TEA Group Tecnologie Eleroniche Avanzate
Website: www.tea-group.it | E-mail: [e-mail]
Sede Legale: Firenze: Via Giacomo Maeo, 6, 50058 | Signa (Fi) Tel / Fax: [phone] |
Cod.Fisc. / P. IVA: 07944280721
Sensor Type Units Range#1 Resoluon#3 Accuracy#4
NO2 MOS-type gas sensors µg/m3 0-5000 µg/m3 5.0 15%
O3 Semiconductor µg/m3 0-1000 µg/m3 1.0 15%
CO MOS-type gas sensors mg/m3 0-30 mg/m3 0.03 15%
Sensor Type Units Range#1 Resoluon#3 Accuracy#4
PM10#5 Opcal parcle counter µg/m3 0-1000 µg/m3 1.0 10%
PM2.5#5 Opcal parcle counter µg/m3 0-1000 µg/m3 1.0 10%
Air temperature Solid state °C -40 – 80 0.3 5%
Air Humidity Solid state % 0 – 100 1.0 5%
Noise Solid state dbA 0-150 4.0 15%
Sensor type Expected lifespan Notes
Solid state >2 years See standard operang procedure
Opcal parcle counter >1 years Maintenance dependent on applicaon & sengs
Electrochemical sensor >1 years Maintenance dependent on applicaon & sengs
Power supply unit Expected lifespan Notes
External DC power supply unit >5 years Switching power supply unit [email protected] 42W IP44 included
Enclosure Environmental Mounng Size & weight
ABS, protecon IP65 Temperature range: -30°C to
+70°C Humidity range: 0 to
100% RH Tested in North Pole
scienc campaign
Steel mounng bracket for walls / posts
and installaon screws set included
Length: 210 mm
Height: 220mm
Weight: 0.9kg
Braket: 350mm x 120
mmm x 0.6 Kg
Communicaons Measurement period Transmission frequency Server soware Data access
Raw data sent to re-
mote server via 3G/4G
SIM
1 second, moving
average 120 seconds
4 minutes Web browser based,
processing of sensor
output to give reading,
database storage on
secure server
Tables, graphs, data
download, mul-user
access, oponal API
data access

Gas sensors
Parcles
Addional sensors
Sensor life
Power
Physical
AIRQINO MONITORING STATION WAS DEVELOPED IN COLLABORATION WITH NATIONAL RESEARCH COUNCIL

9
TEA Group Tecnologie Eleroniche Avanzate
Website: www.tea-group.it | E-mail: [e-mail]
Sede Legale: Firenze: Via Giacomo Maeo, 6, 50058 | Signa (Fi) Tel / Fax: [phone] |
Cod.Fisc. / P. IVA: 07944280721

AIRQino staons were tested in extreme environment and harsh condions and resulted to be a
robust and reliable. The sensors require periodical maintenance, is suggested yearly recalibraon
and periodical cleaning procedure. Cleaning procedure and ming are strictly related to environ-
mental condion, suggested every 6 months.
For calibraon procedure is necessary to use a cered laboratory. Standard maintenance and
cleaning procedures can be operated by the users.

Airqino device is covered by legal guarantee as described in the European direcve 1999/44/EC
