TEAC
SERV ICE MANUAL
V-
Stereo Cassette Deck
Effective: September 1982 B-20125
5704015300

V-66C

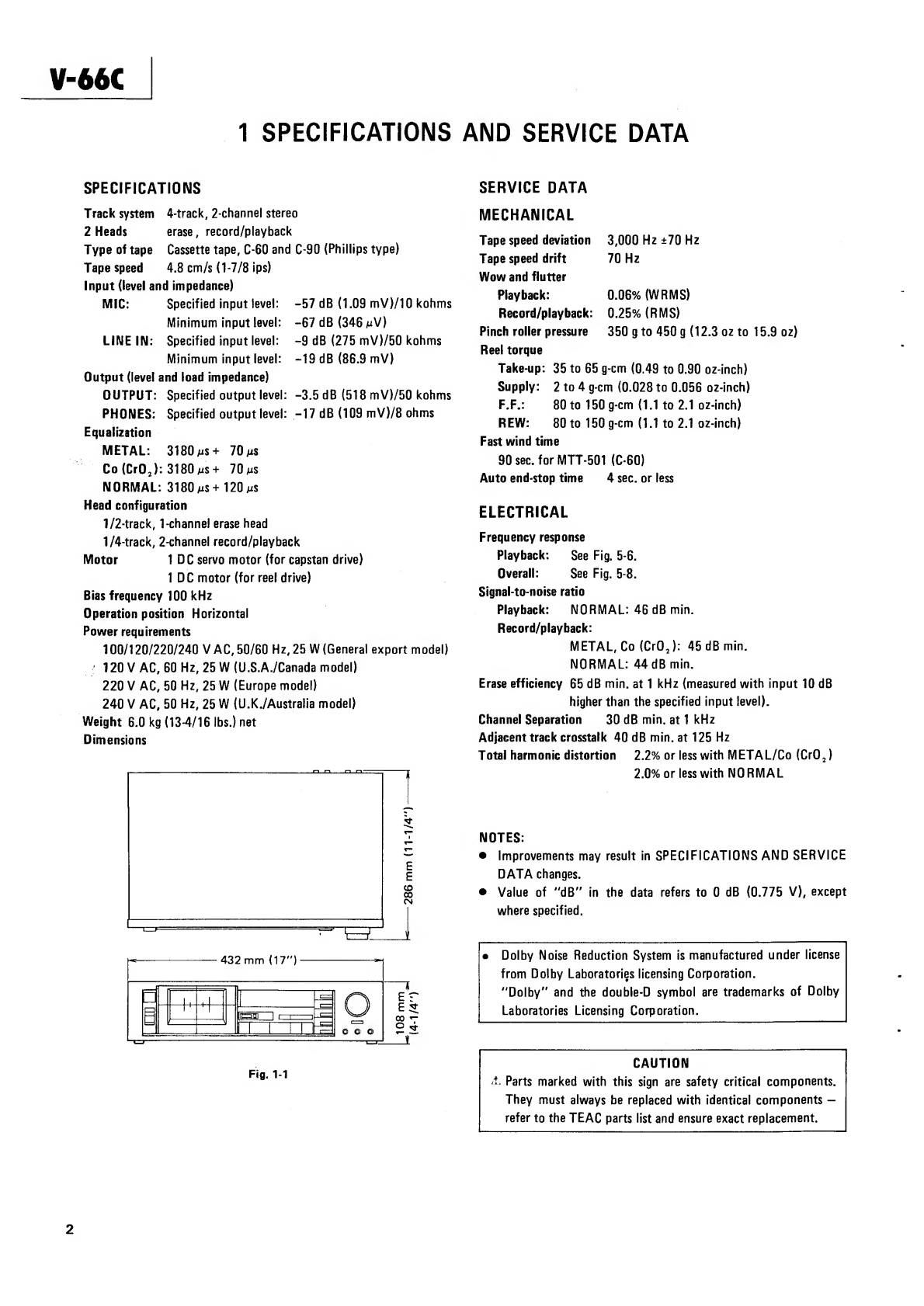

1 SPECIFICATIONS AND SERVICE DATA
SPECIFICATIONS
Track system 4-track, 2-channel stereo
2 Heads erase, record/playback
Type of tape Cassette tape, C-60 and C-90 (Phillips type)
Tape speed 4.8 cm/s (1-7/8 ips)
Input (level and impedance)
MIC: Specified input level:
Minimum input level:
LINE IN: Specified input level:
Minimum input level:
Output (level and load impedance)
OUTPUT: Specified output level: -3.5 dB (518 mV)/50 kohms
PHONES: Specified output level: -17 dB (109 mV)/8 ohms
Equalization
-57 dB (1.09 mV)/10 kohms
-67 dB (346 mV)
-9 dB (275 mV)/50 kohms
-19 dB (86.9 mV)
METAL: 3180 ms + 70 ms
Co (Cr0 2 ) : 3180 m s + 70ms
NORMAL: 3180 ms+ 120 ms
Head configuration
1/2-track, 1-channel erase head
1/4-track, 2-channel record/playback
Motor 1 DC servo motor (for capstan drive)
1 DC motor (for reel drive)
Bias frequency 100 kHz
Operation position Horizontal
Power requirements
100/120/220/240 VAC,50/60 Hz,25 W(General export model)
120 V AC, 60 Hz, 25 W (U.S.A./Canada model)
220 V AC, 50 Hz, 25 W (Europe model)
240 V AC, 50 Hz, 25 W (U.K./Australia model)
Weight 6.0 kg (13-4/16 lbs.) net
Dimensions
^ - - 4 32 mm (17") - -
5
—k
4- i
-
n
1
E :
c <
s
i
i
Irani 1 n-i
_=
c !
CO «
ii i i i
© © ©
o ,
-TZZ
, —
— —
-izzrz!
Fig. 1-1
SERVICE DATA
MECHANICAL
0.06% (WRMS)
0.25% (RMS)
350 g to 450 g (12.3 oz to 15.9 oz)
Tape speed deviation 3,000 Hz ±70 Hz
Tape speed drift 70 Hz
Wow and flutter
Playback:
Record/playback:
Pinch roller pressure
Reel torque
Take-up: 35 to 65 g-cm (0.49 to 0.90 oz-inch)
Supply: 2 to 4 g-cm (0.028 to 0.056 oz-inch)
F.F.: 80 to 150 g-cm (1.1 to 2.1 oz-inch)
REW: 80 to 150 g-cm (1.1 to 2.1 oz-inch)
Fast wind time
90 sec. for MTT-501 (C-60)
Auto end-stop time 4 sec. or less
ELECTRICAL
Frequency response
Playback: See Fig. 5-6.
Overall: See Fig. 5-8.
Signal-to-noise ratio
Playback: NORMAL: 46 dB min.
Record/playback:
METAL, Co (Cr0 2 ) : 45 dB min.
NORMAL: 44dBmin.
Erase efficiency 65 dB min. at 1 kHz (measured with input 10 dB
higher than the specified input level).
Channel Separation 30 dB min. at 1 kHz
Adjacent track crosstalk 40 dB min. at 125 Hz
Total harmonic distortion 2.2% or less with METAL/Co (Cr0 2 )
2.0% or less with NORMAL
NOTES:
• Improvements may result in SPECIFICATIONS AND SERVICE
DATA changes.
• Value of “dB” in the data refers to 0 dB (0.775 V), except
where specified.
• Dolby Noise Reduction System is manufactured under license
from Dolby Laboratories licensing Corporation.
“Dolby” and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
CAUTION
Parts marked with this sign are safety critical components.
They must always be replaced with identical components -
refer to the TEAC parts list and ensure exact replacement.
2

V-66C

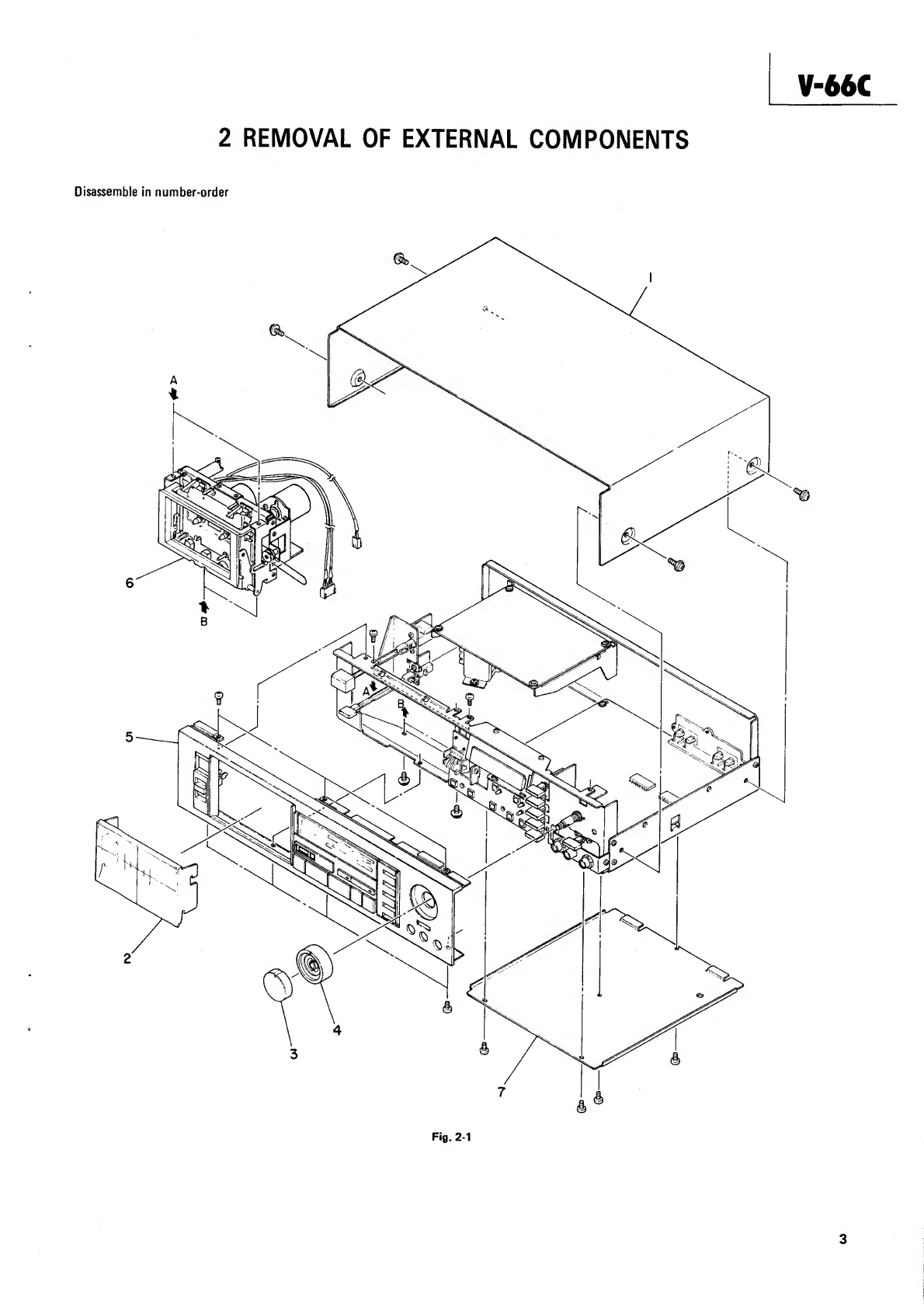

3 PARTS LOCATION
POWER TRANSFORMER CONTROL PCB R/P AMPL PCB
TIMER SW PCB
INPUT SW PCB
Fig. 3-1 Top view
TAPE COUNTER PEAK LEVEL DISPLAY LAMP PCB
SENSOR PCB OPERATION SW PCB
Fig. 3-2 Front view
4

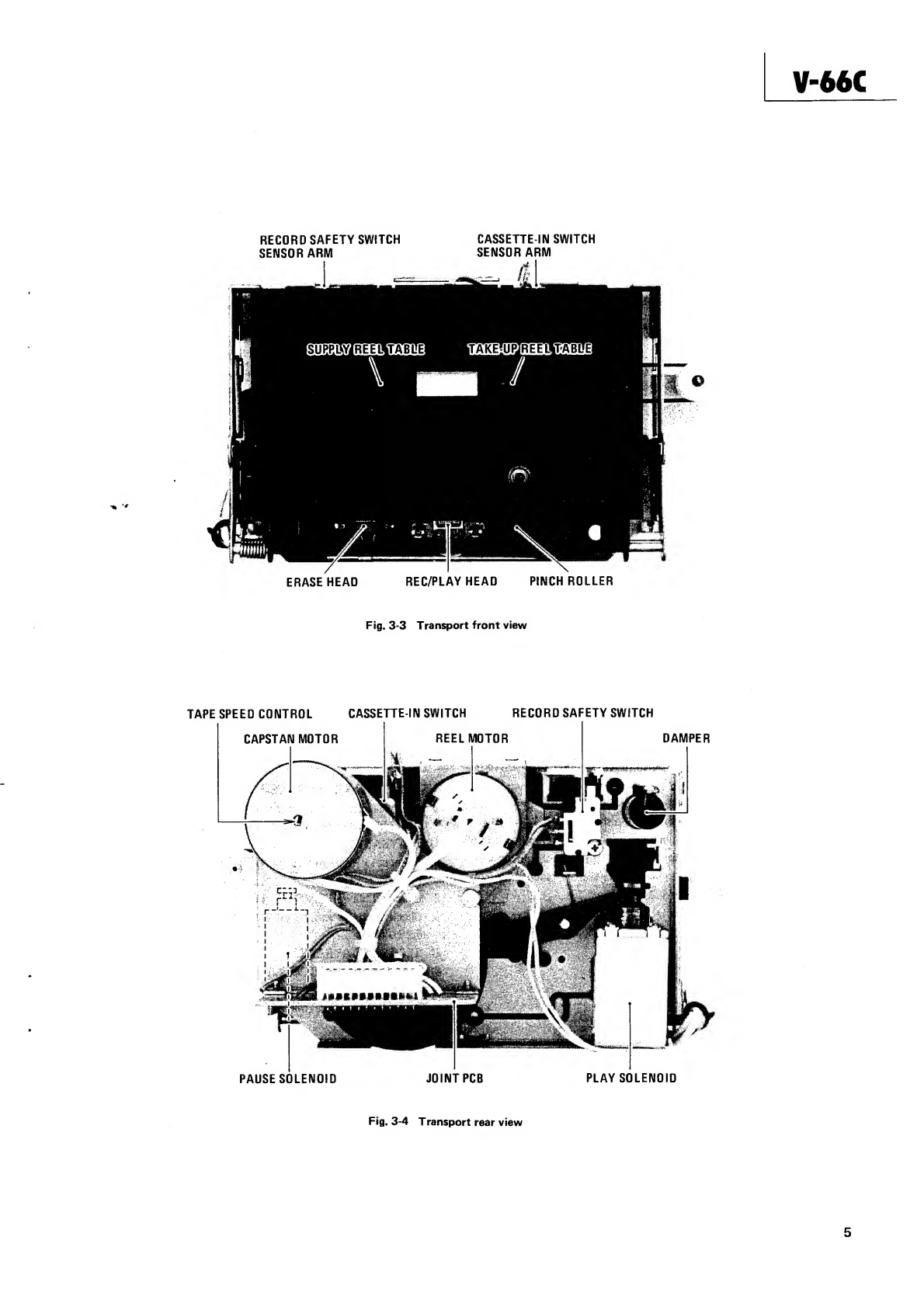

RECORD SAFETY SWITCH CASSETTE IN SWITCH
SENSOR ARM SENSOR ARM
ERASE HEAD REC/PLAY HEAD PINCH ROLLER
Fig. 3-3 Transport front view
TAPE SPEED CONTROL CASSETTE-IN SWITCH RECORD SAFETY SWITCH
CAPSTAN MOTOR
REEL MOTOR
DAMPER

V-66C

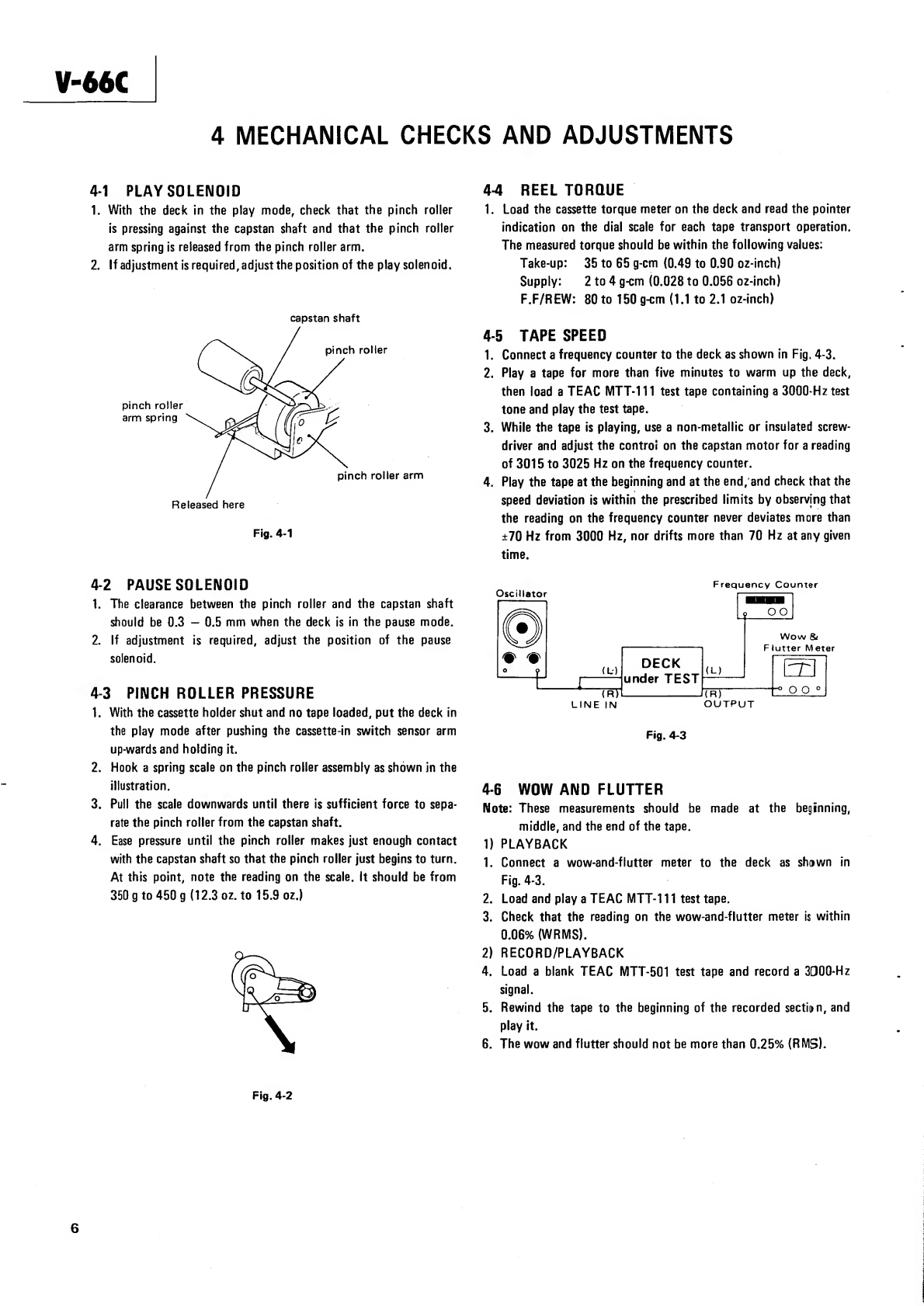

4 MECHANICAL CHECKS AND ADJUSTMENTS
4-1 PLAY SOLENOID
1. With the deck in the play mode, check that the pinch roller
is pressing against the capstan shaft and that the pinch roller
arm spring is released from the pinch roller arm.
2. If adjustment is required, adjust the position of the play solenoid.
capstan shaft
Fig. 4-1
4-2 PAUSE SOLENOID
1. The clearance between the pinch roller and the capstan shaft
should be 0.3 - 0.5 mm when the deck is in the pause mode.
2. If adjustment is required, adjust the position of the pause
solenoid.
4-3 PINCH ROLLER PRESSURE
1. With the cassette holder shut and no tape loaded, put the deck in
the play mode after pushing the cassette-in switch sensor arm
up-wards and holding it.
2. Hook a spring scale on the pinch roller assembly as shown in the
illustration.
3. Pull the scale downwards until there is sufficient force to sepa¬
rate the pinch roller from the capstan shaft.
4. Ease pressure until the pinch roller makes just enough contact
with the capstan shaft so that the pinch roller just begins to turn.
At this point, note the reading on the scale. It should be from
350 g to 450 g (12.3 oz. to 15.9 oz.)
Fig. 4-2
44 REEL TORQUE
1. Load the cassette torque meter on the deck and read the pointer
indication on the dial scale for each tape transport operation.
The measured torque should be within the following values:
Take-up: 35 to 65 g-cm (0.49 to 0.90 oz-inch)
Supply: 2 to 4 g-cm (0.028 to 0.056 oz-inch)
F.F/REW: 80 to 150 g-cm (1.1 to 2.1 oz-inch)
4-5 TAPE SPEED
1. Connect a frequency counter to the deck as shown in Fig, 4-3.
2. Play a tape for more than five minutes to warm up the deck,
then load a TEAC MTT-111 test tape containing a 3000-Hz test
tone and play the test tape.
3. While the tape is playing, use a non-metallic or insulated screw¬
driver and adjust the control on the capstan motor for a reading
of 3015 to 3025 Hz on the frequency counter.
4. Play the tape at the beginning and at the end, and check that the
speed deviation is within the prescribed limits by observing that
the reading on the frequency counter never deviates more than
±70 Hz from 3000 Hz, nor drifts more than 70 Hz at any given
time.
Frequency Counter
4-6 WOW AND FLUTTER
Note: These measurements should be made at the beginning,
middle, and the end of the tape.
1) PLAYBACK
1. Connect a wow-and-flutter meter to the deck as shawn in
Fig. 4-3.
2. Load and play a TEAC MTT-111 test tape.
3. Check that the reading on the wow-and-flutter meter is within
0.06% (WRMS).
2) RECORD/PLAYBACK
4. Load a blank TEAC MTT-501 test tape and record a 3000-Hz
signal.
5. Rewind the tape to the beginning of the recorded section, and
play it.
6. The wow and flutter should not be more than 0.25% (RMS).
6

V-66C

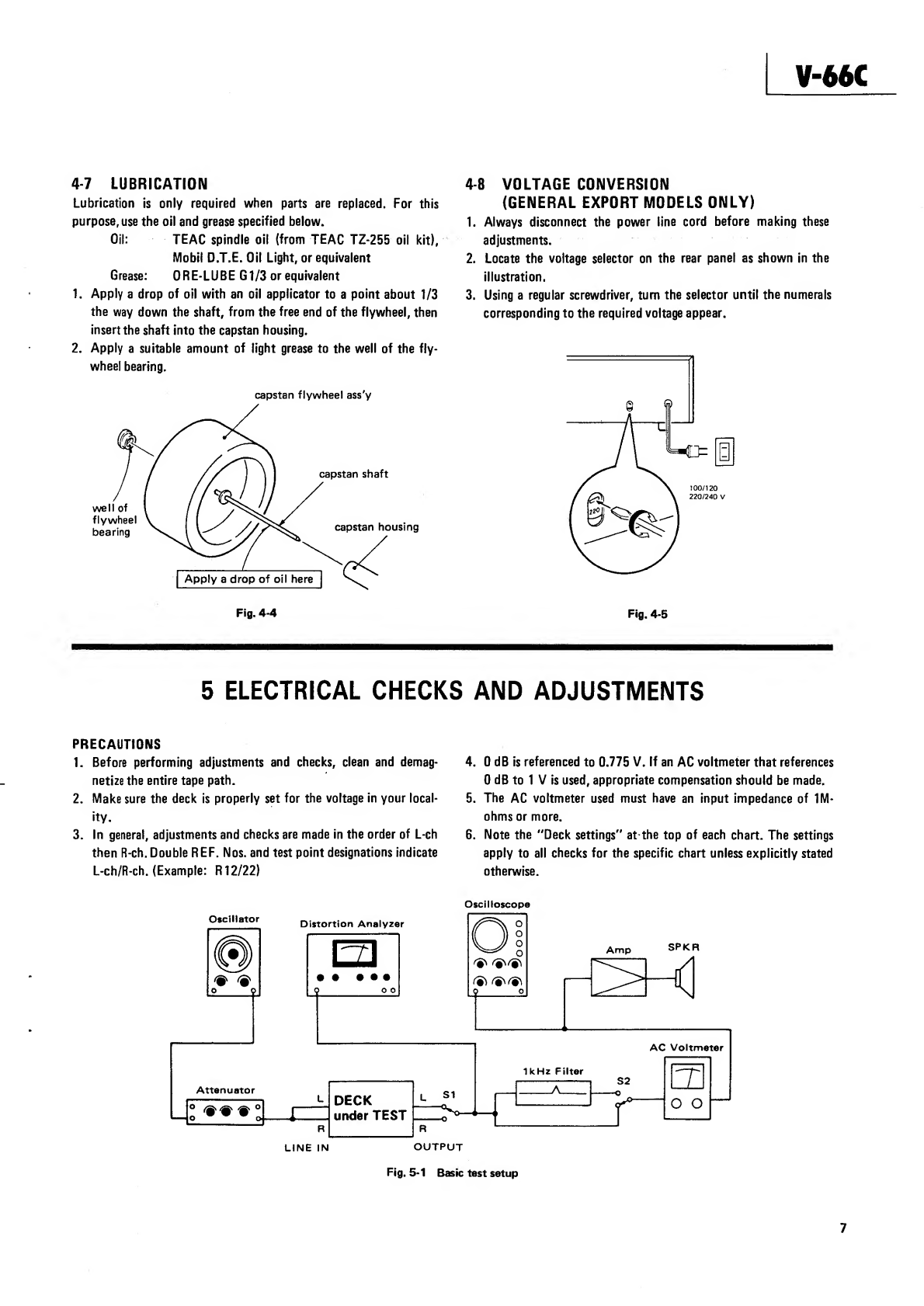

4-7 LUBRICATION
Lubrication is only required when parts are replaced. For this
purpose, use the oil and grease specified below.
Oil: TEAC spindle oil (from TEAC TZ-255 oil kit),
Mobil D.T.E. Oil Light, or equivalent
Grease: ORE-LUBE G1/3 or equivalent
1. Apply a drop of oil with an oil applicator to a point about 1/3
the way down the shaft, from the free end of the flywheel, then
insert the shaft into the capstan housing.
2. Apply a suitable amount of light grease to the well of the fly¬
wheel bearing.
capstan flywheel ass'y
4-8 VOLTAGE CONVERSION
(GENERAL EXPORT MODELS ONLY)
1. Always disconnect the power line cord before making these
adjustments.
2. Locate the voltage selector on the rear panel as shown in the
illustration.
3. Using a regular screwdriver, turn the selector until the numerals
corresponding to the required voltage appear.
5 ELECTRICAL CHECKS AND ADJUSTMENTS
PRECAUTIONS
1. Before performing adjustments and checks, clean and demag¬
netize the entire tape path.
2. Make sure the deck is properly set for the voltage in your local¬
ity.
3. In general, adjustments and checks are made in the order of L-ch
then R-ch. Double REF. Nos. and test point designations indicate
L-ch/R-ch. (Example: R12/22)
Oscillator
4. 0 dB is referenced to 0.775 V. If an AC voltmeter that references
0 dB to 1 V is used, appropriate compensation should be made.
5. The AC voltmeter used must have an input impedance of 1M-
ohms or more.
6. Note the “Deck settings” at the top of each chart. The settings
apply to all checks for the specific chart unless explicitly stated
otherwise.
Oscilloscope
O
°
Attenuator
o ## ^
• • • • •
o o
O
5 0
Amp SPKR
DECK
under TEST
si
1kHz Filter
LINE IN
R
OUTPUT
AC Voltmeter
S2
-o
r
O O
Fig. 5-1 Basic test setup
Distortion Analyzer
• • • • •
O_00
7

R11/R21
Playback EQ
R12/R22 Playback level
R13/R23
Record level
R14/R24
Meter level
C11/C21
Record bias - METAL
R31 Record bias - Co(Cr0 2 )
R32
Record bias - NORMAL
U101/U201
Bias trap
Fig. 5-2 Adjustment and test point locations
8

V-66C
TEAC test tapes:

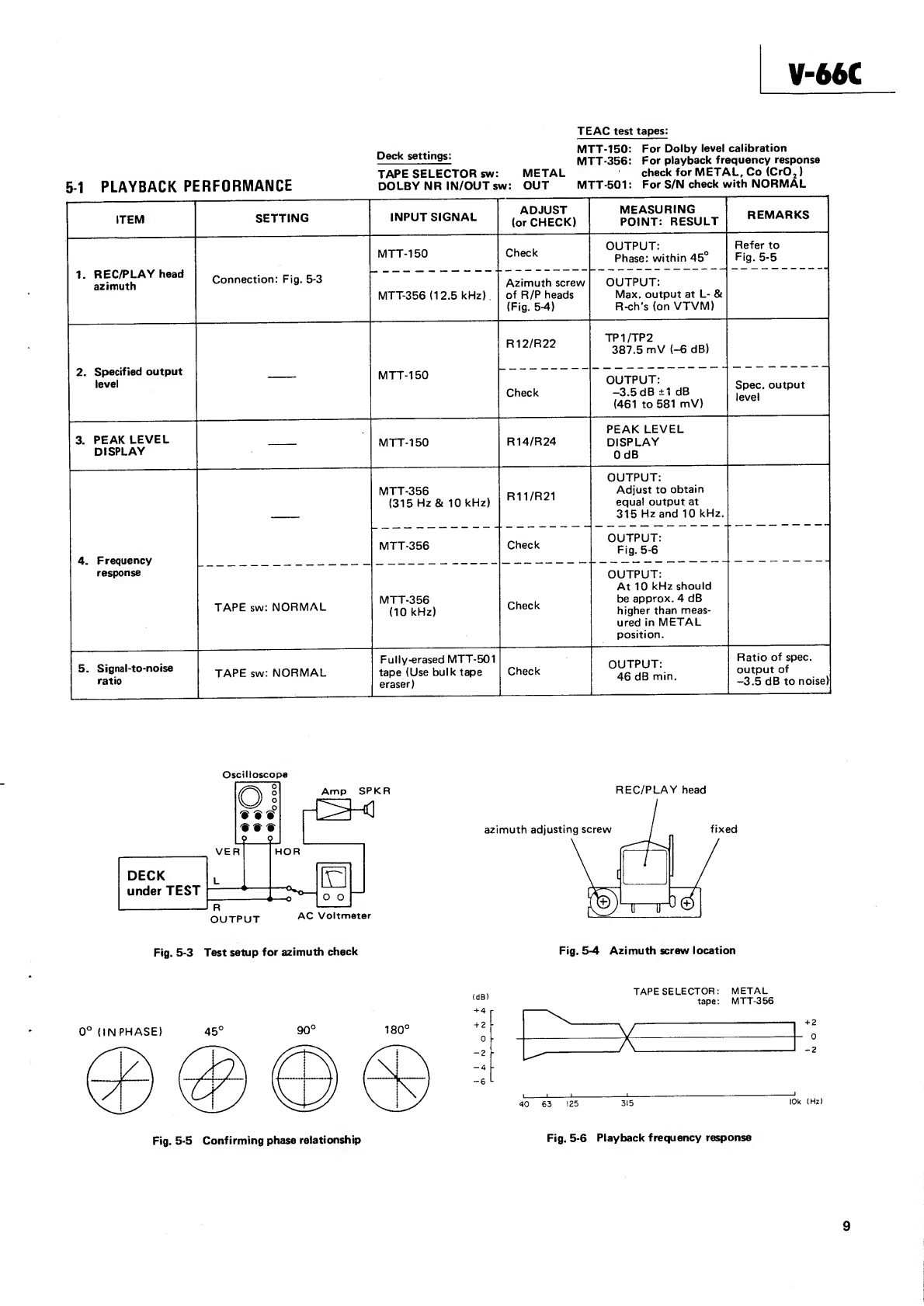

5-1 PLAYBACK PERFORMANCE
Deck settings:
TAPE SELECTOR sw: METAL
DOLBY NR IN/OUT sw: OUT
MTT-150: For Dolby level calibration
MTT-356: For playback frequency response
check for METAL, Co (Cr0 2 )
MTT-501: For S/N check with NORMAL
ITEM
SETTING
INPUT SIGNAL
ADJUST
(or CHECK)
MEASURING
POINT: RESULT
REMARKS
1. REC/PLAY head
azimuth
Connection: Fig. 5-3
MTT-150
MTT-356 (12.5 kHz)
Check
Azimuth screw
of R/P heads
(Fig. 54)
OUTPUT:
Phase: within 45°
OUTPUT:
Max. output at L- &
R-ch's (on VTVM)
Refer to
Fig. 5-5
2. Specified output
level
MTT-150
R12/R22
Check
TP 1 /TP 2
387.5 mV (-6 dB)
OUTPUT:
-3.5 dB ±1 dB
(461 to 581 mV)
Spec, output
level
3. PEAK LEVEL
DISPLAY
MTT-150
R14/R24
PEAK LEVEL
DISPLAY
0 dB
4. Frequency
response
TAPE sw: NORMAL
MTT-356
(315 Hz & 10 kHz)
MTT-356
MTT-356
(10 kHz)
R11/R21
Check
Check
OUTPUT:
Adjust to obtain
equal output at
315 Hz and 10 kHz.
OUTPUT:
Fig. 5-6
OUTPUT:
At 10 kHz should
be approx. 4 dB
higher than meas¬
ured in METAL
position.
5. Signal-to-noise
ratio
TAPE sw: NORMAL
Fully-erased MTT-501
tape (Use bulk tape
eraser)
Check
OUTPUT:
46 dB min.
Ratio of spec,
output of
-3.5 dB to noise)
Oscilloscope
OUTPUT AC Voltmeter
Fig. 5-3 Test setup for azimuth check
Fig. 5-5 Confirming phase relationship
REC/PLAY head
(dB)
+ 4 |
+ 2 !
0 i
“2
-4 I
-6 I
Fig. 5-4 Azimuth screw location
TAPE SELECTOR: METAL
tape: MTT-356
40 63 125 315
Fig. 5-6 Playback frequency response
9

V-66C

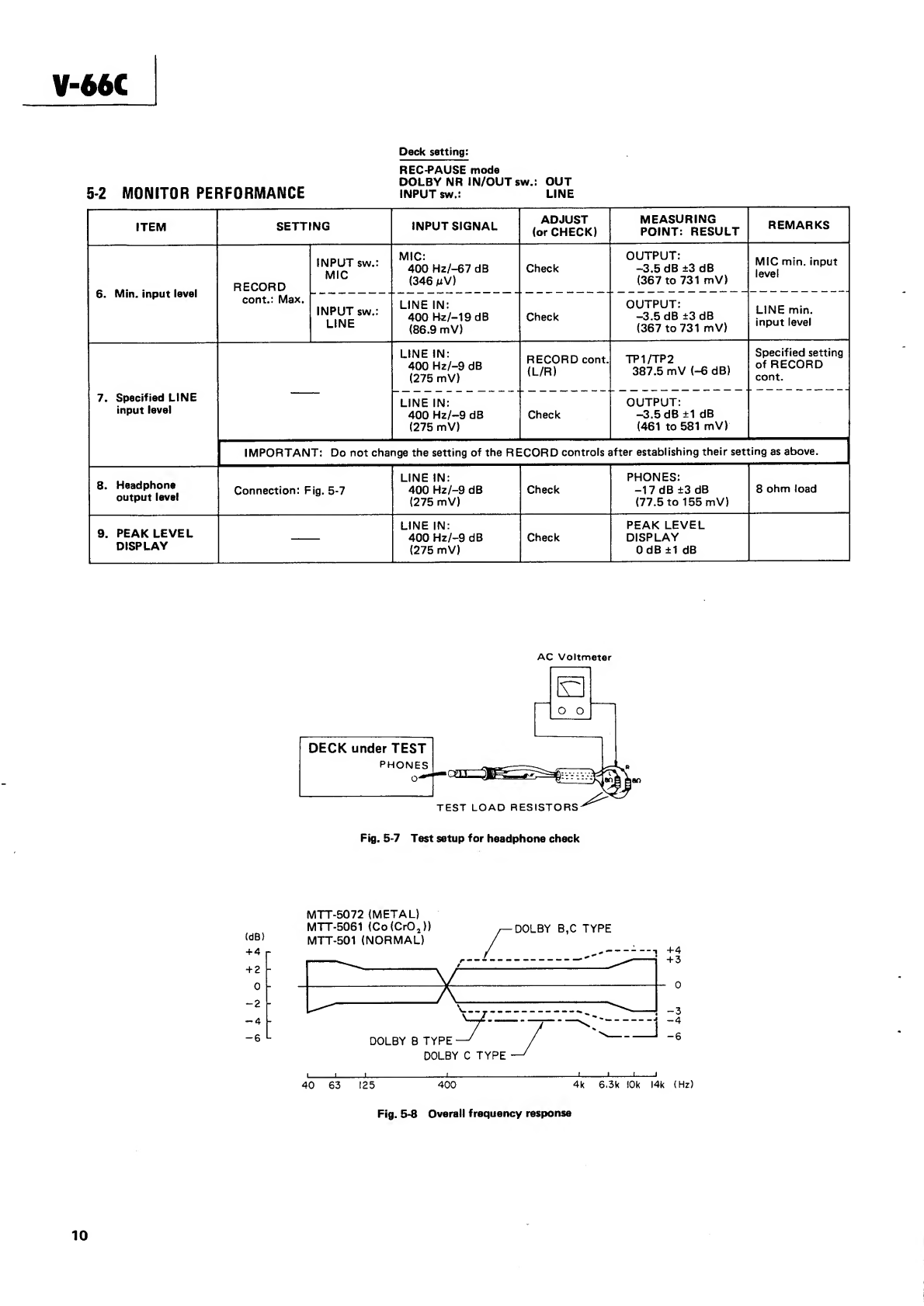

5-2 MONITOR PERFORMANCE
Deck setting:
REC-PAUSE mode
DOLBY NR IN/OUT sw.: OUT
INPUT sw.: LINE
ITEM
SETTING
INPUT SIGNAL
ADJUST
(or CHECK)
MEASURING
POINT: RESULT
REMARKS
6. Min. input level
RECORD
cont.: Max.
INPUT sw.:
MIC
INPUT sw.:
LINE
MIC:
400 Hz/-67 dB
(346 mV)
LINE IN:
400 Hz/-19dB
(86.9 mV)
Check
Check
OUTPUT:
-3.5 dB ±3 dB
(367 to 731 mV)
OUTPUT:
-3.5 dB ±3 dB
(367 to 731 mV)
MIC min. input
level
LINE min.
input level
7. Specified LINE
input level
LINE IN:
400 Hz/-9 dB
(275 mV)
RECORD cont.
(L/R)
TP1/TP2
387.5 mV (-6 dB)
Specified setting
of RECORD
cont.
LINE IN:
400 Hz/—9 dB
(275 mV)
Check
OUTPUT:
-3.5 dB ±1 dB
(461 to 581 mV)
IMPORTANT: Do not change the setting of the RECORD controls after establishing their setting as above.
8. Headphone
output level
Connection: Fig. 5-7
LINE IN:
400 Hz/-9 dB
(275 mV)
Check
PHONES:
-17 dB ±3 dB
(77.5 to 155 mV)
8 ohm load
9. PEAK LEVEL
DISPLAY
LINE IN:
400 Hz/-9 dB
(275 mV)
Check
PEAK LEVEL
DISPLAY
0 dB ±1 dB
AC Voltmeter
Fig. 5-7 Test setup for headphone check
MTT-5072 (METAL)
i_i_i-1-1-1-1-1
40 63 125 400 4k 6,3k 10k 14k (Hz)
Fig. 5-8 Overall frequency response
10

V-66C

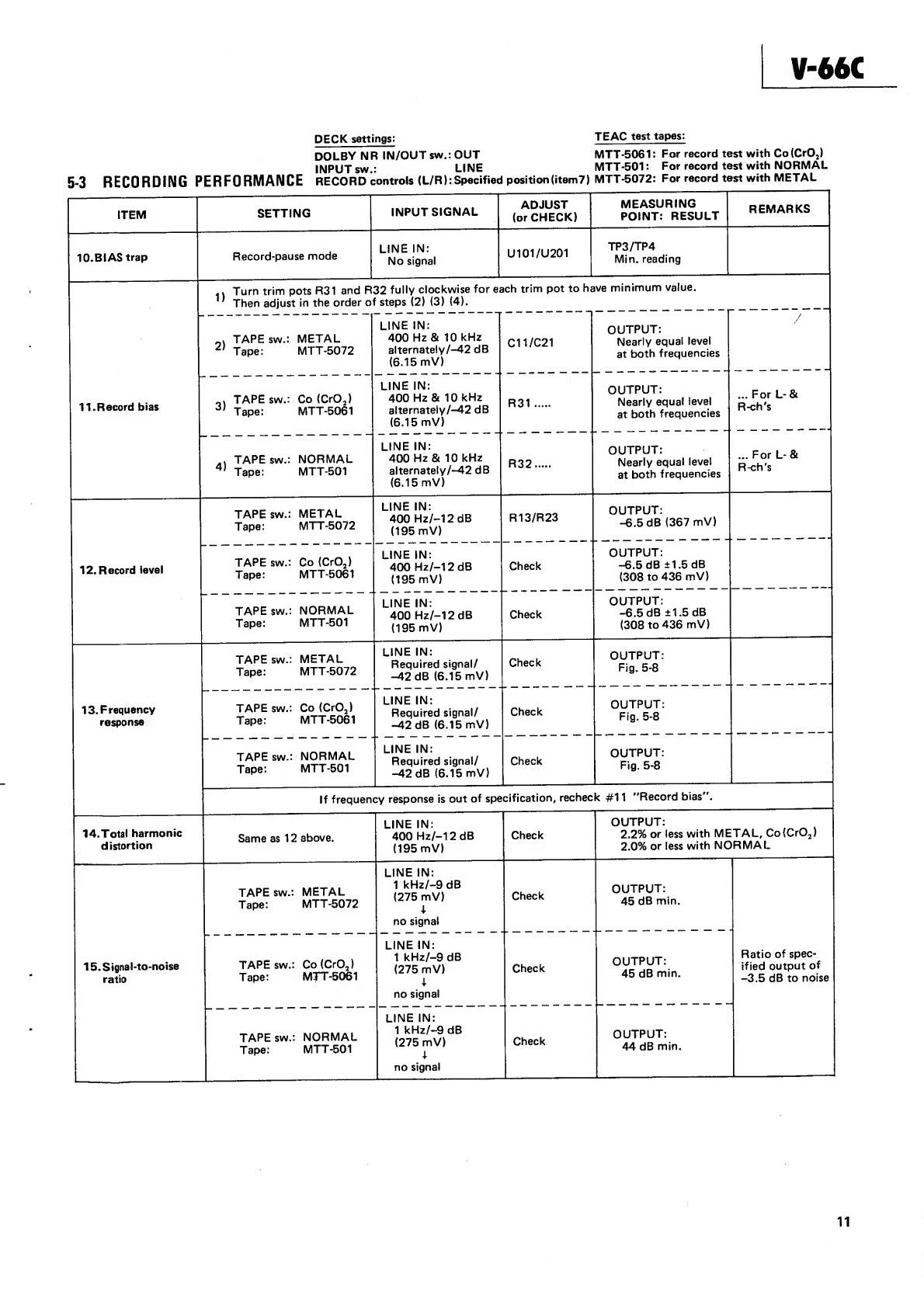

DECK settings:
TEAC test tapes:
DOLBY NR IN/OUT sw.: OUT MTT-5061: For record test with Co(Cr0 2 )
INPUT sw : LINE MTT-501: For record test with NORMAL
5-3 RECORDING PERFORMANCE RECORD controls (L/R):Specified position(item7) MTT-5072: For record test with METAL
11-Record bias
12. Record level
13. Frequency
response
14. Total harmonic
distortion
15.S»gnal-to-noise
ratio
ITEM
SETTING
INPUT SIGNAL
ADJUST
(or CHECK)
MEASURING
POINT: RESULT
REMARKS
10.BIAS trap
Record-pause mode
LINE IN:
No signal
U101/U201
TP3/TP4
Min. reading
Turn trim pots R31 and R32 fully clockwise for each trim pot to have minimum value.
Then adjust in the order of steps (2) (3) 14). _
2 )
TAPE sw.: METAL
Tape:
MTT-5072
3)
TAPE sw.: Co (Cr0 2 )
Tape:
MTT-5061
4)
TAPEsw.: NORMAL
Tape:
MTT-501
TAPE sw.: METAL
Tape: MTT-5072
TAPE sw.:
Tape:
Co (Cr0 2 )
MTT-5061
TAPE sw.
Tape:
NORMAL
MTT-501
TAPE sw.
Tape:
METAL
MTT-5072
TAPE sw.
Tape:
Co (Cr0 2 )
MTT-5061
TAPE sw.
Tape:
NORMAL
MTT-501
LINE IN:
400 Hz & 10 kHz
alternately/-42 dB
(6.15 mV)
LINE IN:
400 Hz & 10 kHz
alternately/-42 dB
(6.15 mV)
LINE IN:
400 Hz & 10 kHz
alternately/-42 dB
(6.15 mV)
LINE IN:
400 Hz/-12 dB
(195 mV)
LINE IN:
400 Hz/-12 dB
(195 mV)
LINE IN:
400 Hz/-12dB
(195 mV)
LINE IN:
Required signal/
-42 dB (6.15 mV)
C11/C21
R31 ,
R32.
R13/R23
Check
Check
Check
LINE IN:
Required signal/
-42 dB (6.15 mV)
LINE IN:
Required signal/
-42 dB (6.15 mV)
Check
Check
OUTPUT:
Nearly equal level
at both frequencies
OUTPUT:
Nearly equal level
at both frequencies
OUTPUT:
Nearly equal level
at both frequencies
OUTPUT:
-6.5 dB (367 mV)
OUTPUT:
-6.5 dB ±1.5 dB
(308 to 436 mV)
OUTPUT:
-6.5 dB ±1.5 dB
(308 to 436 mV)
OUTPUT:
Fig. 5-8
... For L-&
R-ch's
... For L- &
R-ch's
OUTPUT:
Fig. 5-8
OUTPUT:
Fig. 5-8
If frequency response is out of specification, recheck #11 “Record bias".
Same as 12 above.
TAPE sw.:
Tape:
METAL
MTT-5072
TAPE sw.
Tape:
Co (Cr0 2 )
MTT-5061
TAPE sw.
Tape:
NORMAL
MTT-501
LINE IN:
400 Hz/-12 dB
(195 mV)
LINE IN:
1 kHz/-9 dB
(275 mV)
i
no signal
LINE IN:
1 kHz/-9 dB
(275 mV)
i
no signal
LINE IN:
1 kHz/-9 dB
(275 mV)
i
no signal
Check
Check
Check
Check
OUTPUT:
2.2% or less with METAL, Co(Cr0 2 )
2.0% or less with NORMAL
OUTPUT:
45 dB min.
OUTPUT:
45 dB min.
OUTPUT:
44 dB min.
Ratio of spec¬
ified output of
-3.5 dB to noise
11

V-66C
ITEM
SETTING
INPUT SIGNAL
ADJUST
(or CHECK)
MEASURING
POINT: RESULT
REMARKS
16.Erase efficiency
• Connection is same as in Fig. 5-1, but engage 1-kHz fitter.
• Record a 1-kHz signal. Rewind tape to midpoint of recorded portion.
Record a "no signal" portion. Find the difference between the 1-kHz portion and
the "no-signal" portion.
TAPEsw.: METAL
Tape: MTT-5072
LINE IN:
1 kHz/+1 dB
(0.869 V)
i
no signal
Check
OUTPUT:
65 dB min. ratio
Ref. output
level:
+6.5 dB (1.64 V)
17. REC MUTE
function
• Connection: Fig. 5-1, but engage 1-kHz filter.
• Record a 1-kHz signal. Hold REC MUTE button depressed for several seconds. (At this time, make sure
LED on the button lights). Rewind and play the tape. Find the difference between the 1-kHz
portion and the "no-signal" portion.
TAPE sw.: METAL
Tape: MTT-5072
LINE IN:
1 kHz/+1 dB
(0.869 V)
i
no signal
Check
OUTPUT:
65 dB min. ratio
Ref. output
level:
+6.5 dB (1.64 V)
18.Channel
separation
• Connection: Fig. 5-1, but do not connect LINE IN (R), and engage 1-kHz filter.
• Set the deck to record mode. Find the difference between the 1-kHz recorded portion (L-ch)
and the "no-signal" portion (R-ch).
TAPEsw.: Co (Cr0 2 )
Tape: MTT-5061
LINE IN:
L-ch 1 kHz/-9 dB
(275 mV)
R-ch No signal
Check
OUTPUT:
30 dB min. ratio
19. Adjacent track
crosstalk
• Connection: Fig. 5-1, but do not connect LINE IN (L) and OUTPUT (L).
• Record a 125-Hz signal on R-ch and note output level. Invert tape and play R-ch track.
Check leakage level against the output reference of previously recorded portion.
TAPEsw.: Co (Cr0 2 )
Tape: MTT-5061
LINE IN:
L-ch No signal
R-ch 125 Hz/-9dB
(275 mV)
Check
OUTPUT:
40 dB min. ratio
20.Dolby NR
effect
(B-type)
• Record a 1-kHz signal with DOLBY NR IN/OUT switch in OUT and Dolby NR Type Selector switch in BAIR.
Play this portion with DOLBY NR IN/OUT switch set to OUT and IN. Obtain the difference in output level
between OUT and IN positions. Repeat the above process using a 10-kHz signal.
TAPEsw.: METAL
Tape: MTT-5072
LINE IN:
1 kHz/-29 dB
(27.5 mV)
Check
OUTPUT:
Variation
3 dB ~ 8 dB
_
TAPEsw.: METAL
Tape: MTT-5072
LINE IN:
10 kHz/-39 dB
(8.69 mV)
Check
OUTPUT:
Variation
8 dB ~ 12 dB
21. Dolby NR
effect
(C-type)
• Repeat the same procedure above, except see that the Dolby NR Type Selector switch is set to C-NR.
TAPEsw.: METAL
Tape: MTT-5072
LINE IN:
1 kHz/—39 dB
(8.69 mV)
Check
OUTPUT:
Variation
16 dB ~ 20 dB
TAPE sw.: METAL
Tape: MTT-5072
LINE IN:
10 kHz/-49 dB
(2.75 mV)
Check
OUTPUT:
Variation
16 dB ~ 20 dB
12

V-66C
ASSEMBLING HARDWARE CODING LIST
All screws conform to ISO standards, and have crossrecessed heads, unless otherwise noted.
ISO screws have the head inscribed with a point as in the figure to the right.
FOR EXAMPLE:
B M 3 x 6
Length in mm (L)
Diameter in mm (D)
Metric System
Nomenclature
* Inner dia. for washers and nuts
Code
Name
Type
Code
Name
Type
MACHINE
SCREW
R
Round Head Screw
TAPPING
SCREW
BTA
Binding Head
Tapping Screw(A Type)
•
P
Pan Head Screw
BTB
Binding Head
Tapping Screw(B Type)
($Pmm
T
Stove Head Screw
(Truss)
RTA
Round Head
Tapping Screw(A Type)
(0nnn&
B
Binding Head Screw
RTB
Round Head
Tapping Screw(B Type)
(01B
F
Flat Countersunk
Head Screw
SETSCREW
SF
Hex Socket
Setscrew(Flat Point)
©CO
0
Oval Countersunk
Head Screw
SC
Hex Socket
Setscrew(Cup Point)
©ED
WOOD
SCREW
RW
Round Head
Wood Screw
.
SS
Slotted Socket
Setscrew(Flat Point)
m
TAPTITE
SCREW
PTT
Pan Head
Taptite Screw
WASHER
E
E-Ring
(Retaining Washer)
WTT
Washer Head
Taptite Screw
W
Flat Washer(Plain)
©
SEMS
SCREW
BSA
Binding Head
SEMS Screw(A Type)
sw
Lock Washer (Spring)
©
BSB
Binding Head
SEMS Screw(B Type)
LWI
Lock Washer
(internal Teeth)
©
BSF
Binding Head
SEMS Screw(F Type)
LWE
Lock Washer
(External Teeth)
PSA
Pan Head
SEMS Screw(A Type)
TW
Trim Washer
(Countersunk)
PSB
Pan Head
SEMS Screw(B Type)
NUT
N
Hex Nut
(Cg>)
13

V-66C

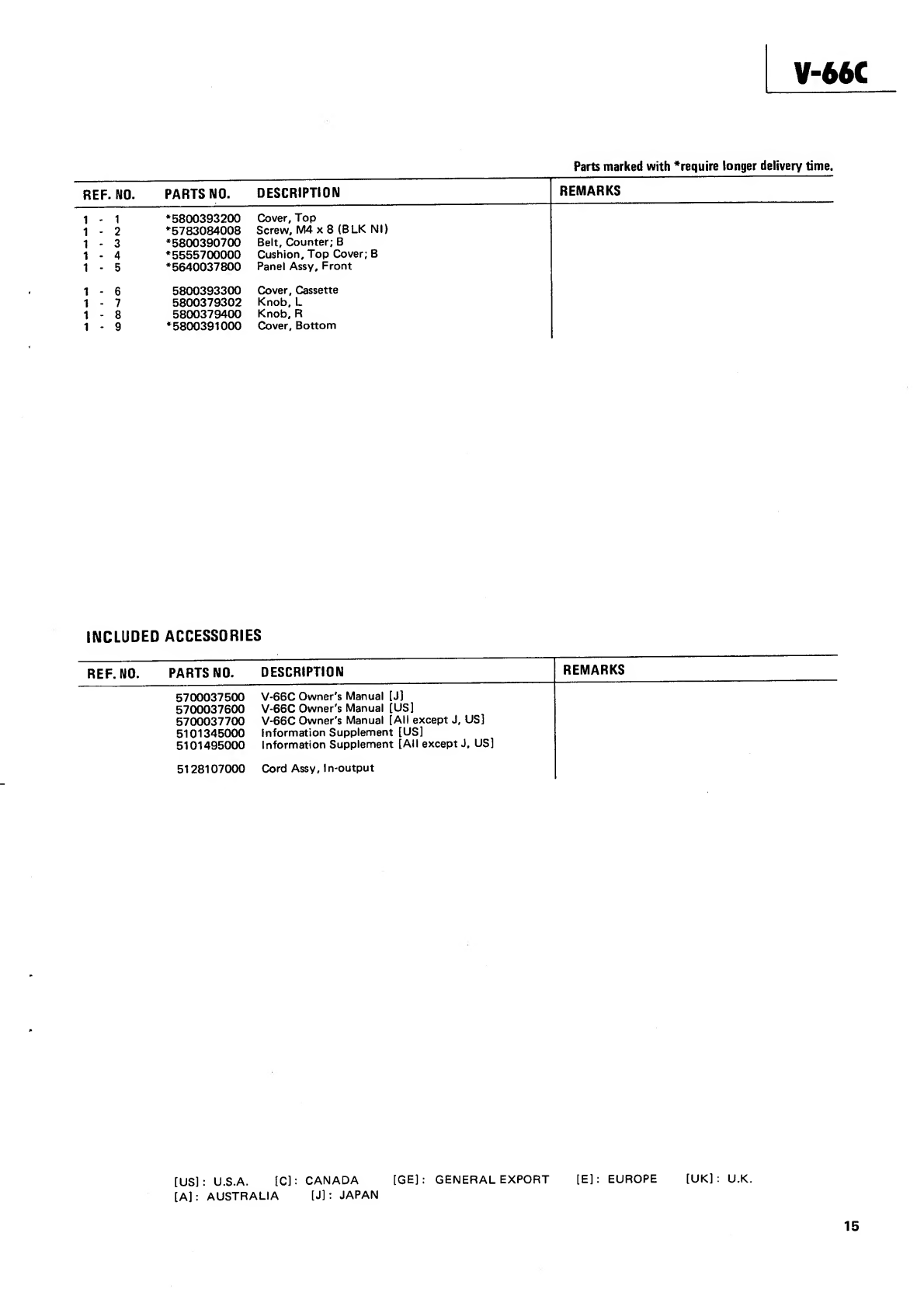

Parts marked with *require longer delivery time.
REF. NO.
PARTS NO.
DESCRIPTION
REMARKS
1 - 1
*5800393200
Cover, Top
1 - 2
*5783084008
Screw, M4 x 8 (BLK Nl)
1 - 3
*5800390700
Belt, Counter; B
1 - 4
*5555700000
Cushion, Top Cover; B
1 - 5
*5640037800
Panel Assy, Front
l
1 - 6
5800393300
Cover, Cassette
1 - 7
5800379302
Knob, L
1 - 8
5800379400
Knob, R
1 - 9
*5800391000
Cover, Bottom
INCLUDED ACCESSORIES
REF. NO.
PARTS NO.
DESCRIPTION
REMARKS
5700037500
5700037600
5700037700
5101345000
5101495000
V-66C Owner's Manual [J]
V-66C Owner's Manual [US]
V-66C Owner's Manual [All except J, US]
Information Supplement [US]
Information Supplement [All except J, US]
5128107000
Cord Assy, In-output
[US]: U.S.A. 1C]: CANADA
[A] : AUSTRALIA [J]: JAPAN
[GE]: GENERAL EXPORT
[E] : EUROPE [UK] : U.K.
15

V-66C
Parts marked with * require longer delivery time.
REF. NO.
PARTS NO.
DESCRIPTION REMARKS
2
- 1
*5800379800
Holder, Cassette
2
- 2
*5800233600
Roller, Guide
2 - 3 *5800389400
Bracket Assy, Holder; R
2 - 4 *5800233500
Lever, Cassette Pressure
2 - 5
(Not used)
2 - 6 *5800237400
Panel, Cassette
2
- 7
*5800237501
Lens, Cassette
2 - 8 *5800234300
Plate, Reflector
2
- 9
*5800389200
Bracket Assy, Holder; L
2
- to
*5800234201
Spring, Holder
2
- 11 *5581038000
Clamper, Cord; A
2
- 12
*5800237100
Arm, Holder
2
- 13
*5800236500
Ring, Drive
2
- 14
*5800231300
Spring, Reel
2 - 15 5800231100
Table Assy, Reel
2
- 16
*5800231400
Spring, B.T.
2 - 17
*5800231500
Holder, Spring
2
- 18
5310006500
Lamp, DC12V 60mA
2
- 19
5378901800
Head, R EC/P LAY
2' - 20
*5800114700
Spring, Head
2 - 21 *5800238200
Holder, Head; A
2 - 22 5378900300
Head, Erase
2 - 23 *5800232000
Spring, Lock
2
- 24 *5800238100
Arm, Lock
2
- 25
*5800294600
Damper Assy, Air
2 - 26
*5800231700
Spring, Brake
2 - 27
*5800236700
Plate, Head Base; A
2 - 28
*5800231800
Plate, Head Base Pressure
2 - 29
5540056000
Steel Ball, 03
2 - 30
5540055000
Steel Ball, 02
2 - 31
*5800236300
Arm, Sensor
2 - 32
*5800232100
Spring, Sensor
2 - 33
5800120402
Arm Assy, Pinch Roller
2
- 34
*5800353000
Spring, Pinch Roller Arm
2
- 35
*5800231901
Spring, Arm Return
2 - 36
*5800238001
Sub-chassis Assy. Mechanism
17

V-66C

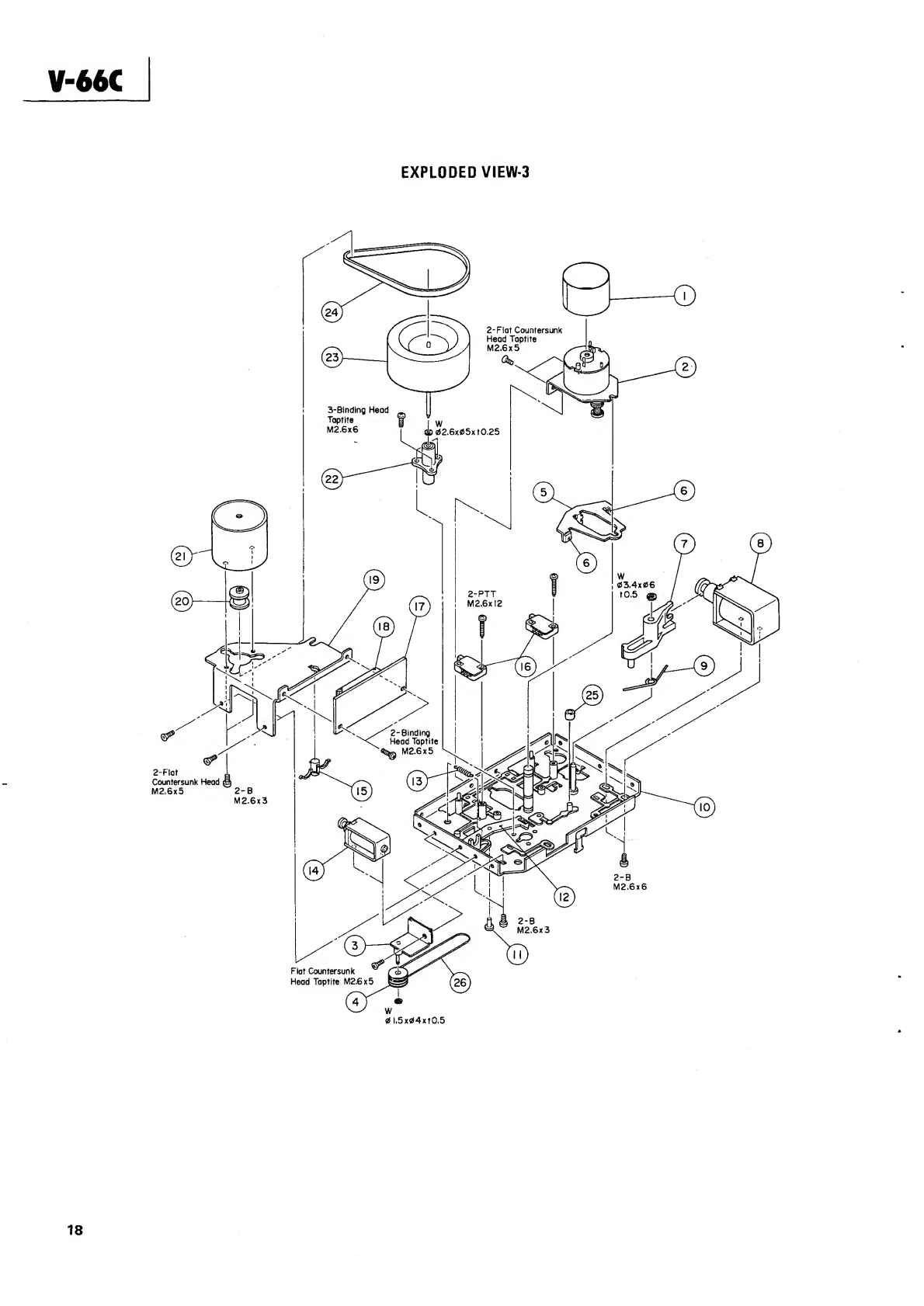

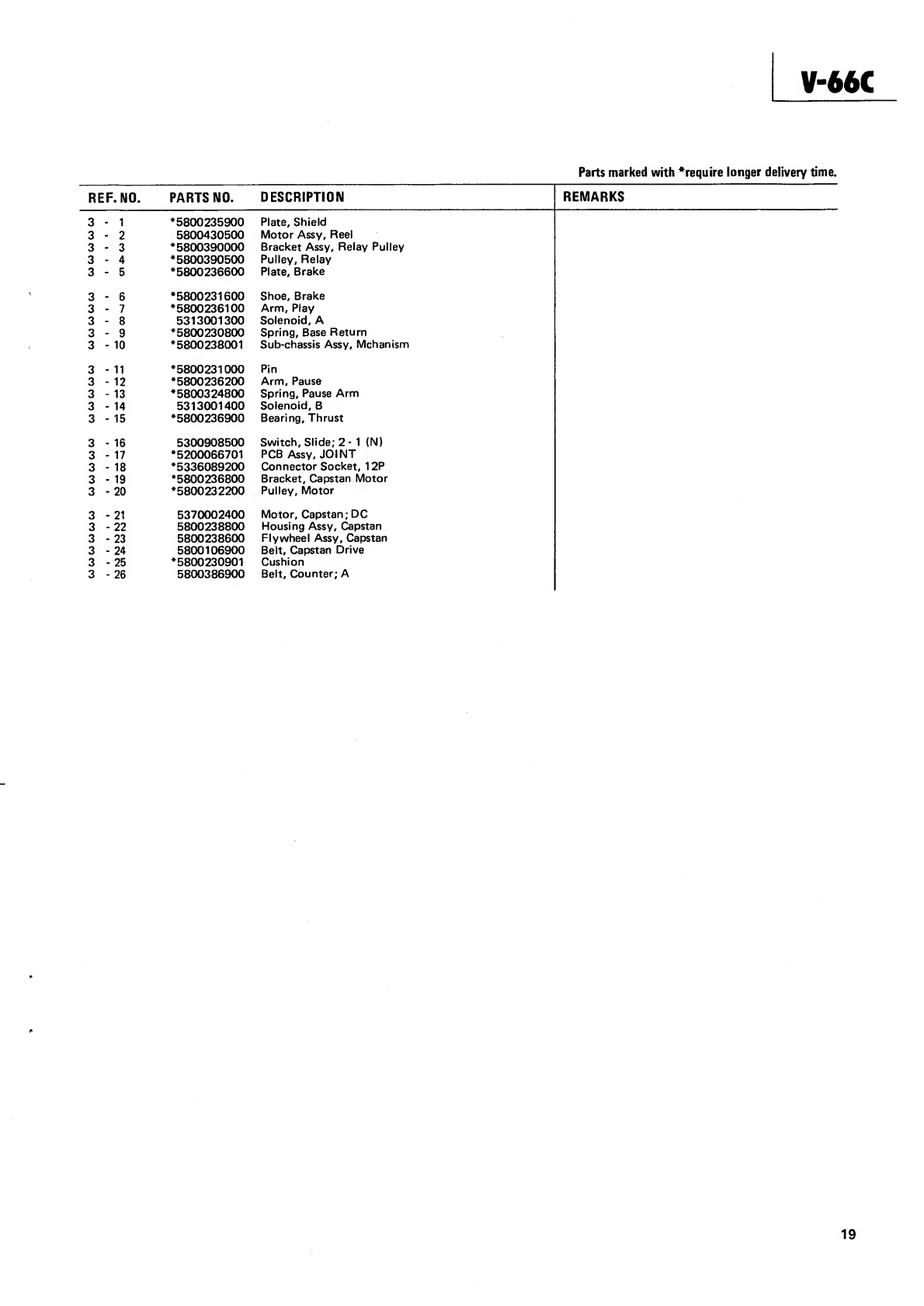

Parts marked with * require longer delivery time.
REF. NO. PARTS NO. DESCRIPTION
3
- 1
*5800235900
3
- 2
5800430500
3
- 3
*5800390000
3 - 4
*5800390500
3 - 5
*5800236600
3
- 6
*5800231600
3
- 7
*5800236100
3 - 8
5313001300
3 - 9
*5800230800
3 - 10
*5800238001
3 - 11
*5800231000
3 - 12
*5800236200
3 - 13
*5800324800
3 - 14
5313001400
3
- 15
*5800236900
3 - 16
5300908500
3
- 17
*5200066701
3
- 18
*5336089200
3 - 19
*5800236800
3 - 20
*5800232200
3 - 21
5370002400
3 - 22
5800238800
3
- 23
5800238600
3 - 24
5800106900
3
- 25
*5800230901
3
- 26
5800386900
Plate, Shield
Motor Assy, Reel
Bracket Assy, Relay Pulley
Pulley, Relay
Plate, Brake
Shoe, Brake
Arm, Play
Solenoid, A
Spring, Base Return
Sub-chassis Assy, Mchanism
Pin
Arm, Pause
Spring, Pause Arm
Solenoid, B
Bearing, Thrust
Switch. Slide; 2- 1 (N)
PCB Assy, JOINT
Connector Socket, 12P
Bracket, Capstan Motor
Pulley, Motor
Motor, Capstan; DC
Housing Assy, Capstan
Flywheel Assy, Capstan
Belt, Capstan Drive
Cushion
Belt, Counter; A
REMARKS

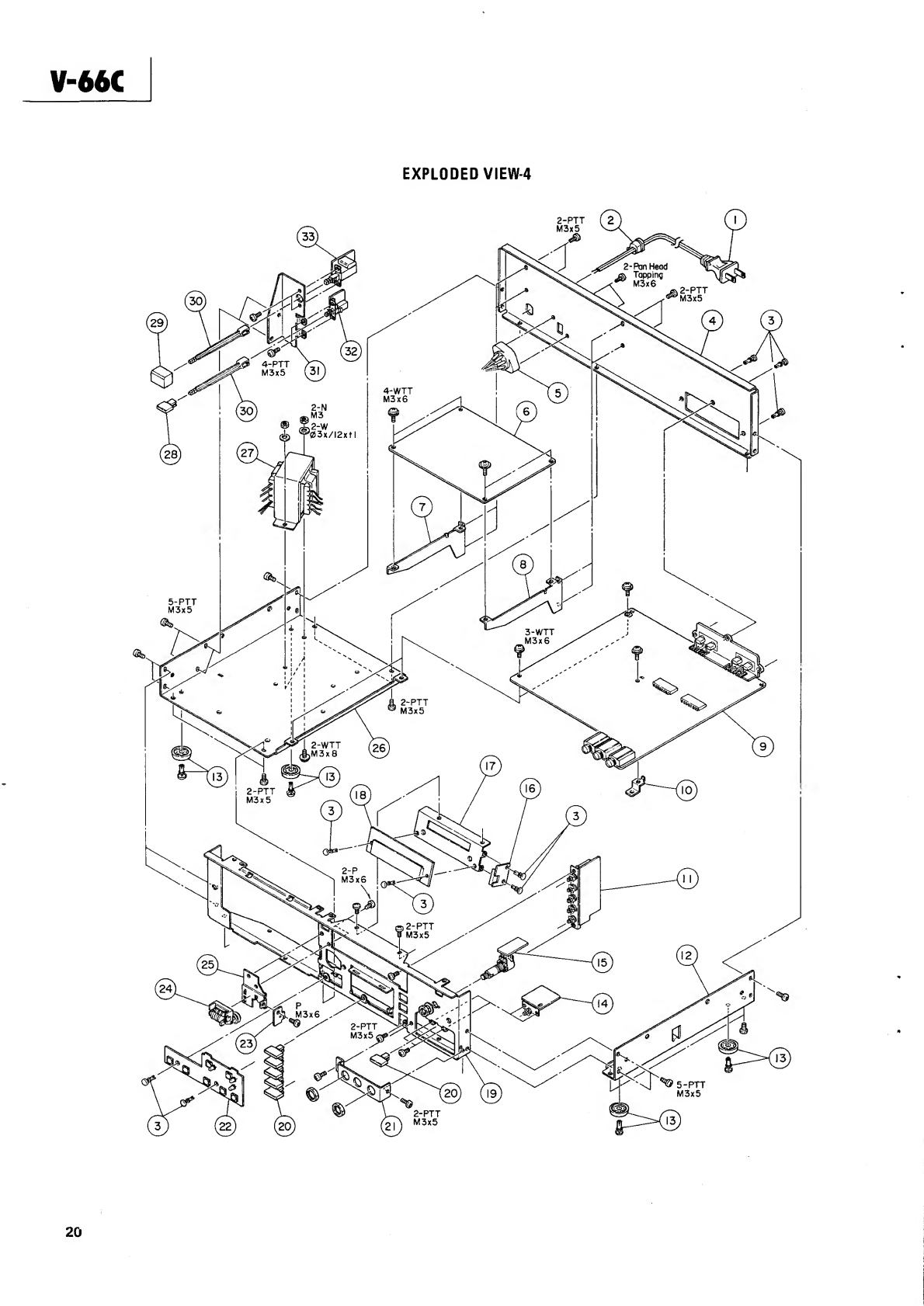

19
