1 PREFACE. 1. PREFACE
2 SAFETY PRECAUTIONS. 2. SAFETY PRECAUTIONS
Power cord and cables must be properly routed and protected to prevent
people from stepping on them and causing the TV to fall.

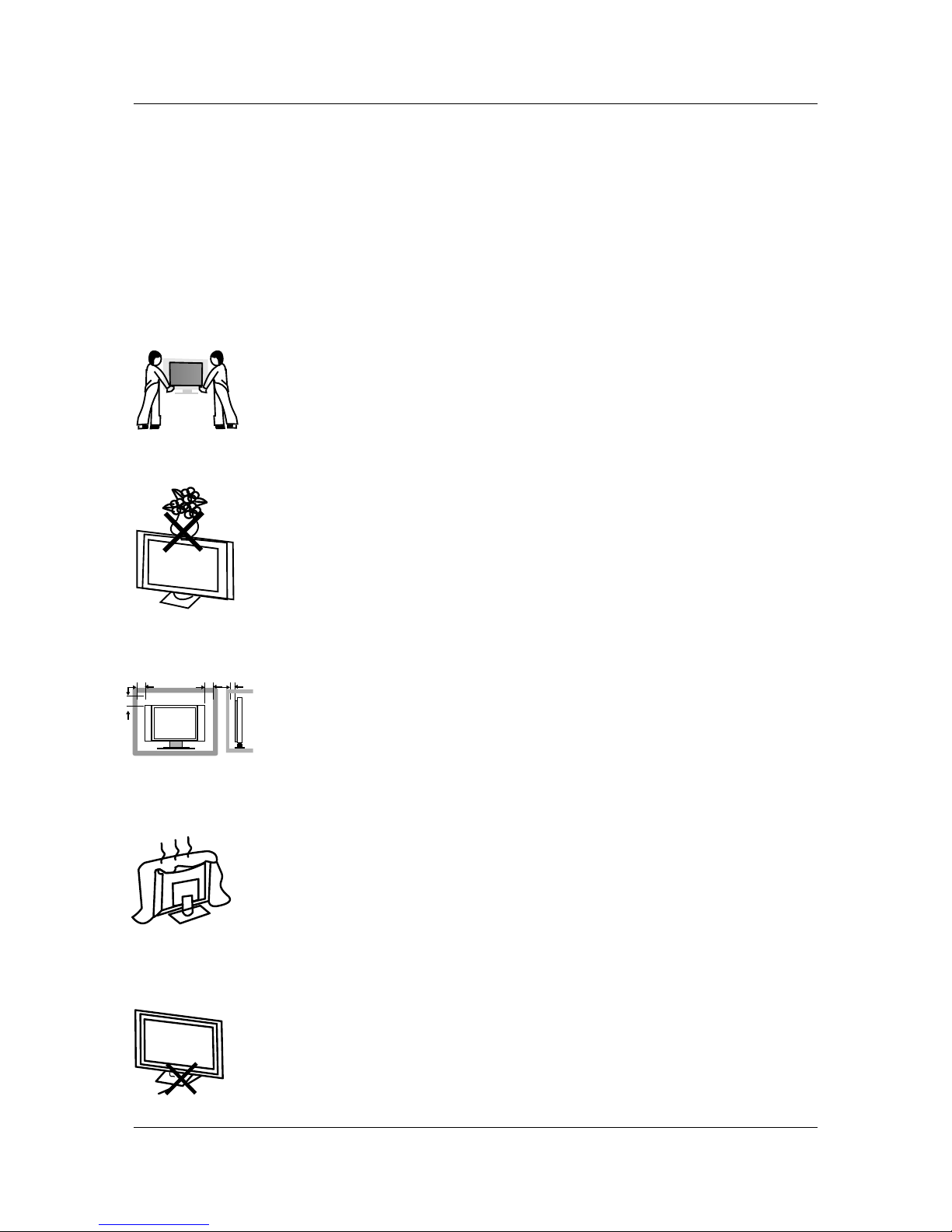

Minimum distances
10cm
20cm
10cm 5cm
Put the TV on a stable surface.
Do not place any material on the TV.
Do not block or cover the ventilation openings on the TV.
Do not use the TV with fixtures other than those provided or
suggested by the manufacturer.
3
Thank you for Choosing this TEAC product. Before operating the TV, please read and follow all
instructions and heed all warning.
Please keep these instructions for future reference.
Please note the diagrams in this manual are for reference only, your unit may differ slightly.

Keep the TV away from heat sources.
Unplug the TV before cleaning it. Do not use solvent or liquid to clean
the TV.
Only clean the TV with a soft and dry cloth.
Unplug the TV during lightning storms or when unused for long periods
of time.
4
Keep the TV dry and away from humidity.
Do not subject the TV to dripping liquids or moist environments.
Do not place any vessels containing liquids on or near the TV such as
vases,cups, etc.
If the following problems occur,turn off the TV set and unplug the AC power
cord immediately:
- AC power cord is damaged.
- Poor fitting AC power outlet.
- TV set is damaged by being dropped, hit or having something thrown at it.
- Any liquid or solid object has fallen through the openings in the cabinet.
NEVER attempt to repair the unit yourself. Contact your dealer or the
TEAC Customer Care Centre (see back page for details) to have your
unit checked and repaired by approved service personnel.

3 . IN THE CARTON3 . IN THE CARTON
5
Please make sure the following items are included in your package.
If any items are missing,please contact your dealer.
2 x AAA Battery2 x AAA Battery
User ManualUser Manual

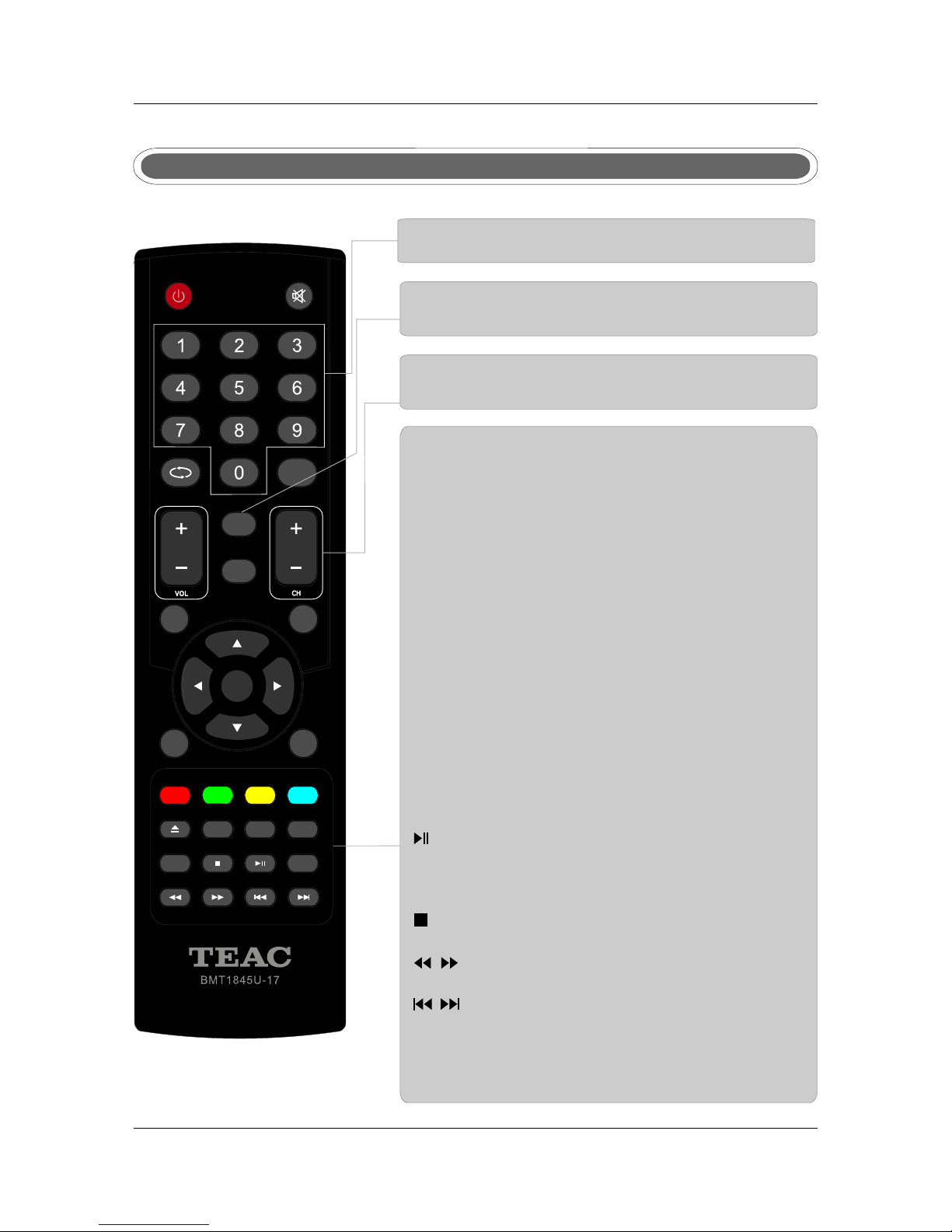

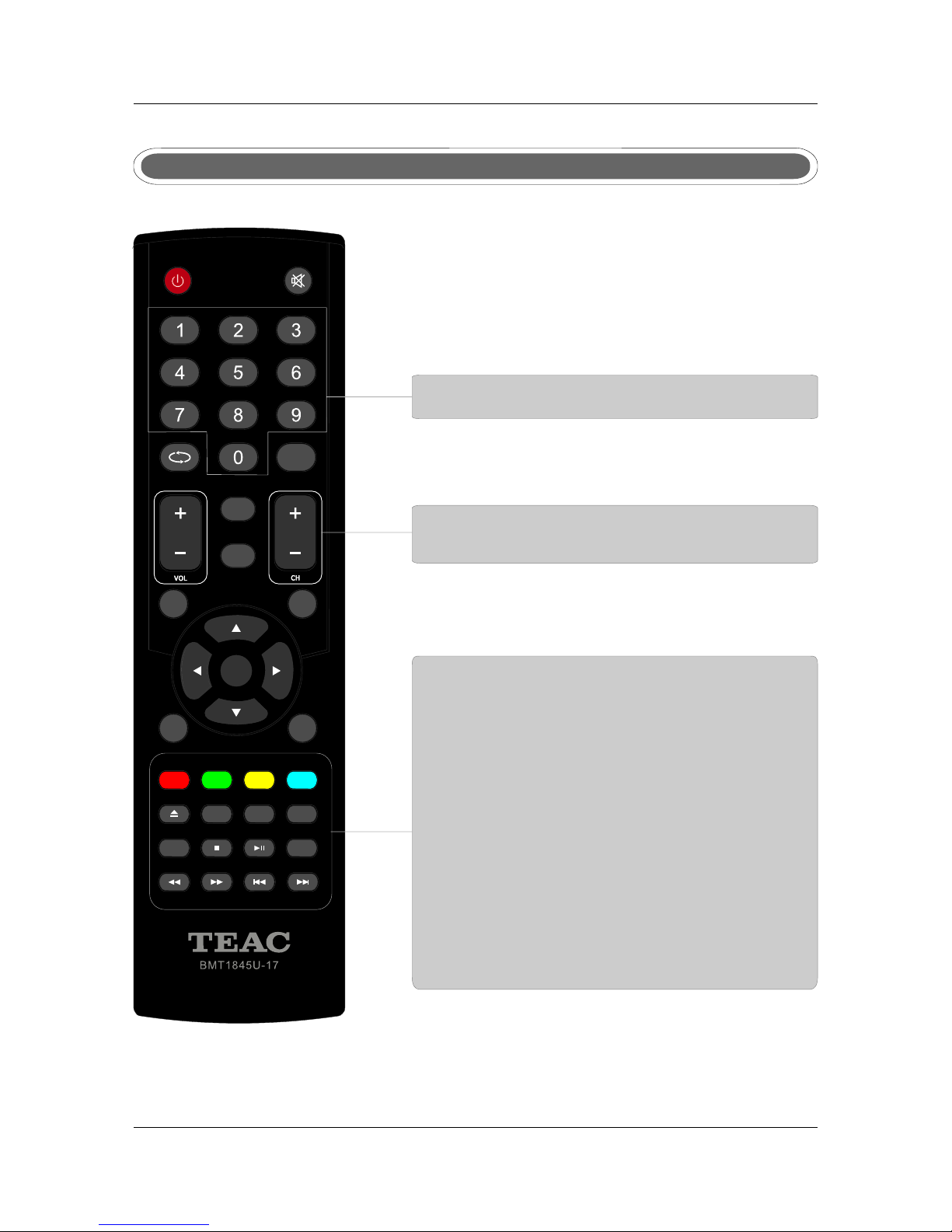

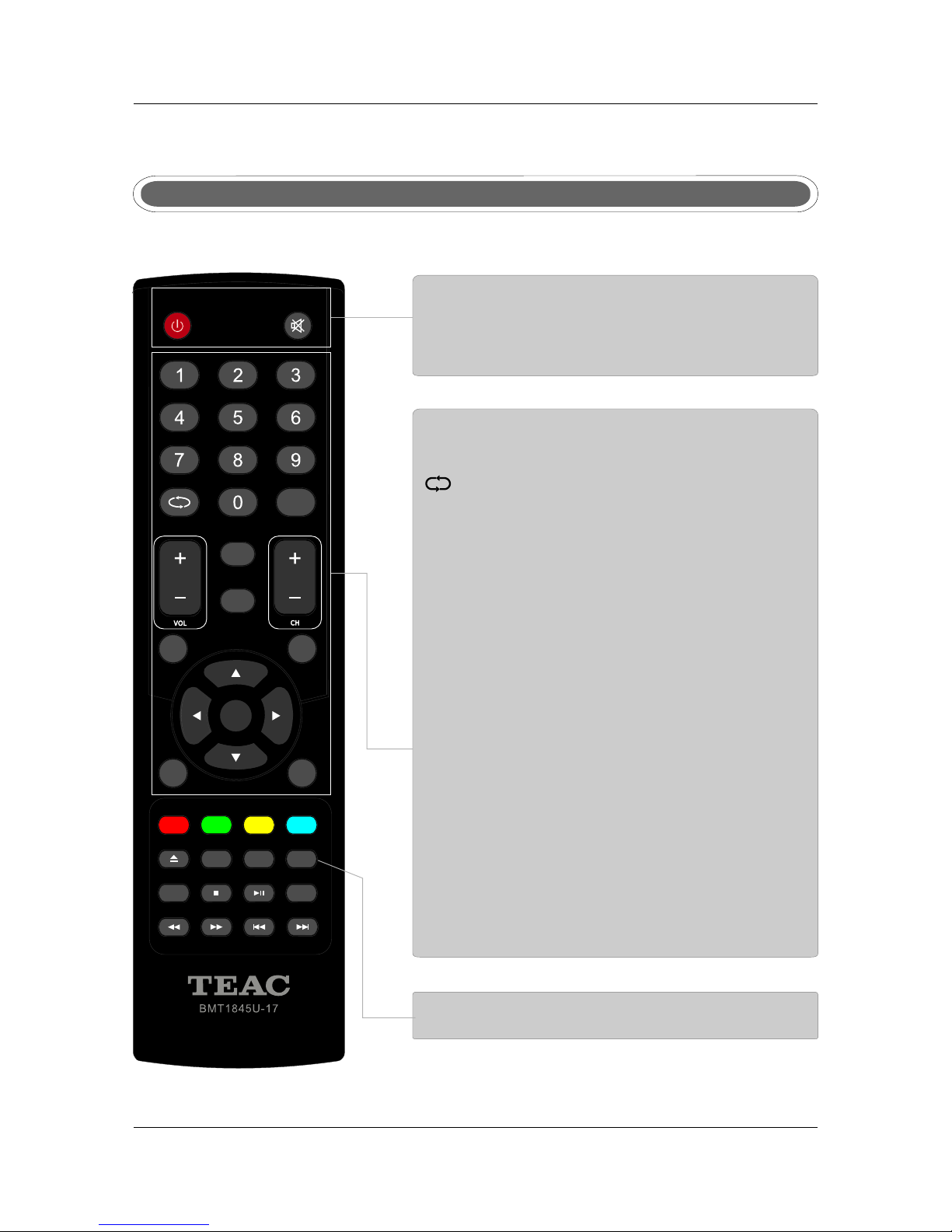

Remote ControlRemote Control
LCD TV SETLCD TV SET
1.5V
1.5V
User Manual
Power CablePower Cable
R.LIS T T.LIST
Quick Start Guide
Quick Start Guide Quick Start Guide

6
1. Press“ VOL+/VOL-”to increase or decrease the sound level.
2. Press“ CH+/CH-”to scan through channels.
3. Press “MENU”to bring up the main menu on the screen.
4. Press“INPUT”to select the input source.
5. on or off.
6. Insert the DVD with the label toward the device’s back panel into the DVD slot on the right side of
you TV set. Only push the DVD slightly until the unit feeds it automatically.
7. PLAY/PAUSE in DVD mode.
8. OPEN/CLOSE in DVD mode.
9. STOP in DVD mode.
10. POWER INDICATOR: show red in
standby mode, show green or blue
when your TV is switched on.
11. REMOTE SENSOR: infrared
sensor for the remote control.
Press“POWER” button to turn the TV
DVD(LABEL SIDE)
6
7
8
9
4 FRONT , BACK , CONNECTIONS OF LCD. 4. FRONT , BACK , CONNECTIONS OF LCD

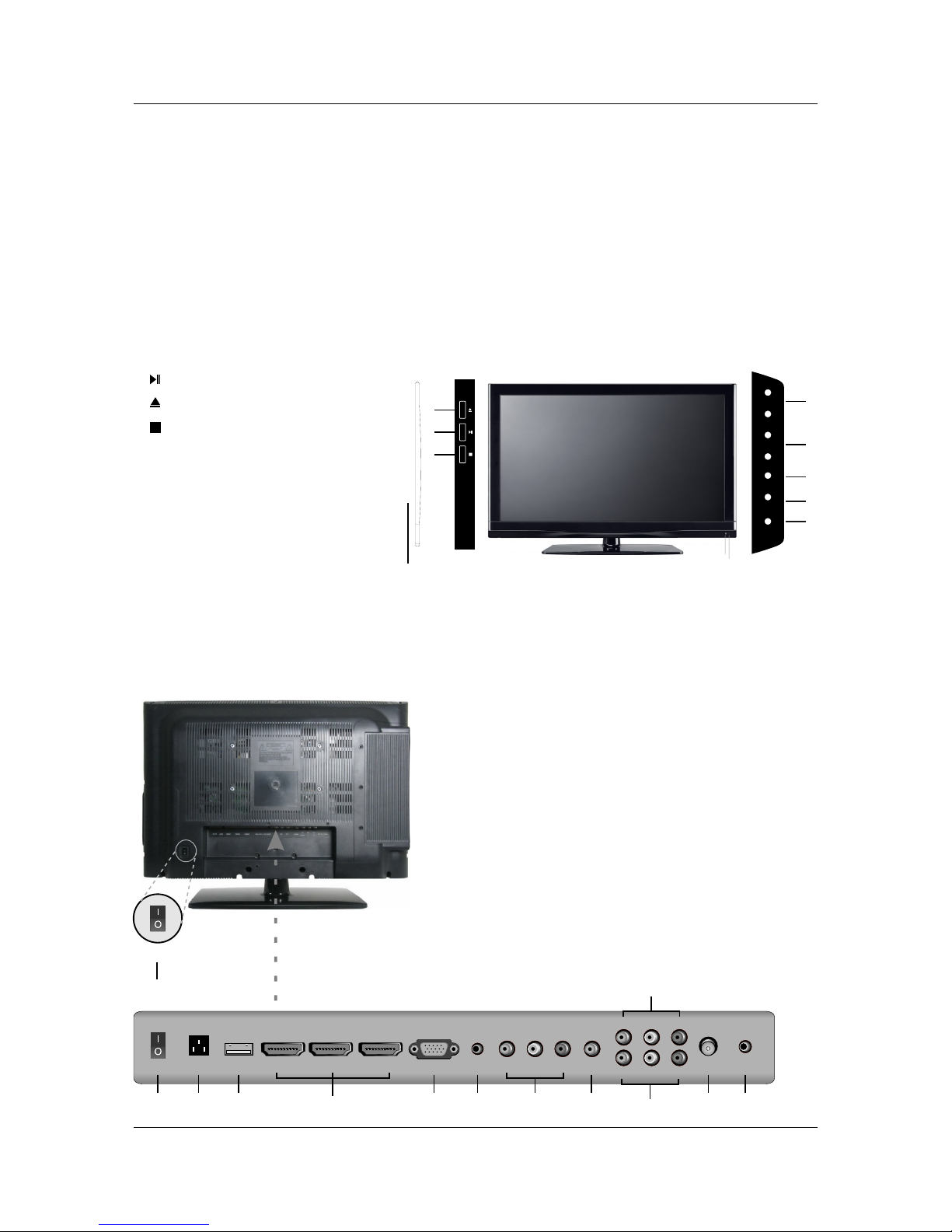

Front View
Back View and Control Connections
10
11
1 POWER Power on off the TV set
2. AC IN: Main power input.
3 USB : Connect to the External drive.
4. HDMI1 HDMI2 HDMI3: Connect to the HDMI output jack
.
5. VGA(PC): Connect to the PC-RGB output jack of PC.
6. PC AUDIO : Connect the Audio output jack of PC.
7. YPbPr1/YPbPr2: Connect the YPbPr output jack of DVD
or VCR.
8. COAX: Connect the SPDIF receiver.
9. VIDEO Audio L R : Connect to the Video output jack
of DVD or VCR.
10. RF IN: Connect the antenna.
11. PHONE: Connect the headphone.
. : / .
PORT
/ /
of DVD
/ ( / ) /Audio
23
VGA(PC)VGA(PC)
USBUSB HDMI1HDMI1 HDMI2HDMI2 HDMI3HDMI3
PC
AUDIO
PC
AUDIO
O XC A
O XC A
PHONEPHONE
RF IN RF IN
458 9
Pb1Pb1 Pr1Pr1
Y1Y1
Pb2Pb2 Pr2Pr2
Y2Y2
LLRR
VIDEOVIDEO
AC INAC IN
167
7
10
5
2
1
4
3
VOL+
MENU
INPUT
POWER
POWERPOWER
11
CH+
VOL+
CH-
1
On
Off
POWER(LCDV2656HD)POWER( )
(LCDV3256HD)
