TEAC
SERVICE MANUAL
1. Caution……………………………………………………………2
2. Specification………………………………………………………6
3. BOM List ……………………………………………………… 10
4. Alignment Procedure………………………………………….… 53
5. Schematic
Diagram …………………………………………… 65
This manual is the latest at the time of printin
g
, and does not
include the modification which ma
y
be made after the printin
g
, b
y
the constant improvement of product.
7. Digital Board PCB Layout………………………………………81
6. UOC3 Main Board PCB Layout ……………………………… 78

WARNING: TOREDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SER VICING TO
QUALIFIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION
RISKRISK OFOF ELECTRIELECTRICC
SHOCKSHOCK DODO NOTNOT OPEN.OPEN.
2
dangerous

3
FOR YOUR PERSONAL SAFETY
1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance.Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.

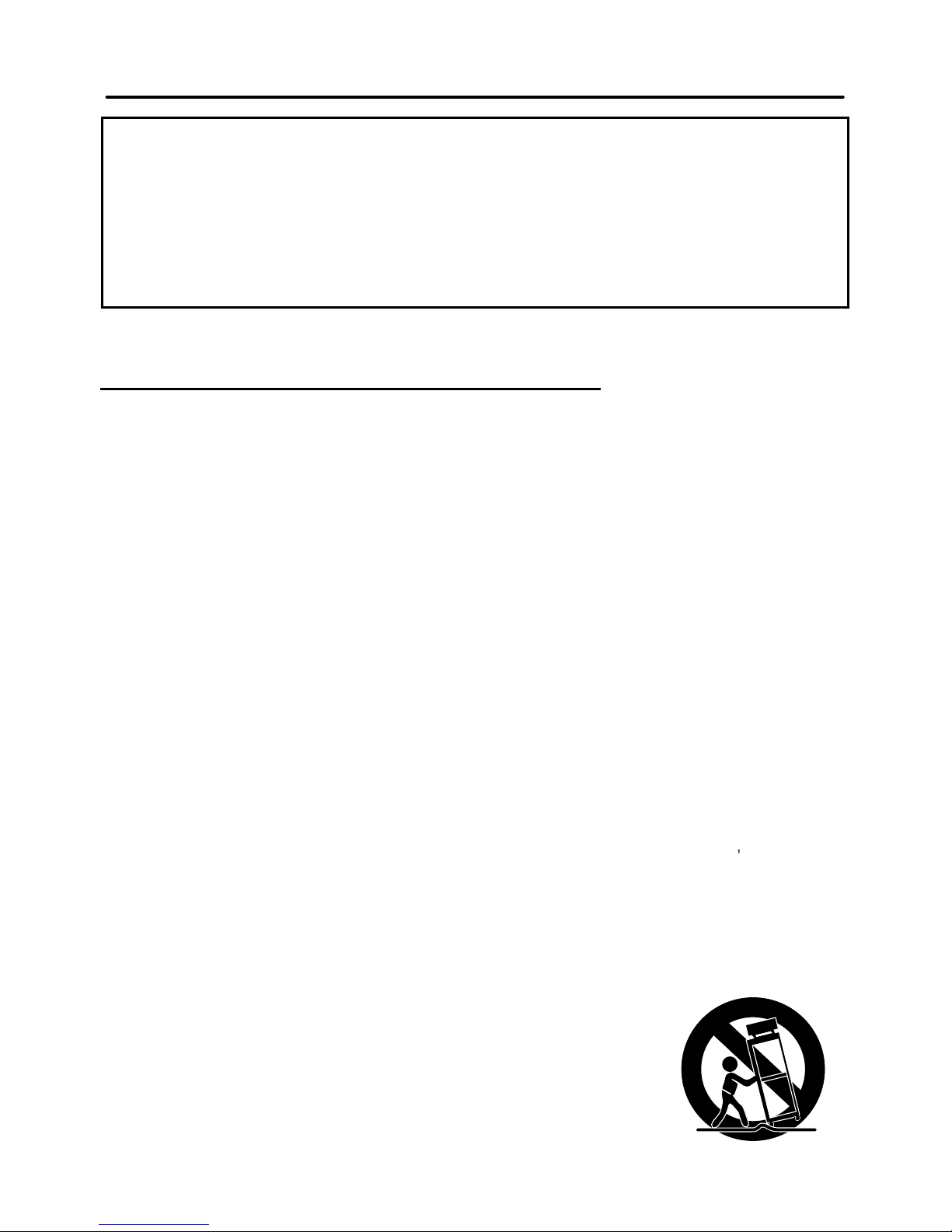

10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Save these instructions for later use.Follow all Warnings and
Instructions marked on the audio equipment.
1. Read Instructions- All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
IMPORTANT SAFETY INSTRUCTIONS

4
PROTECTION AND LOCATION OF YOUR SET
11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water.If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
PROTECTION AND LOCATION OF YOUR SET
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits.When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s

OPERATION OF YOUR SET
18. This television set should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
IF THE SET DOES NOT OPERATE PROPERLY
21. If you are unable to restore normal operation by following the detailed procedure in your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off.If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
FOR SERVICE AND MODIFICATION
24. Do not use attachments not recommended by the television set manufacturer as they may cause hazards.
25.When replacement parts are required, be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
5
off

Model
Item
Master Data
-Version 1.0
-Customer ID TEAC
-Destination Australia
-Brand TEAC
-BOM NO. 03-329045-AA63
-Chassis M68 + DVB-T
ATV
-Tuning [Channels Amt.] 100
-Tuning [Technology] PLL FS TUNER
-Tuning [Indication] ----
-Frequency Bands Full-Cable
-IF Frequency 38.9MHZ
-TV Systems (Color+ Sound) PAL BG
-AV Systems PAL,NTSC
DTV
- DTV system DVB-T(FTA , Australia)
Tuner and channel
-Frequency Range 51 to 858 MHz
- IF-center frequency 36.13MHz
-Digital Signal Input Level -30dBmV to 75dBmV
-Demodulation COFDM
-Constellation QPSK, 16-QAM, 64-QAM
-Tuner Bandwidth 7 MHz/8MHz
-FFT mode 2K/8K
-Guard Interval 1/4, 1/8, 1/16, 1/32, off
-FEC Code Rate 1/2, 2/3, 3/4, 5/6 and 7/8
MPEG decode
-Transport Stream MPEG-2 ISO/IEC 13818,
Transport stream
specification
-Profile Level MPEG-2 MP@ML.
-Video Resolution SD 576i
Picture-Processing
-SCAN Standard
-Wide Screen Switching
-Comb filter X
-Picture Enhancement X
LTI / CTI
Black Stretch X
Dynamic Skin X
Others
-Picture Control [General]
Brightness X
Sharpness X
Contrast X
Tint X
Color X
-Picture Control [Special]
Smart Pictures * modes 4
VM X
Color Temperature X
Others
-Picture Noise Reduction
Picture – Display
-CRT Type
Normal Flat
Pure Flat X
Super Flat
-Deflection system
1Fh X
3290I
Chassis: Version: Page: 4 of 7

Model
Item 3290I
2Fh
-Tube Technology
Iron X
AK
Black Matrix X
Others
-CRT Deflection ( * Deg.) 93 degr
-CRT Magnetic Field Australia
-Screen Type 16:9
-Screen Size / Vis. Size 32"
Sound
ATV
-Audio Power Consumption 6W+6W
-Surround Sound
-Nicam X
-America Stereo (MTS,BTSC,MPS)
-America SAP
German Stereo X
-Korea Stereo
-Thai Bilingual
-Super Woofer
-AVL X
-Sound Control [General]
Volume X
Mute X
-Sound Control [Special]
Treble
Bass
Balance X
Equalizer X
Smart Sound * modes X
Others
-Speakers Quantity 4
DTV
-Audio Decoding MPEG layer I and II,
Musicam,AC-3
-Audio Output Mode Stereo Channel, Joint Stereo
Channel,
Mono
User Interface
ATV
-Menu Language English
-Features [General]
AT
Biological Lock
Calendar X
Clock X
Channel Swap X
Channel Adjustment
Channel Naming X
Child Lock X
Panel Lock
AV Lock
Favorite Channel X
Game X
Hotel Mode
High Sensitive
Notebook X
On/Off Timer X
Preset
Chassis: Version: Page: 5 of 7

Model
Item 3290I
Recall X
Rotation X
Auto Sleep
Programe prearrange
Parent Guide X
Channel Skip X
Others
-Features [Special]
V-chip / CCD X
Teletext *Pages X
FM Radio
Others
DTV
- DTV Menu languate English
-Channel edit name X
-Channel list X
-Channel delete X
-Channel lock X
-Favorite Channel and set X
-EPG(NOW/NEXT) X
-List schedule EPG X
-Audio language Setting X
-Subtitle language setting X
-Time zone X
-Parental settings X
-Return X
-Sleep X
-CCD/TELETEXT,SUBTITLE X
Tuning Features
ATV
-Auto Channel Program X
-Auto/Manual Tuning X
-Auto/Manual Store X
-Fine Tuning X
-Factory Mode X
-Service Mode X
DTV
-Automatic search X
-Manual search X
-First time installation X
-Auto/Manual Store X
Cabinet
-Cabinet Name 3290
-Front Cabinet Color
-Middle Cabinet Color
-Rear Cabinet Color
-Local Controls Front
Mains Switch X
CH+ CH- VOL+ VOL- X
TV/AV X
ATV Menu X
ATV Auto Search X
-Local Controls Top
CH+ CH- VOL+ VOL-
TV/AV
Menu
Auto Search
-Indicator
RC Received LED X
Standby LED X
Remote Controller
Chassis: Version: Page: 6 of 7

Model
Item 3290I
-Type
-Batteries
Connectors Rear
-SCART Full w/o Y/C
-SCART Full with Y/C
-SCART Single (CVBS)
-Component In (YPbPr) Cinch for 50Hz X
-In Y/C+Cinch(CVBS+ Stereo)
-In Y/C+Cinch (CVBS+ Mono)
-In Cinch(CVBS+ Stereo) X
-In Cinch (CVBS+ Mono)
-Out Cinch(CVBS+ Stereo) X
-Out Cinch(CVBS+ Mono)
-Super Woofer
-S/PDIF Digital Audio Out X
-Rs232 X
-Loudspeakers
-Control Busses
-Feature Slot
-ITV Smart Port
- Antenna in
75 Ohms (IEC Type) X
Connectors Front/Side front
-In Y/C+Cinch(CVBS+ Stereo) X
-In Y/C+Cinch (CVBS+ Mono)
-In Cinch(CVBS+ Stereo)
-In Cinch (CVBS+ Mono)
-Out Headphone
Mini-Jack 3.5mm
Final Equipment
-Packing –Methods
2 Color Printing
Carton Color X
-Documents and Manuals
Instruction Book X
Screen Sticker
Plastic Bag X
Warranty Card
Guarantee Doc. X
Warning Label X
Approbation Label
Others
-Languages DFU English
-Indication on BACKOVER X
Made-in in family sheet X
FCC/Elect Shock Caution Label
CE/Elect Shock Caution Label
Warning Label X
Others
Miscellaneous
-Mains Voltage 230-240 V
-Mains Frequency 50Hz
-Type Mains Cord SAA
-Power Consumption TV in ON 120W
-Power Consumption TV in Standby Less than 1W
Approbation EMC.CB
Chassis: Version: Page: 7 of 7

PART NO. SEPC SINGLE QTY LOCATION
11-0BC337-0BX TRANSISTOR (NPN) BC337-40 1 Q1501
13-00AS12-13B IC AS1213B 1 IC1501
14-IRE05B-XX0 IR EMITTING DIODE TSAL6200 1 D1501
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R1503
18-CB0229-JNX RES. C.F. 2.2 OHM 1/6W +/-5% 1 R1501
25-HBB479-M1X CAP. ELEC 4.7 UF 10V +/-20% 1 C1504
26-EBP101-JCS CAP. CER 100 PF 50V +/-5% 1 C1502
26-EBP101-JCS CAP. CER 100 PF 50V +/-5% 1 C1501
26-EBP104-ZFS CAP. CER 0.1UF 50V +80%/-20% 1 C1503
40-UOCASF-RMA P.C.B. REMOTE HANDSET BD 1
45-COS455-KY1 CERAMIC RESONATOR 455KHZ 1 X1501
49-HS46F0-00XAA RUBBER PAD KEYS 1
55-HS46FB-0HAAI FREMOTEHANDSET-BOTTOMCABINET 1
55-HS46FD-0HAAI FBATTDOOR-REMOTEHANDSET 1
55-HS46FT-0HAAG FREMOTEHANDSET-FRONTCABINET 1
58-HS46F1-0UI1A INLAY REMOTE HANDSET 1
63-B26060-BT2 S/T SCREW B 2.6 X 6 BT 1
67-X26968-0E2 BATT. TERMINAL (+/-) 1
67-X31028-0E2 SPRING - BATTERY (-) 1
67-X31029-0E2 SPRING - BATTERY (+) 1
74-008026-60C POLYBAG (80MMX260MMX0.06MM) 1
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R009
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R028A
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R023A
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R024A
18-CB0391-JNX RES. C.F. 390 OHM 1/6W +/-5% 1 R025A
18-CB0470-JNX RES. C.F. 47 OHM 1/6W +/-5% 1 R008
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R026A
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R027A
40-3290A5-KEB1X P.C.B. KEY BD 1
10-0001H8-FBX DIODE 1H8 (FAST RECOVERY) 1 D860
10-0FR102-FBX DIODE FR102 (1A/100V) 1 D865
10-1N4007-EBX DIODE IN4007 1 D864
10-1N4007-EBX DIODE IN4007 1 D863
10-1N4007-EBX DIODE IN4007 1 D861
10-1N4007-EBX DIODE IN4007 1 D862
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D867
10-1N5819-FBX DIODE 1N5819 (1A/40V) 1 D868
10-HS6V2B-DBX DIODE 6V2 500MW 1 D890
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R865
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R893
18-CB0152-JNX RES. C.F. 1.5K OHM 1/6W +/-5% 1 R892
18-CB0512-JNX RES. C.F. 5.1K OHM 1/6W +/-5% 1 R864
18-CB0513-JNX RES. C.F. 51K OHM 1/6W +/-5% 1 D866
18-CB0752-JNX RES. C.F. 7.5K OHM 1/6W +/-5% 1 R894
18-CB0753-JNX RES. C.F. 75K OHM 1/6W +/-5% 1 R861
18-CB0912-JNX RES. C.F. 9.1K OHM 1/6W +/-5% 1 R863
18-CD0105-JNX RES. C.F. 1M OHM 1/4W +/-5% 1 R860
18-CD0229-JNX RES. C.F. 2.2 OHM 1/4W +/-5% 1 R862
26-EBP122-KBS CAP. CER 1200PF 50V +/-10% 1 C865
26-EBP471-JCS CAP. CER 470 PF 50V +/-5% 1 C863
40-3290SB-PWB1X POWER PCB BD 1 PCB
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J861
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J860
10-0001H8-FBX DIODE 1H8 (FAST RECOVERY) 1 D810
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D821
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D811
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D808
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D803
10-HS9V1C-DBX DIODE 9V1 500MW 1 D828
11-SC1815-YBX TRANSISTOR 2SC1815-Y (NPN) 1 Q804
18-CB0100-JNX RES. C.F. 10 OHM 1/6W +/-5% 1 R814
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R802
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R840
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R823
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R801
18-CB0113-JNX RES. C.F. 11K OHM 1/6W +/-5% 1 R819
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R822
18-CB0223-JNX RES. C.F. 22K OHM 1/6W +/-5% 1 R834
