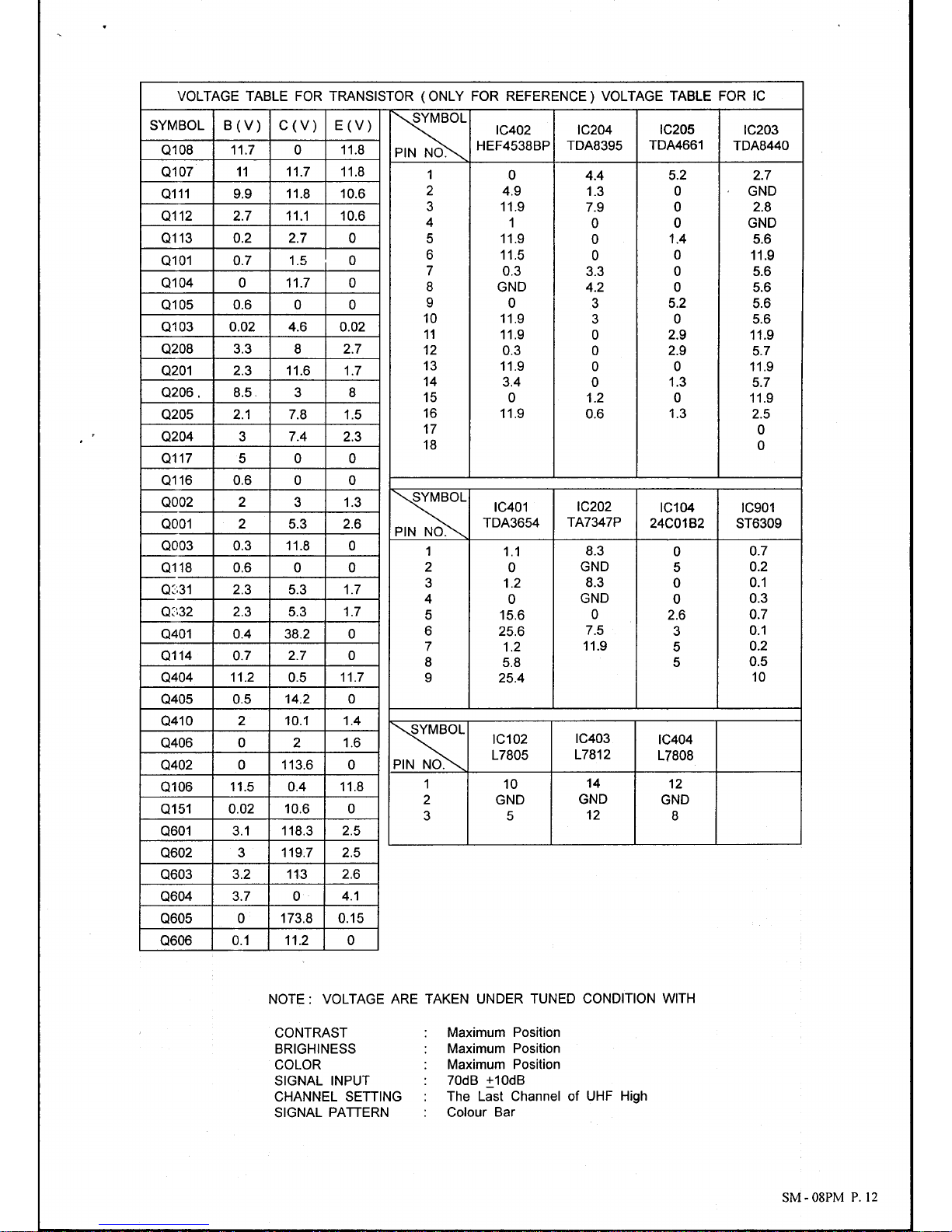

Teac CT-F803 User manual

CTF803
PART_NO
DESCRIPTION
QTY
LOCATION
155-R83308-00-00 REMOTE CONTROL ASSEMBLY
107-800455-4G RESONATOR 455 KHZ ET455Z PO TUNG 1
CF701
113-109005-17 CARBON FILM RESISTOR 1 OHM 1/16W +-5% 2
R701,703
113-221005-17 CARBON FILM RESISTOR 220 OHM 1/16W +-5% 1
R702
123-151350-93 CERAMIC CAP. 150 PF 50V +-10% (NPO) 2
C701,702
127-105072-06 ELECT CAP. 1 MFD 50V +-20% {TAPING TYPE} 1
C703
130-134148-01 SILICON DIODE IN4148 3
D702-704
130-600101-0G INFRARED EMITTER EL-1L1 KODENS HI "GUANG ZHOU XIONGGUANG" 1
LED701
131-231815-0A TRANSISTOR 2SC1815 TOSHIBA 1
Q701
133-803428-12 I.C. M34280M1 MITSUBISHI 1
IC701
172-726000-99 BARE WIRE 54MM 0.11
W701,703
190-R83301-02 REMOTE P.C.B. (270499 REV.1) 1
514-200407-10 SELF-TAPPING SCREW 2 X 7 B/T (HARDEN) 1
FOR HANDSET
774-002001-00 BATTERY SPRING +VE & -VE 1
774-R83301-00 BATTERY SPRING (-VE) 1
774-R83302-00 BATTERY SPRING (+VE) 1
810-041104-13 POLYBAG 4" X 11" X 0.04MM W/RE-CYCLING MARK 1
FOR HANDSET
849-R83301-08 RUBBER KEY PAD - ENG STD {FOR MTSUBISHI IýC} 1
849-R83302-01 RUBBER KEY PAD - ENG STD {FOR MITSUBISHI IýC} W/TXT 1
900-R83301-46 R/TOP CAB-ENG STD/M.BLK SILVER 877C (FOR MITSUBISH IýC) 1
902-R83301-01 HANDSET REAR CAB - MATT BLK SPARY 1
910-R83301-01 BATTERY DOOR - MATT BLACK 1
919-R83301-13 R/T.DOOR-STD M.B.SPY.SILVER SS {MITSUBISHI IýC}HOTEL LOCK/CCD 1
504-305006-10 MACHINE SCREW 3 X 6 B/M (WHITE) 2
FOR POWER
SWITCH
BRACKET
509-305010-00 MACHINE SCREW 3 X 10 KM (BLACK) 2
FOR JACK
PLATE MTG
514-300110-10 SELF-TAPPING SCREW 3 X 10 B/T (WHITE)(HARDEN) 6
FOR F.COVER
TO F.CAB
514-400416-10 SELF-TAPPING SCREW 4 X 16 B/T (HARDEN) 8FOR SPEAKER
HOLDER
514-400435-10 SELF-TAPPING SCREW 4 X 35 B/T (HARDEN) 3
FOR CAB MTG
(BOTTOM)
515-303410-10 SELF-TAPPING SCREW 3 X 10 W/B/T (HARDEN) 31-FOR GEAR
HOLDER,2-FOR
SENSOR PCB
515-303412-10 SELF-TAPPING SCREW 3 X 12 W/B/T (HARDEN) 2
FOR POWER
SWITCH
BRACKET
516-500418-10 SELF-TAPPING SCREW 5 X 18 P/T (HARDEN) HEAD DIA. 9.5MM MAX 84 FOR SPK
HOLDER MTG,4
FOR CRT MTG
516-500420-10 SELF-TAPPING SCREW 5 X 20 P/T (HARDEN) HEAD DIA. 9.5MM MAX 20
FOR CRT MTG
516-500435-10 SEIF-TAPPING SCREW 5X35 P/T (HARDEN) HEAD DIA. 9.5MM MAX 11
FOR CAB MTG
580-101261-01 CABLE TIE L=100MM 12
9-DEGAUSSING
COIL, 2-SPK
WIRE FIXING,1-
SPK WIRE
580-101261-01 CABLE TIE L=100MM 1FOR SPK WIRE

CTF803
PART_NO
DESCRIPTION
QTY
LOCATION
580-102261-00 CABLE TIE L=200MM W=3.5MM 2
FOR
DEGAUSSING
COIL
580-103261-00 CABLE TIE L=300MM W=3.5MM 12
FOR
DEGAUSSING
COIL
611-733A01-00 GIFT BOX-BOTTOM 951(W) X680(D) X 309(H)MM W/HANDLE {K33333K} 1
618-733A01-00 PACKING PAD 2
622-882802-00 FELT L240 X W17 X T0.5MM W/TAPE 30
FOR EARE CAB
AND OTHER
PARTS
630-238010-00 FIBRE WASHER OD=23 , ID=8 T=1MM 12
FOR CRT MTG
723-932002-01 POWER SWITCH BRACKET (NEW) FOR POWER 1
744-881301-00 SPRING FOR C.R.T. MOUNTING 5.2 X 42 X 0.6MM 2
FOR CRT MTG
748-733A01-00 CRT MTG. WASHER 8
FOR CRT MTG
750-063102-01 35MM SOLDERING LUG OD:7 ID:3.2 LEG:4X35MM 2FOR SPK WIRE
750-733A01-00 SOLDERING LUG 2
FOR SPK WIRE
FIXING
777-283301-00 SPRING 1
FOR POWER
KNOB
800-283301-00 POLYFOAM - TOP LEFT W/WOOFER 1
FOR UNIT
800-283302-00 POLYFOAM - TOP RIGHT W/WOOFER 1
FOR UNIT
800-283303-00 POLYFOAM - BOTTOM LEFT 1
FOR UNIT
800-283304-00 POLYFOAM - BOTTOM RIGHT 1
FOR UNIT
810-555204-14 POLYBAG 55"X52"X0.04MM W/PUNCH HOLE RE-CYCLING MARK {P/O MAT} 1
FOR UNIT
822-733A01-00 SPEAKER HOLDER CUSHION 2
FOR SPK
HOLDER
826-503005-00 FOAM SHEET 50" X 30" X 0.5MM THK (APPROX) 1
FOR UNIT TOP
834-230802-00 RUBBER WASHER OD=23, ID=8, T=2 4
FOR CRT MTG
840-011024-21 PAD CORD L240 X W10 X T1 MM W/TAPE 30
FOR FRONT
CAB AND
ORDER PARTS
840-052530-00 RUBBER PAD (ONE SIDE W/TAPE) 2FOR SPEAKER
HOLDER AND
CRT
840-082929-11 RUBBER PAD (ONE SIDE W/TAPE) 42-FOR SPK
HOLDER,2-FOR
BETWEEN SPK
HOLD AND CRT
840-082929-11 RUBBER PAD (ONE SIDE W/TAPE) 3
FOR CRT
918-733A01-00 SPEAKER HOLDER COVER BLACK PP 2
FOR SPK
HOLDER
948-882003-00 DOOR LOCKER 1
954-733A02-00 SPEAKER HOLDER BLACK PP 2
954-733A20-00 CRT MTG. BRACKET 4
954-882100-00 AC LINE CORD CLIP 1
954-882804-00 HIGH VOLTAGE CABLE SPACER 3
FOR FBT
969-282902-00 LIGH GUIDING POST(TRANSPARENT) 1
FOR F.CAB
988-033801-00 GEAR (BLACK MOULDED) 1
989-882801-00 GEAR HOLDER 1
002-134001-4N 34" CRT #M78KXC110X01 S/H (AUS.) {SUPER FLAT} "WANGSANG" 1
003-131325-0K TUNER 38.9 MHZ (WSP) 5V TDQ-3B9/125 "CHENGDU YUGUANG" 1
TUNER

CTF803
PART_NO
DESCRIPTION
QTY
LOCATION
008-120331-05 DEGAUSSING COIL 120T L=3750MM (5 TAPE) #XC-GW 74B "ART-TECH" 1
L903
107-105500-66 SOUND TRAP CERAMIC FILTER 5.5MHZ WEI HAW 1
CF101
107-731500-00 SAW FILTER TSB-5308U (SANYO) 1
SAW101
107-738916-00 SAW FILTER TSF-5316 SANYO 1
SAW102
113-101005-17 CARBON FILM RESISTOR 100 OHM 1/16W +-5% 7
R708,707,716,71
7,(ON
CHANNEL
P.C.B)
R134,801,839
113-101005-17 CARBON FILM RESISTOR 100 OHM 1/16W +-5% 3
R702,715,721
(ON SENSOR
P.C.B)
113-102005-17 CARBON FILM RESISTOR 1K OHM 1/16W +-5% 4
R703,704(ON
CHANNEL
PCB),R701,713(
ON SENSOR
PCB)
113-102005-17 CARBON FILM RESISTOR 1K OHM 1/16W +-5% 1
R341
113-109005-17 CARBON FILM RESISTOR 1 OHM 1/16W +-5% 1
R454
113-151105-17 CARBON FILM RESISTOR 150 OHM 1/4W +-5% 1
R620
113-2215K5-75 METAL OXIDE FILM RES. 220 OHM 3W +-5% "CHAOZHOU SANHUAN" 1
R453
113-223005-17 CARBON FILM RESISTOR 22K OHM 1/16W +-5% 2
R711,712(ON
CHANNEL
P.C.B)
113-229005-17 CARBON FILM RESISTOR 2.2 OHM 1/16W +-5% 1
L104
113-331005-17 CARBON FILM RESISTOR 330 OHM 1/16W +-5% 3
R135,136,137
113-471005-17 CARBON FILM RESISTOR 470 OHM 1/16W +-5% 1
R342
113-472005-17 CARBON FILM RESISTOR 4.7K OHM 1/16W +-5% 3
R722,706,705
(ON CHANNEL
P.C.B)
113-473005-17 CARBON FILM RESISTOR 47K OHM 1/16W +-5% 2
R714,718
(SENSOR
P.C.B)
113-479005-17 CARBON FILM RESISTOR 4.7 OHM 1/16W +-5% 1
R455
113-561005-17 CARBON FILM RESISTOR 560 OHM 1/16W +-5% 1
R343
113-569405-75 METAL OXIDE FILM RESISTOR 5.6 OHM 2W +-5% 1
R501
113-750005-17 CARBON FILM RESISTOR 75 OHM 1/16W +-5% 3
R723,724,710
(ON CHANNEL
P.C.B)
113-821005-17 CARBON FILM RESISTOR 820 OHM 1/16W +-5% 1
R709 (ON
CHANNEL
P.C.B)
123-102350-90 CERAMIC CAP. 0.001 MFD 50V +-10% (B TYPE) 2
C124,125
123-104270-91 CERRAMIC CAP. 0.1 MFD 25V +80 -20% {TAPING TYPE} 3C705(SENSOR
P.C.B),C801,120
123-221350-60 CERAMIC CAP. 220 PF 50V +-10% (SL TYPE) 1
C490
126-152150-41 METALIZED POLYPROPYLENE CAP. 0.0015 MFD 1500VH +-5% 1
C495
126-153630-32 POLYPROPYLENE CAP. 0.015 MFD 630V +-5% "TAIWAN TAIYANG" 1
C464
126-332161-41 METALIZED POLYPROPYLENE CAP. 0.0033 MFD 1600V +-10% 1
C463
126-564211-31 POLYPROPYLENE CAP. 0.56 MFD 250V +-10% 1
C461
127-105042-0C ELECT CAP. 1 MFD 16V +-20% "FOSHAN NO.3" 3
C703,704,706
(CHANNEL
P.C.B)

CTF803
PART_NO DESCRIPTION QTY LOCATION
127-106042-06 ELECT CAP. 10 MFD 16V +-20% {TAPING TYPE} 2C702
(CHANNEL
P.C.B),C701
(SENSOR PCB)
127-225072-28 ELECT. CAP. 2.2 MFD 50V +-20% (NON-POLAR) "JAMICON" 1
FOR MAIN SPK
R `-' TO
TWEETER SPK
`-'
127-225072-28 ELECT. CAP. 2.2 MFD 50V +-20% (NON-POLAR) "JAMICON" 1FOR TWEETOR
SPK
127-477042-06 ELECT CAP. 470 MFD 16V +-20% {TAPING TYPE} 1
C803
130-410051-01 ZENER DIODE 5.1V 1/2W +-5% 1
ZD801
130-610605-00 LED 3MM ROUND (RED/GREEN) BT605 "FOSHAN" 1LED601 (ON
SENSOR P.C.B)
131-211015-02 TRANSISTOR A1015Y "GUANZHOU" 1
Q302
131-231815-02 TRANSISTOR C1815Y "GUANZHOU" 2
Q701,702
(SENSOR
P.C.B)
133-109870-33 I.C. TDA9870A DIGITAL TV SOUND PROCESSOR (DTVSP) W/O NICAM 1
IC201
133-304241-31 I.C. M74HCT241B1 SGS 1
IC103
136-500038-00 REMOTE CONTROL RECEIVER HS0038A2 "TEMIC" 1
OPT601
146-100006-14 POWER SWITCH PS5E-B "CHINA LANDMARK" 1
FOR 190-
88200A-XE
146-104062-19 TACT SWITCH KFC-A06-C2-9.5 "LEQING TUNGHAI" 7
S607,608,609,61
0,611,612,613
160-101001-08 PIN CONNECTOR 1 PIN PLUG STRAIGHT 2
FOR SUB MAIN
BOARD
CN904,CN905
160-104255-27 PIN CONNECTOR 4 PINS PLUG (SHS) 1
CN603
160-105255-27 PIN CONNECTOR 5 PINS WAFER 2.5 PITCH 1
CN411
160-107255-27 PIN CONNECTOR 7 PIN PLUG 1
CN701
161-123501-21 HEADPHONE SOCKET D=3.5MM CHINA=CKX3-3.5 1
P601 (ON
CHANNEL
P.C.B)
161-300102-00 DIN SOCKET W/SWITCH PJ60468-01 "MIKI" 1
JK600
161-470003-00 RCA JACK HYJ-032-03BY YELLOW "MING FUNG" 1
JK601 (ON
CHANNEL
P.C.B)
161-470015-06 RCA JACK 2 PIN WHITE RIGHT ANGEL "HUAJI" 1
JK603 (ON
CHANNEL
P.C.B)
161-473204-01 3 PIN RCA JACK (RED) ANGLE HIJ-032-03AR "UNITRONIC" 1
JK602 (ON
CHANNEL
P.C.B)
166-181912-40 TWEETER SPEAKER 1-1/2" 8 OHM 10W #YDG40-3B-SD "TCL" 2TWEETER SPK
166-281936-4Q SPEAKER 3 X 6" 8 OHM 10W #YDT0816-AP "TIANJIN ZENMAY" 2
1-L MAIN
SPK.`+' TO L
TWEETOR
CAP.,
171-550084-D1 7' SAA APP. LINE CORD W/PLUG E-CUTTING 45MM,15MM PVC HOLDER 1

CTF803
PART_NO
DESCRIPTION
QTY
LOCATION
172-626036-40 UL1007 TOP COAT WIRE AWG26 360MM BLACK 10 X 10MM 2
1-L MAIN SPK .`-
' TO L
TWEETER (-),
172-626036-40 UL1007 TOP COAT WIRE AWG26 360MM BLACK 10 X 10MM 0
1-R MAIN SPK. (-
) TO R
TWEETER (-)
172-626036-43 UL 1007 TOP COAT WIRE AWG 26 360MM ORANGE 10 X 10MM 21-L MAIN SPK
(+)TO `L'
TWEETER CAP
172-626036-43 UL 1007 TOP COAT WIRE AWG 26 360MM ORANGE 10 X 10MM 01-R MAIN SPK.
(+) TO R
TWEETER CAP
172-726000-99 BARE WIRE 54MM 1
J701-
703,W631,198,1
99,336,338,C161
,R164
172-726000-99 BARE WIRE 54MM 0
IC104 `12' TO
`14'
190-283300-10 SENSOR P.C.B W/TWO LED(191199) 1
190-283303-P6 CHANNEL P.C.B (13022000) 1
190-733A10-08 AV P.C.B (301199) 1
190-88200A-XE POWER SWITCH P.C.B. (131196) 1
191-101021-10 1 PIN DOUBLE INSOLATION WIRE #18 UL1672 L=200MM RED 1
FOR POWER
SW P.C.B `B' TO
SUB MAIN
BOARD CN904
191-101022-10 1 PIN DOUBLE INSOLATION WIRE #18 UL1672 L=200MM BLUE 1
FOR POWER
SW P.C.B `A' TO
SUB MAIN
BOARD CN905
191-401041-10 4 PIN FLAT CABLE L=250MM 1CN603 `1' TO
SENSOR P.C.B
191-401041-10 4 PIN FLAT CABLE L=250MM 0
CN705 `1',`2' TO
`2',`3' TO `3',`4'
TO `4'
191-501201-10 5PIN FLAT CABLE ASS'Y L=500MM (1SIED CONNECTOR 1SIED SOCKET) 1
CN703 `1' TO
CN411
`1',`2'TO`2',`3'T
O`3',`4'TO`4',
191-501201-10 5PIN FLAT CABLE ASS'Y L=500MM (1SIED CONNECTOR 1SIED SOCKET) 0
`5'TO`5'.
191-501235-10 5 PIN FLAT CABLE 480MM #26 UL 2547 1 SIDE SOCK,1 SIDE PLUG 1
CN702 `1' TO
CN303
`1',`2'TO`2',`3'T
O`3',`4'TO`4',
191-501235-10 5 PIN FLAT CABLE 480MM #26 UL 2547 1 SIDE SOCK,1 SIDE PLUG 0
`5' TO `5',`6' TO
`NC'
191-701209-10 7 PIN FLAT CABLE L=60MM (1 SIDE SOCKET, 1 SIDE PLUG) 1
CN601 `1' TO
CN701
`1',`2'TO`2',`3'T
O`3',`4'TO`4',

CTF803
PART_NO DESCRIPTION QTY LOCATION
191-701209-10 7 PIN FLAT CABLE L=60MM (1 SIDE SOCKET, 1 SIDE PLUG) 0
`5'TO`5',`6'TO`6'
,`7'TO`7'
515-303408-10 SELF-TAPPING SCREW 3 X 8 W/B/T (HARDEN) 4FOR TWEETER
SPK
515-303410-10 SELF-TAPPING SCREW 3 X 10 W/B/T (HARDEN) 5
FOR AV PCB
610-733A01-00 GIFT BOX TOP - 976(W) X 701(D) X 777(H)MM W/HANDLE {K33333K} 1
810-052204-14 POLYBAG 5" X 22" X 0.04MM W/RE-CYCLING MARK {P/O MAT} 1
FOR AC LINE
884-283321-01 PRESET PLATE - ENG STD W/WHITE S.S {12 KEY} 1
884-733A63-01 JACK COVER - ENG STD W/1-SCART W/AV-2/OUT1/SVHS {11 KEYS} 1
896-882101-00 POWER BOARD COVER (UL) 1
FOR POWER
SWITCH PCB
900-283301-05 FRONT CABINET (A) - SILVER 1008K SPRAY 1
902-733A12-U0 BACK CABINET HI-PS UL 94V0 - BLK {W/O WOOFER} 1
915-283301-00 JACK COVER - BLACK MOULDED 1
915-283302-00 JACK COVER - BLACK MOULDED 1
919-283301-02 PRESET DOOR - ENG STD W/SILVER 1008K SPRAY 1
920-733A04-U0 CHASSIS MTG.BRACKET BLACK ABS UL94V0 (FOR MULT.) 1
929-282903-00 LED BRACKET 1
929-821C01-00 REMOTE BRACKET 1
ONLY USE AS
136-500038-00
939-932010-00 POWER SWITCH ADAPTOR 1
FOR POWER
SWITCH
980-733A04-00 JACK PLATE W/BRASS INSERT (521-882001-00 2PCS) 1
991-283301-03 POWER KNOB - SILVER 1008K SPY 1
180-283350-41-CP
MAIN PCB
001-234434-10 FLYBACK TRANSFORMER JF0101-0134D "SHEKOU JEWEL" 1
T402
012-502340-06 SEMI-FIXED RESISTOR EVND8AA 03B53 5KB 1
VR901
101-160984-94 STANDBY SWITCHING TRANSFORMER KB16E984 "HIGHLIGHT" 1
T907
101-191009-96 HORIZONTAL DRIVE TRANSFORMER (R1009) 1
T401
101-280493-95 LINE FILTER 20MH LB35T493A "HIGHLIGHT" FOR 33" 2
L901,902
101-490145-94 SWITCHING POWER TRANSFORMER KB49C1145K "HIGHLIGHT" 1
T901
102-371700-02 TANK COIL / AFC COIL KH-830898-00 COILS 1
T200
105-100103-08 FIXED INDUCTOR COIL 10 UH +-10% 0410 AXIAL "WITTIS" 2
L101,R151
105-109103-16 FIXED INDUCTIVE COIL 1UH 10% AL0305-1R0K "BOLUO DUIWANG" 1
L102
105-180103-08 FIXED INDUCTIVE COIL 18 UH +-10% 0410 "WITTIS" 1
L602
105-201106-06 CHOKE COIL 200UH HIGHLIGHT 2
L401,904
105-380202-16 LINEARITY COIL 38UH +-20% LX14I322 "HIGHLIGHT" 1
L403
105-479103-08 FIXED INDUCTIVE COIL 4.7 UH 0410-4R7K "WITTIS" 1
L601
105-689103-16 FIXED INDUCTIVE COIL 6.8UH 10% AL0305-6R8K "BOLUO DUIWANG" 1
L105
105-821156-06 CHOKE COIL 820UH 0.37 OHM HIGHLIGHT 1
L402
106-210012-01 RELAY 12V OMIT-SS-112LM ORIGINAL 1
RLY901
113-100005-17 CARBON FILM RESISTOR 10 OHM 1/16W +-5% 4
R102,103,104,21
0
113-100505-75 METAL OXIDE FILM RESISTOR 10 OHM 3W +-5% 1
R464
113-101005-17 CARBON FILM RESISTOR 100 OHM 1/16W +-5% 12
R155,140,141,15
4,211,212,635,1
20,215,216,225,
207
113-101005-17 CARBON FILM RESISTOR 100 OHM 1/16W +-5% 8
R208,825,636,63
1,632,633,639,6
42
