SERVICE MANUAL
CTM689
68 cm CTV
Effective: AUGUST,1997 CTM689SERV

TECHNICAL BULLETIN 28th April 1999
Page 1of 1
MODEL: CT-M6829ST , CTM689ST
PROBLEM: Sound drops off in AV mode when playing Macrovision based tapes.
The problem only occurs when playing Macrovision protected material via AV input.
The modification will also improve flag-waving related problems.
April 99 production onwards is corrected.

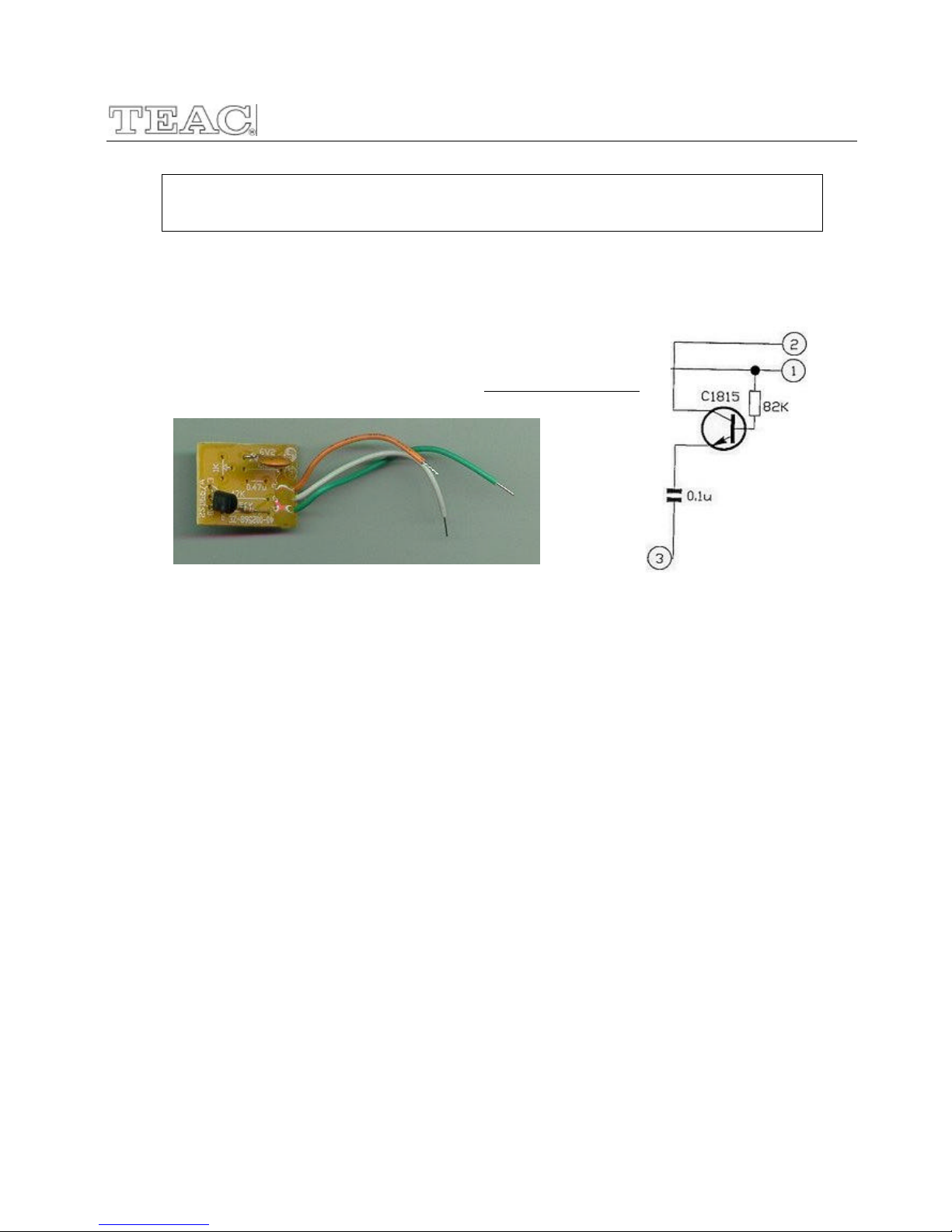

Connect the modification pcb as per directions below. P/N CTM6829MVMOD
Best Regards,
Connection:
∂( Green ) connects to pin 37 of microprocessor.
•( White ) connects to pin 36 of microprocessor.
÷( Orange ) connects to pin 26 of microprocessor.
Affix the board to the top of the microprocessor using some double-sided tape.
Fabian Lubanovic
TEAC Australia Pty Ltd.

PRINTING DATE: 2/4/00 CT-M689ST Parts PAGE 1 / 26
DATE: 21 / 08 / 97 BILLS OF MATERIALS
CUSTOMER: TEAC
MODEL NO.: EC 2988 / CT-M689ST
BOM NO.: 03-2988MD-A34
SYSTEM: PAL SECAM BG DK NTSC PLAYBACK CABLE TUNER GERMAN
STEREO 8 PAGE TELETEXT BUILT-IN WOOFER AV IN / OUT 50P
Assembly Parts Description Location
08-261770-001 ASS'Y - DPC BOARD
08-261770-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D1401
08-261770-001 10-79C12V-DB1 DIODE ZENER 12V 1/2W 5% D1403
08-261770-001 10-79C12V-DB1 DIODE ZENER 12V 1/2W 5% D1404
08-261770-001 11-SA1015-YB1 TRANSISTOR 2SA1015Y Q1404
08-261770-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q1405
08-261770-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q1406
08-261770-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q1407
08-261770-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q1408
08-261770-001 11-SD1499-QA1 TRANSISTOR 2SD1499Q (POWER) Q1403
08-261770-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R1442
08-261770-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R1445
08-261770-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R1447
08-261770-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R1440
08-261770-001 18-CB0122-JNX RES. C.F. 1.2K OHM 1/6W +/-5% R1435
08-261770-001 18-CB0122-JNX RES. C.F. 1.2K OHM 1/6W +/-5% R1467
08-261770-001 18-CB0152-JNX RES. C.F. 1.5K OHM 1/6W +/-5% R1444
08-261770-001 18-CB0183-JNX RES. C.F. 18K OHM 1/6W +/-5% R1434
08-261770-001 18-CB0222-JNX RES. C.F. 2.2K OHM 1/6W +/-5% R1437
08-261770-001 18-CB0222-JNX RES. C.F. 2.2K OHM 1/6W +/-5% R1446
08-261770-001 18-CB0222-JNX RES. C.F. 2.2K OHM 1/6W +/-5% R1461
08-261770-001 18-CB0223-JNX RES. C.F. 22K OHM 1/6W +/-5% R1466
08-261770-001 18-CB0272-JNX RES. C.F. 2.7K OHM 1/6W +/-5% R1458
08-261770-001 18-CB0274-JNX RES. C.F. 270K OHM 1/6W +/-5% R1441
08-261770-001 18-CB0274-JNX RES. C.F. 270K OHM 1/6W +/-5% R1460
08-261770-001 18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% R1438
08-261770-001 18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% R1449
08-261770-001 18-CB0393-JNX RES. C.F. 39K OHM 1/6W +/-5% R1450
08-261770-001 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% R1457
08-261770-001 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% R1459
08-261770-001 18-CB0752-JNX RES. C.F. 7.5K OHM 1/6W +/-5% R1448
08-261770-001 18-CD0122-JNX RES. C.F. 1.2K OHM 1/4W +/-5% R1453
08-261770-001 18-CD0222-JNX RES. C.F. 2.2K OHM 1/4W +/-5% R1452
08-261770-001 18-CD0392-JNX RES. C.F. 3.9K OHM 1/4W +/-5% R1431
08-261770-001 18-DD0183-FN1 RES. M.F. 18K OHM 1/4W +/-1% R1443
08-261770-001 18-DD0184-FN1 RES. M.F. 180K OHM 1/4W +/-1% R1439
08-261770-001 18-FE0121-JXX RES. M.O. 120 OHM 1/2W +/-5% R1432
08-261770-001 18-FG0339-JH1 RES. M.O. 3.3 OHM 2W +/-5% R1430
08-261770-001 20-141630-502 TRIMMER B5K VERT TYPE VR1405
08-261770-001 20-201260-203 TRIMMER B20K VERT TYPE VR1406
08-261770-001 25-264610-M11 CAP. ELEC 4.7UF 50V +/-20% NP C1451
08-261770-001 25-BEA471-M11 CAP. ELEC 470 UF 35V +/-20% C1454
08-261770-001 25-BEB101-M11 CAP. ELEC 100 UF 35V +/-20% C1452
08-261770-001 25-BEB470-M11 CAP. ELEC 47UF 35V +/-20% C1453
08-261770-001 25-BFB479-M11 CAP. ELEC 4.7 UF 50V +/-20% C1460
08-261770-001 25-FEB330-M11 CAP. ELEC 33 UF 35V +/-20% N.P C1457
08-261770-001 25-FEB330-M11 CAP. ELEC 33 UF 35V +/-20% N.P C1458
08-261770-001 27-PBC104-J01 CAP. P.E. 0.1 UF 50V +/-5% C1455
08-261770-001 27-PBC104-J01 CAP. P.E. 0.1 UF 50V +/-5% C1456
08-261770-001
36-264520-008
COIL LINEARITY 800 UH
L1405

PRINTING DATE: 2/4/00 CT-M689ST Parts PAGE 2 / 26
Assembly Parts Description Location
08-261770-001 40-262751-0AE P.C.B. DPC BD
08-261770-001 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM J1401A
08-261770-001 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM J1402
08-261770-001 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM J1403
08-261770-001 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM J1405
08-261770-001 46-21550W-037 HEADER *3 TS3B-SQ-1
08-261770-001 63-B3508H-0B4 S/T SCREW B 3.5 X 8 B HARD
08-261770-001 64-P3010X-104 M/C SCREW P 3 X 10
08-261770-001 65-Z3005X-23M NUT M 3
08-261770-001 67-229340-2A0 HEAT SINK DPC
08-261770-001 99-217425-00X UL ELEC. TAPE 19(W) X 50(L)MM
08-264250-002 ASS'Y - STEREO PARTS
08-264250-002 10-79C5V1-DB1 DIODE ZENER 5.1V 1/2W 5% D603
08-264250-002 11-SA1015-YB1 TRANSISTOR 2SA1015Y Q602
08-264250-002 13-0TDA84-15P IC TDA8415 IC604
08-264250-002 13-0TDA98-21P IC TDA9821 IC603
08-264250-002 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R624
08-264250-002 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R633
08-264250-002 18-CB0122-JNX RES. C.F. 1.2K OHM 1/6W +/-5% R626
08-264250-002 18-CB0122-JNX RES. C.F. 1.2K OHM 1/6W +/-5% R627
08-264250-002 18-CB0150-JNX RES. C.F. 15 OHM 1/6W +/-5% R630
08-264250-002 18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% R628
08-264250-002 18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% R629
08-264250-002 18-CB0224-JNX RES. C.F. 220K OHM 1/6W +/-5% R632
08-264250-002 18-CB0273-JNX RES. C.F. 27K OHM 1/6W +/-5% R625
08-264250-002 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% R622
08-264250-002 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% R623
08-264250-002 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R631
08-264250-002 18-FF0101-JGX RES. M.O. 100 OHM 1W +/-5% R634
08-264250-002 20-202990-502 TRIMMER B5K HORIZ TYPE VR601
08-264250-002 25-BCA221-M11 CAP. ELEC 220 UF 16V +/-20% C632
08-264250-002 25-BCB100-M11 CAP. ELEC 10 UF 16V +/-20% C639
08-264250-002 25-BCB229-M11 CAP. ELEC 2.2 UF 16V +/-20% C641
08-264250-002 25-BCB229-M11 CAP. ELEC 2.2 UF 16V +/-20% C633
08-264250-002 25-BCB229-M11 CAP. ELEC 2.2 UF 16V +/-20% C634
08-264250-002 25-BCB229-M11 CAP. ELEC 2.2 UF 16V +/-20% C635
08-264250-002 25-BCB229-M11 CAP. ELEC 2.2 UF 16V +/-20% C636
08-264250-002 25-BCB229-M11 CAP. ELEC 2.2 UF 16V +/-20% C637
08-264250-002 26-ABC103-ZFX CAP. CER 0.01 UF 50V +80-20% F C640
08-264250-002 26-ABC223-ZFX CAP. CER 0.022UF 50V +80-20% F C631
08-264250-002 27-MBC224-J01 CAP. M. P.E. 0.22 UF 50V +/-5% C638
08-264250-002 34-R120J2-0EX COIL PL - 12 UH +/-5% L601
08-264250-002 45-107741-401 CER. FILTER 6.5MHZ Z603
08-264250-002 45-228590-100 CRYSTAL 10MHZ X601
08-264250-002 45-269230-40H CERAMIC FILTER SFT5.74MA Z601
08-264250-002 45-269240-40H CERAMIC FILTER SFT5.5MA Z602
08-270340-002 ASS'Y - BAZOOKA HOLDER
08-270340-002 42-246360-006 SPEAKER 11.4CM 8 OHM 15W
08-270340-002 62-240940-0HA BAZOOKA HOLDER A
08-270340-002 62-240950-0HA BAZOOKA HOLDER B
08-270340-002 63-P3014X-AB4 S/T SCREW P 3 X 14 AB
08-270340-002 63-P3014X-BT4 S/T SCREW P 3 X 14 BT
08-270340-002 65-A40090-06E WASHER 4 X 9 X 0.6 MM
08-270340-002 71-247820-0A0 LABEL FOR WOOFER (BLACK)
08-274690-001
02-274410-001
IR RECEIVER MODULE SBX8031-F

PRINTING DATE: 2/4/00 CT-M689ST Parts PAGE 3 / 26
Assembly Parts Description Location
08-274690-001 40-274000-0DB P.C.B IR PREAMP BD (25&29)
08-274690-001 41-AJ0060-BEE WIRE BARE JUMPER 6MM J01301
08-274690-001 67-235880-1T0 SHIELD CAN - IR PRE-AMP
08-275151-001 ASS'Y - MAIN BOARD
08-275151-001 07-2900KK-C3X TUNER 2900KKC-3X1784 (CABLE) TU101
08-275151-001 10-0FR104-EB1 DIODE FR104 (FAST RECOVERY) D407A
08-275151-001 10-0FR104-EB1 DIODE FR104 (FAST RECOVERY) D401
08-275151-001 10-0FR104-EB1 DIODE FR104 (FAST RECOVERY) D421
08-275151-001 10-0FR105-EB1 DIODE FR105 (FAST RECOVERY) D403
08-275151-001 10-0RS3FS-E01 DIODE RS3FS (FAST RECOVERY) D422
08-275151-001 10-1N4001-EB1 DIODE 1N4001 (RECTIFIER) D301
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D602
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D601
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D316
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D01
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D02
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D03
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D04
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D008
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D011
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D010
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D012
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D013
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D206
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D014
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D006
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D007
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D201
08-275151-001 10-1N4148-AB1 DIODE 1N4148 (SWITCHING) D222
08-275151-001 10-79B5V6-DB1 DIODE ZENER 5.6V 1/2W 2% D210
08-275151-001 10-79C12V-DB1 DIODE ZENER 12V 1/2W 5% D407
08-275151-001 10-79C20V-DB1 DIODE ZENER 20V 1/2W 5% D432
08-275151-001 10-79C5V1-DB1 DIODE ZENER 5.1V 1/2W 5% D834A
08-275151-001 10-79C5V6-DB1 DIODE ZENER 5.6V 1/2W 5% D901
08-275151-001 10-79C6V2-DB1 DIODE ZENER 6.2V 1/2W 5% D211
08-275151-001 10-79C7V5-DB1 DIODE ZENER 7.5V 1/2W 5% D208
08-275151-001 10-79C9V1-DB1 DIODE ZENER 9.1V 1/2W 5% D217
08-275151-001 10-HZ9LA3-DB1 DIODE ZENER 8.1V-8.5V 1/2W D433
08-275151-001 10-PC574J-DJ1 DIODE ZENER UPC 574J D004
08-275151-001 11-0BC558-0B1 TRANSISTOR BC558 Q210
08-275151-001 11-0BC558-0B1 TRANSISTOR BC558 Q211
08-275151-001 11-2N3904-0B1 TRANSISTOR 2N3904 Q007
08-275151-001 11-SA1015-YB1 TRANSISTOR 2SA1015Y Q811A
08-275151-001 11-SA1015-YB1 TRANSISTOR 2SA1015Y Q903
08-275151-001 11-SA1015-YB1 TRANSISTOR 2SA1015Y Q203
08-275151-001 11-SA1015-YB1 TRANSISTOR 2SA1015Y Q204
08-275151-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q901
08-275151-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q902
08-275151-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q904
08-275151-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q905
08-275151-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q906
08-275151-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q201
08-275151-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q601
08-275151-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q207
08-275151-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q202
08-275151-001
11-SC1815-YB1
TRANSISTOR 2SC1815Y
Q001

PRINTING DATE: 2/4/00 CT-M689ST Parts PAGE 4 / 26
Assembly Parts Description Location
08-275151-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q002
08-275151-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q008
08-275151-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q006
08-275151-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q12
08-275151-001 11-SC1815-YB1 TRANSISTOR 2SC1815Y Q13
08-275151-001 11-SC2230-YB1 TRANSISTOR 2SC2230Y Q810A
08-275151-001 11-SC4544-0A1 TRANSISTOR 2SC4544 Q411
08-275151-001 11-SD2539-0A1 TRANSISTOR 2SD2539 Q421
08-275151-001 11-TC144E-SB1 TRANSISTOR DTC144ES (TP) Q208
08-275151-001 11-TC144E-SB1 TRANSISTOR DTC144ES (TP) Q604
08-275151-001 11-TC144E-SB1 TRANSISTOR DTC144ES (TP) Q01
08-275151-001 11-TC144E-SB1 TRANSISTOR DTC144ES (TP) Q213
08-275151-001 11-TC144E-SB1 TRANSISTOR DTC144ES (TP) Q212
08-275151-001 11-TC144E-SB1 TRANSISTOR DTC144ES (TP) Q205
08-275151-001 11-TC144E-SB1 TRANSISTOR DTC144ES (TP) Q206
08-275151-001 13-000040-53P IC 4053 (ANALOG SW) IC901
08-275151-001 13-00LA78-33S IC LA7833 IC301
08-275151-001 13-0DBL20-44S IC DBL2044(BAND SELECT) IC103
08-275151-001 13-0TA763-0PP IC TA7630P (DC VOL.CONT.) IC602
08-275151-001 13-P47C83-4AP IC TMP47C834N-LK-5140M2A(RB11) IC001
08-275151-001 13-ST24C0-2FP IC ST24C02FB6 EEPROM 2K IC002
08-275151-001 13-TA8759-BNP IC TA8759BN IC201
08-275151-001 13-TDA200-9AS IC TDA2009A (AUDIO O/P) IC601
08-275151-001 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% R901
08-275151-001 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% R903
08-275151-001 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% R045
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% J260
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R834A
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R904
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R910
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R921
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R922
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R210
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R321
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R324
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R604
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R606
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R220
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R215
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R280
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R043
08-275151-001 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R209
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R836A
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R613
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R615
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R616
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R614
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R618
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R620
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R403
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R404
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R248
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R036
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R249
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R165
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R044
08-275151-001
18-CB0103-JNX
RES. C.F. 10K OHM 1/6W +/-5%
R034

PRINTING DATE: 2/4/00 CT-M689ST Parts PAGE 5 / 26
Assembly Parts Description Location
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R279
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R007
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R049
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R051
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R056
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R064
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R290
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R293
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R050
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R055
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R260
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R003
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R001
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R054
08-275151-001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R295
08-275151-001 18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% R835A
08-275151-001 18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% R039
08-275151-001 18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% R124
08-275151-001 18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% R002
08-275151-001 18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% R004
08-275151-001 18-CB0105-JNX RES. C.F. 1M OHM 1/6W +/-5% R304
08-275151-001 18-CB0105-JNX RES. C.F. 1M OHM 1/6W +/-5% R381
08-275151-001 18-CB0105-JNX RES. C.F. 1M OHM 1/6W +/-5% R163
08-275151-001 18-CB0105-JNX RES. C.F. 1M OHM 1/6W +/-5% R164
08-275151-001 18-CB0109-JNX RES. C.F. 1 OHM 1/6W +/-5% R602
08-275151-001 18-CB0109-JNX RES. C.F. 1 OHM 1/6W +/-5% R603
08-275151-001 18-CB0121-JNX RES. C.F. 120 OHM 1/6W +/05% R228
08-275151-001 18-CB0122-JNX RES. C.F. 1.2K OHM 1/6W +/-5% R266
08-275151-001 18-CB0122-JNX RES. C.F. 1.2K OHM 1/6W +/-5% R208
08-275151-001 18-CB0123-JNX RES. C.F. 12K OHM 1/6W +/-5% R032
08-275151-001 18-CB0123-JNX RES. C.F. 12K OHM 1/6W +/-5% R038
08-275151-001 18-CB0123-JNX RES. C.F. 12K OHM 1/6W +/-5% R029
08-275151-001 18-CB0123-JNX RES. C.F. 12K OHM 1/6W +/-5% R253
08-275151-001 18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% R234
08-275151-001 18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% R233
08-275151-001 18-CB0152-JNX RES. C.F. 1.5K OHM 1/6W +/-5% R273
08-275151-001 18-CB0152-JNX RES. C.F. 1.5K OHM 1/6W +/-5% R272
08-275151-001 18-CB0152-JNX RES. C.F. 1.5K OHM 1/6W +/-5% R023
08-275151-001 18-CB0152-JNX RES. C.F. 1.5K OHM 1/6W +/-5% R231
08-275151-001 18-CB0153-JNX RES. C.F. 15K OHM 1/6W +/-5% R499
08-275151-001 18-CB0153-JNX RES. C.F. 15K OHM 1/6W +/-5% R035
08-275151-001 18-CB0153-JNX RES. C.F. 15K OHM 1/6W +/-5% R030
08-275151-001 18-CB0153-JNX RES. C.F. 15K OHM 1/6W +/-5% R021
08-275151-001 18-CB0153-JNX RES. C.F. 15K OHM 1/6W +/-5% R018
08-275151-001 18-CB0154-JNX RES. C.F. 150K OHM 1/6W +/-5% R608
08-275151-001 18-CB0154-JNX RES. C.F. 150K OHM 1/6W +/-5% R609
08-275151-001 18-CB0155-JNX RES. C.F. 1.5M OHM 1/6W +/-5% R270
08-275151-001 18-CB0181-JNX RES. C.F. 180 OHM 1/6W +/-5% R218
08-275151-001 18-CB0182-JNX RES. C.F. 1.8K OHM 1/6W +/-5% R205
08-275151-001 18-CB0182-JNX RES. C.F. 1.8K OHM 1/6W +/-5% R292
08-275151-001 18-CB0182-JNX RES. C.F. 1.8K OHM 1/6W +/-5% R206
08-275151-001 18-CB0182-JNX RES. C.F. 1.8K OHM 1/6W +/-5% R217
08-275151-001 18-CB0183-JNX RES. C.F. 18K OHM 1/6W +/-5% R028
08-275151-001 18-CB0184-JNX RES. C.F. 180K OHM 1/6W +/-5% R254
08-275151-001 18-CB0185-JNX RES. C.F. 1.8M OHM 1/6W +/-5% R268
08-275151-001 18-CB0202-JNX RES. C.F. 2K OHM 1/6W +/-5% R252
08-275151-001
18-CB0220-JNX
RES. C.F. 22 OHM 1/6W +/-5%
R14

PRINTING DATE: 2/4/00 CT-M689ST Parts PAGE 6 / 26
Assembly Parts Description Location
08-275151-001 18-CB0220-JNX RES. C.F. 22 OHM 1/6W +/-5% R15
08-275151-001 18-CB0220-JNX RES. C.F. 22 OHM 1/6W +/-5% R16
08-275151-001 18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% R447
08-275151-001 18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% R262
08-275151-001 18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% R005
08-275151-001 18-CB0222-JNX RES. C.F. 2.2K OHM 1/6W +/-5% R924
08-275151-001 18-CB0222-JNX RES. C.F. 2.2K OHM 1/6W +/-5% R925
08-275151-001 18-CB0222-JNX RES. C.F. 2.2K OHM 1/6W +/-5% R911
08-275151-001 18-CB0222-JNX RES. C.F. 2.2K OHM 1/6W +/-5% R212
08-275151-001 18-CB0222-JNX RES. C.F. 2.2K OHM 1/6W +/-5% R213
08-275151-001 18-CB0223-JNX RES. C.F. 22K OHM 1/6W +/-5% R01
08-275151-001 18-CB0223-JNX RES. C.F. 22K OHM 1/6W +/-5% R261
08-275151-001 18-CB0223-JNX RES. C.F. 22K OHM 1/6W +/-5% R042
08-275151-001 18-CB0223-JNX RES. C.F. 22K OHM 1/6W +/-5% R263
08-275151-001 18-CB0223-JNX RES. C.F. 22K OHM 1/6W +/-5% R014
08-275151-001 18-CB0224-JNX RES. C.F. 220K OHM 1/6W +/-5% R905
08-275151-001 18-CB0224-JNX RES. C.F. 220K OHM 1/6W +/-5% R906
08-275151-001 18-CB0242-JNX RES. C.F. 2.4K OHM 1/6W +/-5% R410
08-275151-001 18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% R221
08-275151-001 18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% R222
08-275151-001 18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% R223
08-275151-001 18-CB0272-JNX RES. C.F. 2.7K OHM 1/6W +/-5% R255
08-275151-001 18-CB0273-JNX RES. C.F. 27K OHM 1/6W +/-5% R235
08-275151-001 18-CB0274-JNX RES. C.F. 270K OHM 1/6W +/-5% R236
08-275151-001 18-CB0274-JNX RES. C.F. 270K OHM 1/6W +/-5% R274
08-275151-001 18-CB0302-JNX RES. C.F. 3K OHM 1/6W +/-5% R240
08-275151-001 18-CB0330-JNX RES. C.F. 33 OHM 1/6W +/-5% R605
08-275151-001 18-CB0330-JNX RES. C.F. 33 OHM 1/6W +/-5% R607
08-275151-001 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% R915
08-275151-001 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% R923
08-275151-001 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% R912
08-275151-001 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% R916
08-275151-001 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% R281
08-275151-001 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% R636
08-275151-001 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% R446
08-275151-001 18-CB0332-JNX RES. C.F. 3.3K OHM 1/6W +/-5% R323
08-275151-001 18-CB0332-JNX RES. C.F. 3.3K OHM 1/6W +/-5% R278
08-275151-001 18-CB0332-JNX RES. C.F. 3.3K OHM 1/6W +/-5% R13
08-275151-001 18-CB0332-JNX RES. C.F. 3.3K OHM 1/6W +/-5% R11
08-275151-001 18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% R020
08-275151-001 18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% R031
08-275151-001 18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% R305
08-275151-001 18-CB0362-JNX RES. C.F. 3.6K OHM 1/6W +/-5% R040
08-275151-001 18-CB0391-JNX RES. C.F. 390 OHM 1/6W +/-5% R251
08-275151-001 18-CB0393-JNX RES. C.F. 39K OHM 1/6W +/-5% R306
08-275151-001 18-CB0393-JNX RES. C.F. 39K OHM 1/6W +/-5% R173
08-275151-001 18-CB0470-JNX RES. C.F. 47 OHM 1/6W +/-5% R066
08-275151-001 18-CB0470-JNX RES. C.F. 47 OHM 1/6W +/-5% R068
08-275151-001 18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% R265
08-275151-001 18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% R048
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R617
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R619
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R907
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R908
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R015
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R033
08-275151-001
18-CB0472-JNX
RES. C.F. 4.7K OHM 1/6W +/-5%
R027

PRINTING DATE: 2/4/00 CT-M689ST Parts PAGE 7 / 26
Assembly Parts Description Location
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R232
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R168
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R170
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R171
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R172
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R022
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R242
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R216
08-275151-001 18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% R409
08-275151-001 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% R638
08-275151-001 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% R639
08-275151-001 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% R246
08-275151-001 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% R203
08-275151-001 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% R016
08-275151-001 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% R257
08-275151-001 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% R166
08-275151-001 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% R006
08-275151-001 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% R024
08-275151-001 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% R12
08-275151-001 18-CB0475-JNX RES. C.F. 4.7M OHM 1/6W +/-5% R271
08-275151-001 18-CB0511-JNX RES. C.F. 510 OHM 1/6W +/-5% R276
08-275151-001 18-CB0511-JNX RES. C.F. 510 OHM 1/6W +/-5% R230
08-275151-001 18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% R913
08-275151-001 18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% R269
08-275151-001 18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% R201
08-275151-001 18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% R237
08-275151-001 18-CB0562-JNX RES. C.F. 5.6K OHM 1/6W +/-5% R611
08-275151-001 18-CB0562-JNX RES. C.F. 5.6K OHM 1/6W +/-5% R612
08-275151-001 18-CB0562-JNX RES. C.F. 5.6K OHM 1/6W +/-5% R026
08-275151-001 18-CB0562-JNX RES. C.F. 5.6K OHM 1/6W +/-5% R291
08-275151-001 18-CB0562-JNX RES. C.F. 5.6K OHM 1/6W +/-5% R025
08-275151-001 18-CB0563-JNX RES. C.F. 56K OHM 1/6W +/-5% R126
08-275151-001 18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% R909
08-275151-001 18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% R037
08-275151-001 18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% R227
08-275151-001 18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% R294
08-275151-001 18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% R067
08-275151-001 18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% R065
08-275151-001 18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% R046
08-275151-001 18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% R047
08-275151-001 18-CB0683-JNX RES. C.F. 68K OHM 1/6W +/-5% R057
08-275151-001 18-CB0683-JNX RES. C.F. 68K OHM 1/6W +/-5% R058
08-275151-001 18-CB0683-JNX RES. C.F. 68K OHM 1/6W +/-5% R060
08-275151-001 18-CB0750-JNX RES. C.F. 75 OHM 1/6W +/-5% R920
08-275151-001 18-CB0820-JNX RES. C.F. 82 OHM 1/6W +/-5% R914
08-275151-001 18-CB0821-JNX RES. C.F. 820 OHM 1/6W +/-5% R264
08-275151-001 18-CB0821-JNX RES. C.F. 820 OHM 1/6W +/-5% R214
08-275151-001 18-CB0822-JNX RES. C.F. 8.2K OHM 1/6W +/-5% R202
08-275151-001 18-CB0822-JNX RES. C.F. 8.2K OHM 1/6W +/-5% R238
08-275151-001 18-CB0822-JNX RES. C.F. 8.2K OHM 1/6W +/-5% R204
08-275151-001 18-CB0823-JNX RES. C.F. 82K OHM 1/6W +/-5% R125
08-275151-001 18-CD0221-JNX RES. C.F. 220 OHM 1/4W +/-5% R833A
08-275151-001 18-CD0222-JNX RES. C.F. 2.2K OHM 1/4W +/-5% R017
08-275151-001 18-CE0822-JNX RES. C.F. 8.2K OHM 1/2W +/-5% R167
08-275151-001 18-DF0129-JGX RES. M.F 1.2 OHM 1W +/-5% R307
08-275151-001 18-EG0109-JH1 RES. FUS 1 OHM 2W +/-5% R406
08-275151-001
18-FE0121-JXX
RES. M.O. 120 OHM 1/2W +/-5%
R308
