teca RLC-1402HC User manual

ProductInformationPacket
ModelRLC-1402HC
19”RackMountSolidStateLiquidChiller
withIntegralTC-3300TemperatureControl
Part#8-B0D2-1-000
Thankyouforyourpurchase.Informationhasbeenenclosedregardingthe
installation,specifications,andwiringofyoursolidstateassembly.
Pleasereadandfollowallinstructionscarefullybeforeinstallation.Only
qualifiedtechniciansshouldinstallthisequipment.
Ifyouhaveanyquestionswithyourequipment,pleasedonothesitatetocall
ustollfreeat(888)TECA-USA(832-2872),wewillbehappytoassist.We
areopenfrom8:00amto4:30pmCentralTime.
Includedinthispacketyouwillfind:
GettingStarted
ProductLiteratureandSpecifications
WiringDrawing#SK040202

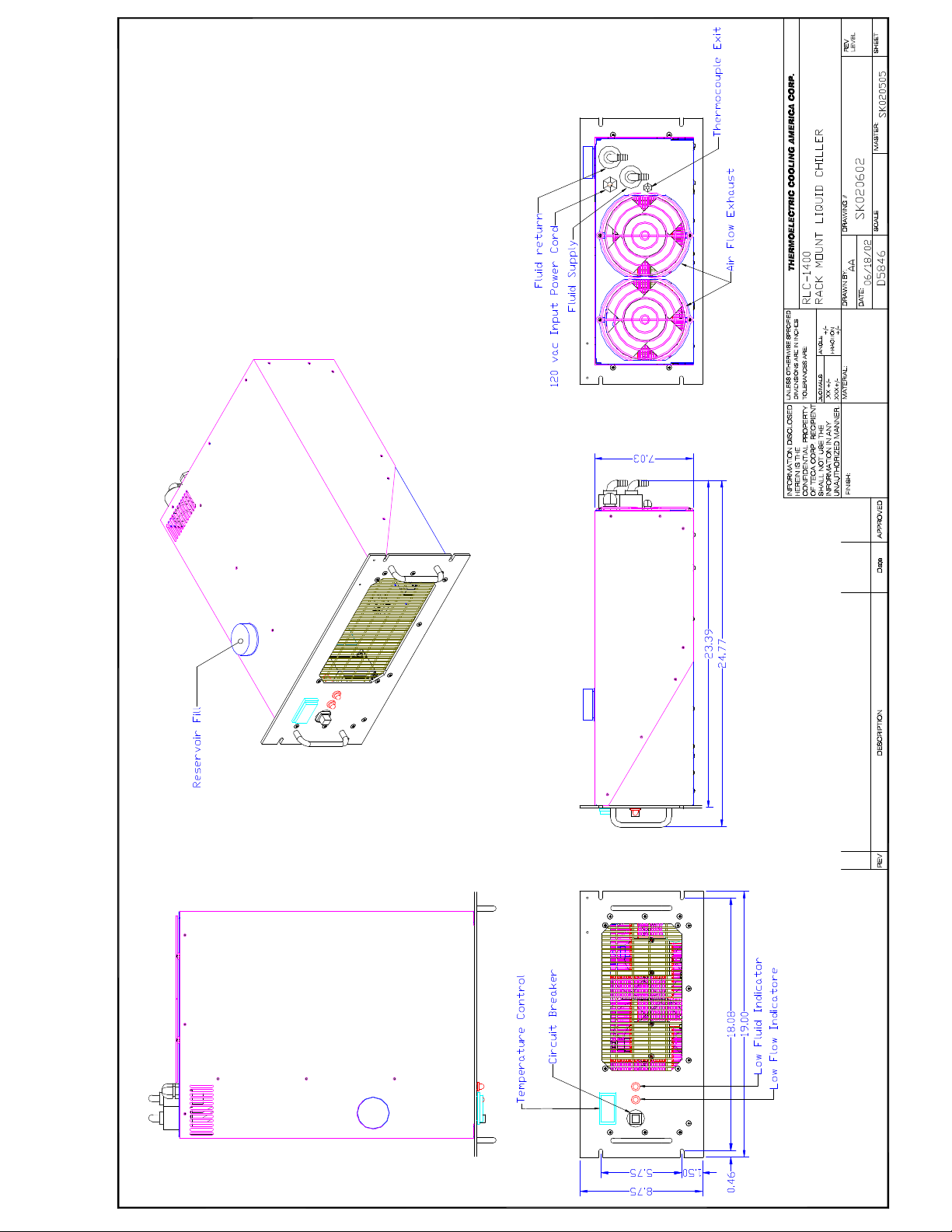

AssemblyDrawing#SK020602
TemperatureControlLiteratureSet-UpandCommunicationsInformation
WarrantyInformation
TC-3300Manual

Positionthistubingupwards
whilefillingthelines
Loadtobecooled
GETTINGSTARTED:
(Readentireinstructionsbeforeoperating)
Thisunitshouldoperatewiththebottomfeetrestingonaflatsurface.Theinternalheatexchangeriscooledbya
tubeaxialfan.Itisnecessarytokeeptheinlet/outletairpathfreefromanyrestrictionsthatmayimpedeyourcooling
performance.A6"minimumspacingfromtherearoftheunittoanyobstructionisrequired.Externaltubingwithinsulationhas
beenprovidedforatotalof12'plumbingline.Trimthetubingandinsulationasnecessarytominimizetheambientthermal
load.4clampshavebeenprovidedtoattachthetubing(2tothequickconnectorsprovidedand2foryourloadconnectors).
Thetubinglinesarea3/8"innerdiameter.Connecttheexternalplumbinglinestothedevice(s)beingcooled.
Lowfluidandlowflowindicatorshavebeenprovidedonthefrontpanel.Itisnecessarytofilltheinternalreservoir
beforeyouapplypower.Theinternalreservoirholdsapproximately500
mloffluid.The“addfluid”lightwillcomeonwhenthereservoirisapproximately½full.Thereisavisualindicatorofthewater
levelonthesideoftheunit.Distilledwateristherecommendedfluidfortemperaturesto5C.Fortemperaturesbelow5C,a
30%glycol70%distilledwatermixissuggested.Removethereservoircaplocatedatthetopleftcorneroftheunitand fillthe
reservoir.Keepthereservoircapoffuntiltheexternalplumbingisfilledandthereservoiristoppedoff.
Connectthepowercordtoanappropriateoutlet.Thepowercordmustbeconnectedtoareceptacle
protectedbyacircuitprotectedperlocalandornationalcodes.Whileyouarefillingtheexternallines,positionthesupply
quickconnectupwards.(SeeFigureA)Thiswillassistinremovingairtrappedinthelines.Atthispoint,depressthe power switch
onthefrontpaneltoturnthesystemon.Fora12'plumbingline,itshouldtakeabout30secondsbeforethe“addfluid”light
illuminates.Atthispoint,turnthepoweroffandaddadditionalfluid.Re-applypower.Another30secondsorsoshouldbe
enoughtimetocompletelyfillthelines.Turnoffthepowerswitchandtopoffthereservoir.Reattachthereservoircapsecurely.
PleaseNote:Itmaybenecessarytoaddfluidtothereservoirfromtimetotime.The“addfluid”indicatorwillilluminateifthe
reservoirrequiresarefill.Ifthe“lowflow”indicatorlightappears,checktosee ifthereareanyobstructionsorleakswithinthe
plumbinglines.
The“lowflow”indicatorappearswhentheflowisapproximately0.3liter/minorless.
Adigitaltemperaturecontrollerhasbeenprovided.Holdthe*buttonandadjusttoadjustthesetpoint.More
detailedtemperaturecontrolinformationhasbeenincludedwithyourproductinformationpacket.Wesuggestchangingthe
temperaturecontrollersprogrammingtoaPIDcontrolmethodandthenperforminganautotuneforbettertemperature control.
WehopeyouenjoyyournewAmeritemp™seriesliquidchiller.Ifyouhaveanyquestions,pleasedonothesitatetocallour
technicaldepartment@888-TECA-USA(888-832-2872).
STEP#1
STEP#2
STEP#3
STEP#4
FAILURETODOSOMAYRESULTINDAMAGETOTHEPUMP
EE
?>

RLC-1400 Rack Mount Liquid Chiller
Air Cooled
Rack Mount
FEATURES
•Compact only 19” x 25” x 9”
•Standard 19” rack mounting
•Integral PID “Tuneable” temperature control
•Remote sense capability
•Ambients to +50ºC
•No compressor, fluorocarbons
•Virtually maintenance-free operation
•Stainless steel exterior housing
•Low fluid/flow warning
INCLUDES
•Integral power supply
•Self priming pump/reservoir
•TC-3300 temperature Control
•Remote sense capability
•Low pressure drop fluid quick connects
62 TECA 1-888-TECA-USA (832-2872) www.teca-usa.com
SPECIFICATIONS
PERFORMANCE VOLTAGE CURRENT WEIGHT MAX HEATING OPTION FLUID
MODEL PART NUMBER RATING VAC AMPS. LBS. (KG) OPERATING (HC SUFFIX)TEMP
BTU/HR 50/60 HZ AMBIENT RANGE °C
RLC-1400 8-B0D0-0-000 1400-1450 120 VAC 7.0 59(26.7) 50 °C(+122 F) -5/65
RLC-1400HC 8-B0D0-1-000 1400-1450 120 VAC 7.0 59(26.7) 50 °C(+122 F) 400 Watt -5/65
RLC-1402 6-B0D2-0-000 1400-1450 240 VAC 7.0 59(26.7) 50 °C(+122 F) -5/65
RLC-1402HC 6-B0D2-1-000 1400-1450 240 VAC 7.0 59(26.7) 50 °C(+122 F) 400 Watt -5/65
APPLICATIONS
Teca Liquid Chillers are ideal for rack
mount applications such as laboratory,
laser, x-ray, out-patient, medical therapy
and electronics.
OPTIONS
•Heating
•RS-232 or RS-485 interface
•Computer communication software

DIMENSIONS
PERFORMANCE CURVE
63www.teca-eu.com 1-888-TECA-USA (832-2872) TECA
Dimensions are inches
COOLING CAPACITY
410 Watts @ 0 °C DT
RLC-1400
Air Cooled Liquid Chillers
Equation of line: y=DT(°C) x=Capacity (Watts)
Ambient Temp 25°C 50°C
Fluid Supply y=.08x-33.1 y=.08x-36.1

TC-3300SETUP(ON/OFFSTYLE)
LEVEL1: LEVEL3:
tune off Outputconfiguration LEVEL4:
bAnd 0.5 sp1.d ssd1 Lock nonE
int.t 5.0 sp2.d ssd2 Prog Auto
dEr.t 25 burn 1u.2d no.AL on
dAc 1.5 rEu.d 1r.2r dis.s 6
cyc.t on.off reu.L 1n.2n dEr.s 0.5
oFst 0spAn 0.0
sp.Lk off zEro 0.0 LEVELC:
sprr 0chEk off COMMSmenu
sprn off rEAd Var Addr 1
soAk -- tEch ctA bAud 9600
sEt.2 0.2 uEr (seenote) dAtA 18n1
bAnd.2 0.5 rsEt nonE dbuG off
cyc.2 on.off
LEVEL2:
Manualcontrolmodes
sp1.p (asis)
hAnd off
pL.1 100
pL.2 100
sp2.A dv.hi
sp2.b nonE
disp 0.1
hisc 70
Lo.sc -10
inpt tct
unit c
Note:"uEr"valueispresetandcannotbechanged,howeverit
providesaccesstoLEVEL4.PressandholdUPandDOWN
buttonsfor10secondstoaccessLEVEL4.
LEVELConlyvisiblewhenCOMMSoptionfitted.
SetSP1(maintemperaturesetpoint)to10C.
Toaccessthesetupmenupushandhold UP and DOWN buttonssimultaneouslyfor3seconds.
Pressandhold UP or DOWN buttontonavigatethroughthemenu.
Tochangesettings:Pressandhold *button,thenuse UP or DOWN buttonstoenternewvalues.
Pressandhold UP and DOWN buttonssimultaneouslyfor3secondstoexitthesetupmenu.
Tosetthemaintemperature:Pressandhold *button,thenuse UP or DOWN buttonstoenterthenew
value.
RevA:ChangedSP1from25Cto10C.11/02/99/AA

TC-3300SETUPFORCool&Heat/CoolColdPlates,Chillers
LEVEL1: LEVEL3:
tune off Outputconfiguration LEVEL4:
bAnd 3.0 sp1.d ssd1 Lock nonE
int.t 1.3 sp2.d ssd2 Prog Auto
dEr.t OFF burn Up.Sc no.AL on
dAc 1.5 rEu.d 1r.2d dis.s 6
cyc.t 2.5 reu.L 1n.2n dEr.s 0.5
oFst 0spAn 0.0
sp.Lk off zEro 0.0 LEVELC:
sprr 0chEk off COMMSmenu
sprn off rEAd Var Addr 1
soAk -- tEch ctA bAud 9600
sEt.2 0.0 uEr (seenote) dAtA 18n1
bAnd.2 3.0 rsEt nonE dbuG off
cyc.2 2.5
LEVEL2:
Manualcontrolmodes
sp1.p (asis)
hAnd off
pL.1 100
pL.2 100
sp2.A Cool
sp2.b nonE
disp 0.1
hisc 70
Lo.sc -10
inpt tct
unit c
Note:"uEr"valueispresetandcannotbechanged,howeverit
providesaccesstoLEVEL4.PressandholdUPandDOWN
buttonsfor10secondstoaccessLEVEL4.
LEVELConlyvisiblewhenCOMMSoptionfitted.
SetSP1(maintemperaturesetpoint)to10C.
Toaccessthesetupmenupushandhold UP and DOWN buttonssimultaneouslyfor3seconds.
Pressandhold UP or DOWN buttontonavigatethroughthemenu.
Tochangesettings:Pressandhold *button,thenuse UP or DOWN buttonstoenternewvalues.
Pressandhold UP and DOWN buttonssimultaneouslyfor3secondstoexitthesetupmenu.
Tosetthemaintemperature:Pressandhold *button,thenuseUP or DOWN
value.

LIMITEDWARRANTY
Intheeventadefectinmaterialorworkmanshipisdiscoveredinanyof
TECA’sproductswithinoneyearafterthedatetheyaredeliveredtoBuyer,
:(a)TECAisnotifiedofthedefectinwritingbycertifiedmailwithin14
daysofthedateofdiscovery;(b)TECAmaytheneither,atitssolediscretion,
inspecttheproductatBuyer’slocation,orrequirethattheproductbemade
availableatBuyer’sexpenseatTECA’spremisesforTECA’sinspection
within14daysofthedateofnotification;and(c)theproductsaredefective
andthedefectsresultfromfaultymaterialsand/orworkmanshipandnotin
anywayfromaccident,misuse,misapplication,mishandling,modification,or
alterationbytheBuyerortheshipper,TECAshall,atitssoleoption,
repairorexchangedefectiveproductsfreeofchargetoBuyer,orcreditto
buyerthepriceofthedefectiveproducts.ALLOTHERWARRANTIES,
EXPRESSORIMPLIED,AREEXCLUDED,INCLUDINGBUTNOTLIMITED
TOTHEIMPLIEDWARRANTIESOFMERCHANTABILITYANDFITNESS
FORAPARTICULARPURPOSE.INNOEVENTSHALLTECABELIABLE
FORANYCLAIMBASEDUPONBREACHOFEXPRESSORIMPLIED
WARRANTYORANYOTHERDAMAGESWHETHERSPECIAL,INDIRECT,
INCIDENTAL,CONSEQUENTIAL,LOSTPROFITS,BUSINESS
INTERRUPTION,ORLOSSOFBUSINESSORCUSTOMER
RELATIONSHIPS.
Inordertoreturnmerchandiseforanyreason(repair,replacement,orcredit)
areturnauthorizationnumbermustbeissuedbyTECA.Newmerchandise
maynotbereturnedforcreditbeyond60daysfromshipment.Chargesfor
incidentalorotherdamagesmayalsobemade.Allreturnedgoodsmustbe
sentfreightprepaid.Arestockingchargeof15%willapply.Onspecial
equipmentandcustommodifiedequipmentorders,additionalincremental
cancellationchargesmaybemade.
andif
then
RETURNEDGOODS,RESTOCKINGCHARGES
