Trane CGWH 115 Owner's manual

Installation
Operation
Maintenance
CGWH-SVX01D-E4

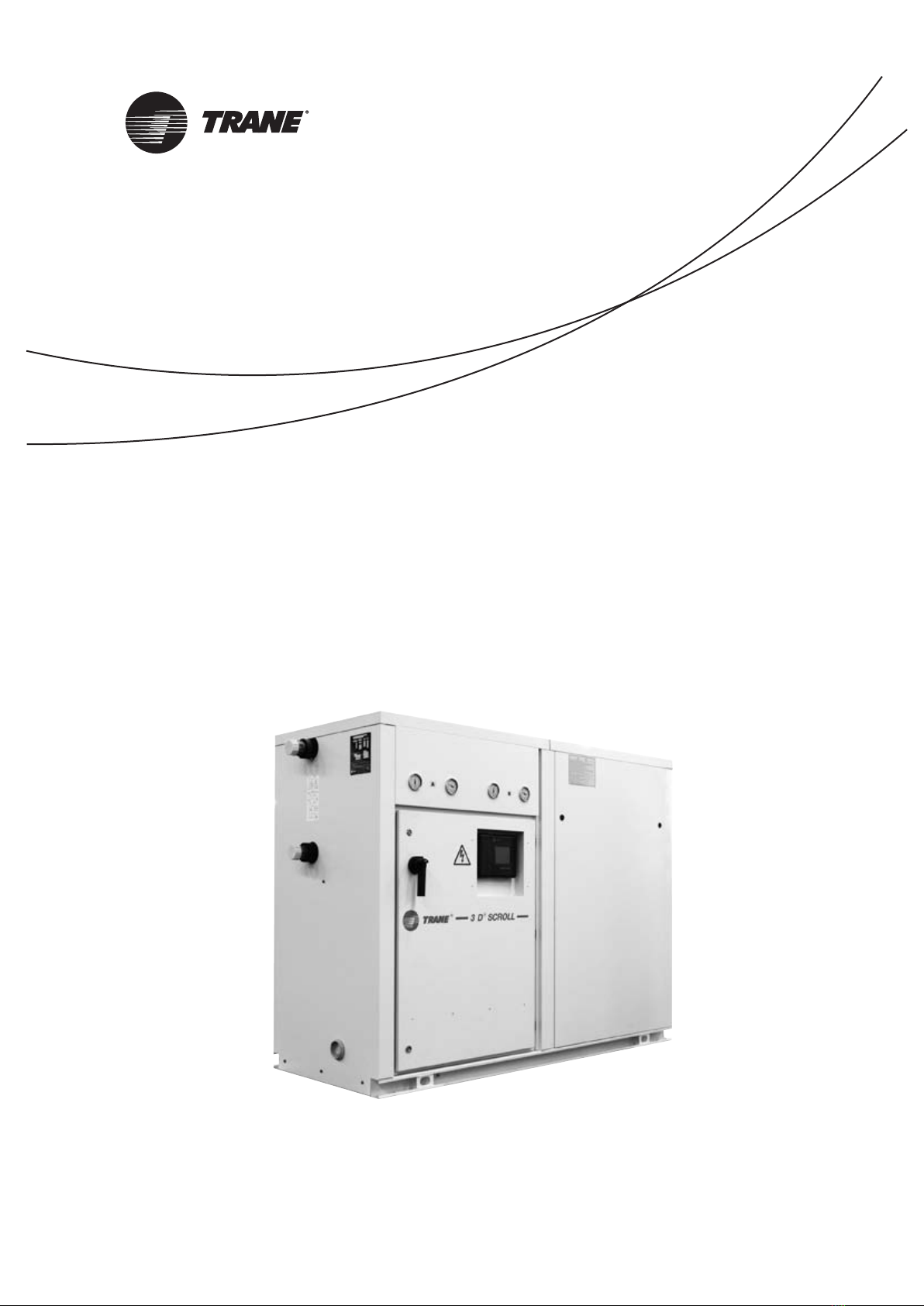

CGWH Packaged Water-cooled liquid chiller
CCUH Condenserless liquid chiller
Sizes 115 - 120 - 125 - 225 - 230 - 235 - 240 - 250
To be used with the user guide of CH530 scroll chiller controls

© Trane 2013 CGWH-SVX01D-E4
General information
Foreword
These instructions are given as
a guide to good practice in the
installation, start-up, operation, and
maintenance by the user, of Trane
CGWH/CCUH chillers. They do not
contain full service procedures
necessary for the continued
successful operation of this
equipment. The services of a
qualified technician should be
employed through the medium of a
maintenance contract with a reputable
service company. Read this manual
thoroughly before unit start-up.
Units are assembled, pressure tested,
dehydrated, charged and run tested
before shipment.
Warnings and cautions
Warnings and Cautions appear at
appropriate sections throughout this
manual. Your personal safety and
the proper operation of this machine
require that you follow them
carefully. The constructor assumes
no liability for installations or
servicing performed by unqualified
personnel.
WARNING! : Indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
CAUTION! : Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury. It may also be used
to alert against unsafe practices or
for equipment or property-damage-
only accidents.
Safety recommendations
To avoid death, injury, equipment
or property damage, the following
recommendations should be
observed during maintenance and
service visits:
1. The maximum allowable pressures
for system leak testing on low and
high pressure side are given in the
chapter “Installation”. Always provide
a pressure regulator.
2. Disconnect the main power supply
before any servicing on the unit.
3. Service work on the refrigeration
system and the electrical system
should be carried out only by
qualified and experienced personnel.
Reception
On arrival, inspect the unit before
signing the delivery note.
Reception in France only:
In case of visible damage:
The consignee (or the site
representative) must specify any
damage on the delivery note,
legibly sign and date the delivery
note, and the truck driver must
countersign it. The consignee (or the
site representative) must notify Trane
Epinal Operations - Claims team and
send a copy of the delivery note.
The customer (or the site
representative) should send a
registered letter to the last carrier
within 3 days of delivery.
Note: for deliveries in France, even
concealed damage must be looked
for at delivery and immediately
treated as visible damage.
Reception in all countries except
France:
In case of concealed damage: The
consignee (or the site representative)
must send a registered letter to the
last carrier within 7 days of delivery,
claiming for the described damage.
A copy of this letter must be sent
to Trane Epinal Operations - Claims
team.

CGWH-SVX01D-E4
General information
3
Warranty
Warranty is based on the general
terms and conditions of the
manufacturer. The warranty is void if
the equipment is repaired or modified
without the written approval of the
manufacturer, if the operating limits
are exceeded or if the control system
or the electrical wiring is modified.
Damage due to misuse, lack of
maintenance or failure to comply
with the manufacturer’s instructions
or recommendations is not covered
by the warranty obligation. If the user
does not conform to the rules of this
manual, it may entail cancellation
of warranty and liabilities by the
manufacturer.
Refrigerant
The refrigerant provided by
the manufacturer meets all the
requirements of our units. When using
recycled or reprocessed refrigerant,
it is advisable to ensure its quality is
equivalent to that of a new refrigerant.
For this, it is necessary to have a
precise analysis made by a specialized
laboratory. If this condition is not
respected, the manufacturer warranty
could be cancelled.
Environmental Protection /
Compliance with F-Gas
regulation
This equipment contains a fluorinated
gas covered by the Kyoto Protocol [or
an ozone depleting substance covered
by Montreal Protocol].The type and
quantity of refrigerant per circuit is
indicated on the product nameplate.
The Global Warming Potential of the
refrigerant implemented in Trane
Air Conditioning and Refrigeration
Equipment is presented in the table by
type of refrigerant.
Refrigerant type GWP (1) value
R407C 1 653
The operator (contractor or end
user) must check local environmental
regulations impacting installation,
operation and disposal of the
equipment; in particular need to
recover environmentally harmful
substances (refrigerant, oil, antifreeze
agents, etc.) Do not vent into
the atmosphere any refrigerant.
The handling of refrigerant shall
be fulfilled by a qualified service
engineer.
With regards to the refrigerant charge
contained in this chiller, the F-gas
regulation requires 2 inspections,
including leak detection, per year
in the EU. Contact your local Trane
Service team.
(1) GWP = global warming potential
(2) Covered by Montreal Protocol
Maintenance contract
It is strongly recommended that
you sign a maintenance contract
with your local Service Agency.
This contract provides regular
maintenance of your installation
by a specialist in our equipment.
Regular maintenance ensures
that any malfunction is detected
and corrected in good time and
minimizes the possibility that serious
damage will occur. Finally, regular
maintenance ensures the maximum
operating life of your equipment.
We would remind you that failure
to respect these installation and
maintenance instructions may result
in immediate cancellation of the
warranty.
Training
To assist you in obtaining the best
use of it and maintaining it in perfect
operating condition over a long
period of time, the manufacturer
has at your disposal a refrigeration
and air conditioning service school.
The principal aim of this is to give
operators and technicians a better
knowledge of the equipment they are
using, or that is under their charge.
Emphasis is particularly given to
the importance of periodic checks
on the unit operating parameters as
well as on preventive maintenance,
which reduces the cost of owning the
unit by avoiding serious and costly
breakdown.

4CGWH-SVX01D-E4
Contents
General Information 2
Installation
Unit nameplate 5
Installation instructions 5
Handling 5
Minimum water volume 6
Refrigerant lines CCUH 7
Refrigerant line connections - CCUH and remote condenser 8
Winter freeze protection 10
Water treatment 11
Compressor sequencing 11
Interconnection between CCUH and remote condenser 12
Electrical connections 12
General data 14
General start-up
Preparation 16
Start-up 16
Operation
Control and Unit Operation 21
Weekly start up and week-end shutdown 21
Seasonal shutdown and start-up 21
Maintenance
Maintenance instructions 22
Installation checklist 23
Troubleshooting guide 25

CGWH-SVX01D-E4 5
Installation
Unit nameplate
The unit nameplate gives the
complete model reference numbers.
The unit power rating is shown, and
power supplies should not deviate by
more than 5 % from the rated power.
Compressor motor amperage is
shown in box I.MAX.
The customer’s electrical installation
must be able to withstand this
current.
Installation instructions
Foundations
No special foundations are required,
provided the supporting surface is
flat and level, and can withstand the
weight of the unit.
Isolation rubber pads
They are supplied as standard with
the machine, and should be placed
between the supporting floor and
the unit to isolate the unit from the
ground (4 pads for the sizes 115 to
125 and 6 pads for the sized 225
to 250). To reduce vibration, Trane
recommends the use of neoprene
pads (not included) but does not
allow the use of spring isolators.
Water drain hole
Install a drain hole wide enough to
drain away water from the unit in the
event of shut-down or repair.
Clearance
Respect recommended clearance
around the unit to allow maintenance
operation to take place without
obstruction. Submittals are available
on request from your local Trane
Sales Office.
Handling
A specific lifting method is
recommended as follows:
1. 4 lifting points are built into the
unit.
2. Slings and spreader bar to be
provided by rigger and attached
to the 4 lifting points.
3. Minimum rated lifting capacity
(vertical) of each sling and
spreader bar shall be no less
than the tabulated unit shipping
weight.
CAUTION!
The plates welded at the end of the
bases must not be used for handling.
Use the ones at 237 mm from the
ends.
Figure 1 - Handling
Table 1 - Dimensions of recommended slings and swing-bar :
Unit size 115 120 125 225 230 235 240 250
A (mm) 1400 1400 1400 1400 1400 1400 1400 1400
B (mm) 1900 1900 1900 1900 1900 1900 1900 1900
Weight (kg) CGWH 412 444 476 668 702 739 803 873
Weight (kg) CCUH 389 416 443 626 655 679 757 815

CGWH-SVX01D-E46
Before making any connections,
make sure the labeling for entering
and leaving water corresponds to
the submittals.
Install water circulation pump
upstream of the evaporator,
insuring that the evaporator is
under positive pressure.
Tables for water connections
diameter are shown on the certified
submittals.
These drawings are available on
request from your Trane Sales
Office.
Installation
1. Pressure gauges: show entering and
leaving water pressure (2 pressure
ports are available inside of the unit -
see item 1 in Figure 2)
2. Balancing valve: adjusts water flow.
3. Air purge: allows to remove the air
from the water circuit during fill up.
4. Stop valves: isolate chillers and water
circuiting pump during maintenance
operations.
5. Thermometers: indicate chilled water
entering and leaving temperatures
(not mandatory).
6. Expansion compensators: avoid
mechanical stress between chiller
and piping installation.
7. Stop valve located on the outlet
connection: used to measure the
water pressure inlet or outlet of
evaporator.
8. Strainer: avoid getting heat
exchangers dirty. All installation must
be equipped with efficient strainer
in order that only clean water enters
into exchanger. If there is no strainer,
reserve will be formulated by the
Trane technician at the start-up of the
unit. The strainer used must be able
to stop all particles with a diameter
greater than 1.6 mm.
9. Draining and charging: used to drain
and charge the plate heat exchanger.
10. Charging valve
Figure 2
10
Minimum water volume
Why is the water volume an
important parameter?
The water volume is an important
parameter because it allows a
stable chilled water temperature
and avoids short cycle operation of
the compressors.
Parameters which influence the
water temperature stability
• Water loop volume.
• Load fluctuation.
• Number of capacity steps.
• Compressors rotation.
• Dead band (adjusted by control
CH530).
• Minimum time between 2 starts
of a compressor.
Minimum water volume for a
comfort application
For comfort application we can
allow water temperature fluctuation
at part load.
The parameter to take into account
is the minimum operating time of
the compressor. In order to avoid
any lubrication problem, scroll
compressor must run for at least
2 minutes (120 seconds) before it
stops.

7CGWH-SVX01D-E4
Installation
Refrigerant lines CCUH
Calculating and fixing the capacity
of refrigerant lines is necessary
to assure the oil return to the
compressor, avoid refrigerant phase
changes and limit pressure drop.
Liquid lines
Calculate capacity of liquid line, as
per the following criteria.
1. Maximum load operating
conditions.
2. To avoid any evaporation risk:
- Consider the vertical risers
- Maximum pressure drop must
not exceed 1 to 2°C
3. Liquid circulation speed in a 0.5
to 2m/s range.
Insulation of refrigerant lines
Insulate refrigerant lines from
building itself to avoid transmission
to building structure of vibrations
normally caused by pipework. Also
avoid bypassing the unit’s damping
system by fixing the refrigerant
lines or the electrical ducts very
rigidly.
Vibrations may propagate into
building structure through rigidly
fixed refrigerant lines.
Pressure tests. Leak detection
During operations, take the
following precaution:
1. Neither oxygen nor acethylene
should be used instead of
refrigerant and nitrogen to
detect leaks, otherwise a violent
explosion may occur.
2. Always use valves and
manometers to check the test
pressure in system. Excessive
pressure may either cause
pipes to rupture, damage unit,
or cause an explosion, causing
possible physical injury.
Carry out liquid line and hot gas
pressure tests in accordance
with current standards.
CAUTION!
Do not go more than 0.7 bar above
the high pressure switch setpoint.
Introduce enough refrigerant into
circuit for 85 to 100 kPa pressure,
pump-injecting dry nitrogen, and
raise pressure to 100 kPa. Search
possible leaks using detector. This
operation should be carried out
great care throughout the system.
If leaks are detected, reduce system
pressure, and repair defective
component. Repeat test process, to
check that the repair can withstand
rated pressure.
NOTE:
CCUH is delivered with a nitrogen
holding charge and isolating valves.
The minimum volume can be
determined by using the following
formula : Volume = Cooling capacity
x Time x highest capacity step (%) /
Specific heat / Dead band.
Minimum operating time
= 120 seconds.
Specific heat = 4.18 kj / kg.
Average deadband = 3°C (or 2°C)
Note: To estimate the biggest step,
it is usually more reliable to make
a selection at lower condensing
temperature where efficiency is
higher and compressor steps bigger.
It is also essential to take into
account the brine specific heat, in
case of the use of glycol.
Table 2 - CGWH
Unit size 115 120 125 225 230 235 240 250
Cooling Capacity (kW) 51 64 77 91 103 116 127 155
Biggest step (%) 50 60 50 42 38 34 30 25
Biggest step (kW) 26 38 39 38 39 39 38 39
Minimum water
loop for comfort (l) 244 368 368 365 375 377 365 371
This table is estimated with
- Condenser : Water 30°/35°C
- Evaporator : Water 12°/7°C
- Dead Band of 3°C
Table 3 - CCUH
Unit size 115 120 125 225 230 235 240 250
Cooling Capacity (kW) 51 64 77 90 102 115 127 153
Biggest step (%) 50 60 50 42 38 34 30 25
Biggest step (kW) 26 38 38 38 39 39 38 38
Minimum water
loop for comfort (l) 244 367 367 363 371 374 365 366
This table is estimated with
- Condensing temp : 45°C with sub cooling 5°C
- Evaporator : Water 12°/7°C
- Dead Band of 3°C
Note: CCUH is only one component of a complete installation. It includes its own high pressure protection set at
29.5 bars.
The party in charge of the supply of the condenser and of its refrigerant piping is responsible of implementing all
the required protections to comply with the PED requirements for the design pressure of the condenser installed.
Please refer to the document PROD-SVX01_-xx delivered with this chiller to check all the mandatory conformity
requirements of the Pressure Equipment and Machinery directives for this installation.

CGWH-SVX01D-E48
Installation
Refrigerant line connections -
CCUH + remote condenser
Piping
Maximum distances and refrigerant
line diameters between units
must be checked according to
the configuration and system
operating conditions (Chilled water
temperature and subcooling).
Tables 4-8 provide the maximum
acceptable height according
to subcooling available and
recommended diameters for
discharge liquid lines when a CCUH
condenserless chillers is connected
to a remote condenser.
CAUTION! CCUH is only a
component of a complete
installation. It includes its own
high pressure protection set at
23 bar. The party in charge of the
supply of the condenser and of its
refrigerant piping is responsible for
implementing all required protections
to comply with PED requirements for
the design pressure of the condenser
installed. Refer to the document
PROD-SVX01_-XX delivered
with this chiller to check all the
mandatory conformity requirements
of the Pressure Equipment and
Machinery directives for this
installation.
Figure 3 - Installation configuration - CCUH and remote condenser at the same level
1: Discharge line
2: Liquid line
3: Remote condenser
4: CCUH
Figure 4 - Installation configuration - CCUH below remote condenser
1: Discharge line
2: Liquid line
3: Remote condenser
4: CCUH

9CGWH-SVX01D-E4
Installation
The minimum required subcooling
at the remote condenser level when
installed below is defined in the
following table.
Example : If the remote condenser
is 10m below the CCUH and the
condensing temperature is 50°C,
the refrigerant subcooling leaving
the remote condenser shall not be
below 4°C. To increase the amount of
subcooling, more refrigerant charge
is required.
For refrigerant piping longer than
50 m (distance of the condensing
unit to the evaporator), a pressure
relief valve on each circuit is
Table 5 - Required discharge line diameter CCUH circuit 1 (for vertical risers)
Leaving chilled water temperature (°C)
Unit size -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 14
115 7/8” 1”1/8
120 7/8” 1”1/8 1”3/8
125 7/8” 1”1/8 1”3/8
225 7/8” 1”1/8
230 7/8” 1”1/8 1”3/8
235 7/8” 1”1/8 1”3/8
240 7/8” 1”1/8 1”3/8
250 7/8” 1”1/8 1”3/8
Table 6 - Required discharge line diameter CCUH circuit 2 (for vertical risers)
Leaving chilled water temperature (°C)
Unit size -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 14
225 7/8” 1”1/8
230 7/8” 1”1/8
235 7/8” 1”1/8
240 7/8” 1”1/8 1”3/8
250 7/8” 1”1/8 1”3/8
Table 7 - Required discharge line diameter CCUH circuit 1 (either vertical or horizontal)
Leaving chilled water temperature (°C)
Unit size -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 14
115 5/8” 7/8”
120 5/8” 7/8” 1”1/8
125 5/8” 7/8” 1”1/8
225 5/8” 7/8”
230 5/8” 7/8” 1”1/8
235 5/8” 7/8” 1”1/8
240 5/8” 7/8” 1”1/8
250 5/8” 7/8” 1”1/8
Table 8 - Required discharge line diameter CCUH circuit 2 (either vertical or horizontal)
Leaving chilled water temperature (°C)
Unit size -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 14
225 5/8” 7/8”
230 5/8” 7/8”
235 5/8” 7/8”
240 5/8” 7/8” 1”1/8
250 5/8” 7/8” 1”1/8
Table 4 - Maximum elevation (H) of CCUH above remote condenser
Condensing dew temperature °C
Subcooling °C 20°C 35°C 50°C 65°C
4°C 4 m 6 m 8 m 10 m
6°C 8 m 12 m 16 m 20 m
8°C 12 m 17 m 23 m 30 m
10°C 16 m 23 m 30 m 40 m
12°C 20 m 28 m 38 m 49 m
necessary. It has to be located on the
suction side.

CGWH-SVX01D-E410
Winter freeze protection
During negative ambient air
temperature chilled water piping
must be fully insulated. Ensure that
all safeties are taken to prevent frost
damage during negative ambient air
temperature. The following systems
can be used:
• Electrical heater mounted on all
water piping exposed to negative
temperatures.
• Start chilled water pump
during negative ambient air
temperature.
• Add ethylene glycol in the chilled
water.
• Drain water-circuit, however be
aware of corrosion process when
drained.
CAUTION: There is a risk of
freezeup of the evaporator
circuit due to internal refrigerant
migration if the condenser circuit
is maintained at a low temperature
(below 0°C) for a long period during
the cold season.
If necessary, provide isolation
valves on the condenser water
circuit (CGWH). CCUH is protected
against refrigeration migration by a
liquid solenoid valve.
Recommended ethylene and
propylene glycol percentage are
indicated in the General Start-up
section.
Loading concentrated glycol in the
water loop at the suction side of the
pump is prohibited. It can severely
damage the mechanical seal of the
pump and consequently generate
potential water leaks.
Installation
Figure 5 - Freezing point versus ethylene glycol percentage
0
-1 0
-2 0
-3 0
-4 0
-5 0
0102030405
06
0
3
2
1
1. Liquid
2. Freezing without burst effect
3. Freezing with burst effect

11CGWH-SVX01D-E4
Installation
Water treatment
Untreated or insufficiently treated
water, if used in this unit, may
cause scale, slime or algae to
accumulate or cause erosion and
corrosion. As Trane does not
know the components used in the
hydraulic network and the quality
of the water used, we recommend
the services of a qualified water
treatment specialist.
The following materials are used in
Trane chillers heat exchangers :
- Stainless steel plates AISI 316,
1.4401 witch copper brasing.
- Water piping : copper 99,9 %
- Water connections : brass
Trane will not accept any ability in
regards of damage due to the use
of untreated or improperly treated
water or from the use of saline or
brackish water.
If required, contact your local Trane
sales office.
Compressor sequencing
Tables 9 and 10 show compressor
sequencing at the start of the unit.
«Balanced» means that there is
no fixed sequence, Compressors
are started in order to balance
compressor total running times.
Table 9
Unit Model Unit size
COMPRESSOR LOCATION Recommended Sequence Number of
capacity
stages
Circuit 1 Circuit 2
1 2 3 4 Circuit 1 Circuit 2
CGWH
115 10 T 10 T
Balanced
2
120 10 T 15 T 3
125 15 T 15 T 2
225 10 T 10 T 15 T 5
230 10 T 15 T 15 T 5
235 15 T 15 T 15 T 3
240 10 T 15 T 10 T 15 T 6
250 15 T 15 T 15 T 15 T 4
Table 10
Unit Model Unit size
COMPRESSOR LOCATION Sequence Number of
capacity
stages
Circuit 1 Circuit 2
1 2 3 4 Circuit 1 Circuit 2
CCUH
115 10 T 10 T Balanced 2
120 10 T 15 T Comp 2 first 3
125 15 T 15 T Balanced 2
225 10 T 10 T 15 T Balanced 5
230 10 T 15 T 15 T Comp 2 or 3 first, if 3, then 2 is
second, comp 1 is 3rd 3
235 15 T 15 T 15 T Balanced 3
240 10 T 15 T 10 T 15 T Comp 2 first Comp 4 first 4
250 15 T 15 T 15 T 15 T Balanced 4

CGWH-SVX01D-E412
Installation
Electrical connections
CAUTION!
1. The greatest care should be
taken when cutting through
passages and installing electric
wiring. Under no circumstances
should chips of metal or cuttings
of copper or isolating material
fall into the starter panel or
electric components. Relays,
contactors, terminals and control
wiring should be covered and
protected before power supplies
are connected.
2. Install power supply cabling as
shown in wiring diagram.
Adequate cable gland should be
chosen, ensuring no foreign bodies
enter the electrical housing or
components.
CAUTION!
1. Cabling must comply with
standards in force. The type
and location of fuses must also
comply with standards. As a
safety measure, fuses should be
visibly installed, close to the unit.
2. Only copper wiring should be
used. Using aluminium wires
can produce galvanic corrosion
and possibly lead to superheat
and failure of connection points.
Trane provides a single power
supply which includes the
transformer.
Warranty reserves will be
formulated if a transformer, not
supplied by Trane, is installed inside
the electric panel
Interconnection between
CCUH and Remote
Condenser
The CCUH has the capability to
control the fan staging of the
remote condenser if the option is
taken.
Each refrigerant circuit can
control from one up to 6 fans per
circuit using a 4 output relays
(10A/250VAC/AC1/SPDT) card
option provided in the control box
the of CCUH. The external wiring
to the remote condenser shall be
connected directly to the terminal
block for the optional fan relay
cards.
CAUTION!
Power supply to the outdoor fan
relays shall not be provided from
the CCUH unless special care about
voltage and power consumption
was evaluated.

13CGWH-SVX01D-E4
Installation
Table 11 - Control output relays (CCUH)
Output relay
Quantity of fans
Fan 1 Fan 2 Fan 3 Fan 4 Fan 5 Fan 6
Low Speed High Speed Single speed Fan option
21 2 3&4 Two fan speed first fan
1 3&4 Single speed only fans
31 2 3 4 Two fan speed first fan
1 3 4 Single speed only fans
41 2 3 4 4 Two fan speed first fan
1 3 4 4 Single speed only fans
51 2 3 3 4 4 Two fan speed first fan
1 3 3 4 4 Single speed only fans
61 2 3 3 4 4 4 Two fan speed first fan
1 3 3 4 4 4 Single speed only fans
Table 12 - Fan staging - Example :4 fans per circuit, single speed (CCUH)
Standard - 4 fans per circuit
Relays Energized
Stage Number of Fans 1234Capacity [%]
0 0 0 0 0 0 0
1 1 1 0 0 0 25
2 2 1 0 1 0 50
3 3 0 0 1 1 75
4 4 1 0 1 1 100
Table 13 - Fan staging - Example :4 fans per circuit with first fan 2-speed (CCUH)
Low Ambient 2-Speed, 4 fans per circuit
Relays Energized
Stage Number of Fans 1234Capacity [%]
0 0 0 0 0 0 0.00
1 0.5 1 0 0 0 12.50
2 1 0 0 1 0 25.00
3 1.5 1 0 1 0 37.50
4 2 0 0 0 1 50.00
5 2.5 1 0 0 1 62.50
6 3 0 0 1 1 75.00
7 3.5 1 0 1 1 87.50
8 4 0 1 1 1 100.00

CGWH-SVX01D-E414
Table 14 - R407C Refrigerant
CGWH
115
CGWH
120
CGWH
125
CGWH
225
CGWH
230
CGWH
235
CGWH
240
CGWH
250
Eurovent Performances (1)
Gross cooling capacity CGWH (1) 51.8 64.9 78 92.1 104.5 117.4 129.7 157.1
Gross power input CGWH (1) 13.8 17.6 21.3 24.3 27.9 31.3 35 41.9
Gross EER CGWH (1) 3.75 3.69 3.66 3.79 3.75 3.75 3.71 3.75
Gross ESEER CGWH 4.57 4.85 4.56 4.77 4.44 4.28 4.06 3.86
Net cooling capacity CGWH (1) (5) 51.4 64.5 77.5 91.5 103.8 116.7 128.8 156.1
Net power input CGWH (1) (5) 14.6 18.6 22.5 25.6 29.5 33 37.1 44.3
Net EER / Eurovent energy class
CGWH (1) (5) 3.52/E 3.48/E 3.45/E 3.57/E 3.52/E 3.54/E 3.47/E 3.52/E
Net ESEER CGWH (5) 4.06 4.22 3.92 4.17 4.02 3.69 3.67 3.41
Evaporator water pressure drop (kPa) 39 39 39 45 50 50 60 62
Condenser water pressure drop (kPa) 62 63 64 71 79 78 94 95
Main Power supply (V/Ph/Hz) 400/3/50
Sound Power Level (5) (dB(A)) 75 79 81 81 82 83 82 84
Units Amps
Nominal (4) (A) 41 52 63 72 83 94 41 125
Start-up Amps (A) 140 194 204 212 222 232 140 261
Max supply cable size (mm2) 16 35 35 35 50 50 95 95
Compressor
Number 2 2 2 3 3 3 4 4
Type Scroll
Model 10T+10T 10T+15T 2x15T 2x10T+15T 10T+2x15T 3x15T 2x(10T+15T) 4x15T
Number of speeds 1 1 1 1 1 1 1 1
Number of motors 1 1 1 1 1 1 1 1
Rated Amps (2)(4) (A) 30 42 50 55 65 75 84 101
Locked rotor Amps (2) (A) 120 175 175 175 175 175 175 175
Motor RPM (rpm) 2900 2900 2900 2900 2900 2900 2900 2900
Sump Heater (W) 10T compressor = 100W; 15T compressor = 160W
Evaporator
Number 1 1 1 1 1 1 1 1
Type Brazed plate
Water volume (total) (l) 4.7 5.9 7.0 8.9 10.3 12.3 12.3 16.1
Antifreeze Heater (W) - - - - - - - -
Evaporator Water Connections
Type ISO R7 - Male
Diameter 1”1/2 1”1/2 1”1/2 2” 2” 2”1/2 2”1/2 2”1/2
Condenser
Number 1 1 1 1 1 1 1 1
Type Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate Brazed plate Brazed
plate
Water volume (total) (l) 4.7 5.9 7.0 8.9 10.3 12.3 12.3 16.1
Antifreeze Heater (W) - - - - - - - -
Condenser Water Connections
Type ISO R7 Male Male Male Male Male Male Male Male
Diameter 1”1/2 1”1/2 1”1/2 2” 2” 2” 2”1/2 2”1/2
Dimensions
Height (mm) 1545 1545 1545 1545 1545 1545 1545 1545
Length (mm) 1101 1101 1101 2072 2100 2135 2145 2082
Width (mm) 800 800 800 866 866 866 866 866
Weight uncrated (kg) 412 444 476 668 702 739 803 873
System Data
Refrigerant circuit 1 1 1 2 2 2 2 2
Refrigerant Charge(3)
Circuit A (kg) 5 7 9 5 7 9 7 9
Circuit B (kg) - - - 5 5 5 7 9
(1) at Eurovent Conditions (Evap 12°C/7°C - Cond. 30/35°C)
(2) per compressor
(3) per circuit
(4) 5°C sat suction temp. - 60°C sat discharge temp.
(5) At full load and in accordance with ISO 9614
General data

15CGWH-SVX01D-E4
Table 15 - R407C Refrigerant
CCUH
115
CCUH
120
CCUH
125
CCUH
225
CCUH
230
CCUH
235
CCUH
240
CCUH
250
Eurovent Performances (1)
Gross cooling capacity CCUH (2) (kW) 51.3 64.3 77.3 91 103.2 115.4 128.4 154.7
Gross power input CCUH (2) (kW) 14.2 17.9 21.7 25 28.8 32.6 35.9 43.5
Gross EER CCUH (2) 3.61 3.59 3.56 3.64 3.58 3.54 3.58 3.56
Evaporator water pressure drop (kPa) 38 38 38 44 49 49 59 60
Main Power supply (V/Ph/Hz) 400/3/50
Sound Power Level (5) (dB(A)) 75 79 81 81 82 83 82 84
Units Amps
Nominal (4) (A) 41 52 63 72 83 94 41 125
Start-up Amps (A) 140 194 204 212 222 232 140 261
Recommended Fuse Size (Am) (A) Depends on installation.
Max supply cable size (mm²) 16 35 35 35 50 50 95 95
Max. Wire Length (m) Depends on installation.
Compressor
Number 2 2 2 3 3 3 4 4
Type Scroll
Model 10T+10T 10T+15T 2x15T 2x10T+15T 10T+2x15T 3x15T 2x(10T+15T) 4x15T
Speeds number 1 1 1 1 1 1 1 1
Motors Number 1 1 1 1 1 1 1 1
Rated Amps (2)(4) (A) 30 42 50 55 65 75 84 101
Locked rotor Amps (2) (A) 120 175 175 175 175 175 175 175
Motor RPM (rpm) 2900 2900 2900 2900 2900 2900 2900 2900
Sump Heater (2) (W) 50W - 400V
Evaporator
Number 1 1 1 1 1 1 1 1
Type Brazed plate
Model V45-40 V45-50 V45-60 DV47-74 DV47-86 DV47-
102 DV47-102 DV47
Water volume (total) (l) 4.7 5.9 7 8.9 10.3 12.3 12.3 16.1
Antifreeze Heater (W) - - - - - - - -
Evaporator Water Connections
Type ISO R7 - Male
Diameter 1 ½” 1 ½” 1 ½” 2” 2” 2 ½” 2 ½” 2 ½”
Discharge and liquid connections
Type Brazed - Female
Discharge connection 1 1/8”
ODF
1 3/8”
ODF
1 3/8”
ODF 1 1/8” ODF 1 3/8” ODF 1 3/8”
ODF 1 3/8” ODF 1 3/8”
ODF
Liquid connection 7/8”
ODF
7/8”
ODF
7/8”
ODF 7/8” ODF 7/8”ODF 7/8”
ODF 7/8” ODF 7/8”
ODF
Dimensions
Height (mm) 1545 1545 1545 1545 1545 1545 1545 1545
Length (mm) 1136 1136 1136 2162 2190 2225 2235 2172
Width (mm) 800 800 800 880 880 880 880 880
Weight uncrated (kg) 389 416 443 626 655 689 757 815
System Data
Refrigerant circuit 1 1 1 2 2 2 2 2
Total refrigerant content of
evaporator (kg) 4 5 6 7 9 10 10 13
Holding Charge Nitrogen
(1) at Eurovent Conditions (Evap 12°C/7°C - Cond. 45°C - SC 5K)
(2) per motor
(3) per circuit
(4) 5°C sat suction temp. - 60°C sat discharge temp.
(5) At full load and in accordance with ISO 9614. Sound level affected by the design of the discharge line to the remote condenser.
General data

CGWH-SVX01D-E416
General start-up
Preparation
Carry out all operations on check
list and that the unit is correctly
installed and ready to operate.
The installer must check all the
following points before calling in
the Trane Servicing Department to
put the equipment into service:
• Check position of unit
• Check unit is level
• Check type and position of
rubber pads
• Check clearance required for
maintenance access (See
submittals)
• Chilled water circuit ready
to operate, filled with water,
pressure test carried out and air
purged.
• Chilled water circuit must be
rinsed
• Check the presence of water
strainer ahead of evaporator
• The strainers must be cleaned
after 2 hours of pumps operation
• Check the thermometers and
manometers position
• Check chilled water pumps
interconnection to control panel
• Insure that the isolation
resistance of all power supply
terminals to ground complies
with standards and regulations
in force.
• Check that unit voltage and
frequency supplied match rated
input voltage and frequency
• Check that all electrical
connections are clean and sound
• Check that main power supply
switch is sound.
• Check Ethylene glycol % in the
chilled water circuit if Ethylene
glycol presence is required.
• Check chilled water pressure
drop through evaporator is in
accordance with the Trane order
write-up (See Tables 14-15).
• On start-up of each motor in the
system, check the direction of
rotation and operation of all the
components they drive
• Water flow control checking:
decrease the water flow and
check the electrical contact in the
control panel.
• Check that there is sufficient
demand for cooling on the
day of start-up (around 50% of
nominal load)start-up (around
50% of nominal load)
Start-up
Follow the instructions below to
correctly start-up the unit.
Installation and chiller inspection:
• Ensure that all the operations
above (start-up preparation), are
followed.
Follow the instruction stuck inside
the electrical cabinet:
• Unscrew the screws securing the
isolators located under the rails
supporting the compressor.
• Put the plexiglass supplied by
Trane in front of the power
terminal.
• Insure all water and refrigerant
valves are in service positions,
• Insure that the unit is not
damaged,
• Insure that sensors are properly
installed in their bulb-wells and
submerged in heat conducting
product,
• Check fixing of capillary tubes
(protection from vibration and
from wear) and insure that they
are not damaged,
• Reset all manually set control
devices,
• Check refrigerating circuits
tightness
Checking and setting:
Compressors:
• Check oil level at rest. The level
should reach at least halfway up
indicator located on housing.
See fig. 6 for correct level.
Figure 6
Max. oil level
Min. oil level

17CGWH-SVX01D-E4
• Check fixing of capillary tubes
(protection from vibration and
from wear) and insure that they
are not damaged,
• Reset all manually set control
devices,
• Check refrigerating circuits
tightness
• Check oil acidity,
• Check electrical terminals
tightening of the motors and in
the control panel,
• Check the isolation of the motors
using a 500V DC megohmeter
which meets manufacturer’s
specifications (minimum value
2 meghoms)
• Check the direction of the
rotation using phasemeter.
Electrical power wiring:
• Check all the electrical terminals
tightening,
• Set-up compressors overload
relays,
Electrical control wiring
• Check all the electrical terminals
tightening,
• Check all the pressostats,
• Check and set-up the CH530
control module
• Test and start-up without the
electrical power.
Condenser:
• Check setting of the safety
pressure valve,
• Check the isolation of the motors
using a 500V DC megohmeter
which meets manufacturer’s
specifications (minimum value
2 meghoms)
Operating parameters statement
• Switch on main power supply
switch,
• Start the water pump(s),
• Start up the unit with the CH530
by pushing «Auto». The unit and
the chilled water pumps contactor
must be connected,
• After unit start up, leave
in operation for at least 15
minutes, to insure pressures are
stabilized.
Then check:
• voltage,
• compressors currents,
• leaving and return chilled water
temperature,
• suction temperature and
pressure,
• ambient air temperature,
• blowing air temperature,
• discharge pressure and
temperature,
• liquid refrigerant temperature
and pressure,
• operating parameters:
• chilled water pressure drops
through evaporator. It must be
in accordance with Trane order
write-up,
• superheat: difference between
suction temperature and dew
point temperature. Normal
superheat must be within 5°C
and 10°C,
• sub-cooling: difference between
liquid temperature and bubble
point temperature.
• difference between dew point
temperature in high pressure
and condenser air inlet
temperature.
• difference between outlet water
temperature and dew point
temperature in low pressure.
Normal value on standard unit,
without Ethylene glycol in chilled
water, should be 4 to 6°C. With
407C, it should be about 3°C.
General start-up

CGWH-SVX01D-E418
General start-up
Operating parameters
• chilled water pressure drop
through evaporator (if no
hydraulic module is installed) or
unit available pressure. It must
be in accordance with Trane
order write-up.
• superheat: difference between
suction temperature and dew
point temperature. Normal
superheat should be within 4
and 7 °C with R407C.
• sub-cooling: difference between
liquid temperature and bubble
point temperature. Normal
subcooling should be within 2
and 10°C with R407C.
• Condenser approach: difference
between dew point temperature
in high pressure and condenser
air inlet temperature. Normal
value on standard unit with
R407C, should be 15 to 23°C at
full load.
• Evaporator approach:
difference between outlet water
temperature and dew point
temperature in low pressure.
Normal value on standard unit,
without Ethylene glycol in chilled
water, should be about + 2-3°C.
Final check:
When the unit is operating correctly:
• Check that the unit is clean and
clear of any debris, tools, etc…
• All valves are in operating
position,
• Close control and starter panel
doors and check panels fixation.
CAUTION !
• For the warranty to apply, any
start-up carried out directly by
the customer must be recorded
in a detailed report, which must
be sent as soon as possible to
the nearest Trane office.
• Do not start-up a motor whose
insulation resistance is less than
2 meghoms
• Phase imbalance should not be
greater than 2%.
• The voltage supplied to motors
should be within 5% of the
rated voltage on the compressor
nameplate.
• Excessive emulsion of the oil
in the compressor shows that
refrigerant is present in the
oil and the result will be that
compressor is not lubricated
enough. Shut down compressor
and consult Trane technician.
• Excess oil in compressor
can damage the compressor.
Before adding oil, consult Trane
technician. Use only Trane
products recommended.
• The compressors must operate
in a single direction of rotation. If
refrigerant high pressure remains
stable in the 30 seconds after
compressor start-up, immediately
shut down unit and check the
direction of rotation using
phasemeter.
CAUTION !
• The chilled water circuit may be
under pressure. Bring down this
pressure before opening up the
system to rise out or fill up the
water circuit. Failure to comply
with this instruction may cause
accidental injury to maintenance
personnel.
• If a cleaning solution is used
in the chilled water circuit, the
chiller must be isolated from
the water circuit to avoid all the
damage risks of the chiller and
evaporator water pipes.
Refrigerant charge - CCUH
After system pressure and
vacuum testing, fill up unit with
refrigerant as per indicated in Table
14. The refrigerant complement
will be charged according to the
diameter and the length of the
refrigerant piping to obtain the
correct subcooling temperature:
Dt subcooling = 5°C for a liquid
temperature of 40°C.
Oil charge
The oil quantity for the split system
must be adjusted according to
the diameter and length of the
refrigerant piping.
Table 16 - Oil charge per compressor
Compressor L
10T 3.8
15T 6.6
CAUTION! Use exclusively PEO oil
recommended by Trane.
CCUH is delivered with a nitrogen
holding charge.

19CGWH-SVX01D-E4
General start-up
Table 17 - Evaporator pressure drop (CGWH/CCUH)
DP
kPa
Water flow - l/s
CGWH/CCUH
115
CGWH/CCUH
120
CGWH/CCUH
125
CGWH/CCUH
225
CGWH/CCUH
230
CGWH/CCUH
235
CGWH/CCUH
240
CGWH/CCUH
250
10 1.16 1.45 1.74 1.87 2.01 2.16 2.16 2.55
20 1.63 2.05 2.45 2.67 2.86 3.14 3.14 3.73
40 2.30 2.89 3.45 3.81 4.08 4.55 4.55 5.43
60 2.82 3.53 4.22 4.69 5.02 5.65 5.65 6.78
80 3.25 4.07 4.86 5.43 5.82 6.59 6.59 7.93
100 3.63 4.55 5.43 6.09 6.53 7.43 7.43 8.95
Table 18 - Condenser pressure drop (CGWH)
DP
kPa
Water flow - l/s
CGWH 115 CGWH 120 CGWH 125 CGWH 225 CGWH 230 CGWH 235 CGWH 240 CGWH 250
10 1.34 1.68 2.01 2.17 2.33 2.51 2.51 2.96
20 1.89 2.37 2.84 3.09 3.32 3.64 3.64 4.32
40 2.67 3.35 4.00 4.41 4.74 5.28 5.28 6.30
60 3.27 4.10 4.89 5.44 5.83 6.56 6.56 7.86
80 3.77 4.72 5.64 6.30 6.76 7.65 7.65 9.20
100 4.21 5.28 6.30 7.07 7.57 8.62 8.62 10.38
Table 19 - Evaporator pressure drop + filter tamis type 202 (CGWH/CCUH)
DP
kPa
Water flow - l/s
CGWH/CCUH
115
CGWH/CCUH
120
CGWH/CCUH
125
CGWH/CCUH
225
CGWH/CCUH
230
CGWH/CCUH
235
CGWH/CCUH
240
CGWH/CCUH
250
10 1.06 1.26 1.43 1.61 1.70 1.77 1.96 2.23
20 1.48 1.76 1.98 2.27 2.38 2.51 2.82 3.21
40 2.07 2.45 2.76 3.19 3.35 3.55 4.05 4.63
60 2.52 2.98 3.34 3.90 4.09 4.35 5.01 5.73
80 2.90 3.42 3.83 4.50 4.71 5.03 5.83 6.67
100 3.23 3.81 4.26 5.02 5.25 5.63 6.55 7.51
Table 20 - Condenser pressure drop + filter tamis type 202 (CGWH)
DP
kPa
Water flow - l/s
CGWH/CCUH
115
CGWH/CCUH
120
CGWH/CCUH
125
CGWH/CCUH
225
CGWH/CCUH
230
CGWH/CCUH
235
CGWH/CCUH
240
CGWH/CCUH
250
10 1.19 1.40 1.56 1.79 1.87 1.94 2.20 2.48
20 1.66 1.94 2.17 2.51 2.62 2.74 3.16 3.57
40 2.32 2.71 3.00 3.52 3.67 3.86 4.54 5.13
60 2.82 3.28 3.63 4.29 4.47 4.72 5.61 6.34
80 3.24 3.76 4.16 4.94 5.14 5.44 6.52 7.37
100 3.61 4.18 4.62 5.51 5.73 6.08 7.32 8.29

CGWH-SVX01D-E420
General start-up
Table 21 - Correction factors to apply when glycol is used in water loops
Fluid type Glycol Concentration Performance Evaporator Condenser
Evaporator Condenser F-CC F-PI F-FLEVP F-PDEVP F-FLCDS F-PDCDS
Water only 0% 0% 1.00 1.00 1.00 1.00 1.00 1.00
Ethylene Glycol
10% 0% 0.99 1.00 1.02 1.02 1.00 1.00
20% 0% 0.98 1.00 1.05 1.06 1.00 1.00
30% 0% 0.97 1.00 1.10 1.10 1.00 1.00
0% 10% 1.00 1.00 1.00 1.00 1.02 1.05
0% 20% 1.00 1.01 1.00 1.00 1.04 1.09
0% 30% 1.00 1.02 1.00 1.00 1.08 1.14
Mono-Propylene
Glycol
10% 0% 0.99 1.00 1.01 1.05 1.00 1.1
20% 0% 0.97 1.00 1.03 1.10 1.00 1.00
30% 0% 0.96 1.00 1.05 1.17 1.00 1.01
0% 10% 1.00 1.01 1.00 1.00 1.01 1.06
0% 20% 1.00 1.01 1.00 1.00 1.02 1.13
0% 30% 0.99 1.02 1.00 1.00 1.05 1.21
The correction factors found in
Table 23 can be applied as follows:
1. Cooling capacity with glycol [kW]
= F-CC x Cooling capacity water
[kW] (found in Tables 14-15) 2.
Power Input with glycol [kW] =F-PI
x Power Input water [kW] (found in
Tables 1-4)
3. Water Flow Evaporator with
glycol [Litres/sec] = F-FLEVP x
Cooling capacity with glycol [kW] x
0.239 x (1 / Delta T Evaporator [°C])
4. Water Pressure drop Evaporator
with glycol [kPa] = F-PDEVP x Water
Pressure drop Evaporator water
[kPa] (found in Table 16)
CGWH Only:
5. Water Flow Condenser with glycol
[Litres/sec] = F-FLCDS x (Cooling
capacity with glycol [kW] + Power
input with glycol [kW]) x 0.239 x (1 /
Delta T Condenser [°C])
6. Water Pressure drop Condenser
with glycol [kPa] = F-PDCDS x Water
Pressure drop Condenser water
[kPa] (found in Table 17)
In case of application with negative
temperature at the evaporator,
combination of simultaneous usage
of glycol both in evaporator and
condenser, or usage of another type
of fluid: please contact your local
Trane sales representative.
Figure 7 - Ethylene glycol recommended concentration
0%
5%
10%
15%
20%
25%
30%
35%
40%
-12 °C -10 °C -8 °C -6 °C -4 °C -2 °C 0 °C 2 °C 4 °C
Ethylene Glycol recommended concentration
Lowest water temperature
Figure 8 - Propylene glycol recommended concentration
0%
5%
10%
15%
20%
25%
30%
35%
40%
45%
-10 °C -8 °C -6 °C -4 °C -2 °C 0 °C 2 °C 4 °C
Propylene Glycol recommended concentration
Lowest water temperature
