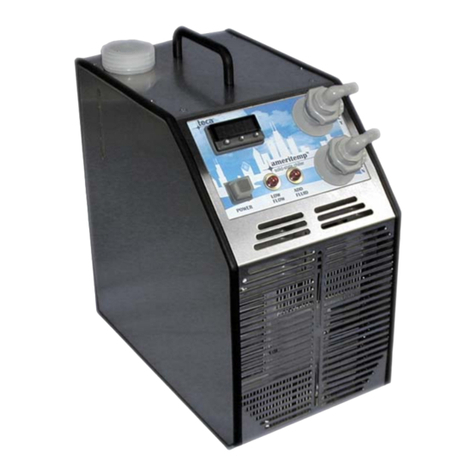

teca TLC-702HC User manual

ProductInformationPacket
ModelTLC-702HC
SolidStateLiquidChillerwithTC-3300
TemperatureControllerandRS-232Communications
Part#6-A0D2-1-002
Thankyouforyourpurchase.Informationhasbeenenclosedregardingthe
installation,specifications,andwiringofyoursolidstateassembly.
Pleasereadandfollowallinstructionscarefullybeforeinstallation.Only
qualifiedtechniciansshouldinstallthisequipment.
Ifyouhaveanyquestionswithyourequipment,pleasedonothesitatetocall
ustollfreeat(888)TECA-USA(832-2872),wewillbehappytoassist.We
areopenfrom8:00amto4:30pmCentralTime.
Includedinthispacketyouwillfind:
GettingStarted
ProductLiteratureandSpecifications
WiringDrawing#SK000716
TemperatureControlLiteratureSet-UpandCommunicationsInformation
WarrantyInformation
TC-3300Manual

Positionthistubingupwards
whilefillingthelines
Loadtobecooled
GETTINGSTARTED:
(Readentireinstructionsbeforeoperating)
Thisunitshouldoperatewiththebottomfeetrestingonaflatsurface.Theinternalheatexchangeriscooledby
atubeaxialfan.Itisnecessarytokeeptheinlet/outletairpathfreefromanyrestrictionsthatmayimpedeyourcooling
performance.A6"minimumspacingfromtherearoftheunittoanyobstructionisrequired.Externaltubingwithinsulationhas
beenprovidedforatotalof12'plumbingline.Trimthetubingandinsulationasnecessarytominimizetheambientthermal
load.4clampshavebeenprovidedtoattachthetubing(2tothequickconnectorsprovidedand2foryourload
connectors).Thetubinglinesarea3/8"innerdiameter.Connecttheexternalplumbinglinestothedevice(s)beingcooled.
Lowfluidandlowflowindicatorshavebeenprovidedonthefrontpanel.Itisnecessarytofilltheinternal
reservoirbeforeyouapplypower.Theinternalreservoirholds
approximately500mloffluid.The“addfluid”lightwillcomeonwhenthereservoirisapproximately½full.Thereisavisual
indicatorofthewaterlevelonthesideoftheunit.Distilledwateristherecommendedfluidfortemperaturesto5C.For
temperaturesbelow5C,a30%glycol70%distilledwatermixissuggested.Removethereservoircaplocatedatthetopleft
corneroftheunitandfillthereservoir.Keepthereservoircapoffuntiltheexternalplumbingisfilledandthereservoiristopped
off.
Connectthepowercordtoanappropriateoutlet.Thepowercordmustbeconnectedtoareceptacle
protectedbyacircuitprotectedperlocalandornationalcodes.Whileyouarefillingtheexternallines,positionthesupply
quickconnectupwards.(SeeFigureA)Thiswillassistinremovingairtrappedinthelines.Atthispoint,depressthe power
switchonthefrontpaneltoturnthesystemon.Fora12'plumbingline,itshouldtakeabout30secondsbeforethe“addfluid”
lightilluminates.Atthispoint,turnthepoweroffandaddadditionalfluid.Re-applypower.Another30secondsorsoshould
beenoughtimetocompletelyfillthelines.Turnoffthepowerswitchandtopoffthereservoir.Reattachthereservoircap
securely.
PleaseNote:Itmaybenecessarytoaddfluidtothereservoirfromtimetotime.The“addfluid”indicatorwillilluminateifthe
reservoirrequiresarefill.Ifthe“lowflow”indicatorlightappears,checktosee ifthereareanyobstructionsorleakswithinthe
plumbinglines.
The“lowflow”indicatorappearswhentheflowisapproximately0.3liter/minorless.
Adigitaltemperaturecontrollerhasbeenprovided.Holdthe*buttonandadjusttoadjustthesetpoint.
Moredetailedtemperaturecontrolinformationhasbeenincludedwithyourproductinformationpacket.Wesuggest
changingthetemperaturecontrollersprogrammingtoaPIDcontrolmethodandthenperforminganautotuneforbetter
temperaturecontrol.
WehopeyouenjoyyournewAmeritemp™seriesliquidchiller.Ifyouhaveanyquestions,pleasedonothesitatetocallour
technicaldepartment@888-TECA-USA(888-832-2872).
STEP#1
STEP#2
STEP#3
STEP#4
FAILURETODOSOMAYRESULTINDAMAGETOTHEPUMP
E
E
?>

TC-3300SETUP(ON/OFFSTYLE)
LEVEL1: LEVEL3:
tune off Outputconfiguration LEVEL4:
bAnd 0.5 sp1.d ssd1 Lock nonE
int.t 5.0 sp2.d ssd2 Prog Auto
dEr.t 25 burn 1u.2d no.AL on
dAc 1.5 rEu.d 1r.2r dis.s 6
cyc.t on.off reu.L 1n.2n dEr.s 0.5
oFst 0spAn 0.0
sp.Lk off zEro 0.0 LEVELC:
sprr 0chEk off COMMSmenu
sprn off rEAd Var Addr 1
soAk -- tEch ctA bAud 9600
sEt.2 0.2 uEr (seenote) dAtA 18n1
bAnd.2 0.5 rsEt nonE dbuG off
cyc.2 on.off
LEVEL2:
Manualcontrolmodes
sp1.p (asis)
hAnd off
pL.1 100
pL.2 100
sp2.A dv.hi
sp2.b nonE
disp 0.1
hisc 70
Lo.sc -10
inpt tct
unit c
Note:"uEr"valueispresetandcannotbechanged,howeverit
providesaccesstoLEVEL4.PressandholdUPandDOWN
buttonsfor10secondstoaccessLEVEL4.
LEVELConlyvisiblewhenCOMMSoptionfitted.
SetSP1(maintemperaturesetpoint)to10C.
Toaccessthesetupmenupushandhold UP and DOWN buttonssimultaneouslyfor3seconds.
PressandholdUP or DOWN buttontonavigatethroughthemenu.
Tochangesettings:Pressandhold *button,thenuse UP or DOWN buttonstoenternewvalues.
PressandholdUP and DOWN buttonssimultaneouslyfor3secondstoexitthesetupmenu.
Tosetthemaintemperature:Pressandhold *button,thenuse UP or DOWN buttonstoenterthenew
value.
RevA:ChangedSP1from25Cto10C.11/02/99/AA

TC-3300SETUP(PIDSTYLE)FORHEAT/COOL.
LEVEL1: LEVEL3:
tune off Outputconfiguration LEVEL4:
bAnd 4.0 sp1.d ssd1 Lock nonE
int.t 20 sp2.d ssd2 Prog Auto
dEr.t 10 burn 1u.2d no.AL on
dAc 1.0 rEu.d 1r.2d dis.s 6
cyc.t 10 reu.L 1n.2n dEr.s 0.5
oFst 0spAn 0.0
sp.Lk off zEro 0.0 LEVELC:
sprr 0chEk off COMMSmenu
sprn off rEAd Var Addr 1
soAk -- tEch ctA bAud 9600
sEt.2 1.0 uEr (seenote) dAtA 18n1
bAnd.2 4.0 rsEt nonE dbuG off
cyc.2 10
LEVEL2:
Manualcontrolmodes
sp1.p (asis)
hAnd off
pL.1 100
pL.2 100
sp2.A Cool
sp2.b nonE
disp 0.1
hisc 70
Lo.sc -10
inpt tct
unit c
Note:"uEr"valueispresetandcannotbechanged,howeverit
providesaccesstoLEVEL4.PressandholdUPandDOWN
buttonsfor10secondstoaccessLEVEL4.
LEVELConlyvisiblewhenCOMMSoptionfitted.
SetSP1(maintemperaturesetpoint)to10C.
Toaccessthesetupmenupushandhold UP and DOWN buttonssimultaneouslyfor3seconds.
Pressandhold UP or DOWN buttontonavigatethroughthemenu.
Tochangesettings:Pressandhold *button,thenuse UP or DOWN buttonstoenternewvalues.
Pressandhold UP and DOWN buttonssimultaneouslyfor3secondstoexitthesetupmenu.
Tosetthemaintemperature:Pressandhold *button,thenuse UP or DOWN buttonstoenterthenew
value.
RevA:ChangedSP1from25Cto10C;addedheat/cooltotitle.
11/02/99/AA

DECLARATIONOFCONFORMITY
TYPEOFEQUIPMENT ElectricalHeatPump,LiquidChiller,
SolidStateCoolingDevice
BRANDNAME TLC
TYPEDESIGNATION 700,702
YEAROFMANUFACTURE Refertothefirsttwodigitsoftheserial
numberonthemanufacturersIDlabel
MANUFACTURER TECACorporation
4048W.SchubertAve.
Chicago,IL,60639U.S.A.
APPLIEDSTANDARDS
ApplicationofCouncildirective: MachineryDirective(89/336/EEC)
Standardstowhichconformityisdeclared: EN61326:1997,ClassA
EN61326:1997,IndustrialLocation
Reportnumber: J20022721.011
Lowvoltagedirective 73/23/EEC-Europeanunion(EU)
Standardstowhichconformityisdeclared: EN61010-1-A1:97
EN61010-2-010-A1:97
Reportnumber: J20022721.L01
TESTINGAGENCY ITSIntertekTestingServices
ETLSEMKO
VPofEngineering
AndyBrecklin
June19,2003

LIMITEDWARRANTY
Intheeventadefectinmaterialorworkmanshipisdiscoveredinanyof
TECA’sproductswithinoneyearafterthedatetheyaredeliveredtoBuyer,
:(a)TECAisnotifiedofthedefectinwritingbycertifiedmailwithin14
daysofthedateofdiscovery;(b)TECAmaytheneither,atitssolediscretion,
inspecttheproductatBuyer’slocation,orrequirethattheproductbemade
availableatBuyer’sexpenseatTECA’spremisesforTECA’sinspection
within14daysofthedateofnotification;and(c)theproductsaredefective
andthedefectsresultfromfaultymaterialsand/orworkmanshipandnotin
anywayfromaccident,misuse,misapplication,mishandling,modification,or
alterationbytheBuyerortheshipper,TECAshall,atitssoleoption,
repairorexchangedefectiveproductsfreeofchargetoBuyer,orcreditto
buyerthepriceofthedefectiveproducts.ALLOTHERWARRANTIES,
EXPRESSORIMPLIED,AREEXCLUDED,INCLUDINGBUTNOTLIMITED
TOTHEIMPLIEDWARRANTIESOFMERCHANTABILITYANDFITNESS
FORAPARTICULARPURPOSE.INNOEVENTSHALLTECABELIABLE
FORANYCLAIMBASEDUPONBREACHOFEXPRESSORIMPLIED
WARRANTYORANYOTHERDAMAGESWHETHERSPECIAL,INDIRECT,
INCIDENTAL,CONSEQUENTIAL,LOSTPROFITS,BUSINESS
INTERRUPTION,ORLOSSOFBUSINESSORCUSTOMER
RELATIONSHIPS.
Inordertoreturnmerchandiseforanyreason(repair,replacement,orcredit)
areturnauthorizationnumbermustbeissuedbyTECA.Newmerchandise
maynotbereturnedforcreditbeyond60daysfromshipment.Chargesfor
incidentalorotherdamagesmayalsobemade.Allreturnedgoodsmustbe
sentfreightprepaid.Arestockingchargeof15%willapply.Onspecial
equipmentandcustommodifiedequipmentorders,additionalincremental
cancellationchargesmaybemade.
andif
then
RETURNEDGOODS,RESTOCKINGCHARGES
