Tecevo F3 Freedombeatz User manual

TECEVO.CO.UK
F3 Freedombeatz
BLUETOOTH
STEREO
EARPHONES
USER’S GUIDE

TECEVO.CO.UK
Thank you for purchasing Tecevo F3 Freedombeatz Bluetooth
earphones. Before getting start, please ready the user manual
carefully so as to ensure proper operation and optimized
performance of this product. Tecevo F3 was designed to
provide high quality wireless sound for your ipad, iphone, ipod,
computer, mobile phone, tablet and other Bluetooth enabled
audio device.
This user guide explains the basic operation and care of the unit.
Please read and keep for future reference.
INTRODUCTION
The Tecevo F3 can be easily paired with your phone or tablet with
Bluetooth technology, transmitting a digital audio signal wirelessly via
Bluetooth.
The integrated microphone and control buttons make it possible to
answer phone calls hands-free.
The Tecevo F3 is Bluetooth 2.1+EDR compliant and it is compatible with
all Bluetooth compliant devices using HFP and A2DP profiles, such as
mobile phones, music players or computers.
PRODUCT SPECIFICATION
Product Name：F3 Freedombeatz Bluetooth Earphones
Model Number：F3
Weight：16g
Material：ABS plastic
Bluetooth Version：Bluetooth 2.1 + EDR
Working Distance：10M
Compatibility：All Bluetooth audio devices

TECEVO.CO.UK
Battery：rechargeable Li-polymer
Continuous Working Time: up to 5 hours
Standby Time：up to 5 days
Charging Voltage：DC 5V
PRODUCT OUTLOOK
1,2 Earbuds (replaceable)
3. Mini 8pin USB charging port
4. Multi-function button (MFB*)
5. LED indicator
6. Microphone
7. Volume up, previous track
8. Volume down, next track
*MFB: turn on/off device; answer/stop phone call; NFC hotspot

TECEVO.CO.UK
BASIC BUTTON OPERATIONS
Functions
Status of headset
Operation
Cancel a call
Calling
Short press MFB once
Answer a call
Incoming call
Short press MFB once
Reject a call
Incoming call
Long press MFB about 2 seconds and release it
until listen a tone
End a call
During a call
Short press MFB once
Volume up
During a call
Short press+ button
Volume down
During a call
Short press —button
Transfer
conversation to
mobile phone
During a call
Long press MFB about 2 seconds
Transfer
conversation to
headset
During a call
Long press MFB about 2 seconds
Microphone mute
During a call
Long press volume up “+”button about 2
seconds
Cancel mute
During a call
(microphone
mute)
Long press volume up “+”button about 2
seconds
Voice dial
Standby mode
(connected
device)
Short press MFB and volume up “+”button
simultaneously
Redial the last
number
Standby mode
(connected
device)
Double click MFB button
Remove paired
list
Charging status
In the status of charging, long press volume up
“+”button, red and blue LED will flashes
simultaneously and you will hear four “dong”
tone
Warning: Excessive high volume from earphones and headphones can cause hearing loss.

TECEVO.CO.UK
Note:
Not all the mobile phones support all the functions listed above. Please refer to your mobile
phone user’s manual.
When the volume is adjusted to max or min, you will hear one prompt tone.
When pressing the answer button on some mobile phones, the call will be transferred to the
mobile phone. You can switch the call to the headset by using the conversation switch button
or through operating on the mobile phone. Please refer to your mobile phone user manual
for further information.
MUSIC PLAYBACK OPERATIONS
Functions
Status of the headset
Operation
Volume up
Playing music
Short press “+”button
Volume down
Playing music
Short press “―”button
Last song
Playing music
Long press “+”button
Next song
Playing music
Long press “―”button
Pause
Playing music
Short press MFB once
play
Pausing
Short press MFB once
CHARGE THE DEVICE
The Tecevo F3 can be charged from any working USB port.
It is recommended to charge the battery fully for the first time. Connect
the USB cable provided to a working USB port and the other end to the
charging port of F3.
The LED indicator is solid red when charging. The red LED goes off upon
the device being fully charged.
FACTORY RESET
In the status of charging, long press volume up “+” button about 4
seconds and release it until the red and blue LED flashes simultaneously,
you will hear 4 “dong” tone.

TECEVO.CO.UK
PAIRING GUIDE –BLUETOOTH
1. Press down and hold the Multi-Function button (MFB) for at least
5 seconds. The LED indicator will start blinking red and blue.
2. Then release the MFB and the device is under Pairing mode.
3. Turn on your phone’s Bluetooth and search for new device. Upon
a new device being found (TECEVOF3), press the device's name to
pair.*
*Operations may vary depending on your device type, please refer to the
Bluetooth pairing procedures in your device’s user manual
4. The LED indicator will blink blue upon a Bluetooth link being
established and the device is now ready to use.
5. To pair another device, turn off the Tecevo F3 and repeat the
procedure above.

TECEVO.CO.UK
CONNECTION AND USE
- The TECEVO F3 will automatically connect to the last connected device
at power on.
- In case the connection has been lost, it can be re-established manually
by pressing the MFB.
- The Multifunction Button (MFB) can be used to answer and end calls.
Note: when using both Hands-Free and Music profiles, hands-free will always have
priority, the music being muted in case of incoming or outgoing calls and resumed
afterwards.

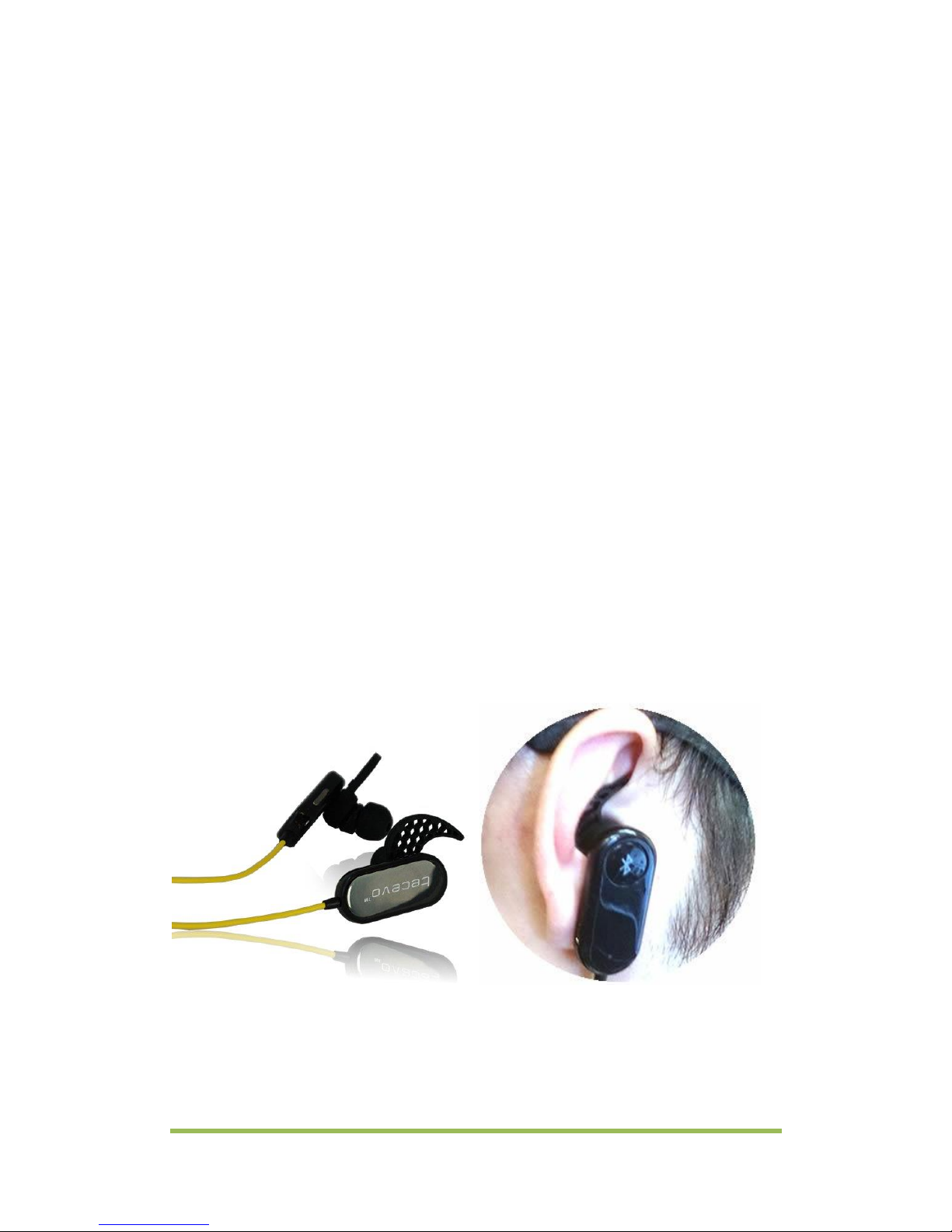

WEARING THE PRODUCT
The Tecevo F3 comes with two extra sets of small/large size earbuds,
please choose suitable size according to your need.
The Tecevo F3 also comes with three set of inner ear secure fit cushions.
Attach the suitable size cushions to your earphones to make sure secure
fit when doing sports activities.
TROUBLESHOOTING

TECEVO.CO.UK
You can quickly solve most problems with your Tecevo F3 by following
the advice in this section.
My music is not coming out of the stereo earphones.
Solutions:
•Make sure the Bluetooth earphones are powered on.
•Make sure your mobile phone’s Bluetooth is on and paired up
with F3.
•Make sure the stereo volume is set to a comfortable listening level.
•Make sure you are within range of the earphones.
My music receiver cannot be found by my phone
Solutions:
•Make sure the Bluetooth earphones are powered on.
•If you are trying to pair the device for first time use, please make
sure the Bluetooth earphones are under ‘Pairing mode’.
•Make sure the Bluetooth earphones are not connected or trying
to connect with another device.
•Charge the battery.
•Make sure you are within range of the Bluetooth earphones.
PACKAGE CONTENTS
•Tecevo F3 Freedombeatz Bluetooth earphones
•Mini 8Pin USB charging cable
•Earbuds
•Secure-fit ear cushions
•User manual
European Union Directives Conformance Statement

TECEVO.CO.UK
Hereby, JUSTOP declares that this product is in compliance with:
•The essential requirements and other relevant provisions of Directive
1999/5/EC
•All other relevant EU Directives
Caring for the environment by recycling
Do not dispose of electrical devices or accessories with your household
waste.
In some countries or regions, collection systems are set up to handle
electrical and electronic waste items. Contact your regional authorities
for more details.
TECEVO
TECEVO is a registered trademark. Other trademarks mentioned herewith are owned
by their proprietors. All other product or service names are the property of their
respective owners.
The use of wireless devices and their accessories may be prohibited or restricted in
certain areas. Always obey the laws and regulations on the use of these products.
