TECH EU-R-8PZ Plus User manual
EU DECLARATION OF CONFORMITY
Hereby, we declare under our sole responsibility that EU-R-8PZ Plus
Droga 31, 34-122 Wieprz, is compliant with Directive 2014/53/EU of
the European parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making
available on the market of radio equipment, Directive 2009/125/EC
establishing a framework for the setting of ecodesign requirements for
energy-related products as well as the regulation by the MINISTRY OF
ENTREPRENEURSHIP AND TECHNOLOGY of 24 June 2019 amending
the regulation concerning the essential requirements as regards the
restriction of the use of certain hazardous substances in electrical
and electronic equipment, implementing provisions of Directive
(EU) 2017/2102 of the European Parliament and of the Council of 15
November 2017 amending Directive 2011/65/EU on the restriction of
the use of certain hazardous substances in electrical and electronic
equipment (OJ L 305, 21.11.2017, p. 8).
For compliance assessment, harmonized standards were used:
PN-EN IEC 60730-2-9 :2019-06 art. 3.1a Safety of use
PN-EN 62479:2011 art. 3.1 a Safety of use
ETSI EN 301 489-1 V2.2.3 (2019-11) art.3.1b Electromagnetic
compatibility
ETSI EN 301 489-3 V2.1.1:2019-03 art.3.1 b Electromagnetic
compatibility
of radio spectrum
of radio spectrum
EN IEC 63000:2018 RoHS.
Wieprz, 22.11.2022
USER’S MANUAL
EU-R-8 PZ Plus
We are committed to protecting the environment. Manufacturing
electronic devices imposes an obligation of providing for environmentally
safe disposal of used electronic components and devices. Hence, we have
been entered into a register kept by the Inspection For Environmental
Protection. The crossed-out bin symbol on a product means that the
product may not be disposed of to household waste containers.
Recycling of wastes helps to protect the environment. The user is obliged
to transfer their used equipment to a collection point where all electric
and electronic components.
TECHNICAL DATA
Power supply 230V ± 10% / 50Hz
Max. power consumption 0,1W
Temperature adjustment range 5C ÷ 35C
Measurement error ± 0,5C
Operation frequency 868MHz
Humidity measurement range 10-95%RH
The pictures and diagrams are for illustration purposes only.
The manufacturer reserves the right to introduce some hanges.
WARRANTY CARD
TECH company ensures to the Buyer proper operation of the device for the period of 24 months from the date of sale. The Guarantor
undertakes to repair the device free of charge if the defects occurred through the manufacturer’s fault. The device should be delivered to its
amendments of the Civil Code (Journal of Laws of 5 September 2002).
CAUTION! THE TEMPERATURE SENSOR CANNOT BE IMMERSED IN ANY LIQUID (OIL ETC). THIS MAY RESULT IN DAMAGING THE CONTROLLER
AND LOSS OF WARRANTY! THE ACCEPTABLE RELATIVE HUMIDITY OF THE CONTROLLER’S ENVIRONMENT IS 5÷85% REL.H. WITHOUT THE STEAM
CONDENSATION EFFECT.
THE DEVICE IS NOT INTENDED TO BE OPERATED BY CHILDREN.
Activities related to setting and regulation of the controller parameters described in the Instruction Manual and parts wearing out during normal
operation, such as fuses, are not covered by warranty repairs. The warranty does not cover damages arising as a result of improper operation or
protective seals. Removing a seal results in the loss of Warranty.
of the equipment through the fault of the client or not subject to Warranty), or if the device defect occurred for reasons lying beyond the device.
In order to execute the rights arising from this Warranty, the user is obliged, at his own cost and risk, deliver the device to the Guarantor along with
a description of the defect) and sales proof (receipt, VAT invoice, etc.). The Warranty Card is the only basis for repair free of charge. The complaint
repair time is 14 days.
When the Warranty Card is lost or damaged, the manufacturer does not issue a duplicate.
..................................... ......................................
seller’s stamp date of sale
SAFETY
following regulations carefully. Not obeying the rules included in this
manual may lead to personal injuries or controller damage. The user’s
manual should be stored in a safe place for further reference. In order to
avoid accidents and errors it should be ensured that every person using
the device has familiarized themselves with the principle of operation as
well as security functions of the controller. If the device is to be sold or
the device so that any potential user has access to essential information
about the device.
The manufacturer does not accept responsibility for any injuries or
damage resulting from negligence; therefore, users are obliged to take
the necessary safety measures listed in this manual to protect their lives
and property.
WARNING
The regulator is not intended to be used by children.
High voltage! Make sure the regulator is disconnected from the
mains before performing any activities involving the power supply
(plugging cables, installing the device etc.).
It is recommended to periodically check the condition of the
device.
EN
• Manual mode - the pre-set temperature may be adjusted
manually in the main screen view using the buttons .
Holding the EXIT button while in being in manual mode exits this mode.
• Button lock - after pressing the Menu button, the Loc function
appears. Use one of the buttons to select yes or no
(enabling / disabling the button lock). In order to confirm, wait for
about 5 seconds or press Menu. To unlock the buttons, hold both
the buttons until the padlock icon disappears.
DESCRIPTION
The EU-R-8PZ Plus room regulator is intended for controlling the heating
device. It cooperates with the zone controllers and communicates with
them wirelessly.
Its main task is to maintain the pre-set room temperature by sending
a signal to the heating device informing that the pre-set temperature
has been reached.
Colour versions available: white or black
Controller features:
large easy-to-read display
front panel made of glass
(optional)
time heating program
Current temperature is displayed on the screen. In order to switch from
temperature screen to humidity screen, press EXIT.
HOW TO INSTALL THE REGULATOR
sensor:
MENU FUNCTIONS
In order to enter the regulator menu, HOLD the Menu button. Next,
press this button to switch between functions.
1. Temperature sensor calibration
This function enables the user to check the value of temperature
sensor calibration. The calibration setting range is -10°C to
+10°C and it may be adjusted in the main controller.
2. Factory settings
The Fab function enables the user to restore factory settings.
Use the buttons to change the last digit to 1. In order
3. Software version
This function enables the user to check the current software
version. The version number is necessary while contacting the
HOW TO CHANGE PRE-SET
TEMPERATURE
The pre-set temperature in the zone can be changed directly from the
EU-R-8PZ Plus regulator using the buttons . To make it possible,
the controller must be registered to the main controller. If the regulator
displays Una after one of the buttons is pressed, it means that
the controller is not registered.
It is possible to change the pre-set temperature in the screen view with
the pre-set and current temperature, using the buttons .
After setting the desired temperature, the screen displays the
time when the temperature value will apply. This time can be
edited using the buttons .
The OFF function disables the manually set parameters and it
means that the settings resulting from the weekly schedule set in
the main controller will apply.
If Con has been selected, manual settings will apply permanently
regardless of the schedule settings.
If the pre-set temperature is higher than the current temperature,
displayed when the OFF function has been selected.
The diagram below illustrates how to install particular elements:
Fab
84 mm
84 mm
84 mm
56 mm
13 mm
13 mm 70 mm
27 mm
40 mm
current
temperature
manual mode heating/
cooling
signal
strength
pre-set temperature
URZĄDZENIE
GRZEWCZE COMNO NC
CZUJNIK
PODŁOGOWY
100cm
~230V/50HZ
~
sensor
20 33
22 2
°C %
MAX
MIN
°C
22 5
button lock
HOW TO REGISTER THE REGULATOR
In order to register the regulator in the
main controller, go to Zones > Registration
as described in the manual of the given
controller.
in the EU-R-8PZ Plus regulator. After reg
button again. If the registration process has
been successful, SCs appears on the screen.
If any errors occurred, the regulator displays
Err.
sensor, press the registration button twice.
NOTE
Only 1 regulator may be assigned to
one zone.
The regulator cannot be unregistered but only disabled.
other one.
Holding the registration button on the controller for a few seconds will
enable synchronization and consequently any change in the pre-set
temperature in the main controller will automatically result in the
same change in the regulator. Without synchronization, a change in
the pre-set temperature in the main controller will cause a change in
the regulator after a momentary delay.
*
Holding the registration button while turning the regulator on will
calibrate the buttons.
Other TECH Thermostat manuals
TECH
TECH ST-29 v1 User manual
TECH
TECH EU-R-8b Plus User manual
TECH
TECH ST-37 Assembly instructions
TECH
TECH EU-F-8z User manual
TECH
TECH ST-280 User manual
TECH
TECH Sinum R-S3 User manual
TECH
TECH EU-290 v1 User manual
TECH
TECH Sinum R-S2 User manual
TECH
TECH EU-R-8s Plus User manual
TECH
TECH ST-707 User manual
Popular Thermostat manuals by other brands
Baxi
Baxi uSense installation guide
Danfoss
Danfoss TP7001 series user guide
Honeywell
Honeywell TRADELINE T8400C Installation instruction
MICROclimate International

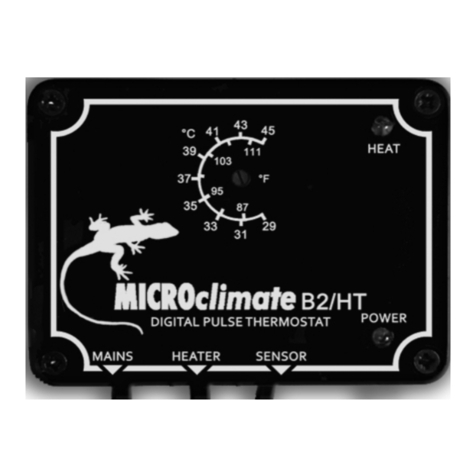

MICROclimate International B2/HT user guide
