KIROS Chronothermostat User Manual
■Safety warnings Page 2
■Dimensions Page 3
■Connection diagram Page 3
■Device description Page 4
■Technical characteristics Page 5
■Installation Page 6
■Operating mode Page 8
■Configuration menu description Page 10
■CLOCK menu - Date and time setting Page 11
■PROG menu - Programs setting Page 13
■SET menu - Temperatures T1, T2, T3 setting Page 15
■TIMER menu - Timing setting Page 16
■ADV menu - Advanced parameters setting Page 17
- operating mode Page 17
- regulation type Page 18
- parameters for the regulation type Page 18
- antifreeze temperature Page 19
- adjustment of the measured temperature Page 19
- minimum/maximum settable temperature Page 20
- password for key lock Page 20
- operating hour meter Page 21
■Other functions of the device Page 21
- backlighting management Page 21
- display of minimum/maximum temperature Page 22
- keypad unlock Page 22
■Device reset Page 23
■Regulation types Page 24
■Reference standards Page 25
■Winter programs Page 26
■Summer programs Page 27
Index

English
- 2 -
KIROS Chronothermostat User Manual
Flush-mounting chronothermostat powered by mains (230 V~), suitable for the control
of heating and air-conditioning systems.
The device, through the relay, acts on the control circuit of the burner or the circulation
pump (heating), or on the control circuit of the air conditioner (conditioning), in order to
guarantee the desired temperature.
The blue backlighting of the display can be switched off if the device is installed in
bedrooms, for example.
The device is supplied with white and anthracite frames and with adapters that allow it
to be installed with the plates of the main civil series.
Code Model Description
VE780000 Kiros Weekly chronothermostat with interchangeable front cover
VE780001 Kiros-INT Weekly chronothermostat with interchangeable front cover
■During installation and operation of the product, it is necessary to comply
with the following instructions:
1) The device must be installed by a skilled person, in strict compliance
with the connection diagrams.
2) Do not power on or connect the device if any part of it is damaged.
3) After installation, inaccessibility to the connection terminals without
appropriate tools must be guaranteed.
4) The device must be installed and activated in compliance with current electric
systems standards.
5) Before accessing the connection terminals, verify that the leads are not live.
6) In the electrical system of the building where the chronothermostat
must be installed, a protection device from the overcurrents must be present.
7) The device performs actions of 1B type and is suitable for environments
with pollution degree 2 and overvoltage category III (EN 60730-1).
SAFETY WARNINGS

English
- 3 -
KIROS Chronothermostat User Manual
DIMENSIONS
40 42
40
CONNECTION DIAGRAM
L N
5A/250V~

English
- 4 -
KIROS Chronothermostat User Manual
a Date
b Hour
c Active keypad lock
d Operation off
Active load (conditioning mode)
Active load (heating mode)
e Measured temperature
f Running daily program divided into 24 histograms, one for each hour of the day.
Each hour is associated with one of the 3 temperatures:
Temperature T1 Temperature T2 Temperature T3
g Active timed operation
h Active temperature: t1, t2 or t3 and relative value in C°
DEVICE DESCRIPTION

English
- 5 -
KIROS Chronothermostat User Manual
TECHNICAL CHARACTERISTICS
• Power supply: 230V AC ± 15% 50/60 Hz
• Power consumption: 0.3W (4.5VA)
• Charge reserve (in case of blackout): about 72 hours
• Output: bistable relay with changeover contact 5A / 250V AC
• Display LCD with backlighting (disactivable)
• Weekly programming with 3 settable temperatures: T1, T2, T3
• Daily resolution: 1h
• Switch-on delay settable between 15, 30 or 45 minutes (independent for each hour)
• Measured temperature scale: 0°C ÷ + 50°C
• Measured and displayed temperature resolution: 0.1°C
• Temperature regulation range: 2.0°C ÷ + 50°C
• Measurement update: every 30 seconds
• Measurement accuracy: ± 0.5 ° C
• Temperature regulation:
– on/off with adjustable differential between 0.1°C and 1°C
– proportional with settable band and regulation period
• Operating mode: heating (winter) or conditioning (summer)
• Automatic winter time/summer time change
• Keypad lock with password for installation in public places
• Flush-mounting installation on boxes with a height of 45 mm
(space occupied: 2 modules)
• Terminal block for cables with section of 1.5 mm2
• Operating temperature: 0°C ÷ +50°C
• Operating humidity: 20% ÷ 90% non condensing
• Storage temperature: -20°C ÷ +65°C
• Degree of protection: IP XXD

English
- 6 -
KIROS Chronothermostat User Manual
INSTALLATION KIROS (code VE780000)
• Install the chronothermostat at a height of about 1.5 m from the floor, away from
direct radiation, away from doors, windows, heat sources, locations with excess
or total lack of ventilation.
• Mount the white or anthracite grey frame according to your preferences by hooking
it to the special teeth on the device.
For information on the possibility of adapting the thermostat with plates different
from those shown, contact the Technical Assistance Service.
Adapter Plates
AM ABB series: Mylos
A4 AVE series: S44
BA BTICINO series: Axolute, Axolute AIR
BL BTICINO series: Light, Living International, LivingLight, LivingLight AIR
GC GEWISS series: Chorus
VE VIMAR series: Arké, Eikon, Eikon Evo
VP VIMAR serie: Plana
Mounting
aMount the appropriate adapter for the supplied plate (see table below).
bMake connections respecting the diagram shown on page 3 in this user manual
cInsert the device into the adapter

English
- 7 -
KIROS Chronothermostat User Manual
INSTALLATION KIROS-INT (code VE780001)
• Install the chronothermostat at a height of about 1.5 m from the floor, away
from direct radiation, away from doors, windows, heat sources, locations
with excess or total lack of ventilation.
• The device can be adapted to the cover plates of Berker, Busch-Jaeger, Gira, Jung
and Merten, using one of the two assembly sequences illustrated below.
The complete list of compatible cover plates is available on the website
www.vemer.it on the product page.
Cover plate
(not supplied)
Intermediate panel
(not supplied)
DEVICE
WITH METALLIC FRAME
Flush-mounting box
COVER
(WHITE / GREY)
DEVICE
CLOSING FRAME
(WHITE / GREY)
DEVICE
WITH METALLIC FRAME
Cover plate
(not supplied)
Intermediate panel
(not supplied)
DEVICE CLOSING FRAME
(WHITE / GREY)
Flush-mounting box
aConnect the load and power supply (see connection diagram)
bFasten the device with the metal frame to the flush mounting box and mount
the cover of the device (colour white / grey)
cApply the cover plate and the 50x50mm intermediate panel
dFinally insert the closing frame (colour white / grey)
Assembly sequence 1
aConnect the load and power supply (see connection diagram)
bFasten the device with the metal frame to the flush-mounting box
cApply the cover plate and the 50x50mm intermediate panel
dFinally insert the closing frame
Assembly sequence 2

English
- 8 -
KIROS Chronothermostat User Manual
OPERATING MODE
The device can operate according to the following 3 modes:
Automatic mode
It allows you to use the device
as a chronothermostat and the
temperature regulation follows the "profile"
of the set program. The program profile
assigns one of the 3 temperatures T1, T2 or T3
to each hour of the day.
It is possible to assign a different program to each day of the week.
In the example, the device adjusts the temperature based on the value of:
T2 from 00:00 to 6:00 and from 8:00 to 17:00
T3 from 6:00 to 8:00 and from 17:00 to 21:00
T1 from 21:00 to 24:00
The values of T1, T2 and T3 can be set by the user.
Manual mode
It allows you to use the device as
a thermostat and the regulation
is according to the temperature Tm.
Off mode
It is suitable when long periods of absence are expected.
In this mode the device does not perform any regulation,
however if it works in heating mode, it maintains a
minimum temperature (antifreeze temperature)
to prevent possible freezing of the system.
program
profile

English
- 9 -
KIROS Chronothermostat User Manual
To switch from automatic to manual operation.
To switch from manual to automatic operation
To switch from automatic operation (or manual) to the one switched off
and vice versa
Manual
operation
Tm operation
Automatic
operation
Off
operation
3"
3"
Manual
operation
Automatic
operation
Automatic
operation
3"
Manual
operation
Tm operation
Automatic
operation
Off
operation
3"
3"
Manual
operation
Automatic
operation
Automatic
operation
3"
Manual
operation
Tm operation
Automatic
operation
Off
operation
3"
3"
Manual
operation
Automatic
operation
Automatic
operation
3"

English
- 10 -
KIROS Chronothermostat User Manual
CONFIGURATION MENU DESCRIPTION
3s
SET
SET
SET
SET
SET
SET
The SET menu allows you to modify
the values of the 3 temperatures of the
automatic operation (T1, T2, T3).
The TIMER menu allows you the setting
of one of the 3 timed operations.
The PROG menu allows you to change the
programming of the automatic operating
mode.
The ADV menu allows you to configure
the general operating parameters
of the device.
The CLOCK menu allows you to set date
and time. It also allows the configuration
of the daylight saving time change.

English
- 11 -
KIROS Chronothermostat User Manual
CLOCK MENU - DATE AND TIME SETTING
Set the seconds
(only synchronization at 00)
Set the minutes Set the time
Set the year Set the month
Initial screen Configuration menu
SET
3s
To set the date and time values, proceed as follows:
To exit the date and time setting:
• press the key once to return to the configuration menu
• press the key twice to exit the menu and return to the initial screen
• to change the settings of the summer/winter time change, press and hold
for a long time the key (see "Configuration of the summer/winter time change")

English
- 12 -
KIROS Chronothermostat User Manual
week of the month
hour
day
month

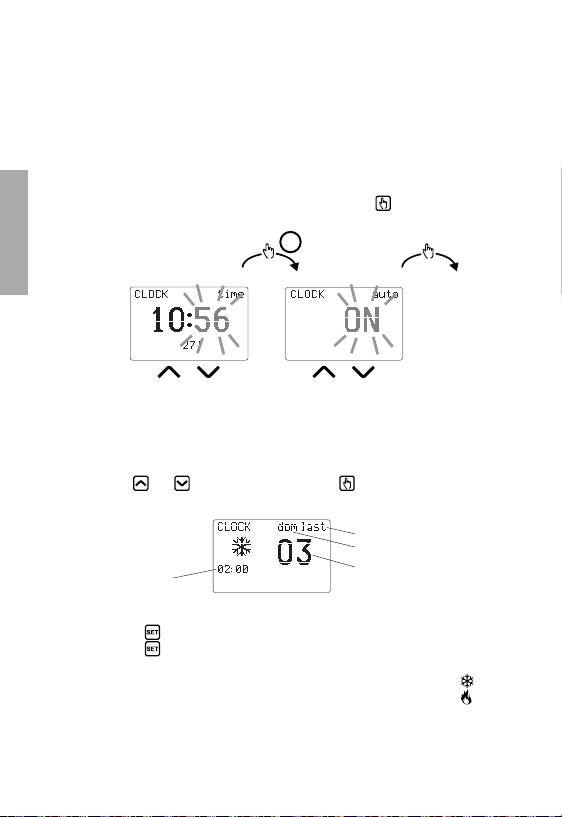

Changing the clock
Automatic on/off
time change
3s
If the function is enabled (AUTO ON), for each change it is necessary to set:
• the day of the week (1= Monday...,7= Sunday)
• the week of the month (1st= first, 2nd= second,...LSt= last)
• the month of the year
• time
using the keys and to set the value and the key to confirm and move on to
the next parameter.
To exit the summer/winter time change configuration:
• press the key once to return to the configuration menu
• press the key twice to exit the menu
Note: the winter time change →summer time is identified by the symbol .
the summer time change →winter time is identified by the symbol .
For example, in Italy the summer time starts the last (LST) Sunday (7) of March (03)
at 2:00 o' clock and the last (LST) Sunday (7) of October (10) at 3:00 o' clock.
week of the month
hour
day
month
Changing the clock
Automatic on/off
time change
3s
You can configure the device to independently manage the summer time update.
The factory setting includes:
• the passage winter time →summer time (+1h) the last Sunday of March at 2:00 o'clock
• the passage summer time →winter time (-1h) the last Sunday of October at 3:00 o'clock
To change the configuration of the summer/winter time change:
• when changing any of the clock parameters
(seconds, minutes, hour, year, month or day), keep the key
pressed for a long time until the display shows AUTO
Configuration of the summer / winter time change

English
- 13 -
KIROS Chronothermostat User Manual
PROG MENU - PROGRAMS SETTING
x1 time
Initial screen Configuration menu PROG. Menu
Choose the day Y
Choose
the Px program SET/
SET
3s
Access the PROG menu to change the programming of the automatic operation.
The factory setting includes:
• the P1 program from Monday to Friday
• the P2 program on Saturday and Sunday
If this program is not suitable for your needs, you can:
• assign a different program for one or more days of the week
• modify one or more existing programs by personalizing the profile, that is,
assigning different temperature levels for one or more hours of the day.
How to choose a different program for the day Y
If the program meets the needs:
• press the key once to confirm and choose another day to which to assign a
different program
• press the key twice to return to the configuration menu
• press the key three times to exit the menu and return to the initial screen
If no program meets the needs:
• choose the one that is closest to you and press the key to customize
the profile (see "How to customize the profile of a Px program")

English
- 14 -
KIROS Chronothermostat User Manual
How the switching delay works
Set a switching delay for a specific hour to maintain,
for the duration of the delay, the temperature value assigned
to the previous hour.
For example, if the program includes:
T2 from 12 to 13
T3 from 13 to 14 with 30 minutes delay
the chronothermostat adjusts the temperature based on the value of
T2 from 12 to 13.30 and
T3 from 13.30 to 14.00
It is possible to set delays of 15, 30, 45 minutes,
independent for every hour of the day.
How to customize the profile of a Px program
• starting from midnight 00:00, press the keys and to assign
to each hour of the day one of the 3 possible temperatures (T1, T2, T3)
and the key to confirm and go to the next hour.
• to enter a switching delay for the selected hour, hold down the key
for a long time. For more information about the switching delay, see
"How the switching delay works"
When the program profile is suitable for your needs:
• press the key to exit the customization.
Choose the
PX program Choose the temperature for the selected time Choose the temperature for the next hour

English
- 15 -
KIROS Chronothermostat User Manual
SET MENU - TEMPERATURES T1, T2, T3 SETTING
Initial screen Configuration menu SET Menu
Change T1 Change T2 Change T3
SET
3s x2 times
Access the SET menu to change the values of the 3 temperatures used in automatic
operation. The factory setting includes:
• T1 = 15°C, T2 = 18°C, T3 = 21°C (heating/winter operation )
• T1 = off, T2 = 23°C, T3 = 25°C (conditioning/summer operation )
How to change the temperature values T1/ T2/ T3
To exit the temperature change:
• press the key once to return to the configuration menu
• press the key twice to exit the menu and return to the initial screen
Note: temperature values between L0 (minimum value)
and kI (maximum value) are allowed.
These factory values are: L0 = 2°C, kI = 50°C but can be modified through the ADV
menu.
Note: the condition T1 ≤ T2 ≤ T3 must be respected.

English
- 16 -
KIROS Chronothermostat User Manual
TIMER MENU - TIMING SETTING
Initial screen Configuration menu TIMER menu
SET
3s
Set the date and time of timing end.
Increments of:
- 15 minutes (’) for timings up to 24 hours
- 1 hour (h) for timings from 1 to 5 days (d)
- 12 hours for timings from 5 to 99 days
x3 times
Set a timing to prolong the current operation for the duration of the timing itself.
There are 3 timings available:
• Timed manual: set a timing during manual operation to maintain this operation
until timing has elapsed. At the end of the timing, the device activates the
automatic operation.
• Timed automatic: set a timing during the automatic operation to maintain
this operation until the timing has elapsed.
At the end of the timing, the device activates the off operation
• Off timed: set a timing during off operation to maintain this operation until
timing has elapsed. At the end of the timing, the device activates automatic
or manual operation, depending on which operation was active before switching off.
How to set a timing
To exit the timing change:
• press the key once to return to the configuration menu
• press the key twice to exit the menu and return to the initial screen
When a timing is in progress, the symbol is lit.
Note: to cancel a timing in progress or to exit without activating the timing,
keep the key pressed until the display shows the current time.
Note: the timing ends in the case of changes to the operating mode.

English
- 17 -
KIROS Chronothermostat User Manual
ADV MENU - ADVANCED PARAMETERS SETTING
Initial screen Configuration menu ADV menu
SET
3s x4 times
In the ADV menu, the parameters related to the advanced configuration of the device
are proposed in sequence. Press:
• the keys and to change the value of the selected parameter
• the key to go to the next parameter
• the key to exit and confirm the changes
Note: the device exits the menu after about 40 seconds without any key being pressed.
Operating mode
Setting up:
• RISC if the device is connected
to a heating system (winter operation)
• COND if the device is connected
to an air conditioning system
(summer operation)
Factory value: RISC (heating).

English
- 18 -
KIROS Chronothermostat User Manual
Regulation type
(this menu is active only if operating mode = heating)
Setting up:
• Oto choose on/off regulation.
• Pto choose proportional regulation.
Factory value: O(on/off).
Note: the on/off regulation is suitable for most home situations.
Therefore it is advisable to modify this parameter only in case of real need.
For more information on the characteristics of the on/off and proportional regulation
logic, see "Regulation types" on page 24.
Parameters for the regulation type
(this menu varies depending on the chosen regulation type)
If the chosen regulation type is on/off, set the
differential dif. Allowed values: 0.1°C ÷ 1°C.
Factory value: 0.3 °C
If the chosen regulation type is proportional,
set the band bnd and the period per.
Allowed values: 0.5°C ÷ 5°C (band),
10, 20 or 30 minutes (period).
Factory value: 0.5 °C (band),
10 minutes (period).
For more information on the parameters
of the regulation logics, see
"Regulation types" on page 24.
