TechLogix Network TL-C-HDCP User manual

User Manual
TL-C-HDCP
HDCP Converter
All Rights Reserved
Version: TL-C-HDCP_160926

TL-C-HDCP User Manual
www.tlnetworx.com
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
are for reference only; the actual product may vary.
This manual is only for operation instruction only and not for any maintenance or repair.
Trademarks
Product model and logo are trademarked. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

TL-C-HDCP User Manual
www.tlnetworx.com
SAFETY PRECAUTIONS
To i ns ur e pro p er op e rat io n , please read all instructions carefully before using the device.
Save this manual for further reference.
l Unpack the equipment carefully and save the original box and packing material for
possible future shipment
l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
l Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
l Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
l Refer all servicing to qualified service personnel.
l To p reve nt fi re or s ho ck ha zard, do not expose the unit to rain, moisture or install this
product near water.
l Do not remove the housing of the device, as opening or removing housing may
expose you to dangerous voltage or other hazards.
l Install the device in a place with adequate ventilation to avoid damage caused by
overheating.
l Keep the device away from liquids.
l Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the device immediately.
l Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
l Unplug the power cord when left unused for a long period of time.
l If disposing of the unit, do not burn or mix with general household waste. The device
must be disposed of per local regulations for electronic recycling.

1
TL-C-HDCP User Manual
www.tlnetworx.com
1. Introduction
The TL-C-HDCP converts an HDMI signal supporting HDCP 2.2 to HDCP 1.4.
The HDMI input supports HDCP 2.2 and the HDMI output supports HDCP 1.4.
The unit supports a 4K@60Hz signal up to 15m, and transparently passes EDID
signals.
1.1 Features
l Supports HDMI 2.0 & HDCP 2.2
l EDID bypass
l Auto input resolution detection
l Easy to install and simple to operate
1.2 Package List
ü 1 x TL-C-HDCP
ü 2 x Mounting ears
ü 2 x Screws
ü 4 x Plastic cushions
ü 1 x Power Adapter (DC 5V 1A)
ü 1 x User manual

2
TL-C-HDCP User Manual
www.tlnetworx.com
2. Appearance
No.
Name
Description
①
Power Indicator
Illuminated red when sufficiently powered
②
IN
Connect to the HDMI source
③
DC 5V
Micro USB power port; insert DC 5V 1A power
adapter
④
OUT
Connect to the HDMI display
&
Pictures shown in this manual are for reference only.
3. System Connection
The figure below illustrates a typical system using the TL-C-HDCP:
Step1. Connect an HDMI source (e.g. a set top box) to the IN port of TL-C-HDCP;
Step2. Connect an HDMI display (e.g. a LCD TV) to the OUT port of TL-C-HDCP;
Step3. Plug DC 5V 1A power adapter into the power port of TL-C-HDCP.
Notes:
1) System should be installed in a clean environment that has a proper temperature
and humidity.
2) All of the power switches, plugs, sockets and power cords should be installed
properly.
3) All devices should be connected before powering on the device.
DVD HDTV
DC 5V
HDMI Signal:

3
TL-C-HDCP User Manual
www.tlnetworx.com
4. Specification
Input
Output
Input
1 HDMI IN
Output
1 HDMI OUT
Connector
19-pin type-A female
HDMI
Connector
19-pin type-A female
HDMI
Audio
HDMI embedded
audio
Audio
HDMI embedded
audio
General
Transmission
Distance
4K@60Hz≤15m
1080P≤20m
Bandwidth
18 Gbps
Audio
Supports PCM(2.0, 2.1, 5.1, 6.1, 7.1), Dolby Digital(5.1)、DTS-
HD(5.1, 7.1, DD+/True HD(2.0, 5.1, 7.1) DTS-ES 6.1
Audio Sampling
Rate
32k, 44.1k, 48k, 88.2k, 96k, 176.4k, 192k
Power Supply
DC 5V 1A
Power
Consumption
0.5W
Dimensions
(W*H*D)
45.5*12*75 mm
Weight
49g
Work
Te m p e r a t u re
0~50℃
Reference
Humility
10%-90%
EDID
Management
Support pass-through EDID
4.1 Supported Resolution
4K
3840*2160, 4096*2160(30Hz/60Hz)
16:9
1920*1080, 1600*900, 1366*768, 1280*720, 1024*576
(60Hz)
16:10
1920*1200, 1680*1050, 1440*900, 1360*768, 1280*800
(60Hz)
4:3
1600*1200, 1400*1050, 1280*1204, 1024*768, 800*600,
640*480(60Hz)
21:9
2560*1080(30Hz/60Hz)

4
TL-C-HDCP User Manual
www.tlnetworx.com
5. Panel Drawing
6. Troubleshooting & Maintenance
Problems
Causes
Solutions
Color loss or blurry/
double image on the
HDMI display
Poor quality HDMI cables
Change the HDMI cable
Power led is off,
operations don’t work
No power
Power up the unit
Poor contact of power
port
Make sure power adapter
is properly seated
No output on the display
Source/ Display is off
Turn on the source/
display
Poor contact of HDMI
ports
Check the HDMI ports
one by one to make sure
they’re properly seated.

5
TL-C-HDCP User Manual
www.tlnetworx.com
7. After-sales Service
1) Product Limited Warranty: We warrant that our products will be free from defects in
materials and workmanship for three years.
2) Warranty coverage may be voided when:
l The warranty period has expired
l The factory applied serial number has been altered or removed from the product
l There is damage, deterioration or malfunction caused by:
l Atypical wear and tear
l Use of supplies or parts not meeting the specifications
l No certificate or invoice as the proof of warranty
l Damage caused by force majeure
l Non-authorized service
3) Te c hn i ca l S u pp o rt: When contacting TechLogix support, please have the following
information available:
l Product part number
l Installation and sale date
l Detailed failure information
Table of contents
Popular Media Converter manuals by other brands

NetUP
NetUP Streamer HD v2 8-24x user manual

Sunforce

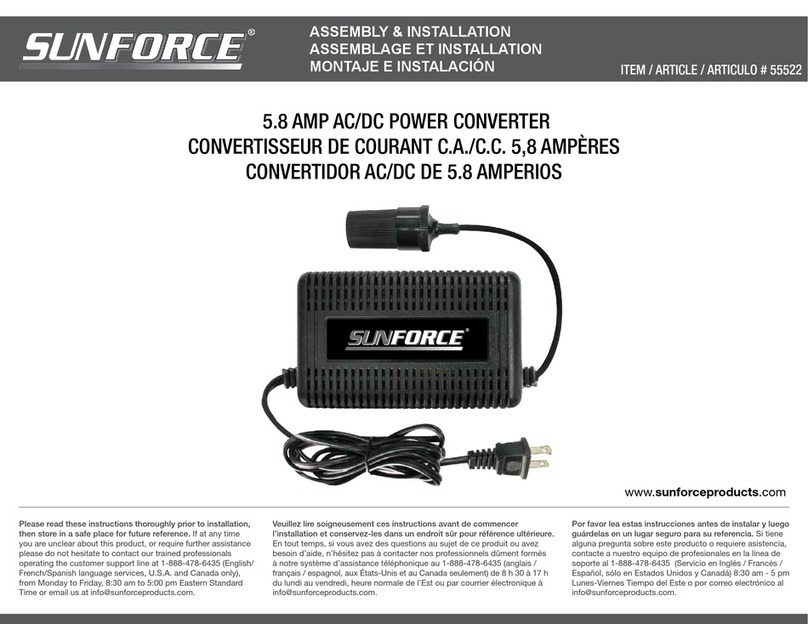

Sunforce 55522 Assembly & installation
