Techni-Lux DL-FLEXILED3C30/B User manual

1
Information specifically for:
DL-FLEXILED3C30/B - Black
V1
This manual contains important information.
Please read before operating fixture.

2
IMPORTANT INFORMATION
Save original packing and documentation for warranty, service and return issues.
Limited Warranty: This warranty covers defects or malfunctions in this equipment. This warranty lasts
for a period of one year from date of purchase. It is the owner’s responsibility to provide invoices for
proof of purchase, purchase date and dealer or distributor. If purchase date can not be provided,
warranty period will start at manufacture date. It is the sole discretion of Techni-Lux to repair or replace
parts or equipment. All shipping will be paid by purchaser. This warranty does not cover lamps, fuses,
belts, power semiconductors, relays, cleaning, standard maintenance adjustments or normal wear items
or any problem resulting from the following: improper wiring, incorrect voltage (including low or over
voltage conditions and lightning), abuse, misuse, improper maintenance or an act of God or damage
resulting from shipping. Warranty will be null and void if the product is altered, modified, misused,
damaged, or subjected to unauthorized repairs. Lamps are covered by relevant manufacturer warranty.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state. Any liability for consequential and incidental damages is expressly disclaimed. No other warranty,
expressed or implied is made. Techni-Lux liability in all events is limited to, and shall not exceed, the
purchase price paid.
Returning equipment and Repairs: All returns must be accompanied by a Return Merchandise
Authorization (RMA) number and sent pre-paid. Contact the dealer or Techni-Lux directly to obtain an
RMA. The RMA number must be clearly listed on the shipping label. Due care must be exercised in
packing all merchandise to be returned. All repairs must be accompanied by a written explanation of the
claimed problem or error encountered. Techni-Lux is solely responsible for determining a product’s
eligibility for coverage under warranty. If returning for consideration of credit, all accessories and
documentation, original protective material and cartons must be included and the equipment, packing
and carton must be in new resalable condition. Credit for returned merchandise will be issued at the
lowest current price and is subject to a restocking fee. No returns accepted on discontinued items.
Techni-Lux is not responsible for merchandise damaged in transit and reserves the right to refuse any
return that is damaged by the carrier, not accompanied by a Return Authorization Number (RMA#) or
sent by freight collect.
Claims: All claims must be made within seven (7) days of receipt of merchandise. Any physical damage
must be reported to carrier upon receipt of merchandise.
Please record the following information for future reference:
Model Number: DL-FLEXILED3C30/B
Serial Number: ________________________________________
Dealer: ______________________________________________
Date of Purchase: ______________________________________
www.Techni-Lux.com

3
Table of Contents
Specifications .............................................................................................................................4
Unpacking ...................................................................................................................................5
Power...........................................................................................................................................5
Mounting .....................................................................................................................................5
Basic Reference..........................................................................................................................6
Setup and Operation Modes (LCD Display)..............................................................................6
Control Panel Menu....................................................................................................................7
DMX-512 Control.........................................................................................................................7
DMX Data Connection ..............................................................................................................8
Data Terminator ........................................................................................................................8
Adapter 5-to-3 pin .....................................................................................................................8
DMX Start Address ...................................................................................................................9
DMX Channel Assignments .......................................................................................................9
4 Channel Mode........................................................................................................................9
5 Channel Mode........................................................................................................................9
6 Channel Mode......................................................................................................................10
7 Channel Mode......................................................................................................................10
Channel Values and Functions – 7 Channel Mode.................................................................10
CH 1 : Master Dimmer ...........................................................................................................10
CH 2 : Red ............................................................................................................................10
CH 3 : Green.........................................................................................................................10
CH 4 : Blue............................................................................................................................11
CH 5 : White..........................................................................................................................11
CH 6 : Color Macro/Scroll .....................................................................................................11
CH 7 : Strobe ........................................................................................................................12
Maintenance..............................................................................................................................13
Accessory Items (sold separately)..........................................................................................13
Troubleshooting .......................................................................................................................14
DMX-512 Background...............................................................................................................14

4
Specifications
Fixture Overview
•RGBW color mixing with intensity and strobe effects
•30 x 3 watt LED - 8 Red, 8 Green, 8 Blue and 6 White
•Beam Angle – 15°
•Rugged Aluminum Housing
•Operating modes: DMX, Scene Memory, Chases, Sound Active, Master/Slave
•Precise DMX control using 7 channels or reduced channel modes
•Filter frame holding slot and frame included
•Quick beam shaping using optional LSD filters in the included frame
•Digital LCD display menu for settings
•Optional beam angle lenses: 25, 30, 45
•½” Clamp mounting hole
Physical
Color Black
Size 11” x 12.0” x 10”
Weight 8.8 lbs (4 kgs)
Housing Material Aluminum
Environmental
Location Indoor
Max. ambient temperature 105°F (40°C)
Min. distance to flammable surface 3.3ft (1m)
Min. distance to illuminated surface 1ft (0.3m)
Electrical
Voltage Internally selectable 120 or 230vAC, 50-60Hz
Rated Power 80W
Fuses 2 amp mini size: 5x20mm
Control
Digital Protocol USITT DMX512 (1990)
Channels 4, 5, 6, or 7 maximum
Data I/O 5 Pin XLR (Cannon)
Modes DMX512 or Stand-Alone
Optics
Light Source 30 RGBW 3 watt LEDS - 8 Red, 8 Green, 8 Blue and 6 White
Beam Angle 15°
Rigging
Orientation Any
Mounting Points Adjustable yoke with 1/2” (13mm) mounting hole and kick
stand yoke for floor standing

5
Unpacking
Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are
present and have been received in good condition. If any parts appear damaged from shipping
or the shipping carton shows signs of mishandling, notify the shipper immediately. Retain
carton and all packing material for inspection. In the event that the merchandise is to be
returned, the original carton and packing must be used. The customer will be billed for a new
carton and packing if merchandise is received without the original carton and packing.
Claims
Physical damage must be reported to the Freight Carrier or Shipping Company upon
receipt of merchandise. Damage incurred in shipping is the responsibility of the Freight
Carrier or Shipping Company. It is the customer’s obligation in the event that
merchandise is received damaged, to notify the Freight Carrier or Shipping Company
immediately. All other claims not related to damage incurred during shipping must be
made to the Dealer or Distributor within 7 days of receiving merchandise.
Returns
Returned merchandise must be in the original packing with a Return Merchandise
Authorization number (RMA) clearly listed on the shipping label. Items sent by Freight
Collect or without a RMA number will be refused. Call your sales person and request a
RMA prior to shipping. Be prepared to provide the model number, serial number and
description of the nature of the return. Shipping damage resulting from inadequate
packaging is the customer’s responsibility. Customer will be charged additional shipping
charges to return products received in non original packing and or cartons.
Power
Do not apply power to the fixture until power source is verified.
For protection against electric shock, fixture must be connected to suitable earth ground.
Make sure fixture is disconnected from power mains before any service.
The mains voltage and frequency of this fixture is internally set. It can either be set to 120v or
230v AC 50/60Hz. The listed power rating is its average wattage under normal conditions. All
fixtures must be powered directly from a switched circuit. This fixture cannot be run on a
rheostat or dimmer circuit even if used solely for a 0% to 100% switching. Before applying
power to a fixture, check that the fixture’s input voltage matches the power source voltage.
Consult a qualified electrician if there are any concerns about proper connection to power.
Mounting
Always consult a qualified professional when rigging. Consider access for routine maintenance
when selecting a mounting position. This fixture may be mounted in any position provided there
is adequate room for movement and ventilation. Mount the fixture securely using a mounting
clamp and a safety cable. This fixture features dual yokes making it useful for floor standing at
different angles. Always keep cords out of the way, thus preventing any trip hazards. Secure all
cables properly. Do not mount where the fixture will be exposed to rain, high humidity, extreme
temperature changes or restricted ventilation. Do not obstruct any vents.

6

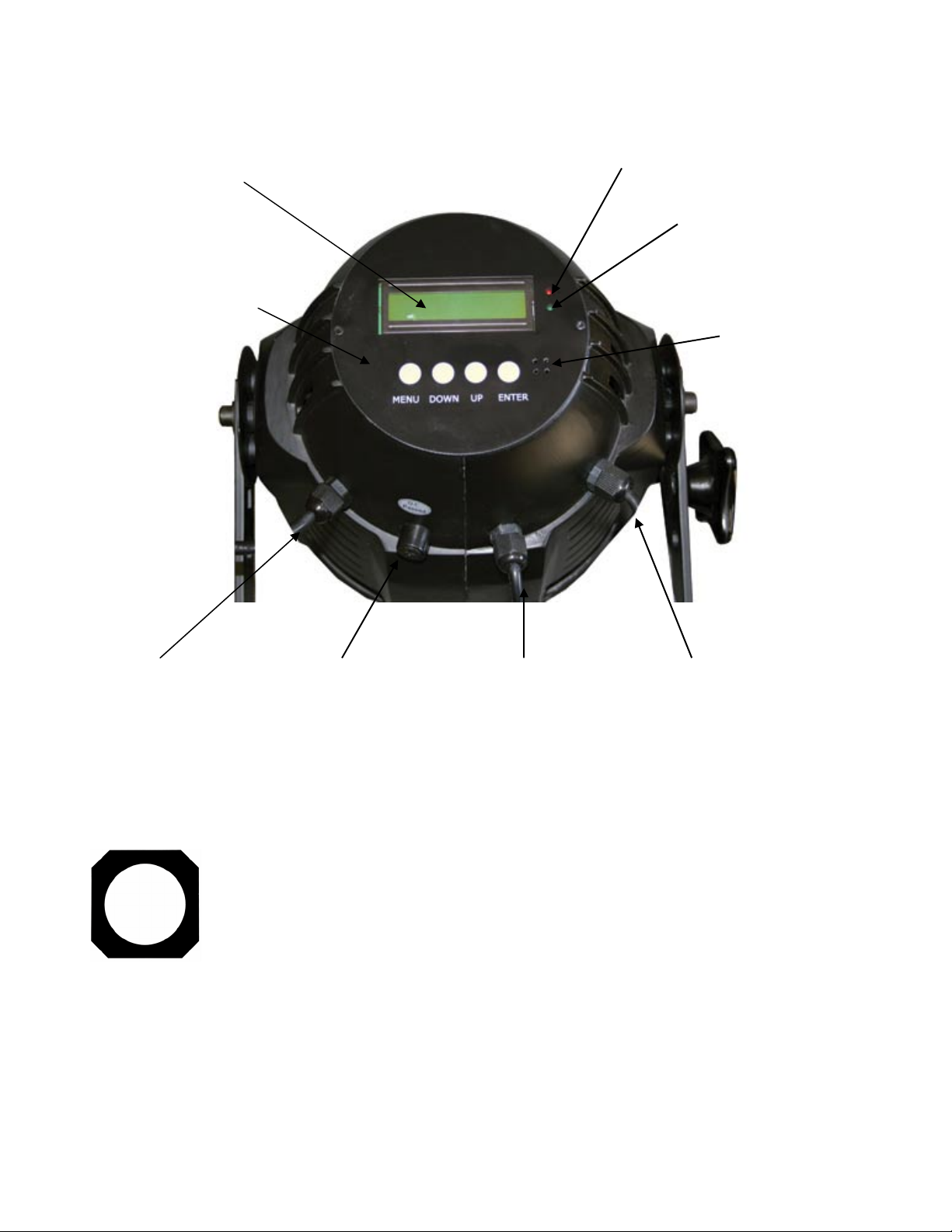

Basic Reference
Power/DataIndicator
Digital LCD Display
Audio Indicator
Menu Setting Buttons
Microphone
Power Input Cable Fuse Holder Female XLR 5-pin Male XLR 5-pin
Data Output Cable Data Input Cable
Setup and Operation Modes (LCD Display)
This fixture includes a filter frame. This frame can be used to hold a gel or filter
to better assist in controlling your light beam. By using certain filters, it is
possible to create different desired lighting effects. A desired effect might be a
softer or diffused light beam. This can be achieved by using a frosted gel
within the provided frame. Many diffraction materials are available to create
different beam angles with minimal light output losses.
The following refers to the different modes that are available on this fixture via the LCD Control
Panel display. All functions are selectable from the display menu located at the back of the
fixture.

7
Control Panel Menu
Use the fixture’s Control Panel to access the Control Menu. The MENU Key puts the
fixture in the settings menu itself and also acts as a BACK key between options,
UP/DOWN moves through the menu options and allows the assignment of a value. The
ENTER key is used to enter that option and confirms the selection once the UP/DOWN
is used to adjust the value. When in edit, the display will Flash. Settings are stored and
recalled on subsequent power cycles. R, G, B, W refers to Red, Green, Blue and White
respectively. DMX and master/slave modes require data cables to be connected between
fixtures. Manual and some stand-alone modes do not require data cables for
independent use of the fixture. When this unit powers up, it will display “System On” for
System Power On.
Note: MODE will not show up in the control panel menu system. To enter the MODE
options, before applying power, you must hold down the MENU button for 6 seconds
while the unit is powering up. The factory default MODE is set to “04”, the 7 channel
DMX mode.
DMX-512 Control
Fixtures require a "Start Address" from 1 to 512, setting the first DMX channel containing data
for the fixture (see DMX Background). Before addressing fixtures, consult the manual of the
system’s DMX controller to select a desirable addressing scheme. Valid Start Addresses range
from 1 to 512. Fixtures requiring more than one channel for control will read subsequent
channels up to the total number of channels required. Since this fixture requires 7 channels of
DMX, if set to a Start Address of 7 it would use data from channels: 7, 8, 9, 10, 11, 12, and 13.
Choose a Start Address so the channels used do not overlap with other fixtures. In some
cases, it may be desirable to set two or more same type fixtures to the same Start Address. In
this case, the fixtures will be slaved together and respond to the same data. Because all
fixtures see the same data, fixtures may be set to any address without concern for the order
they are connected by the DMX cables.
Menu Options Function Options
MODE Select Number of DMX Operating Channels 01 = 4, 02 = 5, 03 = 6 or 04 = 7 channels
ADDRESS Select DMX Start Address 1-512
COLBALANCE Enable/Disable Color Balance preferences BALANCE: On/Off
RGBW - Set individual values for the Color
Balance: R 0-255, G 0-255, B 0-255, W
0-255
DISPLAY Set the Display Backlight On/Off
MANUAL Manual Operation Options RESET – RestSystem
TEST - Test the individual Colors: R 0-255, G
0-255, B 0-255, W 0-255
PROGRAMMER -
SCENE - 16 user programmable
scenes: 1-16 set R 0-255, G 0-255, B
0-255, W 0-255, Strobe 0-255
CHASE - 6 user programmable
chases: 01-06 set Speed 0-255
STANDALONE Functions for Automated Run Options SOUND: Off – 100%
MASTER: On/Off
SLAVE: Off or 1-31
PLAYBACK: Scene 01-16 or Chase 01-06

8
Note: For DMX to operate on this unit, all STANDALONE options must be set to Off.
DMX Data Connection
This fixture uses 5 pin XLR type connectors and shielded twisted pair cable approved for
EIA-422/EIA485 use. Fixtures are connected in Daisy Chain topography: Connection is
made from the controller to the DMX-IN of the first light, then from the DMX-OUT to the
DMX-IN of the next light and so on. Only one data source can be on a chain and no
branching is allowed. The physical order in which the fixtures are connected is not
important, use the most convenient.
Data Terminator
A Data Terminator can be connected to the DMX-OUT of the
last fixture to reduce the effects of signal noise; it is not required
for all installations. To make a Terminator, connect a 120-ohm
¼ watt resistor across pin 2, Data Negative (S-) and pin 3, Data
positive (S+). Whether it is a 5 pin XLR or 3 pin XLR connector
(shown on right) does not matter, the pin numbers remain the
same. A qualified technician can determine if a Data Terminator
is needed.
Adapter 5-to-3 pin
Systems using 5 pin DMX interfaces can be accommodated by purchasing 3-to-5 pin
adapters or building adapter cables. Numbers designating each pin can be found on
connectors. Converting between the two XLR types is done in a pin-to-pin fashion.
Connect the shields to pin 1, then connect pin 2 to pin 2 and pin 3 to pin 3, regardless of
either connector’s gender or pin count. No connection is made to Pins 4 & 5.
5 Pin XLR (Plug)
Pin 1: GND(Sheild)
Pin 2: Signal(-)
Pin 3: Signal(+)
Pin 4: N/C
Pin 5: N/C
3 XLR (S )
Pin 1: GND(Sheild)
Pin 2: Signal(-)
Pin 3: Signal(+)
Pin ocket
5 Pin XLR (Socket)
Pin 1: GND(Sheild)
Pin 2: Signal(-)
Pin 3: Signal(+)
Pin 4: N/C
Pin 5: N/C
3 XLR (Plug)
Pin 1: GND(Sheild)
Pin 2: Signal(-)
Pin 3: Signal(+)
Pin
DMX-IN
1
2
3
4
5
- Ground
- Signal (-)
-
-
-
S
(Unused)
ignal (+)
XLR Connector - Plug
:
1
234
5
DM
X
-OU
T
XLR Connector - Socket:
1
2
3
4
5
- Ground
- Signal (-)
-
-
-
S
(Unused)
ignal (+)
1
2
3
4
5

9
DMX Start Address
To place the fixture in DMX mode, press the MENU key, then using the UP/DOWN keys
get to the Address Menu Option. Press ENTER and using the UP/DOWN buttons, set
the start address number for this particular unit in the DMX chain. Once selected, press
ENTER again to save your selection. More than one fixture may have the same start
address, but they will behave the same. Giving a unique start address that does not
overlap with any other units allows you to individually control that fixture’s features fully.
Never allow channels to overlap. You will need to select the number of channels you
wish the fixture to use first. Your choices are 4, 5, 6, or 7 channel modes. This will
determine the spacing of channels you will need to avoid overlapping of channels when
selecting your start addresses.
Example Select Start Addresses for 4 fixtures each requiring 7 channels of DMX (7
channel mode).
For this example, start with the first unit set to the first possible Start Address = 1. This fixture
occupies DMX channels 1 thru 7. The next DMX channel available for a Start Address is found
by adding the previous fixture’s Start Address to its channel requirement: 1+7=8. To maximize
channel usage, we will leave no empty channels between fixtures so the second Start Address is
set to DMX channel 8 and that fixture occupies channels 8 thru 14. The third fixture will be
addressed 8+7=15 and occupy channels 15 thru 21. The last fixture is addressed 15+7=22 and
will occupy channels 22 thru 28. Thus, 4 fixtures using 7 channels each have Start Addresses of
1, 8, 15 and 22 and the next free channel in the system is 22+7=29.
DMX Channel Assignments
This fixture features 4 different DMX Channel modes. A 4, 5, 6, and 7 channel mode.
Using the 7 channel mode provides the most features, however it takes up the most
channels of DMX. The different channel assignments are shown below. The factory
default is the 7 channel mode. We will provide a full description of the values and
functions of the 7 channel mode only. All other modes of less channels, do the same
functions described within the 7 channel mode. Note that the channel order maybe
different for each of the mode.
4 Channel Mode
5 Channel Mode
Channel Function
1 Red (0-255)
2 Green (0-255)
3 Blue (0-255)
4 White (0-255)
Channel Function
1 Red (0-255)
2 Green (0-255)
3 Blue (0-255)
4 White (0-255)
5 Master Dimmer (0-255)

10
6 Channel Mode
7 Channel Mode
Channel Values and Functions – 7 Channel Mode
CH 1 : Master Dimmer
The Master Dimmer controls the
actual output level while the
relative level of each color is set
by the R, G or B channels or the
Color Macro/Scroll Channel.
CH 2 : Red
Sets relative intensity of Red.
Actual value is subject to Master
Dimmer channels. The Color
Macro/Scroll Channel will
override this channel.
CH 3 : Green
Sets relative intensity of Green.
Actual value is subject to Master
Dimmer channels. The Color
Macro/Scroll Channel will
override this channel.
Channel Function
1 Red (0-255)
2 Green (0-255)
3 Blue (0-255)
4 White (0-255)
5 Master Dimmer (0-255)
6 Strobe (0-255)
Channel Function
1 Master Dimmer (0-255)
2 Red (0-255)
3 Green (0-255)
4 Blue (0-255)
5 White (0-255)
6 0-4 No Function
5-84 Color Macro
85-169 Color Snap
170-255 Color Fade
7 Strobe (0-255)
CH 1 – Master Dimmer
DMX Value Function
0 – 4 Black Out
5-255 Intensity - Dark to Full Brightness
CH 2 – Red
DMX Value Function
0-4 No Output
5-255 Intensity - Off to Full On
CH 3 – Green
DMX Value Function
0-4 No Output
5-255 Intensity - Off to Full On

11
CH 4 : Blue
Sets relative intensity of Blue.
Actual value is subject to Master
Dimmer channels. The Color
Macro/Scroll Channel will
override this channel.
CH 5 : White
Sets relative intensity of White.
Actual value is subject to Master
Dimmer channels. The Color
Macro/Scroll Channel will
override this channel.
CH 6 : Color Macro/Scroll
The Color Macro/Scroll selects between 16 colors and two Color Scroll Modes. The first
Color Scroll Mode snaps between colors, the second Color Scroll Mode fades between
colors. This will override the relative values set by the individual RGBW channels 2, 3, 4
& 5.
CH 6 – Color Macro/Scroll
DMX Value Function
0-4 No Macro or Scroll
5-9 Cool White
10-14 Lt. Blue
15-19 Blue
20-24 Purple
25-29 Blue Magenta
30-34 Magenta
35-39 Hot Pink
40-44 Pink
45-49 Red
50-54 Orange
55-59 Yellow
60-64 Lime
65-69 Lt. Green
70-74 Green
75-79 Teal
80-84 Cyan
85-89 Color Scroll Snap Speed 1 (Fastest)
90-94 Color Scroll Snap Speed 2
95-99 Color Scroll Snap Speed 3
100-104 Color Scroll Snap Speed 4
105-109 Color Scroll Snap Speed 5
110-114 Color Scroll Snap Speed 6
115-119 Color Scroll Snap Speed 7
120-124 Color Scroll Snap Speed 8
125-129 Color Scroll Snap Speed 9
CH 4 – Blue
DMX Value Function
0-4 No Output
5-255 Intensity - Off to Full On
CH 5 – White
DMX Value Function
0-4 No Output
5-255 Intensity - Off to Full On

12
130-134 Color Scroll Snap Speed 10
135-139 Color Scroll Snap Speed 11
140-144 Color Scroll Snap Speed 12
145-149 Color Scroll Snap Speed 13
150-154 Color Scroll Snap Speed 14
155-159 Color Scroll Snap Speed 15
160-164 Color Scroll Snap Speed 16
165-169 Color Scroll Snap Speed 17 (Slowest)
170-174 Color Scroll FADE Speed 1 (Fastest)
175-179 Color Scroll FADE Speed 2
180-184 Color Scroll FADE Speed 3
185-189 Color Scroll FADE Speed 4
190-194 Color Scroll FADE Speed 5
195-199 Color Scroll FADE Speed 6
200-204 Color Scroll FADE Speed 7
205-209 Color Scroll FADE Speed 8
210-214 Color Scroll FADE Speed 9
215-219 Color Scroll FADE Speed 10
220-224 Color Scroll FADE Speed 11
225-229 Color Scroll FADE Speed 12
230-234 Color Scroll FADE Speed 13
235-239 Color Scroll FADE Speed 14
240-244 Color Scroll FADE Speed 15
245-249 Color Scroll FADE Speed 16
250-255 Color Scroll FADE Speed 17 (Slowest)
CH 7 : Strobe
The Strobe functions in all modes. The strobe effect will toggle the Master Level
between Off and its present value.
CH 7 – Strobe
DMX Value Function
0-4 No Strobe
5-255 Strobe Effect - Slow to Fast

13
Maintenance
Make sure fixture is cool and disconnected from power mains before any service.
Weekly operating hours and environmental conditions will establish how often the fixtures need
cleaning. Fixtures should be cleaned and inspected at least once a month to maintain optimum
performance. Accumulation of dust and fog residue increases heat build up, can lead to
malfunctions, overheating and reduction in maximum light output, reduced fixture life and over
all performance. Before conducting any maintenance, disconnect fixture from power mains.
1) Disconnect fixture from power mains.
2) Use a vacuum with a soft brush to remove dust collected on external vents and internal
components. If using an air compressor, use low pressures and extreme care to prevent
damaging any internal parts or effects.
4) Clean all optical elements when the fixture is cold. Use a soft lint free cotton cloth or tissue
and cleaner safe for plastics.
5) Inspect clamps and safety cables to ensure fixture is secure and safe.
Accessory Items (sold separately)
Order Code Description
CLAMP-MEGA/B Mega Heavy Duty Aluminum Clamp – Black
CLAMP-CBHALF Half Cheeseborough Coupler 300kg Max Load
SAFETYCABLE18B Safety Cable Black 18”
SAFETYCABLE18S Safety Cable Silver 18”
PA-FLEXIBARN/B 4-Leaf Barndoors
ZOLE1000 - 1004 Optional Lenses 10, 15, 25, 30, 45 degrees
UG-LSD1010 – 6060 Various LSD filter options - 10x10, 10x30, 20x20, 30x30,
40x40, 60x01, 60x60
CA-XLR5/5 Pre-made 5’ 5-pin XLR Cable
CA-XLR5/10 Pre-made 10’ 5-pin XLR Cable
CA-XLR5/25 Pre-made 25’ 5-pin XLR Cable
CA-XLR5/50 Pre-made 50’ 5-pin XLR Cable
CA-XLR5/100 Pre-made 100’ 5-pin XLR Cable
CO-XLR5M XLR Connector 5-pin Male
CO-XLR5F XLR Connector 5-pin Female
CO-XLRTERM5 XLR 5 Pin Data Terminator
CO-XLR3MTO5F XLR 3 Pin Male to 5 Pin Female Adapter
CO-XLR5MTO3F XLR 5 Pin Male to 3 Pin Female Adapter

14
Troubleshooting
Symptom Possible Cause / Solution
Check for power on mainsNo Power
Check main fuse and fuse holder
Check data cables: connection and proper wiring
Check Display settings
Erratic / No response to DMX
Check Start Address
Check Start Address
Check for overlapping addresses
Check Menu settings
Incorrectly responds to DMX
(Diagnostic technique for DMX issues: Set
suspect fixture’s Start Address the same as a
correctly functioning fixture. If both units then
function correctly, issue is programming) Check Data cables (faults and proper wiring)
DMX-512 Background
DMX-512 is a digital data transmission standard developed by the United States Institute for Theater Technology
(USITT). It is designed to enable control of lighting equipment. DMX deals solely with the formatting of data for
transmission and does not dictate how the data is created or used.
Under DMX, signals are transmitted in much the same way a computer modem transmits data. The Data, divided
into channels, is "Framed" using a start bit, high (1), eight data bits and finally, two stop bits, both high (1). DMX
uses no parity to check the integrity of the signal. Instead, DMX relies on the ultra low probability of an error
occurring in the same place when the data is resent. The rate at which data is sent is fixed at 250k bps, almost four
and a half times faster that a 56k modem. This speed allows all data on a DMX chain to be updated more than 44
times every second.
The transmitted data follows a specific format. DMX allows for 512 channels each with eight data bits, giving each
channel the possibility of 256 values. When a data "Packet" is sent, all channels are transmitted one after another.
Even if the data on a specific channel has not been changed, it must be sent. In a packet, a "start code" of all zeros
is sent before the data to identify the signal as a Standard DMX transmission. This start code is transparent to the
user and is handled by the controller.
The physical signals are transmitted using a twisted pair of wires and a common shield, a configuration called
Balanced. The controller and all receiving equipment are connected using a “Daisy Chain" connection. The signal
is jumped from the controller to a piece of DMX equipment. From there, the signal is jumped to the next piece of
equipment and so on until the last piece of equipment is connected. No branches are allowed and the signal does
not come back to the controller. The final piece of equipment will have only one cable connection. As a result, all
equipment connected to the chain will see exactly the same signal whether it is first or last. When connecting
equipment, no particular attention needs to be paid to the order in which the equipment is connected. Depending on
the conditions and equipment, a line terminator may be required. If there is any question, in most circumstances the
addition of a terminator will not degrade the signal. To make a terminator, attach a 120-ohm resistor between the
Signal Data Negative and Signal Data Positive pins of a connector in the last piece of equipment in the chain.
The DMX Standard uses 5 pin XLR connectors. However, it is common to see
fixtures with 3 pin XLR connectors as these types of balanced or “Lo-Z” cables
are common in the audio industry. In either case, pin numbers are the same and
carry the same signals.
10900 Palmbay Drive • Orlando, FL 32824 U.S.A.
www.techni-lux.com
Pin Connection
1 Common (Shield)
2 Data Negative (S- or Cold)
3 Data Positive (S+ or Hot)
4 n/c (not used)
5 n/c (not used)
