TECHWOOD TCA-1518i User manual

1
ELECTRIC COFFEE MACHINE
Instruction manual
Dear consumer, please read these instructions carefully before use in
order to avoid damage due to incorrect use and to better understand the
functions of this product. Please pay particular attention to the safety
guide.
If you pass the device on to a third party, these Operating Instructions
must also be handed over.
Please keep them for future references.
TCA-1518i

2

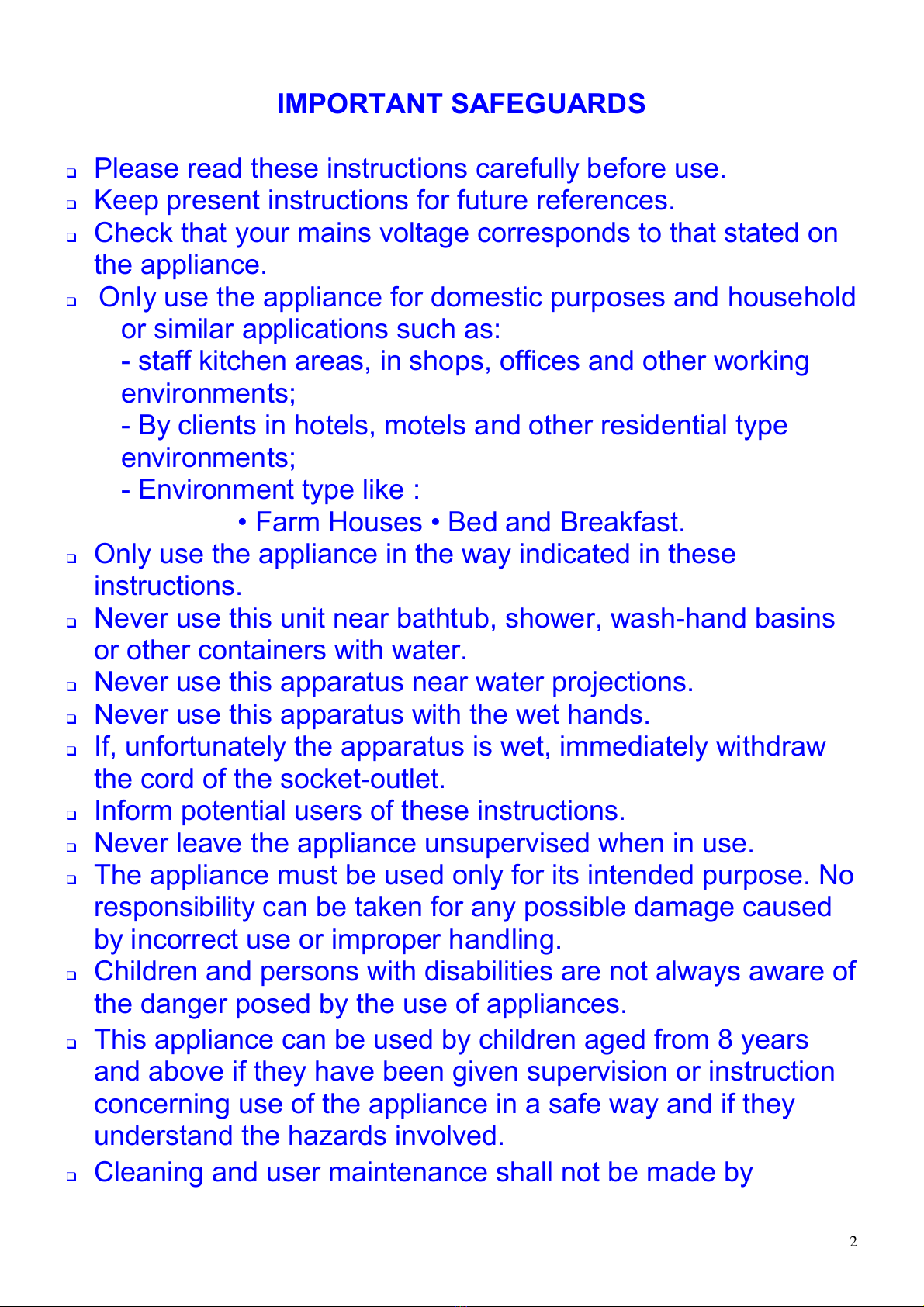

IMPORTANT SAFEGUARDS
Please read these instructions carefully before use.
Keep present instructions for future references.
Check that your mains voltage corresponds to that stated on
the appliance.
Only use the appliance for domestic purposes and household
or similar applications such as:
- staff kitchen areas, in shops, offices and other working
environments;
- By clients in hotels, motels and other residential type
environments;
- Environment type like :
• Farm Houses • Bed and Breakfast.
Only use the appliance in the way indicated in these
instructions.
Never use this unit near bathtub, shower, wash-hand basins
or other containers with water.
Never use this apparatus near water projections.
Never use this apparatus with the wet hands.
If, unfortunately the apparatus is wet, immediately withdraw
the cord of the socket-outlet.
Inform potential users of these instructions.
Never leave the appliance unsupervised when in use.
The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused
by incorrect use or improper handling.
Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
This appliance can be used by children aged from 8 years
and above if they have been given supervision or instruction
concerning use of the appliance in a safe way and if they
understand the hazards involved.
Cleaning and user maintenance shall not be made by

3

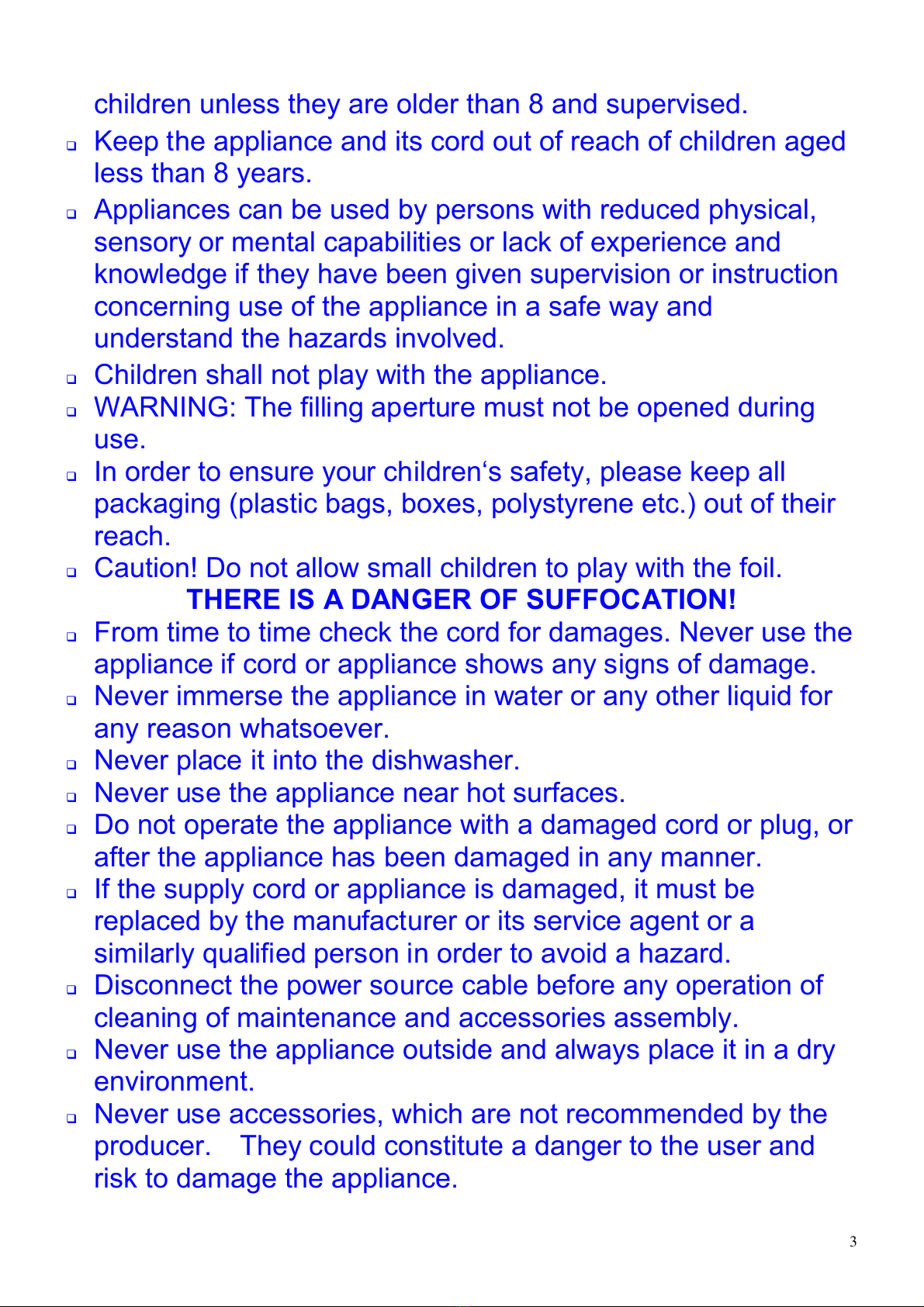

children unless they are older than 8 and supervised.
Keep the appliance and its cord out of reach of children aged
less than 8 years.
Appliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
WARNING: The filling aperture must not be opened during
use.
In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
Caution! Do not allow small children to play with the foil.
THERE IS A DANGER OF SUFFOCATION!
From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
Never immerse the appliance in water or any other liquid for
any reason whatsoever.
Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Do not operate the appliance with a damaged cord or plug, or
after the appliance has been damaged in any manner.
If the supply cord or appliance is damaged, it must be
replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
Disconnect the power source cable before any operation of
cleaning of maintenance and accessories assembly.
Never use the appliance outside and always place it in a dry
environment.
Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and
risk to damage the appliance.

4
Never use any other connector than the one provided.
Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
Never wind the cord around the appliance and do not bend it
Ensure that the power cord does not come into contact with
hot parts of this unit.
Make sure the appliance has cooled down before cleaning
and storing it.
The temperature of accessible surfaces may be very high
when the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the
power cord and plug do not come in contact with water.
Before cleaning, always unplug the appliance from the power
supply and let it cool down.
This appliance is not intended to be operated by means of an
external timer or separate remote-control system.
Always place the unit on a flat surface. Ensure, also, not to
cover the device and not to put anything on it.
Always remove the plug from the wall socket when the
appliance is not in use.
When using an extension lead always make sure that the
entire cable is unwound from the reel. Use solely CE
approved extension leads. Input power must be at least 16A,
250V, 3000W.
Incorrect operation and improper use can damage the
appliance and cause injury to the user.
This device, designed for home use, complies with standards
relating to this type of product.
The appliance must be used and rested on a table or flat &
stable surface.
The item must not be left unattended when it is connected to
main supply.

5
The item is not to be used, if it has been dropped or if there
are visible signs of damage or if it is leaking.
Regarding the instructions for cleaning, thanks to refer to the
below paragraph of the manual.
This appliance is only intended for household use.
Warning: avoid spillage on the connector.
Warning: potential injury from misuse.
The heating element surface is subject to residual heat after
use.
(*) Competent qualified person : after sales department of the
producer or importer or any person who is qualified, approved
and competent to perform this kind of repairs.
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation
to read important things contained in the record.
The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
The symbol "STEAM" warns the user that steam can
escape from the unit and to take all necessary
precautions. (Risk of burns)
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting
the essential requirements into technical
specifications. These standards are not mandatory
but are guarantees of compliance with essential
requirements.

6
The symbol "GLASS / FORK" means that the device is
compatible and can come into contact with foodstuffs.
The symbol ROHS (Restriction of use of some
Hazardous Substances) on the Environmental
Protection, certifies that for each of the five hazardous
substances • Lead • Mercury • (hexavalent) chromium •
products for protection against flames PBB and PBDE,
the peak concentration is equal to or less than 0.1% of
the weight of homogeneous material, and 0.01% for the
6th • cadmium.
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
collection (eg recycling bin, waste, voluntary intake
point).
The symbol "CMIM marking" is the guarantee of compliance
with the harmonized Moroccan Standards, optional, which
translate the essential requirements into technical
specifications. These standards are not mandatory but
guarantee compliance with the essential requirements.
For more information : http://www.quefairedemesdechets.fr

7

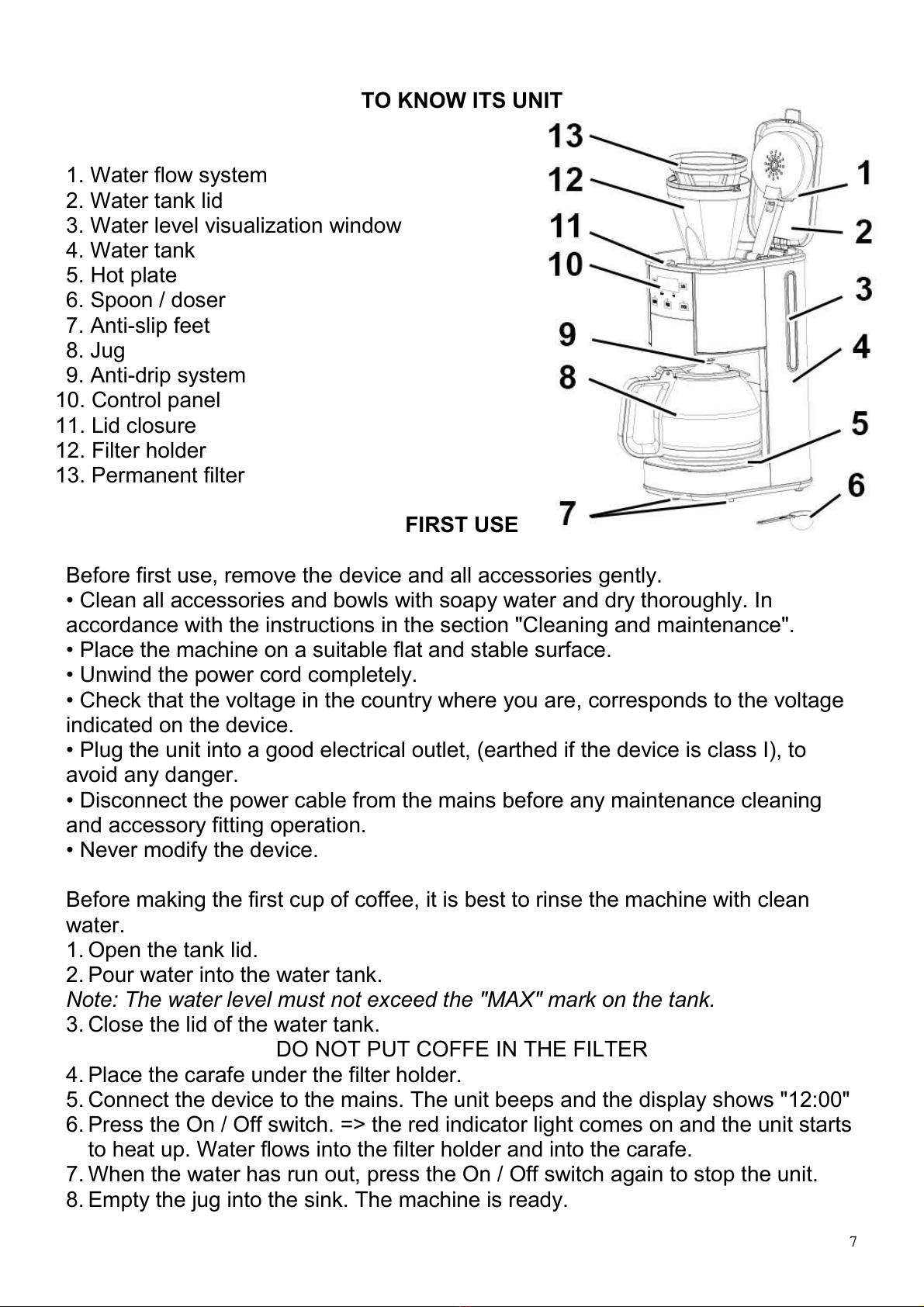

TO KNOW ITS UNIT
1. Water flow system
2. Water tank lid
3. Water level visualization window
4. Water tank
5. Hot plate
6. Spoon / doser
7. Anti-slip feet
8. Jug
9. Anti-drip system
10. Control panel
11. Lid closure
12. Filter holder
13. Permanent filter
FIRST USE
Before first use, remove the device and all accessories gently.
• Clean all accessories and bowls with soapy water and dry thoroughly. In
accordance with the instructions in the section "Cleaning and maintenance".
• Place the machine on a suitable flat and stable surface.
• Unwind the power cord completely.
• Check that the voltage in the country where you are, corresponds to the voltage
indicated on the device.
• Plug the unit into a good electrical outlet, (earthed if the device is class I), to
avoid any danger.
• Disconnect the power cable from the mains before any maintenance cleaning
and accessory fitting operation.
• Never modify the device.
Before making the first cup of coffee, it is best to rinse the machine with clean
water.
1. Open the tank lid.
2. Pour water into the water tank.
Note: The water level must not exceed the "MAX" mark on the tank.
3. Close the lid of the water tank.
DO NOT PUT COFFE IN THE FILTER
4. Place the carafe under the filter holder.
5. Connect the device to the mains. The unit beeps and the display shows "12:00"
6. Press the On / Off switch. => the red indicator light comes on and the unit starts
to heat up. Water flows into the filter holder and into the carafe.
7. When the water has run out, press the On / Off switch again to stop the unit.
8. Empty the jug into the sink. The machine is ready.

8
USE
MAKE COFFEE IMMEDIATELY
Place the permanent filter (or paper filter) in the filter holder.
While the machine is preheating, pour coffee powder into the filter and pack the
coffee slightly.
Insert the assembly into the device and close the tank lid.
Press the On / Off switch. => the red indicator light comes on and the unit starts to
heat up. Water flows into the filter holder and coffee into the jug.
When the water has run out, press the On / Off switch again to stop the unit.
Notes : The unit can be stopped at any time by pressing the On / Off switch.
Do not open the tank lid while the coffee is flowing.
If the machine is not shut down, the coffee can be kept warm for 30
minutes on the hotplate. After this time, the coffee maker will stop
automatically.
AUTOMATIC PROGRAMMING.
Note : The time display is 24 hours.
1. Press the "PROG" (program) key. The blue pilot light corresponding to the clock
setting lights up.
2. Press the 'HR' button and then the 'MIN' button to set the current time.
Note : Press 'HR' and 'MIN' keys several times to scroll and adapt the time.
3. Press the “PROG”key again. to set the starting time, The blue pilot light,
corresponding to the setting starting time, lights up.
Notes : Set also the starting time with 'HR' and 'MIN' buttons.
When the setting is complete, the machine automatically exits setting after
15 seconds and the lights are off.
4. To activate the programme, press the "program (PROG)" button again. The
blue pilot light indicates that the program mode is activated.
5. The coffee-maker will start automatically at the chosen time. When the coffee-
maker starts, the blue indicator light turns off and the red indicator lights to
indicate that the coffee machine is running.
After the coffee has run out, if the appliance is not turned off, the coffee can be
kept warm for 30 minutes on the hotplate. After this time, the coffee-maker will
stop automatically.
Note : It is, at any time, possible to stop programming by pressing the "PROG"
key again. The blue LED will light off.
If you need to start the appliance immediately, Press the M/A switch and in this
case, the red light will light on again and the coffee-maker will run out.
Note: To change the starting time programming, press the "PROG" key three
times in a row. The previous time will be erased and you will have to reprogram a
starting time. (To see above).

9

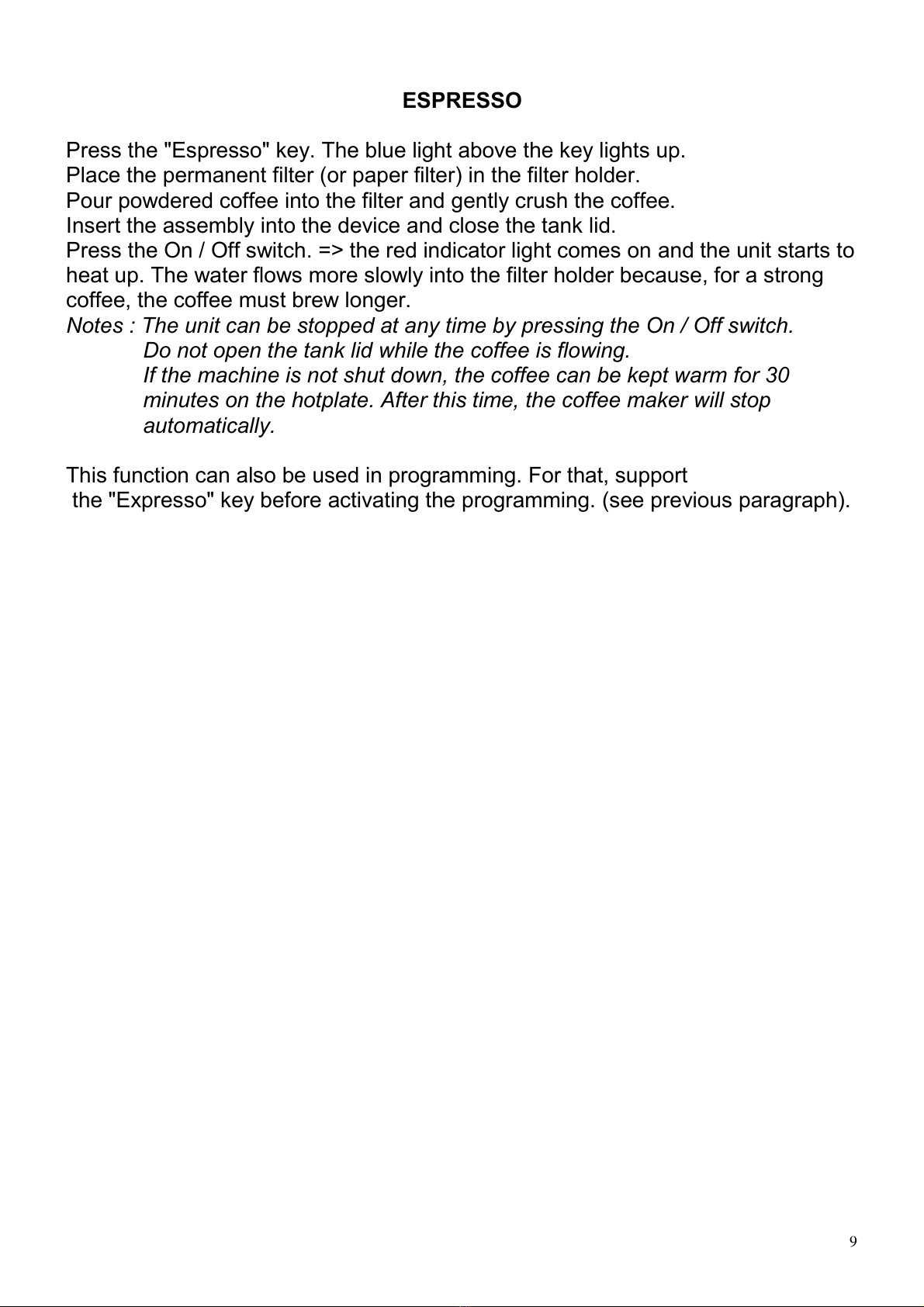

ESPRESSO
Press the "Espresso" key. The blue light above the key lights up.
Place the permanent filter (or paper filter) in the filter holder.
Pour powdered coffee into the filter and gently crush the coffee.
Insert the assembly into the device and close the tank lid.
Press the On / Off switch. => the red indicator light comes on and the unit starts to
heat up. The water flows more slowly into the filter holder because, for a strong
coffee, the coffee must brew longer.
Notes : The unit can be stopped at any time by pressing the On / Off switch.
Do not open the tank lid while the coffee is flowing.
If the machine is not shut down, the coffee can be kept warm for 30
minutes on the hotplate. After this time, the coffee maker will stop
automatically.
This function can also be used in programming. For that, support
the "Expresso" key before activating the programming. (see previous paragraph).

10

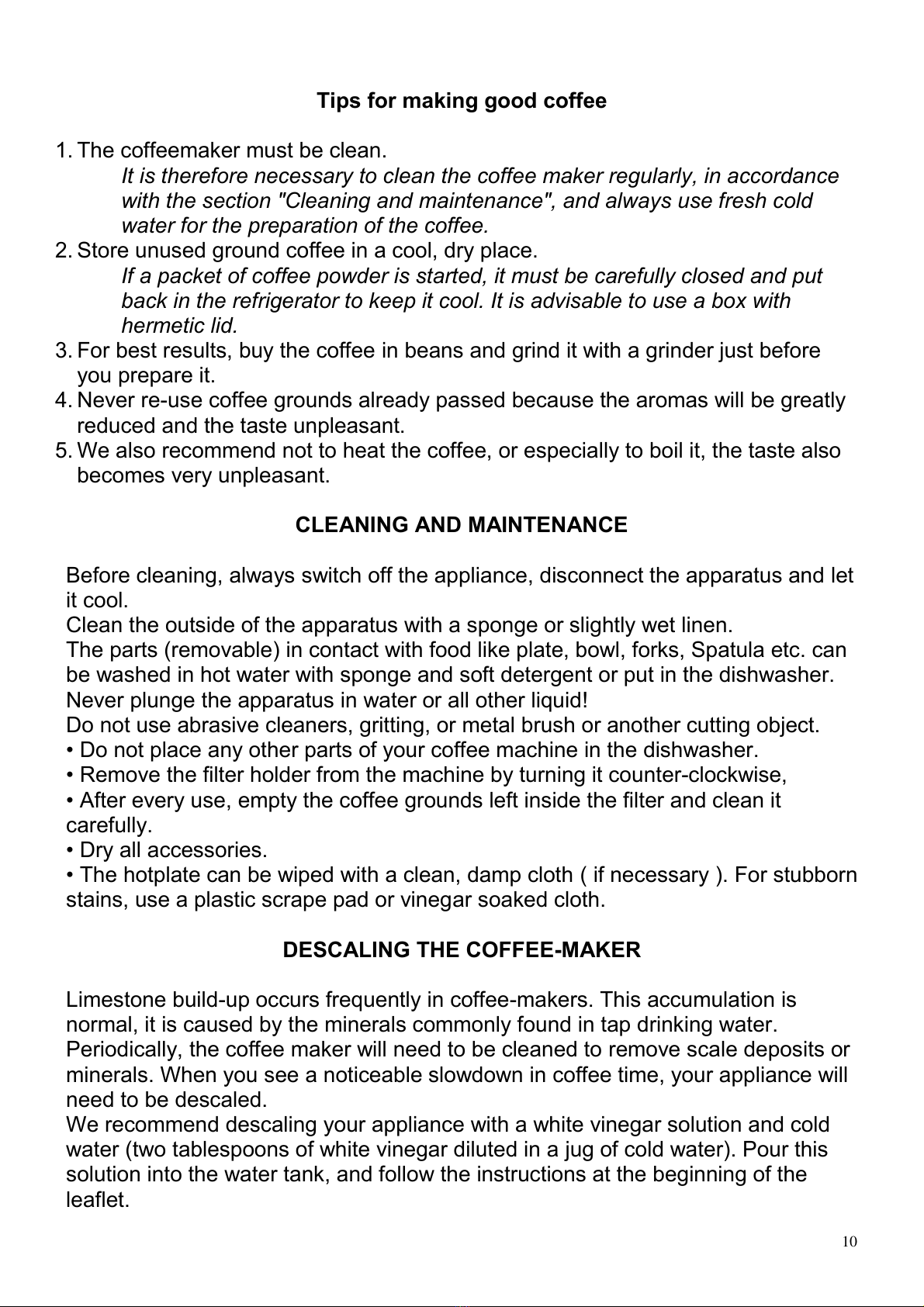

Tips for making good coffee
1. The coffeemaker must be clean.
It is therefore necessary to clean the coffee maker regularly, in accordance
with the section "Cleaning and maintenance", and always use fresh cold
water for the preparation of the coffee.
2. Store unused ground coffee in a cool, dry place.
If a packet of coffee powder is started, it must be carefully closed and put
back in the refrigerator to keep it cool. It is advisable to use a box with
hermetic lid.
3. For best results, buy the coffee in beans and grind it with a grinder just before
you prepare it.
4. Never re-use coffee grounds already passed because the aromas will be greatly
reduced and the taste unpleasant.
5. We also recommend not to heat the coffee, or especially to boil it, the taste also
becomes very unpleasant.
CLEANING AND MAINTENANCE
Before cleaning, always switch off the appliance, disconnect the apparatus and let
it cool.
Clean the outside of the apparatus with a sponge or slightly wet linen.
The parts (removable) in contact with food like plate, bowl, forks, Spatula etc. can
be washed in hot water with sponge and soft detergent or put in the dishwasher.
Never plunge the apparatus in water or all other liquid!
Do not use abrasive cleaners, gritting, or metal brush or another cutting object.
• Do not place any other parts of your coffee machine in the dishwasher.
• Remove the filter holder from the machine by turning it counter-clockwise,
• After every use, empty the coffee grounds left inside the filter and clean it
carefully.
• Dry all accessories.
• The hotplate can be wiped with a clean, damp cloth ( if necessary ). For stubborn
stains, use a plastic scrape pad or vinegar soaked cloth.
DESCALING THE COFFEE-MAKER
Limestone build-up occurs frequently in coffee-makers. This accumulation is
normal, it is caused by the minerals commonly found in tap drinking water.
Periodically, the coffee maker will need to be cleaned to remove scale deposits or
minerals. When you see a noticeable slowdown in coffee time, your appliance will
need to be descaled.
We recommend descaling your appliance with a white vinegar solution and cold
water (two tablespoons of white vinegar diluted in a jug of cold water). Pour this
solution into the water tank, and follow the instructions at the beginning of the
leaflet.

11
Do not use the filter with the filter holder.
When the cycle is complete, empty the carafe and rinse with clear water.
Fill the water tank with cold water and repeat the cycle only with water.
Repeat this operation twice in a row. This will rinse all remaining vinegar.
We recommend that you do this four times a year.
STORAGE
-Ensure the unit is completely cool and dry.
-Do not wrap the cord around the appliance, as this will cause damage.
-Keep the appliance in a cool, dry place and out of reach from children.
GUARANTEE
Before being delivered, all our products are subjected to a rigorous control.
This apparatus is guaranteed 24 months starting from the date of purchase by
the consumer.
The documents in proof of guarantee are:
• The invoice and
• The filled and stamped warrantee plate (located on side or bottom of the gift
box). Without these documents in proof, no free replacement, nor no free repair,
can be carried out.
During the warranty period, we deal for free, the defects of the apparatus or the
accessories, rising from a defect of materials or manufacture by repair or,
replacement. The services within the framework of the guarantee do not involve
any extension of the warranty period and does not give right to a new guarantee!
In the event of recourse to the guarantee, bring back the complete apparatus to
your retailer, in its original packing, accompanied by the proofs of purchase.
The breakage of parts out of glass or plastic is, in all the cases, not warranted.
Defects on the accessories or the wearing parts (for example: coals of engines,
hooks, drive belts, remote control of replacement, teeth brushes of replacement,
webs etc) as well as cleaning, maintenance or it replacement of wearing parts
are not guaranteed and are thus to pay!
In the event of foreign intervention, the guarantee becomes null and void.
After flow of the warranty period, repairs can be carried out, against payment, by
a specialized trade or a repair service.
SPECIFICATIONS
Power supply 220-240V~ 50/60Hz
Power 1000W
Norm Class I
Made in PRC
The characteristics can change without prior notice.

12

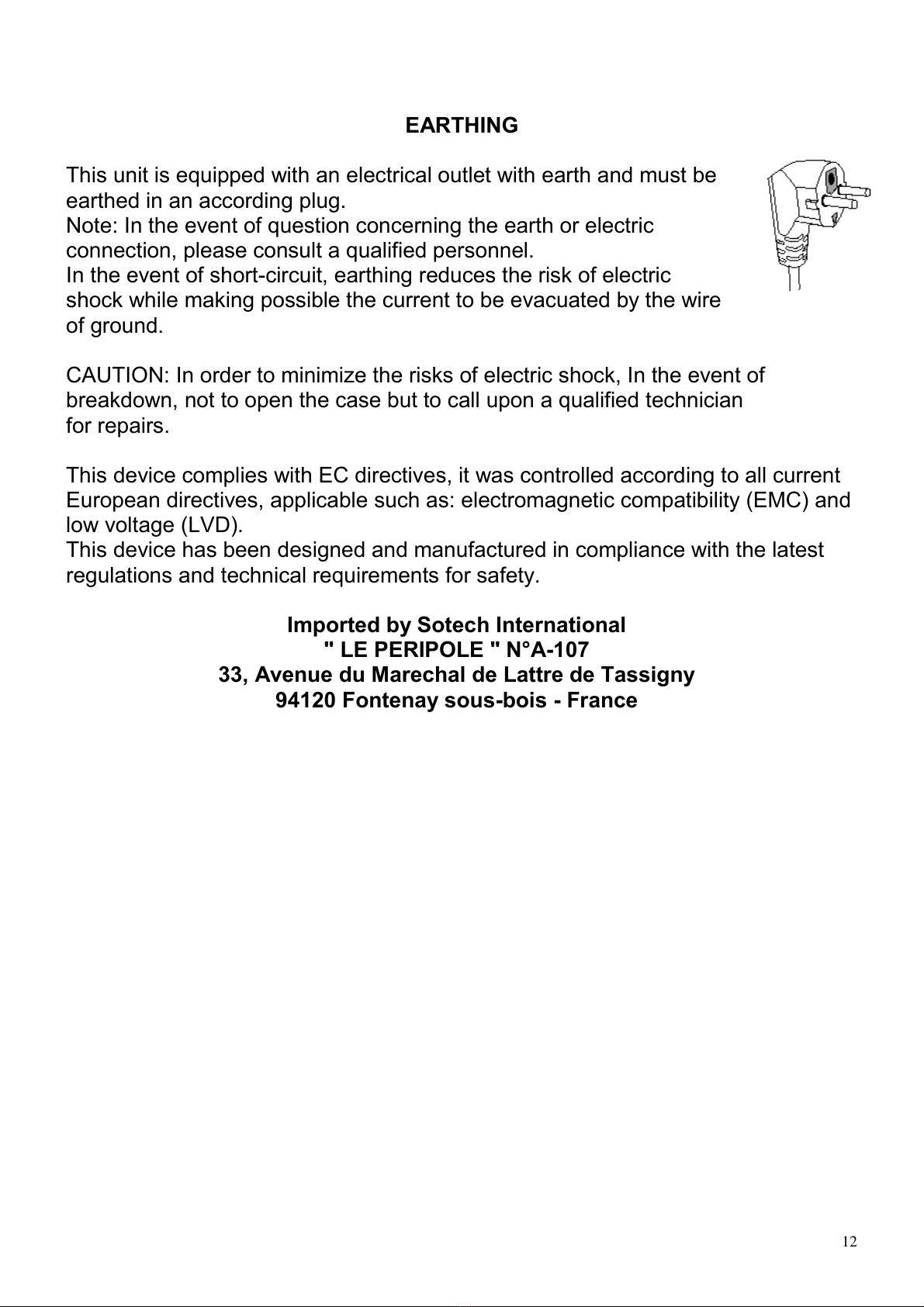

EARTHING
This unit is equipped with an electrical outlet with earth and must be
earthed in an according plug.
Note: In the event of question concerning the earth or electric
connection, please consult a qualified personnel.
In the event of short-circuit, earthing reduces the risk of electric
shock while making possible the current to be evacuated by the wire
of ground.
CAUTION: In order to minimize the risks of electric shock, In the event of
breakdown, not to open the case but to call upon a qualified technician
for repairs.
This device complies with EC directives, it was controlled according to all current
European directives, applicable such as: electromagnetic compatibility (EMC) and
low voltage (LVD).
This device has been designed and manufactured in compliance with the latest
regulations and technical requirements for safety.
Imported by Sotech International
" LE PERIPOLE " N°A-107
33, Avenue du Marechal de Lattre de Tassigny
94120 Fontenay sous-bois - France
