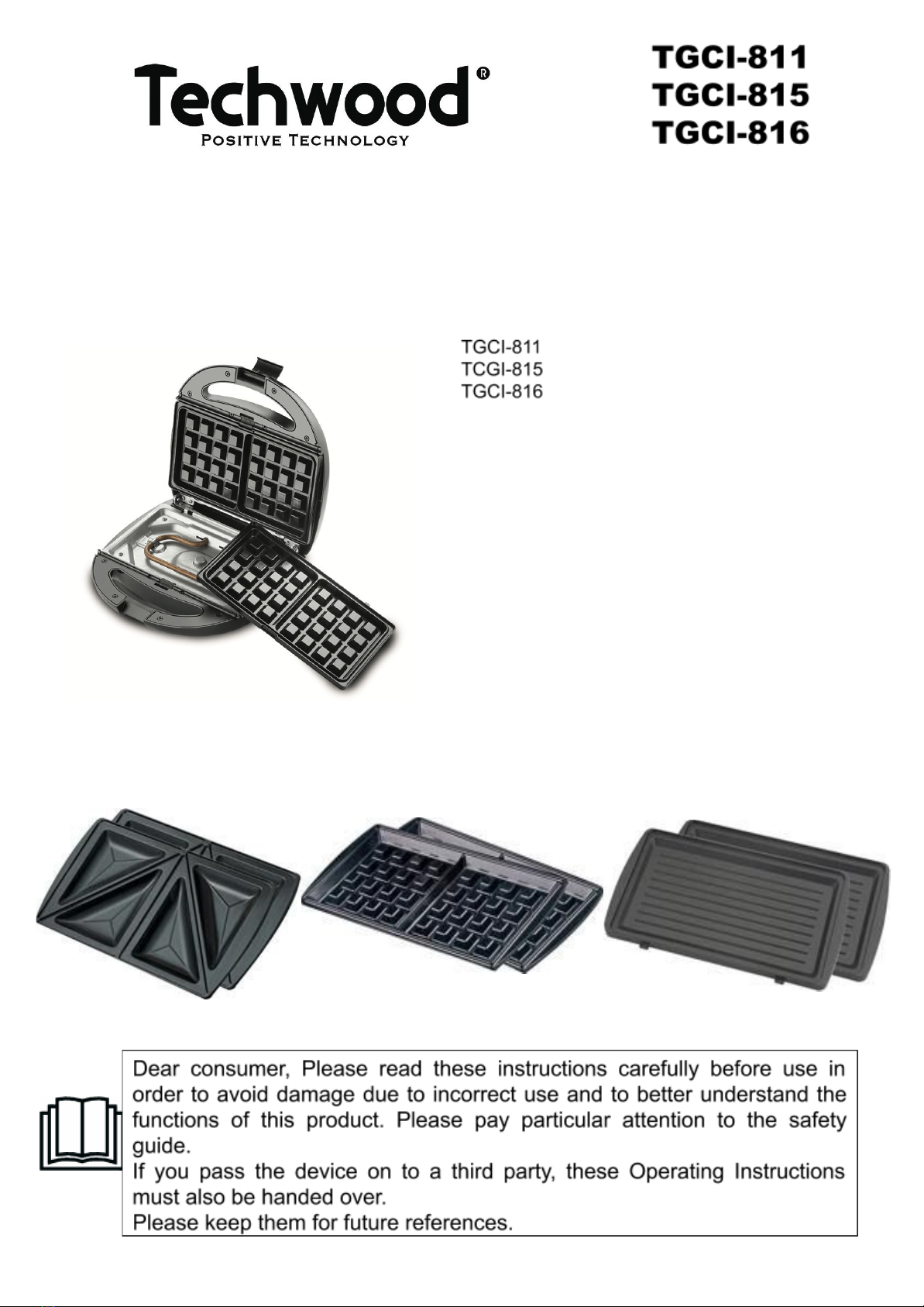

TECHWOOD TGCI-811 User manual


SANDWICH TOASTER
+ WAFFLE IRON + GRILL
INSTRUCTION MANUAL

 



1

IMPORTANT SAFEGUARDS
❑Please read these instructions carefully before use.
❑Keep present instructions for future references.
❑Check that your mains voltage corresponds to that stated on
the appliance.
❑Only use the appliance for domestic purposes and
household or similar applications such as:
- staff kitchen areas, in shops, offices and other working
environments;
- By clients in hotels, motels and other residential type
environments;
- Environment type like : • Farm Houses • Bed and
Breakfast.
❑Only use the appliance in the way indicated in these
instructions.
❑Never use this unit near bathtub, shower, wash-hand basins
or other containers with water.
❑Never use this apparatus near water projections.
❑Never use this apparatus with the wet hands.
❑If, unfortunately the apparatus is wet, immediately withdraw
the cord of the socket-outlet.
❑Inform potential users of these instructions.
❑Never leave the appliance unsupervised when in use.
❑The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused
by incorrect use or improper handling.
❑Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
❑This device can be used by children aged 8 years and older
and adults, with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, if they have
been given supervision or instruction concerning use of the
2

appliance in a safe way and understand the hazards
involved.
❑Cleaning and user maintenance shall not be made by
children unless they are older than 8 and supervised.
❑Keep the appliance and its cord out of reach of children aged
less than 8 years of age.
❑This device is not a toy, do not leave children or people with
disabilities to play with.
❑In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
❑Caution ! Do not allow small children to play with the foil :
THERE IS A DANGER OF SUFFOCATION !
❑From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
❑Never immerse the appliance in water or any other liquid for
any reason whatsoever.
❑Never place it into the dishwasher.
❑Never use the appliance near hot surfaces.
❑Do not operate the appliance with a damaged cord or plug, or
after the appliance has been damaged in any manner.
❑If the supply cord or appliance is damaged, it must be
replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
❑Disconnect the power source cable before any operation of
cleaning of maintenance and accessories assembly.
❑Never use the appliance outside and always place it in a dry
environment.
❑Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and risk
to damage the appliance.
❑Never use any other connector than the one provided.
3

❑Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
❑Never wind the cord around the appliance and do not bend it
❑Ensure that the power cord does not come into contact with
hot parts of this unit.
❑Make sure the appliance has cooled down before cleaning
and storing it.
❑The temperature of accessible surfaces may be very high
when the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
❑Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the
power cord and plug do not come in contact with water.
❑Before cleaning, always unplug the appliance from the power
supply and let it cool down.
❑This appliance is not intended to be operated by means of an
external timer or separate remote-control system.
❑Always place the unit on a flat surface. Ensure, also, not to
cover the device and not to put anything on it.
❑Always remove the plug from the wall socket when the
appliance is not in use.
❑When using an extension lead always make sure that the
entire cable is unwound from the reel. Use solely CE
approved extension leads. Input power must be at least 16A,
250V, 3000W.
❑Incorrect operation and improper use can damage the
appliance and cause injury to the user.
❑This device, designed for home use, complies with standards
relating to this type of product.
❑The appliance must be used and rested on a table or flat &
stable surface.
❑The item must not be left unattended when it is connected to
main supply.
4

❑The item is not to be used, if it has been dropped or if there
are visible signs of damage or if it is leaking.
❑This appliance is only intended for household use.
❑Regarding the instructions for cleaning, thanks to refer to the
below paragraph of the manual.
5

GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation
to read important things contained in the record.
The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting
the essential requirements into technical
specifications. These standards are not mandatory
but are guarantees of compliance with essential
requirements.
The symbol ROHS (Restriction of use of some
Hazardous Substances) on the Environmental
Protection, certifies that for each of the five hazardous
substances • Lead • Mercury • (hexavalent) chromium •
products for protection against flames PBB and PBDE,
the peak concentration is equal to or less than 0.1% of
the weight of homogeneous material, and 0.01% for the
6th • cadmium.
The symbol "GLASS / FORK" means that the device is
compatible and can come into contact with foodstuffs.
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
6

collection (eg recycling bin, waste, voluntary intake
point).
For more information : http://www.quefairedemesdechets.fr
CLEANING AND MAINTENANCE
Before cleaning, always: switch off the appliance, disconnect
the apparatus and let it cool.
Clean the outside of the apparatus with a sponge or slightly wet
linen.
The parts (removable) in contact with food like plate, bowl,
forks, Spatula etc. can be washed in hot water with sponge and
soft detergent or put in the dishwasher.
Never plunge the apparatus in water or all other liquid!
Do not use abrasive cleaners, gritting, or metal brush or another
cutting object.
KNOW YOUR UNIT

1. Unit Locking
2. Plates locking
3. Removable waffles Plates 

4. Removable Sandwich toaster Plates
5. Removable grill Plates
NOTE Make sure that the appliance is not
connected when inserting or changing the
7

cooking plates.
4.
5.
FIRST USE
Before first use, remove the unit and all accessories carefully.
Clean the plates with soap and water. Rinse and dry thoroughly. Clean the outside
of the machine cabinet with a damp cloth and wipe dry.
THIS « 3 IN 1 » APPARATUS is Non-stick coating.
• Lightly grease the baking surfaces before the unit is used for the first time.
• Use the appliance for about 10 minutes with the toasting surfaces closed (see
“Using the unit’’).
• After the device has cooled down, wipe the baking surfaces off with a towel
paper.
Note : DO THIS FOR THE FIRST TIME ONLY. IT IS UNNECESSARY TO REPEAT
THIS OPERATION.

USE
● Unroll the power cord completely.
● Check that the tension in force in the country where you are corresponds to
that indicated on the apparatus.
● Connect the apparatus in a correct socket-outlet, (and connected to the ground
if the unit is Class I), to avoid any danger.
● Disconnect the power source cable before any operation of cleaning of
maintenance and accessories assembly.
● Stand the appliance on a table or flat surface.
● Never modify the appliance in anyway.
1 / Croque monsieur:
Place 2 sandwiches consisting of 2 slices of bread (buttered on the outside)
and garnished according to your taste, on the bellow plate.
Close the appliance carefully, and close the locking system (do not
overtighten).
The "croque monsieur" will be ready in 2 to 3 minutes or longer depending on
your taste.
Open the appliance and remove the sandwiches using a wooden or plastic
spatula if necessary.
8

2 / Waffles:
Place 1 small ladle of dough on the bottom cooking plate starting from the
centre and filling gently towards the sides.
Note: Proceed quickly enough to ensure same colour of the waffles after
cooking.
Apply the dough correctly, taking care not to exceed the height of the plate.
When cooking, the dough will swell inside the appliance and the excess will
overflow the appliance.
Close the appliance gently.
Waffles will be ready in 3 to 5 minutes depending on your taste.
Open the appliance and remove the waffles using a wooden or plastic spatula
if necessary.
9

Example of Waffle Recipe
- 5 egg yolks,
- 5 tablespoons of hot water,
- 100 g of sugar
- 1 lemon peel
- Mix until mixture is foamy.
- Add : 1/2 teaspoon yeast + 150 g flour
- Beat the 5 egg whites and add them gently to the mixture.
- Let stand for 30 minutes.
3 / Grill:
- Place the ingredients on the bottom plate.
- Close the grill. Food will be toasted on both sides at the same time.
- Leave the grill open, only the face on the bottom plate will be grilled.
- If the grill is closed, check the cooking by lifting the lid by the handle.
NOTES FOR THE PREVIOUS 3 POINTS:
- Do not force the closure and be careful not to touch the hot plates with your
fingers.
- Never use metal objects as this will damage the non-stick coating.
- Be careful the hotplates become very hot and can cause burns.
STORAGE
-Ensure the unit is completely cool and dry.
-Do not wrap the cord around the appliance, as this will cause damage.
-Keep the appliance in a cool, dry place and out of reach from children.
10

GUARANTEE
Before being delivered, all our products are subjected to a rigorous control.
This apparatus is guaranteed 24 months starting from the date of purchase by
the consumer.
The documents in proof of guarantee are:
• The invoice and
• The filled and stamped warrantee plate (located on side or bottom of the gift
box). Without these documents in proof, no free replacement, nor no free repair,
can be carried out.
During the warranty period, we deal for free, the defects of the apparatus or the
accessories, rising from a defect of materials or manufacture by repair or,
replacement. The services within the framework of the guarantee do not involve
any extension of the warranty period and does not give right to a new guarantee!
In the event of recourse to the guarantee, bring back the complete apparatus to
your retailer, in its original packing, accompanied by the proofs of purchase.
The breakage of parts out of glass or plastic is, in all the cases, not warranted.
Defects on the accessories or the wearing parts (for example: coals of engines,
hooks, drive belts, remote control of replacement, teeth brushes of replacement,
webs etc) as well as cleaning, maintenance or it replacement of wearing parts
are not guaranteed and are thus to pay!
In the event of foreign intervention, the guarantee becomes null and void.
After flow of the warranty period, repairs can be carried out, against
payment, by a specialized trade or a repair service.
SPECIFICATIONS
Power supply 220-240V~ 50/60Hz
Power 800W
Norm Class I
Made in PRC
The characteristics can change without prior notice.
This unit is equipped with an electrical outlet with earth and must be
earthed in an according plug.
Note : In the event of question concerning the earth or electric
connection, please consult a qualified personnel.
In the event of short-circuit, earthing reduces the risk of electric
shock while making possible the current to be evacuated by the
wire of ground.
11

CAUTION: In order to minimize the risks of electric shock, In the event of
breakdown, not to open the case but to call upon a qualified technician
for repairs.
This apparatus satisfied EC directives, it was controlled according to all the
European current directives, like: electromagnetic compatibility (EMC) and low
tension (LVD).
This apparatus was designed and manufactured in respect of the last safety
regulations and technical specifications.
Imported by Sotech International
" LE PERIPOLE " N°A-107
33, Avenue du Marechal de Lattre de Tassigny
94120 Fontenay sous-bois - France
12
