Tecnospiro 3arm ROSCAMAT User manual

ACCESSORIES HAND RAIL BRACKET - 2-
TABLE OF CONTENTS
1ABOUT THIS MANUAL ..........................................................................................................3
1.1 CONSIDERATIONS......................................................................................................................................3
1.2 VERSION.........................................................................................................................................................4
2SAFETY INFORMATION.........................................................................................................4
2.1 SCOPE OF APPLICATION...........................................................................................................................4
2.2 ALERTS AND GENERALCONSIDERATIONS.........................................................................................4
2.3 WARNINGS AND CONSIDERATIONS (INTEGRATION)......................................................................4
2.4 EXCLUSIONS.................................................................................................................................................5
2.5 SYMBOLOGY AND ICONS.........................................................................................................................5
2.6 DECLARATION OF CONFORMITY...........................................................................................................6
2.7 PERSONAL PROTECTION EQUIPMENT (PPE)......................................................................................6
2.8 TRAINING LEVEL OF THE STAFF INVOLVED........................................................................................6
3DESCRIPTION AND APPLICATIONS .....................................................................................7
4TECHNICAL SPECIFICATIONS...............................................................................................7
5IDENTIFICATION ...................................................................................................................8
6SITING REQUIREMENTS........................................................................................................9
7GENERAL DIMENSIONS ......................................................................................................10

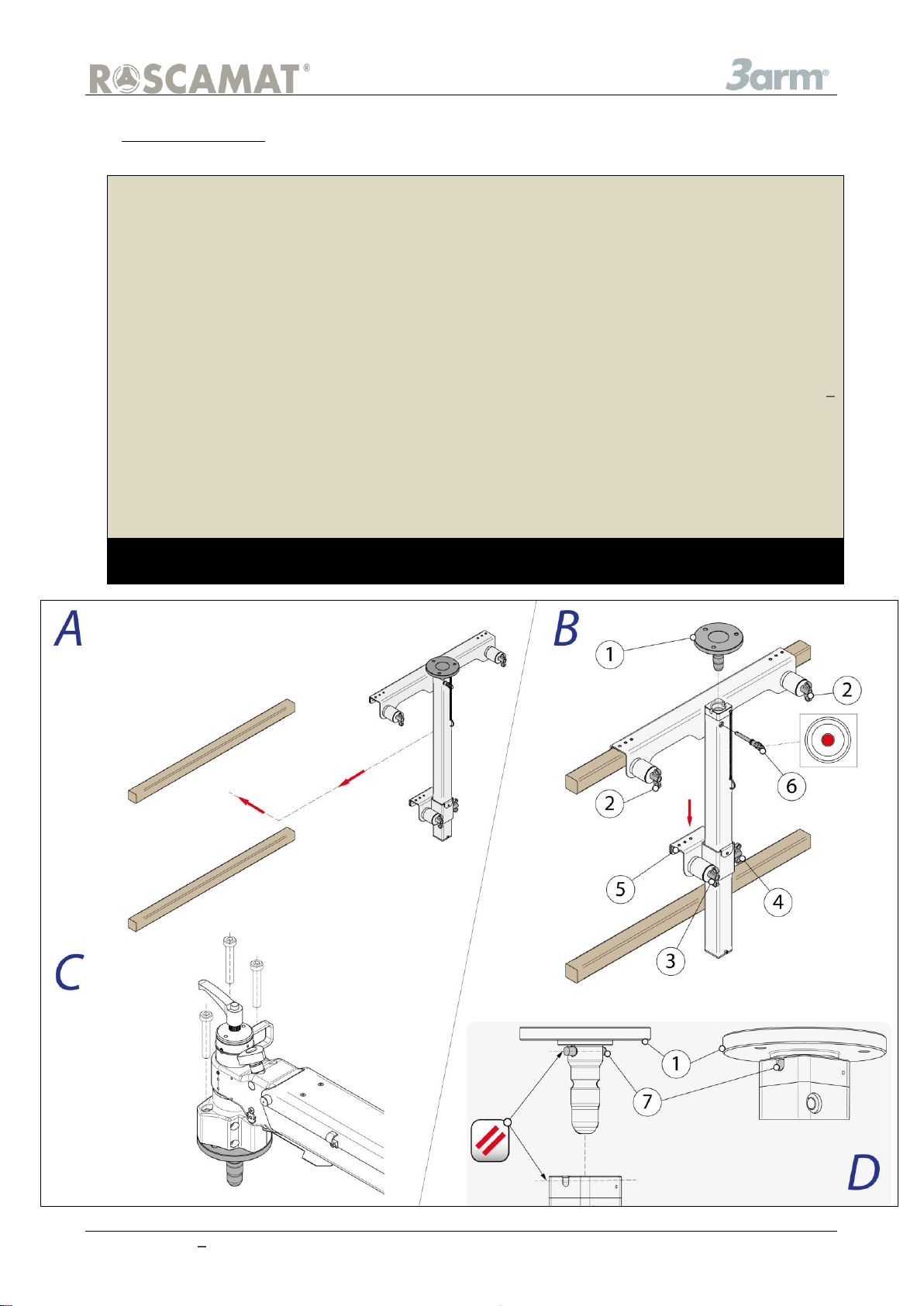

8INSTALLATION....................................................................................................................11
9GUIDELINES FOR PACKAGING, TRANSPORT AND DISMANTLING ..................................13
9.1 PACKAGING...............................................................................................................................................13
9.2 TRANSPORT...............................................................................................................................................13
9.3 DISASSEMBLY............................................................................................................................................14
10 3ARM® ROSCAMAT® COMPATIBILITY.............................................................................15
11 ACCESSORIES COMPATIBILITY TABLE ..............................................................................15
12 SPAREPARTS.......................................................................................................................16
13 WARRANTY..........................................................................................................................16
DECLARATION OF INCORPORATION .................................................................................18

ACCESSORIES HAND RAIL BRACKET - 3-
1ABOUT THIS MANUAL
This document is the instruction manual for
the hand rail bracket.
-ORIGINALMANUAL
Intellectual/Industrial Property Information:
Tecnospiro Machine Tools, S.L. (the
Company) informs that all content included
in this document including, for example, the
text, images, graphic designs, brands,
trading and company names, belong to the
Company or that the Company is the
exclusive owner of their use (hereinafter, the
Intellectual/Industrial Property). Copying,
reproduction, distribution, public
communication and total or partial use of
the Intellectual/Industrial Property, in any
form or manner, even quoting the sources, is
prohibited, unless expressly agreed in
writing by the Company. The use of any
content that due to its characteristics is
similar to the Industrial/Intellectual Property
is also considered an infringement of the
Company's Industrial/Intellectual Property
rights.
1.1 CONSIDERATIONS
✓Before using the equipment, be sure to
read this instruction manual and follow
the instructions for use and safety
correctly.
✓All the instructions listed in this manual
refer to the individual unit. It is the end
user's responsibility to analyse and
apply all the necessary safety measures
required for the end use.
✓This manual must be kept for the entire
life of the equipment, in a place close to
it for future consultations.
✓If any part of this manual is unclear,
confusing or inaccurate, please do not
hesitate to contact us.
✓The content of this manual may be
subject to change without prior notice.
✓If this manual deteriorates, please
contact TECNOSPIRO MACHINE TOOL,
S.L. to replace it.
✓Reproducing or sharing this
documentation or part of it to third
parties is only permitted with express
written authorisation from TECNOSPIRO
MACHINE TOOL, S.L.
✓The illustrations shown in this manual
may differ in some details with respect
to their specific configuration and
should be understood as a standard
representation.
✓Paragraphs indicating assembly,
adjustment, installation or
maintenance steps are framed with a
brown background.
✓Paragraphs with highlighted
information are framed with a grey
background.

ACCESSORIES HAND RAIL BRACKET - 4-
1.2 VERSION
Document
Revision date
Hand rail bracket
instruction manual
12/02/2019
2SAFETY INFORMATION
2.1 SCOPE OF APPLICATION
This section contains very important
information related to the safety of your, it is
addressed to all personnel involved in any of
the life phases of this equipment (transport,
assembly and installation, commissioning,
adjustment, learning, operation, cleaning,
maintenance, fault finding/detection,
dismantling/de-commissioning.
2.2 ALERTS AND GENERAL
CONSIDERATIONS
✓The equipment described in this
document has been built in accordance
with the current technological level and
in accordance with the applicable
technical standards in terms of safety.
However, improper use, or incorrect
integration, by the end user can
generate risks of injuries.
✓The equipment should only be used in
perfect technical condition, respecting
the safety regulations and under
consideration of this document.
✓Any breakdown that may affect safety
should be correctedimmediately.
✓The equipment must not be modified
without due authorisation from
TECNOSPIRO MACHINE TOOL, S.L.
✓The equipment must only be operated
for its intended use. Any other use is
strictly prohibited. Any use other than
the use indicated is considered misuse
and is prohibited. The manufacturer
assumes no responsibility for any
damage that may arise from it. This will
be solely at the user's own risk.
✓The device was designed for use in
conjunction with 3arm® products (use
with ROSCAMAT® products is subject to
prior consultation with your distributor).
The manufacturer accepts no
responsibility for any damage that may
be caused by using the equipment for
other purposes.
✓It is the responsibility of the integrator,
owner and/or end user to determine the
suitability of the product for each use, as
well as its place of installation and the
specific definition of the task to be
carried out with this product within the
limits stated in this manual.
✓Do not use it for any purpose that is not
considered in this manual.
2.3 WARNINGS AND CONSIDERATIONS
(INTEGRATION)
✓The operator must only use the
equipment after having received the
instructions for its use.
✓It is recommended that only one
operator use the equipment at a time,
any other use must be evaluated by the
integrator/end user.
✓The operator may only use the
manipulator for safe movements,
accompanying the movement of the

ACCESSORIES HAND RAIL BRACKET - 5-
unit at all times, and thus reducing the
risk of uncontrolled or involuntary
movements of the manipulator and/or
the load.
✓Although the parts with a higher risk of
possible shearing or mechanical
gripping are protected and have guards,
it is forbidden to manipulate the
moving components and joints when it
is in use.
✓The work area of the equipment and its
surrounding area must respect safety,
health and hygiene at work conditions.
It is the integrator/end user's
responsibility to conduct a study to
guarantee safety.
✓The presence of third parties in the work
area of the equipment should be
restricted as much as possible, thus
avoiding any impact on safety. For any
other use, an additional study of the
hazards derived from this way of
working must be carried out.
✓It is important that the users who act as
operators of this handling equipment
are familiar with and sufficiently trained
to use this product or similar products.
✓In any case, the operator must read and
understand this manual before use
regardless of their knowledge, training
or experience with similar equipment,
especially the sections dedicated to
installation, operation and safety.
✓If you have questions about handling or
maintenance procedures, please
contact your 3arm® and/or Roscamat®
distributor.
2.4 EXCLUSIONS
The following is beyond the scope of use of
this equipment:
✓Use with equipment or applications
other than use with 3arm® and
ROSCAMAT® arms and/or equipment
✓Handling of any component or
functions of the equipment outside of
those specified in this manual
✓Use by people with some type of
disability or animals
✓Any use not considered in this manual
✓Operation in severe conditions (e.g.
extreme environmental conditions such
as freezing or excessively high
temperatures
2.5 SYMBOLOGY AND ICONS
General danger symbol. It is
usually accompanied by
another symbol, or a more
detailed description of the
danger.

ACCESSORIES HAND RAIL BRACKET - 6-
2.6 DECLARATION OF CONFORMITY
If the equipment is fitted in an installation,
the integrator/end user must draw up an EC
statement of compliance in accordance with
the applicable guidelines.
2.7 PERSONAL PROTECTION
EQUIPMENT (PPE)
The personal protection equipment for this
equipment is merely safety footwear for all
stages of the life of the equipment.
It is the integrator/end user's responsibility
to define the personal protection
equipment derived from the final
application of the equipment, in order to
comply with the essential health, safety and
hygiene requirements.
Operators should not wear loose clothing,
rings or bracelets that may fall within the
mechanism of the quasi machine.
It is also mandatory to tie hair back to avoid
snags with the moving parts of the quasi
machine.
2.8 TRAINING LEVEL OF THE STAFF
INVOLVED
All people working with the equipment
must have read and understood the safety
chapter of the documentation.

ACCESSORIES HAND RAIL BRACKET - 7-
3DESCRIPTION ANDAPPLICATIONS
The hand rail bracket enables you to couple your 3arm®
1
to existing components in the
workplace such as handrails, structures, etc.
INTEGRATION
✓This unit itself is not a machine, it needs additional compatible 3arm® equipment for a
certain application. It is the integrator's responsibility to study, design and analyse the
possible risks of the specific application.
✓The unit may only be used with 3arm® and ROSCAMAT® equipment after proper integration
[see3ARM® ROSCAMAT®COMPATIBILITYp.15]
4TECHNICAL SPECIFICATIONS
GENERALTECHNICALSPECIFICATIONS
Emptyweight2
9kg (20lb)
Operatingconditions
Temperature
0 to +45ºC (32 113ºF)
Relativehumidity
Max. 70%
Environment
Industrial environments
1
Use in conjunction with ROSCAMAT® products depends on prior consultation with your distributor.
2
Empty weight: The empty weight refers to the typical weight of the hand rail bracket.

ACCESSORIES HAND RAIL BRACKET - 8-
5IDENTIFICATION
An adhesive label on the structure indicates the following characteristics.
Manufacturer (name, address and business name), date of manufacture, serial number, model,
maximum load, maximum working moment and empty weight.
If the accessory has been acquired as a component of an assembly, for example a 3arm®
weightless arm together with a hand rail bracket, the corresponding identification label will
indicate the following characteristics.
Manufacturer (name, address and company name), manufacture date, serial number, model and
empty weight.

ACCESSORIES HAND RAIL BRACKET - 9-
6SITING REQUIREMENTS
The hand rail bracket is designed to adapt to profiles with a circular, square or rectangular
sectionthat comply with the following requirements:

ACCESSORIES HAND RAIL BRACKET - 10 -
7GENERAL DIMENSIONS

ACCESSORIES HAND RAIL BRACKET - 11 -
8INSTALLATION
1. Remove the bracket from its original packaging.
2. Fit the upper crossbar of the bracket to the hand rail. If necessary loosen the knobs (2) to
make this easier.
3. Fit the lower crossbar of the bracket to the hand rail. If necessary loosen the knob (3) to
make this easier. Loosen the knob (4) to adjust the height of the carriage (5) to adapt to
the dimensions of the hand rail.
4. Tighten all the knobs (2, 3 and 4) to secure the whole assembly.
5. Remove the positioner (6) and the coupling strip (1).
6. Mount the strip, together with your compatible 3arm® equipment [see 3ARM®
ROSCAMAT® COMPATIBILITY p -15-] using the bolts provided with your equipment. (See
detailC)
7. Position the strip (1) and 3arm® arm assembly, and then fit the positioner (6) to secure the
coupling. Note that the strip (1) has a set position so the direction of the pin (7) must line
up with its housing (seedetailD).
This must be done by two members of staff for total safety.

ACCESSORIES HAND RAIL BRACKET - 12 -
GENERAL CONSIDERATIONS ABOUT THEINSTALLATION
✓The hand rail or structure assembled with the bracket must meet the requirements set out in the
section [seeSITINGREQUIREMENTSp.-9-] Itmust also be sufficiently stable and robust.
✓The integrator, owner and/or end user is responsible for determining the suitability of the product for
each use and its installation site, specifically defining the task to be performed within the limits set
out in thismanual and issuing the Declaration of Conformity.

ACCESSORIES HAND RAIL BRACKET - 13 -
9GUIDELINES FOR PACKAGING, TRANSPORT AND DISMANTLING
9.1 PACKAGING
Follow these instructions for packaging the hand rail bracket for changes in location or shipping
for repair and maintenance.
9.1.1 Preparatory measures
Take the hand rail bracket out of service.
Assembling the "transport safety elements" will prevent movement during transport and thus
possible damage to the installation.
9.1.2 Choice of packaging
For long transport distances, the components of the production installation must be packed in
such a way that they are protected from atmospheric conditions.
9.1.3 Inscription on the packaging
Observe the specific provisions of the country in which the equipment is transported. In fully
closed packaging, an indication must be placed on the packaging indicating where the top is.
9.1.4 Packaging procedure
Place the hand rail bracket on manufactured wooden pallets. Use lashing straps to ensure the
components are secured against possible falls. Attach all the technical documentation that
should accompany the equipment.
9.2 TRANSPORT
The following data must be taken into account for transport.
✓External dimensions depending on the segment (width x height x depth), approx.
200x620x200 mm
✓Total weight depending on the segment: 12 kg

ACCESSORIES HAND RAIL BRACKET - 14 -
9.3 DISASSEMBLY
✓The equipment must be taken out of service by duly trained and authorised personnel.
✓The equipment must be dismantled taking the safety instructions, waste disposal and
recycling into account.
✓Protect the environment. The equipment must be disposed of pursuant to current
regulations and guidelines on safety, noise prevention, environmental protection and
accident prevention.

ACCESSORIES HAND RAIL BRACKET - 15 -
10 3ARM® ROSCAMAT® COMPATIBILITY
Description
3arm® SERIES
Hand rail bracket
S1
S2
S3
S4
S6
M3/M5







X
= Compatible
X = NOT Compatible
NOTE: For use with ROSCAMAT® machines, consult your 3arm® distributor
11 ACCESSORIES COMPATIBILITY TABLE
Hand rail
bracket
EXTENSION 500
X
EXTENSION 1000
X
CARRIAGE
X
FIXED COLUMN
X
LIFT (500)
X
COLUMN 2000 D63
X
FLOOR RAIL
X
LINEAR GUIDE
X
=Compatible
X = NOT Compatible
COMPATIBILITY
✓The device was designed for use in conjunction with 3arm® products, the manufacturer
accepts no responsibility for any damage that may be caused by using the equipment for
other purposes.

ACCESSORIES HAND RAIL BRACKET - 16 -
12 SPAREPARTS
REFERENCE
DESCRIPTION
PICT.
CM107300
KIPP K0790.101508045
CL108400
NYLON GUIDE FOR HAND RAIL BRACKET
CM10610C
CAP KAPSTO 50x50x3 - 260 Q 5050 3
CL108900
MACHINE BASE FOR HAND RAIL
BRACKET
CL108700
SLIDING GUIDE TUBE FOR HAND RAIL
BRACKET
AC060426
LEVER ELESA EWN55pM10x20-C1
CL108200
PISTON ASSEMBLY FOR HAND RAIL
BRACKET
CM107200
BALL CHAIN GN 111-200-3.5-30
13 WARRANTY
See warranty attachment

ACCESSORIES HAND RAIL BRACKET - 17 -
NOTES
DATE
DESCRIPTION

DECLARATION OF INCORPORATION
In accordance with the Directive 2006/42/EC on machinery, Appendix II
B
The manufacturer:
Company:
TECNOSPIRO MACHINE TOOL, S.L.
Address:
P.l. Pla dels Vinyats I, s/n nau 1
City:
Sant Joan de Vilatorrada - 08250
Country:
Spain - EU
Declare that this product:
Designation: SUPPORT
Model: HAND RAIL BRACKET
From the serial number: 001-001 Consecutive
Confirms with Machinery Directive 2006/42/EC specifically with the following articles of Annex 1
of the directive: 1.1.2, 1.1.3, 1.1.5, 1.1.6, 1.3.1, 1.3.2, 1.3.4, 1.5.4, 1.6.1, 1.7.1, 1.7.4.
We also declare that the technical documentation of this partly completed machine has
been drawn up in accordance with the requirements in Appendix II B. This documentation
shall be released to the competent authorities of market supervision with a duly motivated
request.
It is forbidden to commission the partly completed machine while it is not assembled or
integrated, with the help of other parts, into a machine that complies with the provisions of
the European machinery directive and with the CE statement of compliance according to
Appendix II A.
Harmonised standards of reference:
Standard
Description
EN ISO 12100:2012
Machinery safety. General design principles. Risk assessment and risk
reduction.
Authorised for documentation: Mr Ramon Jou Parrot of TECNOSPIRO MACHINE TOOL,
S.L
Sant Joan de Vilatorrada, Tuesday, 12 February 2019
Ramon Jou Parrot, Technical Director
