TECPEL PHS-864 User manual

CONTENTS
Precautions For Use 1
1. Introduction 2

2. Electrical Symbols 3
3. Model 3
4. Technical Specification 3
5. Instrument Structure 6
6. Operation Method 6
7. Battery Replacement 10
8. FAQ 11
9. Assembly Details 12
10. Accessories 13

1
Precautions For Use
Thank you for purchasing the PHS-864 Phase Detecor, manufactured by Tecpel Co., Ltd. In order to better
understand the use of this product, please familiarise yourself with its functions before use and keep this user
manual for future reference.
In order to operate this product safely, the user must:
——Read this user manual in detail.
——Comply with the operating cautions in this manual.
◆Under any circumstance, shall pay special attention on safety in using this meter.
◆Pay attention to the text labeled on the panel and backplane of the meter.
◆Before usage, should confirm the insulation layer of the instrument, lead wire and clamp are not
damaged, exposure and disconnection.
◆During the test, it is absolutely forbidden to touch the exposed tested conductor.
◆Do not place and store the meter in high temperature and humidity or dewy places and under direct
sunlight for a long time.
◆If not use the meter for a long time, please take out the battery.
◆Replace the battery, please pay attention to the polarity of the battery. Do not replace the battery when
the clamp is not removed from the tested wire.
◆Due to the reason of this instrument, if it is dangerous to continue using, should stopped and sealed
immediately ,and handled by an authorized institution.
◆The meter with the alarm mark " ", users must follow instructions to operate safely.
◆The manual with the danger mark " ", users must follow instructions to operate safely.
1. Introduction
PHS-864 Phase Detecor breaks through the traditional method for phase sequence detecting. In
traditional phase sequence detection, the wiring terminal of the three-phase must be peeled off
and connected the three exposed clips or test probes of the phase sequence meter to the three
exposed live wires. However, PHS-864 adopts the clamp non-contact induction measurement, no
need to peel off the wires or contact the exposed high-voltage live wire, the phase sequence can be
detected by directly clamping on the insulation outer skin of the three-phase live wire with three

2
super inductive high insulation clamps, while audible and visual indicators signify the positive or
anti-phase state of the three-phase power phase sequence. Four piece powerful magnets are
attached to the back of the meter, which can be attached to the distribution box for use.
PHS-864 Phase Detecor has the functions of live line detection, simple power electricity detect,
break circuit searching, break point location, lines maintenance and so on.
PHS-864 Phase Detecor is quick and convenient, the display is clear and obvious, it has greatly
improved the field test security, effectively protecting the operators personal safety, while also
increasing productivity! It is a safety standard instrument for three-phase power supply phase
sequence, motor detection and line maintenance.
2. Electrical Symbols
Extremely dangerous! The operators must keep to the safety rules strictly, otherwise,
electric shock will result in death or injury.
Warning! The operators must keep to the safety rules strictly, otherwise, personal injury
or equipment damage will occur.
Double Insulation
Alternate Current（AC）
Direct Current（DC）

3
3. Model
Model
Diameter of wires can be clamped
PHS-864
ø1.6mm-ø16mm
4. Technical Specification
Function
Phase detection(positive phase, anti-phase, default phase), live line
detect, simple power electricity detect, break point location, lines
maintenance
Power Supply DC 3V AA alkaline batteries (LR6)×2PCS,continuous working for 70hours
Electricity Testing
Range
AC 70～1000V，45～65Hz (sine wave continuous input)
Available Clamp
Wire Size
Diameter: ø1.6mm-ø16mm
LED Display
[Positive phase] The phase detector lamp lights up clockwise
[Anti-phase] The phase detector lamp lights up counterclockwise
[Electricity Testing] L1, L2, L3 lamps light up in setting voltage range
[Default phase] L1 or L2, or L3 lamp will not light up
[Open circuit] L1 or L2, or L3 lamp will not light up
Buzzer
[Positive phase] the buzzer sounds intermittently
[Negative phase] the buzzer sounds continuously
Battery Check
The POWER indication lamp lights up after boot up; the LOW BATTERY
lamp lights up when low battery
Magnet
4pcs magnets are installed on the bottom plate of the meter, which can
be attached to the distribution box, load weight 800g

4
Auto Shutdown 5 minutes after booting up, the meter will automatically shutdown
Meter Dimension 70mm×75mm×30mm
Clamp Lead Length 0.6m
Meter Weight 200g
Working
Temperature
-10℃～55℃；below 80%rh
Store Temperature -20℃～60℃；below 90%rh
Max Measure
Voltage
AC 1000V
Insulation Strength 5.4kVrms
Maximum Rated
Power
300mVA
Suitable Safety
Standard
EN61010-1：2001,EN61010-031：2002,pollution grade 2,CAT Ⅲ1000V,
Transient overvoltage 6000V

5
5. Instrument Structure
1. Operate indication panel
6. L1 phase indicator lamp
11. “ON” Start Up Key
2. Test Clamps
7. L3 phase indicator lamp
12. “OFF” Shut down key
3. Clamp Lead Wire
8. Phase sequence indicator lamp (4 lamps)
13. Connecting screws
4. Instrument body
9. Low Battery voltage indication
14. Magnet (4PCS)
5. L2 phase indicator lamp
10. Power Supply indicator
15. Battery cover board
6. Operation Method
a. Phase sequence detection.

6
Danger! High voltage! Please pay attention to safety!
6.1.1 Connection: Clamping on three phase wires respectively with the three clamps (Shown in
Fig-1).
6.1.2 The detected wire at the clamp with mark “ ” (Shown in Fig-2).
Fig-1 Fig-2
6.1.3 Press the red color “ON” startup key, the power indicator lamp will light up. If the power
lamp does not light up, this will indicate either a low battery or a damaged instrument, in
which case you will need to replace the battery or send it for repair.
6.1.4 After starting up, if the four phase sequence indicators light up clockwise, and the instrument
makes intermittent short chirps, then the clamped phase line is positive phase sequence L1-
L2-L3 (U-V-W) (Figure 1). If the four phase sequence indicators light up counterclockwise,
and the instrument makes a continuous sound, then the clamped phase line is in the reverse
phase sequence L3-L2-L1. (W-V-U) (Figure 2).
6.1.5

7
6.1.6 Press white color “OFF” key to shut down, the instrument will automatically shut down after
about 5 minutes without any operation to reduce battery consumption.
b. Live wire inspection, simple electricity detection.
Danger! High voltage! Please pay attention to safety!
6.2.1 Use any clamps to clamp on the tested wire. If the conductor has electricity (within the
setting range of live line voltage, AC70 ~ 1000V), the lamp of L1/U, L2/V or L3/W will light
up.
6.2.2 Clamps and lamps corresponding sheet:
Clamp Mark
Lamp light up symbol
L1/U (Red)
L1/U lamp light up
L2/V (White)
L2/V lamp light up
L3/W (Blue)
L3/W lamp light up
c. Default phase judgment, open circuit searching, breakpoints location.
Danger! High voltage! Please pay attention to safety!
6.3.1 Use any clamp to clamp on the three-phase line separately. If it is default phase, the lamp
L1, L2 or L3 will not light up.

8
7. Battery Replacement
Pay attention to the battery polarity!
7.1. Before replacing the battery, the clamp must be removed from the tested wire. Do not
replace the battery during the test.
7.2. Press “OFF” key to shut down. (Figure A)
7.3. Loosen the screw on the back of instrument and remove the battery cover (Figure B).
7.4. Replace the new batteries, pay attention to the battery polarity and specifications (Figure C).
7.5. Close the battery cover and tighten the screws (Figure D).
7.6. Press “ON” key and check whether the instrument can be started normally. If it cannot be
started, please check whether the battery power is enough or operate again according to

9
step 3.
8. FAQ
Fault Phenomenon
Possible Causes
Solution
Cannot power unit
(LED power indicator
does not light up,
without any display)
Without batteries
Install batteries
Wrong battery type
Replace with right type
Low battery power
Replace the new batteries
Faulty battery polarity
Install batteries in correct polarity
Poor contact of battery
contacts
Replace the battery contacts
Battery cover not secured
Make sure cover is correctly inserted and
tighten screws
Defect of circuit
component
Repair or replace the PCB
LED dim display
Low battery power
Replace batteries
Incapable of
measurement
Failed to clamp the wire
Clamp again refer to user manual
Lead wire break
Change the lead wire

10
Defect of circuit
component
Repair or replace the PCB

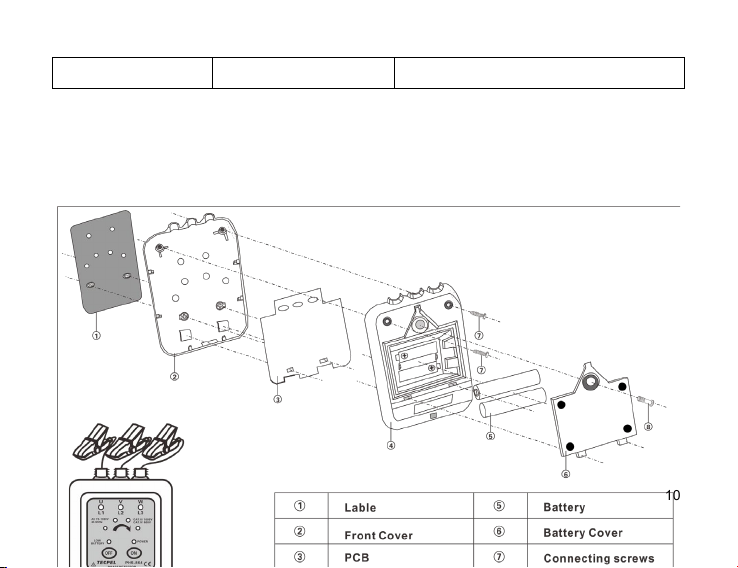

9. Assembly Details

11
10. Accessories
Instrument 1 PCS
Carry Box 1 PCS
Instrument Bag 1 PCS
Manual 1 PCS

12
Tecpel Co., Ltd.
3F., No.12, Lane. 130, MinQuan Road., XinDian Dist.,
New Taipei City 23141, TAIWANP
TEL: [phone]
The company is not responsible for loss or damage caused by use.
The contents of this user manual cannot be used as a reason to use the product for special purposes.
The company reserves the right to modify the contents of the user manual. If there are any changes,
no further notice will be given.
