1. Overview
Ion 280F is a beam moving head wered by the famous Os-
ram Sirius® HRI 280W lamp. Thanks to its advanced optical
system, this moving head achieves a razor-edge 1.3º beam
angle, defining notoriously its beam. With a luminous flux
of 170.000 Lux @ 32 . the fixture easily stands out on larg-
er-scale stages and in the most demanding applications.
Ion 280F sports 14 dichroic filters + open, 14 static & index-
able gobos, frost filter and an 8-facet rotating prism. Last
but not least - thanks to its 3 phase motor - Ion 280F is ca-
pable of extremely fast & precise movements.
Specifications
Source & Optic
• Light Source: Osram Sirius® HRI 280W
• Lamp life: 2,000 hours
• Beam angle: 1.3°
Photometric Data
• Luminous Flux: 11,165 lumen
• Flux: - 170,000 Lux @ 10m (32 .)
• - 74,000 Lux @ 15m (49 .)
• - 43,000 Lux @ 20m (65 .)
Eects & Functions
• Color wheel: 14 interchangeable dichroic filters +
open, and bidirectional rainbow eect
• Color bounce
• Static gobo wheel: 14 static gobos + open
• Gobo diameter: Outside 13.8 mm., Inside 6 mm.
• Gobo shaking
• 8-facet rotating prism
• Frost Filter
• Motorized focus
• Dimmer: Full range 0-100%
• Strobe eect
Control
• DMX channels: 11/13
• RDM function
• Indicate temperature info of base, arm and lamp
• Back-up communicating IC
• Soware upgrade via DMX
• Fan speed auto-adjust according to temperature
Movement
• Pan: 630° / 540°
• Tilt: 265°
• 3 phase motor
• 16-bit resolution
• Auto repositioning
Electrical
• Input voltage range: 100–240V, 50-60Hz
• Power supply: Electronic auto-ranging
• Power consumption: 420W
Physical
• DMX connectors: 2 XLR connectors(XLR-3InandOut)
• Power supply connectors: PowerCON® In
• COG 2 inches display
• Dimensions: 343x250x501 mm. / 13.5x9.8x19.7 in.
• Weight: 15 Kg. / 33 Lbs.
ENGLISH VERSION

ION 280F
P.
3
2. Introduction
Before unpack the fixture, please make sure that
the packing is in good condition to use it.
The following items will be found in the box:
- The fixture
- This users guide
- 1.5m power cable with powercon
- Bracket with nuts for handing installation
- Safety chain
ENGLISH VERSION

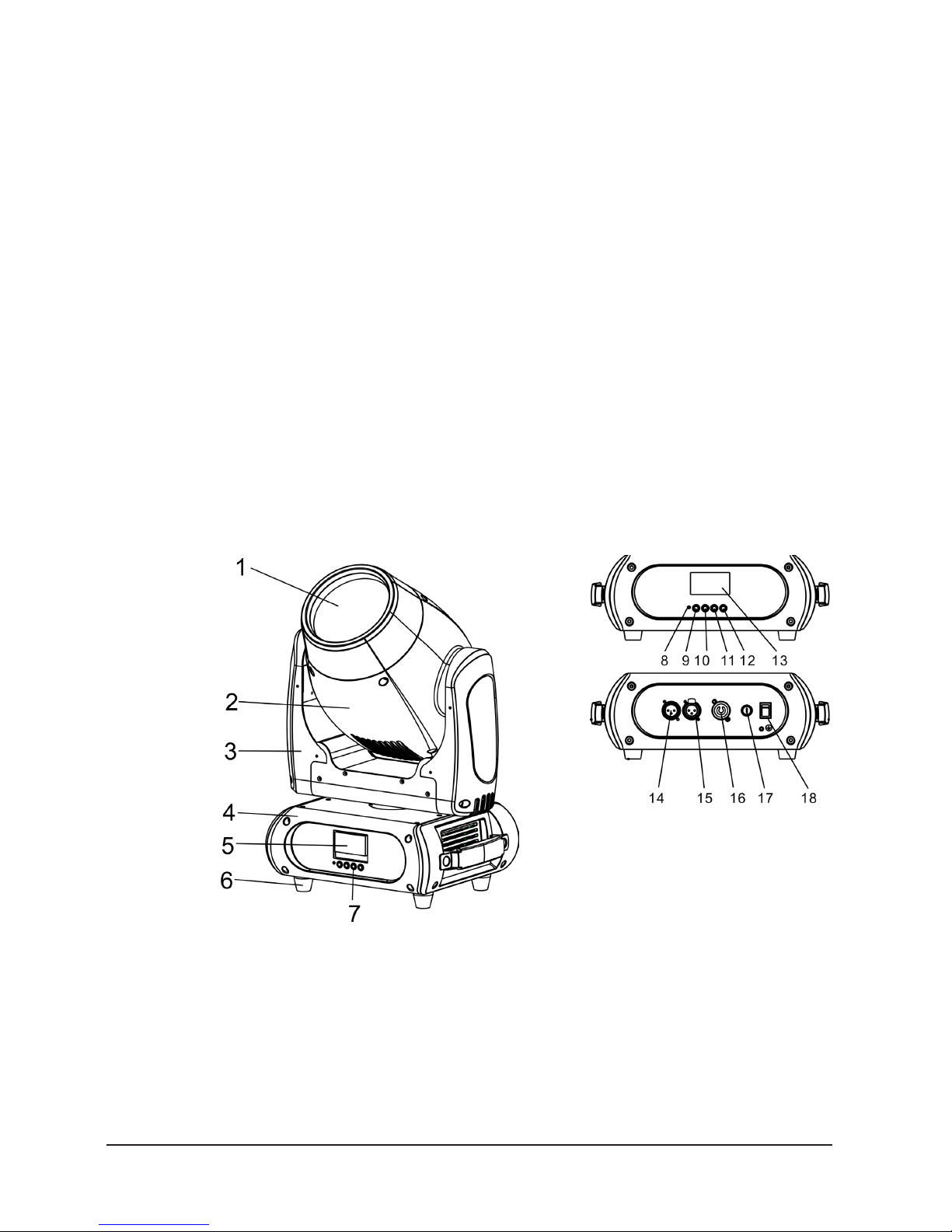

Description of the device

9. Mode/Esc
10. Down button
11. Up button
12. Enter button
13. Display
PROJECT LENS
HEAD
ARM
BASE
DISPLAY
FOOT STAND
OPERATION BUTTON

14. 3-pin DMX in
15. 3-pin DMX out
16. Powercon in
17. Fuse holder
18.Power switch

ION 280F
P.
4
ENGLISH VERSION
Colors and Gobos
Red
Orange
Yellow
Blue Green
Amber
Light Blue
Green
UV
Light red
Magenta
Dark Green
Dark Yellow
Blue
OPEN

ION 280F
P.
5
ENGLISH VERSION

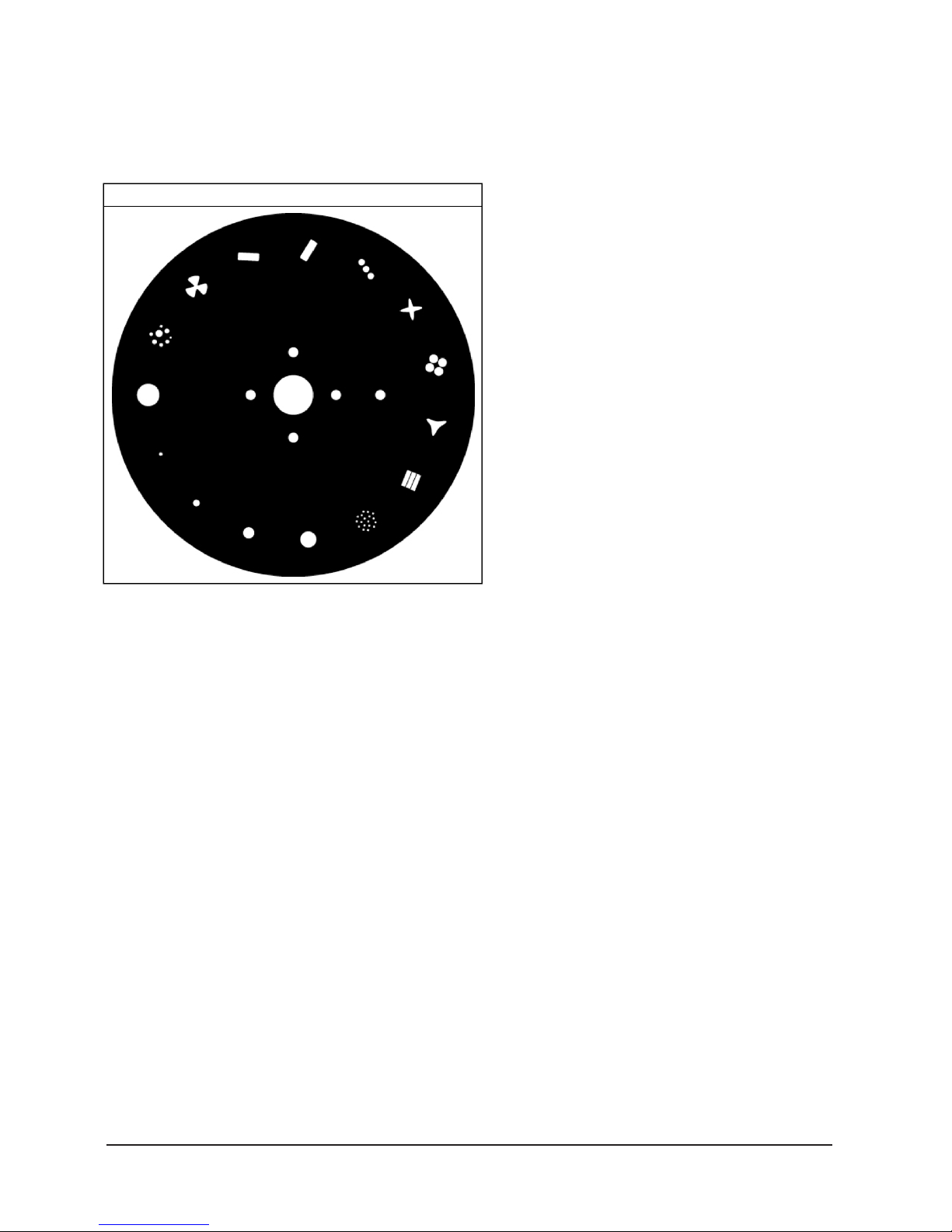

STATIC GOBO WHEEL

ION 280F
P.
6
ENGLISH VERSION
3. Safety and maintenance
Information
• Before operate this unit, please carefully read
this users guide and keep if needed in future. It’s
necessary to respect following rules.
• The disposal of the device aer lifecycle could
damage the environment, need to take it to spe-
cial company for recycling or return to authorized dealer.
• The products referred to in this manual conform
to the European Community Directives and are
therefore marked with CE logo.
• Keep this device away from children and unau-
thorized users, the manufacturer will not take re-
sponsibility for the damage due to any disregard
of the information provided in this manual and
wrong operation.
• Before operate the device, pls make sure the fix-
ture is in good housing, ensure pan and tilt can
rotate in its complete range.
• Make sure minimal 0.5m distance need to kept
between the fixture to any flammable material
• The device can only run with 100-240v voltage,
50/60Hz power, don’t connect to any other
wrong power. Disconnect the device from main
power before open the shield or maintenance.
• The device is designed only for indoor usage, pls
keep it away from moisture. Do not expose the
device under the sun or directly to any other
lighting source.
• Never look directly into the projecting lens when
the fixture is power on, the light may trigger epi-
leptic seizures in photosensitive persons or per-
sons with epilepsy. Especially at beam eect, ex-

ION 280F
P.
7
ENGLISH VERSION
treme caution and observance of these safety in-
structions is mandatory.
• Don’t put or install the device on a surface that
subject to vibration or bumps.
• The device is supposed to work in the temperate
range -15° C and +45° C, do not use the device
when the temperate exceed this range.
• The lens, shield need to be replaced when obvi-
ously broken, never use the device when the
shield is not completed closed.
• Safety I class device, need to be earth connected.
• When the fixture is hanged overhead, the safety
rope must be fixed to the bottom of the device to
the appropriate fixing point.
• Always carry the device by the handles, do not
take the head or arm directly for transportation.
Maintenance
Operation only allowed to qualified person, damages due
to unprofessional operation or remove of any parts inside
will not be considered in warranty service. There are no
serviceable parts inside the device or package, service
only leaves to authorized dealers.
• Never allow the optical components contact with
oil, fat or any other liquid.
• A regular clearance of the device is needed for
long-term usage, this is very helpful to maintain
the lifetime and brightness need to use a so and
lint-free cloth to clean the optical system, fan and
air flowing tunnel.

ION 280F
P.
8
ENGLISH VERSION
TROUBLESHOOTING
PROBLEMS POSSIBLE REASONS CHECKING OR SOLUTIONS
Device not power up Powercon or power cable damaged
Faulty power supply
Change a good power cable to try
Replace new power supply
Pan/Tilt error or vibrate Faulty Pan/Tilt PCB
Faulty opto sensor
Cable loosen
Replace PT001 PCB
Replace opto sensor OP001
Check the cable connect to OP001
Lamp o Temperature protection
Fan not working
Faulty Lamp
Dimmer and strobe set at 0
Faulty power supply
Check the temperature from menu
Check the fan speed info from menu
Replace new Lamp
Set dimmer and strobe channel at
255
Replace new power supply
Device not response to DMX Faulty communication IC
Faulty display PCB
Wrong DMX addressing
Faulty DMX cable
Replace the IC with back-up one in
the display PCB
Replace new display PCB
Check the address and setting
Change to a good DMX cable
Replacement of the fuse
Need to replace with same type and rating, which original-
ly installed in the device.
Step One: Unplug power cable from main power.
Step Two: Unscrew the fuse holder out of the housing with
a screwdriver.
Step Three: Remove the broken fuse and replace with an
exact same type of new fuse.
Step Four: Insert the fuse holder back to the housing and
screw tight and reconnect power

ION 280F
P.
9
ENGLISH VERSION
4. Installation
The device could be either put on a solid and even Surface,
or mounted upside down or sideways like le picture.
The mounting place must be suicient stable and be able
to support a weight of 10 times of the unit’s weight. When
the fixture is hanged, always additionally secure the device
with the safety chain, fasten the safety rope at a suitable po-
sition so that the maximum fall of the projector will be 20 cm

How to do mounting installation



Step one: Installation the clamp onto the bracket;
Step two: Install the clamp and bracket on the bottom of
panel, fasten the quick-locks;
Step three: Install the whole device onto appropriate
truss and fasten the clamps, tight the safety rope with the
truss or other fixing point at a suitable position that drop
down distance not exceed 20 cm.

ION 280F
P.
10
ENGLISH VERSION
Default setting shadowed. Mark with 1 can be basic reloaded, 2 be program reloaded, 3 can be private reloaded.
Connect DMX Addr xxx DMX address setting
Slave Rece Choose Slave mode
Sequence Alon/Mast Choose Sequence mode
Music Alon/Mast Choose Sound mode
Light Max Temp 80~130, 90 Lamp o if temperature con-
tinuously over for 5 minutes
Lamp Adjust CHxx=XXX….. Adjust value of each channels
Information Lamp Temp XXXC Temperature of driver
Set Reset Reset
Movement RPan
RTilt
Degr
Enco
Mode
ON/OFF
ON/OFF
630/540
ON/OFF
Mod1/Mod2
Reset
Pan Reverse
Tilt Reverse
Choose Pan Degree
Encoder wheel on/o
Choose pan/tilt mode
UI Set Mic
Sign
Fan
Hibe
Back
Flip
User
0~99%,60%
Close/Hold/Auto/
Music
Auto Speed /High
Speed
OFF, 01M~99M，15M
02~60m 02m
ON/OFF
Use1/Use2
Sensitivity of Mic
Mode when no signal
Fans mode
Sleeping mode
Show backlight time
Display 180°reverse
Users mode
Calibration Code
CHxx
XXX
XXX
Password: 050
Calibrate channel value
Fixture ID Rdm Name
-Password-
PID Code
Name
Password: 050
Set PID of RDM
Soware V IC Version
Reload Default Basic Reload
---Password---
All Reload
ON/OFF
XXX
ON/OFF
Basic Reload
Password: 050
All Reload
Control Menu

ION 280F
P.
11
ENGLISH VERSION
5. DMX connection and
DMX protocol
DMX addressing:
The device is controlled by universal DMX 512 protocol,
DMX address is the start channel used to receive instruc-
tions from the external controller. For independent con-
trol, each fixture must be assigned its unique address con-
trol channels. For example, this device has four channel
modes: 11/13, if we set the mode at standard 13 channels
mode, and there are several models need to be inde-
pendently controlled, we just simply address first fixture
at 1, and second fixture at 12, third one at 23, etc.
If the devices have the same address, they will behave syn-
chronically.
DMX addressing is limited, don’t set the address so high
that without enough control channels for the fixtures.
Display is flashing when no DMX signal is received.



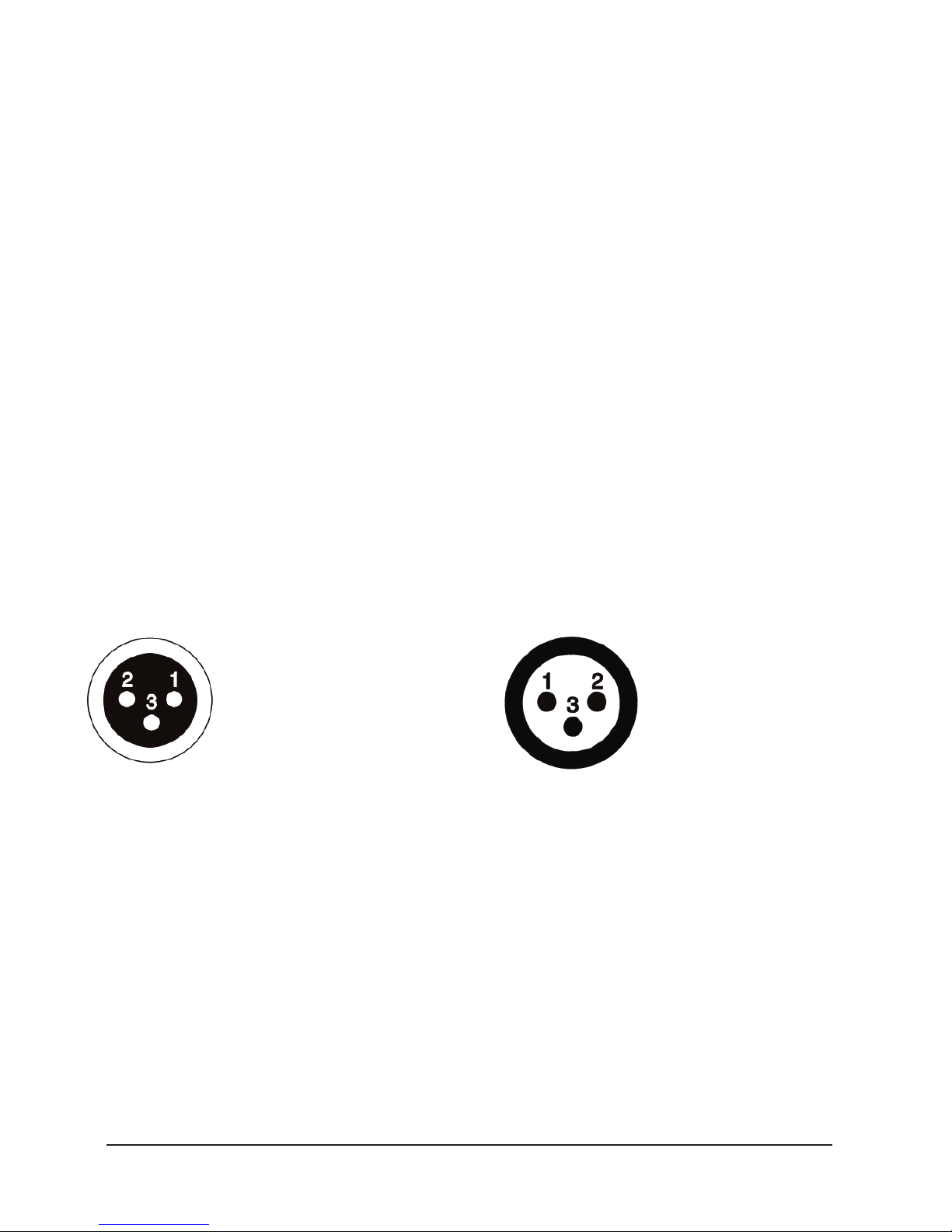

OUTPUT INPUT
Pin 1:GND
Pin 2: Signal (-)
Pin 3: Signal(+)
This device is equipped with 3-pins DMX in and out sockets only.

ION 280F
P.
12
The termination is prepared by soldering a 120Ω resistor
between pins 2 and 3.
Connection: us DMX cable with 3-pin XLR-plugs to connect
the controller with the fixture or one fixture with another.

ENGLISH VERSION

ION 280F
P.
13
DMX Chart
Channel Name Function Min DMX Max DMX
1 1 Pan Pan Coarse 0 255
2 Pan fine Pan Fine 0 255
2 3 Tilt Tilt Coarse 0 255
4 Tilt fine Tilt Fine 0 255
3 5 Movment Speed fastest to Slowest 0 247
248 255
4 6 Shutter Shutter closed 0 31
No function (shutter open) 32 63
Strobe eect slow to fast 64 95
No function (shutter open) 96 127
Pulse-eect in sequences 128 159
No function (shutter open) 160 191
Random strobe eect slow to fast 192 223
No function (shutter open) 224 255
5 7 Dimmer Dimmer(Close to Open) 0 255
6 8 Color Indexed
Position 1 (Open) 0 1
Position 2 2 3
Position 3 4 5
Position 4 6 7
Position 5 8 9
Position 6 10 11
Position 7 12 13
Position 8 14 15
Position 9 16 17
Position 10 18 19
Position 11 20 21
Position 12 22 23
Position 13 24 25
ENGLISH VERSION

ION 280F
P.
14
6 8 Color Position 14 26 27
Indexed With Backout
Position 1 (Open) 28 29
Position 2 30 31
Position 3 32 33
Position 4 34 35
Position 5 36 37
Position 6 38 39
Position 7 40 41
Position 8 42 43
Position 9 44 45
Position 10 46 47
Position 11 48 49
Position 12 50 51
Position 13 52 53
Position 14 54 55
Indexed With Bounce
Position 1 56 67
Position 2 68 79
Position 3 80 91
Position 4 92 103
Position 5 104 115
Position 6 116 127
Position 7 128 139
Position 8 140 151
Position 9 152 163
Position 10 164 175
Position 11 176 187
Position 12 188 199
Position 13 200 211
Position 14 212 223
Forward Wheel Spin
Stop to fastest 224 239
Reverse Wheel Spin
Stop to fastest 240 255
7 9 Gobo Indexed
Position 1 (Open) 0 2
Position 2
ENGLISH VERSION

ION 280F
P.
15
7 9 Gobo Position 3
Position 4
Position 5
Position 6
Position 7
Position 8
Position 9
Position 10
Position 11
Position 12
Position 13
Position 14
Position 15 3 46
Indexed With Backout
Position 1 (Open) 47 49
Position 2 50 52
Position 3 53 55
Position 4 56 58
Position 5 59 61
Position 6 62 64
Position 7 65 67
Position 8 68 70
Position 9 71 73
Position 10 74 76
Position 11 77 79
Position 12 80 82
Position 13 83 85
Position 14 86 88
Position 15 89 93
Indexed With Shake
Position 3 94 103
Position 4 104 113
Position 5 114 123
Position 6 124 133
Position 7 134 143
Position 8 144 153
Position 9 154 163
Position 10 164 173
Position 11 174 183
Position 12 184 193
Position 13 194 203
Position 14 204 213
ENGLISH VERSION

ION 280F
P.
16
7 9 Gobo Position 15 214 223
Forward Wheel Spin
Stop to fastest 224 239
Reverse Wheel Spin
Stop to fastest 240 255
8 10 Prism Indexed & Indexed With Backout
Position 1 (Open) 0 63
Position 2 64 127
Frost 0->100% 128 255
9 11 Prism Rot Forward Spin
Stop to fastest 0 127
Reverse Spin
Stop to fastest 128 255
10 12 Focus Continuous
Focus In to Focus Out 0 255
11 13 Control Normal 0 7
Reset All 8 15
Pan&Tilt Reset 16 23
Color Reset 24 31
Gobo Reset 32 39
Shutter Reset 40 47
Other Reset 48 55
Display O 56 63
Display On 64 71
Lamp O 72 79
Lamp On 80 87
Hibernation 88 95
TBD 96 255
ENGLISH VERSION

ION 280F
P.
17
6. Unique Features
• Soware upgrade function via DMX cable, if there
is any new firmware for this device come out, it
can be upgraded simply via a soware upgrade
box, no need to change any mechanical parts. The
upgradeboxis notincluded in the package,if need any
further assistance pls just contact authorized dealers.
• Hibernation, the device will enter sleeping mode
if activated aer a period of disconnecting DMX sig-
nal to save the power consumption, and will return
immediately as soon as the DMX signal is sent again.
• Display back-up communication IC, there is a
back-up communication IC installed in the dis
play PCB, so users could replace at once if the
working oneisbroken,noneedtowaitlongtimefromservice.
• Display flip, by press up and down button for
more than 3 seconds, the display will flip auto-
matically, this function is useful to read menu
conveniently when device is hanged.
7. Dimensions Drawing

ENGLISH VERSION

ION 280F
P.
18
VERSION ESPAÑOL
1. Descripción
Ion 280F es un cabezal móvil tipo beam que cuenta con
la potente lámpara Osram Sirius® HRI de 280W. Con un
sistema óptico avanzado, el equipo logra un haz de 1,3º,
concentrando gran potencia y definiendo su haz notable-
mente. Con un flujo luminoso de 170.000 Lux a 10 metros,
el equipo logra destacarse fácilmente en los escenarios de
más larga escala o en las aplicaciones más demandantes.
Ion 280F, por otra parte, cuenta con 14 filtros dicroicos,
14 gobos estáticos, prisma de 8 facetas, filtro frost y foco
motorizado. Por último, gracias a su diseño compacto y
su motor de 3 fases, el cabezal logra una velocidad y pre-
cisión de movimientos muy destacable para un equipo de
su potencia.
Especificaciones
Fuente & Optica
• Fuente de luz: Osram Sirius® HRI 280W
• Vida Lámpara: 2.000 horas
• Ángulo de haz: 1,3°
Información Fotométrica
• Flujo luminoso: 11.165 lumen
• Flux: - 170.000 Lux @ 10m
• - 74.000 Lux @ 15m
• - 43.000 Lux @ 20m
Efectos y Funciones
• Ruedadecolor:14fitrosdicroicosintercambiables+
abierto & efecto de arcoíris bidireccional
• Rebote de color
• Rueda de gobo estática: 14 gobos estáticos + abierto
• Diámetro de gobo: por fuera 13.8 mm, por dentro 6 mm.
• Gobo shaking
• Prisma rotativo de 8 caras
• Filtro frost
• Foco motorizado
• Dimmer: Rango completo 0-100%
• Efecto estrobo
Control
• Canales DMX: 11/13
• Función RDM
• Indica temperatura de base, brazo & lámpara
• IC de comunicación de respaldo
• Actualización del soware vía DMX
• Velocidad de refrigeración ajustable de acuer
do a la temperatura
Movimiento
• Pan: 630° / 540°
• Tilt: 265°
• Motor de 3 fases
• Resolución de 16-bit
• Reposicionamiento automático
Eléctrico
• Rango de voltaje de entrada: 100–240V, 50-60Hz
• Alimentación: Rango automático
• Consumo de potencia: 420W
Físico
• Conectores DMX: 2 conectores XLR (XLR-3 de
entrada & salida)
• Conectores de alimentación PowerCON® de Entrada
• Display COG de 2 pulg.
• Dimensiones: 343x250x501 mm. / 13,5x9,8x19,7 pulg.
• Peso: 15 Kg. / 33 Lbs.

ION 280F
P.
19
VERSION ESPAÑOL
2. Introducción
Antes de desempacar el producto, asegurarse
que el packaging esté en buenas condiciones.
Los siguientes items los encontrarás dentro.
- El producto
- Manual
- Cable de 1.5
- Cadena de Seguridad
Descripción del Producto

8. Micrófono
9. Tecla Mode/Esc
10. Tecla de desplazamiento hacia abajo
11. Tecla de desplazamiento hacia arriba
12. Tecla Enter
13. Pantalla
LENTE
CABEZAL
BRAZO
BASE
PANTALLA
SOPORTE
TECLAS DE OPERACIÓN

14. Entrada DMX de 3 pines
15. Salida DMX de 3 pines
16. Conector Powercon de entrada
17. Fusible
18.Interruptor

ION 280F
P.
20
VERSION ESPAÑOL
Colores Y Gobos
Rojo
Naranja
Amarillo
Azul Verdoso
Ámbar
Celeste
Verde
UV
Rojo claro
Magenta
Verde Oscuro
Amarillo Oscuro
Azul
ABRIR
